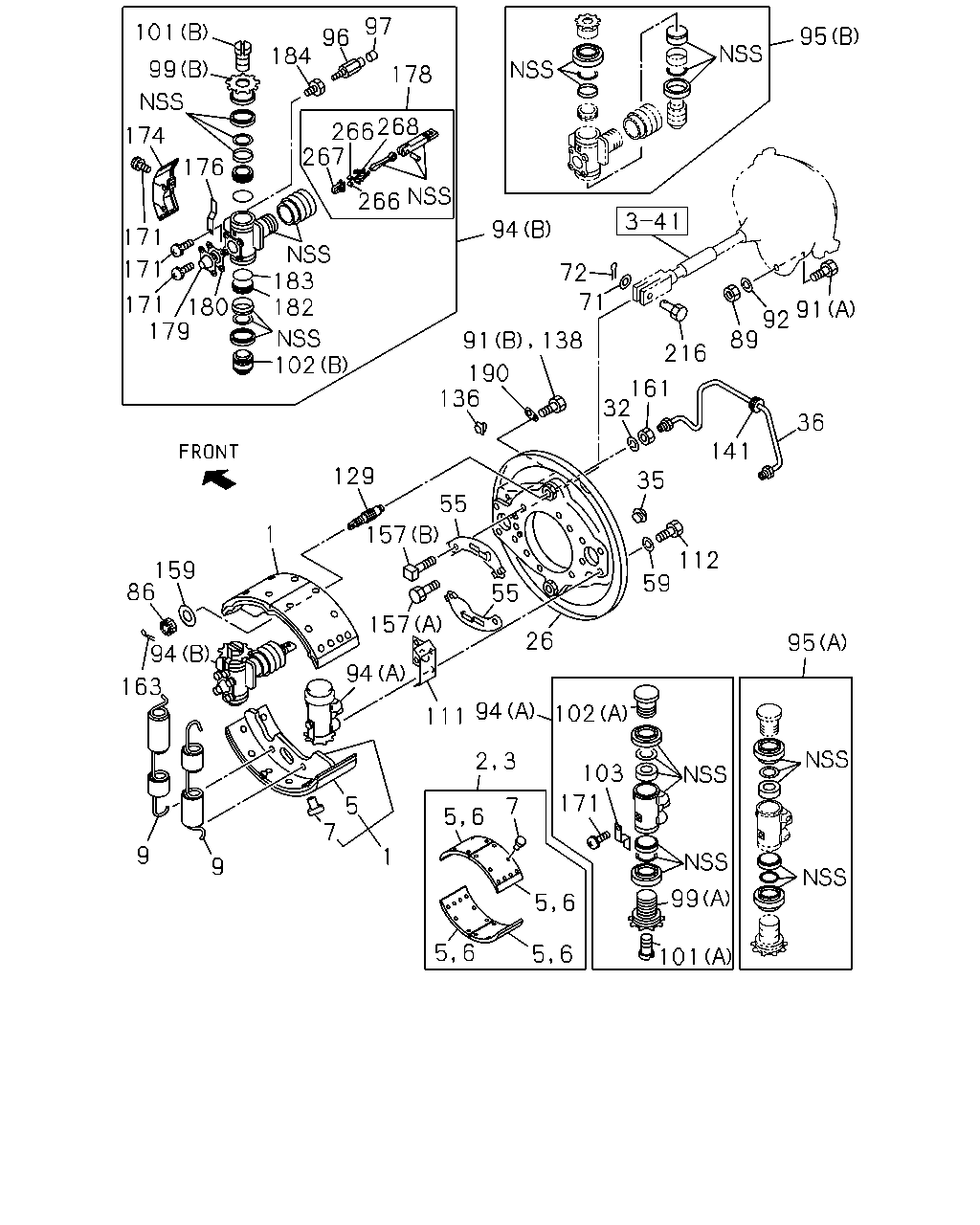

1 |
SHOE; BRK,RR
|
1-47120-627-0 |
04 |
1 |
0107- |
| |
2 |
LINING SET; RR BRK,STANDARD
|
1-88311-200-0 |
02 |
1 |
0107- |
| |
3 |
LINING SET; RR BRK,OVER SIZE
|
1-88311-201-0 |
02 |
1 |
0107- |
| |
5 |
LINING; RR BRK SHOE,STANDARD
|
1-47125-803-0 |
08 |
1 |
0107- |
| |
6 |
LINING; RR BRK SHOE,OVER SIZE
|
1-47125-804-0 |
08 |
1 |
0107- |
| |
7 |
RIVET; LINING,RR BRK
L=11.5
|
1-09732-015-0 |
96 |
1 |
0107- |
| |
9 |
SPRING; RETURN,BRK SHOE
|
1-09583-275-0 |
04 |
1 |
0107- |
| |
26 |
PLATE; BACK,RR BRK
|
1-47150-481-0 |
01 |
1 |
0107- |
| |
26 |
PLATE; BACK,RR BRK
|
1-47150-480-0 |
01 |
1 |
0107- |
| |
32 |
WASHER; LK
|
1-47159-110-0 |
04 |
1 |
0107- |
| |
35 |
GROMMET; CHECK HOLE
|
1-09333-139-0 |
04 |
1 |
0107- |
| |
36 |
PIPE; OIL,RR BRK
|
1-47423-416-0 |
01 |
1 |
0107- |
| |
36 |
PIPE; OIL,RR BRK
|
1-47423-415-0 |
01 |
1 |
0107- |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47139-038-0 |
02 |
1 |
0107- |
| |
55 |
PLATE; LK,RR WHEEL CYL
|
1-47139-037-0 |
02 |
1 |
0107- |
| |
59 |
WASHER; LK,RR WHEEL CYL
ID=12.2
|
9-09150-612-0 |
14 |
1 |
0107-0603 |
| |
59 |
WASHER; LK,RR WHEEL CYL
ID=12.2
|
0-91510-612-0 |
14 |
1 |
0604- |
| |
71 |
WASHER; PL,JAW JOINT
ID=10.5 OD=18
|
9-09160-510-0 |
02 |
1 |
0107-0605 |
| |
71 |
WASHER; PL,JAW JOINT
ID=10.5
|
0-91610-510-0 |
02 |
1 |
0606- |
| |
72 |
PIN; SPLIT
OD=2.8 L=18
|
9-08113-018-0 |
02 |
1 |
0107-0606 |
| |
72 |
PIN; SPLIT
OD=2.8 L=18
|
0-81123-018-0 |
02 |
1 |
0607- |
| |
86 |
NUT; FLANGE
|
1-09440-038-0 |
04 |
1 |
0107- |
| |
89 |
NUT; CHAMBER
M12
|
9-99110-512-0 |
04 |
1 |
0107-0512 |
| |
89 |
NUT; CHAMBER
M12
|
0-91110-512-0 |
04 |
1 |
0601- |
| |
91 |
BOLT; CHAMBER
(A)
M12X30
|
0-20801-230-0 |
04 |
1 |
0107- |
| |
91 |
BOLT; CHAMBER
(B)
M5X10 W/LK WASHER
|
9-03910-510-0 |
02 |
1 |
0107-0604 |
| |
91 |
BOLT; CHAMBER
(B)
M5X10 W/LK WASHER
|
0-36220-510-0 |
02 |
1 |
0605- |
| |
92 |
WASHER; LK,CHAMBER
ID=12.2
|
9-09150-612-0 |
04 |
1 |
0107-0603 |
| |
92 |
WASHER; LK,CHAMBER
ID=12.2
|
0-91510-612-0 |
04 |
1 |
0604- |
| |
94 |
CYLINDER; WHEEL,RR BRK
(A) BACKWARD
|
1-47600-664-2 |
01 |
1 |
0107- |
| |
94 |
CYLINDER; WHEEL,RR BRK
(B) FORWARD
|
1-47600-719-3 |
01 |
1 |
0107- |
| |
94 |
CYLINDER; WHEEL,RR BRK
(A) BACKWARD
|
1-47600-662-2 |
01 |
1 |
0107- |
| |
94 |
CYLINDER; WHEEL,RR BRK
(B) FORWARD
|
1-47600-718-3 |
01 |
1 |
0107- |
| |
95 |
CUP SET; RR WHEEL CYL
(A) BACKWARD
|
1-87830-562-0 |
02 |
1 |
0107- |
| |
95 |
CUP SET; RR WHEEL CYL
(B) FORWARD
|
1-87830-645-0 |
02 |
1 |
0107- |
| |
96 |
SCREW; BLEEDER,RR BRK
|
1-47615-018-1 |
02 |
1 |
0107- |
| |
97 |
CAP; BLEEDER,RR WHEEL CYL
OD=9.5
|
9-47619-005-0 |
02 |
1 |
0107- |
| |
99 |
PISTON; RR WHEEL CYL
(A) BACKWARD
|
1-47624-247-0 |
01 |
1 |
0107- |
| |
99 |
PISTON; RR WHEEL CYL
(B) FORWARD
|
1-47624-264-1 |
01 |
1 |
0107- |
| |
99 |
PISTON; RR WHEEL CYL
(A) BACKWARD
|
1-47624-246-0 |
01 |
1 |
0107- |
| |
99 |
PISTON; RR WHEEL CYL
(B) FORWARD
|
1-47624-263-1 |
01 |
1 |
0107- |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
(A) BACKWARD
|
1-47622-037-0 |
01 |
1 |
0107- |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
(B) FORWARD
|
1-47622-047-0 |
01 |
1 |
0107- |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
(A) BACKWARD
|
1-47622-035-0 |
01 |
1 |
0107- |
| |
101 |
SCREW; ADJ,RR WHEEL CYL
(B) FORWARD
|
1-47622-046-0 |
01 |
1 |
0107- |
| |
102 |
PISTON; REAR WHEEL CYL
(B) FORWARD
|
1-47624-248-0 |
02 |
1 |
0107- |
| |
102 |
PISTON; REAR WHEEL CYL
(A) BACKWARD
|
1-47624-265-1 |
02 |
1 |
0107- |
| |
103 |
SPRING; LK,RR WHEEL CYL,ADJ
|
1-47629-078-0 |
02 |
1 |
0107- |
| |
111 |
COVER; WHEEL CYL
|
1-47159-107-0 |
02 |
1 |
0107- |
| |
112 |
BOLT; WHEEL CYL SETTING
|
1-47159-112-0 |
14 |
1 |
0107- |
| |
129 |
PIN; SHOE HOLD
|
1-47162-019-1 |
04 |
1 |
0107-0909 |
| |
129 |
PIN; SHOE HOLD
|
1-47162-044-0 |
04 |
1 |
0910- |
| |
136 |
GROMMET
|
1-09333-138-0 |
04 |
1 |
0107- |
| |
138 |
SCREW; LOCK PLATE
M5X10 W/LK WASHER
|
9-03910-510-0 |
02 |
1 |
0107-0604 |
| |
138 |
SCREW; LOCK PLATE
M5X10 W/LK WASHER
|
0-36220-510-0 |
02 |
1 |
0605- |
| |
141 |
PROTECTOR; RR BRK PIPE
ID=5 OD=18 T=8
|
1-09332-063-0 |
02 |
1 |
0107- |
| |
157 |
BOLT; RR BRK SET
(A)
M14X47
|
1-47159-113-0 |
04 |
1 |
0107- |
| |
157 |
BOLT; RR BRK SET
(B)
M14X47 4 SQUARE HEAD
|
1-47159-114-0 |
08 |
1 |
0107- |
| |
159 |
WASHER; SHOE HOLD
|
1-47169-037-0 |
04 |
1 |
0107- |
| |
161 |
NUT; SHOE HOLD LOCK
|
1-47159-111-0 |
04 |
1 |
0107- |
| |
163 |
PIN; SPLIT,SHOE HOLD
OD=1.8 L=20
|
9-08112-020-0 |
04 |
1 |
0107-0606 |
| |
163 |
PIN; SPLIT,SHOE HOLD
OD=1.8 L=20
|
0-81122-020-0 |
04 |
1 |
0607- |
| |
171 |
BOLT; RR WHEEL CYL
|
1-47622-036-0 |
14 |
1 |
0107- |
| |
174 |
COVER; CYL,RR WHEEL CYL
|
1-47619-091-0 |
02 |
1 |
0107- |
| |
176 |
STOPPER; RR WHEEL CYL
|
1-47649-001-0 |
02 |
1 |
0107- |
| |
178 |
WEDGE; RR WHEEL CYL
|
1-47640-001-1 |
02 |
1 |
0107- |
| |
179 |
COVER; WEDGE,RR WHEEL CYL
|
1-47649-002-0 |
02 |
1 |
0107-0111 |
| |
179 |
COVER; WEDGE,RR WHEEL CYL
|
1-47649-045-0 |
02 |
1 |
0112- |
| |
180 |
GASKET; COVER,RR WHEEL CYL
|
1-47619-013-0 |
02 |
1 |
0107- |
| |
182 |
TAPPET; RR WHEEL CYL
|
1-47629-082-0 |
04 |
1 |
0107- |
| |
183 |
GASKET; TAPPET,WHEEL CYL
|
1-09623-561-0 |
02 |
1 |
0107- |
| |
184 |
CONNECTOR; RR WHEEL CYL
|
1-09660-111-1 |
04 |
1 |
0107- |
| |
190 |
PLATE; LK,CONNECTOR
|
1-47619-032-0 |
04 |
1 |
0107- |
| |
216 |
PIN; STAY FIX
|
9-08234-038-0 |
02 |
1 |
0107- |
| |
266 |
ROLLER; WEDGE
|
1-47643-003-0 |
04 |
1 |
0107- |
| |
267 |
CAGE; WEDGE
|
1-47649-004-0 |
02 |
1 |
0107- |
| |
268 |
RETAINER; WEDGE
|
1-47649-003-0 |
02 |
1 |
0107- |
