◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10662 - MT(THAI) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#3153) — 16 parça

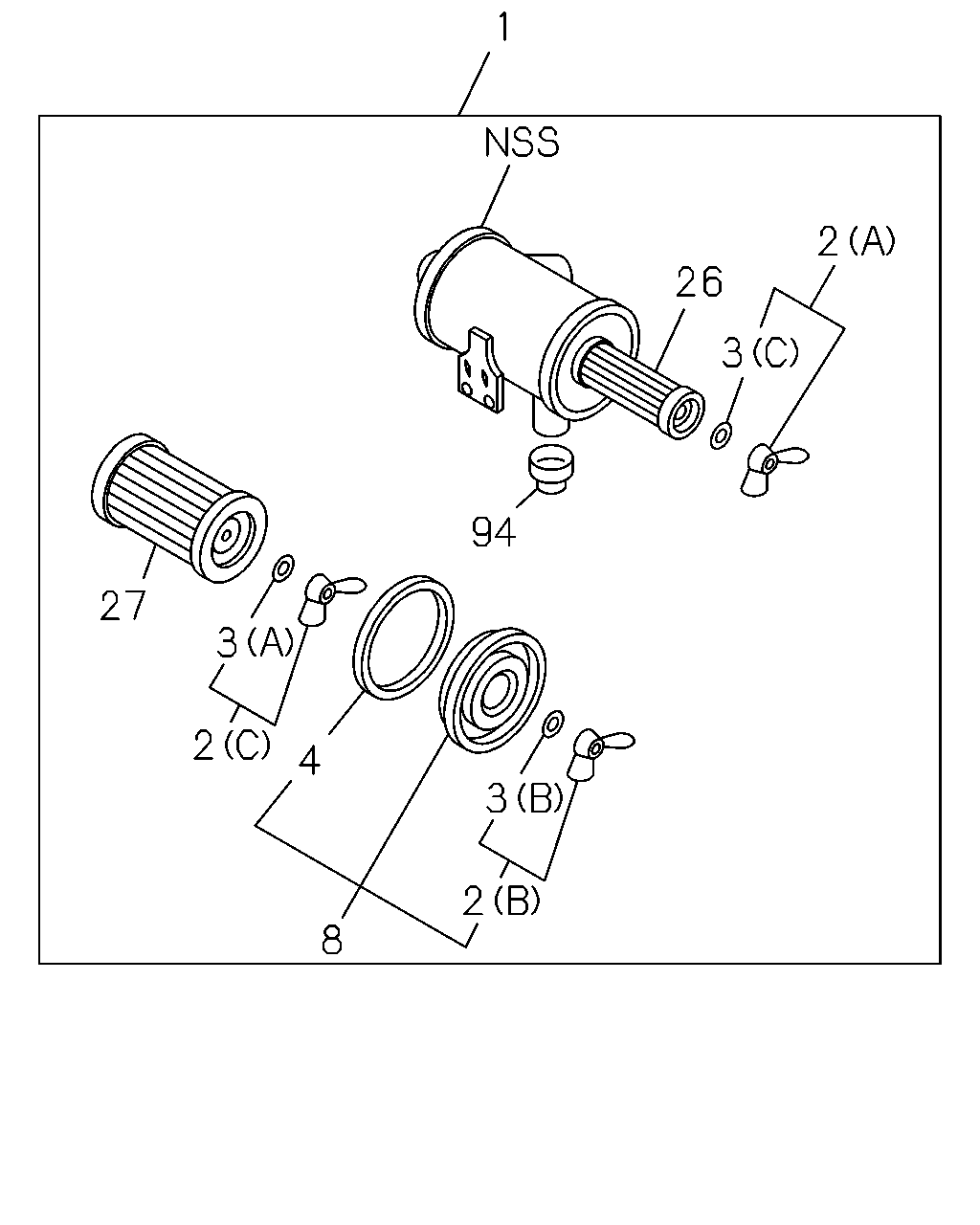

çizim 4337
1 2 26 3 94 27 3 2 4 3 2 8
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR
AIR CLEANER DRY DONALDSON 11"METAL ELEMENT(W68) 		1-14210-568-0 01 1 9104-
1 CLEANER ASM; AIR
EXC. AIR CLEANER DRY DONALDSON 11"METAL ELEMENT(W68) 		1-14210-537-1 01 1 9104-
2 NUT; WING,ELEMENT
(A) 		1-14217-036-0 01 1 9104-
2 NUT; WING,ELEMENT
(B) 		1-14217-049-0 01 1 9104-
2 NUT; WING,ELEMENT
(C) 		1-14217-050-0 01 1 9104-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 9104-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 9104-
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9104-
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9104-
8 COVER ASM; ACL 1-14212-044-0 01 1 9104-
26 FILTER; ACL,INNER
AIR CLEANER DRY DONALDSON 11"METAL ELEMENT(W68) 		1-14215-119-0 01 1 9104-
26 FILTER; ACL,INNER
EXC. AIR CLEANER DRY DONALDSON 11"METAL ELEMENT(W68) 		1-14215-145-0 01 1 9104-
27 FILTER; ACL,OUTER
AIR CLEANER DRY DONALDSON 11"METAL ELEMENT(W68) 		1-14215-120-0 01 1 9104-
27 FILTER; ACL,OUTER
EXC. AIR CLEANER DRY DONALDSON 11"METAL ELEMENT(W68) 		1-14215-171-0 01 1 9104-
94 VALVE; VACUATOR 1-14219-129-0 01 1 9104-
133 HOOD ASM; INL,ACL 1-14219-166-0 01 1 9104-
