Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#31511) — 300 parça

1 12 340 5 14 23 202 202 18 339 338 13 211 13 13 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2)	1-82110-480-0	01	1	0701-0710
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2)	1-82110-480-0	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2)	8-98097-190-0	01	1	0712-0712
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA>	8-98097-190-1	01	1	0801-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2)	1-82110-481-0	01	1	0701-0710
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2)	1-82110-481-0	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2)	8-98097-191-0	01	1	0712-0712
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA>	8-98097-191-1	01	1	0801-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-393-2	01	1	0603-0710
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-393-2	01	1	0603-0710
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-393-2	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	8-98097-196-0	01	1	0712-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-394-2	01	1	0603-0710
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-394-2	01	1	0603-0710
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-394-2	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	8-98097-197-0	01	1	0712-
1	LAMP ASM; HEAD	1-82110-455-2	01	1	0509-0602
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-455-2	01	1	0603-0612
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2)	1-82110-455-2	01	1	0701-0710
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2)	1-82110-455-2	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2)	8-98097-192-0	01	1	0712-0712
1	LAMP ASM; HEAD	1-82110-456-2	01	1	0509-0602
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-456-2	01	1	0603-0612
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2)	1-82110-456-2	01	1	0701-0710
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2)	1-82110-456-2	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2)	8-98097-193-0	01	1	0712-0712
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-175-0	01	1	0603-0710
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82119-175-0	01	1	0603-0710
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82119-175-0	01	1	0711-
4	HEADLAMP UNIT EXC. BUMPER W/HEADLAMPS<SLB>	1-82119-176-0	01	1	0603-0710
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82119-176-0	01	1	0603-0710
4	HEADLAMP UNIT HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82119-176-0	01	1	0711-
4	HEADLAMP UNIT	1-82119-212-0	01	1	0509-0602
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82119-212-0	01	1	0603-0710
4	HEADLAMP UNIT HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA>	1-82119-212-0	01	1	0711-
4	HEADLAMP UNIT	1-82119-213-0	01	1	0509-0602
4	HEADLAMP UNIT BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82119-213-0	01	1	0603-0710
4	HEADLAMP UNIT HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA>	1-82119-213-0	01	1	0711-
5	BULB; HEADLAMP 24V 75/70W	8-94405-657-0	02	1	0509-
12	HARNESS; HEADLAMP	1-82118-014-0	02	1	0509-
13	CLIP; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-82119-084-0	04	1	0603-0710
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A)	1-82119-084-0	04	1	0603-0710
13	CLIP; HEADLAMP HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A)	1-82119-084-0	04	1	0711-0711
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82119-084-0	02	1	0509-0510
13	CLIP; HEADLAMP (A)	1-82119-084-0	02	1	0511-0602
13	CLIP; HEADLAMP BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> (A)	1-82119-084-0	02	1	0603-0710
13	CLIP; HEADLAMP HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> (A)	1-82119-084-0	02	1	0711-0711
13	CLIP; HEADLAMP (A)	1-82119-084-0	02	1	0712-
13	CLIP; HEADLAMP (B)	8-94381-588-0	14	1	0509-
13	CLIP; HEADLAMP EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-82119-084-0	04	1	0509-0510
14	CAP; BULB,LAMP	1-86830-148-0	02	1	0509-
18	SCREW; GEAR CASE M4X16 TAPPING	1-82119-067-0	08	1	0509-
23	COVER; BULB,HEADLAMP	1-86830-147-0	02	1	0509-
202	GEAR UNIT; HEADLAMP	1-86830-139-0	04	1	0509-
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	0509-0711
211	TUBE; HEADLAMP (B)	8-98101-137-0	01	1	0712-
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	0509-0711
211	TUBE; HEADLAMP (B)	8-98101-138-0	01	1	0712-
211	TUBE; HEADLAMP (A)	8-97025-128-0	02	1	0509-0906
338	LEVELING; HEADLAMP	8-98010-256-0	02	1	0509-0602
338	LEVELING; HEADLAMP BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	8-98010-256-0	02	1	0603-0710
338	LEVELING; HEADLAMP HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA>	8-98010-256-0	02	1	0711-
339	GASKET; LEVELING BUMPER W/HEADLAMPS<SLB>	1-86830-158-0	02	1	0509-0510
339	GASKET; LEVELING	1-86830-158-0	02	1	0511-0602
339	GASKET; LEVELING BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-86830-158-0	02	1	0603-0710
339	GASKET; LEVELING HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA>	1-86830-158-0	02	1	0711-
340	BULB; POSITION 24V 5W	1-82194-042-0	02	1	0509-

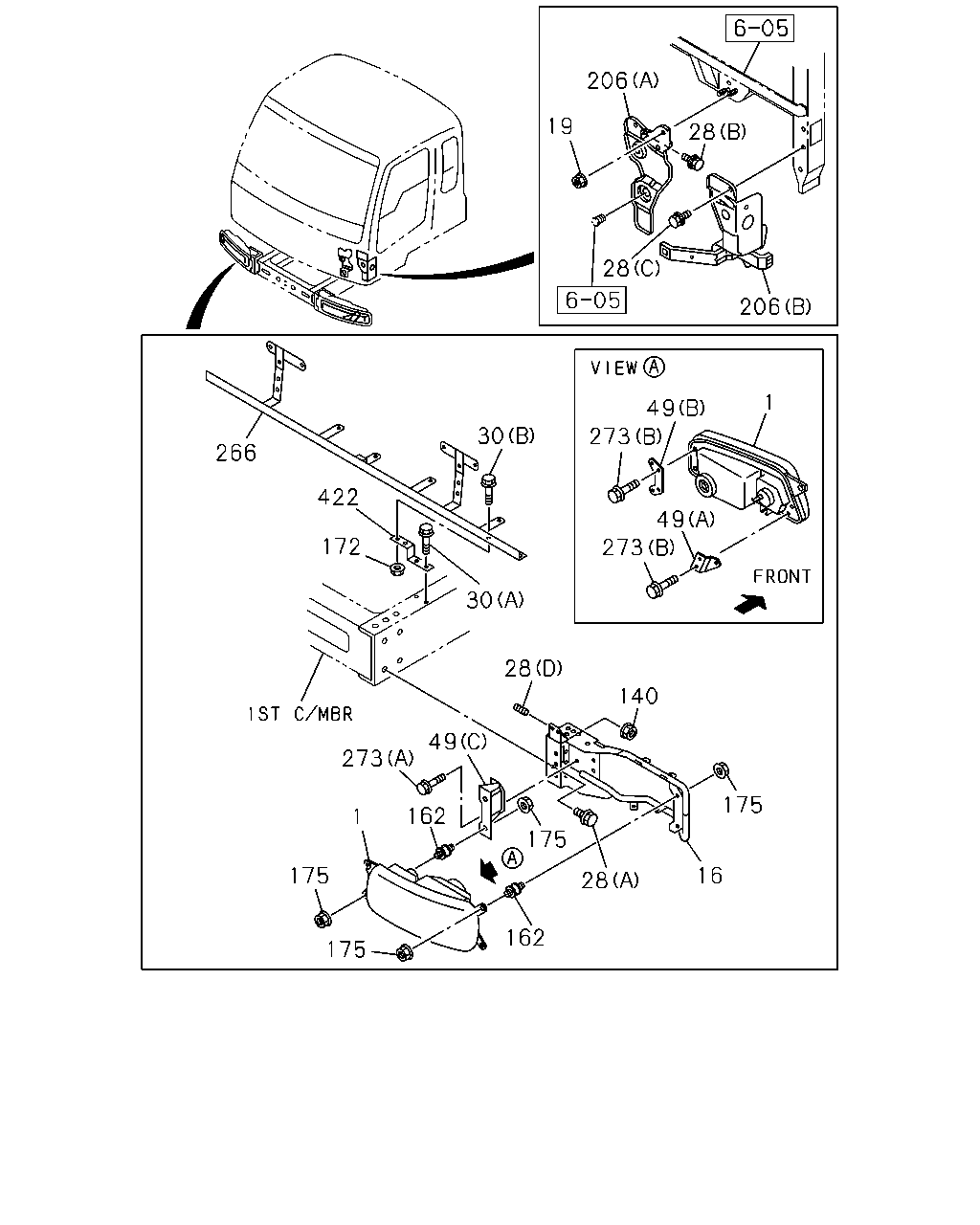

206 19 28 28 206 1 49 30 266 422 49 172 30 28 140 49 273 175 12 1 175 175 16 28 162 175 273 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2)	1-82110-480-0	01	1	0701-0710
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2)	1-82110-480-0	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2)	8-98097-190-0	01	1	0712-0712
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA>	8-98097-190-1	01	1	0801-
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> CHINA EQUIPMENT(YT2)	1-82110-481-0	01	1	0701-0710
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2)	1-82110-481-0	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2)	8-98097-191-0	01	1	0712-0712
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA>	8-98097-191-1	01	1	0801-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-393-2	01	1	0603-0710
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-393-2	01	1	0603-0710
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-393-2	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	8-98097-196-0	01	1	0712-
1	LAMP ASM; HEAD EXC. BUMPER W/HEADLAMPS<SLB>	1-82110-394-2	01	1	0603-0710
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-394-2	01	1	0603-0710
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-394-2	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS VARIANT SQUARE<TEA> EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	8-98097-197-0	01	1	0712-
1	LAMP ASM; HEAD	1-82110-455-2	01	1	0509-0602
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-455-2	01	1	0603-0612
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2)	1-82110-455-2	01	1	0701-0710
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2)	1-82110-455-2	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2)	8-98097-192-0	01	1	0712-0712
1	LAMP ASM; HEAD	1-82110-456-2	01	1	0509-0602
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS>	1-82110-456-2	01	1	0603-0612
1	LAMP ASM; HEAD BUMPER W/HEADLAMPS<SLB> HEADLAMPS LEVELING SYSTEM MANUAL<TAS> EXC. CHINA EQUIPMENT(YT2)	1-82110-456-2	01	1	0701-0710
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2)	1-82110-456-2	01	1	0711-0711
1	LAMP ASM; HEAD HEADLAMPS LEVELING SYSTEM MANUAL<TAS> HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2)	8-98097-193-0	01	1	0712-0712
12	HARNESS; HEADLAMP	1-82118-014-0	02	1	0509-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-97608-505-1	01	1	0509-0510
16	BRACKET; HEADLAMP	8-97608-505-1	01	1	0511-0602
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-97608-505-1	01	1	0603-0710
16	BRACKET; HEADLAMP	8-97608-505-1	01	1	0711-
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-97608-506-2	01	1	0509-0510
16	BRACKET; HEADLAMP	8-97608-506-2	01	1	0511-0602
16	BRACKET; HEADLAMP BUMPER W/HEADLAMPS<SLB>	8-97608-506-2	01	1	0603-0710
16	BRACKET; HEADLAMP	8-97608-506-2	01	1	0711-
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0509-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10X30 FLANGE	0-28681-030-0	06	1	0509-0510
28	BOLT; HEADLAMP (A) M10X30 FLANGE	0-28681-030-0	06	1	0511-0512
28	BOLT; HEADLAMP (A) M10X30 FLANGE	0-28651-030-0	06	1	0601-0602
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (A) M10X30 FLANGE	0-28651-030-0	06	1	0603-0710
28	BOLT; HEADLAMP (A) M10X30 FLANGE	0-28651-030-0	06	1	0711-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0509-0510
28	BOLT; HEADLAMP (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0511-0602
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0603-0710
28	BOLT; HEADLAMP (D) M10X28,M10X15 L=50	5-09300-050-0	02	1	0711-
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0509-0510
28	BOLT; HEADLAMP (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0511-0602
28	BOLT; HEADLAMP BUMPER W/HEADLAMPS<SLB> (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0603-0710
28	BOLT; HEADLAMP (C) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0711-
28	BOLT; HEADLAMP (B) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0509-
30	BOLT; STAY BUMPER W/HEADLAMPS<SLB> (B) M8X25 FLANGE	0-28680-825-0	02	1	0509-0510
30	BOLT; STAY (B) M8X25 FLANGE	0-28680-825-0	02	1	0511-0512
30	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0602
30	BOLT; STAY BUMPER W/HEADLAMPS<SLB> (B) M8X25 FLANGE	0-28650-825-0	02	1	0603-0710
30	BOLT; STAY (B) M8X25 FLANGE	0-28650-825-0	02	1	0711-
30	BOLT; STAY (A) M10X25 FLANGE	0-28681-025-0	04	1	0509-0512
30	BOLT; STAY (A) M10X25 FLANGE	0-28651-025-0	04	1	0601-
49	BRACKET; LAMP (D)	8-98051-437-0	01	1	0509-
49	BRACKET; LAMP (D)	8-98051-438-0	01	1	0509-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	0509-0510
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0511-0602
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	0603-0710
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0711-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	0509-0510
49	BRACKET; LAMP (B)	1-82117-101-0	01	1	0511-0602
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	0603-0710
49	BRACKET; LAMP (B)	1-82117-101-1	01	1	0711-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	0509-0510
49	BRACKET; LAMP (B)	1-82117-102-0	01	1	0511-0602
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	0603-0710
49	BRACKET; LAMP (B)	1-82117-102-1	01	1	0711-
49	BRACKET; LAMP (C)	1-82117-176-0	01	1	0509-
49	BRACKET; LAMP (C)	1-82117-177-0	01	1	0509-
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	02	1	0509-0510
140	NUT M10 FLANGE	0-91150-210-0	02	1	0511-0602
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91150-210-0	02	1	0603-0603
140	NUT BUMPER W/HEADLAMPS<SLB> M10 FLANGE	0-91180-210-0	02	1	0603-0710
140	NUT M10 FLANGE	0-91180-210-0	02	1	0711-
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	0509-0510
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	0511-0602
162	RUBBER; CUSHION UPR BUMPER W/HEADLAMPS<SLB>	1-82117-086-0	08	1	0603-0710
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	0711-
172	NUT; STAY M8 FLANGE	0-91150-108-0	02	1	0509-0602
172	NUT; STAY M8 FLANGE	0-91180-108-0	02	1	0603-
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	0509-0510
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91150-108-0	16	1	0511-0602
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91150-108-0	16	1	0603-0603
175	NUT; BRKT CUSHION RUBBER BUMPER W/HEADLAMPS<SLB> M8 FLANGE	0-91180-108-0	16	1	0603-0710
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91180-108-0	16	1	0711-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-65671-761-3	01	1	0509-0510
206	HOLDER; HEADLAMP (B)	1-65671-761-3	01	1	0511-0602
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-65671-761-3	01	1	0603-0710
206	HOLDER; HEADLAMP (B)	1-65671-761-3	01	1	0711-
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-65671-762-3	01	1	0509-0510
206	HOLDER; HEADLAMP (B)	1-65671-762-3	01	1	0511-0602
206	HOLDER; HEADLAMP BUMPER W/HEADLAMPS<SLB> (B)	1-65671-762-3	01	1	0603-0710
206	HOLDER; HEADLAMP (B)	1-65671-762-3	01	1	0711-
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0509-
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0509-
266	STAY; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-163-2	01	1	0509-0510
266	STAY; BRKT,HEADLAMP	1-82117-163-2	01	1	0511-0602
266	STAY; BRKT,HEADLAMP BUMPER W/HEADLAMPS<SLB>	1-82117-163-2	01	1	0603-0710
266	STAY; BRKT,HEADLAMP	1-82117-163-2	01	1	0711-
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE	0-28680-616-0	08	1	0509-0510
273	BOLT; BRKT (B) M6X16 FLANGE	0-28680-616-0	08	1	0511-0512
273	BOLT; BRKT (B) M6X16 FLANGE	0-28650-616-0	08	1	0601-0602
273	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> (B) M6X16 FLANGE	0-28650-616-0	08	1	0603-0710
273	BOLT; BRKT (B) M6X16 FLANGE	0-28650-616-0	08	1	0711-
273	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	04	1	0509-0512
273	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	04	1	0601-
422	BRACKET; HEADLAMP STAY	1-82698-605-0	02	1	0509-

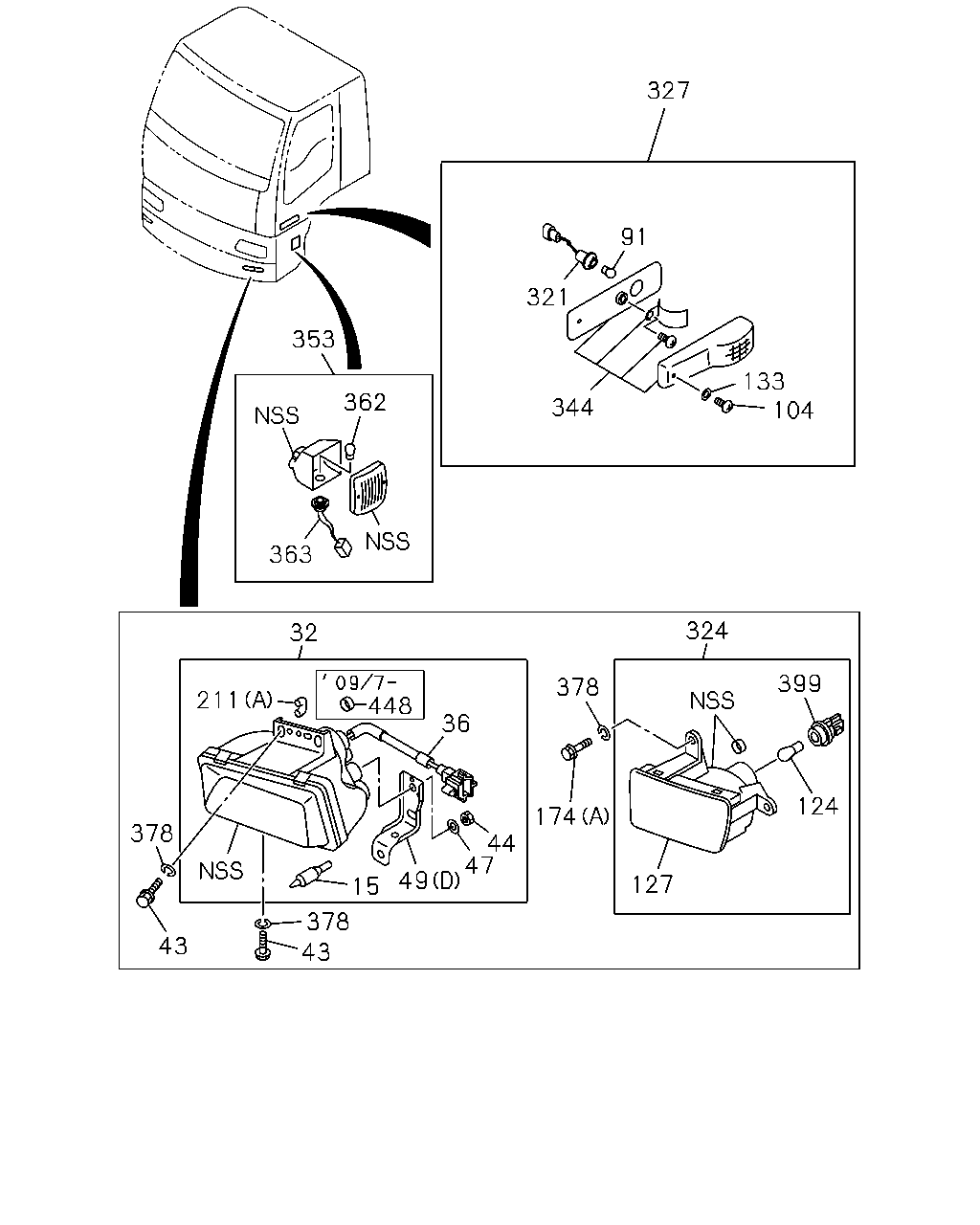

104 133 344 321 91 327 324 399 124 127 174 378 44 47 49 15 378 43 36 211 32 378 43 362 353 363 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	BULB; FOG LAMP 24V 70W	1-82194-106-0	02	1	0509-
32	LAMP ASM; FOG HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2)	1-82110-475-0	01	1	0701-0712
32	LAMP ASM; FOG	1-82110-475-0	01	1	0801-0906
32	LAMP ASM; FOG	8-98149-149-1	01	1	0907-1301
32	LAMP ASM; FOG	8-98232-064-1	01	1	1302-
32	LAMP ASM; FOG HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2)	1-82110-476-0	01	1	0701-0712
32	LAMP ASM; FOG	1-82110-476-0	01	1	0801-0906
32	LAMP ASM; FOG	8-98149-150-1	01	1	0907-1301
32	LAMP ASM; FOG	8-98232-065-1	01	1	1302-
32	LAMP ASM; FOG	1-82110-453-0	01	1	0509-0612
32	LAMP ASM; FOG HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2)	1-82110-453-0	01	1	0701-0712
32	LAMP ASM; FOG	1-82110-454-0	01	1	0509-0612
32	LAMP ASM; FOG HEADLAMPS VARIANT SQUARE<TEA> EXC. CHINA EQUIPMENT(YT2)	1-82110-454-0	01	1	0701-0712
36	CORD; FOG LAMP	1-82118-015-0	01	1	0509-
36	CORD; FOG LAMP	1-82118-016-0	01	1	0509-
43	BOLT; FOG LAMP M6X20 W/LK&PL WASHER	0-50140-620-0	06	1	0509-0512
43	BOLT; FOG LAMP M6X20 W/LK&PL WASHER	0-50640-620-0	06	1	0601-0601
43	BOLT; FOG LAMP M6X20 FLANGE	0-28650-620-0	06	1	0602-
44	NUT; FOG LAMP M6	8-98217-430-0	02	1	1205-
47	WASHER; PL,FOG LAMP	8-98217-429-0	02	1	1205-
49	BRACKET; LAMP (D)	8-98051-437-0	01	1	0509-
49	BRACKET; LAMP (D)	8-98051-438-0	01	1	0509-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	0509-0510
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0511-0602
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (A)	1-82117-100-0	02	1	0603-0710
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0711-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	0509-0510
49	BRACKET; LAMP (B)	1-82117-101-0	01	1	0511-0602
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-101-0	01	1	0603-0710
49	BRACKET; LAMP (B)	1-82117-101-1	01	1	0711-
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	0509-0510
49	BRACKET; LAMP (B)	1-82117-102-0	01	1	0511-0602
49	BRACKET; LAMP BUMPER W/HEADLAMPS<SLB> (B)	1-82117-102-0	01	1	0603-0710
49	BRACKET; LAMP (B)	1-82117-102-1	01	1	0711-
49	BRACKET; LAMP (C)	1-82117-176-0	01	1	0509-
49	BRACKET; LAMP (C)	1-82117-177-0	01	1	0509-
91	BULB; SIDE TURN SIGNAL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 12W	1-82194-030-0	02	1	0603-0811
91	BULB; SIDE TURN SIGNAL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 12W	1-82194-030-0	02	1	0812-
91	BULB; SIDE TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0509-0602
91	BULB; SIDE TURN SIGNAL GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	02	1	0603-0811
91	BULB; SIDE TURN SIGNAL GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 21W	1-82194-036-0	02	1	0812-
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0509-
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-105-0	02	1	0509-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-073-0	01	1	0509-
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-074-0	01	1	0509-
133	WASHER; PL,SIDE FLASHER LAMP	1-86830-150-0	02	1	0509-0602
133	WASHER; PL,SIDE FLASHER LAMP GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-86830-150-0	02	1	0603-0811
133	WASHER; PL,SIDE FLASHER LAMP GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-86830-150-0	02	1	0812-
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	0509-0512
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50640-620-0	04	1	0601-0601
174	BOLT (A) M6X20 FLANGE	0-28650-620-0	04	1	0602-
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0509-0808
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0809-
211	TUBE; HEADLAMP (B)	1-86830-330-0	01	1	0509-0711
211	TUBE; HEADLAMP (B)	8-98101-137-0	01	1	0712-
211	TUBE; HEADLAMP (B)	1-86830-331-0	01	1	0509-0711
211	TUBE; HEADLAMP (B)	8-98101-138-0	01	1	0712-
211	TUBE; HEADLAMP (A)	8-97025-128-0	02	1	0509-0906
321	HARNESS; SIDE FLASHER LAMP EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-86830-253-0	02	1	0603-0811
321	HARNESS; SIDE FLASHER LAMP EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-86830-253-0	02	1	0812-
321	HARNESS; SIDE FLASHER LAMP	1-82218-002-0	02	1	0509-0602
321	HARNESS; SIDE FLASHER LAMP GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-82218-002-0	02	1	0603-0811
321	HARNESS; SIDE FLASHER LAMP GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-82218-002-0	02	1	0812-
324	LAMP; FRT FLASHER	1-82210-259-1	01	1	0509-
324	LAMP; FRT FLASHER	1-82210-260-1	01	1	0509-
327	LAMP ASM; SIDE TURN SIGNAL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-86830-007-6	01	1	0603-0811
327	LAMP ASM; SIDE TURN SIGNAL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-86830-007-6	01	1	0812-
327	LAMP ASM; SIDE TURN SIGNAL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-86830-011-6	01	1	0603-0811
327	LAMP ASM; SIDE TURN SIGNAL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-86830-011-6	01	1	0812-
327	LAMP ASM; SIDE TURN SIGNAL	1-82210-227-2	01	1	0509-0602
327	LAMP ASM; SIDE TURN SIGNAL GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-82210-227-2	01	1	0603-0811
327	LAMP ASM; SIDE TURN SIGNAL GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-82210-227-2	01	1	0812-
327	LAMP ASM; SIDE TURN SIGNAL	1-82210-228-2	01	1	0509-0602
327	LAMP ASM; SIDE TURN SIGNAL GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-82210-228-2	01	1	0603-0811
327	LAMP ASM; SIDE TURN SIGNAL GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-82210-228-2	01	1	0812-
344	LAMP UNIT; SIDE TURN SIGNAL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-86830-240-1	01	1	0603-0811
344	LAMP UNIT; SIDE TURN SIGNAL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-86830-240-1	01	1	0812-
344	LAMP UNIT; SIDE TURN SIGNAL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-86830-241-1	01	1	0603-0811
344	LAMP UNIT; SIDE TURN SIGNAL EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-86830-241-1	01	1	0812-
344	LAMP UNIT; SIDE TURN SIGNAL	1-82213-020-0	01	1	0509-0602
344	LAMP UNIT; SIDE TURN SIGNAL GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-82213-020-0	01	1	0603-0811
344	LAMP UNIT; SIDE TURN SIGNAL GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-82213-020-0	01	1	0812-
344	LAMP UNIT; SIDE TURN SIGNAL	1-82213-021-0	01	1	0509-0602
344	LAMP UNIT; SIDE TURN SIGNAL GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-82213-021-0	01	1	0603-0811
344	LAMP UNIT; SIDE TURN SIGNAL GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-82213-021-0	01	1	0812-
353	LAMP ASM; STEP EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 5W	1-86830-248-2	01	1	0603-0811
353	LAMP ASM; STEP EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 5W	1-86830-248-2	01	1	0812-
362	BULB; STEP LAMP EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 24V 5W	1-82194-042-0	01	1	0603-0811
362	BULB; STEP LAMP EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 24V 5W	1-82194-042-0	01	1	0812-
363	HARNESS; STEP LAMP EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2)	1-86830-296-0	01	1	0603-0811
363	HARNESS; STEP LAMP EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-86830-296-0	01	1	0812-
378	WASHER; PL ID=6.4 OD=14	9-09160-606-0	04	1	0602-0605
378	WASHER; PL ID=6.4	0-91610-606-0	04	1	0606-
378	WASHER; PL ID=6.4 OD=14	9-09160-606-0	06	1	0602-0605
378	WASHER; PL ID=6.4	0-91610-606-0	06	1	0606-
399	SOCKET; TURN SIGNAL	1-82219-038-0	02	1	0509-
448	CAP ASM; LAMP	8-97378-874-0	02	1	0907-

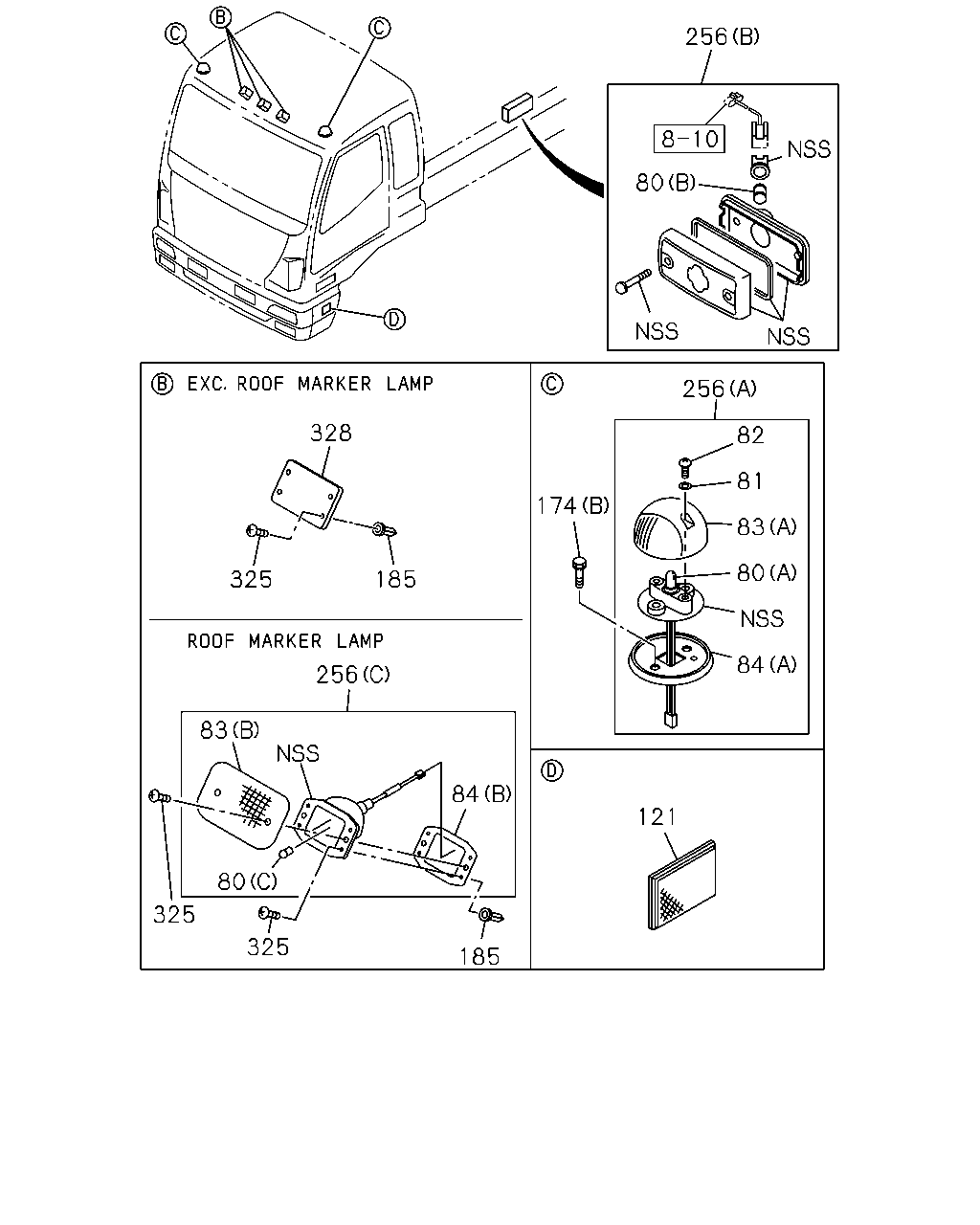

256 80 256 328 82 81 174 83 80 185 325 84 256 83 84 121 80 325 325 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B) 24V 3W	1-82219-035-0	06	1	0810-
80	BULB; MARKER LAMP ROOF MARKER LAMP<U01> (C) 24V 12W	9-82691-302-0	03	1	0810-
80	BULB; MARKER LAMP (A) 24V 5W	8-94135-397-0	02	1	0509-
81	SEAT; SCREW	1-82219-012-0	04	1	0509-
82	SCREW; MARKER LAMP	1-82219-011-0	04	1	0509-
83	LENS; MARKER LAMP ROOF MARKER LAMP<U01> (B)	1-82215-068-0	03	1	0810-
83	LENS; MARKER LAMP (A)	1-82215-046-0	02	1	0509-
84	GASKET; MARKER LAMP ROOF MARKER LAMP<U01> (B)	1-86830-153-0	03	1	0810-
84	GASKET; MARKER LAMP (A)	1-86830-288-0	02	1	0509-
121	REFLECTOR; REFLEX RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC>	8-98013-990-1	02	1	0810-
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	0509-0512
174	BOLT (A) M6X20 W/LK&PL WASHER	0-50640-620-0	04	1	0601-0601
174	BOLT (A) M6X20 FLANGE	0-28650-620-0	04	1	0602-
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0509-0808
174	BOLT (B) M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0809-
185	GROMMET; SCREW M5 SCREW GROMMET	1-09983-131-0	12	1	0509-
256	LAMP; MARKER RUSSIA COUNTRY<CZ3> LIGHTING SYSTEM ECE<SLC> (B)	1-82210-244-0	06	1	0810-
256	LAMP; MARKER ROOF MARKER LAMP<U01> (C)	1-86830-170-0	03	1	0810-
256	LAMP; MARKER (A)	1-86830-242-3	02	1	0509-
325	SCREW; SPD INDICATOR LAMP ROOF MARKER LAMP<U01> M5X20 TAPPING	0-71090-520-0	18	1	0812-
325	SCREW; SPD INDICATOR LAMP M5X14 TAPPING	9-07066-514-0	12	1	0509-0603
325	SCREW; SPD INDICATOR LAMP M5X14 TAPPING	0-71040-514-0	12	1	0604-0811
325	SCREW; SPD INDICATOR LAMP EXC. ROOF MARKER LAMP<U01> M5X14 TAPPING	0-71040-514-0	12	1	0812-
328	COVER; LAMP	1-76217-122-1	03	1	0509-0809
328	COVER; LAMP EXC. ROOF MARKER LAMP<U01>	1-76217-122-1	03	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
