1-10 — RADIATOR (#3151) — 120 parça

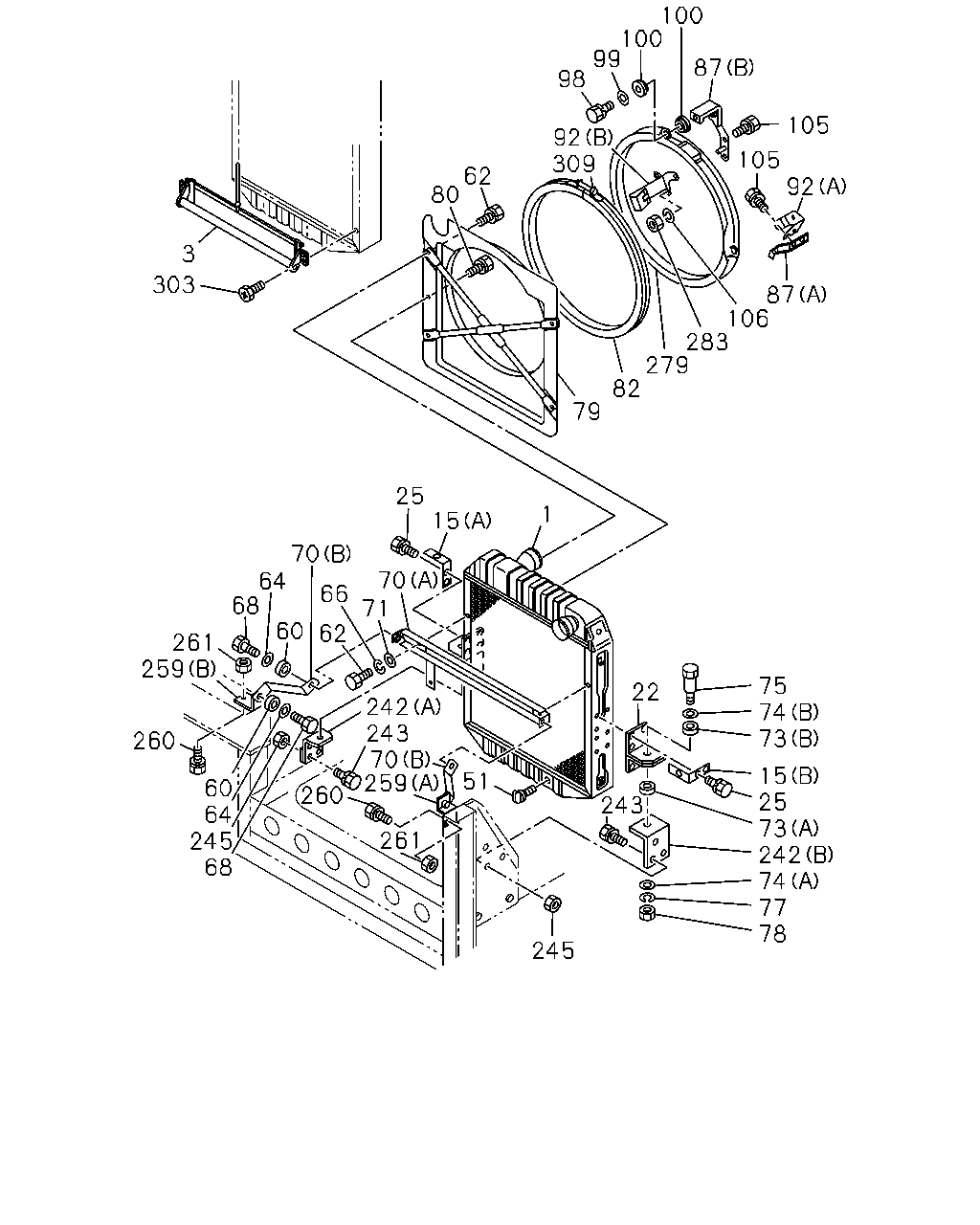

çizim 4112
100 100 99 98 87 105 92 309 105 92 62 80 3 303 87 106 283 279 82 79 25 1 15 70 64 68 70 71 66 60 62 261 259 75 74 73 22 242 243 70 260 15 25 73 242 74 77 78 60 64 245 68 243 260 261 245 259 51
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM 1-21410-493-3 01 1 9104-0107
1 RADIATOR ASM 1-21410-493-3 01 1 0108-
3 COVER; RAD
RADIATOR CURTAIN<SK7> 		1-21511-073-1 01 1 9104-9201
15 BRACKET; PIPE,RAD
(A) 		1-21464-245-0 01 1 9104-0107
15 BRACKET; PIPE,RAD 1-21464-245-0 01 1 0108-
15 BRACKET; PIPE,RAD
(B) 		1-21464-246-0 01 1 9104-0107
15 BRACKET; PIPE,RAD 1-21464-246-0 01 1 0108-
22 BRACKET; RAD MTG 1-21464-190-0 01 1 9104-0107
22 BRACKET; RAD MTG 1-21464-190-0 01 1 0108-
22 BRACKET; RAD MTG 1-21464-191-0 01 1 9104-0107
22 BRACKET; RAD MTG 1-21464-191-0 01 1 0108-
25 BOLT; BRKT
M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 9104-0107
25 BOLT; BRKT
M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 0108-
25 BOLT; BRKT
M8X18 W/LK&PL WASHER 		9-01960-818-0 04 1 9104-0107
25 BOLT; BRKT
M8X18 W/LK&PL WASHER 		9-01960-818-0 04 1 0108-
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9104-0107
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 0108-
60 GROMMET 1-09332-117-0 04 1 9104-0107
60 GROMMET 1-09332-117-0 04 1 0108-
62 BOLT; STAY
M10X16 		9-02041-016-0 02 1 9104-0107
62 BOLT; STAY
M10X16 		9-02041-016-0 02 1 0108-
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 9104-0107
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 0108-
66 WASHER; LK,STAY
ID=10.2 		9-09150-510-0 02 1 9104-0107
66 WASHER; LK,STAY
ID=10.2 		9-09150-510-0 02 1 0108-
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 04 1 9104-0107
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 04 1 0108-
70 STAY; RAD
(A) 		1-21522-045-0 01 1 9104-0107
70 STAY; RAD 1-21522-045-0 01 1 0108-
70 STAY; RAD
(B) 		1-21584-008-0 02 1 9104-0107
70 STAY; RAD 1-21584-008-0 02 1 0108-
71 WASHER; PL,STAY
ID=10.5 OD=22 		9-09160-610-0 02 1 9104-0107
71 WASHER; PL,STAY
ID=10.5 OD=22 		9-09160-610-0 02 1 0108-
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 9104-0107
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 02 1 0108-
73 RUBBER; CUSHION,RAD MTG
(B) 		1-21467-005-0 02 1 9104-0107
73 RUBBER; CUSHION,RAD MTG 1-21467-005-0 02 1 0108-
74 WASHER; PL,CUSHION RUBBER
(A) ID=12.5 OD=26 		9-09164-612-0 02 1 9104-0107
74 WASHER; PL,CUSHION RUBBER
ID=12.5 OD=26 		9-09164-612-0 02 1 0108-
74 WASHER; PL,CUSHION RUBBER
(B) 		9-09851-951-1 02 1 9104-0107
74 WASHER; PL,CUSHION RUBBER 9-09851-951-1 02 1 0108-
75 BOLT; CUSHION RUBBER,RAD MTG 1-09009-053-0 02 1 9104-0107
75 BOLT; CUSHION RUBBER,RAD MTG 1-09009-053-0 02 1 0108-
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9104-0107
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 0108-
78 NUT; CUSHION RUBBER
M12 		9-99110-412-0 02 1 9104-9307
78 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 9308-
79 GUIDE; FAN,RAD 1-21551-291-0 01 1 9104-0107
79 GUIDE; FAN,RAD 1-21551-291-0 01 1 0108-
80 BOLT; FAN GUIDE
M6X12 W/LK&PL WASHER 		9-01960-612-0 02 1 9104-9305
80 BOLT; FAN GUIDE
M6X16 W/LK&PL WASHER 		9-01960-616-0 04 1 9104-9305
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 9306-0107
80 BOLT; FAN GUIDE
M6X12 FLANGE 		0-28080-612-0 04 1 0108-
82 COVER; FAN,RAD 1-21559-157-1 01 1 9104-0107
82 COVER; FAN,RAD 1-21559-157-1 01 1 0108-
87 STAY; FAN GUIDE
(A) 		1-21559-175-1 01 1 9104-
87 STAY; FAN GUIDE
(B) 		1-21559-194-1 01 1 9104-
87 STAY; FAN GUIDE 1-21559-175-1 01 1 0108-
87 STAY; FAN GUIDE 1-21559-194-1 01 1 0108-
92 BRACKET; FAN GUIDE
(A) 		1-21559-162-3 01 1 9104-
92 BRACKET; FAN GUIDE
(B) 		1-21559-176-1 01 1 9104-
92 BRACKET; FAN GUIDE 1-21559-162-3 01 1 0108-
92 BRACKET; FAN GUIDE 1-21559-176-1 01 1 0108-
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9607-
98 BOLT; RAD FAN GUIDE
M8X35 W/LK WASHER 		0-50040-835-0 03 1 9104-0107
98 BOLT; RAD FAN GUIDE
M8X35 W/LK WASHER 		0-50040-835-0 03 1 0108-
99 WASHER; PL
ID=8.4 OD=18 		9-09164-608-0 03 1 9104-0107
99 WASHER; PL
ID=8.4 OD=18 		9-09164-608-0 03 1 0108-
100 RUBBER; MTG 1-09337-006-0 06 1 9104-9307
100 RUBBER; MTG 1-09337-027-0 06 1 9308-9606
100 RUBBER; MTG 8-94395-766-0 06 1 9607-
105 BOLT; BRKT
M10X20 W/LK WASHER 		0-50041-020-0 03 1 9104-
105 BOLT; BRKT
M10X20 W/LK WASHER 		0-50041-020-0 03 1 0108-
106 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 01 1 9104-
106 WASHER; LK,BRKT
ID=8.2 		9-09150-508-0 01 1 0108-
242 BRACKET; RAD
(A) 		1-21464-143-1 01 1 9104-0107
242 BRACKET; RAD 1-21464-143-1 01 1 0108-
242 BRACKET; RAD
(B) 		1-21464-144-0 01 1 9104-0107
242 BRACKET; RAD 1-21464-144-0 01 1 0108-
243 BOLT; BRKT
M12X40 W/LK WASHER 		0-50041-240-0 03 1 9104-0107
243 BOLT; BRKT
M12X40 W/LK WASHER 		0-50041-240-0 03 1 0108-
243 BOLT; BRKT
M12X45 W/LK WASHER 		0-50041-245-0 04 1 9104-0107
243 BOLT; BRKT
M12X45 W/LK WASHER 		0-50041-245-0 04 1 0108-
245 NUT; BRKT
M12 		9-99110-412-0 07 1 9104-9307
245 NUT; BRKT
M12 		9-99110-512-0 07 1 9308-
259 BRACKET; RAD STAY
(A) 		1-21464-175-1 01 1 9104-0107
259 BRACKET; RAD STAY 1-21464-175-1 01 1 0108-
259 BRACKET; RAD STAY
(B) 		1-21581-010-0 01 1 9104-0107
259 BRACKET; RAD STAY 1-21581-010-0 01 1 0108-
260 BOLT; BRKT
M10X30 W/LK WASHER 		0-50041-030-0 04 1 9104-0107
260 BOLT; BRKT
M10X30 W/LK WASHER 		0-50041-030-0 04 1 0108-
261 NUT; BRKT
M10 		9-09110-510-0 04 1 9104-
279 BELL MOUTH 1-21551-333-0 01 1 9104-0107
279 BELL MOUTH 1-21551-333-0 01 1 0108-
283 NUT; BRKT
M8 		9-09110-408-0 01 1 9104-
283 NUT; BRKT
M8 		9-09110-408-0 01 1 0108-
303 SCREW; RAD COVER
RADIATOR CURTAIN<SK7> M6X12 W/LK WASHER 		9-03910-612-0 04 1 9104-9201
309 WIRE; FAN COVER 1-09704-088-0 01 1 9104-0107
309 WIRE; FAN COVER 1-09704-088-0 01 1 0108-

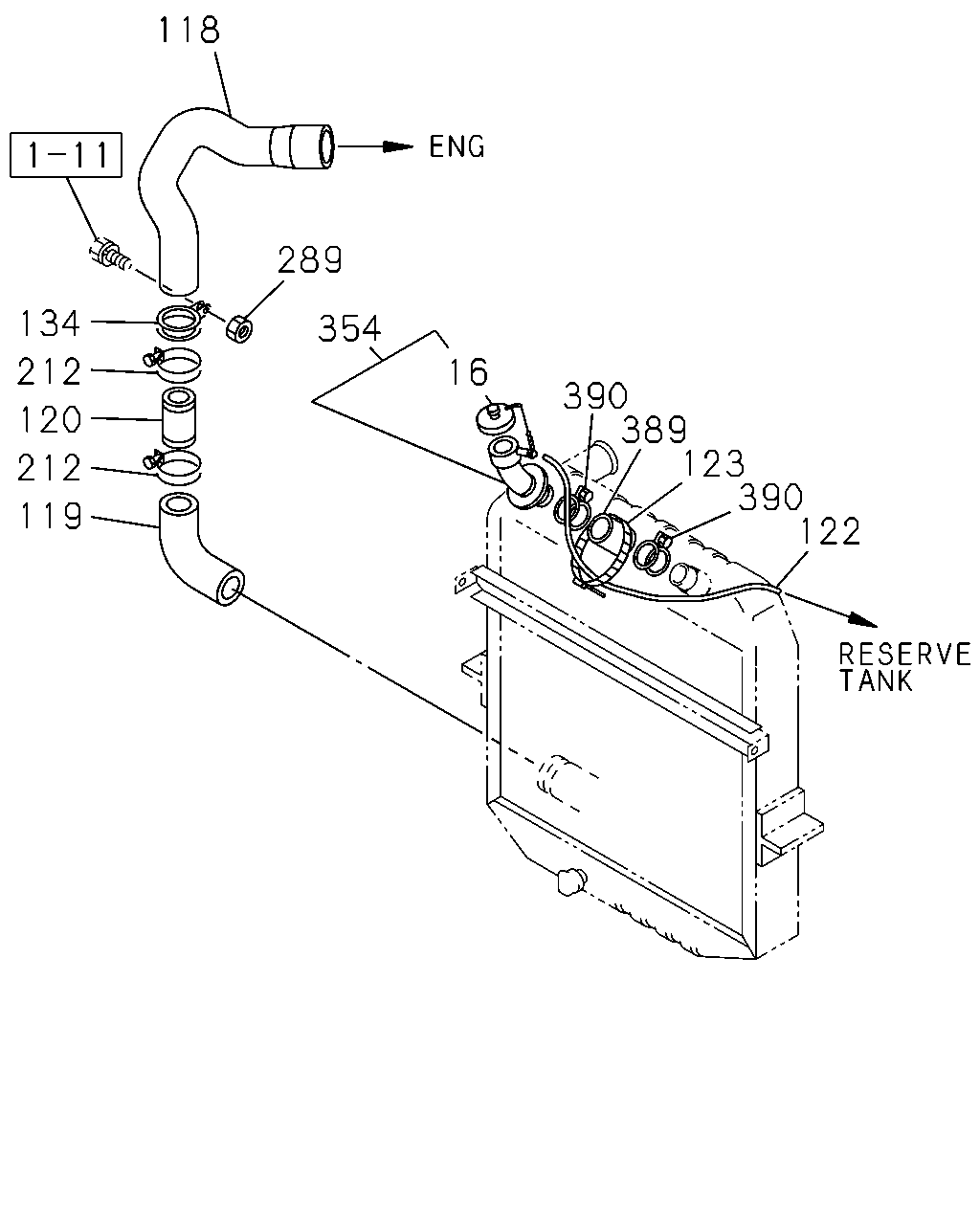

çizim 38439
118 289 134 354 212 16 390 389 123 390 122 120 212 119
BalonParca AdiParca NoAdetTipApplied Date
16 CAP; RAD 1-21450-102-0 01 1 9104-0107
16 CAP; RAD 1-21450-102-0 01 1 0108-
97 TUBE; DIST,FAN GUIDE 9-09651-072-0 03 1 9607-
118 HOSE; WATER,ENG SIDE 1-21437-300-1 01 1 9104-0107
118 HOSE; WATER,ENG SIDE 1-21437-300-1 01 1 0108-
119 HOSE; WATER,RAD SIDE 1-09360-740-0 01 1 9104-0107
119 HOSE; WATER,RAD SIDE 1-09360-740-0 01 1 0108-
122 PIPE; VINYL,FILLER CAP
L=1160 SERVICED BY L=2850 		1-09366-061-0 01 1 9104-0107
122 PIPE; VINYL,FILLER CAP
L=1160 SERVICED BY L=2850 		1-09366-061-0 01 1 0108-
123 CLIP; PIPE
L=250 		5-09707-030-1 01 1 9104-0107
123 CLIP; PIPE
L=250 		5-09707-030-1 01 1 0108-
134 CLIP; OUTLET PIPE,RAD
ID=60 		9-09917-419-0 01 1 9104-0107
134 CLIP; OUTLET PIPE,RAD
ID=60 		9-09917-419-0 01 1 0108-
289 NUT
M8 		9-09110-408-0 04 1 9104-0107
289 NUT
M8 		9-09110-408-0 04 1 0108-
354 FILLER; WATER 1-21450-101-0 01 1 9104-0107
354 FILLER; WATER 1-21450-101-0 01 1 0108-
389 HOSE; RUBBER FILLER TO ENG 1-09360-466-1 01 1 9104-0107
389 HOSE; RUBBER FILLER TO ENG 1-09360-466-1 01 1 0108-
390 CLIP; RUBBER HOSE
ID=57 		1-09704-066-0 02 1 9104-0107
390 CLIP; RUBBER HOSE
ID=57 		1-09704-066-0 02 1 0108-
