7-50 — FRONT SEAT (#31508) — 226 parça

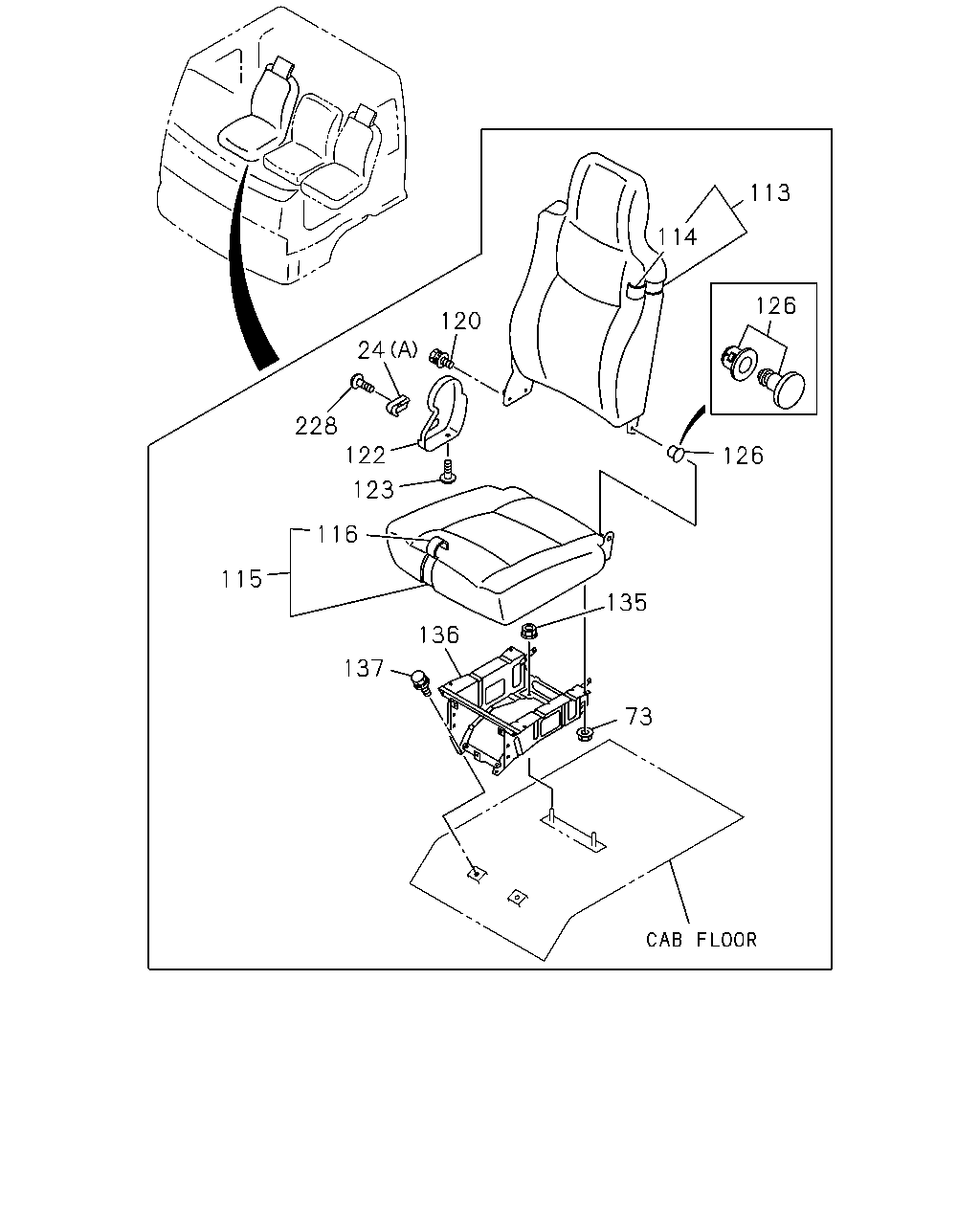

çizim 88021
113 114 126 120 24 228 122 126 123 116 115 135 136 137 73
BalonParca AdiParca NoAdetTipApplied Date
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0509-0710
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0509-1011
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) (A) DARK GRAY 		8-97867-021-0 01 1 1012-
73 NUT; ADJ,HEIGHT CONT
M8 FLANGE 		1-75538-207-0 04 1 0509-
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-654-2 01 1 0509-1011
113 BACK ASM; SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-275-0 01 1 1012-
113 BACK ASM; SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75208-241-2 01 1 0509-
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-173-1 01 1 0509-1011
114 COVER; TRIM,PASSENGER SEAT,BACK
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-292-0 01 1 1012-
114 COVER; TRIM,PASSENGER SEAT,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75116-742-1 01 1 0509-
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		1-75207-642-1 01 1 0509-1011
115 CUSHION ASM; PASSENGER SEAT
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-127-0 01 1 1012-
115 CUSHION ASM; PASSENGER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75207-367-1 01 1 0509-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		1-75127-162-1 01 1 0509-1011
116 COVER; TRIM,PASSENGER SEAT,CUSHION
FABRIC SEAT W/RECLINING(SFQ) 		8-98168-140-0 01 1 1012-
116 COVER; TRIM,PASSENGER SEAT,CUSHION
EXC. FABRIC SEAT W/RECLINING(SFQ) 		1-75127-133-1 01 1 0509-
120 BOLT; RECLINING ADJ
M8X20 		8-97255-906-0 02 1 0509-
122 COVER; ADJ,RECLINING
DARK GRAY 		8-97867-020-0 01 1 0509-
123 SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0509-
126 BUSHING; HINGE,RECLINING 8-97854-087-0 01 1 0509-
135 NUT; SEAT STAND
M10 FLANGE 		1-09984-153-0 02 1 0509-0703
135 NUT; SEAT STAND
M10 FLANGE 		0-91180-110-0 02 1 0704-
136 STAND; PASSENGER SEAT 1-75558-602-3 01 1 0509-1305
136 STAND; PASSENGER SEAT 8-98242-299-0 01 1 1306-
137 BOLT; STAND
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0509-0703
137 BOLT; STAND
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0509-0710
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0509-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-1011
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ) M4X6 		8-97042-273-0 01 1 1012-

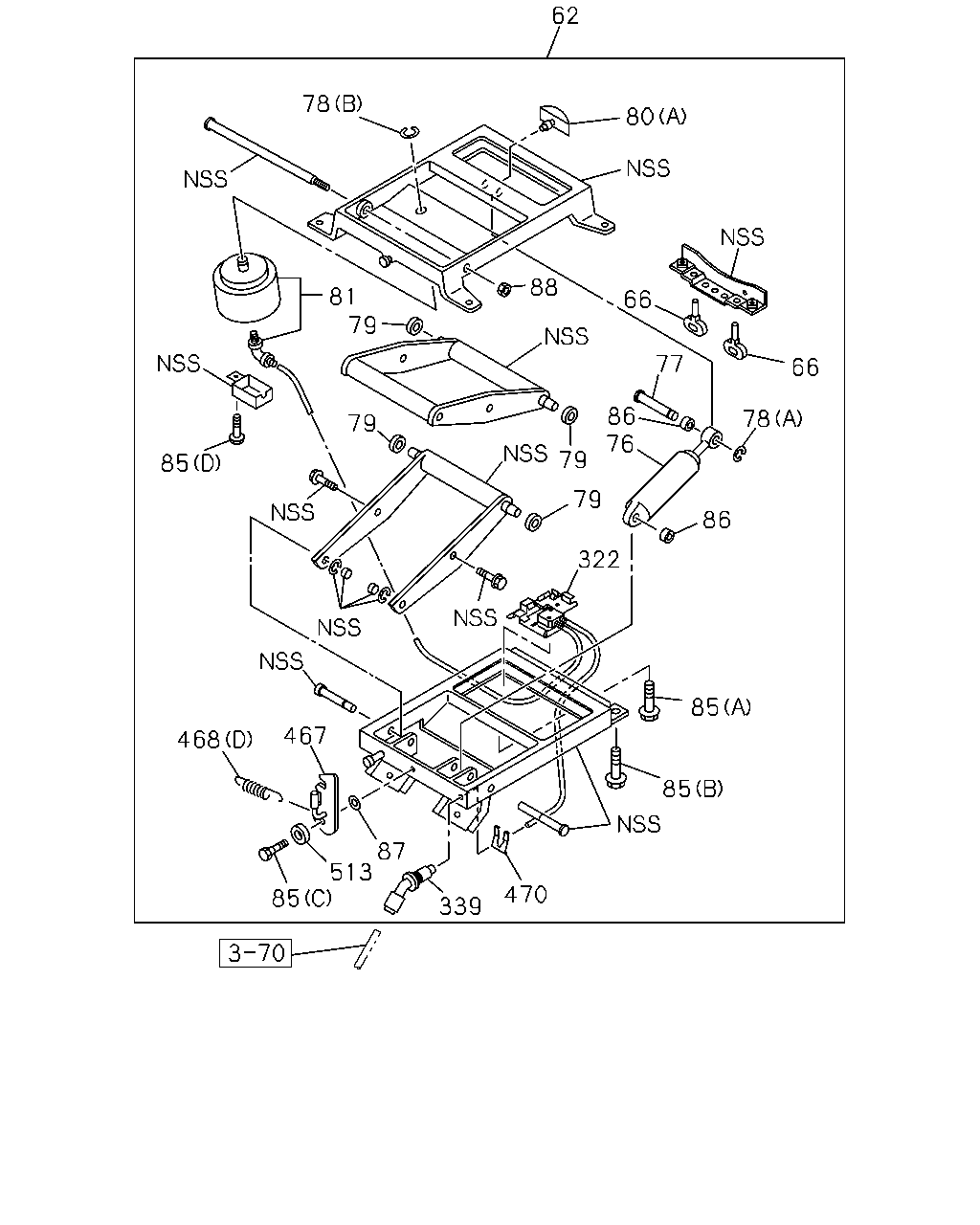

çizim 88051
62 80 66 78 86 85 85 470 339 87 513 85 467 468 79 66 77 86 79 322 76 81 79 79 88 85 78
BalonParca AdiParca NoAdetTipApplied Date
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-8 01 1 0509-1403
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-453-0 01 1 1404-
66 RUBBER; LWR STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-145-0 02 1 0509-
76 DAMPER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-230-2 01 1 0509-
77 PIN; DAMPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-138-2 01 1 0509-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8 		9-09185-408-0 01 1 0509-
78 RING; SNAP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15 		9-09185-415-0 01 1 0509-
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-159-0 04 1 0509-1403
79 ROLLER ASM; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-489-0 04 1 1404-
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0509-
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-151-2 01 1 0509-1312
81 SPRING; AIR
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98242-816-0 01 1 1401-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER 		8-98243-394-0 01 1 1401-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-09980-577-1 01 1 0509-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12 		1-75538-208-1 02 1 0509-
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 03 1 0509-1312
85 BOLT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER 		1-75538-209-0 02 1 1401-
86 BUSHING; GUIDE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY 		1-09983-173-1 02 1 0509-
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		9-09150-508-0 01 1 0509-0710
87 WASHER; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2 		0-91510-508-0 01 1 0711-
88 NUT; AIR SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 		1-75537-273-1 01 1 0509-
322 VALVE; AIR SPRING
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-187-3 01 1 0509-
339 UNION; DRIVER SEAT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-131-3 01 1 0509-
467 LEVER; LOCK
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-134-0 01 1 0509-
468 SPRING; RETURN
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0509-
468 SPRING; RETURN
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0509-
468 SPRING; RETURN
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0509-
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0509-
470 CLIP; HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-137-0 01 1 0509-
513 SPACER; LEVER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75538-133-0 01 1 0509-

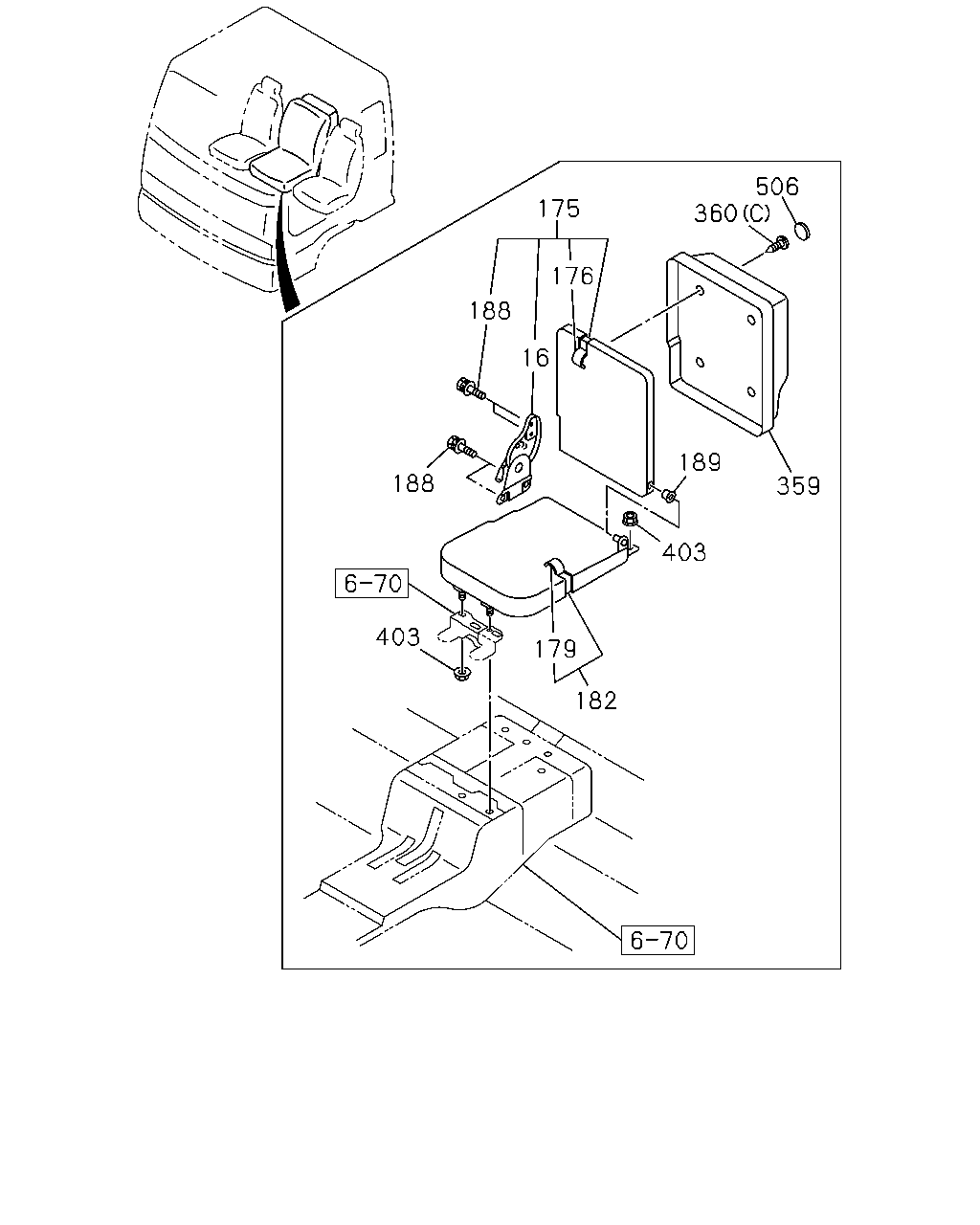

çizim 88339
506 360 175 176 188 16 189 188 359 403 403 179 182
BalonParca AdiParca NoAdetTipApplied Date
16 ADJUSTER ASM; RECLINING
EXC. CENTER SEAT DELETE(SP9) 		1-75418-062-1 01 1 0509-
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75207-602-3 01 1 0509-1011
175 BACK ASM; PASSENGER CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-328-1 01 1 1012-
175 BACK ASM; PASSENGER CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9) 		1-75026-856-3 01 1 0509-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75127-156-2 01 1 0509-1011
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-331-0 01 1 1012-
176 COVER; TRIM,PASSENGER SEAT CENTER,BACK
EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9) 		1-75116-710-1 01 1 0509-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75127-164-1 01 1 0509-1011
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-325-0 01 1 1012-
179 COVER; TRIM,PASSENGER SEAT CENTER,CUSH
EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9) 		1-75127-127-1 01 1 0509-
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		1-75207-644-1 01 1 0509-1011
182 CUSHION ASM; CENTER SEAT
FABRIC SEAT W/RECLINING(SFQ) EXC. CENTER SEAT DELETE(SP9) 		8-98168-317-2 01 1 1012-
182 CUSHION ASM; CENTER SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9) 		1-75207-009-4 01 1 0509-
188 BOLT; BACK TO CUSHION
EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE 		1-75198-053-0 04 1 0509-
189 BUSHING; HINGE,CENTER SEAT BACK
EXC. CENTER SEAT DELETE(SP9) 		8-97854-900-0 01 1 0509-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0509-1006
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0509-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0509-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0509-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		1-75538-207-0 04 1 0509-0703
403 NUT; CENTER SEAT
EXC. CENTER SEAT DELETE(SP9) M8 FLANGE 		0-91180-108-0 04 1 0704-
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 04 1 0509-1006
506 CAP; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-09983-180-3 02 1 1007-

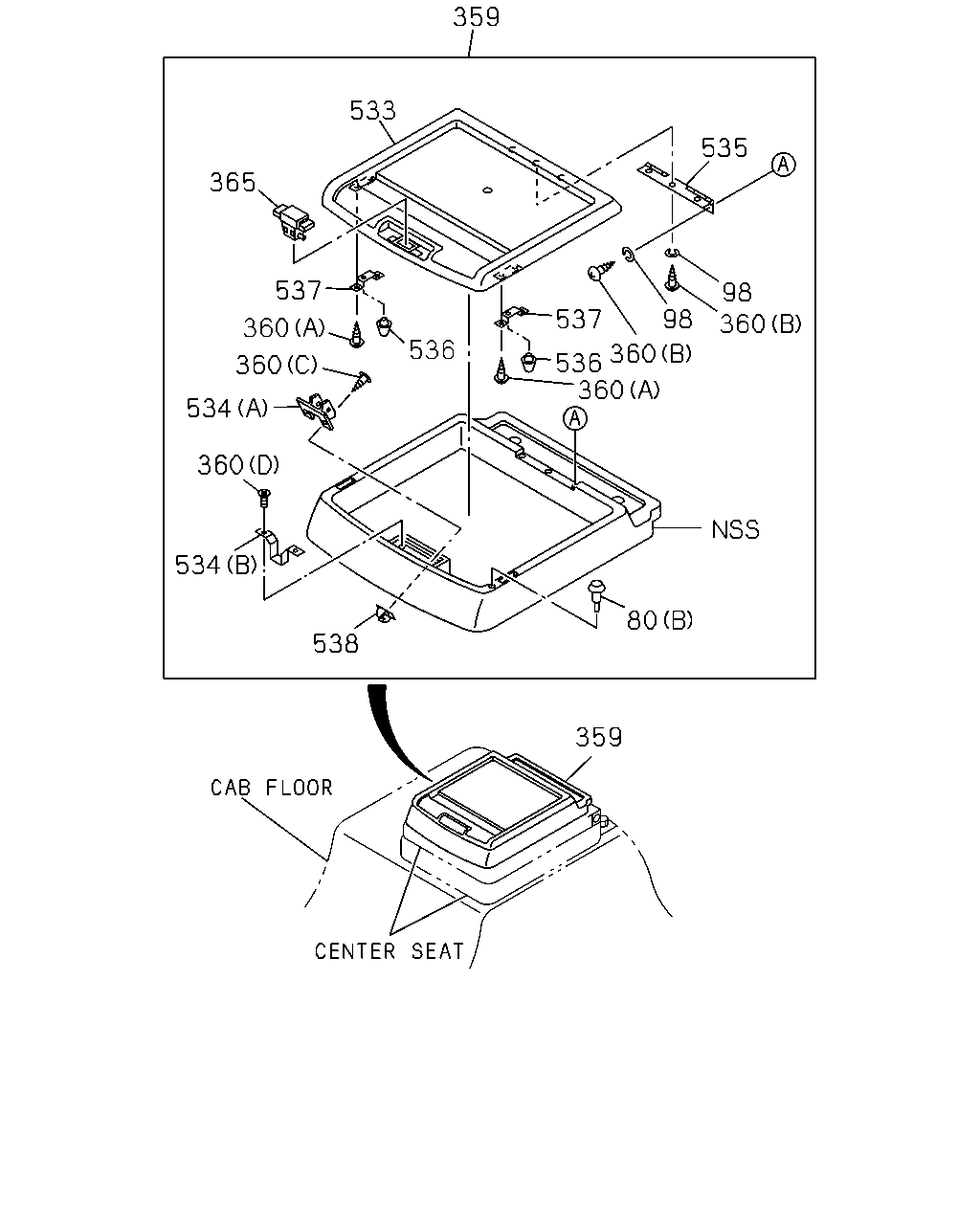

çizim 88340
359 533 535 365 537 98 30 98 537 360 536 360 536 360 360 534 360 534 80 538 359
BalonParca AdiParca NoAdetTipApplied Date
30 REST ASM; ARM,FRT SEAT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-175-1 01 1 0509-
80 RUBBER; STOPPER
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-187-0 02 1 1007-
80 RUBBER; STOPPER
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09987-123-0 01 1 0509-
98 WASHER; HINGE
EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK 		9-09152-704-0 06 1 0509-
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		1-72538-275-4 01 1 0509-1006
359 BOX; PARCEL
EXC. CENTER SEAT DELETE(SP9) 		8-98145-114-0 01 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70080-310-0 04 1 0509-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD 		0-70040-310-0 04 1 0701-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (D) M5X14 TAPPING CK-HEAD 		0-70040-514-0 02 1 1007-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 0509-0612
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70040-416-0 06 1 0701-1104
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (B) M4X16 		0-70080-416-0 06 1 1105-
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0509-1006
360 SCREW; PARCEL
EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 1007-
365 LOCK ASM; SEAT
EXC. CENTER SEAT DELETE(SP9) 		1-72538-180-0 01 1 0509-
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72538-277-1 01 1 0509-1006
533 LID; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		8-98145-118-0 01 1 1007-
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (A) 		1-72538-181-0 01 1 0509-1006
534 STRIKER; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) (B) 		1-72538-190-0 01 1 1007-
535 HINGE; PARCEL BOX
EXC. CENTER SEAT DELETE(SP9) 		1-72447-391-1 01 1 0509-
536 RUBBER; CUSHION
EXC. CENTER SEAT DELETE(SP9) 		5-09983-002-1 02 1 0509-1006
537 BRACKET; RUBBER
EXC. CENTER SEAT DELETE(SP9) 		1-72548-057-1 02 1 0509-1006
538 GROMMET; SCREW
EXC. CENTER SEAT DELETE(SP9) 		1-09983-165-0 02 1 0509-1006

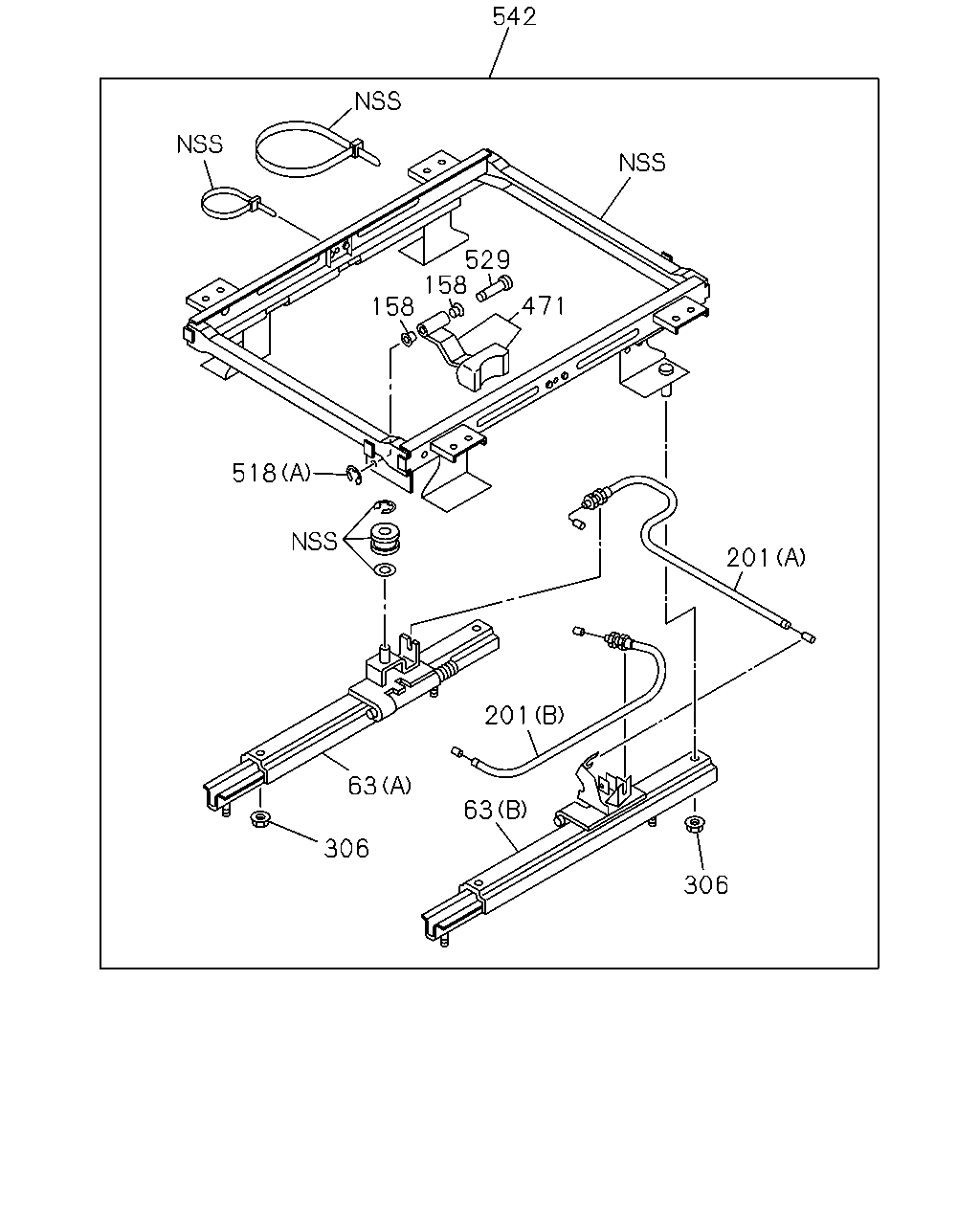

çizim 88343
542 529 158 471 158 518 201 201 63 63 306 306
BalonParca AdiParca NoAdetTipApplied Date
63 ADJUSTER; SEAT SLIDE
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0509-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 0509-
63 ADJUSTER; SEAT SLIDE
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-295-1 01 1 0509-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0509-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0509-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0509-
306 NUT; SEAT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0509-
306 NUT; SEAT ADJ
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0509-
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 0509-0710
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 0711-
518 NUT; TILT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 		1-75518-264-0 04 1 0509-
518 NUT; TILT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0509-
518 NUT; TILT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE 		8-94152-886-0 04 1 0509-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0509-
529 PIN; LINK 1-75518-262-0 01 1 0509-
542 ADJUSTER ASM; SEAT SLIDE
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-283-3 01 1 0509-1502
542 ADJUSTER ASM; SEAT SLIDE
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-656-0 01 1 1503-

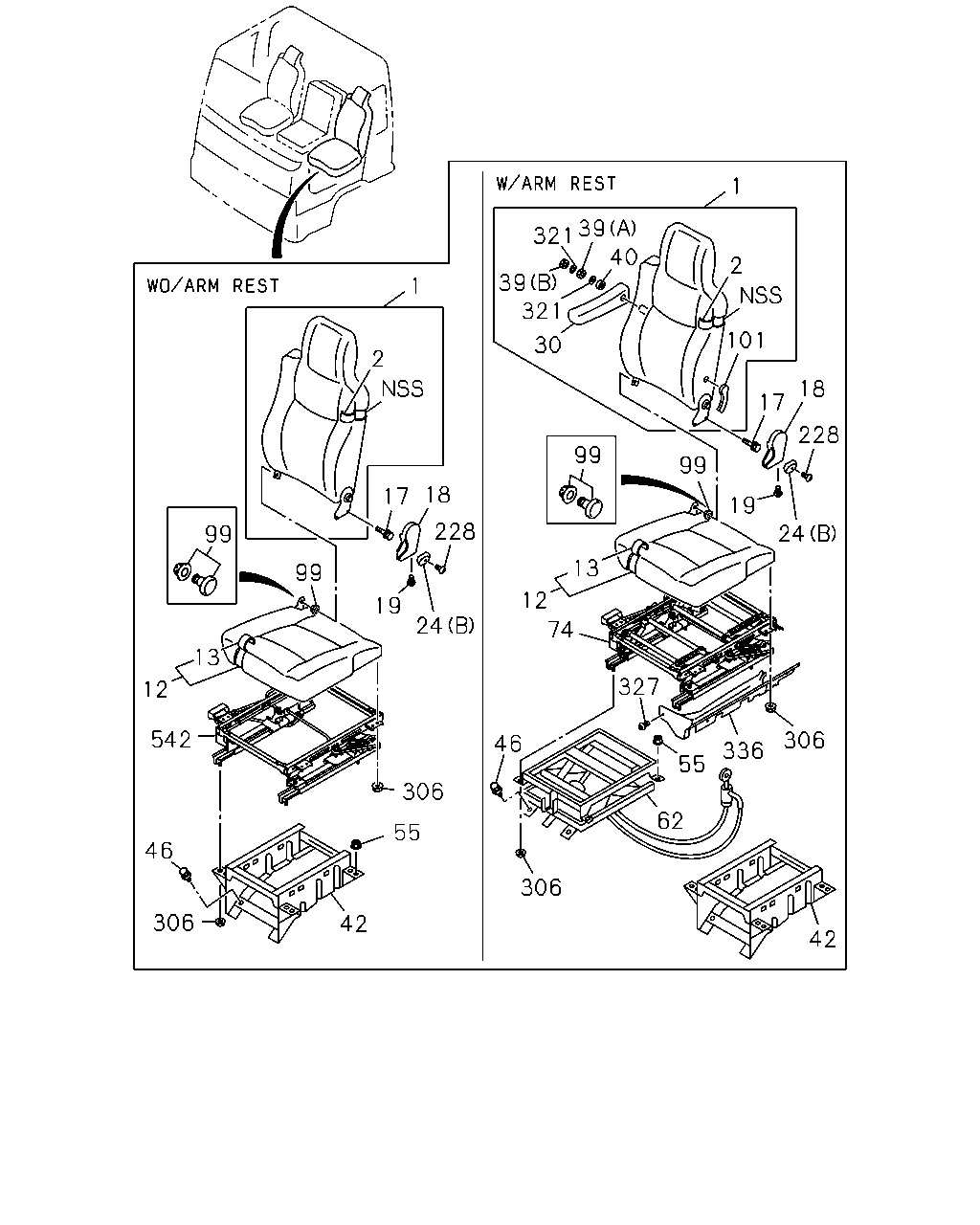

çizim 104385
1 39 321 40 2 39 321 1 101 30 2 18 17 228 99 99 18 17 19 228 24 99 13 99 12 19 24 74 13 327 12 542 306 46 336 55 306 62 55 46 306 306 42 42
BalonParca AdiParca NoAdetTipApplied Date
1 BACK ASM; SEAT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-648-2 01 1 0509-0901
1 BACK ASM; SEAT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-637-0 01 1 0902-1011
1 BACK ASM; SEAT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-065-0 01 1 1012-
1 BACK ASM; SEAT
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-728-2 01 1 0509-0901
1 BACK ASM; SEAT
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98135-638-0 01 1 0902-
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-167-1 01 1 0509-1011
2 COVER; TRIM,FRT SEAT,BACK
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-084-0 01 1 1012-
2 COVER; TRIM,FRT SEAT,BACK
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-183-1 01 1 0509-
12 CUSHION; SEAT,FRT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-640-2 01 1 0509-1011
12 CUSHION; SEAT,FRT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-044-0 01 1 1012-
12 CUSHION; SEAT,FRT
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75207-006-3 01 1 0509-
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-160-2 01 1 0509-1011
13 COVER; TRIM,FRT SEAT,CUSHION
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98168-075-0 01 1 1012-
13 COVER; TRIM,FRT SEAT,CUSHION
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-104-1 01 1 0509-
17 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0509-
18 COVER; RECLINING
DARK GRAY 		8-97859-018-0 01 1 0509-
19 SCREW; COVER
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 03 1 0509-
19 SCREW; COVER
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0509-
24 KNOB; RECLINING,FRT,SEAT
FABRIC SEAT W/RECLINING(SFQ) (A) 		1-75418-066-0 01 1 1012-
24 KNOB; RECLINING,FRT,SEAT
(B) DARK GRAY 		8-97859-019-0 01 1 0509-0710
24 KNOB; RECLINING,FRT,SEAT
(B) 		1-75418-067-0 01 1 0711-
24 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0509-1011
24 KNOB; RECLINING,FRT,SEAT
EXC. FABRIC SEAT W/RECLINING(SFQ) (A) DARK GRAY 		8-97867-021-0 01 1 1012-
30 REST ASM; ARM,FRT SEAT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75127-175-1 01 1 0509-
39 NUT; ARM REST
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 		1-75147-657-0 01 1 0509-
39 NUT; ARM REST
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 		9-09110-410-0 01 1 0509-
40 SPACER; ARM REST
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-94285-921-0 02 1 0509-
42 STAND; DRIVER SEAT
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75558-604-2 01 1 0509-
46 BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER 		8-94279-211-0 02 1 0509-0703
46 BOLT; STAND TO FLOOR
M10X20 FLANGE 		0-28451-020-0 02 1 0704-
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		1-09984-153-0 02 1 0509-0703
55 NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE 		0-91180-110-0 02 1 0704-
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75537-263-8 01 1 0509-1403
62 DAMPER ASM; SEAT SUSP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98261-453-0 01 1 1404-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-3 01 1 0509-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-646-0 01 1 1503-
99 BUSHING; SEAT BACK 8-97854-087-0 01 1 0509-
101 LEVER ASM; LUMBAR
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		5-75190-138-0 01 1 0902-
228 SCREW; KNOB
DRIVER M4 		8-98062-662-0 01 1 0711-1011
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ),RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
FABRIC SEAT W/RECLINING(SFQ) RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4 		8-98062-662-0 01 1 1012-
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0509-0710
228 SCREW; KNOB
M4X6 		8-97042-273-0 01 1 0509-0710
228 SCREW; KNOB
PASSENGER M4X6 		8-97042-273-0 01 1 0711-1011
228 SCREW; KNOB
EXC. FABRIC SEAT W/RECLINING(SFQ) M4X6 		8-97042-273-0 01 1 1012-
306 NUT; SEAT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0509-
306 NUT; SEAT ADJ
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0509-
321 WASHER; PL,ARM REST
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22 		9-09160-610-0 01 1 0509-
321 WASHER; PL,ARM REST
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22 		9-09164-708-0 01 1 0509-
327 CLIP; COVER
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09987-273-0 01 1 0509-
336 COVER; DRIVER SEAT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-313-0 01 1 0509-
542 ADJUSTER ASM; SEAT SLIDE
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-283-3 01 1 0509-1502
542 ADJUSTER ASM; SEAT SLIDE
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-656-0 01 1 1503-

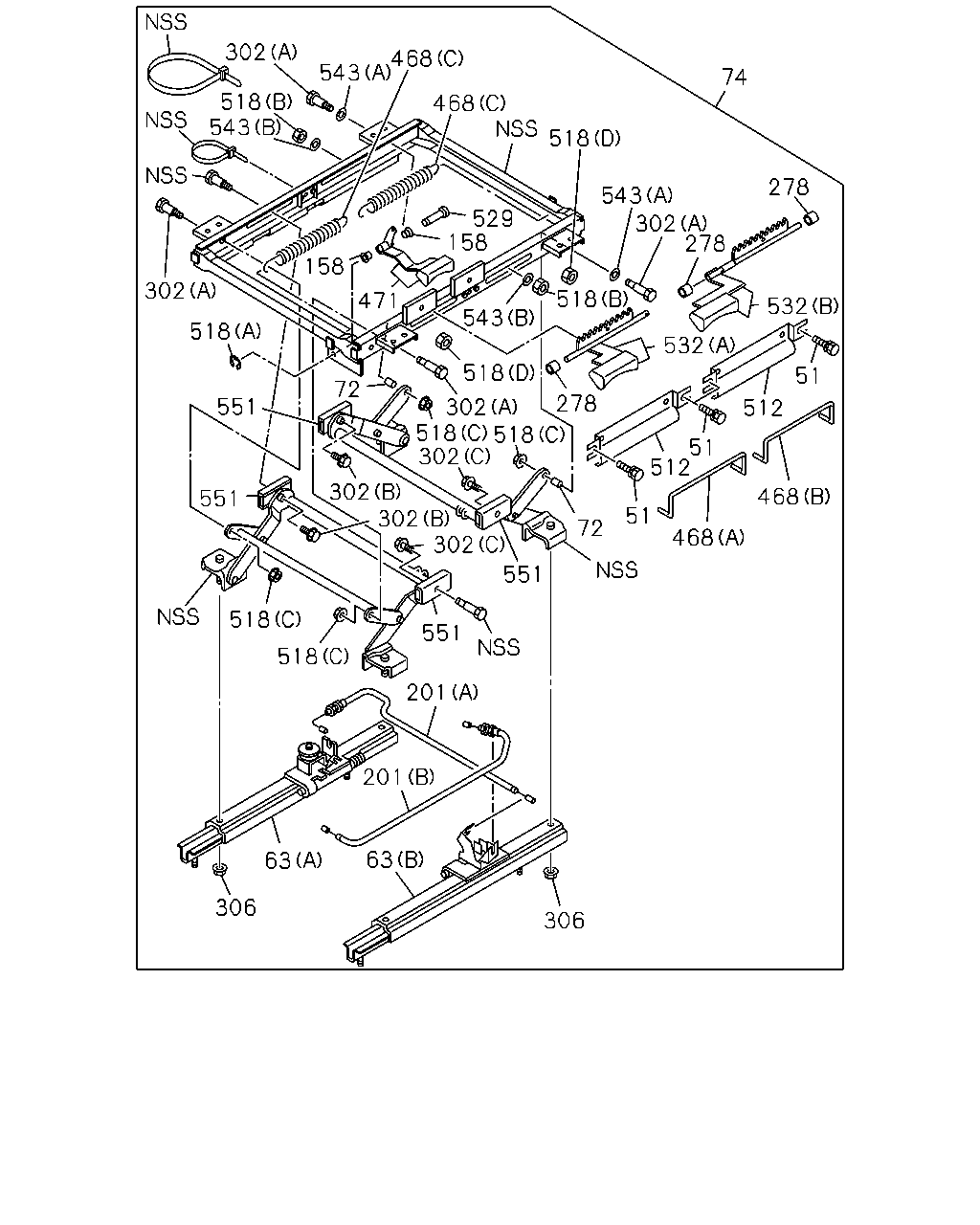

çizim 104491
302 468 543 74 518 543 468 518 278 543 302 278 529 158 158 518 302 471 532 543 518 532 518 51 72 278 551 302 302 512 51 512 302 302 302 468 551 51 72 468 551 518 551 518 201 201 63 63 306 306 518 518
BalonParca AdiParca NoAdetTipApplied Date
51 SCREW; COVER
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-325-1 04 1 0509-
63 ADJUSTER; SEAT SLIDE
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-324-0 01 1 0509-
63 ADJUSTER; SEAT SLIDE
(A) 		1-75518-227-1 01 1 0509-
63 ADJUSTER; SEAT SLIDE
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-295-1 01 1 0509-
72 SPACER; SEAT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-334-1 02 1 0509-1502
72 SPACER; SEAT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-668-0 02 1 1503-
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-331-3 01 1 0509-1502
74 ADJUSTER; FRT SEAT,HEIGHT CONT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		8-98291-646-0 01 1 1503-
158 BUSHING; LINK ARM 1-75518-209-0 02 1 0509-
201 CABLE; ADJ
(A) L=667 		1-75518-288-0 01 1 0509-
201 CABLE; ADJ
(B) L=605 		1-75518-289-1 01 1 0509-
278 COLLAR; FRT SEAT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-244-0 03 1 0509-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-266-2 02 1 0509-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-270-1 04 1 0509-1502
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		8-98291-667-0 04 1 1503-
302 BOLT; ADJ,HEIGHT CONT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-336-1 02 1 0509-
306 NUT; SEAT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 14 1 0509-
306 NUT; SEAT ADJ
EXC. RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE 		1-75538-207-0 12 1 0509-
468 SPRING; RETURN
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-206-0 01 1 0509-
468 SPRING; RETURN
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-207-0 01 1 0509-
468 SPRING; RETURN
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) 		1-75518-208-0 02 1 0509-
468 SPRING; RETURN
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) 		1-75538-132-0 01 1 0509-
471 LEVER; SEAT ADJ 1-75518-290-0 01 1 0509-0710
471 LEVER; SEAT ADJ 8-98107-870-0 01 1 0711-
512 COVER; LEVER
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-245-1 02 1 0509-
518 NUT; TILT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8 		1-75518-264-0 04 1 0509-
518 NUT; TILT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT 		5-09984-020-0 02 1 0509-
518 NUT; TILT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE 		8-94152-886-0 04 1 0509-
518 NUT; TILT ADJ
(A) 		1-75518-263-0 01 1 0509-
529 PIN; LINK 1-75518-262-0 01 1 0509-
532 LEVER ASM; TILT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-221-0 01 1 0509-
532 LEVER ASM; TILT
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-75518-222-1 01 1 0509-
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4 		9-09160-508-0 04 1 0509-
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-75518-335-0 02 1 0509-1502
543 WASHER; HEIGHT ADJUSTER
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=13 OD=19 		8-98291-669-0 02 1 1503-
551 SLIDER; HEIGHT ADJ
RIGID SEAT W/ARM REST(SGC),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-75518-265-0 04 1 0509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
