◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10964 - EXZ LHD WEDGE BRAKE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#31507) — 17 parça

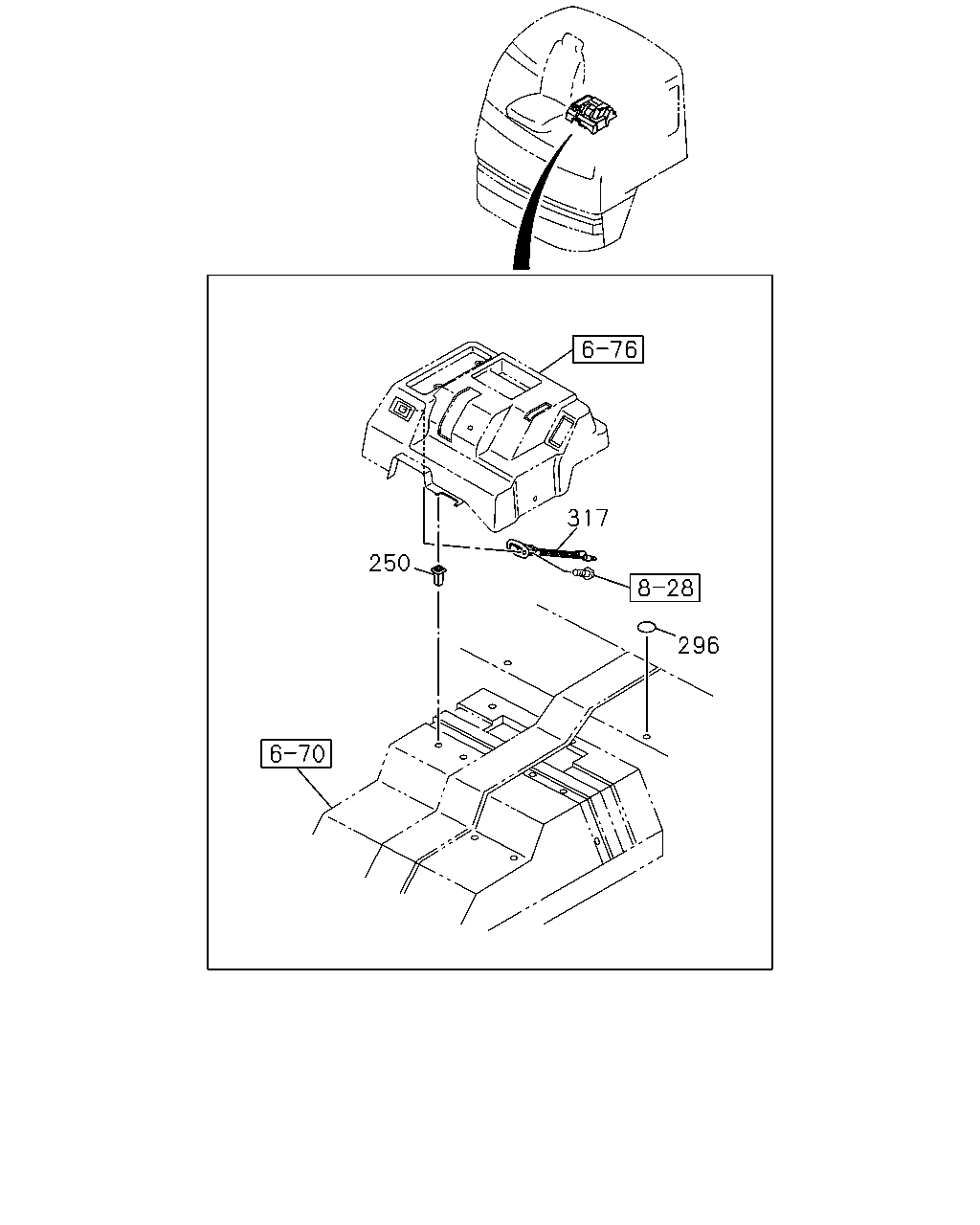

çizim 88508
317 250 296
BalonParca AdiParca NoAdetTipApplied Date
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0509-
296 SEAL
OD=25 BLACK 		1-76798-019-0 01 1 0509-
317 CONSENT
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),CHINA EQUIPMENT(YT2) 		1-82523-020-2 01 1 0603-0811
317 CONSENT
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82523-020-2 01 1 0812-

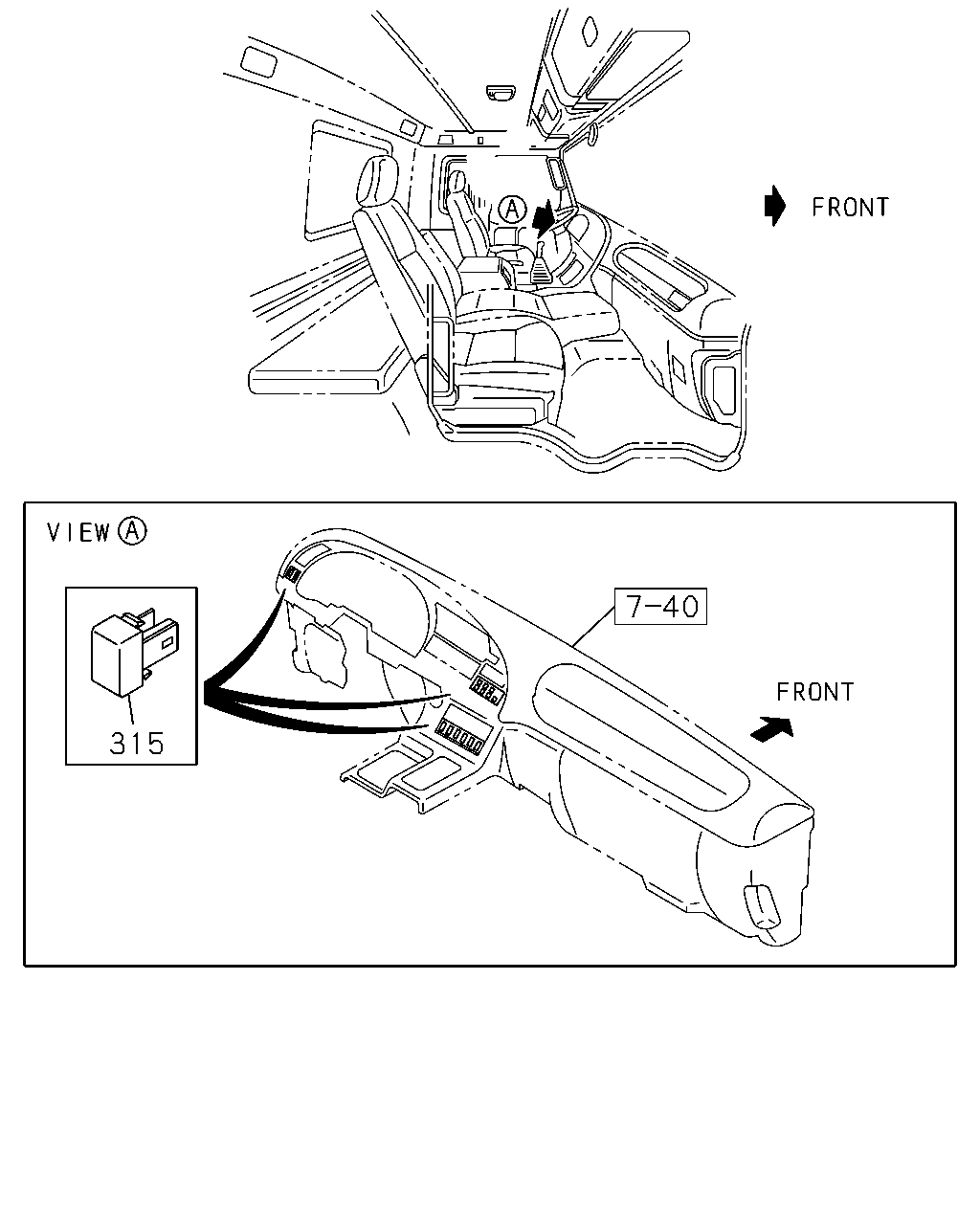

çizim 104489
315
BalonParca AdiParca NoAdetTipApplied Date
315 COVER; HOLE,SW
EXC. GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82359-069-2 12 1 0812-
315 COVER; HOLE,SW
EXC. ENGINE CONTROL COMMON RAIL(Q4R) 		1-82359-069-2 01 1 0812-
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82359-069-2 01 1 0812-
315 COVER; HOLE,SW
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3),SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-82359-069-2 01 1 0812-
315 COVER; HOLE,SW 1-82359-069-2 01 1 0812-
315 COVER; HOLE,SW 1-82359-069-2 01 1 0812-
315 COVER; HOLE,SW 1-82359-069-2 01 1 0812-
315 COVER; HOLE,SW 1-82359-069-2 01 1 0812-
315 COVER; HOLE,SW 1-82359-069-2 01 1 0812-
315 COVER; HOLE,SW
EXC. FOG LAMP REAR<NHD> 		1-82359-069-2 01 1 0812-
315 COVER; HOLE,SW
EXC. INSPECTION LAMP<T95> 		1-82359-069-2 01 1 0812-
315 COVER; HOLE,SW
EXC. HEADLAMPS LEVELING SYSTEM MANUAL<TAS> 		1-82359-069-2 01 1 0812-
315 COVER; HOLE,SW 1-82359-069-2 AR 1 0509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
