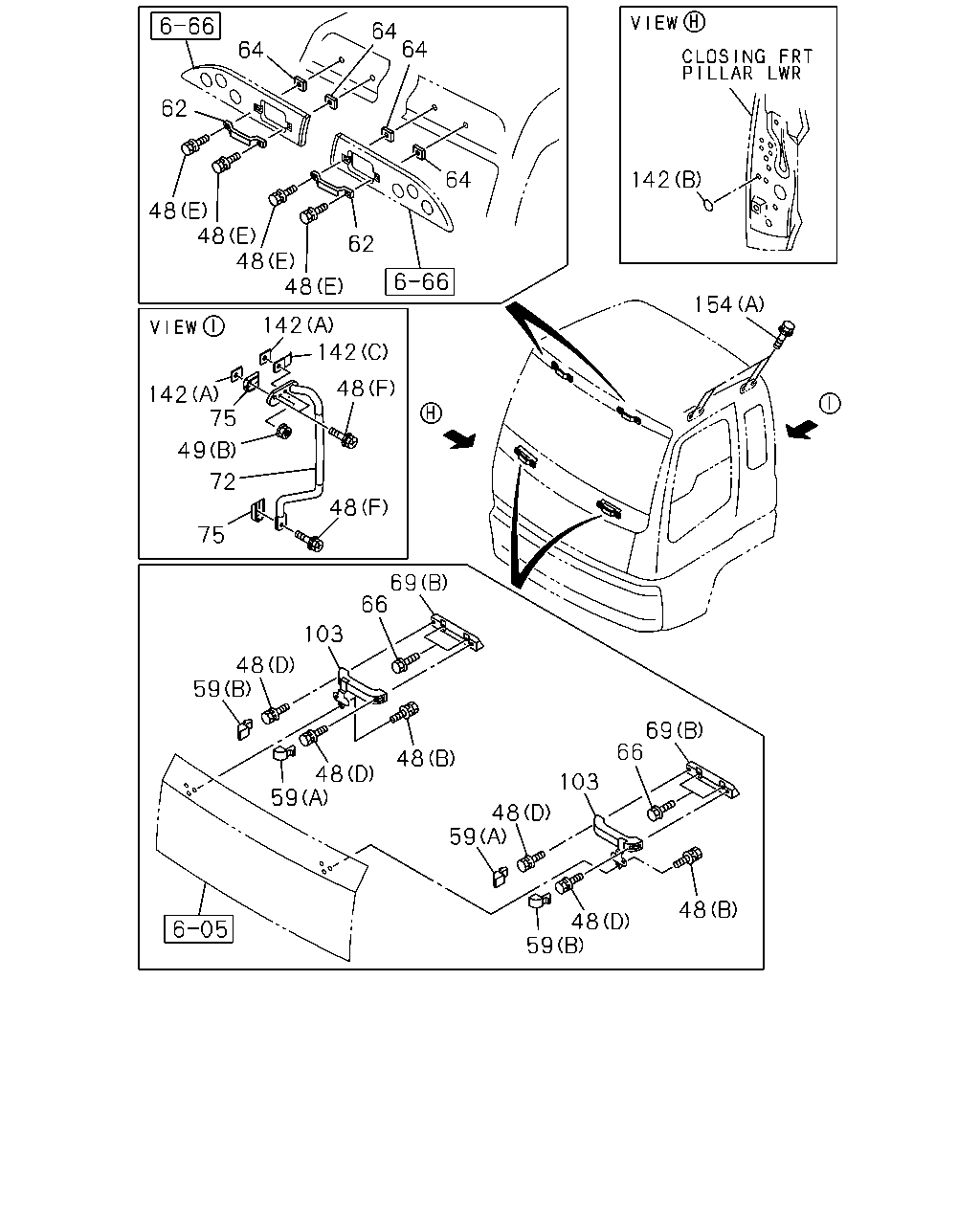

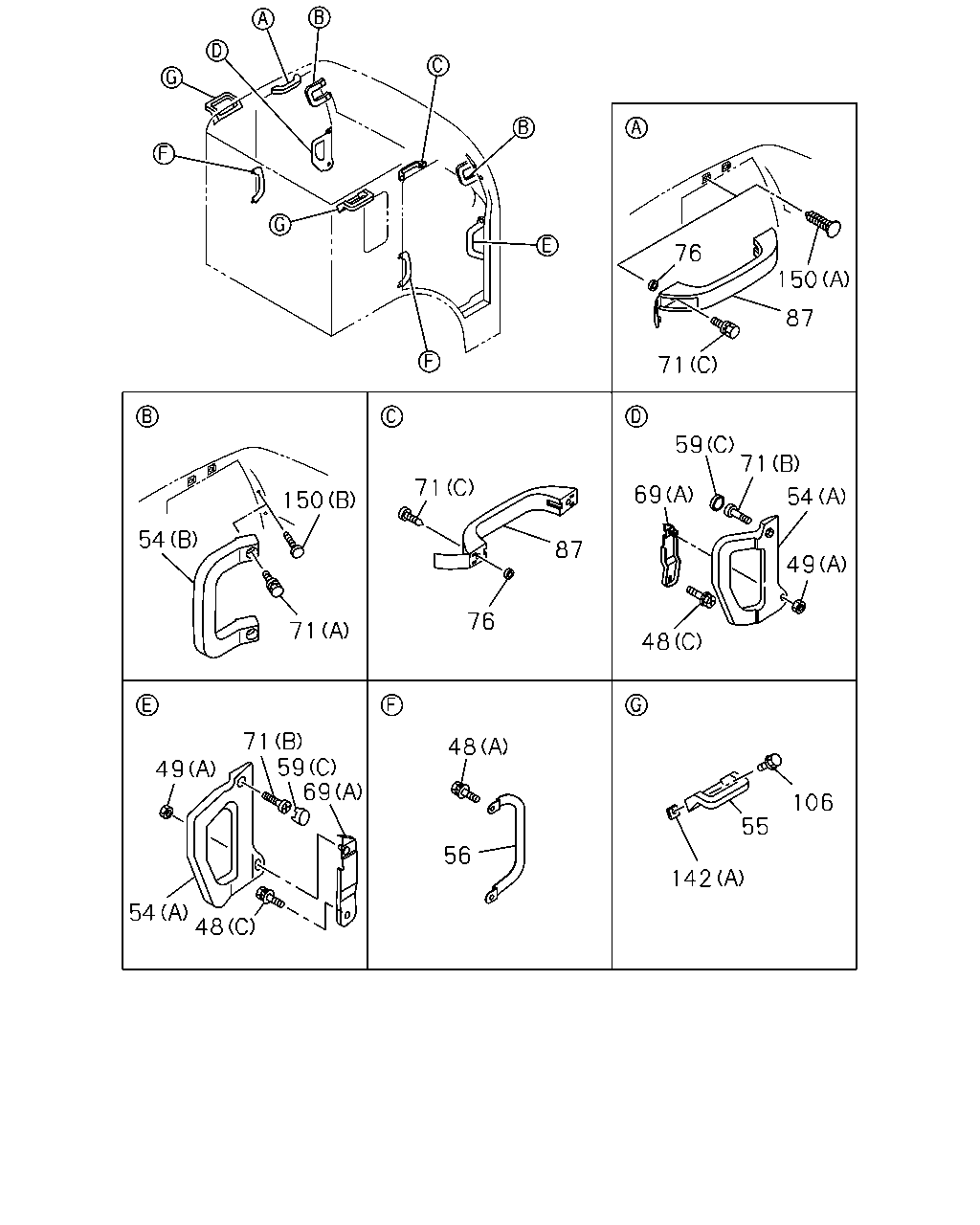

7-43 — SUN VISOR AND ASSIST GRIP (#31506) — 165 parça

76 150 87 71 59 71 71 69 54 150 54 87 49 76 71 48 71 59 69 48 49 106 55 56 142 54 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0603-0809
48	BOLT; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0810-0811
48	BOLT; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0812-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0509-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0509-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0509-0602
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0603-0809
48	BOLT; ASSIST GRIP CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0603-0809
48	BOLT; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811
48	BOLT; ASSIST GRIP CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811
48	BOLT; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-
48	BOLT; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0509-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0509-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0509-
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0812-1006
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	02	1	0509-0602
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	02	1	0603-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0509-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0509-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0509-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0509-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0509-
55	GRIP; ASSIST,CAB SIDE UPR EXC. GRIP OUT SIDE<W52>	1-73618-169-1	01	1	0509-
56	GRIP; ASSIST,SIDE SILL	1-73617-570-0	02	1	0509-0804
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0805-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0509-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0509-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0509-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0509-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0509-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0509-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0509-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0509-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0509-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	0509-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0509-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0509-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> OD=13 T=4.5	8-94230-464-1	04	1	0509-
76	SPACER; ASSIST GRIP EXC. ASSIST GRIP A POST<NBK> OD=13 T=4.5	8-94230-464-1	02	1	0509-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0509-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0509-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0509-
106	SCREW; ASSIST GRIP EXC. GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	0509-
142	SEAL; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-71997-691-1	02	1	0809-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	03	1	0601-0602
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	0603-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	01	1	0509-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0509-
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	0509-
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	0509-0512
142	SEAL; ASSIST GRIP EXC. GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0601-0602
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0509-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0509-

18 12 154 158 1 154 19 19 19 154 19 18 154 34 154 26 154 155 33 26 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF	1-72447-968-0	01	1	0509-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0509-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0509-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0509-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0509-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	0509-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0509-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0509-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0603-
23	SUN VISOR	1-73138-157-1	01	1	0509-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0509-0602
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0603-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0603-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0509-0602
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0603-0603
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70580-420-0	01	1	0603-0603
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0604-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0509-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0509-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0509-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0509-
155	FASTENER; HOLDER	1-09983-181-0	01	1	0509-0602
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0603-
158	LOCK; HEADER SHELF	1-72538-312-0	01	1	0509-

64 64 64 62 142 64 48 48 48 48 62 154 142 142 48 142 75 49 72 48 75 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0603-0809
48	BOLT; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0810-0811
48	BOLT; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0812-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0509-
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0509-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0509-0602
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0603-0809
48	BOLT; ASSIST GRIP CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0603-0809
48	BOLT; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811
48	BOLT; ASSIST GRIP CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0810-0811
48	BOLT; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-
48	BOLT; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-
48	BOLT; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0509-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0509-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0509-
49	NUT; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0812-1006
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91150-106-0	02	1	0509-0602
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	02	1	0603-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0509-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0509-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0509-
62	GRIP; ASSIST,ROOF PANEL EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0603-0809
62	GRIP; ASSIST,ROOF PANEL EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0810-0811
62	GRIP; ASSIST,ROOF PANEL EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-71907-492-0	01	1	0812-0907
62	GRIP; ASSIST,ROOF PANEL EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	8-97630-819-0	01	1	0908-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0509-0602
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0603-0809
62	GRIP; ASSIST,ROOF PANEL CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0603-0809
62	GRIP; ASSIST,ROOF PANEL RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37>	1-71907-492-0	02	1	0810-0811
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0810-0811
62	GRIP; ASSIST,ROOF PANEL CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0810-0811
62	GRIP; ASSIST,ROOF PANEL RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37>	1-71907-492-0	02	1	0812-0907
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0812-0907
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>	1-71907-492-0	02	1	0812-0907
62	GRIP; ASSIST,ROOF PANEL SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	1-71907-492-0	02	1	0812-0907
62	GRIP; ASSIST,ROOF PANEL RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37>	8-97630-819-0	02	1	0908-
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	8-97630-819-0	02	1	0908-
62	GRIP; ASSIST,ROOF PANEL MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>	8-97630-819-0	02	1	0908-
62	GRIP; ASSIST,ROOF PANEL SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2)	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0603-0809
64	SHEET; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0810-0811
64	SHEET; ASSIST GRIP EXC. RUSSIA COUNTRY<CZ3>,MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3>,SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	02	1	0812-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0509-0602
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0603-0809
64	SHEET; ASSIST GRIP CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0603-0809
64	SHEET; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> 25X25	8-94272-533-0	04	1	0810-0811
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0810-0811
64	SHEET; ASSIST GRIP CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0810-0811
64	SHEET; ASSIST GRIP RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> 25X25	8-94272-533-0	04	1	0812-
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> EXC. SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0812-
64	SHEET; ASSIST GRIP MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> 25X25	8-94272-533-0	04	1	0812-
64	SHEET; ASSIST GRIP SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 25X25	8-94272-533-0	04	1	0812-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0509-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0509-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0509-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0509-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0509-
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-545-0	01	1	0812-1006
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0809-1006
72	GRIP; ASSIST,CAB ENTRY,BACK PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71907-540-0	01	1	1007-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-543-0	01	1	0509-0811
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52> EXC. PRE CLEANER<W17>	1-71907-543-0	01	1	0812-1006
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-543-0	01	1	1007-
75	SHEET; ASSIST GRIP,CAB ENTRY PRE CLEANER<W17> GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0809-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	0509-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0509-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0509-
142	SEAL; ASSIST GRIP PRE CLEANER<W17> GRIP OUT SIDE<W52> (C)	1-71997-691-1	02	1	0809-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	03	1	0601-0602
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	0603-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	01	1	0509-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0509-
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	0509-
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	0509-0512
142	SEAL; ASSIST GRIP EXC. GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	02	1	0601-0602
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0509-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0509-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0509-
