◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10964 - EXZ LHD WEDGE BRAKE ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#31505) — 118 parça

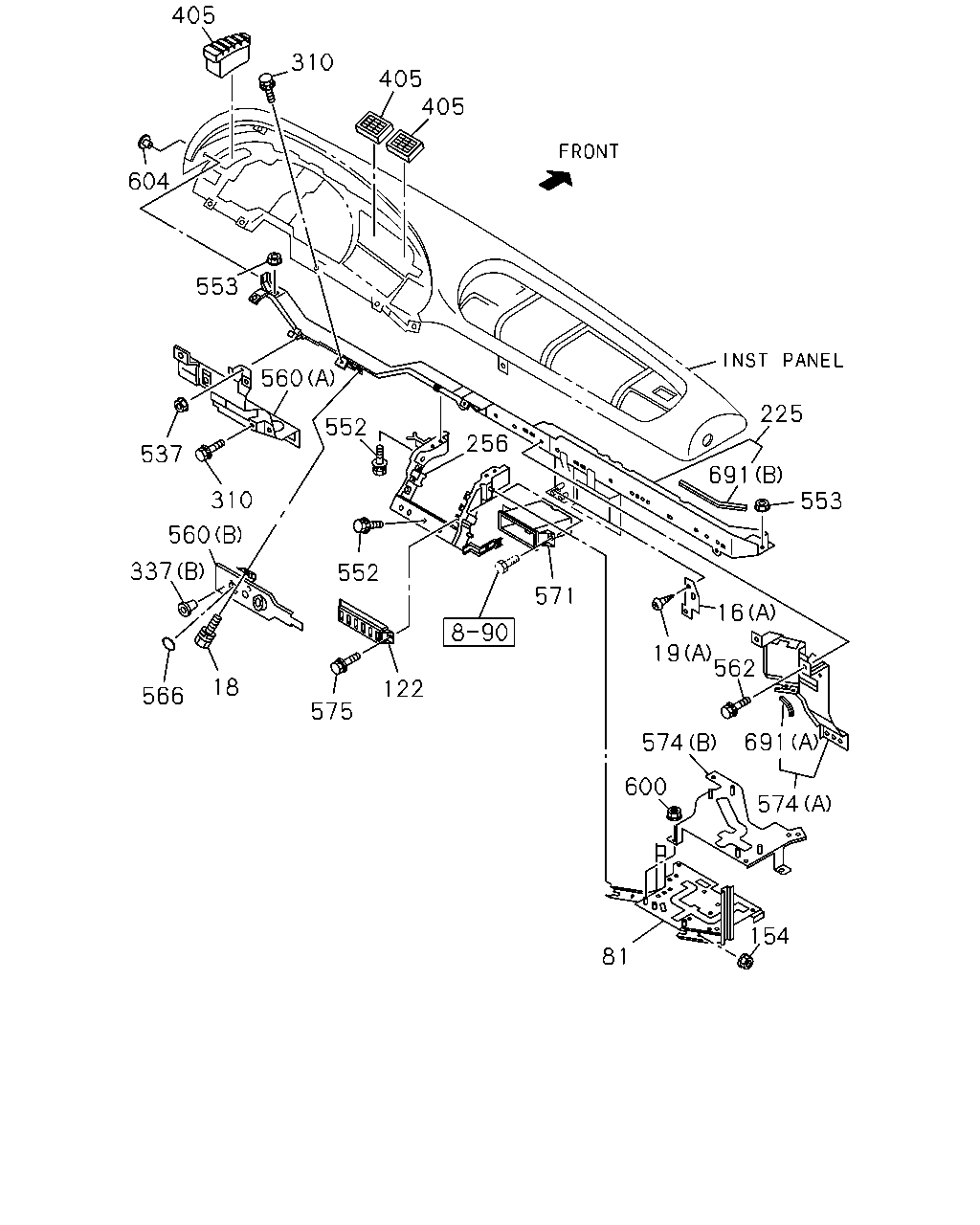

çizim 88342
154 574 691 562 19 574 600 81 16 553 691 225 571 256 552 552 122 575 18 337 566 560 310 537 560 553 310 405 405 604 405
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; INST PNL
(A) 		1-72317-360-3 01 1 0509-
16 BRACKET; INST PNL
(B) 		1-73908-023-2 01 1 0509-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0509-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0509-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 0509-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 0509-
81 BRACKET; ELEC CONT UNIT 1-73907-648-4 01 1 0509-
122 PANEL; CENTER CLUSTER 1-65671-550-5 01 1 0509-
154 NUT
M6 FLANGE 		0-91150-106-0 04 1 0509-0602
154 NUT
M6 FLANGE 		0-91180-106-0 04 1 0603-
225 FRAME; FACIA 1-65671-727-5 01 1 0509-
256 BEZEL ASM; CENTER 1-65671-730-3 01 1 0509-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 05 1 0509-
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 0509-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0509-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0509-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0509-
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 0509-0610
405 GRILLE ASM; METER VENT 1-76368-062-0 01 1 0611-
405 GRILLE ASM; METER VENT
BLACK 		8-94333-730-4 02 1 0509-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0509-0602
537 NUT; BRKT
M6 FLANGE 		0-91180-106-0 01 1 0603-
552 BOLT; FRAME
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0509-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0509-0602
553 NUT; FRAME
M8 FLANGE 		0-91180-108-0 04 1 0603-
560 BRACKET
SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-65681-243-0 01 1 0812-
560 BRACKET
(A) 		1-65681-216-0 01 1 0509-0811
560 BRACKET
EXC. SAUDI ARABIA EQUIPMENT(WH1) (A) 		1-65681-216-0 01 1 0812-
560 BRACKET
(B) 		1-65681-217-1 01 1 0509-
562 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0509-
566 PLUG; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 01 1 0611-
566 PLUG; HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0509-0602
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0603-0610
566 PLUG; HOLE
OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0603-0610
566 PLUG; HOLE
EXC. GLOW SYSTEM-FAST DIESEL ENGINE<KM6> OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 0611-
571 BEZEL; POCKET 1-72438-151-3 01 1 0509-0806
571 BEZEL; POCKET
EXC. RADIO AM/FM STEREO CD(UT3) 		1-72438-151-3 01 1 0807-
571 BEZEL; POCKET 1-72438-151-3 01 1 0807-
574 PANEL; RELAY BOX
(A) 		1-73907-407-3 01 1 0509-0703
574 PANEL; RELAY BOX
(A) 		1-73907-737-2 01 1 0704-
574 PANEL; RELAY BOX
(B) 		1-73907-647-3 01 1 0509-1108
574 PANEL; RELAY BOX
(B) 		8-98183-937-0 01 1 1109-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0509-
600 NUT; PANEL
M6 FLANGE 		0-91150-106-0 03 1 0509-0602
600 NUT; PANEL
M6 FLANGE 		0-91180-106-0 03 1 0603-
604 CLIP; INST PAD 1-09983-123-0 01 1 0509-
691 FINISHER; HARNESS PROTECTOR
(A) L=50 		8-94270-377-1 01 1 1006-
691 FINISHER; HARNESS PROTECTOR
(B) L=175 SERVICED BY L=500 		1-79937-746-0 01 1 0509-

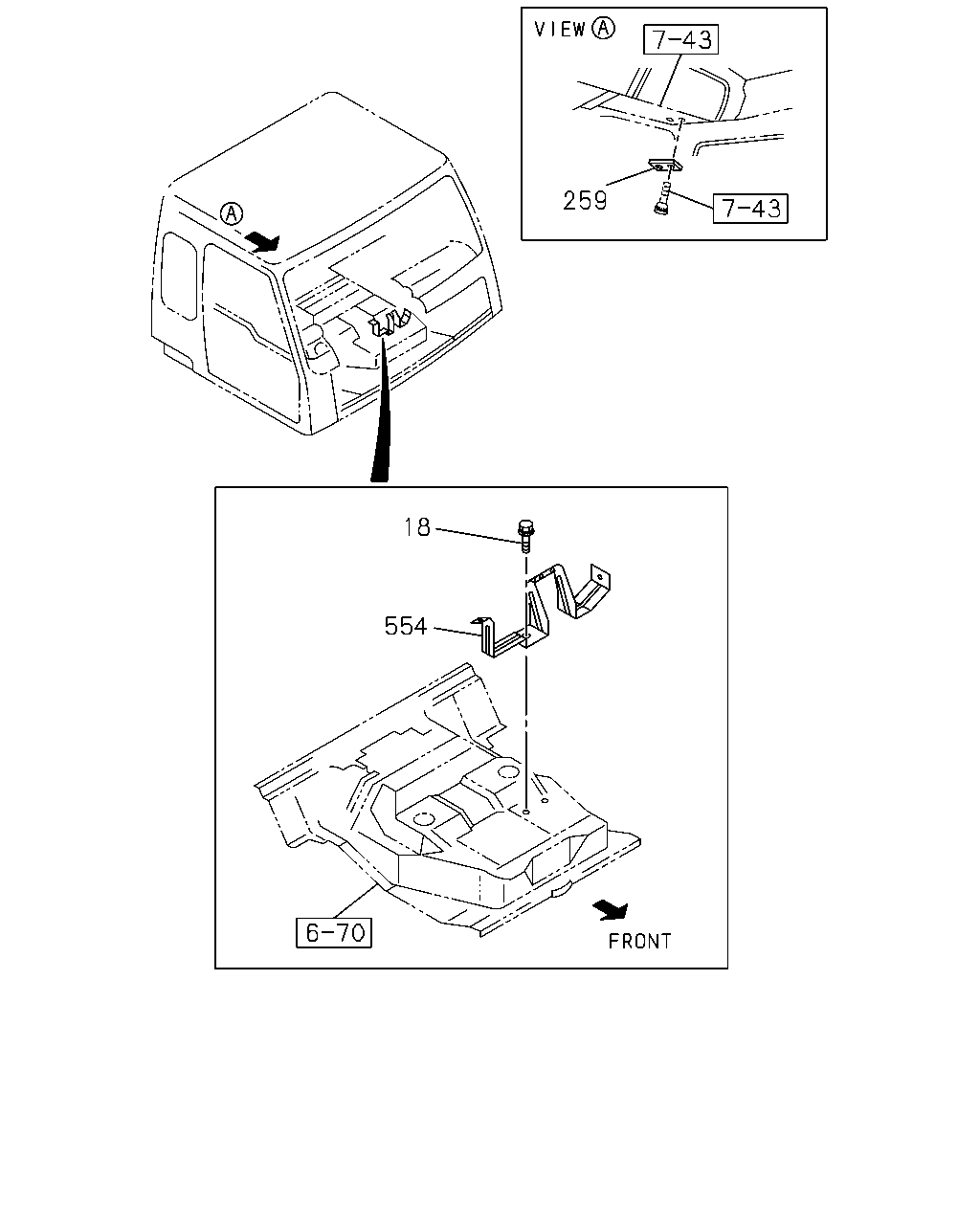

çizim 104387
259 18 554
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0509-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0509-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
259 PLATE; STUFF,SUN VISOR 1-73317-410-0 01 1 0509-0602
259 PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20> 		1-73317-410-0 01 1 0603-
554 BRACKET; CENTER BEZEL 1-65671-733-1 01 1 0509-

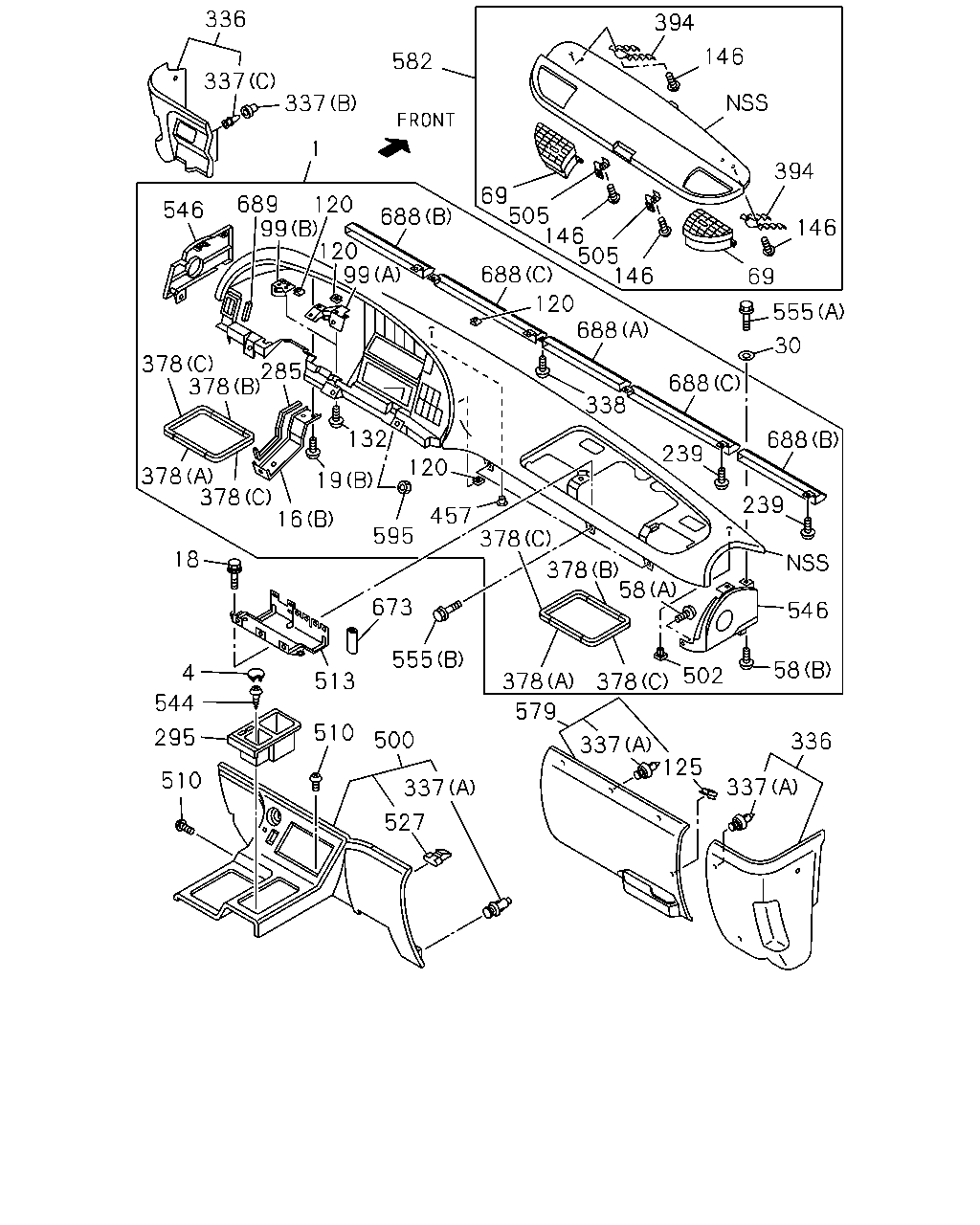

çizim 104612
336 394 146 582 337 337 1 394 69 505 146 146 689 120 99 120 99 546 688 146 688 69 120 688 555 30 378 285 378 688 338 132 688 239 120 378 378 16 239 19 457 378 378 58 595 18 673 546 555 58 4 502 513 378 378 544 579 510 295 500 336 337 125 510 337 337 527 505
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST 1-72317-352-9 01 1 0509-0603
1 PANEL; INST 1-72317-370-2 01 1 0604-
4 COVER; INST PNL 1-72537-106-0 01 1 0509-
16 BRACKET; INST PNL
(A) 		1-72317-360-3 01 1 0509-
16 BRACKET; INST PNL
(B) 		1-73908-023-2 01 1 0509-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710-
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0509-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 0509-0709
18 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0710-
19 SCREW; BRKT
(A) M5X14 		8-94279-325-0 02 1 0509-
19 SCREW; BRKT
(B) M5X12 TAPPING 		9-07076-512-0 03 1 0509-
30 WASHER; PL,INST PAD
ID=10.5 OD=26 T=2.6 		1-09985-184-0 08 1 0509-0811
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		9-07066-310-0 01 1 0509-0603
58 SCREW; INST PANEL
(A) M3X10 TAPPING 		0-71040-310-0 01 1 0604-
58 SCREW; INST PANEL
(B) M5X12 TAPPING 		9-07076-512-0 06 1 0509-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0509-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0509-
99 BRACKET; METER MTG,INST PNL
(A) 		1-72317-361-1 01 1 0509-
99 BRACKET; METER MTG,INST PNL
(B) 		1-72317-362-2 01 1 0509-
120 NUT; SPIRE,INST PNL
M5 		1-09984-196-0 09 1 0509-
125 CLIP; INST PANEL 8-97217-066-0 01 1 0509-
132 SCREW; BRKT,INST PANEL
M5X12 TAPPING 		9-07076-512-0 04 1 0509-
146 SCREW; TAP
M5X14 		8-94279-325-0 10 1 0509-
239 SCREW; DEFROSTER
M5X12 TAPPING 		9-07076-512-0 10 1 0509-
285 FINISHER; INST PANEL
L=190 SERVICED BY L=314 		8-94262-845-0 02 1 0509-
295 TRAY; CTR CLUSTER 1-72437-593-0 01 1 0509-
336 COVER; INST PANEL SIDE 1-72438-193-0 01 1 0509-
336 COVER; INST PANEL SIDE 1-72438-194-0 01 1 0509-
337 FASTENER; COVER
(A) 		1-72438-124-2 03 1 0509-
337 FASTENER; COVER
(A) 		1-72438-124-2 08 1 0509-
337 FASTENER; COVER
(C) 		1-72438-137-0 03 1 0509-
337 FASTENER; COVER
(B) 		1-72438-138-0 03 1 0509-
338 SCREW; COVER
M5X12 TAPPING 		9-07076-512-0 02 1 0509-
378 SEAL; INST PANEL
(A) 		1-72437-672-2 02 1 0509-
378 SEAL; INST PANEL
(B) 		1-72437-673-0 02 1 0509-
378 SEAL; INST PANEL
(C) 		1-72437-674-0 04 1 0509-
394 HOLDER; PANEL 1-72558-048-0 02 1 0509-
457 PLATE; INST PANEL 1-72317-363-2 08 1 0509-
500 CLUSTER; INST CENTER 1-72437-642-1 01 1 0509-
502 GROMMET; SCREW,CENTER,CLUSTER 8-94430-318-1 04 1 0509-
505 LOCK; LID 1-72558-024-2 02 1 0509-
510 SCREW; CENTER CLUSTER
M6X16 		8-94479-534-0 02 1 0509-
513 BRACKET; RELAY 8-97865-168-3 01 1 0509-
527 CLIP; INST CLUSTER 8-97217-066-0 05 1 0509-
544 SCREW; TRAY
M6X16 		8-94479-534-0 01 1 0509-
546 PANEL; INST,SUB 1-72317-354-4 01 1 0509-
546 PANEL; INST,SUB 1-72317-355-4 01 1 0509-
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28281-025-0 08 1 0509-0512
555 BOLT; PAD
(A) M10X25 FLANGE 		0-28251-025-0 08 1 0601-0604
555 BOLT; PAD
(A) M10X25 FLANGE 		8-98041-453-0 08 1 0605-
555 BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0509-
579 COVER; INST PNL 1-72438-195-1 01 1 0509-
582 LID; FUSE & RELAY 1-72548-146-1 01 1 0509-
595 NUT; HOOK 1-72418-013-0 06 1 0509-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0509-
688 NOZZLE; DEFROSTER
(A) 		1-76377-184-1 01 1 0509-
688 NOZZLE; DEFROSTER
(B) 		1-76378-335-2 01 1 0509-
688 NOZZLE; DEFROSTER
(B) 		1-76378-352-1 01 1 0509-
688 NOZZLE; DEFROSTER
(C) 		1-76378-378-6 01 1 0509-
688 NOZZLE; DEFROSTER
(C) 		1-76378-381-3 01 1 0509-
689 SEAL; INST 1-72317-364-0 01 1 0509-
