1-01 — ACCELERATOR PEDAL AND CONTROL (#3150) — 164 parça

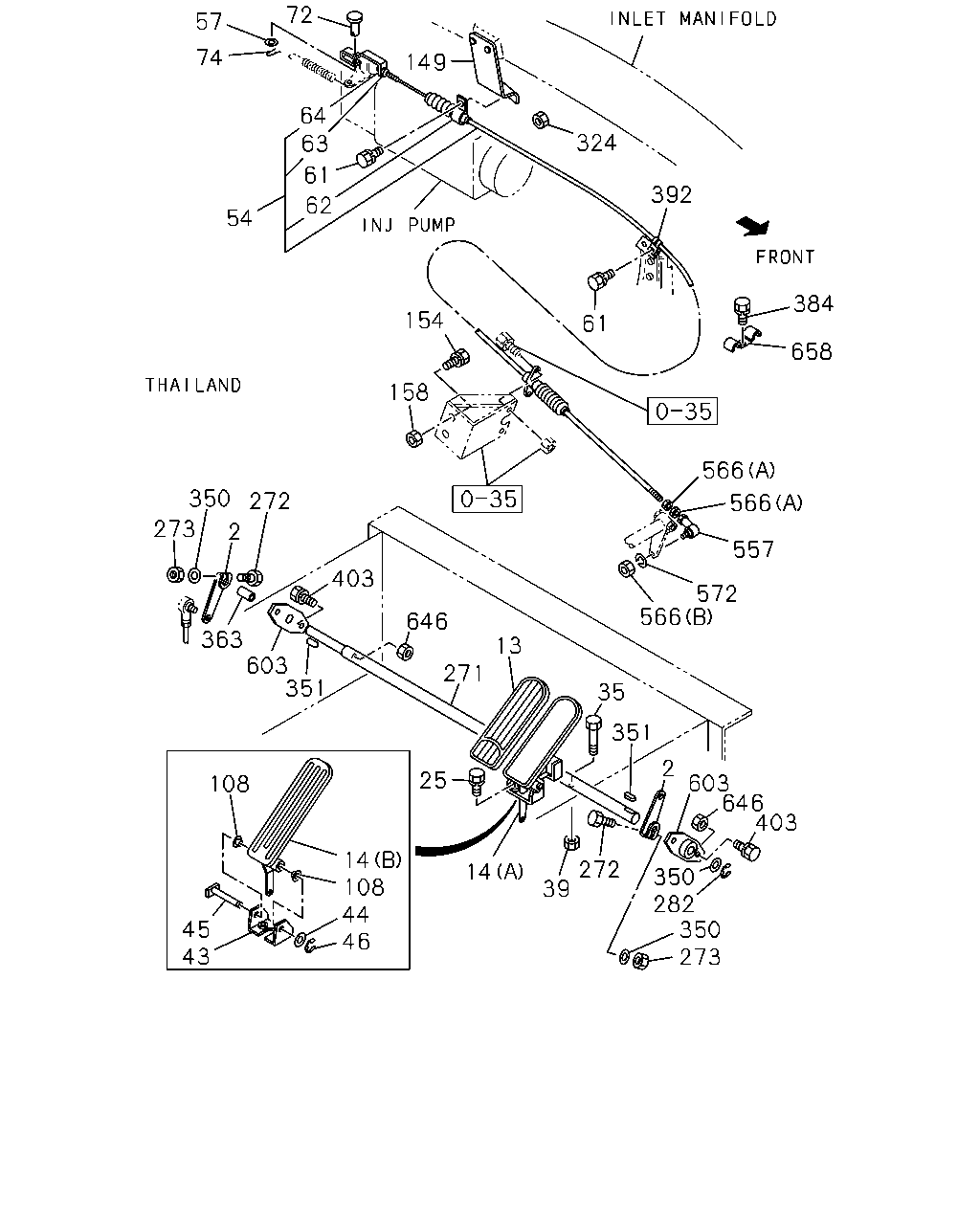

72 57 74 149 64 63 324 61 392 62 54 384 154 61 658 158 566 350 272 566 273 2 557 403 572 566 646 363 603 351 13 271 35 351 2 25 603 646 403 108 14 108 44 46 272 39 14 350 282 350 273 45 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LEVER; ENG CONT	1-23311-296-1	02	1	9104-0107
2	LEVER; ENG CONT	1-23311-296-1	02	1	0108-
13	COVER; ACCEL PEDAL	9-23242-003-0	01	1	9104-0107
13	COVER; ACCEL PEDAL	9-23242-003-0	01	1	0108-
14	PAD; PEDAL,ACCEL (A)	1-23240-054-1	01	1	9104-0107
14	PAD; PEDAL,ACCEL	1-23240-054-1	01	1	0108-
14	PAD; PEDAL,ACCEL (B)	1-23240-052-1	01	1	9104-0107
14	PAD; PEDAL,ACCEL	1-23240-052-1	01	1	0108-
25	BOLT; SHAFT SIDE M6X14 W/LK WASHER	0-50040-614-0	02	1	9104-0107
25	BOLT; SHAFT SIDE M6X14 W/LK WASHER	0-50040-614-0	02	1	0108-
25	BOLT; SHAFT SIDE M8X18 W/LK WASHER	0-50040-818-0	02	1	9104-9407
25	BOLT; SHAFT SIDE M8X14 FLANGE	0-28080-814-0	02	1	9408-
35	STOPPER; ACCEL PEDAL	9-02051-000-0	01	1	9104-9603
35	STOPPER; ACCEL PEDAL	0-20801-000-0	01	1	9604-
39	NUT; ACCEL PEDAL STOPPER M10	9-09111-410-0	01	1	9104-0107
39	NUT; ACCEL PEDAL STOPPER M10	9-09111-410-0	01	1	0108-
43	BRACKET; ACCEL CONT PEDAL	1-23243-010-1	01	1	9104-0107
43	BRACKET; ACCEL CONT PEDAL	1-23243-010-1	01	1	0108-
44	WASHER; ACCEL CONT PEDAL ID=8.4 OD=18	9-09160-608-0	01	1	9104-0107
44	WASHER; ACCEL CONT PEDAL ID=8.4 OD=18	9-09160-608-0	01	1	0108-
45	PIN; ACCEL CONT PEDAL	1-23124-002-1	01	1	9104-0107
45	PIN; ACCEL CONT PEDAL	1-23124-002-1	01	1	0108-
46	RING; SNAP,ACCEL CONT PEDAL ID=8	9-09185-408-0	01	1	9104-0107
46	RING; SNAP,ACCEL CONT PEDAL ID=8	9-09185-408-0	01	1	0108-
54	CABLE; ENG CONT	1-23210-859-1	01	1	9104-0107
54	CABLE; ENG CONT	1-23210-859-1	01	1	0108-
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	9104-0107
57	WASHER; ENG CONT CABLE ID=8.4	9-09160-508-0	01	1	0108-
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X20 W/LK WASHER	9-01900-620-0	02	1	9104-9204
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-0107
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X20 W/LK WASHER	0-50040-620-0	02	1	0108-
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 W/LK WASHER	9-01900-820-0	01	1	9104-9204
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-0107
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	0108-
62	CLIP; ENG CONT CABLE L=30	1-09700-326-0	01	1	9104-9202
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	9104-0107
63	NUT; LOCK,BRKT M8	9-09111-408-0	02	1	0108-
64	BRACKET; ENG CONT CABLE	1-09768-018-2	01	1	9104-0107
64	BRACKET; ENG CONT CABLE	1-09768-018-2	01	1	0108-
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	9104-0107
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08220-817-0	01	1	0108-
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	9104-0107
74	PIN; SNAP,CABLE END L=27.7	1-09747-005-0	01	1	0108-
84	NUT; ENG CONT LEVER M6	9-09110-406-0	02	1	9104-
108	BUSHING; ENG CONT	1-09330-062-0	02	1	9104-0107
108	BUSHING; ENG CONT	1-09330-062-0	02	1	0108-
149	BRACKET; ENG CONT	1-23335-343-0	01	1	9104-
149	BRACKET; ENG CONT	1-23335-343-0	01	1	0108-
154	BOLT; CABLE BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	9104-0107
154	BOLT; CABLE BRKT M10X25 W/LK WASHER	0-50041-025-0	02	1	0108-
158	NUT; BRKT M10	9-09110-510-0	02	1	9104-
271	SHAFT; ENG CONT	1-23331-113-1	01	1	9104-0107
271	SHAFT; ENG CONT	1-23331-113-1	01	1	0108-
272	BOLT; LEVER M6X35 W/LK&PL WASHER	0-50140-635-0	02	1	9104-0107
272	BOLT; LEVER M6X35 W/LK&PL WASHER	0-50140-635-0	02	1	0108-
273	NUT; LEVER M6	9-09110-406-0	02	1	9104-0107
273	NUT; LEVER M6	9-09110-406-0	02	1	0108-
282	RING; SNAP,CONT SHAFT ID=9	9-09185-409-0	01	1	9104-0107
282	RING; SNAP,CONT SHAFT ID=9	9-09185-409-0	01	1	0108-
324	NUT; CLIP FIX M8	9-09110-408-0	01	1	9104-0107
324	NUT; CLIP FIX M8	9-09110-408-0	01	1	0108-
350	WASHER; PL,LEVER ID=6.4	9-09160-506-0	02	1	9104-0107
350	WASHER; PL,LEVER ID=6.4	9-09160-506-0	02	1	0108-
350	WASHER; PL,LEVER ID=12.5	9-09160-512-0	01	1	9104-0107
350	WASHER; PL,LEVER ID=12.5	9-09160-512-0	01	1	0108-
351	KEY; SHAFT,ENG CONT	9-08030-410-0	02	1	9104-0107
351	KEY; SHAFT,ENG CONT	9-08030-410-0	02	1	0108-
363	SPACER; BRKT,ENG CONT SHAFT	1-09330-058-0	01	1	9104-0107
363	SPACER; BRKT,ENG CONT SHAFT	1-09330-058-0	01	1	0108-
384	BOLT; CLIP,CONT CABLE M8X20 W/LK WASHER	9-01900-820-0	02	1	9104-9112
384	BOLT; CLIP,CONT CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9201-0107
384	BOLT; CLIP,CONT CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	0108-
392	CLIP; ACCEL CONT CABLE	1-23219-081-0	01	1	9104-0107
392	CLIP; ACCEL CONT CABLE	1-23219-081-0	01	1	0108-
403	BOLT; BRKT,ACCEL PEDAL M8X25 W/LK WASHER	0-50040-825-0	04	1	9104-0107
403	BOLT; BRKT,ACCEL PEDAL M8X25 W/LK WASHER	0-50040-825-0	04	1	0108-
557	ROD ASM; LINK,ENG CONT ROD END RH THREAD	1-09760-002-0	01	1	9104-0107
557	ROD ASM; LINK,ENG CONT RH THREAD	1-09760-002-0	01	1	0108-
566	NUT; LK,JOINT (B) M5	9-99110-405-0	01	1	9104-0107
566	NUT; LK,JOINT M5	9-99110-405-0	01	1	0108-
566	NUT; LK,JOINT (A) M5	9-99110-405-0	02	1	9104-0107
566	NUT; LK,JOINT M5	9-99110-405-0	02	1	0108-
572	WASHER; LK,BALL JOINT ID=5.1	9-09150-505-0	01	1	9104-0107
572	WASHER; LK,BALL JOINT ID=5.1	9-09150-505-0	01	1	0108-
603	BRACKET; ENG CONT SHAFT	1-23335-250-0	02	1	9104-0107
603	BRACKET; ENG CONT SHAFT	1-23335-250-0	02	1	0108-
646	NUT; BRKT,LEVER M8	9-09110-408-0	04	1	9104-0107
646	NUT; BRKT,LEVER M8	9-09110-408-0	04	1	0108-
658	CLIP; ENG CONT CABLE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9104-9112
658	CLIP; ENG CONT CABLE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9201-0107
658	CLIP; ENG CONT CABLE ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	0108-
711	WASHER; LK ID=6.1	9-09150-506-0	02	1	9104-

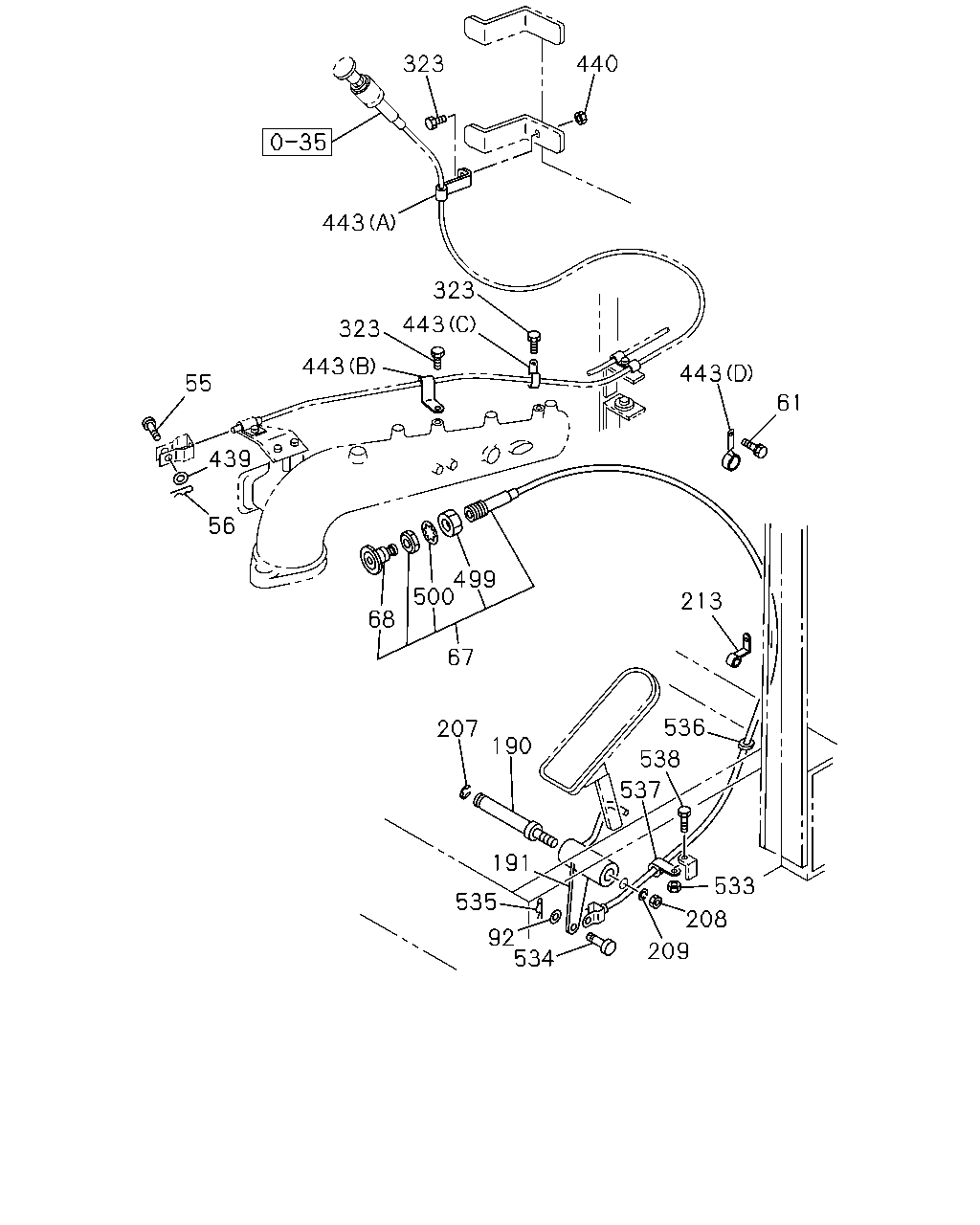

323 440 443 323 443 323 443 443 55 61 439 56 499 500 213 68 67 536 207 190 538 537 191 533 535 208 92 534 209

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
55	PIN; JAW JOINT	1-09744-096-1	01	1	9104-0107
55	PIN; JAW JOINT	1-09744-096-1	01	1	0108-
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	9104-0107
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-015-0	01	1	0108-
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X20 W/LK WASHER	9-01900-620-0	02	1	9104-9204
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X20 W/LK WASHER	0-50040-620-0	02	1	9205-0107
61	BOLT; BRKT TO FRAME ENG CONT CABLE M6X20 W/LK WASHER	0-50040-620-0	02	1	0108-
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 W/LK WASHER	9-01900-820-0	01	1	9104-9204
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-0107
61	BOLT; BRKT TO FRAME ENG CONT CABLE M8X20 W/LK WASHER	0-50040-820-0	01	1	0108-
67	CABLE ASM; IDLE CONT L=870	1-23210-707-0	01	1	9104-9910
67	CABLE ASM; IDLE CONT L=870	1-23230-375-0	01	1	9911-
68	KNOB; IDLE CONT	1-23211-005-0	01	1	9104-0107
68	KNOB; IDLE CONT	1-23211-005-0	01	1	0108-
84	NUT; ENG CONT LEVER M6	9-09110-406-0	02	1	9104-
92	WASHER; PL,IDLE CONT CABLE ID=6.4	9-09160-506-0	01	1	9104-0107
92	WASHER; PL,IDLE CONT CABLE ID=6.4	9-09160-506-0	01	1	0108-
190	SHAFT; IDLING CONT	1-23331-060-0	01	1	9104-0107
190	SHAFT; IDLING CONT	1-23331-060-0	01	1	0108-
191	LEVER; IDLING CONT	1-23311-176-2	01	1	9104-0107
191	LEVER; IDLING CONT	1-23311-176-2	01	1	0108-
207	RING; SNAP,SHAFT ID=9	9-09185-409-0	01	1	9104-0107
207	RING; SNAP,SHAFT ID=9	9-09185-409-0	01	1	0108-
208	NUT; SHAFT M10	9-09110-510-0	01	1	9104-
209	WASHER; LK,SHAFT ID=10.2	9-09150-510-0	01	1	9104-0107
209	WASHER; LK,SHAFT ID=10.2	9-09150-510-0	01	1	0108-
213	CLIP; IDLING CONT ID=8 H=20 L=20	1-09700-604-0	01	1	9104-0107
213	CLIP; IDLING CONT ID=8 H=20 L=20	1-09700-604-0	01	1	0108-
323	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	9104-0107
323	BOLT; CLIP M8X20 W/LK WASHER	0-50040-820-0	01	1	0108-
323	BOLT; CLIP M6X14 W/LK WASHER	9-01900-614-0	01	1	9104-9204
323	BOLT; CLIP M6X14 W/LK WASHER	0-50040-614-0	01	1	9205-0107
323	BOLT; CLIP M6X14 W/LK WASHER	0-50040-614-0	01	1	0108-
323	BOLT; CLIP M8X14 W/LK WASHER	9-01900-814-0	01	1	9104-9204
323	BOLT; CLIP M8X14 W/LK WASHER	0-50040-814-0	01	1	9205-0107
323	BOLT; CLIP M8X14 W/LK WASHER	0-50040-814-0	01	1	0108-
323	BOLT; CLIP M6X16 FLANGE	0-28080-616-0	01	1	9507-
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	9104-0107
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0108-
440	NUT; CLIP,ENG STOP CABLE M8	9-09110-408-0	01	1	9104-0107
440	NUT; CLIP,ENG STOP CABLE M8	9-09110-408-0	01	1	0108-
443	CLIP; CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9104-0107
443	CLIP; CABLE ID=6 H=20 L=20	1-09700-603-0	01	1	0108-
443	CLIP; CABLE (D) ID=9	1-09700-839-1	01	1	9104-0107
443	CLIP; CABLE ID=9	1-09700-839-1	01	1	0108-
443	CLIP; CABLE (C) ID=9 L=40	9-09524-875-0	01	1	9104-0107
443	CLIP; CABLE ID=9 L=40	9-09524-875-0	01	1	0108-
443	CLIP; CABLE (B) ID=7 H=20 L=20	9-09527-006-0	01	1	9104-0107
443	CLIP; CABLE ID=7 H=20 L=20	9-09527-006-0	01	1	0108-
499	NUT; IDLE CONT CABLE	9-09840-072-0	01	1	9104-0107
499	NUT; IDLE CONT CABLE	9-09840-072-0	01	1	0108-
500	WASHER; IDLE CONT CABLE	9-09855-057-0	01	1	9104-0107
500	WASHER; IDLE CONT CABLE	9-09855-057-0	01	1	0108-
533	NUT; CLIP,IDLE CONT CABLE M6	9-09110-406-0	01	1	9104-0107
533	NUT; CLIP,IDLE CONT CABLE M6	9-09110-406-0	01	1	0108-
533	NUT; CLIP,IDLE CONT CABLE M8	9-09110-408-0	01	1	9104-0107
533	NUT; CLIP,IDLE CONT CABLE M8	9-09110-408-0	01	1	0108-
534	PIN; JAW JOINT,IDLING CONT CABLE	9-08233-510-0	01	1	9104-0107
534	PIN; JAW JOINT,IDLING CONT CABLE	9-08233-510-0	01	1	0108-
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	9104-0107
535	PIN; SNAP,IDLING CONT CABLE L=17.9	1-09747-002-0	01	1	0108-
536	GROMMET; IDLING CONT ID=10 OD=20	9-09956-240-0	01	1	9104-9311
536	GROMMET; IDLING CONT	1-09332-122-0	01	1	9312-0107
536	GROMMET; IDLING CONT	1-09332-122-0	01	1	0108-
537	CLIP; IDLING CONT CABLE	9-09522-842-0	01	1	9104-0107
537	CLIP; IDLING CONT CABLE	9-09522-842-0	01	1	0108-
538	BOLT; CLIP,IDLING CONT M6X16 W/LK WASHER	0-50040-616-0	01	1	9104-0107
538	BOLT; CLIP,IDLING CONT M6X16 W/LK WASHER	0-50040-616-0	01	1	0108-
538	BOLT; CLIP,IDLING CONT M8X20 W/LK WASHER	9-01900-820-0	01	1	9104-9204
538	BOLT; CLIP,IDLING CONT M8X20 W/LK WASHER	0-50040-820-0	01	1	9205-0107
538	BOLT; CLIP,IDLING CONT M8X20 W/LK WASHER	0-50040-820-0	01	1	0108-
711	WASHER; LK ID=6.1	9-09150-506-0	02	1	9104-
