◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10964 - EXZ LHD WEDGE BRAKE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#31488) — 17 parça

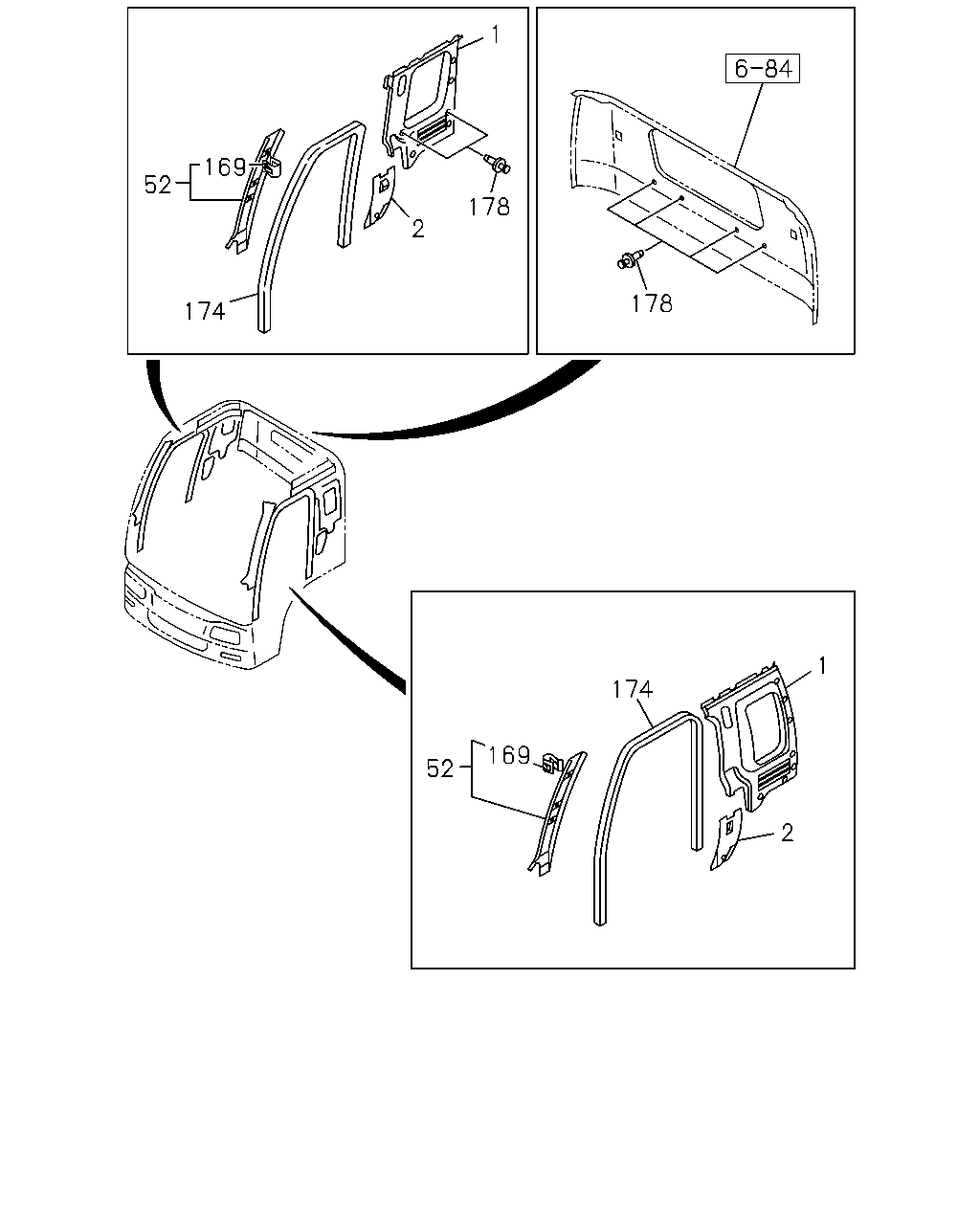

çizim 88434
1 169 52 178 2 178 174 1 174 169 52 2
BalonParca AdiParca NoAdetTipApplied Date
1 TRIM; ROOM,QUARTER WINDOW UPR
CHINA EQUIPMENT(YT2) 		1-73347-926-0 01 1 0701-
1 TRIM; ROOM,QUARTER WINDOW UPR
CHINA EQUIPMENT(YT2) 		1-73347-927-0 01 1 0701-
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-901-4 01 1 0509-0612
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. CHINA EQUIPMENT(YT2) 		1-73347-901-4 01 1 0701-
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-902-3 01 1 0509-0612
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. CHINA EQUIPMENT(YT2) 		1-73347-902-3 01 1 0701-
2 TRIM; ROOM,QUARTER WINDOW LWR
CHINA EQUIPMENT(YT2) 		1-73346-043-0 01 1 0701-
2 TRIM; ROOM,QUARTER WINDOW LWR
CHINA EQUIPMENT(YT2) 		1-73346-044-0 01 1 0701-
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73346-022-1 01 1 0509-0612
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. CHINA EQUIPMENT(YT2) 		1-73346-022-1 01 1 0701-
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73346-023-1 01 1 0509-0612
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. CHINA EQUIPMENT(YT2) 		1-73346-023-1 01 1 0701-
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0509-
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0509-
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0509-
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0509-
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 07 1 0509-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
