6-20 — SIDE PANEL AND STEP (#31482) — 175 parça

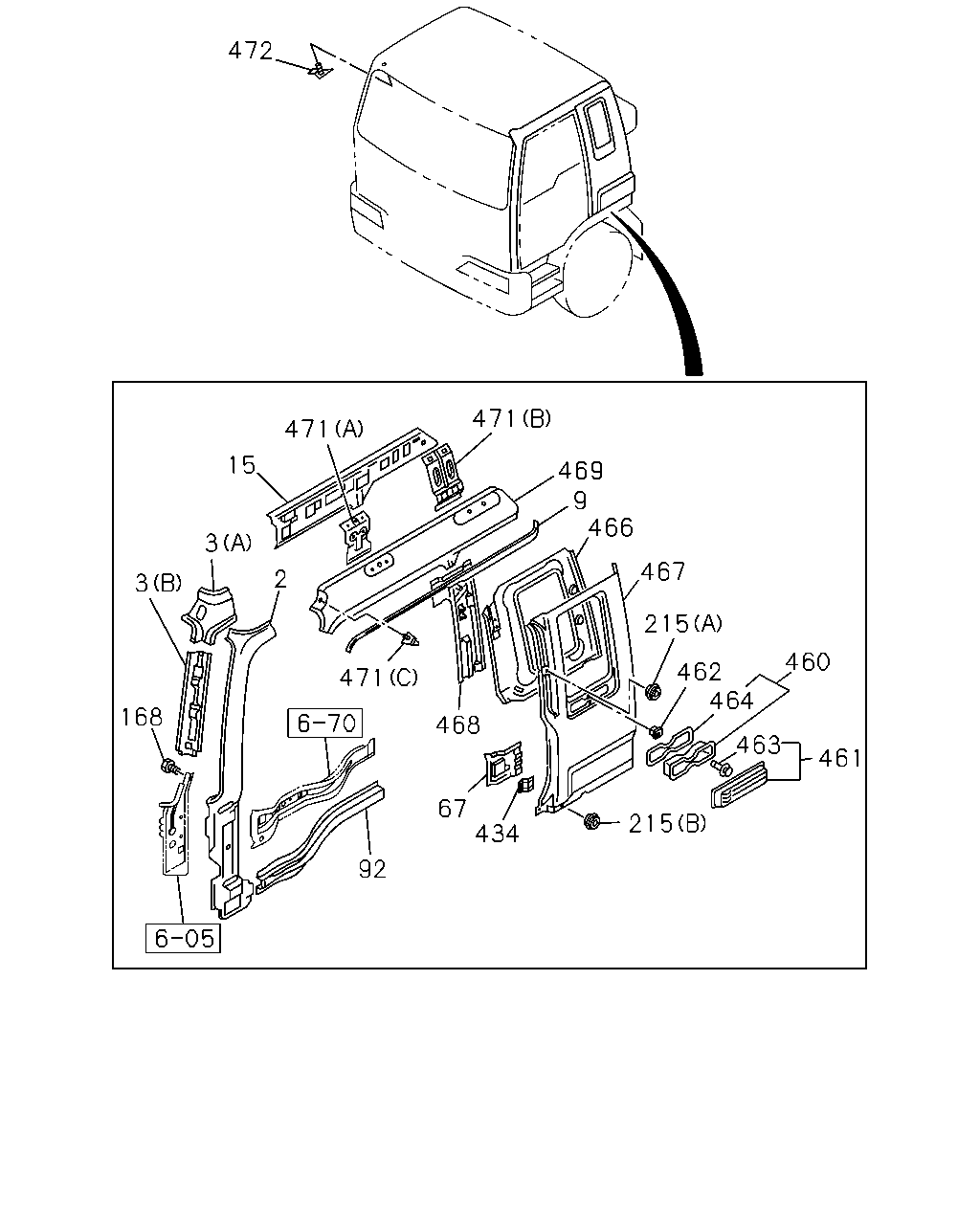

çizim 88306
472 471 471 15 469 9 466 3 467 2 3 215 460 462 464 471 168 468 463 461 67 434 215 92
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT
EXC. CHINA EQUIPMENT(YT2) 		1-61281-409-2 01 1 0704-0808
2 PILLAR; FRT
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-61281-409-2 01 1 0809-
2 PILLAR; FRT
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-61281-409-2 01 1 0809-
2 PILLAR; FRT
MIRROR O/S UNDER VIEW<RR9> 		1-61281-409-2 01 1 0809-
2 PILLAR; FRT
CAUTIONS CHINESE<SL7> 		1-61281-410-2 01 1 0509-0510
2 PILLAR; FRT 1-61281-410-2 01 1 0511-
2 PILLAR; FRT 1-61281-409-2 01 1 0509-0703
2 PILLAR; FRT
CHINA EQUIPMENT(YT2) 		1-61281-155-4 01 1 0704-0809
2 PILLAR; FRT
RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> 		1-61281-155-4 01 1 0810-0811
2 PILLAR; FRT
CHINA EQUIPMENT(YT2) 		1-61281-155-4 01 1 0810-0811
2 PILLAR; FRT
RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> 		1-61281-155-4 01 1 0812-
2 PILLAR; FRT
MIR O/S RR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> 		1-61281-155-4 01 1 0812-
2 PILLAR; FRT
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61281-155-4 01 1 0812-
3 PANEL; CLOSING,FRT PILLAR
CAUTIONS CHINESE<SL7> (A) 		1-61281-170-5 01 1 0509-0510
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 0511-
3 PANEL; CLOSING,FRT PILLAR
CAUTIONS CHINESE<SL7> (B) 		1-61281-344-5 01 1 0509-0510
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 0511-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0509-0808
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 0809-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0509-0808
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 0809-
9 MOLDING; DRIP,CAB SIDE
CAUTIONS CHINESE<SL7> 		1-61281-281-5 01 1 0509-0510
9 MOLDING; DRIP,CAB SIDE 1-61281-281-5 01 1 0511-
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0509-0808
9 MOLDING; DRIP,CAB SIDE 1-61281-280-5 01 1 0809-
15 PANEL; CANT RAIL SIDE
CAUTIONS CHINESE<SL7> 		1-61281-178-8 01 1 0509-0510
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 0511-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0509-0808
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 0809-
67 PANEL; INNER,RR PILLAR LWR
CAUTIONS CHINESE<SL7> 		1-61281-195-5 01 1 0509-0510
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 0511-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0509-0808
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 0809-
92 PANEL; SIDE SILL,CAB
CAUTIONS CHINESE<SL7> 		1-61281-212-8 01 1 0509-0510
92 PANEL; SIDE SILL,CAB 1-61281-212-8 01 1 0511-
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0509-0808
92 PANEL; SIDE SILL,CAB 1-61281-211-9 01 1 0809-
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 0509-0512
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601-
210 PANEL; DOOR STRIKER REINF
CAUTIONS CHINESE<SL7> 		8-97851-446-1 01 1 0509-0510
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0511-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 0509-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 0509-
434 PATCH; ASSIST GRIP
CAUTIONS CHINESE<SL7> 		1-61270-763-1 01 1 0509-0510
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0509-0510
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0511-0808
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0511-0808
434 PATCH; ASSIST GRIP
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-61270-763-1 01 1 0809-0809
434 PATCH; ASSIST GRIP
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-61270-763-1 01 1 0809-0809
434 PATCH; ASSIST GRIP
MIRROR O/S UNDER VIEW<RR9> 		1-61270-763-1 01 1 0809-0809
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0809-0809
434 PATCH; ASSIST GRIP
CHINA EQUIPMENT(YT2) 		1-61270-763-1 01 1 0809-0809
434 PATCH; ASSIST GRIP
RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> 		1-61270-763-1 01 1 0810-0811
434 PATCH; ASSIST GRIP
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-61270-763-1 01 1 0810-0811
434 PATCH; ASSIST GRIP
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-61270-763-1 01 1 0810-0811
434 PATCH; ASSIST GRIP
MIRROR O/S UNDER VIEW<RR9> 		1-61270-763-1 01 1 0810-0811
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0810-0811
434 PATCH; ASSIST GRIP
CHINA EQUIPMENT(YT2) 		1-61270-763-1 01 1 0810-0811
434 PATCH; ASSIST GRIP
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-61270-763-1 01 1 0812-
434 PATCH; ASSIST GRIP
MIRROR O/S UNDER VIEW<RR9> 		1-61270-763-1 01 1 0812-
434 PATCH; ASSIST GRIP
RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> 		1-61270-763-1 01 1 0812-
434 PATCH; ASSIST GRIP
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> 		1-61270-763-1 01 1 0812-
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 0812-
434 PATCH; ASSIST GRIP
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) 		1-61270-763-1 01 1 0812-
460 VENTILATOR; BODY SIDE 1-76378-292-4 02 1 0509-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 0509-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 0509-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 0509-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 0509-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 0509-
466 PANEL; INNER,BACK CORNER
CAUTIONS CHINESE<SL7> 		1-61281-416-1 01 1 0509-0510
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 0511-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0509-0808
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 0809-
467 PANEL; OUTER,BACK CORNER
CAUTIONS CHINESE<SL7> 		1-61281-478-3 01 1 0509-0510
467 PANEL; OUTER,BACK CORNER 1-61281-204-4 01 1 0511-0811
467 PANEL; OUTER,BACK CORNER
EXC. SAUDI ARABIA EQUIPMENT(WH1) 		1-61281-204-4 01 1 0812-
467 PANEL; OUTER,BACK CORNER
SAUDI ARABIA EQUIPMENT(WH1) 		1-61281-478-5 01 1 0812-
467 PANEL; OUTER,BACK CORNER
EXC. CHINA EQUIPMENT(YT2) 		1-61281-203-4 01 1 0603-0808
467 PANEL; OUTER,BACK CORNER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-61281-203-4 01 1 0809-0809
467 PANEL; OUTER,BACK CORNER
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-61281-203-4 01 1 0809-0809
467 PANEL; OUTER,BACK CORNER
MIRROR O/S UNDER VIEW<RR9> 		1-61281-203-4 01 1 0809-0809
467 PANEL; OUTER,BACK CORNER
RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> 		1-61281-203-4 01 1 0810-0811
467 PANEL; OUTER,BACK CORNER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> 		1-61281-203-4 01 1 0810-0811
467 PANEL; OUTER,BACK CORNER
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-61281-203-4 01 1 0810-0811
467 PANEL; OUTER,BACK CORNER
MIRROR O/S UNDER VIEW<RR9> 		1-61281-203-4 01 1 0810-0811
467 PANEL; OUTER,BACK CORNER
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> 		1-61281-203-4 01 1 0812-
467 PANEL; OUTER,BACK CORNER
MIRROR O/S UNDER VIEW<RR9> 		1-61281-203-4 01 1 0812-
467 PANEL; OUTER,BACK CORNER
RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> 		1-61281-203-4 01 1 0812-
467 PANEL; OUTER,BACK CORNER
SAUDI ARABIA EQUIPMENT(WH1) 		1-61281-203-4 01 1 0812-
467 PANEL; OUTER,BACK CORNER
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> 		1-61281-203-4 01 1 0812-
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 0509-0510
467 PANEL; OUTER,BACK CORNER 1-61281-477-3 01 1 0511-0602
467 PANEL; OUTER,BACK CORNER
CHINA EQUIPMENT(YT2) 		1-61281-477-3 01 1 0603-
468 REINFORCEMENT; SEAT BELT ANCHOR
CAUTIONS CHINESE<SL7> 		1-61281-418-2 01 1 0509-0510
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 0511-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0509-0808
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 0809-
469 ROOF; SIDE
CAUTIONS CHINESE<SL7> 		1-61281-199-8 01 1 0509-0510
469 ROOF; SIDE 1-61281-199-8 01 1 0511-
469 ROOF; SIDE 1-61281-198-8 01 1 0509-0808
469 ROOF; SIDE 1-61281-198-8 01 1 0809-
471 PATCH; AIR DEFLECTOR
CAUTIONS CHINESE<SL7> (A) 		1-61281-201-3 01 1 0509-0510
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-201-3 01 1 0511-
471 PATCH; AIR DEFLECTOR
CAUTIONS CHINESE<SL7> (C) 		1-61281-233-4 01 1 0509-0510
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-4 01 1 0511-0812
471 PATCH; AIR DEFLECTOR
(C) 		8-98132-463-0 01 1 0901-
471 PATCH; AIR DEFLECTOR
CAUTIONS CHINESE<SL7> (B) 		1-61281-202-3 01 1 0509-0510
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 0509-0510
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 0511-0808
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 0511-0808
471 PATCH; AIR DEFLECTOR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) 		1-61281-202-3 01 1 0809-0809
471 PATCH; AIR DEFLECTOR
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> (B) 		1-61281-202-3 01 1 0809-0809
471 PATCH; AIR DEFLECTOR
MIRROR O/S UNDER VIEW<RR9> (B) 		1-61281-202-3 01 1 0809-0809
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 0809-0809
471 PATCH; AIR DEFLECTOR
CHINA EQUIPMENT(YT2) (B) 		1-61281-202-3 01 1 0809-0809
471 PATCH; AIR DEFLECTOR
RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> (B) 		1-61281-202-3 01 1 0810-0811
471 PATCH; AIR DEFLECTOR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> (B) 		1-61281-202-3 01 1 0810-0811
471 PATCH; AIR DEFLECTOR
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> (B) 		1-61281-202-3 01 1 0810-0811
471 PATCH; AIR DEFLECTOR
MIRROR O/S UNDER VIEW<RR9> (B) 		1-61281-202-3 01 1 0810-0811
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 0810-0811
471 PATCH; AIR DEFLECTOR
CHINA EQUIPMENT(YT2) (B) 		1-61281-202-3 01 1 0810-0811
471 PATCH; AIR DEFLECTOR
MIRROR O/S RR VIEW<D37> EXC. MIRROR O/S UNDER VIEW<RR9> (B) 		1-61281-202-3 01 1 0812-
471 PATCH; AIR DEFLECTOR
MIRROR O/S UNDER VIEW<RR9> (B) 		1-61281-202-3 01 1 0812-
471 PATCH; AIR DEFLECTOR
RUSSIA COUNTRY<CZ3> EXC. MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>, MIRROR O/S RR VIEW<D37> (B) 		1-61281-202-3 01 1 0812-
471 PATCH; AIR DEFLECTOR
MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SRR VIEW DOOR MOUNTED DRIVER&PASSENGER<EL3> (B) 		1-61281-202-3 01 1 0812-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-202-3 01 1 0812-
471 PATCH; AIR DEFLECTOR
SAUDI ARABIA EQUIPMENT(WH1),CHINA EQUIPMENT(YT2) (B) 		1-61281-202-3 01 1 0812-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 0509-0808
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-200-3 01 1 0809-
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0509-0808
472 PATCH; STAY,ROOF 1-61270-943-1 01 1 0809-

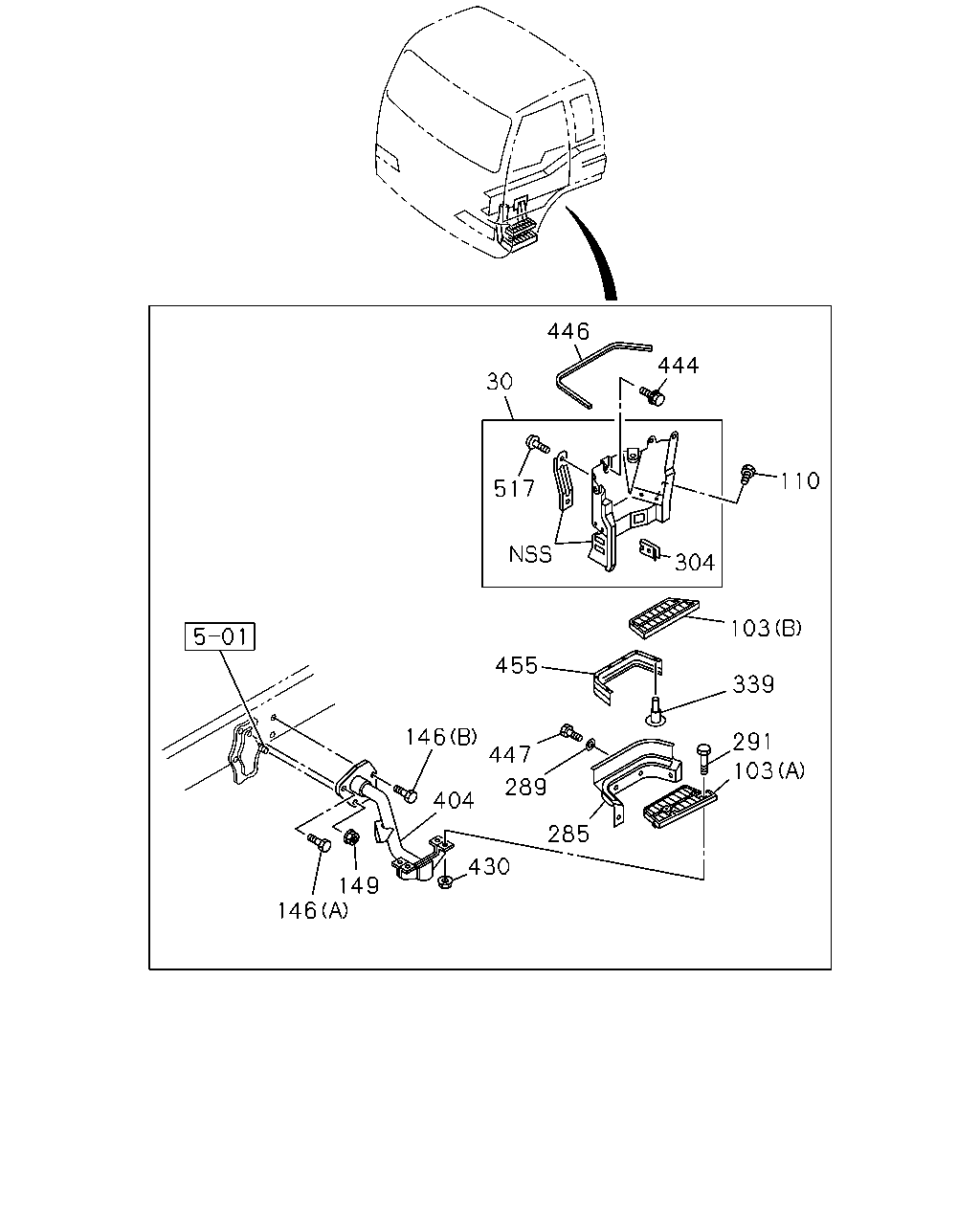

çizim 88505
446 444 30 110 517 304 103 455 339 146 291 447 103 289 404 285 430 149 146
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 0509-0910
30 CLOSING; SIDE STEP 8-98156-823-0 01 1 0911-
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 0509-0910
30 CLOSING; SIDE STEP 8-98156-824-0 01 1 0911-
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 0509-
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 0509-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 0509-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 0509-
110 BOLT; 1ST STEP PLATE
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 08 1 0509-
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28081-230-0 02 1 0509-0512
146 BOLT; STEP BRKT
(A) M12X30 FLANGE 		0-28051-230-0 02 1 0601-
146 BOLT; STEP BRKT
(B) M12X80 		0-28081-280-0 04 1 0509-0512
146 BOLT; STEP BRKT
(B) M12X80 FLANGE 		0-28051-280-0 04 1 0601-0601
146 BOLT; STEP BRKT
(B) M12X70 FLANGE 		0-28051-270-0 04 1 0601-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 02 1 0509-0602
149 NUT; STEP BRKT
M12 FLANGE 		0-91180-212-0 02 1 0603-
210 PANEL; DOOR STRIKER REINF
CAUTIONS CHINESE<SL7> 		8-97851-446-1 01 1 0509-0510
210 PANEL; DOOR STRIKER REINF 8-97851-446-1 01 1 0511-
285 PLATE; STEP,1ST STEP 1-53414-047-2 01 1 0509-
285 PLATE; STEP,1ST STEP 1-53414-182-0 01 1 0509-
289 WASHER; PL,STEP
ID=6.4 OD=18 		9-09160-706-0 08 1 0509-0605
289 WASHER; PL,STEP
ID=6.4 OD=18 		0-91610-706-0 08 1 0606-
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28080-835-0 08 1 0509-0512
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28050-835-0 08 1 0601-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 0509-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 0509-
404 BRACKET
CHINA EQUIPMENT(YT2) 		8-98138-281-2 01 1 0902-
404 BRACKET
CHINA EQUIPMENT(YT2) 		8-98138-282-2 01 1 0902-
404 BRACKET 1-53414-256-2 01 1 0509-0901
404 BRACKET
EXC. CHINA EQUIPMENT(YT2) 		1-53414-256-3 01 1 0902-
404 BRACKET 1-53414-264-0 01 1 0509-0901
404 BRACKET
EXC. CHINA EQUIPMENT(YT2) 		1-53414-264-1 01 1 0902-
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 08 1 0509-0602
430 NUT; PANEL
M8 FLANGE 		0-91180-108-0 08 1 0603-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0509-0904
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 0509-
447 BOLT; PANEL
M6X12 FLANGE 		0-28080-612-0 08 1 0509-0512
447 BOLT; PANEL
M6X12 FLANGE 		0-28050-612-0 08 1 0601-
455 PROTECTOR; STEP 1-71907-186-2 01 1 0509-
455 PROTECTOR; STEP 1-71907-187-2 01 1 0509-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 0509-0604
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 04 1 0605-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
