◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10662 - MT(THAI) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-85 - AUTO TIMER; INJECTION PUMP ▶
0-85 — AUTO TIMER; INJECTION PUMP (#3148) — 19 parça

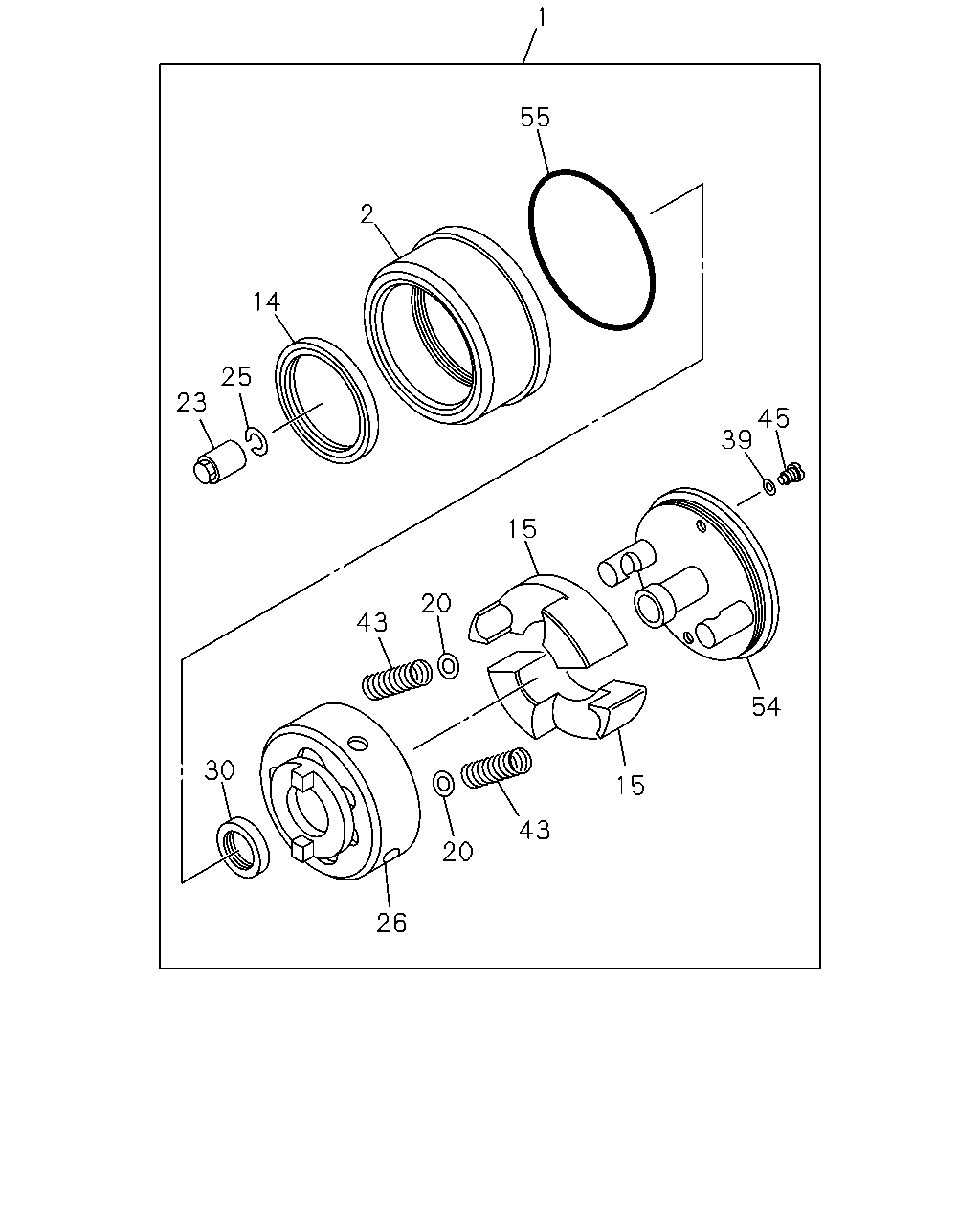

çizim 4109
1 55 2 14 25 23 45 39 15 20 43 54 30 15 43 20 26
BalonParca AdiParca NoAdetTipApplied Date
1 TIMER ASM; INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15740-198-0 01 1 -
2 HOUSING; TIMER,INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15741-022-0 01 1 -
14 SEAL; OIL,AUTO TIMER
ASM PART: A = 1-15602-221-4 		1-15749-002-0 01 1 -
15 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15743-009-0 02 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.15 ASM PART: A = 1-15602-221-4 		1-15749-061-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.50 ASM PART: A = 1-15602-221-4 		9-81345-033-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=1.00 ASM PART: A = 1-15602-221-4 		9-81345-034-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.10 ASM PART: A = 1-15602-221-4 		9-81345-035-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.20 ASM PART: A = 1-15602-221-4 		9-81345-036-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=1.50 ASM PART: A = 1-15602-221-4 		9-81345-037-0 01 1 -
23 NUT; TIMER FLANGE,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-81345-069-0 01 1 -
25 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15749-007-0 01 1 -
26 FLANGE; TIMER,INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15742-011-0 02 1 -
30 SEAL; OIL,TIMER COVER,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15749-003-0 01 1 -
39 GASKET; TIMER COVER BOLT,INJ PUMP
ASM PART: A = 1-15602-221-4 		8-97084-347-0 02 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15749-284-0 02 1 -
45 BOLT; TIMER COVER,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-81345-067-0 02 1 -
54 HOLDER; FLYWEIGHT,TIMER,INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15749-054-0 01 1 -
55 GASKET; TIMER HSG,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-81345-138-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
