◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10964 - EXZ LHD WEDGE BRAKE ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#31478) — 124 parça

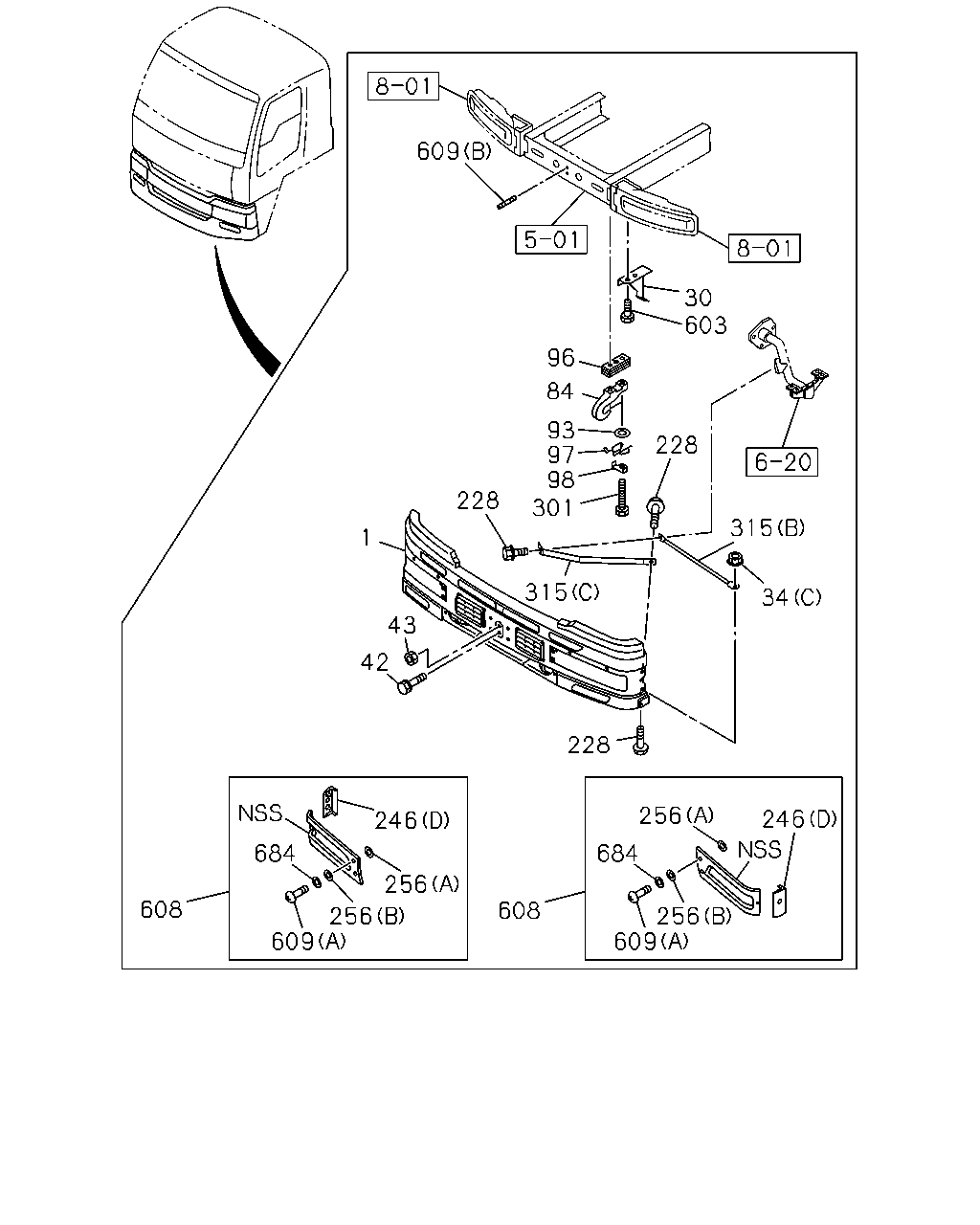

çizim 88504
30 42 43 84 93 96 97 98 228 256 603 608 609 684 256 256 246 228 301 1 315 608 684 609 256 246 34 315 228 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-385-0 01 1 0509-0602
1 BUMPER ASM; FRT
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) WHITE 		1-71211-427-0 01 1 0603-0901
1 BUMPER ASM; FRT
EXC. CHINA EQUIPMENT(YT2) WHITE 		1-71211-427-1 01 1 0902-
1 BUMPER ASM; FRT
HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) WHITE 		1-71211-385-0 01 1 0603-0808
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		1-71211-385-0 01 1 0809-0901
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		8-98139-028-0 01 1 0902-
30 BRACKET; FRT BUMPER 1-71230-638-0 01 1 0509-
30 BRACKET; FRT BUMPER 1-71230-639-0 01 1 0509-
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE 		0-91150-108-0 04 1 0509-0510
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91150-108-0 04 1 0511-0602
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE 		0-91150-108-0 04 1 0603-0603
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE 		0-91180-108-0 04 1 0603-0710
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 04 1 0711-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0509-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0509-
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0509-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 02 1 0509-0602
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 03 1 0603-
84 HOOK 1-57181-027-1 01 1 0509-
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 0509-0603
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604-
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0509-
97 SPRING; FRT HOOK
BUMPER W/HEADLAMPS<SLB> 		9-53519-003-0 01 1 0509-0510
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0511-0602
97 SPRING; FRT HOOK
BUMPER W/HEADLAMPS<SLB> 		9-53519-003-0 01 1 0603-0710
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0711-
98 STOPPER; SPR,FRT HOOK
BUMPER W/HEADLAMPS<SLB> 		9-53519-006-0 01 1 0509-0510
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0511-0602
98 STOPPER; SPR,FRT HOOK
BUMPER W/HEADLAMPS<SLB> 		9-53519-006-0 01 1 0603-0710
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0711-
228 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE 		0-28680-825-0 06 1 0509-0510
228 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 0511-0512
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0601-0602
228 BOLT; BRKT
BUMPER W/HEADLAMPS<SLB> M8X25 FLANGE 		0-28650-825-0 06 1 0603-0710
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0711-
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-104-1 01 1 0902-
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-105-1 01 1 0902-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 0509-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 0509-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 0509-
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0509-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 0509-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 0509-
301 BOLT; HOOK TO FRAME
M16X90 		0-10811-690-0 01 1 0509-0512
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0601-
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0509-
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0509-
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0509-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0509-
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0509-
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0509-
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0509-0512
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-
608 LID; BUMPER
BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) 		8-98138-788-3 01 1 0902-
608 LID; BUMPER
BODY COLOR ARC WHITE(729) CHINA EQUIPMENT(YT2) 		8-98138-789-3 01 1 0902-
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) CHINA EQUIPMENT(YT2) 		8-98139-039-3 01 1 0902-
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) CHINA EQUIPMENT(YT2) 		8-98139-040-3 01 1 0902-
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) CHINA EQUIPMENT(YT2) 		8-98139-037-3 01 1 0902-
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) CHINA EQUIPMENT(YT2) 		8-98139-038-3 01 1 0902-
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) EXC. CHINA EQUIPMENT(YT2) 		1-71211-317-2 01 1 0902-
608 LID; BUMPER
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915),BODY COLOR POLAR WHITE(982) EXC. CHINA EQUIPMENT(YT2) 		1-71211-318-2 01 1 0902-
608 LID; BUMPER
BODY COLOR ARC WHITE(729) EXC. CHINA EQUIPMENT(YT2) 		1-71211-284-2 01 1 0902-
608 LID; BUMPER
BODY COLOR ARC WHITE(729) EXC. CHINA EQUIPMENT(YT2) 		1-71211-285-2 01 1 0902-
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) EXC. CHINA EQUIPMENT(YT2) 		1-71211-284-2 01 1 0902-
608 LID; BUMPER
BODY COLOR MARINE BLUE(890) EXC. CHINA EQUIPMENT(YT2) 		1-71211-285-2 01 1 0902-
608 LID; BUMPER 1-71211-284-0 01 1 0509-0901
608 LID; BUMPER 1-71211-285-0 01 1 0509-0901
609 STUD; BUMPER
(A) 		1-71260-175-0 06 1 0509-
609 STUD; BUMPER
(B) M10X28,M10X15 L=50 		5-09300-050-0 01 1 0509-
684 WASHER
CHINA EQUIPMENT(YT2) 		8-98148-221-0 06 1 0906-

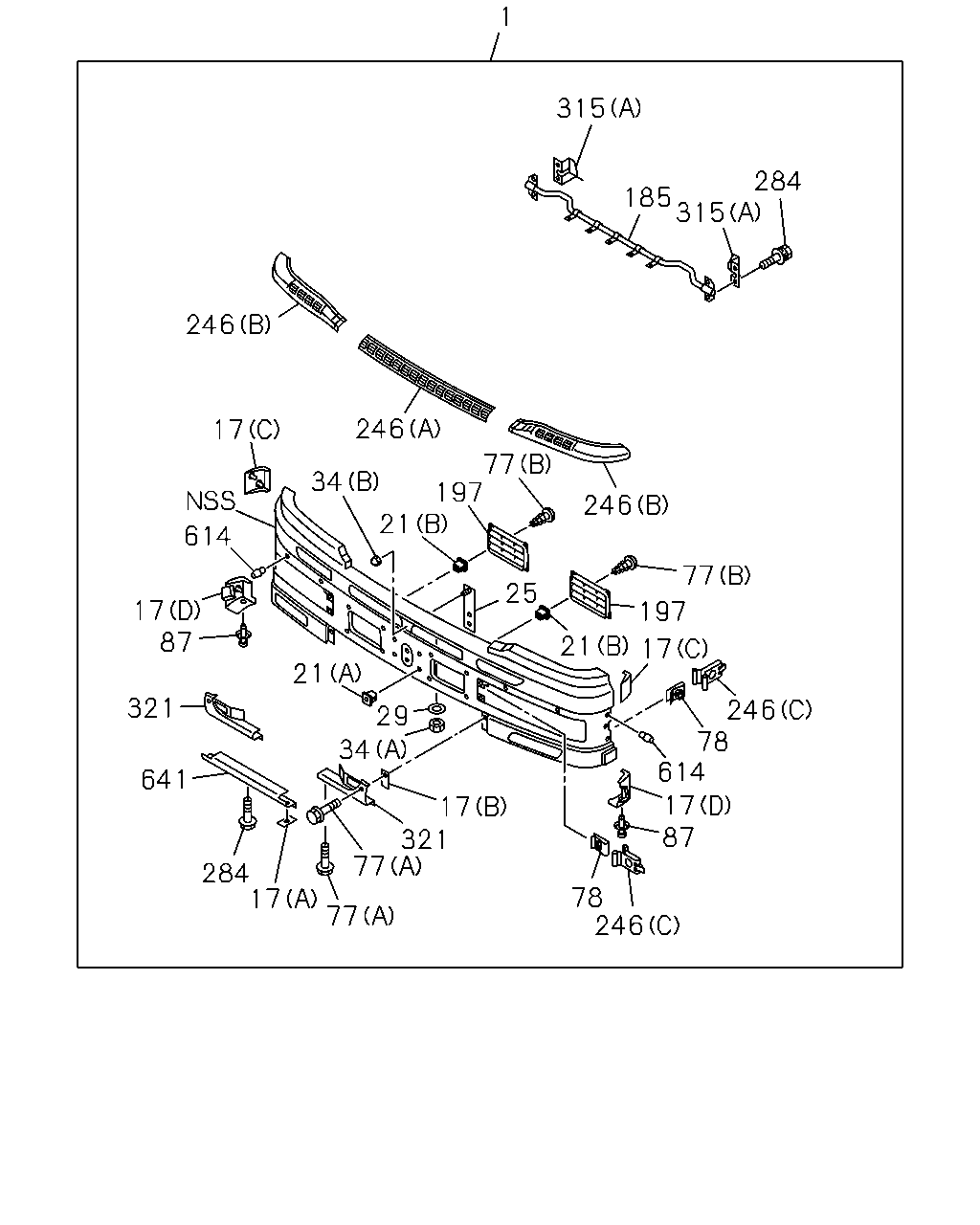

çizim 104107
1 315 284 185 315 246 246 17 77 197 21 34 246 614 77 25 17 87 197 21 17 21 29 321 246 78 614 34 641 17 87 17 321 77 284 17 78 246 77
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
WHITE 		1-71211-385-0 01 1 0509-0602
1 BUMPER ASM; FRT
GENERAL EXPORT EQUIPMENT(TAA),PHILIPPINE EQUIPMENT(WE3) WHITE 		1-71211-427-0 01 1 0603-0901
1 BUMPER ASM; FRT
EXC. CHINA EQUIPMENT(YT2) WHITE 		1-71211-427-1 01 1 0902-
1 BUMPER ASM; FRT
HEADLAMPS VARIANT SQUARE<TEA> CHINA EQUIPMENT(YT2) WHITE 		1-71211-385-0 01 1 0603-0808
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		1-71211-385-0 01 1 0809-0901
1 BUMPER ASM; FRT
CHINA EQUIPMENT(YT2) WHITE 		8-98139-028-0 01 1 0902-
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (C) 		8-98139-102-1 01 1 0902-
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (C) 		8-98139-103-1 01 1 0902-
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-106-2 01 1 0902-
17 PROTECTOR; FRT BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-107-2 01 1 0902-
17 PROTECTOR; FRT BUMPER
(A) 		1-71260-185-0 02 1 0509-
17 PROTECTOR; FRT BUMPER
(B) 		1-71260-277-0 02 1 0509-
21 GROMMET; SCREW,BUMPER PROTECTOR
(B) D=9X9 L=7 M5 		8-94163-979-0 08 1 0509-
21 GROMMET; SCREW,BUMPER PROTECTOR
(A) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0509-
25 SPACER; PLATFORM 1-71230-640-0 01 1 0509-
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 17 1 0509-0510
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 13 1 0511-0605
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 13 1 0606-
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE 		0-91150-108-0 04 1 0509-0510
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91150-108-0 04 1 0511-0602
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE 		0-91150-108-0 04 1 0603-0603
34 NUT; BRKT,BUMPER
BUMPER W/HEADLAMPS<SLB> (C) M8 FLANGE 		0-91180-108-0 04 1 0603-0710
34 NUT; BRKT,BUMPER
(C) M8 FLANGE 		0-91180-108-0 04 1 0711-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 13 1 0509-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 13 1 0603-
34 NUT; BRKT,BUMPER
(B) M10 CAP NUT 		1-09650-480-0 01 1 0509-
77 SCREW; BRKT
(A) M8X20 W/PL WASHER 		1-71260-184-0 06 1 0509-
77 SCREW; BRKT
(B) M5X16 TAPPING 		9-07076-516-0 08 1 0509-0603
77 SCREW; BRKT
(B) M5X16 TAPPING 		0-71240-516-0 08 1 0604-
78 NUT; SPIRE 1-71260-174-0 06 1 0509-
87 RIVET; POP,FRT BUMPER
CHINA EQUIPMENT(YT2) D8X13.5 		1-09987-248-1 02 1 0902-
185 BRACKET; BUMPER,INNER 1-71230-610-0 01 1 0509-
197 GRILLE; BUMPER 1-71260-115-1 01 1 0509-
197 GRILLE; BUMPER 1-71260-116-1 01 1 0509-
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-104-1 01 1 0902-
246 PROTECTOR; BUMPER
CHINA EQUIPMENT(YT2) (D) 		8-98139-105-1 01 1 0902-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 0509-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 0509-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 0509-
246 PROTECTOR; BUMPER
(C) 		1-71260-162-0 06 1 0509-
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 03 1 0509-0512
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 03 1 0601-
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0509-0512
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601-
315 STAY; BUMPER
(C) 		1-71230-434-0 02 1 0509-
315 STAY; BUMPER
(B) 		1-71230-491-0 01 1 0509-
315 STAY; BUMPER
(B) 		1-71230-492-0 01 1 0509-
315 STAY; BUMPER
(A) 		1-71230-636-0 01 1 0509-
315 STAY; BUMPER
(A) 		1-71230-637-0 01 1 0509-
321 COVER; BUMPER FRT SIDE 1-71260-263-0 01 1 0509-
321 COVER; BUMPER FRT SIDE 1-71260-264-0 01 1 0509-
614 STOPPER; LID 1-71260-163-0 12 1 0509-
641 BUMPER; FRT,LWR 1-71211-304-1 01 1 0509-
