5-30 — SPARE TIRE CARRIER AND COVER (#31477) — 12 parça

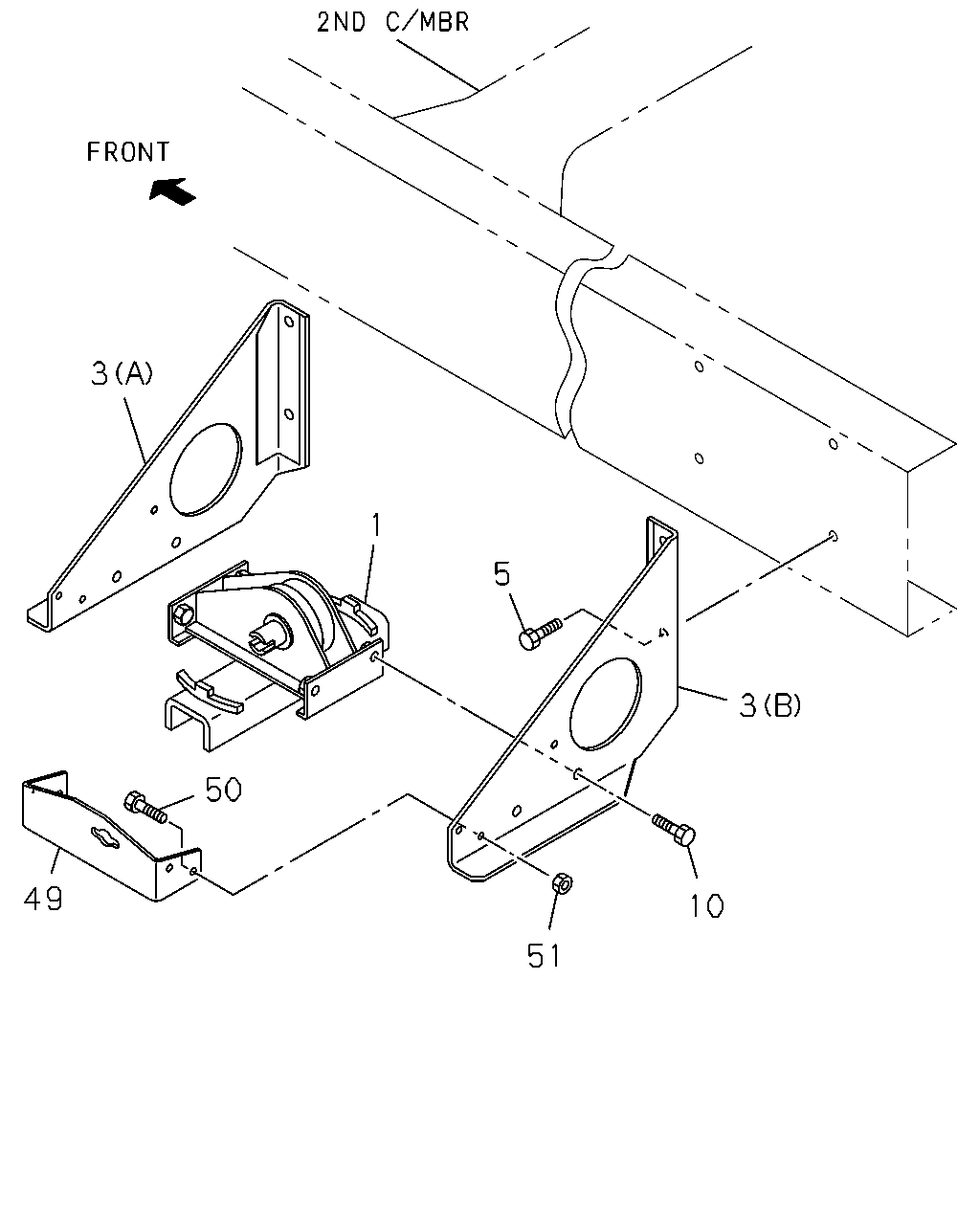

çizim 88468
3 1 5 3 50 49 10 51
BalonParca AdiParca NoAdetTipApplied Date
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53630-210-4 01 1 0509-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (B) 		8-97383-718-1 01 1 0509-
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> (A) 		8-97383-719-1 01 1 0509-
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 04 1 0509-0512
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28651-235-0 04 1 0601-
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 0509-0512
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28651-230-0 04 1 0601-
49 STAY; TIRE CARRIER
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-97383-722-0 01 1 0509-
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28680-825-0 04 1 0509-0512
50 BOLT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8X25 FLANGE 		0-28650-825-0 04 1 0601-
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91150-108-0 04 1 0509-0602
51 NUT; BRKT TO STAY
SPARE WHEEL CARRIER FRAME SIDE<P13> M8 FLANGE 		0-91180-108-0 04 1 0603-
