Sayfa 1-35 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-35 - CHARGE AIR COOLER ▶

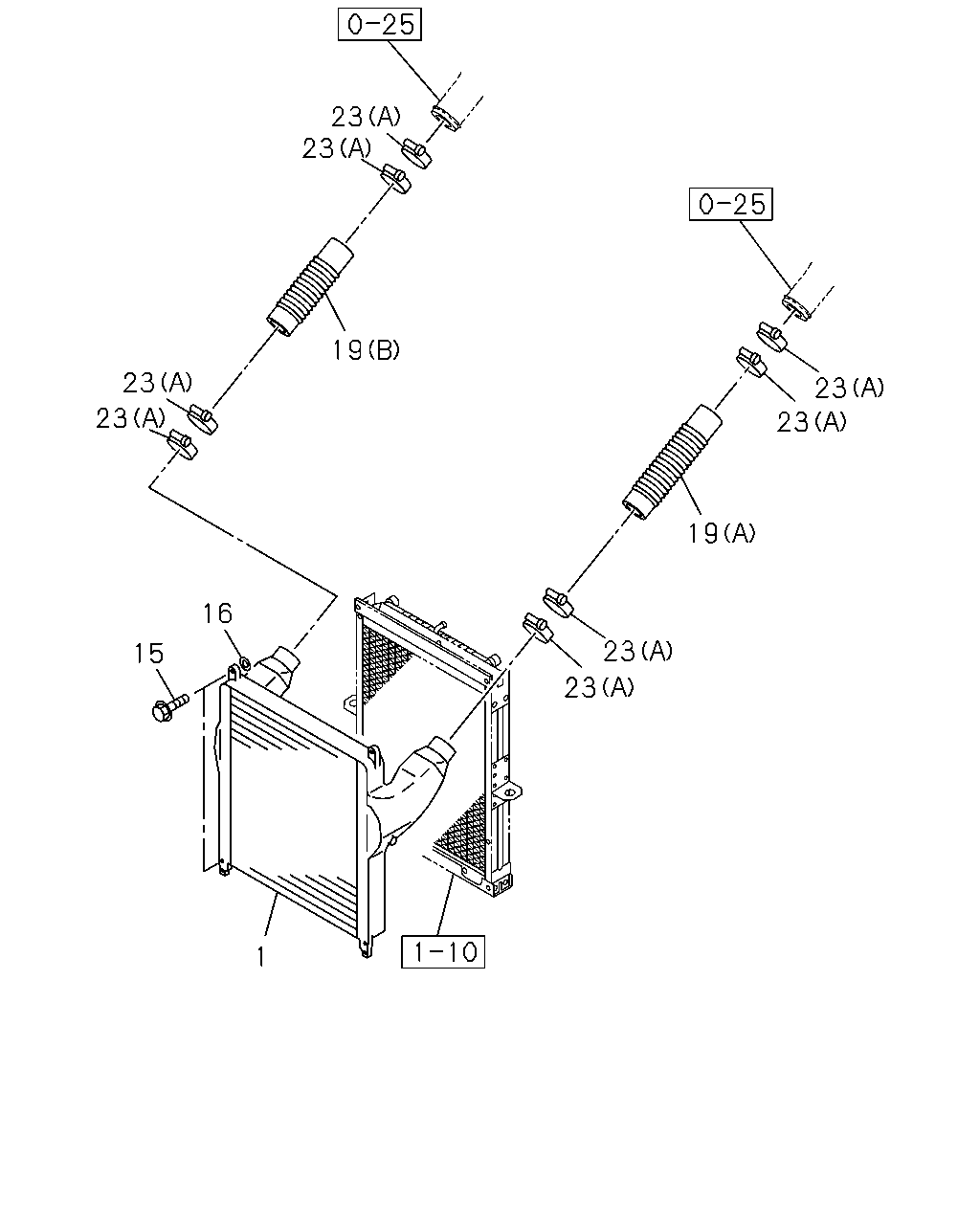

1-35 — CHARGE AIR COOLER (#31472) — 53 parça

23 23 19 23 23 23 23 19 16 23 15 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COOLER; CHARGE AIR	8-97604-525-3	01	1	0512-0703	●
1	COOLER; CHARGE AIR	8-97604-525-3	01	1	0704-	●	●
1	COOLER; CHARGE AIR CAB UP +110MM<TGG>	1-14431-056-1	01	1	0407-0511	●
1	COOLER; CHARGE AIR	1-14431-055-5	01	1	0512-			●
15	BOLT; CHARGE AIR COOLER CAB UP +110MM<TGG> M8X35 FLANGE	1-21469-151-0	04	1	0407-0511	●
15	BOLT; CHARGE AIR COOLER M8X35 FLANGE	1-21469-151-0	04	1	0512-0703	●		●
15	BOLT; CHARGE AIR COOLER M8X35 FLANGE	1-21469-151-0	04	1	0704-	●	●	●
16	WASHER; PL,CHARGE AIR COOLER	1-21469-132-0	02	1	0512-			●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09361-130-0	01	1	0512-			●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-131-0	01	1	0512-1402			●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-98258-227-0	01	1	1403-			●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09361-010-1	02	1	0407-0511	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-141-1	01	1	0512-0703	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-141-1	01	1	0704-1010	●	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-98170-413-0	01	1	1011-	●	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-069-1	01	1	0407-0511	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09361-142-1	01	1	0512-0703	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09361-142-1	01	1	0704-1010	●	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	8-98170-414-0	01	1	1011-	●	●
23	CLIP; HOSE (A) ID=87-113	1-09707-199-0	04	1	0407-0511	●
23	CLIP; HOSE (A) ID=87-112	8-97375-040-0	08	1	0512-0703	●
23	CLIP; HOSE (A) ID=87-112	8-97375-040-0	08	1	0704-1001	●	●
23	CLIP; HOSE (A) ID=87-112	8-97375-040-0	08	1	1002-1010	●	●	●
23	CLIP; HOSE (A) ID=87-116	1-09707-138-0	08	1	1011-	●	●	●
23	CLIP; HOSE (B) ID=68-85	1-09707-202-0	08	1	0407-0511	●
23	CLIP; HOSE (A) ID=87-113	1-09707-199-0	08	1	0512-0811			●
23	CLIP; HOSE (A) ID=90-110	8-98133-365-0	08	1	0812-1001			●

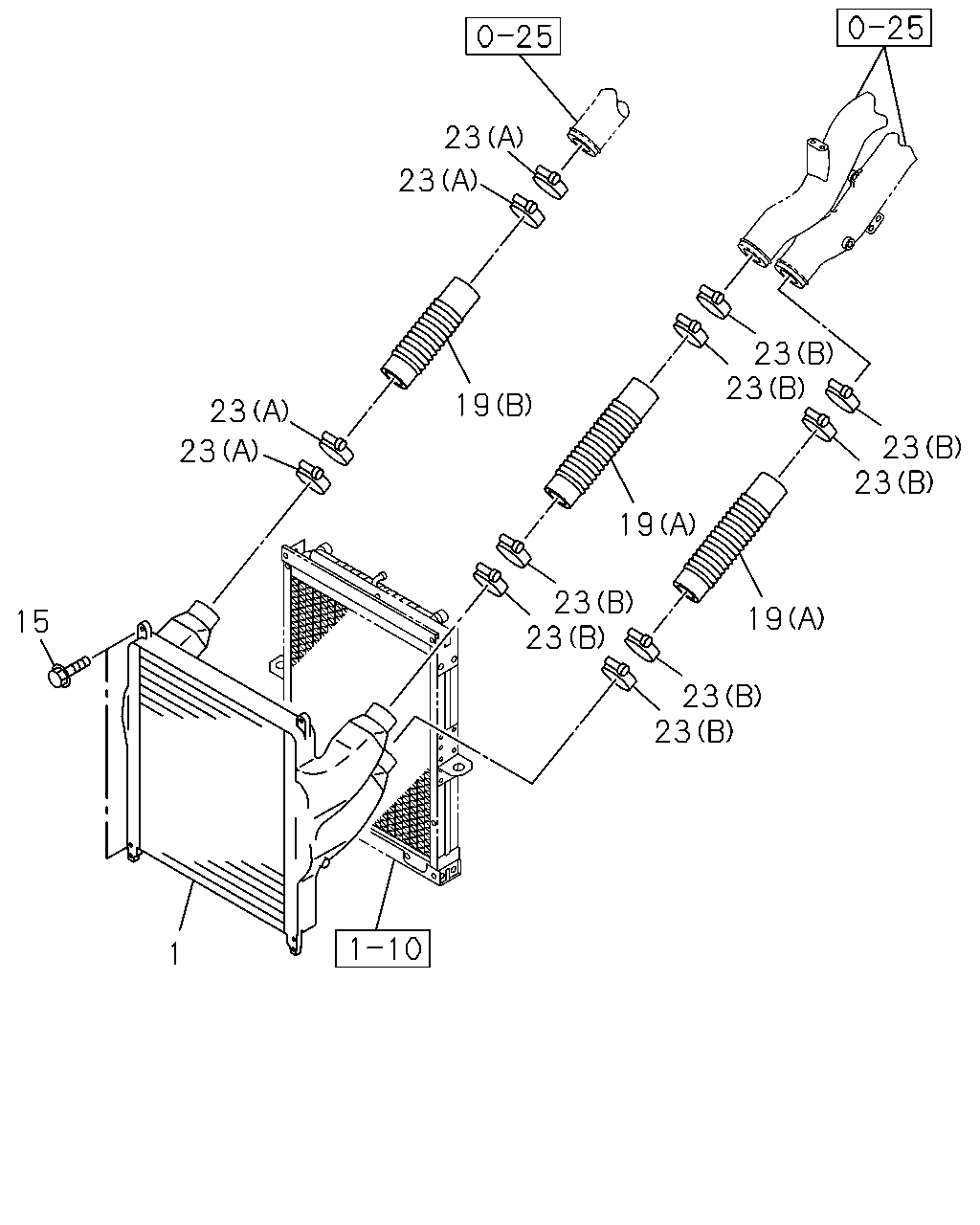

23 23 23 23 19 23 23 23 23 19 23 23 19 15 23 23 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COOLER; CHARGE AIR	8-97604-525-3	01	1	0512-0703	●
1	COOLER; CHARGE AIR	8-97604-525-3	01	1	0704-	●	●
1	COOLER; CHARGE AIR CAB UP +110MM<TGG>	1-14431-056-1	01	1	0407-0511	●
1	COOLER; CHARGE AIR	1-14431-055-5	01	1	0512-			●
15	BOLT; CHARGE AIR COOLER CAB UP +110MM<TGG> M8X35 FLANGE	1-21469-151-0	04	1	0407-0511	●
15	BOLT; CHARGE AIR COOLER M8X35 FLANGE	1-21469-151-0	04	1	0512-0703	●		●
15	BOLT; CHARGE AIR COOLER M8X35 FLANGE	1-21469-151-0	04	1	0704-	●	●	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09361-130-0	01	1	0512-			●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-131-0	01	1	0512-1402			●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-98258-227-0	01	1	1403-			●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09361-010-1	02	1	0407-0511	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-141-1	01	1	0512-0703	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-141-1	01	1	0704-1010	●	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-98170-413-0	01	1	1011-	●	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-069-1	01	1	0407-0511	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09361-142-1	01	1	0512-0703	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09361-142-1	01	1	0704-1010	●	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	8-98170-414-0	01	1	1011-	●	●
23	CLIP; HOSE (A) ID=87-113	1-09707-199-0	04	1	0407-0511	●
23	CLIP; HOSE (A) ID=87-112	8-97375-040-0	08	1	0512-0703	●
23	CLIP; HOSE (A) ID=87-112	8-97375-040-0	08	1	0704-1001	●	●
23	CLIP; HOSE (A) ID=87-112	8-97375-040-0	08	1	1002-1010	●	●	●
23	CLIP; HOSE (A) ID=87-116	1-09707-138-0	08	1	1011-	●	●	●
23	CLIP; HOSE (B) ID=68-85	1-09707-202-0	08	1	0407-0511	●
23	CLIP; HOSE (A) ID=87-113	1-09707-199-0	08	1	0512-0811			●
23	CLIP; HOSE (A) ID=90-110	8-98133-365-0	08	1	0812-1001			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
