◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#31470) — 100 parça

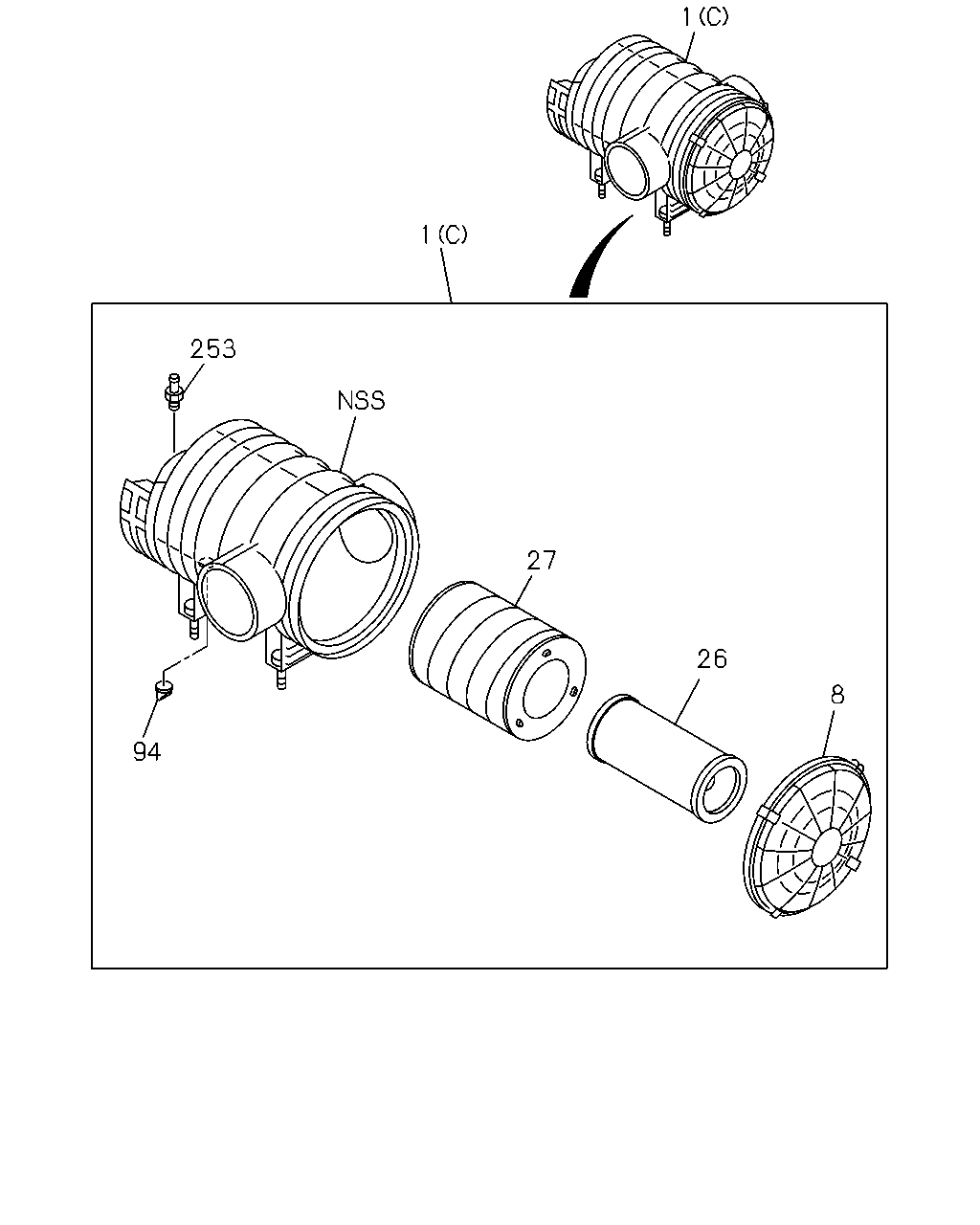

çizim 87494
1 1 253 27 26 8 94
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-821-0 01 1 0512-0703 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-821-0 01 1 0704- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-821-0 01 1 0408-0511 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (C) 		1-14210-832-0 01 1 0512- ●
1 CLEANER ASM; AIR
(A) 		1-14210-837-0 01 1 0407-0407 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-837-0 01 1 0408-0703 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-837-0 01 1 0704- ● ●
8 COVER ASM; ACL
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14212-129-0 01 1 0512- ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0407-0407 ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0408-0703 ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0704- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-112-0 01 1 0512- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0512-0703 ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0704- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0408-0511 ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-217-0 01 1 0512- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-111-0 01 1 0512- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0512-0703 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0704- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0408-0511 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0512- ●
94 VALVE; VACUATOR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14219-251-0 01 1 0512- ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0407-0407 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0408-0703 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0704- ● ●
253 NIPPLE
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14219-252-0 01 1 0512- ●

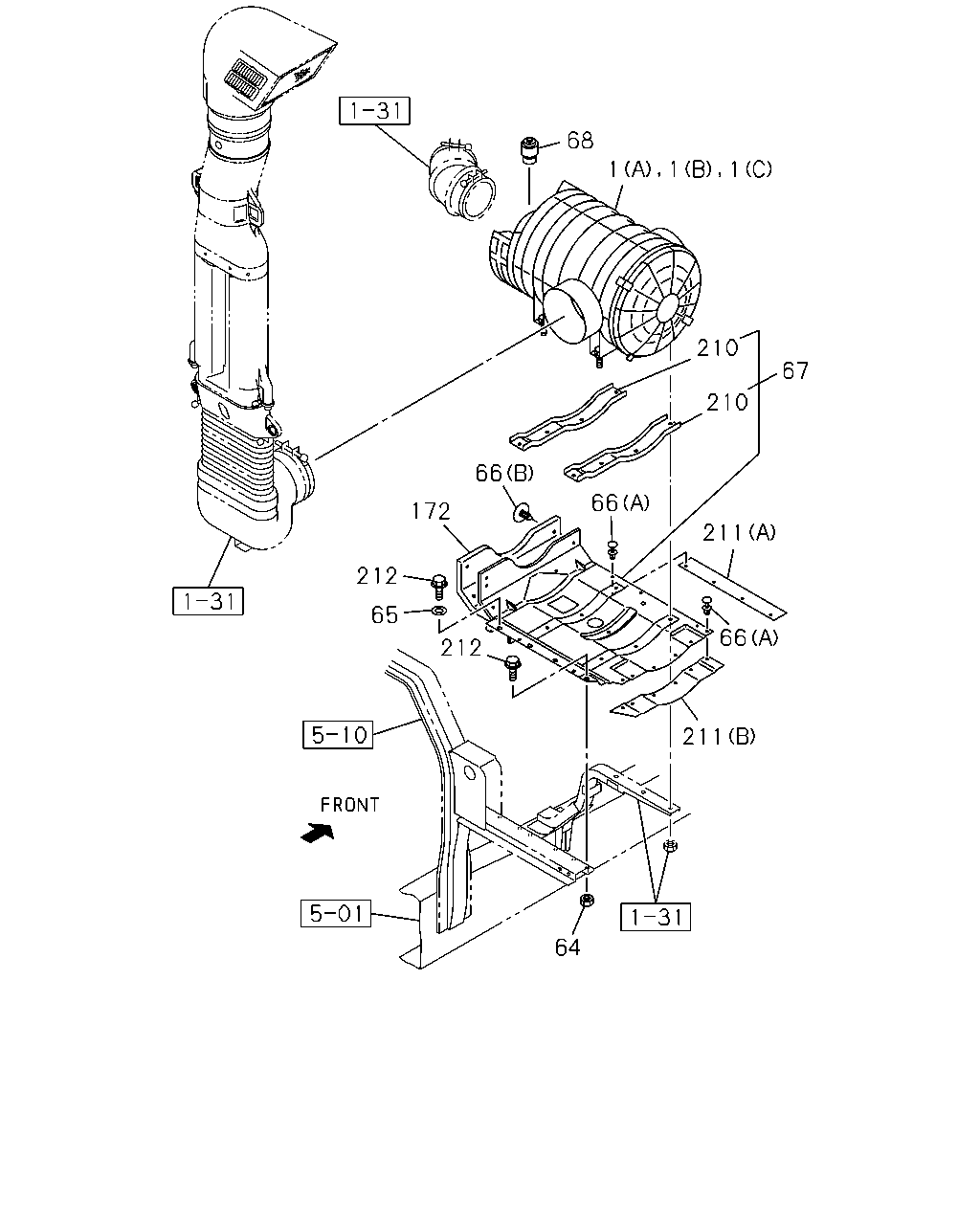

çizim 87971
68 1 1 1 210 67 210 66 66 172 211 212 65 212 66 211 64
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-821-0 01 1 0512-0703 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-821-0 01 1 0704- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-821-0 01 1 0408-0511 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (C) 		1-14210-832-0 01 1 0512- ●
1 CLEANER ASM; AIR
(A) 		1-14210-837-0 01 1 0407-0407 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-837-0 01 1 0408-0703 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-837-0 01 1 0704- ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 0407-0511 ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91150-210-0 04 1 0512-0602 ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603-0703 ● ●
64 NUT; BAND BRKT
M10 FLANGE 		0-91180-210-0 04 1 0704- ● ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0407-0511 ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0512-0703 ● ●
65 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 04 1 0704-1204 ● ● ●
65 WASHER; PL
ID=10.5 		0-91610-710-0 04 1 1205- ● ●
66 CLIP; ACL
(A) 		5-09987-033-0 10 1 0512-0703 ●
66 CLIP; ACL
(A) 		5-09987-033-0 10 1 0704- ● ●
66 CLIP; ACL
(B) 		8-94279-048-0 06 1 0512-0703 ●
66 CLIP; ACL
(B) 		8-94279-048-0 06 1 0704- ● ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 0407-0511 ●
66 CLIP; ACL
(A) 		5-09987-033-0 09 1 0512- ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 0407-0511 ●
66 CLIP; ACL
(B) 		8-94279-048-0 07 1 0512- ●
67 COVER; ACL 1-53419-416-0 01 1 0512-0703 ●
67 COVER; ACL 1-53419-416-0 01 1 0704- ● ●
67 COVER; ACL 1-53419-304-0 01 1 0407-0511 ●
67 COVER; ACL 1-53419-388-0 01 1 0512- ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0407-0511 ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0512-0703 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0704- ● ● ●
172 INSULATOR; NOISE 1-53446-780-1 01 1 0407-0511 ●
172 INSULATOR; NOISE 1-53449-105-0 01 1 0512-0703 ● ●
172 INSULATOR; NOISE 1-53449-105-0 01 1 0704- ● ● ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 0407-0511 ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 0512-0703 ● ●
210 BRACKET; ACL MTG 1-53419-283-0 02 1 0704- ● ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0407-0511 ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0512-0703 ● ●
211 RUBBER; SEAL
(A) 		1-79931-007-0 01 1 0704- ● ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0407-0511 ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0512-0703 ● ●
211 RUBBER; SEAL
(B) 		1-79931-008-2 01 1 0704- ● ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 0407-0511 ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28681-025-0 04 1 0512-0512 ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 0601-0703 ● ●
212 BOLT; MUD COVER
M10X25 FLANGE 		0-28651-025-0 04 1 0704- ● ● ●
çizim 104922
1 6 8 94 1 27 26 94 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-821-0 01 1 0512-0703 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-821-0 01 1 0704- ● ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (B) 		1-14210-821-0 01 1 0408-0511 ●
1 CLEANER ASM; AIR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (C) 		1-14210-832-0 01 1 0512- ●
1 CLEANER ASM; AIR
(A) 		1-14210-837-0 01 1 0407-0407 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-837-0 01 1 0408-0703 ●
1 CLEANER ASM; AIR
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> (A) 		1-14210-837-0 01 1 0704- ● ●
6 FILTER; ACL 1-14215-213-0 01 1 0407-0407 ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0408-0703 ●
6 FILTER; ACL
EXC. ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0704- ● ●
8 COVER ASM; ACL
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14212-129-0 01 1 0512- ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0407-0407 ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0408-0703 ●
8 COVER ASM; ACL 1-14212-132-0 01 1 0704- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-112-0 01 1 0512- ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0512-0703 ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0704- ● ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-220-0 01 1 0408-0511 ●
26 FILTER; ACL,INNER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-217-0 01 1 0512- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> BEST VALUE PARTS 		1-87610-111-0 01 1 0512- ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0512-0703 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0704- ● ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-213-0 01 1 0408-0511 ●
27 FILTER; ACL,OUTER
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14215-203-0 01 1 0512- ●
94 VALVE; VACUATOR
ACL DRY DONALDSON 13" DBL ELEMENT<Q2Y> 		1-14219-251-0 01 1 0512- ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0407-0407 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0408-0703 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0704- ● ●
