1-11 — RADIATOR HOSE AND SUB TANK (#31469) — 235 parça

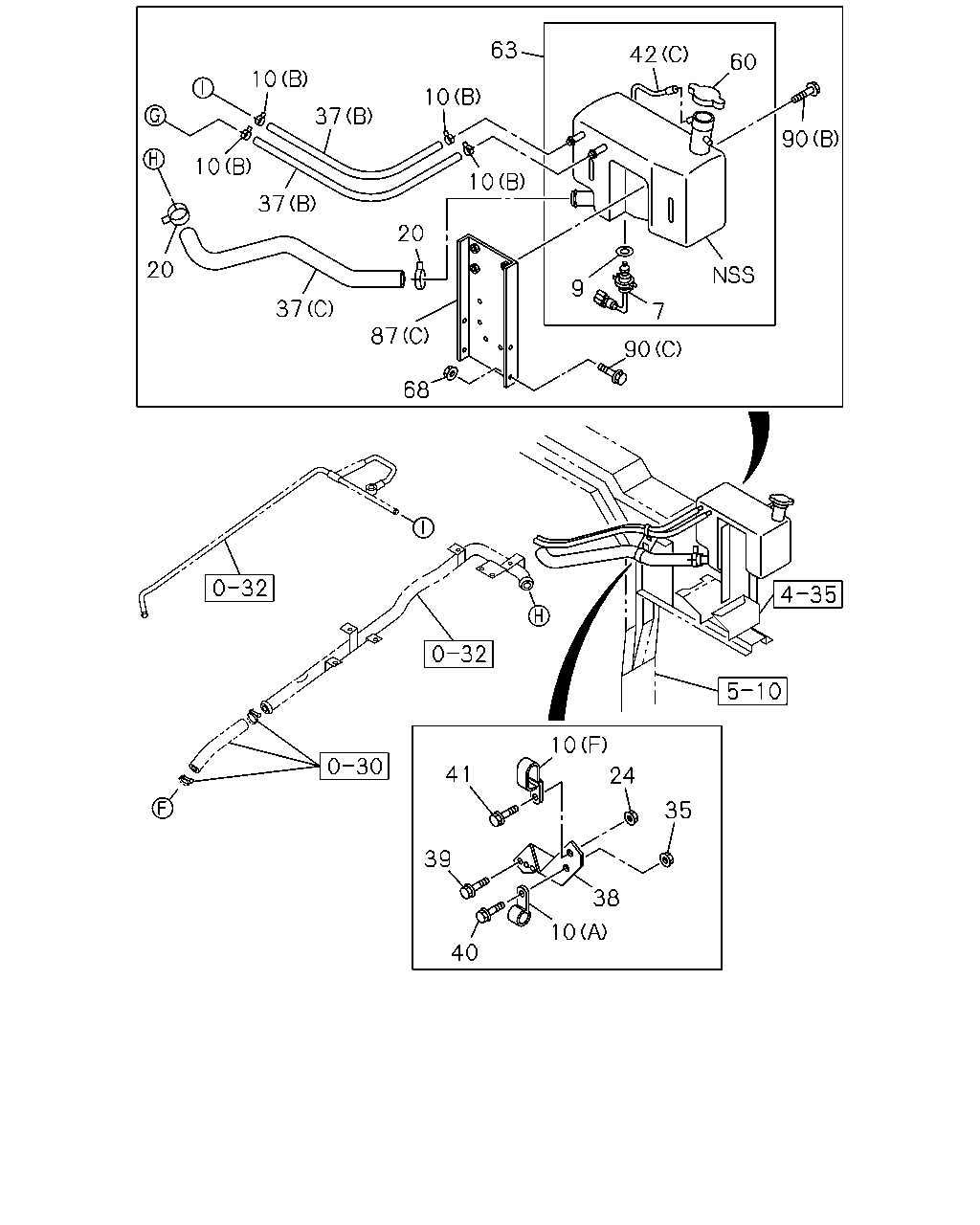

çizim 87558
63 42 60 10 10 37 90 10 10 37 20 20 9 37 7 87 90 68 10 41 24 35 39 38 10 40
BalonParca AdiParca NoAdetTipApplied Date A B C
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0407-0511 ●
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0512-0703 ● ●
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0704-1206 ● ● ●
7 SWITCH ASM; TANK 8-97640-800-0 01 1 1207- ● ● ●
9 GASKET; SWITCH
ID=28 OD=35 		1-09630-130-0 01 1 0407-0511 ●
9 GASKET; SWITCH
ID=28 OD=35 		1-09630-130-0 01 1 0512-0703 ● ●
9 GASKET; SWITCH
ID=28 OD=35 		1-09630-130-0 01 1 0704- ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=28 L=58 		1-09700-400-0 02 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(D) ID=28 L=58 		1-09700-400-0 02 1 0512- ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0512-0703 ● ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0704- ● ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0512-0703 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0704- ● ● ●
10 CLIP; RUBBER HOSE
(E) L=350 		1-09707-183-0 01 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(F) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0512-0703 ●
10 CLIP; RUBBER HOSE
(F) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0704- ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 08 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 08 1 0512- ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 0407-0511 ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 0512-0703 ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 0704- ● ● ●
24 NUT
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
24 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-0703 ●
24 NUT
M8 FLANGE 		0-91180-108-0 01 1 0704- ● ●
35 NUT
CAB UP +110MM<TGG> M10 FLANGE 		0-91150-210-0 01 1 0407-0511 ●
35 NUT
M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ● ●
35 NUT
M10 FLANGE 		0-91180-210-0 01 1 0603-0703 ● ●
35 NUT
M10 FLANGE 		0-91180-210-0 01 1 0704- ● ● ●
37 HOSE; RUBBER
(B) L=680 SERVICED BY L=3000 		0-03559-300-0 02 1 0512-0606 ●
37 HOSE; RUBBER
(B) L=680 		8-98052-531-0 02 1 0607-0703 ●
37 HOSE; RUBBER
(B) L=680 		8-98052-531-0 02 1 0704- ● ●
37 HOSE; RUBBER
(C) 		1-21437-975-1 01 1 0512-0703 ●
37 HOSE; RUBBER
(C) 		1-21437-975-1 01 1 0704- ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03559-300-0 02 1 0407-0511 ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03559-300-0 02 1 0512- ●
37 HOSE; RUBBER
(A) 		1-21437-755-0 01 1 0407-0511 ●
37 HOSE; RUBBER
(A) 		1-21437-755-1 01 1 0512- ●
38 BRACKET; RUBBER HOSE 1-21489-198-0 01 1 0512-0703 ●
38 BRACKET; RUBBER HOSE 1-21489-198-0 01 1 0704- ● ●
38 BRACKET; RUBBER HOSE
CAB UP +110MM<TGG> 		1-21489-180-0 01 1 0407-0511 ●
38 BRACKET; RUBBER HOSE 1-21489-180-0 01 1 0512- ●
39 BOLT; BRKT FIX
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
39 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0703 ●
39 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0704- ● ●
39 BOLT; BRKT FIX
CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
39 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
39 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 0407-0511 ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 0512-0512 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28651-025-0 01 1 0601-0703 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28651-025-0 01 1 0704- ● ● ●
41 BOLT
M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ●
41 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-0703 ●
41 BOLT
M8X25 FLANGE 		0-28650-825-0 01 1 0704- ● ●
42 HOSE; RUBBER
(A) L=380 SERVICED BY L=3000 		0-03559-300-0 01 1 0512-0703 ●
42 HOSE; RUBBER
(A) L=380 SERVICED BY L=3000 		0-03559-300-0 01 1 0704- ● ●
42 HOSE; RUBBER
(C) L=650 		1-21489-186-0 01 1 0512-0703 ●
42 HOSE; RUBBER
(C) L=650 		1-21489-186-0 01 1 0704- ● ●
42 HOSE; RUBBER
(A) L=400 SERVICED BY L=3000 		0-03559-300-0 01 1 0407-0511 ●
42 HOSE; RUBBER
(A) L=350 SERVICED BY L=3000 		0-03559-300-0 01 1 0512- ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 0407-0511 ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 0512- ●
60 CAP; SUB TANK 1-21450-137-0 01 1 0407-0511 ●
60 CAP; SUB TANK 1-21450-137-0 01 1 0512-0703 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 0704- ● ● ●
63 TANK ASM; SUB 1-21481-147-2 01 1 0512-0703 ●
63 TANK ASM; SUB 1-21481-147-2 01 1 0704- ● ●
63 TANK ASM; SUB 1-21481-143-1 01 1 0407-0511 ●
63 TANK ASM; SUB 1-21481-143-2 01 1 0512- ●
68 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
68 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-0703 ●
68 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 0704- ● ●
87 BRACKET; SUB TANK
(C) 		1-21489-193-2 01 1 0512-0703 ●
87 BRACKET; SUB TANK
(C) 		1-21489-193-2 01 1 0704- ● ●
87 BRACKET; SUB TANK
CAB UP +110MM<TGG> (B) 		1-21489-162-0 01 1 0407-0511 ●
87 BRACKET; SUB TANK
(B) 		1-21489-162-0 01 1 0512- ●
87 BRACKET; SUB TANK
(A) 		1-21489-155-0 01 1 0407-0511 ●
87 BRACKET; SUB TANK
(A) 		1-21489-155-0 01 1 0512- ●
90 BOLT; SUB TANK TO BRKT
(C) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
90 BOLT; SUB TANK TO BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0601-0703 ●
90 BOLT; SUB TANK TO BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0704- ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 0407-0511 ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 0512-0512 ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0407-0511 ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0512-0703 ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0704- ● ● ●

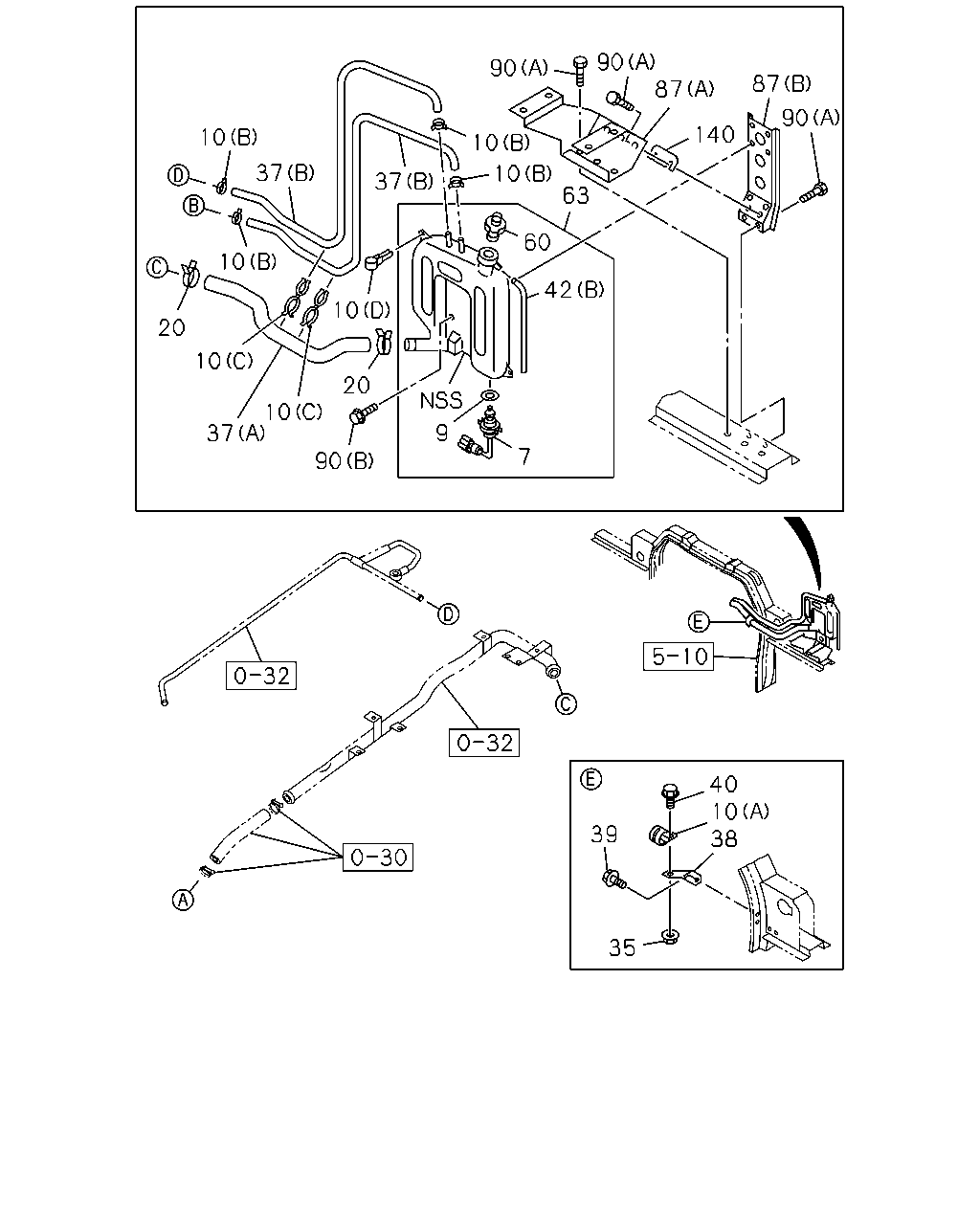

çizim 87773
90 87 90 87 90 140 10 10 37 10 37 63 60 10 42 10 20 10 20 10 37 9 7 90 40 10 38 39 35
BalonParca AdiParca NoAdetTipApplied Date A B C
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0407-0511 ●
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0512-0703 ● ●
7 SWITCH ASM; TANK 1-82480-093-1 01 1 0704-1206 ● ● ●
7 SWITCH ASM; TANK 8-97640-800-0 01 1 1207- ● ● ●
9 GASKET; SWITCH
ID=28 OD=35 		1-09630-130-0 01 1 0407-0511 ●
9 GASKET; SWITCH
ID=28 OD=35 		1-09630-130-0 01 1 0512-0703 ● ●
9 GASKET; SWITCH
ID=28 OD=35 		1-09630-130-0 01 1 0704- ● ● ●
10 CLIP; RUBBER HOSE
(D) ID=28 L=58 		1-09700-400-0 02 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(D) ID=28 L=58 		1-09700-400-0 02 1 0512- ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0512-0703 ● ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0704- ● ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0512-0703 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0704- ● ● ●
10 CLIP; RUBBER HOSE
(E) L=350 		1-09707-183-0 01 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(F) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0512-0703 ●
10 CLIP; RUBBER HOSE
(F) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0704- ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 08 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 08 1 0512- ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 0407-0511 ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 0512-0703 ● ●
20 CLIP; HOSE,RAD
ID=31 		1-09707-093-1 02 1 0704- ● ● ●
35 NUT
CAB UP +110MM<TGG> M10 FLANGE 		0-91150-210-0 01 1 0407-0511 ●
35 NUT
M10 FLANGE 		0-91150-210-0 01 1 0512-0602 ● ●
35 NUT
M10 FLANGE 		0-91180-210-0 01 1 0603-0703 ● ●
35 NUT
M10 FLANGE 		0-91180-210-0 01 1 0704- ● ● ●
37 HOSE; RUBBER
(B) L=680 SERVICED BY L=3000 		0-03559-300-0 02 1 0512-0606 ●
37 HOSE; RUBBER
(B) L=680 		8-98052-531-0 02 1 0607-0703 ●
37 HOSE; RUBBER
(B) L=680 		8-98052-531-0 02 1 0704- ● ●
37 HOSE; RUBBER
(C) 		1-21437-975-1 01 1 0512-0703 ●
37 HOSE; RUBBER
(C) 		1-21437-975-1 01 1 0704- ● ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03559-300-0 02 1 0407-0511 ●
37 HOSE; RUBBER
(B) L=1350 SERVICED BY L=3000 		0-03559-300-0 02 1 0512- ●
37 HOSE; RUBBER
(A) 		1-21437-755-0 01 1 0407-0511 ●
37 HOSE; RUBBER
(A) 		1-21437-755-1 01 1 0512- ●
38 BRACKET; RUBBER HOSE 1-21489-198-0 01 1 0512-0703 ●
38 BRACKET; RUBBER HOSE 1-21489-198-0 01 1 0704- ● ●
38 BRACKET; RUBBER HOSE
CAB UP +110MM<TGG> 		1-21489-180-0 01 1 0407-0511 ●
38 BRACKET; RUBBER HOSE 1-21489-180-0 01 1 0512- ●
39 BOLT; BRKT FIX
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
39 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0601-0703 ●
39 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 02 1 0704- ● ●
39 BOLT; BRKT FIX
CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
39 BOLT; BRKT FIX
M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ●
39 BOLT; BRKT FIX
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 0407-0511 ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28681-025-0 01 1 0512-0512 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28651-025-0 01 1 0601-0703 ● ●
40 BOLT; CLIP
M10X25 FLANGE 		0-28651-025-0 01 1 0704- ● ● ●
42 HOSE; RUBBER
(A) L=380 SERVICED BY L=3000 		0-03559-300-0 01 1 0512-0703 ●
42 HOSE; RUBBER
(A) L=380 SERVICED BY L=3000 		0-03559-300-0 01 1 0704- ● ●
42 HOSE; RUBBER
(C) L=650 		1-21489-186-0 01 1 0512-0703 ●
42 HOSE; RUBBER
(C) L=650 		1-21489-186-0 01 1 0704- ● ●
42 HOSE; RUBBER
(A) L=400 SERVICED BY L=3000 		0-03559-300-0 01 1 0407-0511 ●
42 HOSE; RUBBER
(A) L=350 SERVICED BY L=3000 		0-03559-300-0 01 1 0512- ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 0407-0511 ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 0512- ●
60 CAP; SUB TANK 1-21450-137-0 01 1 0407-0511 ●
60 CAP; SUB TANK 1-21450-137-0 01 1 0512-0703 ● ●
60 CAP; SUB TANK 1-21450-137-0 01 1 0704- ● ● ●
63 TANK ASM; SUB 1-21481-147-2 01 1 0512-0703 ●
63 TANK ASM; SUB 1-21481-147-2 01 1 0704- ● ●
63 TANK ASM; SUB 1-21481-143-1 01 1 0407-0511 ●
63 TANK ASM; SUB 1-21481-143-2 01 1 0512- ●
87 BRACKET; SUB TANK
(C) 		1-21489-193-2 01 1 0512-0703 ●
87 BRACKET; SUB TANK
(C) 		1-21489-193-2 01 1 0704- ● ●
87 BRACKET; SUB TANK
CAB UP +110MM<TGG> (B) 		1-21489-162-0 01 1 0407-0511 ●
87 BRACKET; SUB TANK
(B) 		1-21489-162-0 01 1 0512- ●
87 BRACKET; SUB TANK
(A) 		1-21489-155-0 01 1 0407-0511 ●
87 BRACKET; SUB TANK
(A) 		1-21489-155-0 01 1 0512- ●
90 BOLT; SUB TANK TO BRKT
(C) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
90 BOLT; SUB TANK TO BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0601-0703 ●
90 BOLT; SUB TANK TO BRKT
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0704- ● ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 0407-0511 ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28680-820-0 06 1 0512-0512 ●
90 BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE 		0-28650-820-0 06 1 0601- ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0407-0511 ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0512-0703 ● ●
90 BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER 		1-09030-027-0 04 1 0704- ● ● ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 0407-0511 ●
140 SHIM
T=0.8 		1-53458-716-0 AR 1 0512- ●

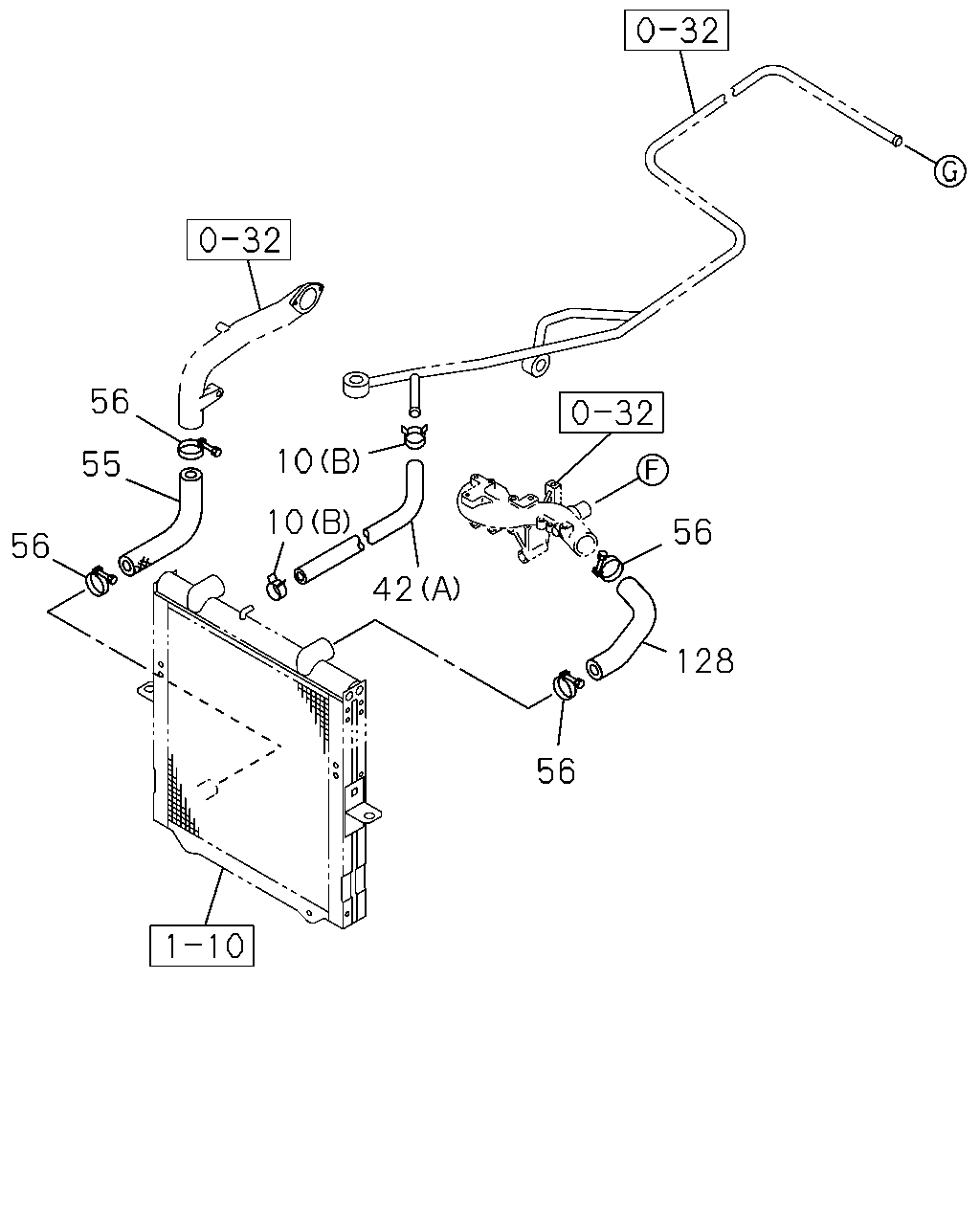

çizim 87831
56 10 55 10 56 56 42 128 56
BalonParca AdiParca NoAdetTipApplied Date A B C
10 CLIP; RUBBER HOSE
(D) ID=28 L=58 		1-09700-400-0 02 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(D) ID=28 L=58 		1-09700-400-0 02 1 0512- ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0512-0703 ● ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0704- ● ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0512-0703 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0704- ● ● ●
10 CLIP; RUBBER HOSE
(E) L=350 		1-09707-183-0 01 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(F) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0512-0703 ●
10 CLIP; RUBBER HOSE
(F) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0704- ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 08 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 08 1 0512- ●
42 HOSE; RUBBER
(A) L=380 SERVICED BY L=3000 		0-03559-300-0 01 1 0512-0703 ●
42 HOSE; RUBBER
(A) L=380 SERVICED BY L=3000 		0-03559-300-0 01 1 0704- ● ●
42 HOSE; RUBBER
(C) L=650 		1-21489-186-0 01 1 0512-0703 ●
42 HOSE; RUBBER
(C) L=650 		1-21489-186-0 01 1 0704- ● ●
42 HOSE; RUBBER
(A) L=400 SERVICED BY L=3000 		0-03559-300-0 01 1 0407-0511 ●
42 HOSE; RUBBER
(A) L=350 SERVICED BY L=3000 		0-03559-300-0 01 1 0512- ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 0407-0511 ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 0512- ●
55 HOSE; WATER,RAD OUTLET 1-21437-979-2 01 1 0512-0703 ●
55 HOSE; WATER,RAD OUTLET 1-21437-979-2 01 1 0704- ● ●
55 HOSE; WATER,RAD OUTLET
CAB UP +110MM<TGG> 		1-21437-918-0 01 1 0407-0511 ●
55 HOSE; WATER,RAD OUTLET 1-21437-997-2 01 1 0512- ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 0407-0511 ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 0512-0703 ● ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 0704- ● ● ●
128 HOSE; WATER,RAD INL 1-21437-977-1 01 1 0512-0703 ●
128 HOSE; WATER,RAD INL 1-21437-977-1 01 1 0704- ● ●
128 HOSE; WATER,RAD INL
CAB UP +110MM<TGG> 		1-21437-866-0 01 1 0407-0511 ●
128 HOSE; WATER,RAD INL 1-21437-866-1 01 1 0512- ●

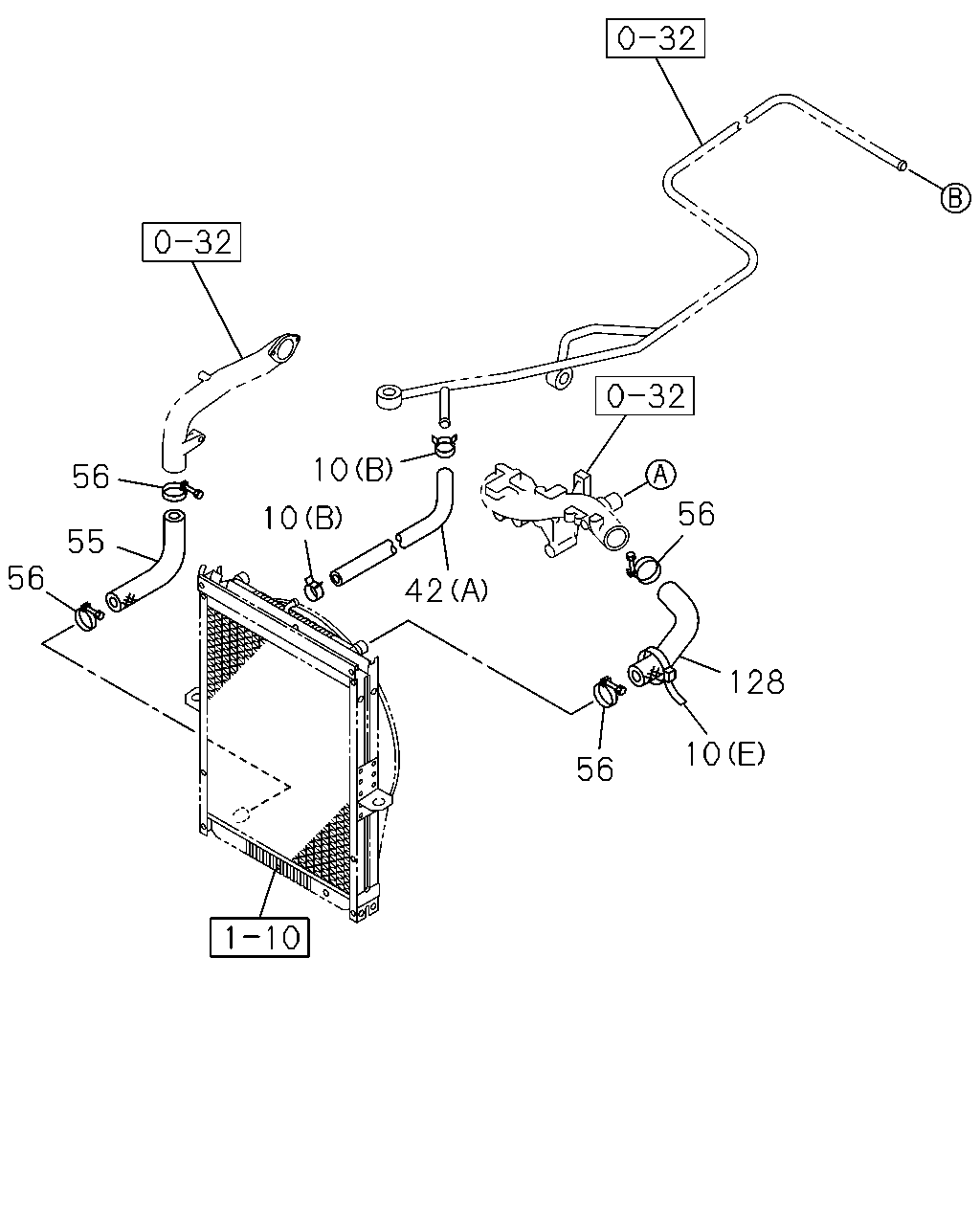

çizim 87939
10 56 56 10 55 56 42 128 10 56
BalonParca AdiParca NoAdetTipApplied Date A B C
10 CLIP; RUBBER HOSE
(D) ID=28 L=58 		1-09700-400-0 02 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(D) ID=28 L=58 		1-09700-400-0 02 1 0512- ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0512-0703 ● ●
10 CLIP; RUBBER HOSE
(A) ID=43 L=40 		1-09700-624-2 01 1 0704- ● ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0512-0703 ● ●
10 CLIP; RUBBER HOSE
(B) ID=14 		1-09704-102-0 06 1 0704- ● ● ●
10 CLIP; RUBBER HOSE
(E) L=350 		1-09707-183-0 01 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(F) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0512-0703 ●
10 CLIP; RUBBER HOSE
(F) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 0704- ● ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 08 1 0407-0511 ●
10 CLIP; RUBBER HOSE
(C) ID=44 & 16 		1-09709-125-0 08 1 0512- ●
42 HOSE; RUBBER
(A) L=380 SERVICED BY L=3000 		0-03559-300-0 01 1 0512-0703 ●
42 HOSE; RUBBER
(A) L=380 SERVICED BY L=3000 		0-03559-300-0 01 1 0704- ● ●
42 HOSE; RUBBER
(C) L=650 		1-21489-186-0 01 1 0512-0703 ●
42 HOSE; RUBBER
(C) L=650 		1-21489-186-0 01 1 0704- ● ●
42 HOSE; RUBBER
(A) L=400 SERVICED BY L=3000 		0-03559-300-0 01 1 0407-0511 ●
42 HOSE; RUBBER
(A) L=350 SERVICED BY L=3000 		0-03559-300-0 01 1 0512- ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 0407-0511 ●
42 HOSE; RUBBER
(B) L=850 		1-21489-154-0 01 1 0512- ●
55 HOSE; WATER,RAD OUTLET 1-21437-979-2 01 1 0512-0703 ●
55 HOSE; WATER,RAD OUTLET 1-21437-979-2 01 1 0704- ● ●
55 HOSE; WATER,RAD OUTLET
CAB UP +110MM<TGG> 		1-21437-918-0 01 1 0407-0511 ●
55 HOSE; WATER,RAD OUTLET 1-21437-997-2 01 1 0512- ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 0407-0511 ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 0512-0703 ● ●
56 CLIP; WATER HOSE,RAD
ID=72 		1-09704-068-0 04 1 0704- ● ● ●
128 HOSE; WATER,RAD INL 1-21437-977-1 01 1 0512-0703 ●
128 HOSE; WATER,RAD INL 1-21437-977-1 01 1 0704- ● ●
128 HOSE; WATER,RAD INL
CAB UP +110MM<TGG> 		1-21437-866-0 01 1 0407-0511 ●
128 HOSE; WATER,RAD INL 1-21437-866-1 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
