1-01 — ACCELERATOR PEDAL AND CONTROL (#31467) — 72 parça

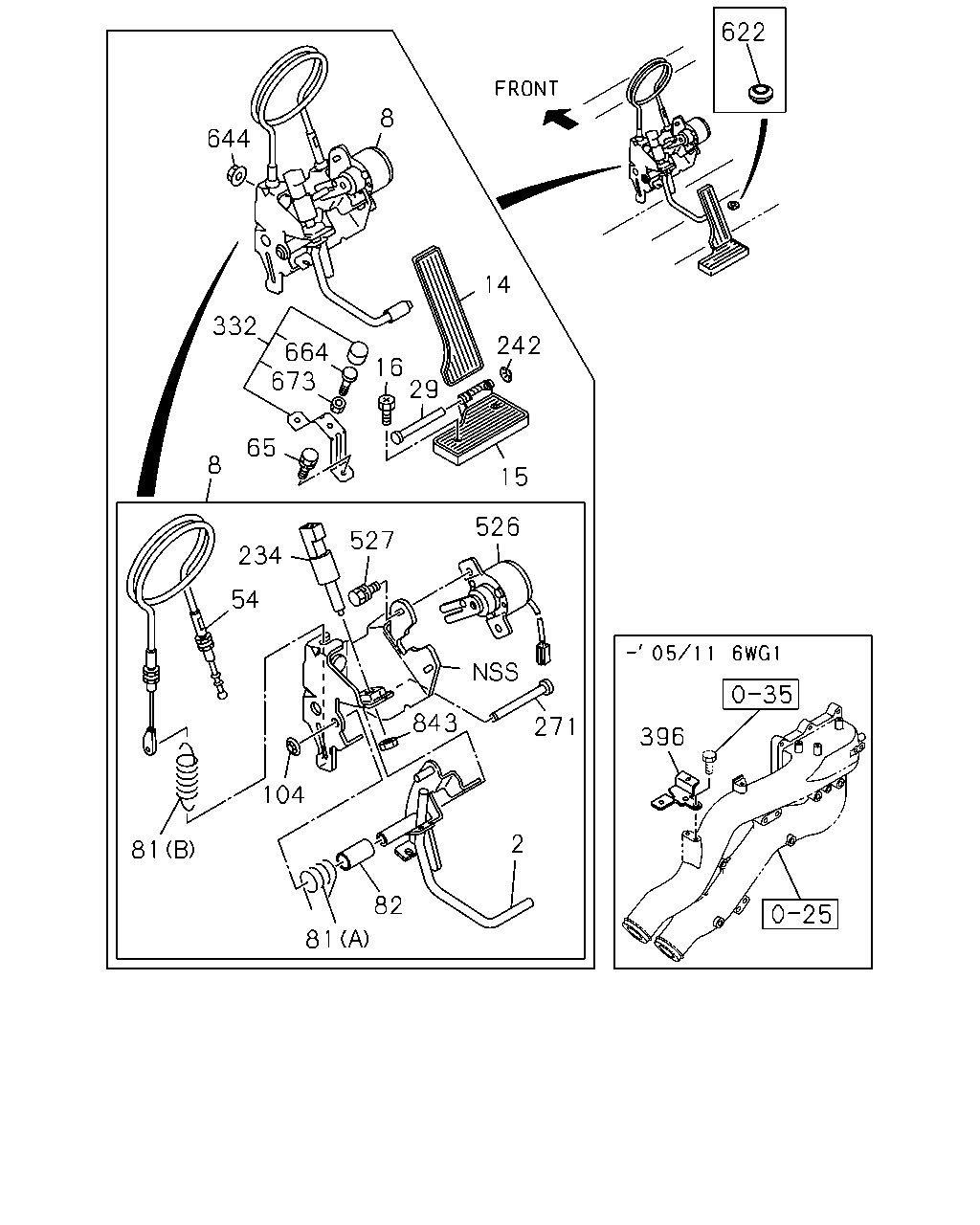

çizim 87452
622 8 644 14 332 242 664 673 16 29 65 8 15 526 527 234 54 843 271 396 104 2 81 82 81
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LEVER; ENG CONT 1-71907-550-1 01 1 0407-0511 ●
2 LEVER; ENG CONT 1-71907-550-2 01 1 0512-0703 ● ●
2 LEVER; ENG CONT 1-71907-550-2 01 1 0704- ● ● ●
8 LINK ASM; ENG CONT 1-73996-531-2 01 1 0407-0511 ●
8 LINK ASM; ENG CONT 1-73996-531-3 01 1 0512-0703 ● ●
8 LINK ASM; ENG CONT 1-73996-531-3 01 1 0704- ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0407-0511 ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0512-0703 ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0704- ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-695-1 01 1 0407-0511 ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-695-1 01 1 0512-0703 ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-695-1 01 1 0704- ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X35 W/PL WASHER 		1-09981-422-0 02 1 0407-0511 ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X35 W/PL WASHER 		1-09981-422-0 02 1 0512-0703 ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X35 W/PL WASHER 		1-09981-422-0 02 1 0704- ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0407-0511 ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0512-0703 ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0704- ● ● ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0407-0511 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0512-0703 ● ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0704- ● ● ●
65 BOLT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511 ●
65 BOLT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512-0703 ● ●
65 BOLT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0704- ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0407-0511 ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0512-0703 ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0704- ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0407-0511 ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0512-0703 ● ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0704- ● ● ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0407-0511 ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0512-0703 ● ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0704- ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0407-0511 ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0512-0703 ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0704- ● ● ●
234 SWITCH; ACCEL 1-82380-131-1 01 1 0407-0511 ●
234 SWITCH; ACCEL 1-82380-131-2 01 1 0512-0703 ● ●
234 SWITCH; ACCEL 1-82380-131-2 01 1 0704- ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0407-0511 ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0512-0703 ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0704- ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0407-0511 ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0512-0703 ● ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0704- ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0407-0511 ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0512-0703 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0704- ● ● ●
396 BRACKET; CLIP 1-14319-130-1 01 1 0407-0511 ●
526 SENSOR; ACCEL 1-80250-030-0 01 1 0407-0511 ●
526 SENSOR; ACCEL 1-80250-030-0 01 1 0512-0703 ● ●
526 SENSOR; ACCEL 1-80250-030-0 01 1 0704- ● ● ●
527 BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0407-0511 ●
527 BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0512-0703 ● ●
527 BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0704- ● ● ●
622 GROMMET; ACCEL CONT CABLE
OD=30 		8-94107-655-0 01 1 0407-0511 ●
622 GROMMET; ACCEL CONT CABLE
OD=30 		8-94107-655-0 01 1 0512-0703 ● ●
622 GROMMET; ACCEL CONT CABLE
OD=30 		8-94107-655-0 01 1 0704- ● ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0407-0511 ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0512-0703 ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0704- ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0407-0511 ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0512-0703 ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0704- ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0407-0511 ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0512-0512 ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0601-0703 ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0704- ● ● ●
843 NUT
M12 		9-99111-412-0 01 1 0407-0511 ●
843 NUT
M12 		9-99111-412-0 01 1 0512-0512 ● ●
843 NUT
M12 		0-91111-512-0 01 1 0601-0703 ● ●
843 NUT
M12 		0-91111-512-0 01 1 0704- ● ● ●
