◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-87 - COUPLING; INJECTION PUMP ▶
0-87 — COUPLING; INJECTION PUMP (#31466) — 23 parça

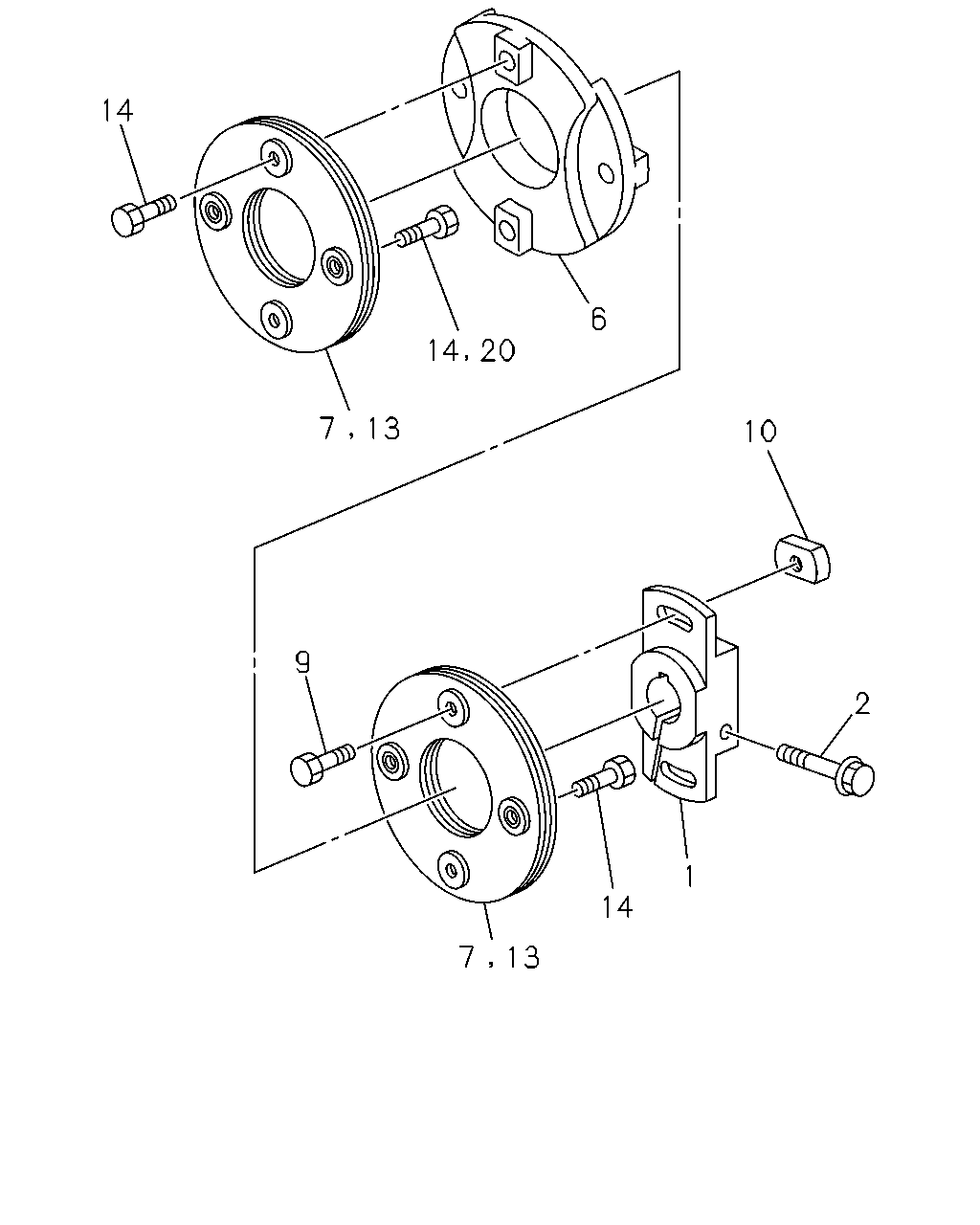

çizim 87512
14 6 14 7 13 10 9 2 1 14 7 13 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 COUPLING; INJ PUMP DRIVE 1-15789-217-0 01 1 0407-0511 ●
1 COUPLING; INJ PUMP DRIVE 1-15789-207-0 01 1 0512-0703 ● ●
1 COUPLING; INJ PUMP DRIVE 1-15789-207-0 01 1 0704- ● ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0407-0511 ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0512-0703 ● ●
2 BOLT; COUPLING FIX,INJ PUMP 1-15789-212-0 01 1 0704- ● ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-218-0 01 1 0407-0511 ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-208-0 01 1 0512-0703 ● ●
6 COUPLING; CROSS,INJ PUMP DRIVE 1-15789-208-0 01 1 0704- ● ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-209-0 02 1 0512-0703 ● ●
7 PLATE; COUPLING,COUPLING SIDE 1-15789-209-0 02 1 0704- ● ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-220-0 02 1 0407-0511 ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-210-0 02 1 0512-0703 ● ●
9 BOLT; PLATE TO COUPLING,INJ PUMP 1-15789-210-0 02 1 0704- ● ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-213-0 02 1 0407-0511 ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-213-0 02 1 0512-0703 ● ●
10 NUT; PLATE TO COUPLING,INJ PUMP 1-15789-213-0 02 1 0704- ● ● ●
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP 1-15789-219-0 02 1 0407-0511 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-214-0 06 1 0407-0511 ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-211-0 04 1 0512-0703 ● ●
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI 1-15789-211-0 04 1 0704- ● ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-214-0 02 1 0512-0703 ● ●
20 BOLT; COUPLING TO INJ PUMP 1-15789-214-0 02 1 0704- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
