◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-42 - FUEL PUMP AND PIPE ▶
0-42 — FUEL PUMP AND PIPE (#31457) — 269 parça
çizim 87559
256 207 190 123 280 115 110 110 108 123 207 207 119 112 115 126 125 125 131 125 125 126 126 131 148 125 107
BalonParca AdiParca NoAdetTipApplied Date A B C
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-258-0 01 1 0407-0511 ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-848-0 01 1 0512-0703 ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-848-0 01 1 0704- ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0512-0703 ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0704- ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0512-0703 ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0704- ● ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0512-0703 ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0704- ● ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0512-0703 ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0704- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-259-0 01 1 0407-0511 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-849-0 01 1 0512-0703 ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-849-0 01 1 0704- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(A) 		1-15416-687-0 01 1 0407-0511 ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(C) 		8-97607-213-0 01 1 0512-0703 ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(C) 		8-97607-213-0 01 1 0704- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(B) 		1-15416-688-0 01 1 0407-0511 ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(D) 		8-97610-542-0 01 1 0512-0703 ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(D) 		8-97610-542-0 01 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(D) ID=9 & 11 L=28 		1-09701-193-1 03 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(D) ID=9 & 11 L=28 		1-09701-193-1 03 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(C) ID=9 & 11 L=28 		1-09701-194-1 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(C) ID=9 & 11 L=28 		1-09701-194-1 02 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0407-0511 ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-2 06 1 0407-0511 ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-2 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-3 02 1 0704- ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 04 1 0512-0512 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28050-640-0 04 1 0601-0703 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28050-640-0 04 1 0704- ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 0407-0511 ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 01 1 0512-0512 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 01 1 0601-0703 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-529-1 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(G) 		8-97606-142-0 01 1 0512-0703 ● ●
131 BRACKET; FUEL PIPE CLIP
(G) 		8-97606-142-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-575-0 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-577-0 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(F) 		1-15419-725-0 01 1 0512-0703 ● ●
131 BRACKET; FUEL PIPE CLIP
(F) 		1-15419-725-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(E) 		1-15419-600-1 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(D) 		1-15419-667-0 01 1 0407-0511 ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0511 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 03 1 0407-0511 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0512-0512 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601-0703 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0704- ● ● ●
190 SENSOR; FUEL TEMP 8-97224-993-0 01 1 0512-0703 ●
190 SENSOR; FUEL TEMP 8-97224-993-0 01 1 0704- ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 03 1 0512-0703 ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 03 1 0704- ● ● ●
256 BOLT; EYE,FUEL PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
256 BOLT; EYE,FUEL PIPE
M14X42 		1-09675-090-0 01 1 0512-0703 ● ●
256 BOLT; EYE,FUEL PIPE
M14X42 		1-09675-090-0 01 1 0704-0805 ● ● ●
256 BOLT; EYE,FUEL PIPE
M14X43 EYE-BOLT 		8-98037-829-0 01 1 0806- ● ● ●
280 ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT 		1-15419-716-1 01 1 0512-0703 ●
280 ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT 		1-15419-716-1 01 1 0704- ● ●
çizim 87861
256 207 123 121 207 207 123 107 110 108 115 110 115 112 119 190 280 126 125 125 131 125 125 126 131 126 125 148
BalonParca AdiParca NoAdetTipApplied Date A B C
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-258-0 01 1 0407-0511 ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-848-0 01 1 0512-0703 ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-848-0 01 1 0704- ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0512-0703 ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0704- ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0512-0703 ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0704- ● ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0512-0703 ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0704- ● ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0512-0703 ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0704- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-259-0 01 1 0407-0511 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-849-0 01 1 0512-0703 ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-849-0 01 1 0704- ● ● ●
121 BOLT; CLIP
M6X35 FLANGE 		0-28050-635-0 01 1 1206- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(A) 		1-15416-687-0 01 1 0407-0511 ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(C) 		8-97607-213-0 01 1 0512-0703 ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(C) 		8-97607-213-0 01 1 0704- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(B) 		1-15416-688-0 01 1 0407-0511 ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(D) 		8-97610-542-0 01 1 0512-0703 ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(D) 		8-97610-542-0 01 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(D) ID=9 & 11 L=28 		1-09701-193-1 03 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(D) ID=9 & 11 L=28 		1-09701-193-1 03 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(C) ID=9 & 11 L=28 		1-09701-194-1 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(C) ID=9 & 11 L=28 		1-09701-194-1 02 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0407-0511 ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-2 06 1 0407-0511 ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-2 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-3 02 1 0704- ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 04 1 0512-0512 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28050-640-0 04 1 0601-0703 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28050-640-0 04 1 0704- ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 0407-0511 ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 01 1 0512-0512 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 01 1 0601-0703 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-529-1 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(G) 		8-97606-142-0 01 1 0512-0703 ● ●
131 BRACKET; FUEL PIPE CLIP
(G) 		8-97606-142-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-575-0 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-577-0 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(F) 		1-15419-725-0 01 1 0512-0703 ● ●
131 BRACKET; FUEL PIPE CLIP
(F) 		1-15419-725-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(E) 		1-15419-600-1 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(D) 		1-15419-667-0 01 1 0407-0511 ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0511 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 03 1 0407-0511 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0512-0512 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601-0703 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0704- ● ● ●
190 SENSOR; FUEL TEMP 8-97224-993-0 01 1 0512-0703 ●
190 SENSOR; FUEL TEMP 8-97224-993-0 01 1 0704- ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 03 1 0512-0703 ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 03 1 0704- ● ● ●
256 BOLT; EYE,FUEL PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
256 BOLT; EYE,FUEL PIPE
M14X42 		1-09675-090-0 01 1 0512-0703 ● ●
256 BOLT; EYE,FUEL PIPE
M14X42 		1-09675-090-0 01 1 0704-0805 ● ● ●
256 BOLT; EYE,FUEL PIPE
M14X43 EYE-BOLT 		8-98037-829-0 01 1 0806- ● ● ●
280 ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT 		1-15419-716-1 01 1 0512-0703 ●
280 ADAPTER; FUEL TEMP SEN
M12 & M14 STRAIGHT 		1-15419-716-1 01 1 0704- ● ●

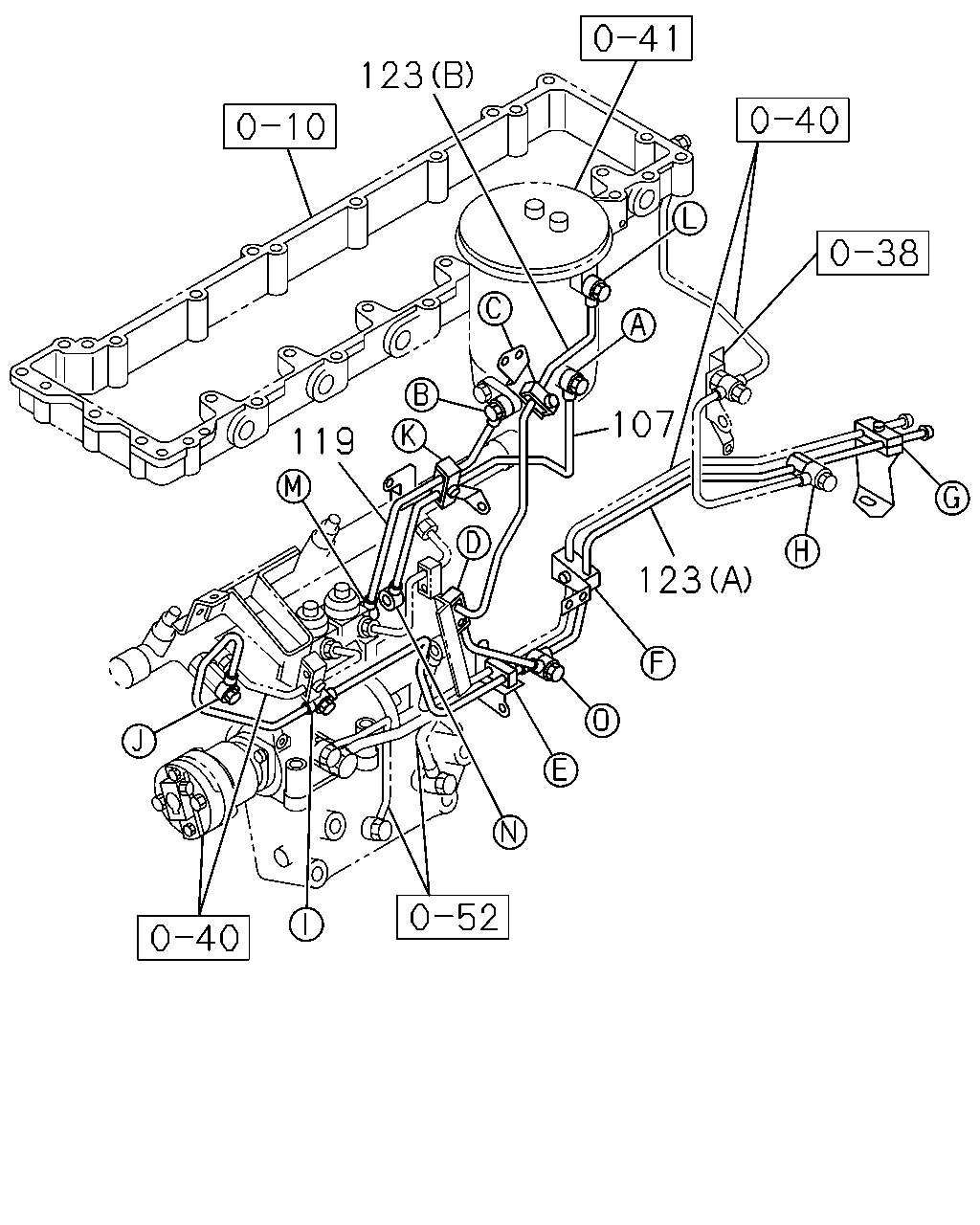

çizim 104808
123 107 119 123
BalonParca AdiParca NoAdetTipApplied Date A B C
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-258-0 01 1 0407-0511 ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-848-0 01 1 0512-0703 ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-848-0 01 1 0704- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-259-0 01 1 0407-0511 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-849-0 01 1 0512-0703 ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-849-0 01 1 0704- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(A) 		1-15416-687-0 01 1 0407-0511 ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(C) 		8-97607-213-0 01 1 0512-0703 ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(C) 		8-97607-213-0 01 1 0704- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(B) 		1-15416-688-0 01 1 0407-0511 ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(D) 		8-97610-542-0 01 1 0512-0703 ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(D) 		8-97610-542-0 01 1 0704- ● ● ●

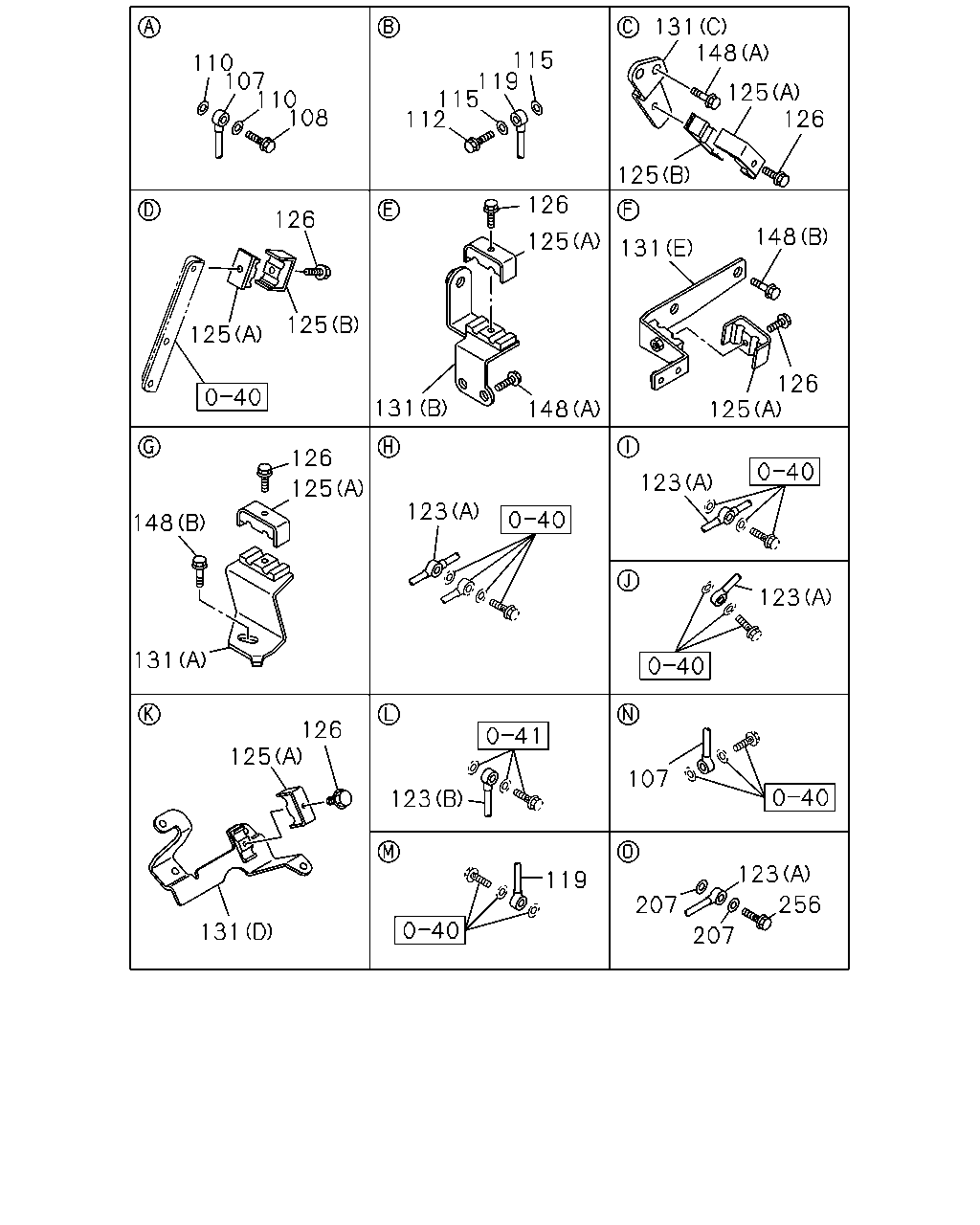

çizim 104809
131 148 115 119 115 112 110 107 110 108 125 126 125 126 126 148 125 131 125 125 126 131 148 125 126 123 125 123 148 123 131 126 125 107 123 123 119 256 207 131 207
BalonParca AdiParca NoAdetTipApplied Date A B C
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-258-0 01 1 0407-0511 ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-848-0 01 1 0512-0703 ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-848-0 01 1 0704- ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0512-0703 ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0704- ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0512-0703 ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0704- ● ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0512-0703 ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0704- ● ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0512-0703 ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0704- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-259-0 01 1 0407-0511 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-849-0 01 1 0512-0703 ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-849-0 01 1 0704- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(A) 		1-15416-687-0 01 1 0407-0511 ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(C) 		8-97607-213-0 01 1 0512-0703 ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(C) 		8-97607-213-0 01 1 0704- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(B) 		1-15416-688-0 01 1 0407-0511 ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(D) 		8-97610-542-0 01 1 0512-0703 ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(D) 		8-97610-542-0 01 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(D) ID=9 & 11 L=28 		1-09701-193-1 03 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(D) ID=9 & 11 L=28 		1-09701-193-1 03 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(C) ID=9 & 11 L=28 		1-09701-194-1 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(C) ID=9 & 11 L=28 		1-09701-194-1 02 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0407-0511 ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-2 06 1 0407-0511 ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-2 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-3 02 1 0704- ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 04 1 0512-0512 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28050-640-0 04 1 0601-0703 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28050-640-0 04 1 0704- ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 0407-0511 ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 01 1 0512-0512 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 01 1 0601-0703 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-529-1 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(G) 		8-97606-142-0 01 1 0512-0703 ● ●
131 BRACKET; FUEL PIPE CLIP
(G) 		8-97606-142-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-575-0 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-577-0 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(F) 		1-15419-725-0 01 1 0512-0703 ● ●
131 BRACKET; FUEL PIPE CLIP
(F) 		1-15419-725-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(E) 		1-15419-600-1 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(D) 		1-15419-667-0 01 1 0407-0511 ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0511 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 03 1 0407-0511 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0512-0512 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601-0703 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0704- ● ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 03 1 0512-0703 ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 03 1 0704- ● ● ●
256 BOLT; EYE,FUEL PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
256 BOLT; EYE,FUEL PIPE
M14X42 		1-09675-090-0 01 1 0512-0703 ● ●
256 BOLT; EYE,FUEL PIPE
M14X42 		1-09675-090-0 01 1 0704-0805 ● ● ●
256 BOLT; EYE,FUEL PIPE
M14X43 EYE-BOLT 		8-98037-829-0 01 1 0806- ● ● ●

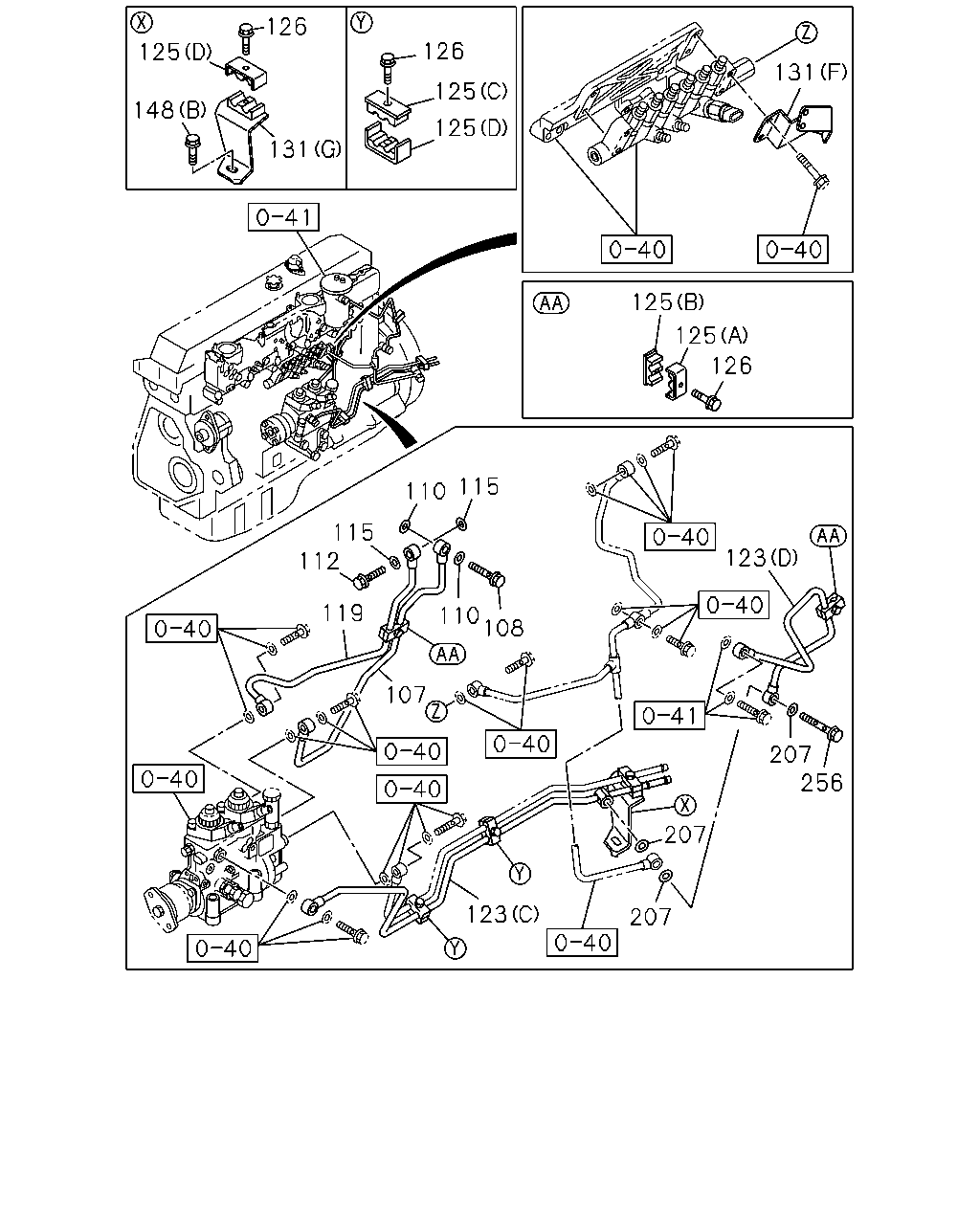

çizim 321135
126 125 148 131 126 125 125 131 125 126 125 123 207 256 207 207 123 107 110 108 112 119 115 115 110
BalonParca AdiParca NoAdetTipApplied Date A B C
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-258-0 01 1 0407-0511 ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-848-0 01 1 0512-0703 ● ●
107 PIPE; FUEL,FEED PUMP TO FUEL FILTER 1-15416-848-0 01 1 0704- ● ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0512-0703 ● ●
108 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0704- ● ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0512-0703 ● ●
110 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0704- ● ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0512-0703 ● ●
112 BOLT; JOINT,FUEL FILTER
M14X27 FLANGE 		1-09675-086-0 01 1 0704- ● ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0512-0703 ● ●
115 GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25 		1-09630-141-0 02 1 0704- ● ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-259-0 01 1 0407-0511 ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-849-0 01 1 0512-0703 ● ●
119 PIPE; FUEL,FUEL FILTER TO INJ PUMP 1-15416-849-0 01 1 0704- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(A) 		1-15416-687-0 01 1 0407-0511 ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(C) 		8-97607-213-0 01 1 0512-0703 ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(C) 		8-97607-213-0 01 1 0704- ● ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(B) 		1-15416-688-0 01 1 0407-0511 ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(D) 		8-97610-542-0 01 1 0512-0703 ● ●
123 PIPE; FUEL,FUEL FILTER LEAK OFF
(D) 		8-97610-542-0 01 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(D) ID=9 & 11 L=28 		1-09701-193-1 03 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(D) ID=9 & 11 L=28 		1-09701-193-1 03 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(C) ID=9 & 11 L=28 		1-09701-194-1 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(C) ID=9 & 11 L=28 		1-09701-194-1 02 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0407-0511 ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(B) ID=9 & 9 L=25 		1-09701-180-0 02 1 0704- ● ● ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-2 06 1 0407-0511 ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-2 02 1 0512-0703 ● ●
125 CLIP; FUEL PIPE
(A) ID=9 & 9 L=25 		8-94393-280-3 02 1 0704- ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28080-640-0 04 1 0512-0512 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28050-640-0 04 1 0601-0703 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X40 FLANGE 		0-28050-640-0 04 1 0704- ● ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 06 1 0407-0511 ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28080-630-0 01 1 0512-0512 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 01 1 0601-0703 ● ●
126 BOLT; CLIP,FUEL PIPE
M6X30 FLANGE 		0-28050-630-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(B) 		1-15419-529-1 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(G) 		8-97606-142-0 01 1 0512-0703 ● ●
131 BRACKET; FUEL PIPE CLIP
(G) 		8-97606-142-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(C) 		1-15419-575-0 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(A) 		1-15419-577-0 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(F) 		1-15419-725-0 01 1 0512-0703 ● ●
131 BRACKET; FUEL PIPE CLIP
(F) 		1-15419-725-0 01 1 0704- ● ● ●
131 BRACKET; FUEL PIPE CLIP
(E) 		1-15419-600-1 01 1 0407-0511 ●
131 BRACKET; FUEL PIPE CLIP
(D) 		1-15419-667-0 01 1 0407-0511 ●
148 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0407-0511 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 03 1 0407-0511 ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0512-0512 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601-0703 ● ●
148 BOLT; BRKT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0704- ● ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 02 1 0407-0511 ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 03 1 0512-0703 ● ●
207 GASKET; EYE BOLT
ID=14.2 OD=25 		1-09630-141-0 03 1 0704- ● ● ●
256 BOLT; EYE,FUEL PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0407-0511 ●
256 BOLT; EYE,FUEL PIPE
M14X42 		1-09675-090-0 01 1 0512-0703 ● ●
256 BOLT; EYE,FUEL PIPE
M14X42 		1-09675-090-0 01 1 0704-0805 ● ● ●
256 BOLT; EYE,FUEL PIPE
M14X43 EYE-BOLT 		8-98037-829-0 01 1 0806- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
