0-37 — TURBOCHARGER (#31452) — 85 parça

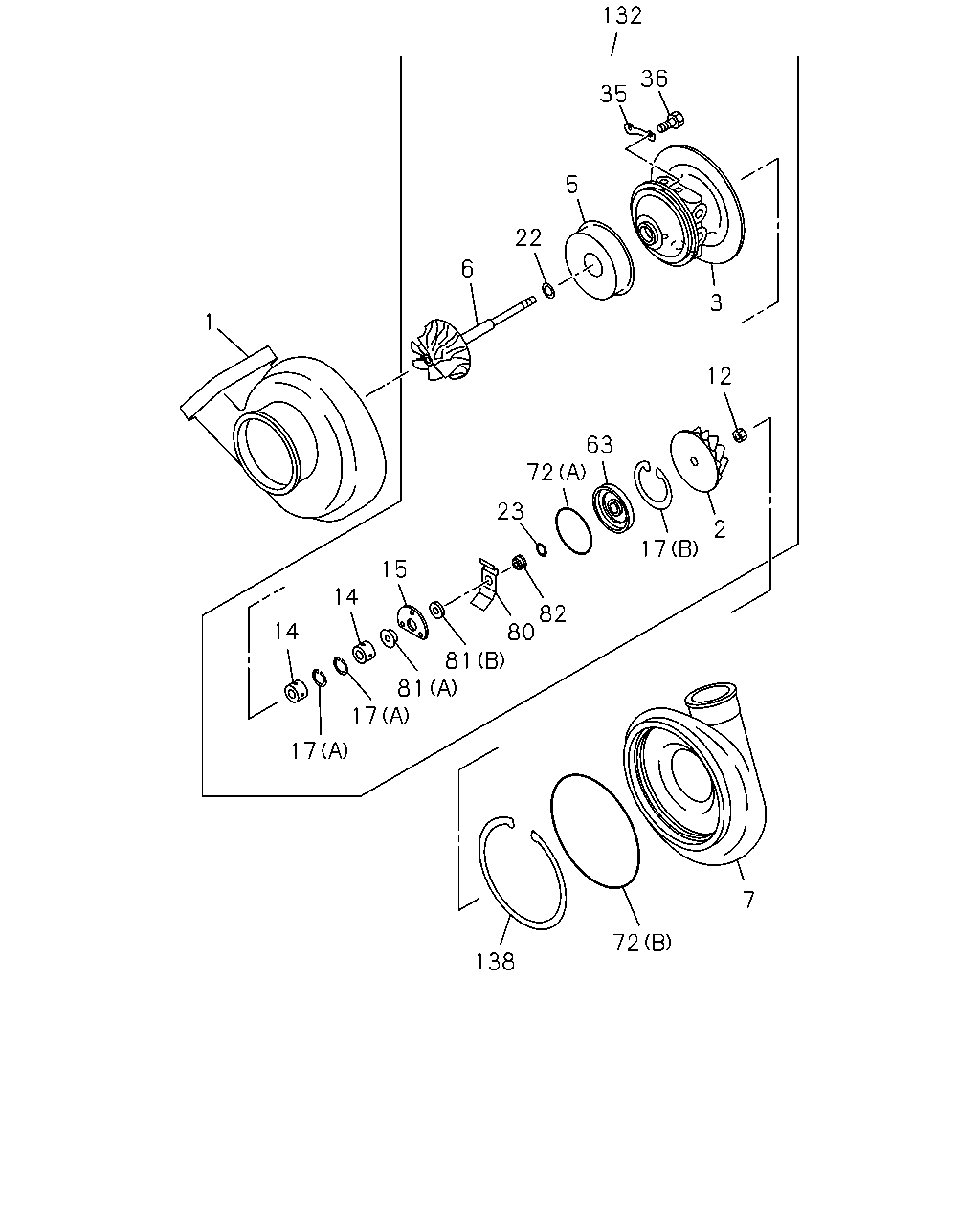

132 36 35 5 22 6 3 1 12 63 72 23 2 17 15 14 82 80 81 81 17 14 17 7 72 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14415-114-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14415-126-2	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14451-068-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14451-074-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14411-066-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14411-072-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14425-035-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14425-045-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-374-3, B = 1-14400-391-2	1-14450-063-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14414-113-1	01	1	-1201
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14414-123-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-374-3	8-98231-982-0	01	1	1202-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-374-3	1-09400-133-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 1-14400-391-2	1-14459-057-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: A = 1-14400-374-3, B = 1-14400-391-2	1-14411-065-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14411-060-0	01	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14453-088-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: B = 1-14400-391-2	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: A = 1-14400-374-3	1-14453-090-0	02	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: A = 1-14400-374-3	1-14453-091-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: B = 1-14400-391-2	1-14459-062-0	02	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14453-089-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14459-063-0	01	1	-
23	RING; SEAL,BLOWER SIDE,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14459-059-0	01	1	-
35	CLAMP; TURBINE HSG,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14421-027-0	01	1	-
35	CLAMP; TURBINE HSG,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14421-031-0	05	1	-
36	BOLT; LK PLATE,TURBINE HSG,TURBOCHARGE ASM PART: B = 1-14400-391-2	1-14379-119-0	10	1	-
63	INSERT; IMPELLER,TURBOCHARGER ASM PART: A = 1-14400-374-3, B = 1-14400-391-2	1-14425-037-0	01	1	-
72	GASKET; BRG HSG,TURBOCHARGER (B) ASM PART: B = 1-14400-391-2	1-14414-107-0	01	1	-
72	GASKET; BRG HSG,TURBOCHARGER (A) ASM PART: B = 1-14400-391-2	1-14419-118-0	01	1	-
72	GASKET; BRG HSG,TURBOCHARGER (A) ASM PART: A = 1-14400-374-3	1-14453-094-0	01	1	-
72	GASKET; BRG HSG,TURBOCHARGER (B) ASM PART: A = 1-14400-374-3	1-14453-095-0	01	1	-
80	DEFLECTOR; OIL,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14419-147-0	01	1	-
80	DEFLECTOR; OIL,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14425-036-0	01	1	-
81	RING; THRUST,TURBOCHARGER (A) ASM PART: A = 1-14400-374-3	1-14453-092-0	01	1	-
81	RING; THRUST,TURBOCHARGER (B) ASM PART: A = 1-14400-374-3	1-14453-093-0	01	1	-
81	RING; THRUST,TURBOCHARGER (A) ASM PART: B = 1-14400-391-2	1-14459-060-0	01	1	-
81	RING; THRUST,TURBOCHARGER (B) ASM PART: B = 1-14400-391-2	1-14459-061-0	01	1	-
82	SLEEVE; SPACER,TURBOCHARGER ASM PART: A = 1-14400-374-3, B = 1-14400-391-2	1-14455-044-0	01	1	-
132	CARTRIDGE; TURBO ASM PART: A = 1-14400-374-3	1-14425-031-0	01	1	-
132	CARTRIDGE; TURBO ASM PART: B = 1-14400-391-2	1-14425-044-0	01	1	-
138	RING; SNAP,BLOWER HSG ASM PART: A = 1-14400-374-3	1-14455-046-0	01	1	-
138	RING; SNAP,BLOWER HSG ASM PART: B = 1-14400-391-2	1-14459-056-0	01	1	-

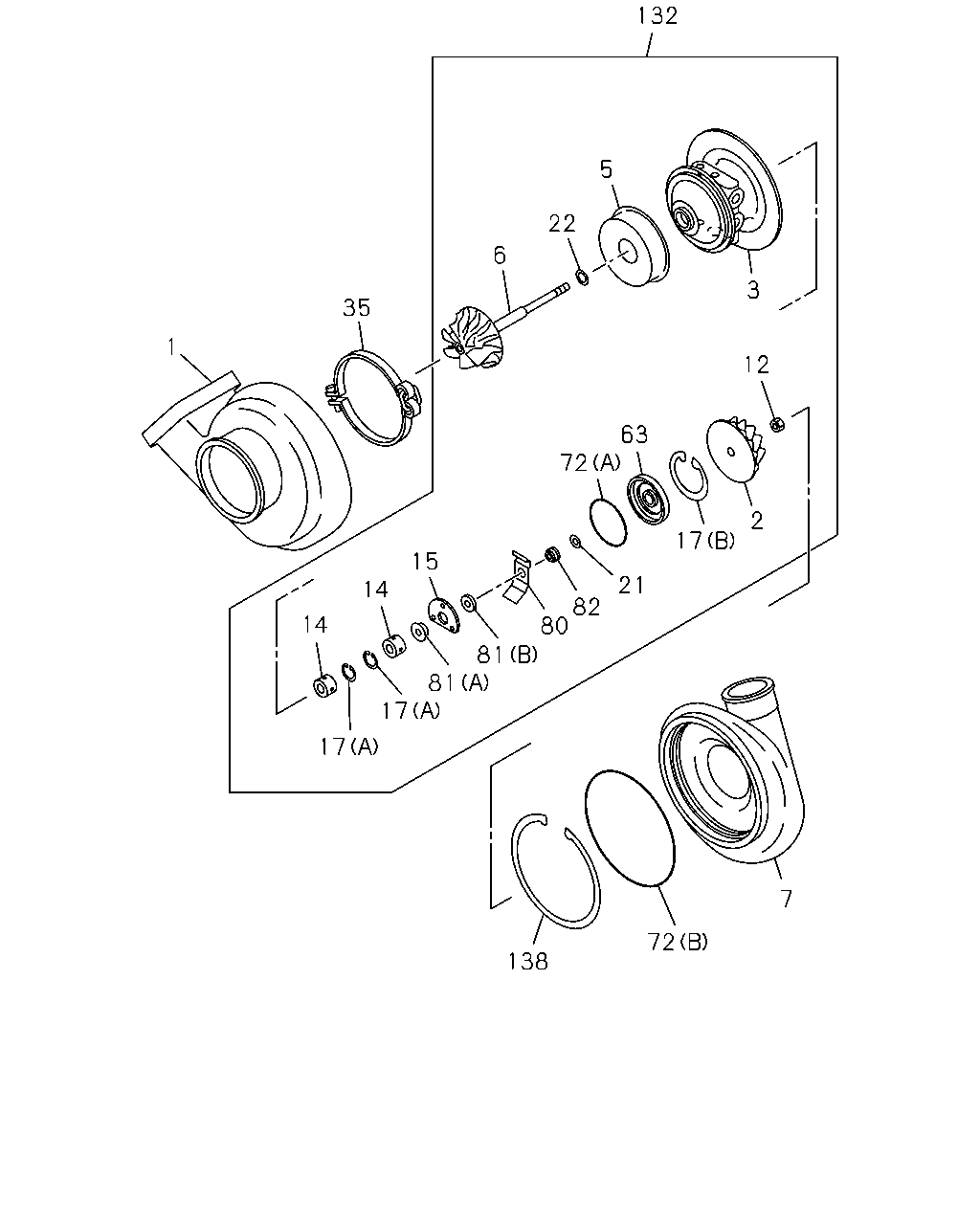

132 5 22 6 3 35 1 12 63 72 2 17 15 21 14 82 80 81 81 17 14 17 7 72 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14415-114-0	01	1	-
1	HOUSING; TURBINE,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14415-126-2	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14451-068-0	01	1	-
2	IMPELLER; TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14451-074-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14411-066-0	01	1	-
3	HOUSING; BRG,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14411-072-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14425-035-0	01	1	-
5	PROTECTOR; HEAT,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14425-045-0	01	1	-
6	SHAFT; TURBINE,TURBOCHARGER ASM PART: A = 1-14400-374-3, B = 1-14400-391-2	1-14450-063-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14414-113-1	01	1	-1201
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14414-123-0	01	1	-
7	HOUSING; BLOWER,TURBOCHARGER ASM PART: A = 1-14400-374-3	8-98231-982-0	01	1	1202-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: A = 1-14400-374-3	1-09400-133-0	01	1	-
12	NUT; LK,TURBINE SHAFT TO IMPELLER,TC ASM PART: B = 1-14400-391-2	1-14459-057-0	01	1	-
14	BEARING; JOURNAL,TURBOCHARGER ASM PART: A = 1-14400-374-3, B = 1-14400-391-2	1-14411-065-0	02	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14411-060-0	01	1	-
15	BEARING; THRUST,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14453-088-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: B = 1-14400-391-2	1-14419-117-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: A = 1-14400-374-3	1-14453-090-0	02	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (B) ASM PART: A = 1-14400-374-3	1-14453-091-0	01	1	-
17	RING; JOURNAL BRG,TURBOCHARGER (A) ASM PART: B = 1-14400-391-2	1-14459-062-0	02	1	-
21	THROWER; OIL,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14453-096-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14453-089-0	01	1	-
22	RING; SEAL,TURBINE SIDE,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14459-063-0	01	1	-
35	CLAMP; TURBINE HSG,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14421-027-0	01	1	-
35	CLAMP; TURBINE HSG,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14421-031-0	05	1	-
63	INSERT; IMPELLER,TURBOCHARGER ASM PART: A = 1-14400-374-3, B = 1-14400-391-2	1-14425-037-0	01	1	-
72	GASKET; BRG HSG,TURBOCHARGER (B) ASM PART: B = 1-14400-391-2	1-14414-107-0	01	1	-
72	GASKET; BRG HSG,TURBOCHARGER (A) ASM PART: B = 1-14400-391-2	1-14419-118-0	01	1	-
72	GASKET; BRG HSG,TURBOCHARGER (A) ASM PART: A = 1-14400-374-3	1-14453-094-0	01	1	-
72	GASKET; BRG HSG,TURBOCHARGER (B) ASM PART: A = 1-14400-374-3	1-14453-095-0	01	1	-
80	DEFLECTOR; OIL,TURBOCHARGER ASM PART: B = 1-14400-391-2	1-14419-147-0	01	1	-
80	DEFLECTOR; OIL,TURBOCHARGER ASM PART: A = 1-14400-374-3	1-14425-036-0	01	1	-
81	RING; THRUST,TURBOCHARGER (A) ASM PART: A = 1-14400-374-3	1-14453-092-0	01	1	-
81	RING; THRUST,TURBOCHARGER (B) ASM PART: A = 1-14400-374-3	1-14453-093-0	01	1	-
81	RING; THRUST,TURBOCHARGER (A) ASM PART: B = 1-14400-391-2	1-14459-060-0	01	1	-
81	RING; THRUST,TURBOCHARGER (B) ASM PART: B = 1-14400-391-2	1-14459-061-0	01	1	-
82	SLEEVE; SPACER,TURBOCHARGER ASM PART: A = 1-14400-374-3, B = 1-14400-391-2	1-14455-044-0	01	1	-
132	CARTRIDGE; TURBO ASM PART: A = 1-14400-374-3	1-14425-031-0	01	1	-
132	CARTRIDGE; TURBO ASM PART: B = 1-14400-391-2	1-14425-044-0	01	1	-
138	RING; SNAP,BLOWER HSG ASM PART: A = 1-14400-374-3	1-14455-046-0	01	1	-
138	RING; SNAP,BLOWER HSG ASM PART: B = 1-14400-391-2	1-14459-056-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
