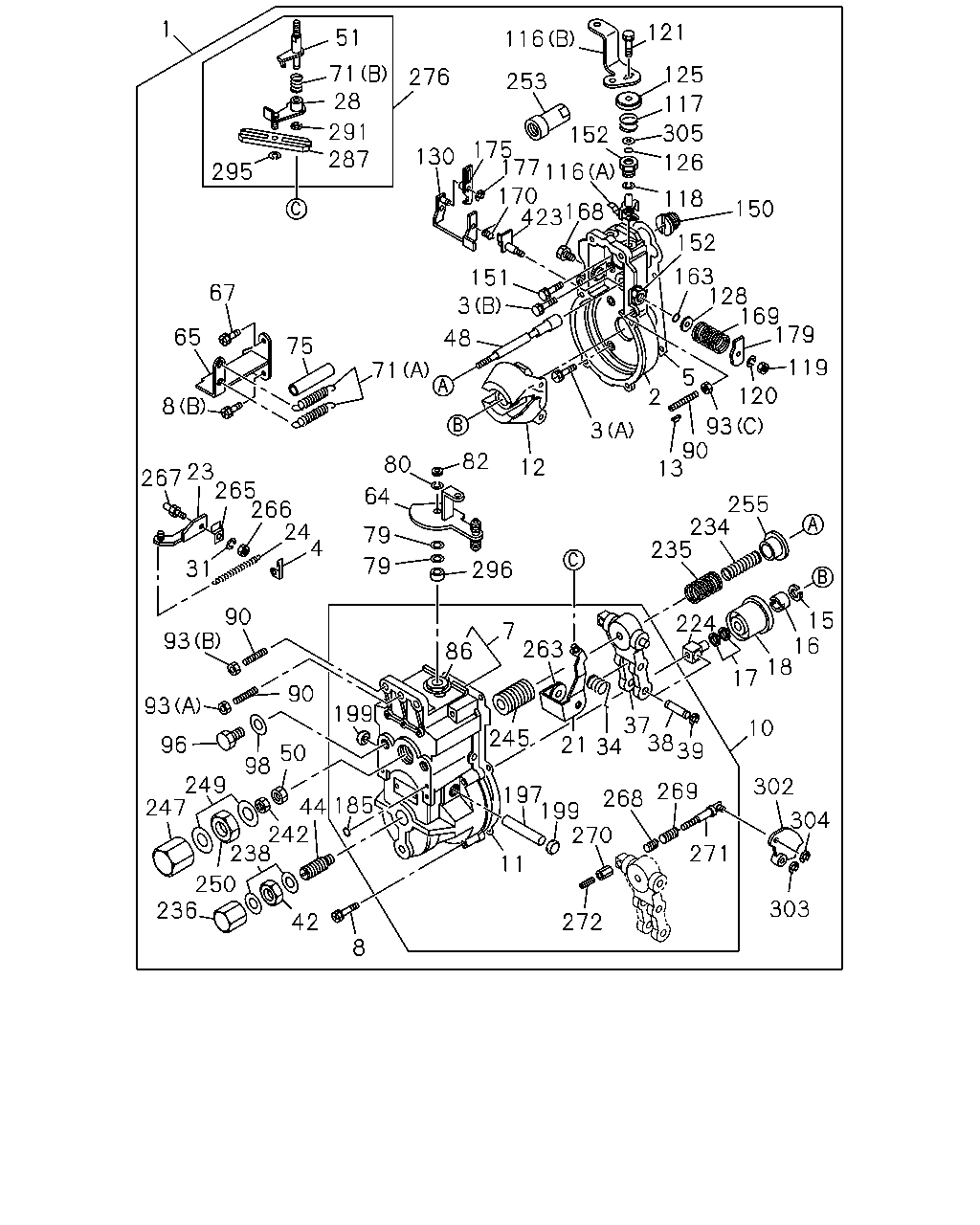

0-81 — GOVERNOR; INJECTION PUMP (#3145) — 138 parça

1 121 51 116 71 28 125 276 253 117 291 287 305 152 175 177 116 170 168 423 130 126 295 118 150 152 163 128 169 179 151 3 67 65 48 75 119 71 5 120 2 8 93 90 13 3 82 80 12 23 267 265 266 24 4 64 255 234 235 79 31 79 296 224 90 93 15 16 18 7 263 86 17 90 93 199 37 34 38 39 10 245 50 21 96 98 249 247 302 269 197 199 270 268 242 238 304 271 11 250 236 303 42 272 8 44 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 1-15602-221-4	1-15770-206-0	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 1-15602-221-4	5-15721-030-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP (A), M6X15 ASM PART: A = 1-15602-221-4	5-15729-027-0	05	1	-
3	BOLT; GOV HSG,INJ PUMP (B), M6X16 ASM PART: A = 1-15602-221-4	5-15729-071-0	01	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 1-15602-221-4	8-94472-265-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 1-15602-221-4	5-15729-000-1	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 1-15602-221-4	1-15721-148-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 1-15602-221-4	5-15729-033-0	07	1	-
10	COVER ASM; GOV,INJ PUMP ASM PART: A = 1-15602-221-4	1-15721-147-0	01	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 1-15602-221-4	5-15729-020-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 1-15602-221-4	9-81321-325-0	01	1	-
13	KEY; FLYWEIGHT,GOV 16MM ASM PART: A = 1-15602-221-4	5-15619-049-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 1-15602-221-4	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 1-15602-221-4	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 1-15602-221-4	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 1-15602-221-4	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 1-15602-221-4	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 1-15602-221-4	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 1-15602-221-4	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 1-15602-221-4	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 1-15602-221-4	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 1-15602-221-4	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 1-15602-221-4	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 1-15602-221-4	5-15729-016-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 1-15602-221-4	5-15725-010-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 1-15602-221-4	5-15725-011-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 1-15602-221-4	5-15723-044-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 1-15602-221-4	5-15725-012-0	01	1	-
31	WASHER; LK,CONT RACK,GOV ID=5 ASM PART: A = 1-15602-221-4	1-83539-044-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 1-15602-221-4	5-15723-039-1	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 1-15602-221-4	5-15725-019-0	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 1-15602-221-4	5-15729-032-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV ASM PART: A = 1-15602-221-4	9-88410-201-0	02	1	-
42	NUT; SPRING CAPSULE,IDLE CONT,GOV ASM PART: A = 1-15602-221-4	5-15729-285-0	01	1	-
44	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 1-15602-221-4	1-15723-180-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 1-15602-221-4	8-94172-279-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 1-15602-221-4	5-15729-059-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 1-15602-221-4	1-15725-821-0	01	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 1-15602-221-4	5-15725-084-0	01	1	-
65	BRACKET; RETURN SPRING,GOV ASM PART: A = 1-15602-221-4	5-15729-548-0	01	1	-
71	SPRING; CONT LEVER,GOV (B) ASM PART: A = 1-15602-221-4	5-15723-034-0	01	1	-
71	SPRING; CONT LEVER,GOV (A) ASM PART: A = 1-15602-221-4	5-15723-111-0	02	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 1-15602-221-4	5-15729-074-0	02	1	-
79	SHIM; LEVER SETTING,GOV T=0.95 ASM PART: A = 1-15602-221-4	1-15729-076-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.20 ASM PART: A = 1-15602-221-4	1-15729-077-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.25 ASM PART: A = 1-15602-221-4	1-15729-078-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.30 ASM PART: A = 1-15602-221-4	1-15729-079-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.35 ASM PART: A = 1-15602-221-4	1-15729-080-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.40 ASM PART: A = 1-15602-221-4	1-15729-081-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.50 ASM PART: A = 1-15602-221-4	1-15729-082-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.70 ASM PART: A = 1-15602-221-4	1-15729-617-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.90 ASM PART: A = 1-15602-221-4	1-15729-618-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.80 ASM PART: A = 1-15602-221-4	1-15729-619-0	AR	1	-
79	SHIM; LEVER SETTING,GOV ASM PART: A = 1-15602-221-4	1-15729-822-0	AR	1	-
79	SHIM; LEVER SETTING,GOV T=0.60 ASM PART: A = 1-15602-221-4	1-15729-896-0	AR	1	-
80	WASHER; LK,CONT LEVER,GOV ID=8.2 ASM PART: A = 1-15602-221-4	9-09150-608-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 1-15602-221-4	1-15729-236-0	01	1	-
86	BUSHING; CONT SHAFT,GOV COVER ASM PART: A = 1-15602-221-4	5-15729-192-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV M8X65 ASM PART: A = 1-15602-221-4	1-15729-761-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV M6X33 ASM PART: A = 1-15602-221-4	1-15729-799-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV M6X34 ASM PART: A = 1-15602-221-4	1-15729-800-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV M6X35 ASM PART: A = 1-15602-221-4	1-15729-801-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV M6X36 ASM PART: A = 1-15602-221-4	1-15729-802-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV M6X37 ASM PART: A = 1-15602-221-4	1-15729-803-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV M6X31 ASM PART: A = 1-15602-221-4	1-15729-842-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV M6X32 ASM PART: A = 1-15602-221-4	1-15729-843-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV L=62 ASM PART: A = 1-15602-221-4	5-15729-123-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 1-15602-221-4	1-15729-643-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C) ASM PART: A = 1-15602-221-4	9-81325-081-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 1-15602-221-4	9-84410-027-0	01	1	-
96	PLUG; LEVER SHAFT,GOV ASM PART: A = 1-15602-221-4	5-15729-050-0	01	1	-
98	GASKET; PIVOT BOLT,GOV LEVER ASM PART: A = 1-15602-221-4	5-15729-022-0	01	1	-
116	LEVER; ENG STOP,GOV (B) ASM PART: A = 1-15602-221-4	1-15725-269-0	01	1	-
116	LEVER; ENG STOP,GOV (A) ASM PART: A = 1-15602-221-4	5-15725-063-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 1-15602-221-4	5-15723-032-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 1-15602-221-4	5-15729-181-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 1-15602-221-4	1-15729-236-0	01	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ID=8.2 ASM PART: A = 1-15602-221-4	9-09150-608-0	01	1	-
121	BOLT; ENG STOP LEVER,GOV M6X16 W/LK WASHER ASM PART: A = 1-15602-221-4	9-01900-616-0	01	1	-
125	CAP; STOP LEVER SPRING,GOV ASM PART: A = 1-15602-221-4	9-81325-210-0	01	1	-
126	GASKET; STOP LEVER,GOV ASM PART: A = 1-15602-221-4	9-81391-906-0	01	1	-
127	BUSHING; CONT SHAFT,GOV HSG ASM PART: A = 1-15602-221-4	9-81325-429-0	01	1	-
128	SHIM; CONT SHAFT,GOV T=0.20 ASM PART: A = 1-15602-221-4	1-15729-294-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.25 ASM PART: A = 1-15602-221-4	1-15729-295-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.30 ASM PART: A = 1-15602-221-4	1-15729-296-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.35 ASM PART: A = 1-15602-221-4	1-15729-297-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.40 ASM PART: A = 1-15602-221-4	1-15729-298-0	AR	1	-
128	SHIM; CONT SHAFT,GOV T=0.50 ASM PART: A = 1-15602-221-4	1-15729-299-0	AR	1	-
130	LEVER; CONT,GOV ASM PART: A = 1-15602-221-4	1-15725-155-0	01	1	-
150	ADAPTER; GOV HSG,INJ PUMP ASM PART: A = 1-15602-221-4	9-81315-065-0	01	1	-
151	BOLT; ADAPTER,GOV HSG,INJ PUMP M8X18 W/LK WASHER ASM PART: A = 1-15602-221-4	9-01900-818-0	01	1	-
152	BUSHING; GOV SHAFT,HSG,INJ PUMP ASM PART: A = 1-15602-221-4	9-81325-429-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 1-15602-221-4	9-81391-906-0	01	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 1-15602-221-4	5-15729-029-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 1-15602-221-4	5-15723-032-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 1-15602-221-4	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 1-15602-221-4	1-57250-050-1	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 1-15602-221-4	9-81325-445-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 1-15602-221-4	5-15725-062-0	01	1	-
185	GASKET; BUSHING,GOV COVER ASM PART: A = 1-15602-221-4	1-15729-421-0	01	1	-
197	SHAFT; LEVER,GOV COVER ASM PART: A = 1-15602-221-4	5-15725-008-0	01	1	-
199	PLUG; LEVER SHAFT,GOV COVER ASM PART: A = 1-15602-221-4	5-15729-076-0	02	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 1-15602-221-4	5-15729-036-0	01	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 1-15602-221-4	5-15723-073-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 1-15602-221-4	5-15723-098-0	01	1	-
236	CAP; SPRING CAPSULE,IDLE CONT,GOV ASM PART: A = 1-15602-221-4	5-15729-212-0	01	1	-
238	GASKET; SPRING CAPSULE CAP,GOV ASM PART: A = 1-15602-221-4	5-15729-211-0	02	1	-
242	NUT; LK,GOV SHAFT ASM PART: A = 1-15602-221-4	5-15729-067-0	01	1	-
245	SCREW; GUIDE,GOV SHAFT,INJ PUMP ASM PART: A = 1-15602-221-4	5-15729-040-0	01	1	-
247	CAP; GUIDE SCREW,GOV SHAFT ASM PART: A = 1-15602-221-4	5-15729-041-0	01	1	-
249	GASKET; GUIDE SCREW,GOV SHAFT ASM PART: A = 1-15602-221-4	5-15729-021-0	02	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: A = 1-15602-221-4	1-15729-350-0	01	1	-
253	LIMITTER; GOV CONT ASM PART: A = 1-15602-221-4	9-81325-435-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 1-15602-221-4	8-94171-173-0	01	1	-
263	COLLAR; GUIDE LEVER,GOV ASM PART: A = 1-15602-221-4	5-15729-031-0	02	1	-
265	PLATE; CONN LINK,CONT RACK,GOV ASM PART: A = 1-15602-221-4	5-15729-183-0	01	1	-
266	NUT; PIN TO LINK,CONT RACK,GOV ASM PART: A = 1-15602-221-4	5-15729-069-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 1-15602-221-4	5-15729-182-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV ASM PART: A = 1-15602-221-4	5-15723-056-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 1-15602-221-4	5-15723-057-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 1-15602-221-4	5-15729-051-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 1-15602-221-4	5-15725-009-0	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 1-15602-221-4	5-15729-030-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 1-15602-221-4	1-15725-490-0	01	1	-
287	LEVER; GOV ASM PART: A = 1-15602-221-4	1-15725-542-0	01	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 1-15602-221-4	9-81325-445-0	01	1	-
295	RING; SNAP ASM PART: A = 1-15602-221-4	9-81325-445-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 1-15602-221-4	1-15729-875-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 1-15602-221-4	5-15729-186-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 1-15602-221-4	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 1-15602-221-4	9-09185-404-0	01	1	-
305	SHIM; STOP LEVER,GOV T=0.20 ASM PART: A = 1-15602-221-4	1-15729-294-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.25 ASM PART: A = 1-15602-221-4	1-15729-295-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.30 ASM PART: A = 1-15602-221-4	1-15729-296-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.35 ASM PART: A = 1-15602-221-4	1-15729-297-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.40 ASM PART: A = 1-15602-221-4	1-15729-298-0	AR	1	-
305	SHIM; STOP LEVER,GOV T=0.50 ASM PART: A = 1-15602-221-4	1-15729-299-0	AR	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP ASM PART: A = 1-15602-221-4	1-15729-820-0	01	1	-
