0-28 — VENTILATION SYSTEM (#31445) — 127 parça

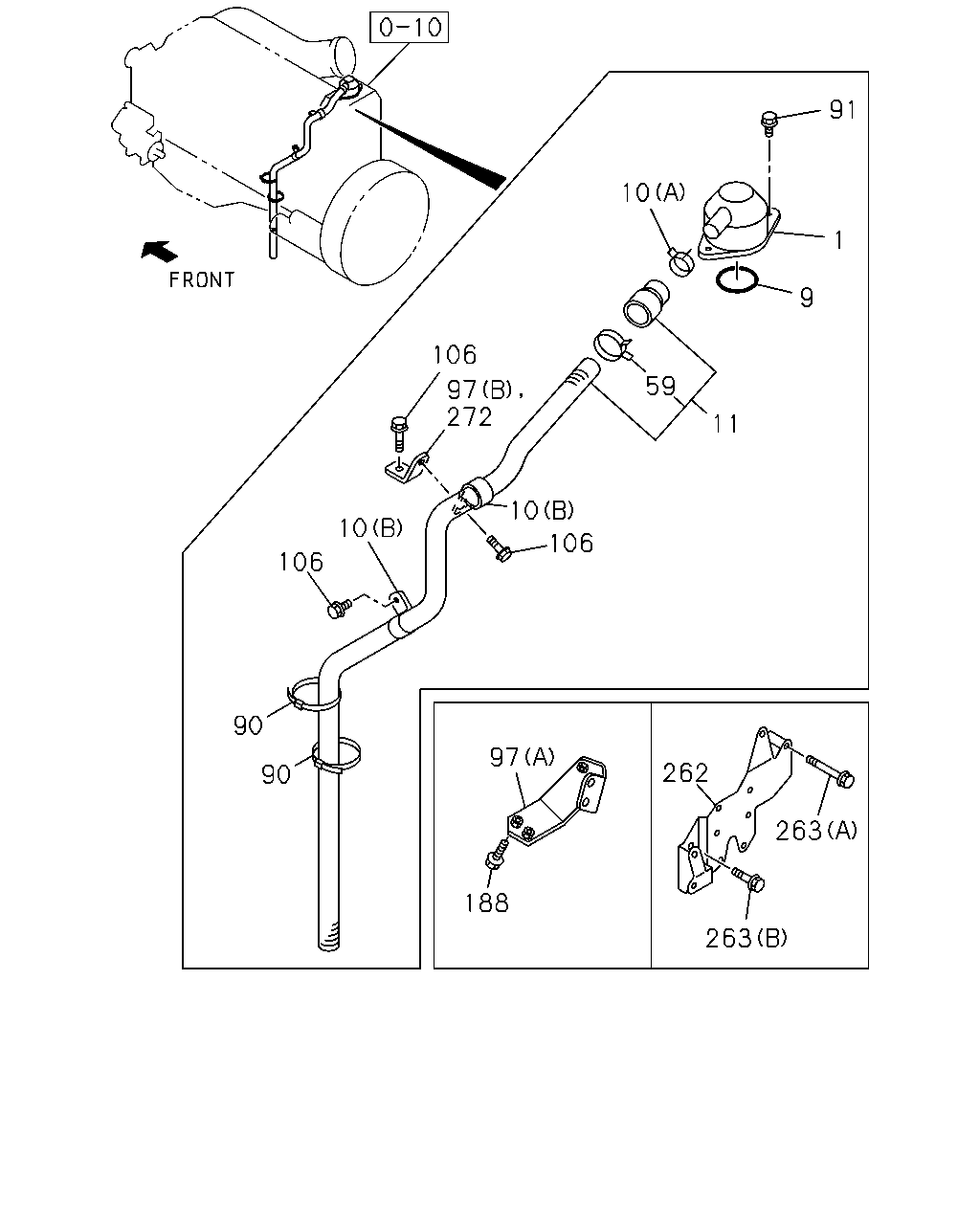

çizim 87164
91 10 1 9 106 59 97 272 11 10 10 106 106 90 97 262 90 263 188 263
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BREATHER; AIR 1-11740-181-1 01 1 0407-0511 ●
1 BREATHER; AIR 1-11740-181-1 01 1 0512-0703 ● ●
1 BREATHER; AIR 1-11740-181-1 01 1 0704- ● ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 01 1 0407-0511 ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 01 1 0512-0703 ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 01 1 0704- ● ● ●
10 CLIP; AIR BREATHER
(B) ID=31 L=30 		1-09700-969-0 03 1 0407-0511 ●
10 CLIP; AIR BREATHER
(B) ID=31 L=30 		1-09700-969-0 03 1 0512-1208 ●
10 CLIP; AIR BREATHER
(B) ID=29 L=30 		8-98225-679-0 04 1 1209- ●
10 CLIP; AIR BREATHER
(A) ID=28.5 		1-09707-150-0 01 1 0407-0511 ●
10 CLIP; AIR BREATHER
(A) ID=28.5 		1-09707-150-0 01 1 0512- ●
11 HOSE; RUBBER,AIR 1-11742-086-1 01 1 0407-0511 ●
11 HOSE; RUBBER,AIR 1-11742-086-3 01 1 0512-1208 ●
11 HOSE; RUBBER,AIR 8-98225-542-0 01 1 1209- ●
59 CLIP; HOSE
ID=33.6 		8-94362-518-0 01 1 0407-0511 ●
59 CLIP; HOSE
ID=33.6 		8-94362-518-0 01 1 0512-1208 ●
90 CLIP; RUBBER HOSE
L=250 		5-09707-030-1 02 1 0407-0511 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0512-0703 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0704- ● ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28181-020-0 02 1 0407-0511 ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28181-020-0 02 1 0512-0512 ● ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28151-020-0 02 1 0601-0703 ● ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28151-020-0 02 1 0704- ● ● ●
97 BRACKET; HOSE
(B) 		8-97629-739-0 01 1 0808- ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 0512-0703 ● ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 0704- ● ● ●
106 BOLT; DRAIN PIPE
M8X25 FLANGE 		0-28050-825-0 02 1 0808- ●
106 BOLT; DRAIN PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512 ●
106 BOLT; DRAIN PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601-1208 ●
106 BOLT; DRAIN PIPE
M8X16 FLANGE 		0-28050-816-0 02 1 1209- ●
106 BOLT; DRAIN PIPE
M8X12 FLANGE 		0-28080-812-0 02 1 0407-0511 ●
106 BOLT; DRAIN PIPE
M8X12 FLANGE 		0-28080-812-0 02 1 0512-0512 ●
106 BOLT; DRAIN PIPE
M8X12 FLANGE 		0-28050-812-0 02 1 0601-0807 ●
106 BOLT; DRAIN PIPE
M8X12 FLANGE 		0-28050-812-0 01 1 0808- ●
188 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
188 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0703 ● ●
188 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0704- ● ● ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 0512-0703 ● ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 0704- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28181-090-0 01 1 0512-0512 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 0601-0703 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 0704- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28981-425-0 02 1 0512-0512 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 0601-0703 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 0704- ● ● ●
272 BRACKET; PIPE 8-97629-739-0 01 1 0808- ● ●

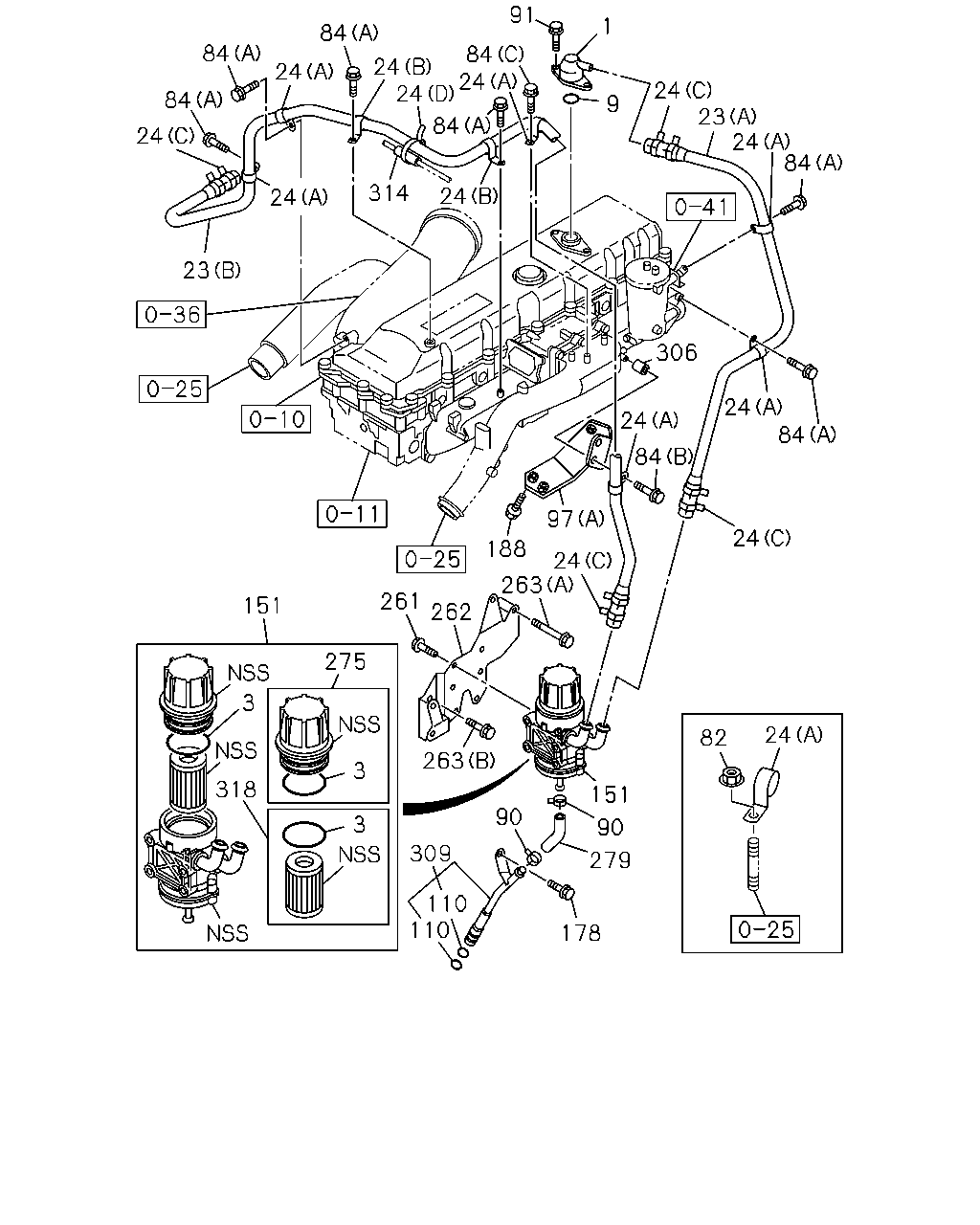

çizim 104470
82 24 151 90 279 90 309 110 110 178 3 3 275 151 3 318 261 262 263 263 188 97 24 84 24 24 306 84 24 84 24 23 24 9 1 24 314 24 23 24 84 84 84 24 24 24 84 84 24 91
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BREATHER; AIR 1-11740-181-1 01 1 0407-0511 ●
1 BREATHER; AIR 1-11740-181-1 01 1 0512-0703 ● ●
1 BREATHER; AIR 1-11740-181-1 01 1 0704- ● ● ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 0512-0703 ●
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 0704- ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 01 1 0407-0511 ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 01 1 0512-0703 ● ●
9 GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6 		1-09623-565-0 01 1 0704- ● ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97603-636-2 01 1 0512-0703 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-97603-636-3 01 1 0704-1208 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(B) 		8-98225-540-0 01 1 1209- ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97607-591-1 01 1 0512-0703 ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-97607-591-2 01 1 0704-1208 ● ●
23 HOSE; RUBBER,VENTILATOR PIPE
(A) 		8-98225-541-0 01 1 1209- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=31 L=30 		1-09700-969-0 07 1 0512-0703 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=31 L=30 		1-09700-969-0 07 1 0704-1208 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(A) ID=29 L=30 		8-98225-679-0 09 1 1209- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=31 H=30 L=35 		1-09700-994-0 02 1 0512-0703 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(B) ID=31 H=30 L=35 		1-09700-994-0 02 1 0704-1208 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 04 1 0512-0703 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5 		1-09707-150-0 04 1 0704- ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 02 1 0512-0703 ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		5-09707-030-1 02 1 0704-1205 ● ●
24 CLIP; RUBBER HOSE,VENTILATOR
(D) L=250 		8-98216-430-0 02 1 1206- ● ●
82 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1209- ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X25 FLANGE 		0-28050-825-0 01 1 0808- ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(C) M6X12 FLANGE 		0-28080-612-0 01 1 0512-0512 ●
84 BOLT; PIPE CLIP,VENTILATOR
(C) M6X12 FLANGE 		0-28050-612-0 01 1 0601-0703 ●
84 BOLT; PIPE CLIP,VENTILATOR
(C) M6X12 FLANGE 		0-28050-612-0 01 1 0704- ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28080-816-0 07 1 0512-0512 ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 07 1 0601-0703 ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 07 1 0704-0807 ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 06 1 0808-1208 ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(A) M8X16 FLANGE 		0-28050-816-0 05 1 1209- ● ●
84 BOLT; PIPE CLIP,VENTILATOR
(B) M8X35 FLANGE 		0-28680-835-0 01 1 0512-0512 ●
84 BOLT; PIPE CLIP,VENTILATOR
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0601-0703 ●
84 BOLT; PIPE CLIP,VENTILATOR
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0704- ● ●
90 CLIP; RUBBER HOSE
L=250 		5-09707-030-1 02 1 0407-0511 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0512-0703 ●
90 CLIP; RUBBER HOSE
ID=14 		1-09704-102-0 02 1 0704- ● ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28181-020-0 02 1 0407-0511 ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28181-020-0 02 1 0512-0512 ● ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28151-020-0 02 1 0601-0703 ● ●
91 BOLT; AIR BREATHER
M10X20 FLANGE 		0-28151-020-0 02 1 0704- ● ● ●
97 BRACKET; HOSE
(B) 		8-97629-739-0 01 1 0808- ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 0512-0703 ● ●
97 BRACKET; HOSE
(A) 		1-15419-726-0 01 1 0704- ● ● ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 0512-0703 ●
110 GASKET; PIPE
ID=11 		1-09623-469-0 02 1 0704- ● ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 0512-0703 ●
151 SEPARATOR; OIL,PCV 8-97604-118-0 01 1 0704- ● ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 0512-0512 ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0601-0703 ●
178 BOLT; PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 0704- ● ●
188 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
188 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0703 ● ●
188 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0704- ● ● ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 0601-0703 ●
261 BOLT; SEPARETOR
M8X16 FLANGE 		0-28050-816-0 04 1 0704- ● ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 0512-0703 ● ●
262 BRACKET; OIL SEPARETOR 1-13345-220-1 01 1 0704- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28181-090-0 01 1 0512-0512 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 0601-0703 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE 		0-28151-090-0 01 1 0704- ● ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28981-425-0 02 1 0512-0512 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 0601-0703 ● ●
263 BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE 		0-28951-425-0 02 1 0704- ● ● ●
275 CAP; PCV 8-97385-918-0 01 1 0512-0703 ●
275 CAP; PCV 8-97385-918-0 01 1 0704- ● ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 0512-0703 ●
279 HOSE; RUBBER,OIL DRAIN
L=90 SERVICED BY L=1000 		0-02759-100-0 01 1 0704- ● ●
306 SPACER; CLIP 8-98143-884-0 01 1 1209- ● ●
306 SPACER; CLIP 1-11349-149-0 01 1 0512-0703 ●
306 SPACER; CLIP 1-11349-149-0 01 1 0704- ● ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 0512-0703 ●
309 PIPE ASM; OIL SEPARATOR 1-13314-045-1 01 1 0704- ● ●
314 COVER; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0512-0703 ●
314 COVER; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 02 1 0704- ● ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 0512-0703 ●
318 ELEMENT KIT; PCV 8-97385-919-0 01 1 0704- ● ●
