◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10955 - EXZ NEW ZEALAND ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#31443) — 274 parça

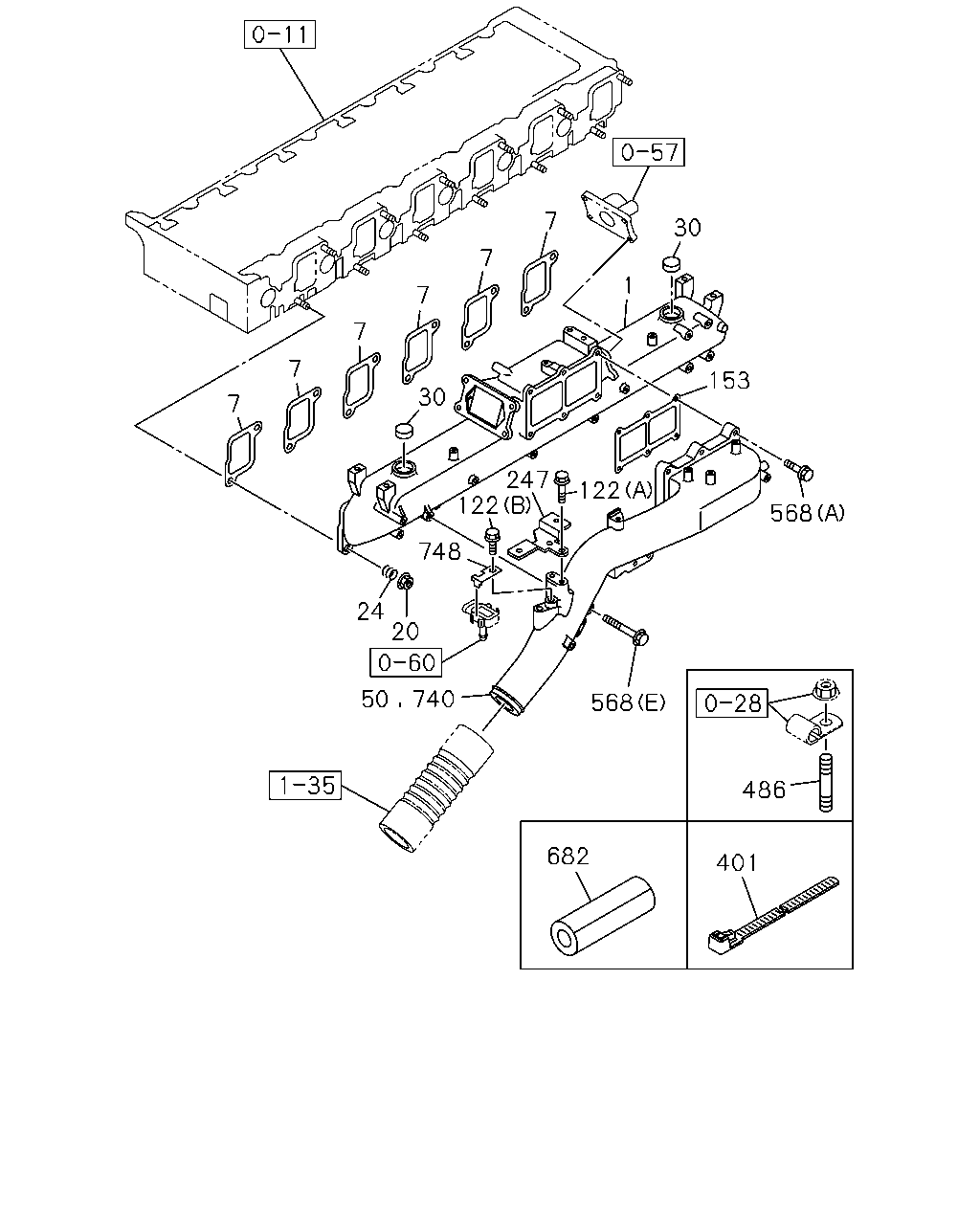

çizim 87116
7 7 7 7 7 7 30 30 1 153 122 247 122 748 24 20 50 740 568 568 682 401 486
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MANIFOLD; INL 1-14110-612-1 01 1 0512-0609 ● ●
1 MANIFOLD; INL 1-14110-620-0 01 1 0610-0703 ● ●
1 MANIFOLD; INL 1-14110-620-0 01 1 0704-1010 ● ● ●
1 MANIFOLD; INL 8-98167-210-0 01 1 1011- ● ● ●
1 MANIFOLD; INL 1-14110-589-4 01 1 0407-0511 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97607-598-1 06 1 0512-0703 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97607-598-3 06 1 0704- ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0407-0504 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97607-598-0 06 1 0505-0505 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0506-0511 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0512- ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 0407-0511 ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 0512-0602 ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 0603-0703 ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 0704- ● ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0407-0511 ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0512-0703 ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0704- ● ● ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 04 1 0407-0511 ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 0512-0703 ● ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 0704-1010 ● ● ●
50 PIPE; INL 8-97604-124-1 01 1 0512-0609 ●
50 PIPE; INL 8-97616-715-0 01 1 0610-0703 ●
50 PIPE; INL 8-97616-715-0 01 1 0704-1208 ● ●
50 PIPE; INL 1-14112-668-0 01 1 0407-0511 ●
50 PIPE; INL 1-14112-711-4 01 1 0512-0701 ●
50 PIPE; INL 8-97617-049-0 01 1 0702- ●
122 BOLT; BRKT
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0512-0512 ● ●
122 BOLT; BRKT
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601-0703 ● ●
122 BOLT; BRKT
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0704- ● ● ●
122 BOLT; BRKT
(B) M6X12 FLANGE 		0-28080-612-0 01 1 0512-0512 ●
122 BOLT; BRKT
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0601-0703 ●
122 BOLT; BRKT
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0704- ● ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-094-1 01 1 0512-0703 ●
153 GASKET; PLUG,INT DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-094-1 01 1 0704- ● ●
247 BRACKET; CLIP 1-14319-130-1 01 1 0512-0703 ● ●
247 BRACKET; CLIP 1-14319-130-1 01 1 0704- ● ● ●
401 CLIP; BAND
L=250 		5-09707-030-1 01 1 0512-0703 ●
401 CLIP; BAND
L=250 		5-09707-030-1 01 1 0704-1205 ● ●
401 CLIP; BAND
L=250 		8-98216-430-0 01 1 1206- ● ●
486 STUD; CLIP
M8X25 L=37 		0-41010-825-0 01 1 1209- ● ●
568 BOLT; PIPE
(A) M6X30 FLANGE 		0-28080-630-0 02 1 0407-0511 ●
568 BOLT; PIPE
(E) M10X80 FLANGE 		0-28181-080-0 01 1 0512-0512 ● ●
568 BOLT; PIPE
(E) M10X80 FLANGE 		0-28151-080-0 01 1 0601-0703 ● ●
568 BOLT; PIPE
(E) M10X80 FLANGE 		0-28151-080-0 01 1 0704- ● ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28181-030-0 10 1 0407-0407 ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28181-030-0 04 1 0408-0511 ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28181-030-0 06 1 0512-0512 ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 0601-0703 ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 0704- ● ● ●
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28181-080-0 01 1 0407-0407 ●
568 BOLT; PIPE
(C) M10X120 FLANGE 		0-28186-012-0 01 1 0407-0511 ●
568 BOLT; PIPE
(D) M10X150 FLANGE 		0-28186-015-0 02 1 0407-0511 ●
682 COVER; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0512-0703 ●
682 COVER; RUBBER
ID=10 OD=14 L=30 		9-09956-682-0 01 1 0704- ● ●
740 PIPE; INTAKE 8-97616-715-0 01 1 1209- ● ●
748 BRACKET; BOOST SENSOR 8-97216-216-0 01 1 0512-0703 ●
748 BRACKET; BOOST SENSOR 8-97216-216-0 01 1 0704- ● ●

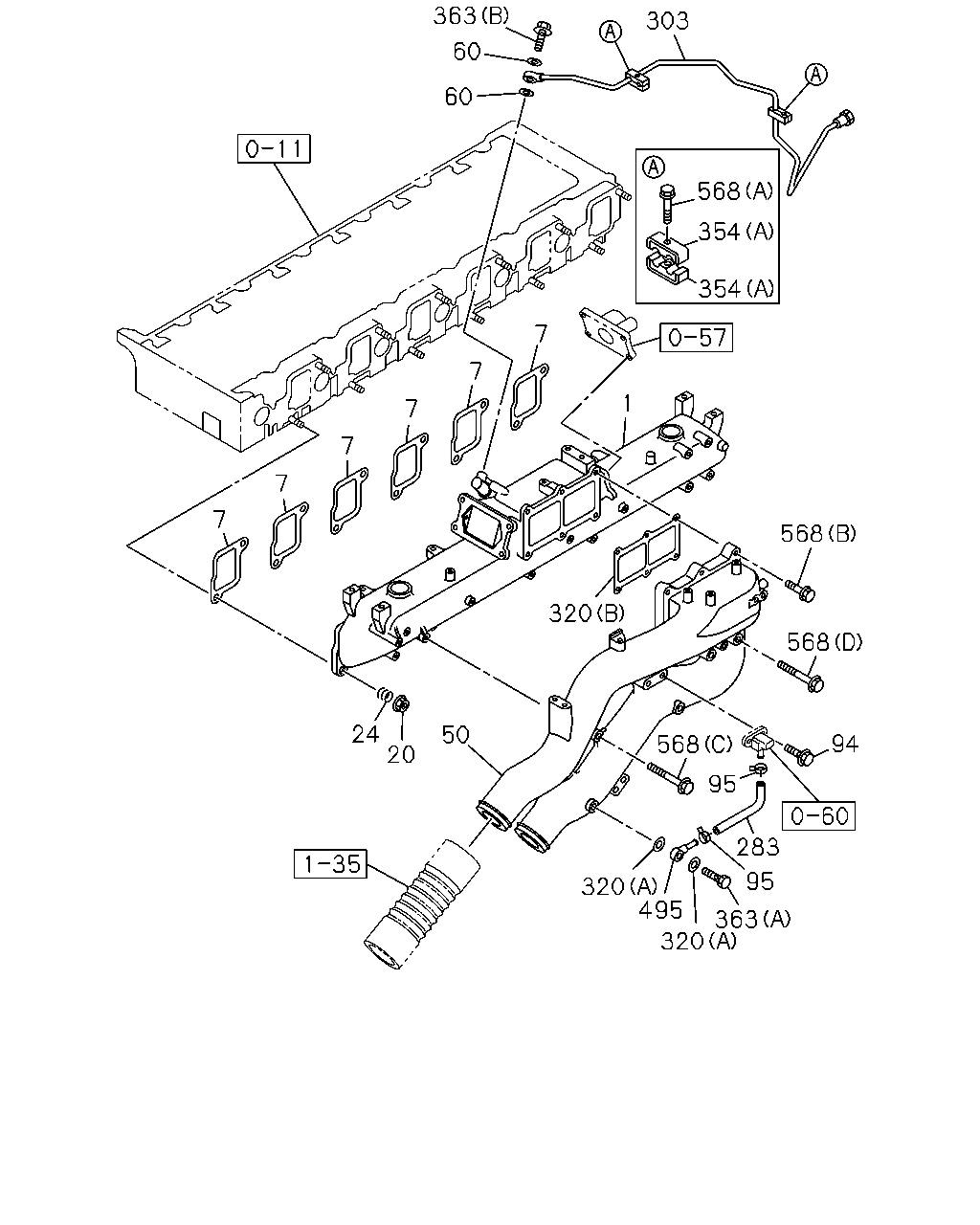

çizim 87210
363 303 60 60 568 354 354 7 7 1 7 7 7 7 568 320 568 24 20 50 94 568 95 283 95 320 495 363 320
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MANIFOLD; INL 1-14110-612-1 01 1 0512-0609 ● ●
1 MANIFOLD; INL 1-14110-620-0 01 1 0610-0703 ● ●
1 MANIFOLD; INL 1-14110-620-0 01 1 0704-1010 ● ● ●
1 MANIFOLD; INL 8-98167-210-0 01 1 1011- ● ● ●
1 MANIFOLD; INL 1-14110-589-4 01 1 0407-0511 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97607-598-1 06 1 0512-0703 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97607-598-3 06 1 0704- ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0407-0504 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97607-598-0 06 1 0505-0505 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0506-0511 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0512- ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 0407-0511 ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 0512-0602 ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 0603-0703 ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 0704- ● ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0407-0511 ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0512-0703 ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0704- ● ● ●
50 PIPE; INL 8-97604-124-1 01 1 0512-0609 ●
50 PIPE; INL 8-97616-715-0 01 1 0610-0703 ●
50 PIPE; INL 8-97616-715-0 01 1 0704-1208 ● ●
50 PIPE; INL 1-14112-668-0 01 1 0407-0511 ●
50 PIPE; INL 1-14112-711-4 01 1 0512-0701 ●
50 PIPE; INL 8-97617-049-0 01 1 0702- ●
60 GASKET; INL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2 		1-09630-083-0 02 1 0407-0511 ●
94 BOLT
M6X12 FLANGE 		0-28080-612-0 02 1 0407-0511 ●
94 BOLT
M6X12 FLANGE 		0-28080-612-0 02 1 0512-0512 ●
94 BOLT
M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
95 CLIP; RUBBER HOSE
ID=11 WHITE 		5-09707-005-1 02 1 0407-0511 ●
95 CLIP; RUBBER HOSE
ID=11 WHITE 		5-09707-005-1 02 1 0512- ●
283 RUBBER 1-14119-416-0 01 1 0407-0511 ●
283 RUBBER 1-14119-416-0 01 1 0512- ●
303 PIPE; AIR 1-19193-235-0 01 1 0407-0511 ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0407-0511 ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0512- ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14115-094-1 01 1 0407-0511 ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14115-094-1 01 1 0512- ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-1 04 1 0407-0511 ●
354 CLIP; AIR PIPE
(C) 		1-09701-240-0 04 1 0512-0703 ●
354 CLIP; AIR PIPE
(C) 		1-09701-240-0 04 1 0704- ● ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 02 1 0407-0511 ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 02 1 0512-0606 ● ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		0-95234-635-0 02 1 0607-0703 ● ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		0-95234-635-0 02 1 0704- ● ● ●
363 BOLT; EYE
(B) M10X21 FLANGE 		8-94396-711-0 01 1 0407-0511 ●
363 BOLT; EYE
(A) M8X24 		8-97257-826-0 01 1 0407-0511 ●
363 BOLT; EYE
(A) M8X24 		8-97257-826-0 01 1 0512- ●
495 PIPE; BOOST SENSOR 8-94428-807-0 01 1 0407-0511 ●
495 PIPE; BOOST SENSOR 8-94428-807-0 01 1 0512- ●
568 BOLT; PIPE
(A) M6X30 FLANGE 		0-28080-630-0 02 1 0407-0511 ●
568 BOLT; PIPE
(E) M10X80 FLANGE 		0-28181-080-0 01 1 0512-0512 ● ●
568 BOLT; PIPE
(E) M10X80 FLANGE 		0-28151-080-0 01 1 0601-0703 ● ●
568 BOLT; PIPE
(E) M10X80 FLANGE 		0-28151-080-0 01 1 0704- ● ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28181-030-0 10 1 0407-0407 ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28181-030-0 04 1 0408-0511 ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28181-030-0 06 1 0512-0512 ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 0601-0703 ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 0704- ● ● ●
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28181-080-0 01 1 0407-0407 ●
568 BOLT; PIPE
(C) M10X120 FLANGE 		0-28186-012-0 01 1 0407-0511 ●
568 BOLT; PIPE
(D) M10X150 FLANGE 		0-28186-015-0 02 1 0407-0511 ●

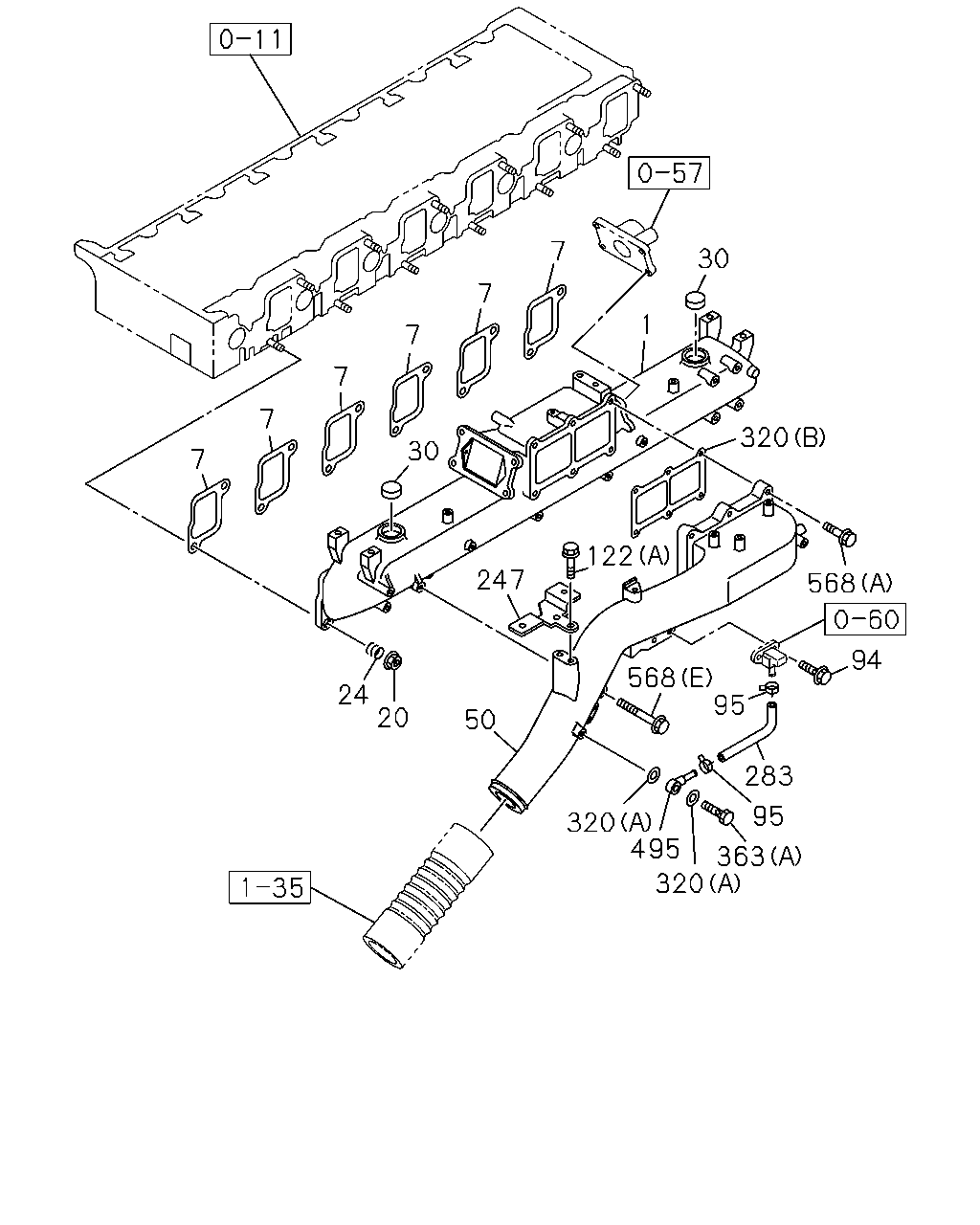

çizim 87404
7 30 7 1 7 7 7 30 320 7 122 247 568 94 568 95 24 20 50 283 95 320 495 363 320
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MANIFOLD; INL 1-14110-612-1 01 1 0512-0609 ● ●
1 MANIFOLD; INL 1-14110-620-0 01 1 0610-0703 ● ●
1 MANIFOLD; INL 1-14110-620-0 01 1 0704-1010 ● ● ●
1 MANIFOLD; INL 8-98167-210-0 01 1 1011- ● ● ●
1 MANIFOLD; INL 1-14110-589-4 01 1 0407-0511 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97607-598-1 06 1 0512-0703 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97607-598-3 06 1 0704- ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0407-0504 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97607-598-0 06 1 0505-0505 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0506-0511 ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-14115-096-1 06 1 0512- ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 0407-0511 ●
20 NUT; INL MANIF
M10 FLANGE 		0-91150-110-0 12 1 0512-0602 ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 0603-0703 ● ●
20 NUT; INL MANIF
M10 FLANGE 		0-91180-110-0 12 1 0704- ● ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0407-0511 ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0512-0703 ● ●
24 SPRING; INL MANIF 1-09580-156-0 12 1 0704- ● ● ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 04 1 0407-0511 ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 0512-0703 ● ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 0704-1010 ● ● ●
50 PIPE; INL 8-97604-124-1 01 1 0512-0609 ●
50 PIPE; INL 8-97616-715-0 01 1 0610-0703 ●
50 PIPE; INL 8-97616-715-0 01 1 0704-1208 ● ●
50 PIPE; INL 1-14112-668-0 01 1 0407-0511 ●
50 PIPE; INL 1-14112-711-4 01 1 0512-0701 ●
50 PIPE; INL 8-97617-049-0 01 1 0702- ●
94 BOLT
M6X12 FLANGE 		0-28080-612-0 02 1 0407-0511 ●
94 BOLT
M6X12 FLANGE 		0-28080-612-0 02 1 0512-0512 ●
94 BOLT
M6X12 FLANGE 		0-28050-612-0 02 1 0601- ●
95 CLIP; RUBBER HOSE
ID=11 WHITE 		5-09707-005-1 02 1 0407-0511 ●
95 CLIP; RUBBER HOSE
ID=11 WHITE 		5-09707-005-1 02 1 0512- ●
122 BOLT; BRKT
(A) M10X20 FLANGE 		0-28181-020-0 02 1 0512-0512 ● ●
122 BOLT; BRKT
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0601-0703 ● ●
122 BOLT; BRKT
(A) M10X20 FLANGE 		0-28151-020-0 02 1 0704- ● ● ●
122 BOLT; BRKT
(B) M6X12 FLANGE 		0-28080-612-0 01 1 0512-0512 ●
122 BOLT; BRKT
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0601-0703 ●
122 BOLT; BRKT
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0704- ● ●
247 BRACKET; CLIP 1-14319-130-1 01 1 0512-0703 ● ●
247 BRACKET; CLIP 1-14319-130-1 01 1 0704- ● ● ●
283 RUBBER 1-14119-416-0 01 1 0407-0511 ●
283 RUBBER 1-14119-416-0 01 1 0512- ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0407-0511 ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2 		1-09630-082-0 02 1 0512- ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14115-094-1 01 1 0407-0511 ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) 		1-14115-094-1 01 1 0512- ●
363 BOLT; EYE
(B) M10X21 FLANGE 		8-94396-711-0 01 1 0407-0511 ●
363 BOLT; EYE
(A) M8X24 		8-97257-826-0 01 1 0407-0511 ●
363 BOLT; EYE
(A) M8X24 		8-97257-826-0 01 1 0512- ●
495 PIPE; BOOST SENSOR 8-94428-807-0 01 1 0407-0511 ●
495 PIPE; BOOST SENSOR 8-94428-807-0 01 1 0512- ●
568 BOLT; PIPE
(A) M6X30 FLANGE 		0-28080-630-0 02 1 0407-0511 ●
568 BOLT; PIPE
(E) M10X80 FLANGE 		0-28181-080-0 01 1 0512-0512 ● ●
568 BOLT; PIPE
(E) M10X80 FLANGE 		0-28151-080-0 01 1 0601-0703 ● ●
568 BOLT; PIPE
(E) M10X80 FLANGE 		0-28151-080-0 01 1 0704- ● ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28181-030-0 10 1 0407-0407 ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28181-030-0 04 1 0408-0511 ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28181-030-0 06 1 0512-0512 ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 0601-0703 ● ●
568 BOLT; PIPE
(A) M10X30 FLANGE 		0-28151-030-0 06 1 0704- ● ● ●
568 BOLT; PIPE
(B) M10X80 FLANGE 		0-28181-080-0 01 1 0407-0407 ●
568 BOLT; PIPE
(C) M10X120 FLANGE 		0-28186-012-0 01 1 0407-0511 ●
568 BOLT; PIPE
(D) M10X150 FLANGE 		0-28186-015-0 02 1 0407-0511 ●

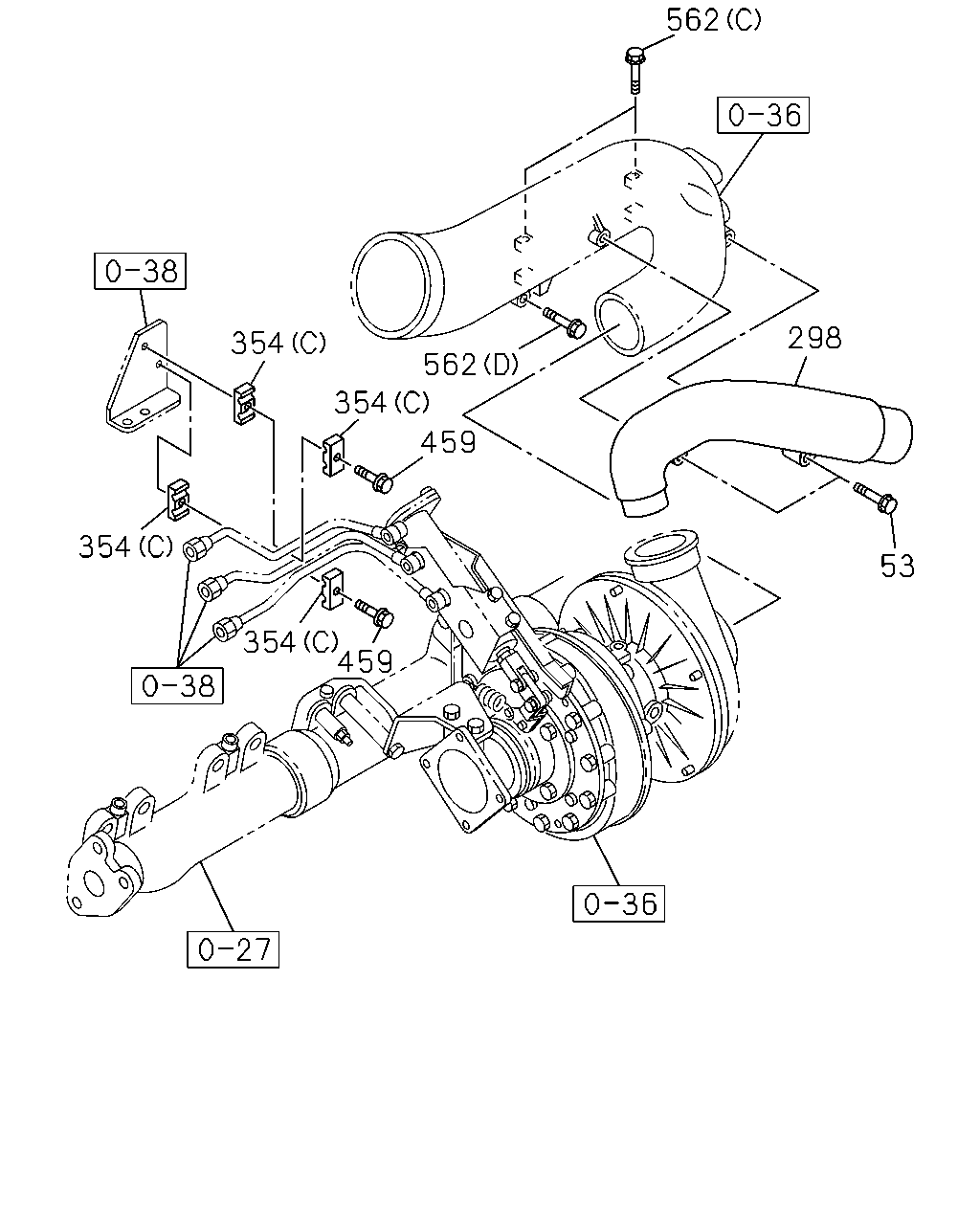

çizim 87797
562 298 354 562 354 459 354 53 354 459
BalonParca AdiParca NoAdetTipApplied Date A B C
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28181-060-0 02 1 0407-0511 ●
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28181-060-0 02 1 0512-0512 ● ●
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28151-060-0 02 1 0601-0703 ● ●
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28151-060-0 02 1 0704- ● ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-773-2 01 1 0512-0703 ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-773-2 01 1 0704-1309 ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 8-98254-536-0 01 1 1310- ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-710-0 01 1 0407-0511 ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-710-1 01 1 0512- ●
354 CLIP; AIR PIPE
(A) 		1-09701-132-1 04 1 0407-0511 ●
354 CLIP; AIR PIPE
(C) 		1-09701-240-0 04 1 0512-0703 ●
354 CLIP; AIR PIPE
(C) 		1-09701-240-0 04 1 0704- ● ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 02 1 0407-0511 ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 02 1 0512-0606 ● ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		0-95234-635-0 02 1 0607-0703 ● ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		0-95234-635-0 02 1 0704- ● ● ●
459 BOLT; CLIP FIX
M6X35 FLANGE 		0-28080-635-0 02 1 0512-0512 ●
459 BOLT; CLIP FIX
M6X35 FLANGE 		0-28050-635-0 02 1 0601-0703 ●
459 BOLT; CLIP FIX
M6X35 FLANGE 		0-28050-635-0 02 1 0704- ● ●
562 BOLT; INL DUCT
(C) M10X50 FLANGE 		0-28181-050-0 02 1 0512-0512 ● ●
562 BOLT; INL DUCT
(C) M10X50 FLANGE 		0-28151-050-0 02 1 0601-0703 ● ●
562 BOLT; INL DUCT
(C) M10X50 FLANGE 		0-28151-050-0 02 1 0704- ● ● ●
562 BOLT; INL DUCT
(A) M10X100 FLANGE 		0-28081-000-0 02 1 0407-0511 ●
562 BOLT; INL DUCT
(D) M10X70 FLANGE 		0-28181-070-0 01 1 0512-0512 ●
562 BOLT; INL DUCT
(D) M10X70 FLANGE 		0-28151-070-0 01 1 0601-0703 ●
562 BOLT; INL DUCT
(D) M10X70 FLANGE 		0-28151-070-0 01 1 0704- ● ●
562 BOLT; INL DUCT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 0407-0511 ●
562 BOLT; INL DUCT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 0512-0512 ●
562 BOLT; INL DUCT
(B) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●

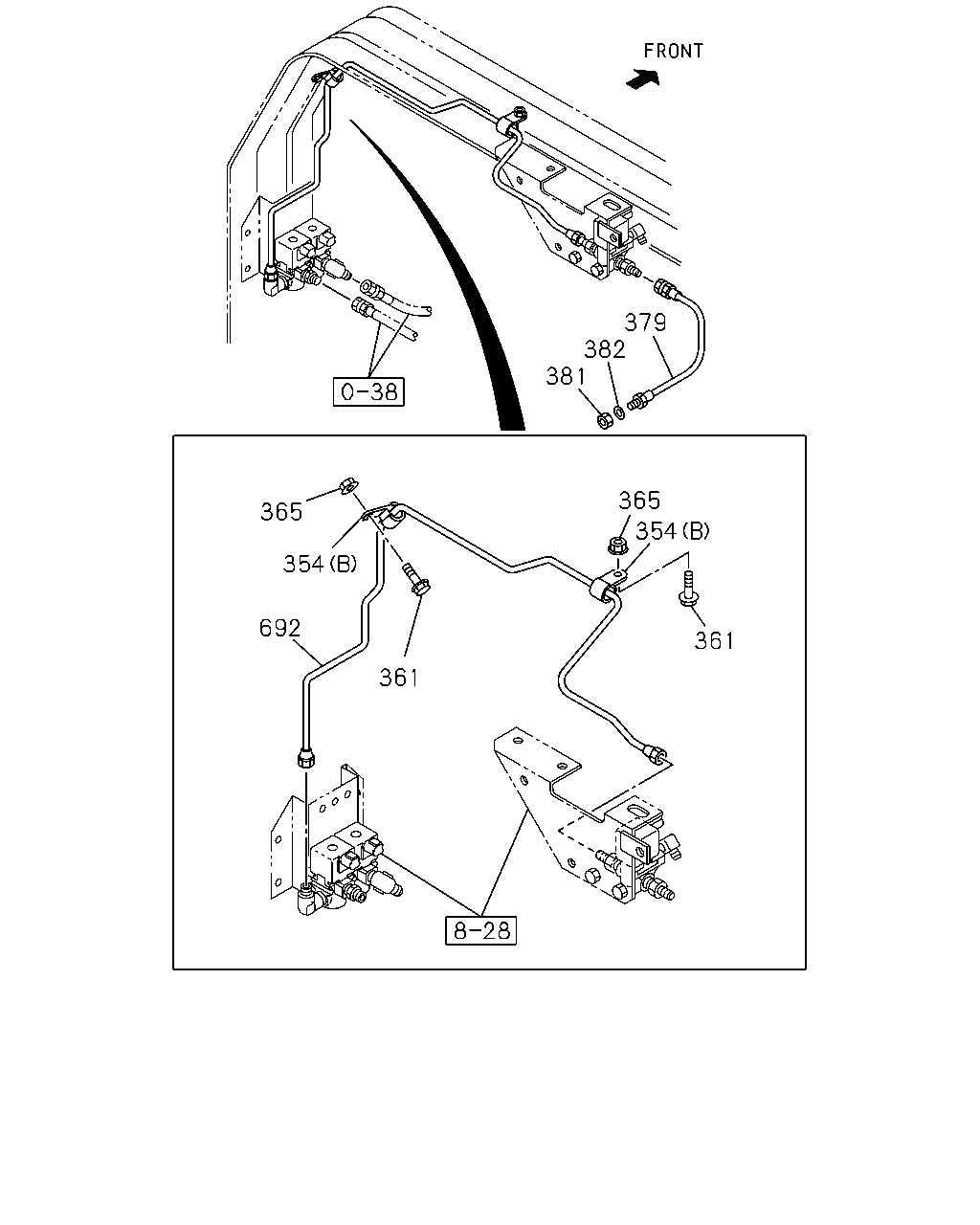

çizim 87826
379 382 381 365 365 354 354 692 361 361
BalonParca AdiParca NoAdetTipApplied Date A B C
354 CLIP; AIR PIPE
(A) 		1-09701-132-1 04 1 0407-0511 ●
354 CLIP; AIR PIPE
(C) 		1-09701-240-0 04 1 0512-0703 ●
354 CLIP; AIR PIPE
(C) 		1-09701-240-0 04 1 0704- ● ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 02 1 0407-0511 ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 02 1 0512-0606 ● ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		0-95234-635-0 02 1 0607-0703 ● ●
354 CLIP; AIR PIPE
(B) ID=7 L=20 		0-95234-635-0 02 1 0704- ● ● ●
361 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
361 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
361 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601-0703 ● ●
361 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0704- ● ● ●
365 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
365 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
365 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-0703 ● ●
365 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0704- ● ● ●
379 HOSE; FLEX
L=280 		1-09363-610-0 01 1 0407-0511 ●
381 NUT; FLEX TUBE
M12 		9-09840-280-0 01 1 0407-0511 ●
382 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 0407-0511 ●
692 PIPE; AIR,MAG VLV
L=1139 SERVICED BY L=1200 		1-47428-816-0 01 1 0512-0703 ●
692 PIPE; AIR,MAG VLV
L=1139 SERVICED BY L=1200 		1-47428-816-0 01 1 0704- ● ●
692 PIPE; AIR,MAG VLV
L=1241 		1-49122-505-0 01 1 0407-0511 ●
692 PIPE; AIR,MAG VLV
L=1241 		1-49122-505-0 01 1 0512-0605 ●
692 PIPE; AIR,MAG VLV
L=1263 SERVICED BY L=1370 		1-47428-818-0 01 1 0606- ●

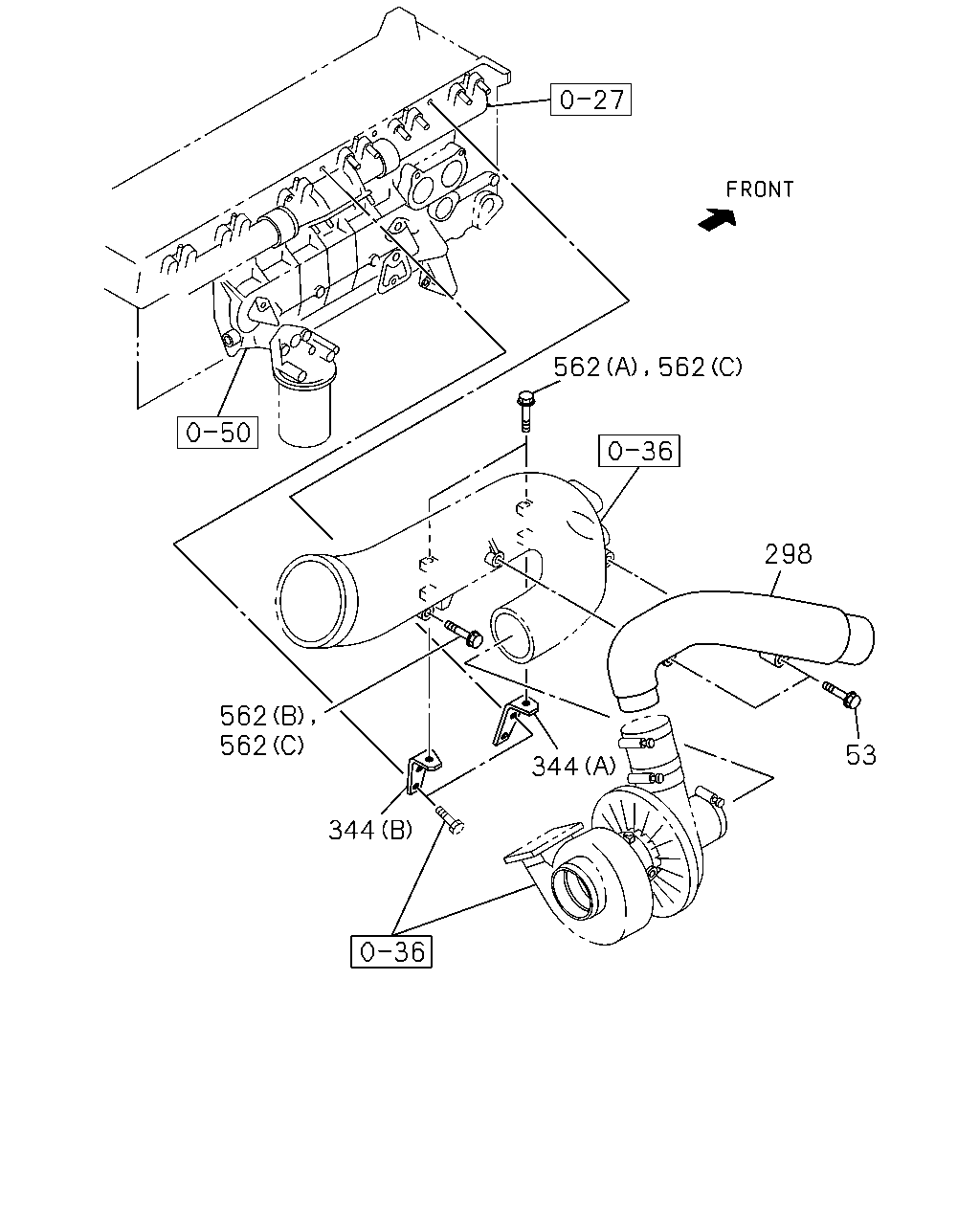

çizim 104370
562 298 562 562 53 344 344 562
BalonParca AdiParca NoAdetTipApplied Date A B C
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28181-060-0 02 1 0407-0511 ●
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28181-060-0 02 1 0512-0512 ● ●
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28151-060-0 02 1 0601-0703 ● ●
53 BOLT; INL PIPE
M10X60 FLANGE 		0-28151-060-0 02 1 0704- ● ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-773-2 01 1 0512-0703 ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-773-2 01 1 0704-1309 ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 8-98254-536-0 01 1 1310- ● ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-710-0 01 1 0407-0511 ●
298 PIPE; INL,TURBOCHARGER TO INL COVER 1-14112-710-1 01 1 0512- ●
344 BRACKET; INL PIPE
(A) 		1-14119-417-1 01 1 0407-0511 ●
344 BRACKET; INL PIPE
(B) 		1-14119-418-1 01 1 0407-0511 ●
562 BOLT; INL DUCT
(C) M10X50 FLANGE 		0-28181-050-0 02 1 0512-0512 ● ●
562 BOLT; INL DUCT
(C) M10X50 FLANGE 		0-28151-050-0 02 1 0601-0703 ● ●
562 BOLT; INL DUCT
(C) M10X50 FLANGE 		0-28151-050-0 02 1 0704- ● ● ●
562 BOLT; INL DUCT
(A) M10X100 FLANGE 		0-28081-000-0 02 1 0407-0511 ●
562 BOLT; INL DUCT
(D) M10X70 FLANGE 		0-28181-070-0 01 1 0512-0512 ●
562 BOLT; INL DUCT
(D) M10X70 FLANGE 		0-28151-070-0 01 1 0601-0703 ●
562 BOLT; INL DUCT
(D) M10X70 FLANGE 		0-28151-070-0 01 1 0704- ● ●
562 BOLT; INL DUCT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 0407-0511 ●
562 BOLT; INL DUCT
(B) M10X40 FLANGE 		0-28181-040-0 01 1 0512-0512 ●
562 BOLT; INL DUCT
(B) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●

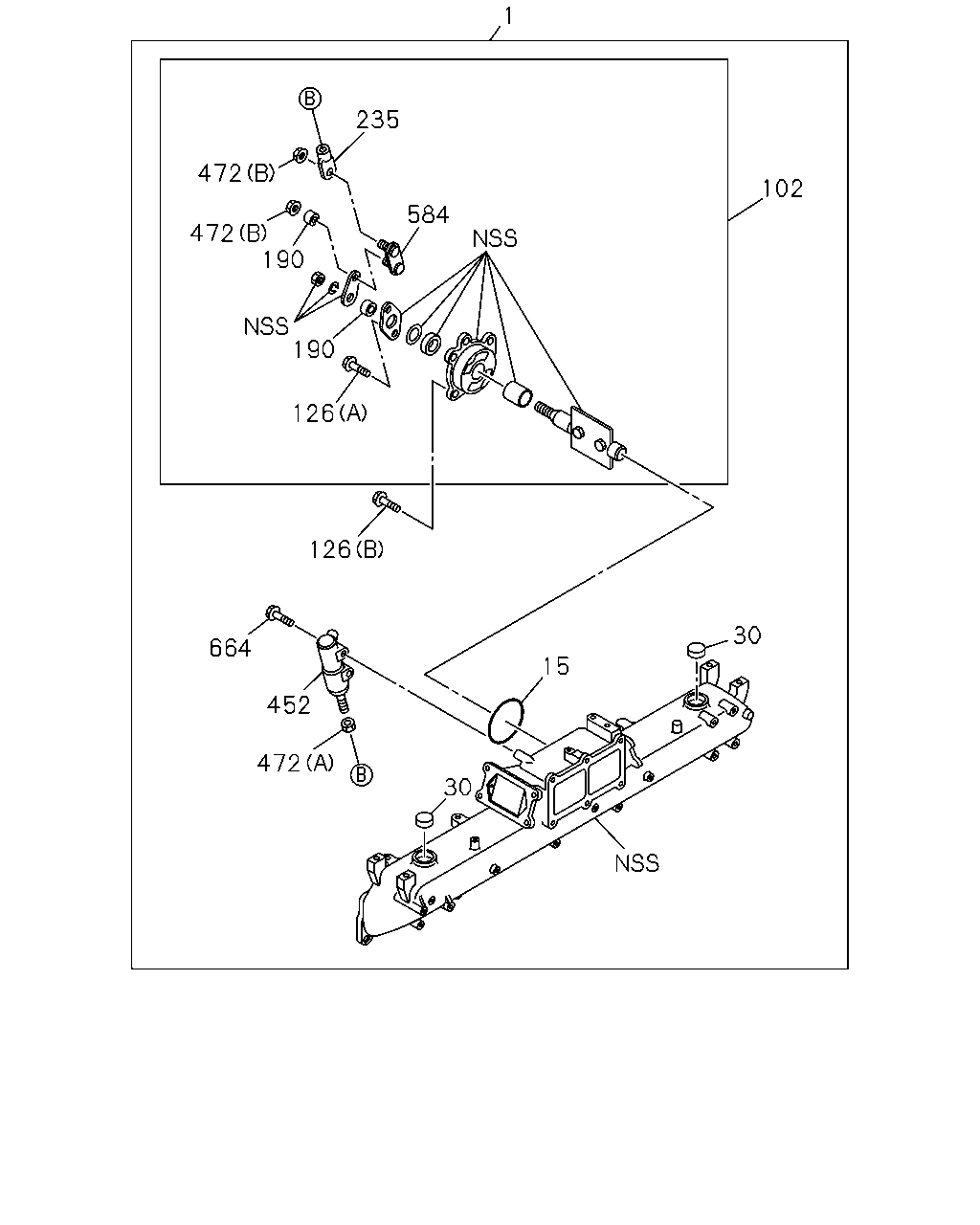

çizim 104697
1 235 472 102 584 472 190 190 126 126 30 664 15 452 472 30
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MANIFOLD; INL 1-14110-612-1 01 1 0512-0609 ● ●
1 MANIFOLD; INL 1-14110-620-0 01 1 0610-0703 ● ●
1 MANIFOLD; INL 1-14110-620-0 01 1 0704-1010 ● ● ●
1 MANIFOLD; INL 8-98167-210-0 01 1 1011- ● ● ●
1 MANIFOLD; INL 1-14110-589-4 01 1 0407-0511 ●
15 GASKET; VLV
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-09623-406-0 01 1 0407-0511 ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 04 1 0407-0511 ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 0512-0703 ● ●
30 CUP; SEALING,INL MANIF
OD=40 		8-94241-637-0 02 1 0704-1010 ● ● ●
102 VALVE ASM; INDUCTION CONT 1-14310-225-0 01 1 0407-0511 ●
126 BOLT; COVER
(A) M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
126 BOLT; COVER
(B) M10X20 FLANGE 		0-28181-020-0 03 1 0407-0511 ●
190 COLLAR; INLET MANIFOLD 1-22199-138-0 02 1 0407-0511 ●
235 JOINT; INL MANIF 1-22199-137-0 01 1 0407-0511 ●
452 CYLINDER ASM; AIR 1-22190-579-1 01 1 0407-0511 ●
472 NUT
(B) M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
472 NUT
(A) M8 		9-09110-408-0 01 1 0407-0511 ●
584 LINK 1-22199-153-0 01 1 0407-0511 ●
664 BOLT; AIR CYL
M8X40 FLANGE 		0-28080-840-0 02 1 0407-0511 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
