◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ MT ▶ 10662 - MT(THAI) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-80 - INJECTION PUMP ▶
0-80 — INJECTION PUMP (#3144) — 103 parça

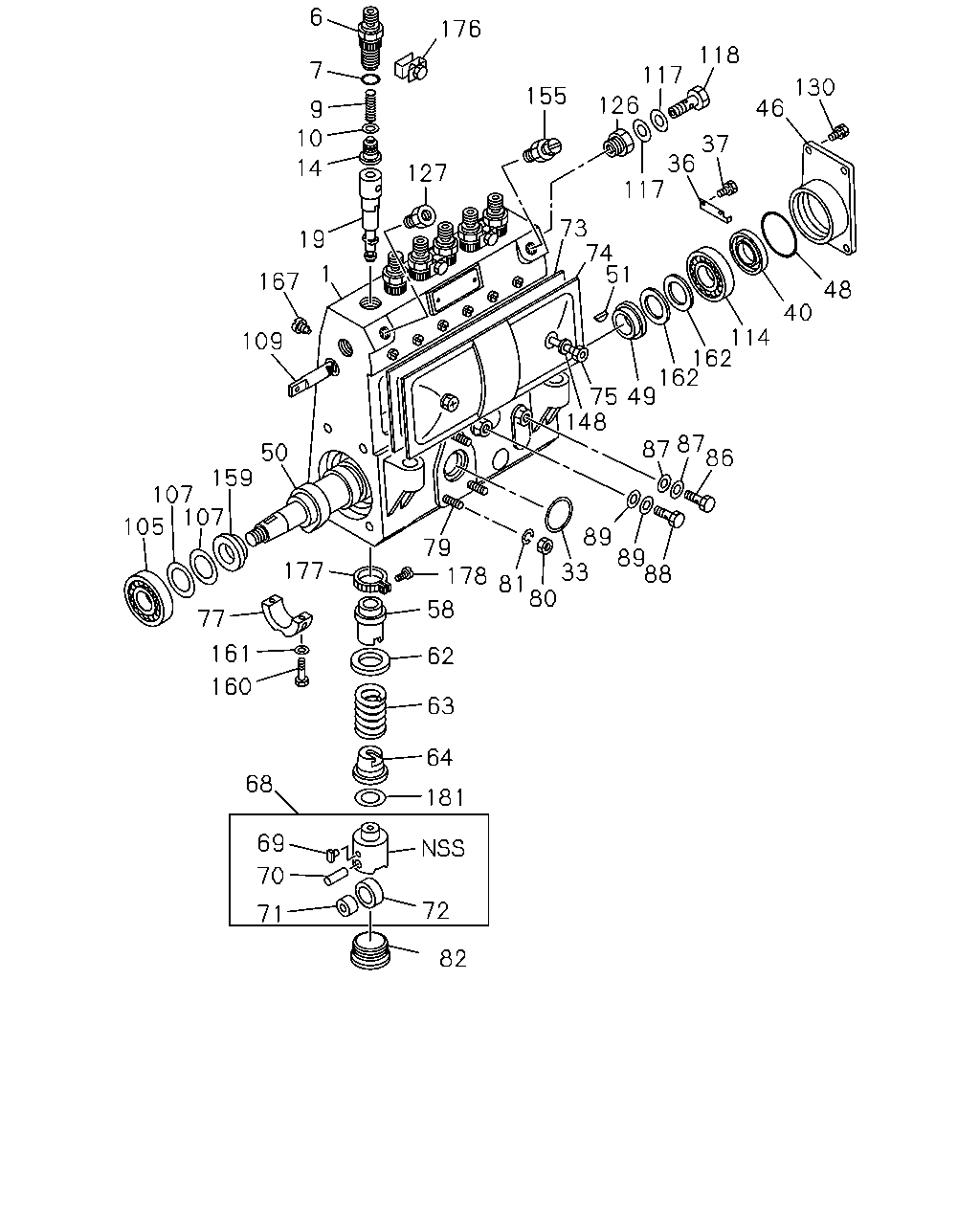

çizim 1510
6 176 118 7 117 130 155 126 46 9 10 37 36 117 14 127 73 74 51 19 1 167 48 40 114 162 162 148 109 87 87 86 50 159 107 107 105 89 89 88 79 178 177 33 81 80 58 77 161 62 160 63 64 68 181 69 70 72 71 82 75 49
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; PUMP,FUEL INJ
ASM PART: A = 1-15602-221-4 		5-15611-027-0 01 1 -
6 HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15644-010-0 06 1 -
7 GASKET; HOLDER,DELIVERY VLV
ASM PART: A = 1-15602-221-4 		1-09623-052-0 06 1 -
9 SPRING; DELIVERY VLV
ASM PART: A = 1-15602-221-4 		5-15643-001-0 06 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15649-001-0 06 1 -
14 VALVE; DELIVERY,INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15641-006-0 06 1 -
19 PLUNGER ASM; INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15631-007-0 06 1 -
33 GASKET; FUEL FEED PUMP,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-09623-013-0 01 1 -
36 POINTER; TIMING,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15639-004-0 01 1 -
37 BOLT; POINTER FIX,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15619-034-0 02 1 -
40 SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15639-012-0 01 1 -
46 COVER; FRT,PUMP HSG
ASM PART: A = 1-15602-221-4 		1-15612-021-0 01 1 -
48 GASKET; FRT COVER TO HSG
ASM PART: A = 1-15602-221-4 		1-09623-014-0 01 1 -
49 RING; FRT BRG,CM/SHF
ASM PART: A = 1-15602-221-4 		9-81225-047-0 01 1 -
50 CAMSHAFT; INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15621-016-0 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
16MM ASM PART: A = 1-15602-221-4 		5-15619-049-0 01 1 -
58 SLEEVE; CONT,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-81225-058-0 06 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-81235-015-0 06 1 -
63 SPRING; PLUNGER,INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15643-009-0 06 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-81235-021-0 06 1 -
68 TAPPET; CM/SHF,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-81221-223-0 06 1 -
69 GUIDE; TAPPET,INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15619-041-0 06 1 -
70 PIN; TAPPET ROLLER,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-81222-220-0 06 1 -
71 BUSHING; TAPPET ROLLER,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15629-001-0 06 1 -
72 ROLLER; TAPPET,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15622-003-0 06 1 -
73 GASKET; COVER TO HSG
ASM PART: A = 1-15602-221-4 		1-15729-960-0 01 1 -
74 COVER; HSG,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15612-050-0 01 1 -
75 SCREW; COVER TO HSG
ASM PART: A = 1-15602-221-4 		1-15619-003-0 02 1 -
77 BEARING; CM/SHF CENTER,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15619-033-0 01 1 -
79 STUD; FUEL FEED PUMP TO HSG
ASM PART: A = 1-15602-221-4 		9-81215-115-0 03 1 -
80 NUT; FUEL FEED PUMP FIX
ASM PART: A = 1-15602-221-4 		1-15729-006-0 03 1 -
81 WASHER; LK,FUEL FEED PUMP FIX
ID=6.1 ASM PART: A = 1-15602-221-4 		9-09150-506-0 03 1 -
82 PLUG; HSG,INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15619-136-0 06 1 -
86 BOLT; EYE,OIL RETURN,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15619-091-0 01 1 -
87 GASKET; OIL RETURN BOLT,INJ PUMP
L=96 ASM PART: A = 1-15602-221-4 		1-15729-066-0 02 1 -
88 BOLT; EYE,OIL FEED,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15619-092-0 01 1 -
89 GASKET; OIL FEED BOLT,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15719-093-0 02 1 -
105 BEARING; CM/SHF RR,INJ PUMP
NTN ASM PART: A = 1-15602-221-4 		5-09800-038-0 01 1 -
105 BEARING; CM/SHF RR,INJ PUMP
NSK ASM PART: A = 1-15602-221-4 		9-00090-677-0 01 1 -
107 SHIM; RR BEARING,CM/SHF
T=1.40 ASM PART: A = 1-15602-221-4 		1-15619-090-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=1.00 ASM PART: A = 1-15602-221-4 		5-15619-038-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.70 ASM PART: A = 1-15602-221-4 		5-15619-039-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.10 ASM PART: A = 1-15602-221-4 		5-15629-015-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.12 ASM PART: A = 1-15602-221-4 		5-15629-016-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.14 ASM PART: A = 1-15602-221-4 		5-15629-017-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.16 ASM PART: A = 1-15602-221-4 		5-15629-018-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.18 ASM PART: A = 1-15602-221-4 		5-15629-019-0 AR 1 -
107 SHIM; RR BEARING,CM/SHF
T=0.50 ASM PART: A = 1-15602-221-4 		5-15629-020-0 AR 1 -
109 RACK; CONT,INJ PUMP
ASM PART: A = 1-15602-221-4 		5-15637-003-0 01 1 -
114 BEARING; CM/SHF FRT,INJ PUMP
NTN ASM PART: A = 1-15602-221-4 		5-09800-038-0 01 1 -
114 BEARING; CM/SHF FRT,INJ PUMP
NSK ASM PART: A = 1-15602-221-4 		9-00090-677-0 01 1 -
117 GASKET; EYE BOLT,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15759-012-0 02 1 -
118 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15759-011-0 01 1 -
126 ADAPTER; EYE BOLT,PUMP HSG
ASM PART: A = 1-15602-221-4 		9-81235-017-0 01 1 -
127 ADAPTER; FUEL PIPE
ASM PART: A = 1-15602-221-4 		5-15619-044-0 01 1 -
130 SCREW; FRT COVER TO HSG
M6X14 W/LK WASHER ASM PART: A = 1-15602-221-4 		9-01900-614-0 04 1 -
148 GASKET; COVER FIX BOLT
ASM PART: A = 1-15602-221-4 		9-81215-144-0 02 1 -
155 BOLT; AIR BLEED,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15619-024-0 01 1 -
159 RING; RR BEARING,CM/SHF,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-81225-047-0 01 1 -
160 SCREW; CENTER BRG,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-88410-066-0 02 1 -
161 GASKET; SCREW,CENTER BRG
ASM PART: A = 1-15602-221-4 		9-81225-043-0 02 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.70 ASM PART: A = 1-15602-221-4 		5-15619-039-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.10 ASM PART: A = 1-15602-221-4 		5-15629-015-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.12 ASM PART: A = 1-15602-221-4 		5-15629-016-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.14 ASM PART: A = 1-15602-221-4 		5-15629-017-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.16 ASM PART: A = 1-15602-221-4 		5-15629-018-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.18 ASM PART: A = 1-15602-221-4 		5-15629-019-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=0.50 ASM PART: A = 1-15602-221-4 		5-15629-020-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=1.00 ASM PART: A = 1-15602-221-4 		5-15629-038-0 AR 1 -
162 SHIM; FRT BRG,CM/SHF
T=1.40 ASM PART: A = 1-15602-221-4 		5-15629-090-0 AR 1 -
167 BOLT; CONT RACK,INJ PUMP
ASM PART: A = 1-15602-221-4 		1-15639-003-0 01 1 -
176 PLATE; LK,DELIVERY VLV HOLDER
ASM PART: A = 1-15602-221-4 		5-15625-001-0 03 1 -
177 PINION; CONT SLEEVE,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-81225-057-0 06 1 -
178 SCREW; PINION,INJ PUMP
ASM PART: A = 1-15602-221-4 		9-81235-003-0 06 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.60 ASM PART: A = 1-15602-221-4 		5-15619-001-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.70 ASM PART: A = 1-15602-221-4 		5-15619-002-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.80 ASM PART: A = 1-15602-221-4 		5-15619-003-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.90 ASM PART: A = 1-15602-221-4 		5-15619-004-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.00 ASM PART: A = 1-15602-221-4 		5-15619-005-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.10 ASM PART: A = 1-15602-221-4 		5-15619-007-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.20 ASM PART: A = 1-15602-221-4 		5-15619-008-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.30 ASM PART: A = 1-15602-221-4 		5-15619-009-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.40 ASM PART: A = 1-15602-221-4 		5-15619-010-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.55 ASM PART: A = 1-15602-221-4 		5-15619-011-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.65 ASM PART: A = 1-15602-221-4 		5-15619-012-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.75 ASM PART: A = 1-15602-221-4 		5-15619-013-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.85 ASM PART: A = 1-15602-221-4 		5-15619-015-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.20 ASM PART: A = 1-15602-221-4 		5-15619-025-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.25 ASM PART: A = 1-15602-221-4 		5-15619-026-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.35 ASM PART: A = 1-15602-221-4 		5-15619-027-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.30 ASM PART: A = 1-15602-221-4 		5-15619-034-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.40 ASM PART: A = 1-15602-221-4 		5-15619-035-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.50 ASM PART: A = 1-15602-221-4 		5-15619-036-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.45 ASM PART: A = 1-15602-221-4 		5-15619-037-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.50 ASM PART: A = 1-15602-221-4 		5-15619-106-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.60 ASM PART: A = 1-15602-221-4 		5-15619-107-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.35 ASM PART: A = 1-15602-221-4 		5-15619-108-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.45 ASM PART: A = 1-15602-221-4 		5-15619-109-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.55 ASM PART: A = 1-15602-221-4 		5-15619-110-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=0.95 ASM PART: A = 1-15602-221-4 		9-81235-042-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.05 ASM PART: A = 1-15602-221-4 		9-81235-043-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.15 ASM PART: A = 1-15602-221-4 		9-81235-044-0 AR 1 -
181 SHIM; TAPPET,INJ PUMP
T=1.25 ASM PART: A = 1-15602-221-4 		9-81235-045-0 AR 1 -
