0-12 — CYLINDER BLOCK (#31437) — 136 parça

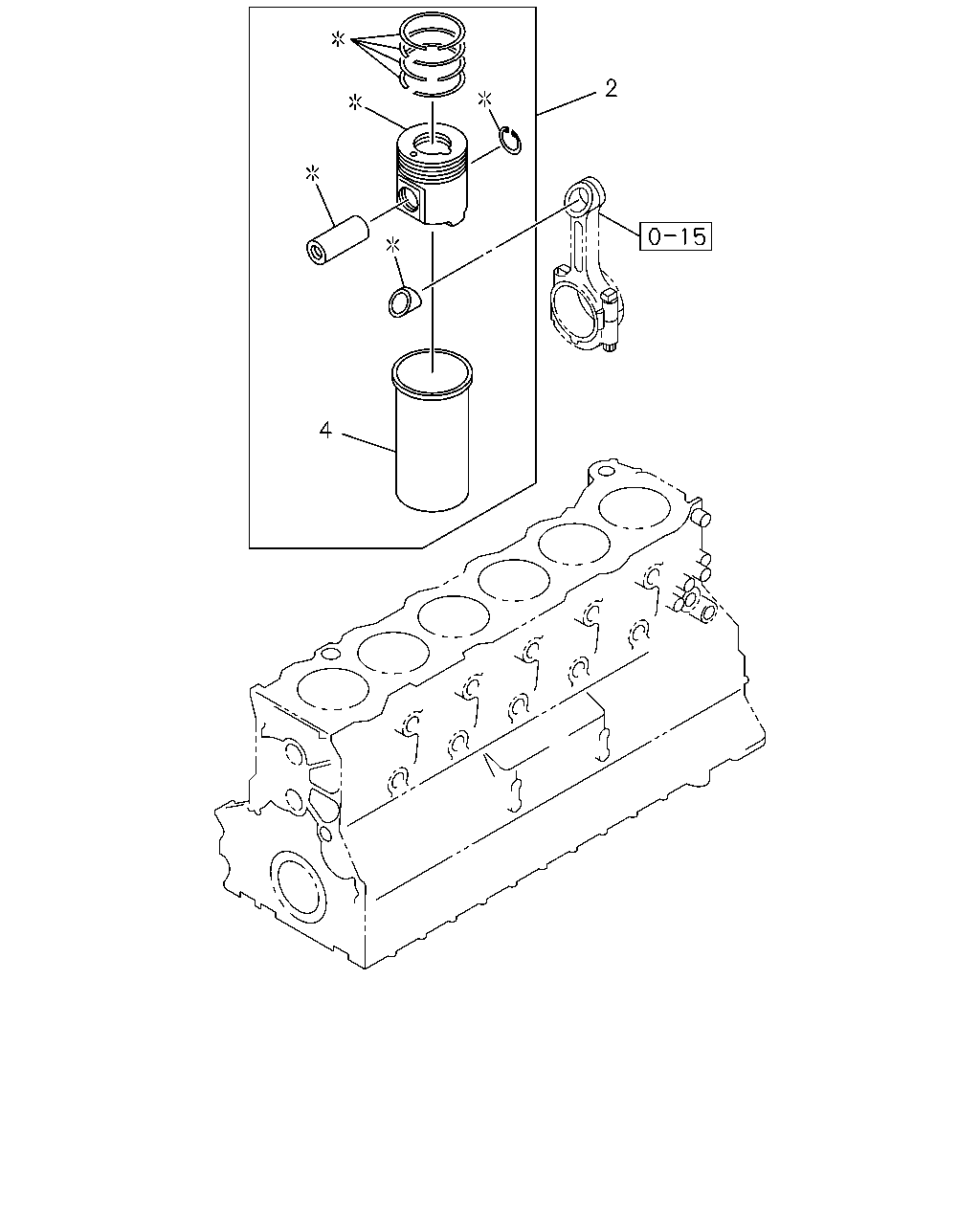

çizim 104583
2 4
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-740-0 06 1 1112-1204 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-740-1 06 1 1205- ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-741-0 06 1 1112-1204 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-741-1 06 1 1205- ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-018-0 06 1 0512-0703 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-018-4 06 1 0704-1111 ● ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87813-018-4 06 1 1112-1204 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-019-0 06 1 0512-0703 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-019-3 06 1 0704-1111 ● ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87813-019-3 06 1 1112-1204 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-861-0 06 1 0407-0511 ●
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-928-5 06 1 0512- ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-862-0 06 1 0407-0511 ●
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-929-5 06 1 0512- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 0407-0511 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 0512-0703 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 0704- ● ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 0407-0511 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 0512-0703 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 0704- ● ● ●

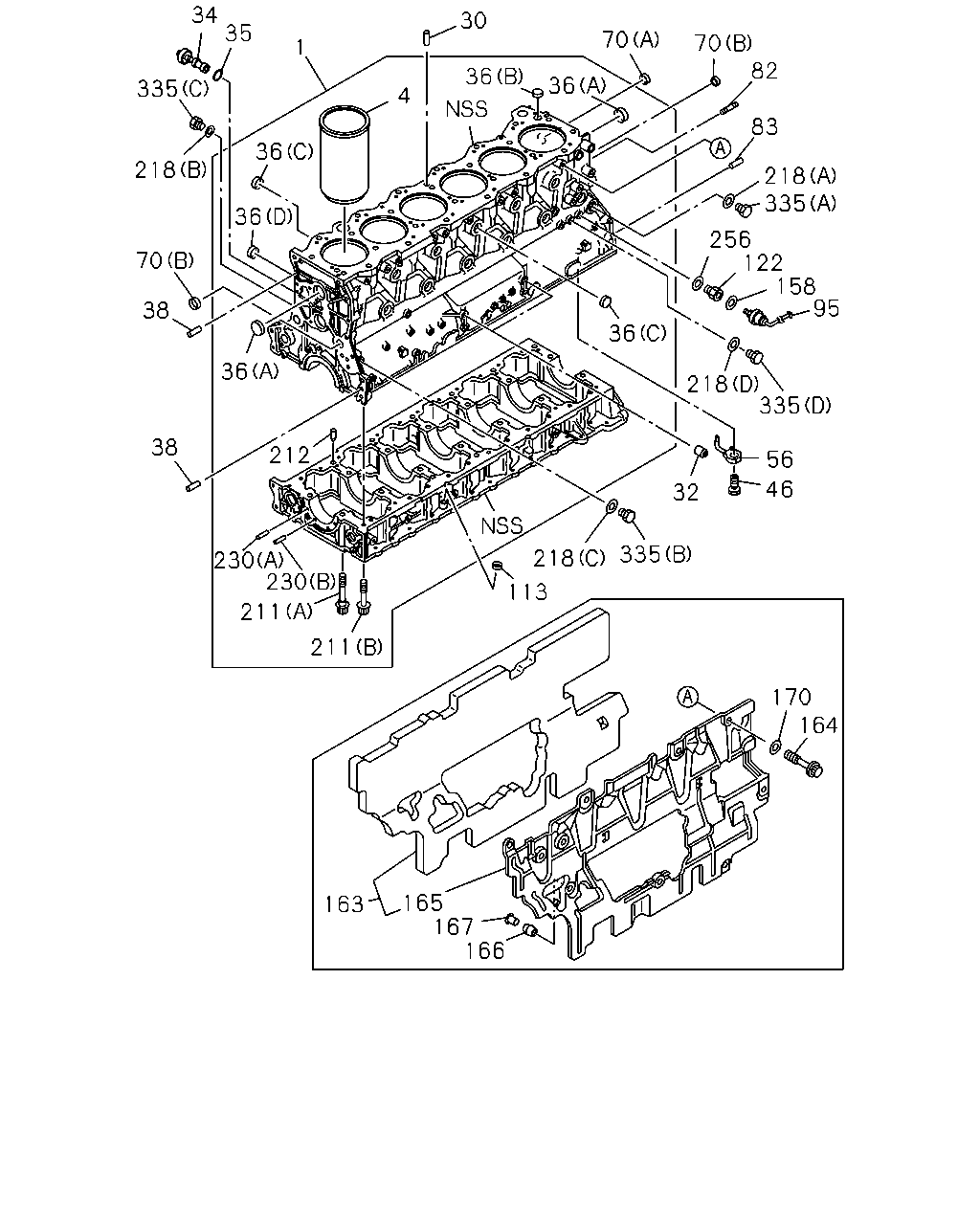

çizim 104587
34 35 30 70 70 82 1 335 36 36 4 83 36 218 218 335 36 256 122 158 95 70 38 36 212 36 218 335 38 56 46 32 335 218 230 230 113 211 211 170 164 165 167 166 163
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BLOCK ASM; CYL 8-98180-452-1 01 1 0512- ●
1 BLOCK ASM; CYL 8-98180-451-1 01 1 0407- ●
1 BLOCK ASM; CYL 8-98180-451-1 01 1 0704- ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 0407-0511 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 0512-0703 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		1-11261-379-2 06 1 0704- ● ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 0407-0511 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 0512-0703 ● ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		1-11261-380-2 06 1 0704- ● ● ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 03 1 0407-0511 ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 03 1 0512-0703 ● ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 03 1 0704-0807 ● ● ●
30 PIN; CYL HD GASKET SETTING
OD=10 L=18 		9-08151-018-0 02 1 0808- ● ● ●
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 0407-0511 ●
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 0512-0703 ● ●
32 PIN; INJ PUMP BRKT 8-94325-506-1 02 1 0704- ● ● ●
34 VALVE; OIL RELIEF 1-13160-030-3 01 1 0407-0511 ●
34 VALVE; OIL RELIEF 1-13160-030-3 01 1 0512-0703 ● ●
34 VALVE; OIL RELIEF 1-13160-030-3 01 1 0704- ● ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 0712- ● ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 0407-0508 ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 0509-0703 ● ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=35.2 		1-09623-297-0 01 1 0704- ● ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 0407-0511 ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		8-97351-451-0 04 1 0512-0703 ● ●
36 CUP; SEALING,WATER JACKET
(A) OD=45 		8-97351-451-0 04 1 0704- ● ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 0407-0511 ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 0512-0703 ● ●
36 CUP; SEALING,WATER JACKET
(B) OD=25 		1-09600-016-0 01 1 0704- ● ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		1-09600-065-1 02 1 0407-0511 ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		1-09600-065-1 02 1 0512-0703 ● ●
36 CUP; SEALING,WATER JACKET
(D) OD=40 		1-09600-065-1 02 1 0704- ● ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94241-637-0 13 1 0407-0511 ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94241-637-0 13 1 0512-0703 ● ●
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94241-637-0 13 1 0704- ● ● ●
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 0407-0511 ●
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 0512-0703 ● ●
38 PIN; TIMING GEAR CASE
OD=10 L=18 		9-08151-018-0 02 1 0704- ● ● ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 0407-0511 ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 0512-0703 ● ●
46 BOLT; JOINT,OIL JET,PISTON COOLING 1-13349-014-0 06 1 0704- ● ● ●
56 JET; OIL,PISTON COOLING 1-13342-125-5 06 1 0512- ●
56 JET; OIL,PISTON COOLING 1-13342-139-0 06 1 0407-0703 ●
56 JET; OIL,PISTON COOLING 1-13342-139-2 06 1 0704- ● ●
70 CUP; SEALING,FRT & RR
(A) OD=32 		1-09600-012-2 01 1 0407-0511 ●
70 CUP; SEALING,FRT & RR
(A) OD=32 		1-09600-012-2 01 1 0512-0703 ● ●
70 CUP; SEALING,FRT & RR
(A) OD=32 		1-09600-012-2 01 1 0704- ● ● ●
70 CUP; SEALING,FRT & RR
(B) OD=25 		1-09600-016-0 04 1 0407-0511 ●
70 CUP; SEALING,FRT & RR
(B) OD=25 		1-09600-016-0 04 1 0512-0703 ● ●
70 CUP; SEALING,FRT & RR
(B) OD=25 		1-09600-016-0 04 1 0704- ● ● ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		9-04411-435-0 01 1 0407-0511 ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		9-04411-435-0 01 1 0512-0604 ● ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		0-44011-435-0 01 1 0605-0703 ● ●
82 STUD; FLYWHEEL HSG
M14X35 L=56 		0-44011-435-0 01 1 0704- ● ● ●
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 0407-0511 ●
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 0512-0703 ● ●
83 PIN; FLYWHEEL HSG 9-08151-428-0 02 1 0704- ● ● ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 0512- ●
95 PRESSURE UNIT; OIL 1-83151-042-0 01 1 0407-0508 ●
113 CUP; SEALING
OD=15.6 		5-11129-003-0 01 1 0512- ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94390-391-0 01 1 0512- ●
122 ADAPTER; OIL PRESSURE SWITCH 8-94390-391-0 01 1 0407-0508 ●
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0512- ●
158 GASKET; OIL PRESS UNIT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0407-0508 ●
163 COVER ASM; C/BL SKIRT 1-19380-209-3 01 1 0407-0511 ●
164 BOLT; COVER BLOCK SKIRT
M10X35 FLANGE 		0-28181-035-0 08 1 0407-0511 ●
165 COVER; C/BL SKIRT 1-19381-455-3 01 1 0407-0511 ●
166 MOUNT; COVER BLOCK SKIRT 1-09337-020-0 08 1 0407-0511 ●
167 TUBE; DIST,SIDE COVER 1-19389-329-0 08 1 0407-0511 ●
170 WASHER; COVER
ID=10.5 OD=26 		9-09160-710-0 08 1 0407-0511 ●
211 BOLT; CRANKCASE
(B) M12X114 		1-09070-087-2 28 1 0407-0511 ●
211 BOLT; CRANKCASE
(B) M12X114 		1-09070-087-2 28 1 0512-0703 ● ●
211 BOLT; CRANKCASE
(B) M12X114 		1-09070-087-3 28 1 0704- ● ● ●
211 BOLT; CRANKCASE
(A) M18X150 		1-09070-151-0 14 1 0407-0511 ●
211 BOLT; CRANKCASE
(A) M18X150 		1-09070-151-0 14 1 0512-0703 ● ●
211 BOLT; CRANKCASE
(A) M18X150 		1-09070-151-0 14 1 0704- ● ● ●
212 PIN; CRANKCASE 1-09740-068-1 02 1 0407-0511 ●
212 PIN; CRANKCASE 1-09740-068-1 02 1 0512-0703 ● ●
212 PIN; CRANKCASE 1-09740-068-1 02 1 0704- ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0407-0511 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0512-0703 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=10.2 OD=15.2 		1-09630-083-0 01 1 0704- ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 0407-0511 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 0512-0703 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		1-09630-084-0 01 1 0704-1312 ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.2 		8-98251-344-0 01 1 1401- ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22 		1-09630-089-0 01 1 0407-0511 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22 		1-09630-089-0 01 1 0512-0703 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22 		1-09630-089-0 01 1 0704- ● ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25 		1-09630-141-0 01 1 0407-0511 ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25 		1-09630-141-0 01 1 0512-0703 ● ●
218 GASKET; PLUG,C/BL SIDE
ALSO INCLUDED IN GASKET SET(ENGINE). (D) ID=14.2 OD=25 		1-09630-141-0 01 1 0704- ● ● ●
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 0407-0511 ●
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 0512-0703 ● ●
230 PIN; THRUST METAL,CR/SHF
(A) L=25 		1-09749-025-1 02 1 0704- ● ● ●
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 0407-0511 ●
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 0512-0703 ● ●
230 PIN; THRUST METAL,CR/SHF
(B) OD=5 L=10 		9-08160-510-0 02 1 0704- ● ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0512- ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 02 1 0512-0703 ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 02 1 0704- ● ●
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0407-0508 ●
335 PLUG; C/BL,SIDE
(A) M22X12 		1-09604-035-0 01 1 0407-0511 ●
335 PLUG; C/BL,SIDE
(A) M22X12 		1-09604-035-0 01 1 0512-0703 ● ●
335 PLUG; C/BL,SIDE
(A) M22X12 		1-09604-035-0 01 1 0704- ● ● ●
335 PLUG; C/BL,SIDE
(B) M10X7 		1-09604-094-0 01 1 0407-0511 ●
335 PLUG; C/BL,SIDE
(B) M10X7 		1-09604-094-0 01 1 0512-0703 ● ●
335 PLUG; C/BL,SIDE
(B) M10X7 		1-09604-094-0 01 1 0704- ● ● ●
335 PLUG; C/BL,SIDE
(C) M12X9 		1-09604-095-0 01 1 0407-0511 ●
335 PLUG; C/BL,SIDE
(C) M12X9 		1-09604-095-0 01 1 0512-0703 ● ●
335 PLUG; C/BL,SIDE
(C) M12X9 		1-09604-095-0 01 1 0704-0805 ● ● ●
335 PLUG; C/BL,SIDE
(C) M12X9 		8-98047-054-0 01 1 0806- ● ● ●
335 PLUG; C/BL,SIDE
(D) M14X9 		9-99202-314-0 01 1 0407-0511 ●
335 PLUG; C/BL,SIDE
(D) M14X9 		9-99202-314-0 01 1 0512-0703 ● ●
335 PLUG; C/BL,SIDE
(D) M14X9 		9-99202-314-0 01 1 0704-0805 ● ● ●
335 PLUG; C/BL,SIDE
(D) M14X9 		8-98042-944-0 01 1 0806- ● ● ●
