Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10954 - CXZ/CYZ NEW ZEALAND
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#31431) — 42 parça
Tümü
A - CXZ5MF
B - CYZ5MC
C - CYZ5MF
◀

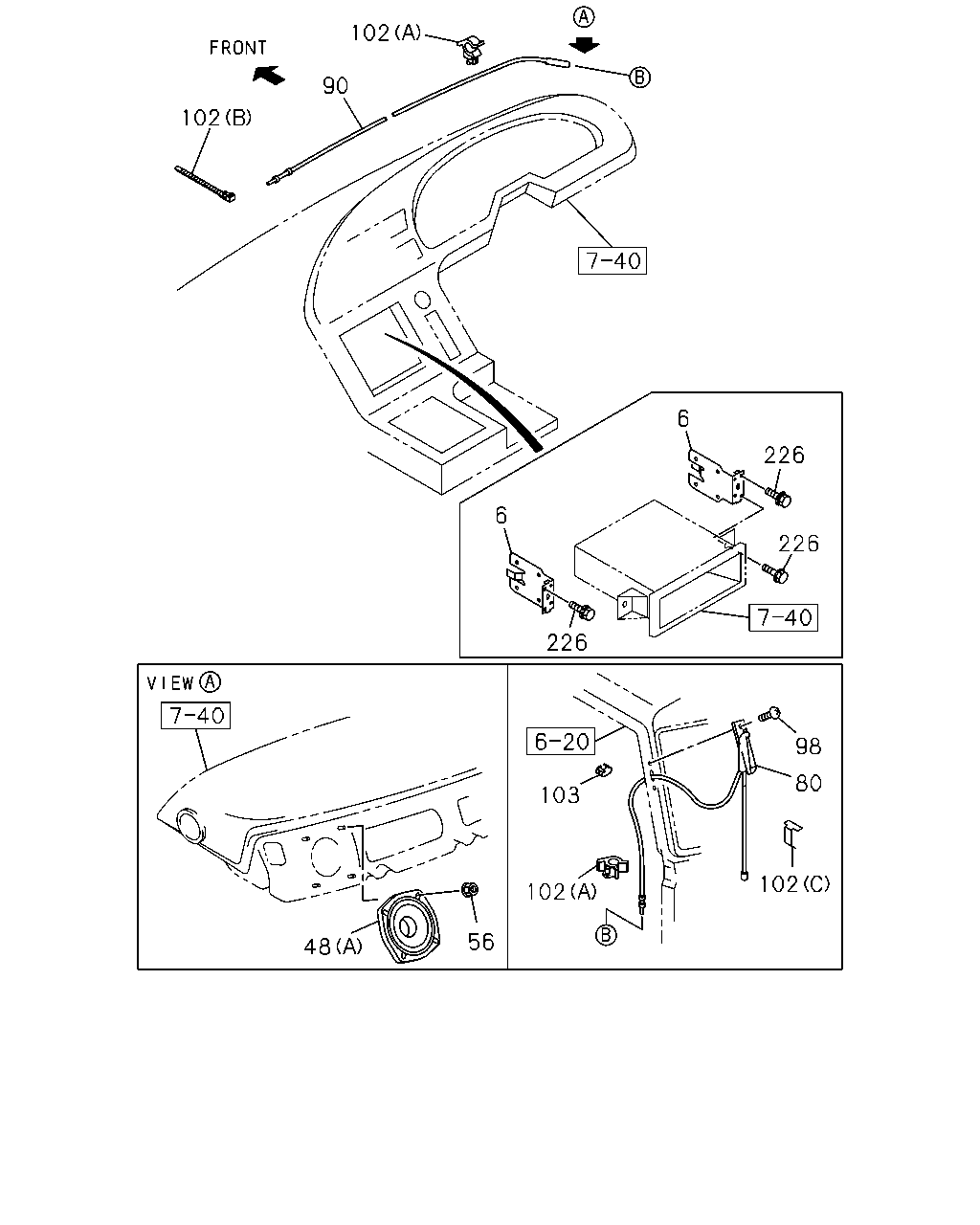

[890A] FRONT SPEAKER,ANTENNA AND BRACKET (27 parça)

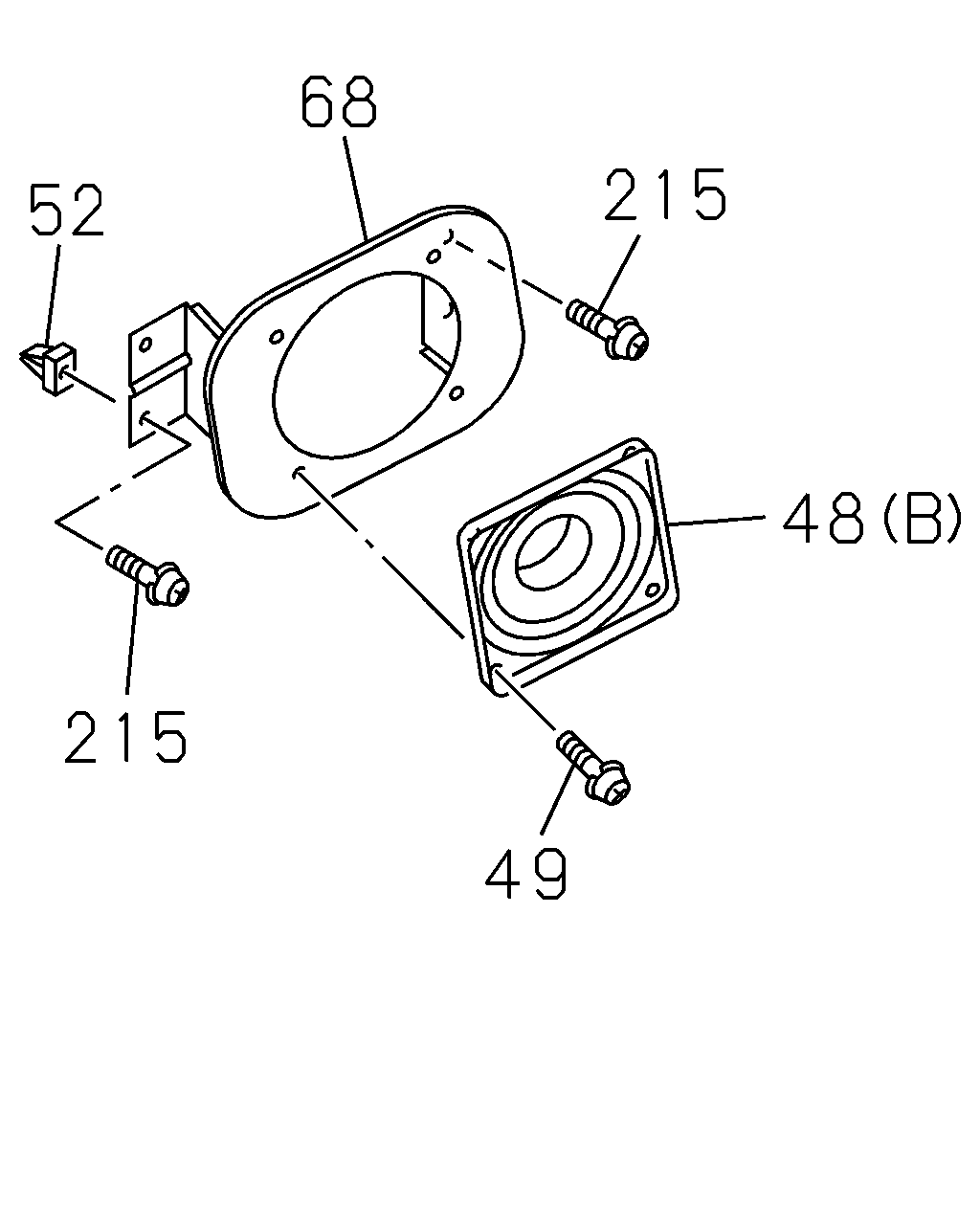

[890A] REAR SPEAKER (15 parça)
▶
102
103
102
80
226
226
6
98
56
48
226
6
90
102
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
6
BRACKET; RADIO TO PANEL
1-65671-551-4
02
1
0407-0511
●
6
BRACKET; RADIO TO PANEL
1-65671-551-4
02
1
0512-0612
●
●
6
BRACKET; RADIO TO PANEL
1-65671-822-1
02
1
0701-
●
●
48
SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (B)
1-84114-075-0
02
1
0407-0511
●
48
SPEAKER; AUDIO
(B)
1-84114-075-1
02
1
0512-
●
●
48
SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A)
1-84114-073-0
02
1
0407-0511
●
48
SPEAKER; AUDIO
(A)
1-84114-073-0
02
1
0512-0905
●
●
48
SPEAKER; AUDIO
(A)
8-98140-326-1
02
1
0906-
●
●
56
NUT; SPEAKER,RADIO OR STEREO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> M5 FLANGE
1-09984-170-0
04
1
0407-0511
●
56
NUT; SPEAKER,RADIO OR STEREO
M5 FLANGE
1-09984-170-0
04
1
0512-
●
●
80
ANTENNA
1-84115-055-2
01
1
0407-0511
●
80
ANTENNA
1-84115-055-2
01
1
0512-1203
●
●
80
ANTENNA
8-98210-874-1
01
1
1204-
●
●
90
CABLE; ANTENNA,FEEDER
1-84113-011-2
01
1
0407-0511
●
90
CABLE; ANTENNA,FEEDER
1-84113-011-2
01
1
0512-
●
●
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
0407-0511
●
98
SCREW; TAP,ANTENNA
M5X11
1-09981-536-1
02
1
0512-
●
●
102
CLIP; CABLE
(C) L=20 SET=10 PIECE
1-09987-246-2
01
1
1410-
●
●
102
CLIP; CABLE
(B) L=140
5-09707-031-1
01
1
0512-
●
●
102
CLIP; CABLE
(A) W/PACKING ID=4.8
1-73907-618-0
05
1
0407-0511
●
102
CLIP; CABLE
(A) W/PACKING ID=4.8
1-73907-618-0
05
1
0512-
●
●
102
CLIP; CABLE
(A) WO/PACKING ID=4.8
8-94128-483-0
03
1
0407-0511
●
102
CLIP; CABLE
(A) WO/PACKING ID=4.8
8-94128-483-0
03
1
0512-
●
●
103
GROMMET; ANTENNA HOLE,FRT
8-97027-381-0
01
1
0407-0511
●
103
GROMMET; ANTENNA HOLE,FRT
8-97027-381-0
01
1
0512-
●
●
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0407-0511
●
226
BOLT; BRKT
M6X19.5 W/LK&PL WASHER
8-94279-201-0
04
1
0512-
●
●
68
215
52
48
215
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
48
SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV> (B)
1-84114-075-0
02
1
0407-0511
●
48
SPEAKER; AUDIO
(B)
1-84114-075-1
02
1
0512-
●
●
48
SPEAKER; AUDIO
SPEAKER SYSTEM 4 SPEAKER<NBV>,SPEAKER SYSTEM FRT 2 SPEAKERS<UX6> (A)
1-84114-073-0
02
1
0407-0511
●
48
SPEAKER; AUDIO
(A)
1-84114-073-0
02
1
0512-0905
●
●
48
SPEAKER; AUDIO
(A)
8-98140-326-1
02
1
0906-
●
●
49
SCREW; SPEAKER
SPEAKER SYSTEM 4 SPEAKER<NBV> M5X16 W/LK&PL WASHER
8-94279-400-0
08
1
0407-0511
●
49
SCREW; SPEAKER
M5X16 W/LK&PL WASHER
8-94279-400-0
08
1
0512-
●
●
52
GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5
8-94279-078-0
08
1
0407-0511
●
52
GROMMET; SCREW,SPEAKER
D=8.6X7.7 L=7.5
8-94279-078-0
08
1
0512-
●
●
68
BRACKET; RR SPEAKER
1-73347-785-2
01
1
0407-0511
●
68
BRACKET; RR SPEAKER
1-73347-785-2
01
1
0512-
●
●
68
BRACKET; RR SPEAKER
1-73347-786-2
01
1
0407-0511
●
68
BRACKET; RR SPEAKER
1-73347-786-2
01
1
0512-
●
●
215
SCREW; BRKT,SPEAKER
M5X16 W/PL WASHER TAPPING
8-94279-123-0
08
1
0407-0511
●
215
SCREW; BRKT,SPEAKER
M5X16 W/PL WASHER TAPPING
8-94279-123-0
08
1
0512-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
