8-80 — WINDSHIELD WIPER AND WASHER (#31430) — 203 parça

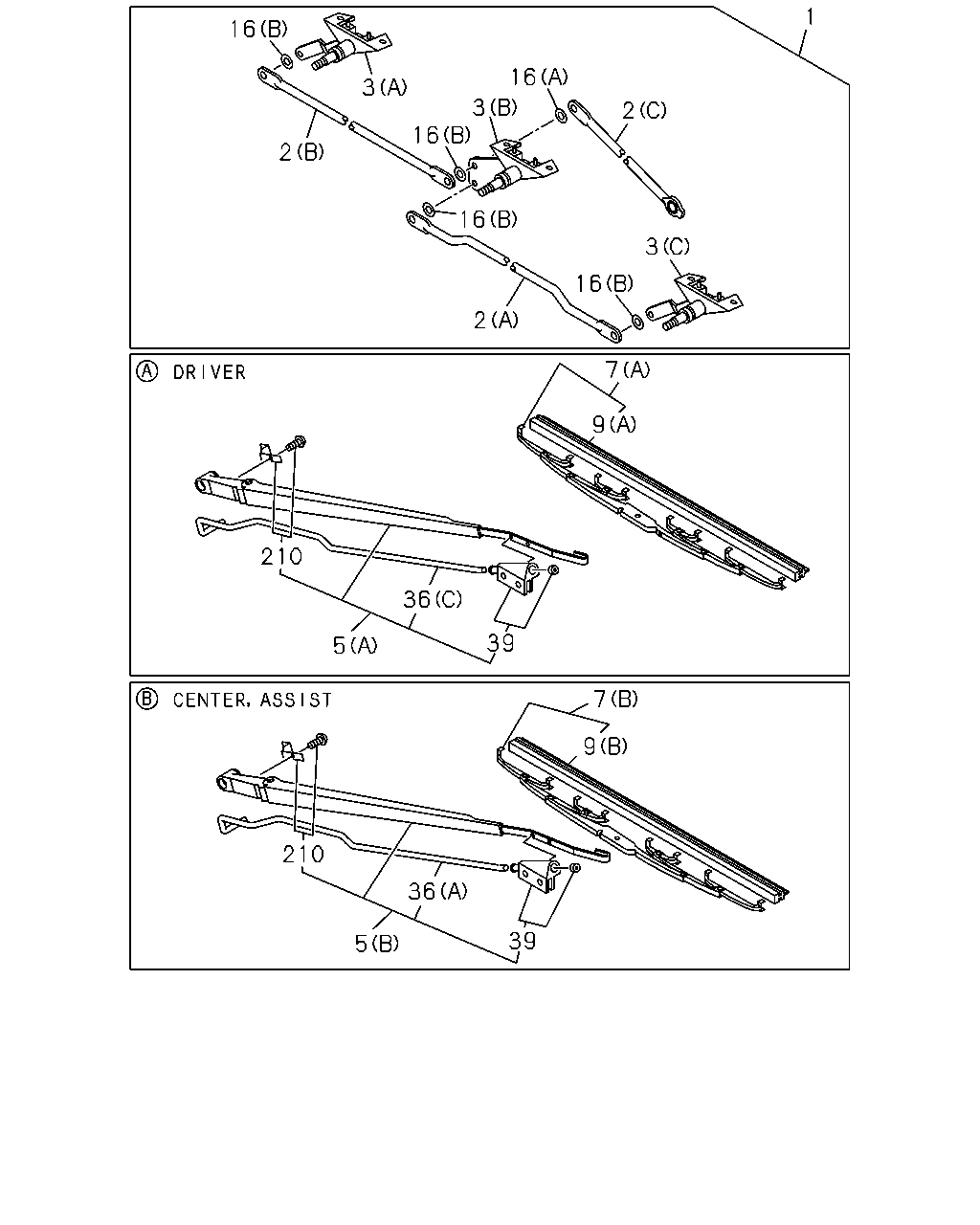

çizim 87139
1 16 16 3 3 16 2 2 16 3 16 2 7 9 210 36 39 5 7 9 210 36 39 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINK ASM; FRT WIPER 1-83312-112-1 01 1 0407-0511 ●
1 LINK ASM; FRT WIPER 1-83312-112-2 01 1 0512- ● ●
2 LINK; FRT WIPER
(A) 		1-83312-131-0 01 1 0407-0511 ●
2 LINK; FRT WIPER
(A) 		1-83312-131-0 01 1 0512- ● ●
2 LINK; FRT WIPER
(B) 		1-83312-132-0 01 1 0407-0511 ●
2 LINK; FRT WIPER
(B) 		1-83312-132-0 01 1 0512- ● ●
2 LINK; FRT WIPER
(C) 		1-83312-133-0 01 1 0407-0511 ●
2 LINK; FRT WIPER
(C) 		1-83312-133-0 01 1 0512- ● ●
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-104-0 01 1 0407-0511 ●
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-104-0 01 1 0512- ● ●
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-105-0 01 1 0407-0511 ●
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-105-0 01 1 0512- ● ●
3 PIVOT ASM; FRT WIPER
(C) 		1-83313-106-0 01 1 0407-0511 ●
3 PIVOT ASM; FRT WIPER
(C) 		1-83313-106-0 01 1 0512- ● ●
5 ARM; WIPER
(A) 		1-86810-031-0 01 1 0407-0511 ●
5 ARM; WIPER
(A) 		1-86810-031-0 01 1 0512- ● ●
5 ARM; WIPER
(B) 		1-86810-032-0 02 1 0407-0511 ●
5 ARM; WIPER
(B) 		1-86810-032-0 02 1 0512- ● ●
7 BLADE; WIPER
(A) L=550 		1-86810-029-0 01 1 0407-0511 ●
7 BLADE; WIPER
(A) L=550 		1-86810-029-0 01 1 0512- ● ●
7 BLADE; WIPER
(B) L=500 		8-97134-563-1 02 1 0407-0511 ●
7 BLADE; WIPER
(B) L=500 		8-97134-563-1 02 1 0512- ● ●
7 BLADE; WIPER
(A) BEST VALUE PARTS 		5-87610-035-0 01 1 0407-0511 ●
7 BLADE; WIPER
(A) BEST VALUE PARTS 		5-87610-035-0 01 1 0512- ● ●
9 RUBBER; FRT WIPER BLADE
(B) 		1-83355-017-0 02 1 0407-0511 ●
9 RUBBER; FRT WIPER BLADE
(B) 		1-83355-017-0 02 1 0512- ● ●
9 RUBBER; FRT WIPER BLADE
(A) L=550 		1-86810-051-0 01 1 0407-0511 ●
9 RUBBER; FRT WIPER BLADE
(A) L=550 		1-86810-051-0 01 1 0512- ● ●
16 SEAL; BALL JOINT
(B) 		1-83318-115-0 04 1 0407-0511 ●
16 SEAL; BALL JOINT
(B) 		1-83318-115-0 04 1 0512- ● ●
16 SEAL; BALL JOINT
(A) 		1-83318-116-0 01 1 0407-0511 ●
16 SEAL; BALL JOINT
(A) 		1-83318-116-0 01 1 0512- ● ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 0407-0511 ●
36 HOSE; WASHER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 0407-0511 ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 0512- ● ●
36 HOSE; WASHER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 0512- ● ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 0407-0511 ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 0512- ● ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 0407-0511 ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 0512- ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0407-0511 ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0512- ● ●
36 HOSE; WASHER
(F) SERVICED BY L=10000 		8-94153-780-0 01 1 0407-0511 ●
36 HOSE; WASHER
(F) SERVICED BY L=10000 		8-94153-780-0 01 1 0512- ● ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 0407-0511 ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 0512- ● ●
39 NOZZLE; WINDSHIELD WASHER
3WAY 		1-86810-055-0 03 1 0407-0511 ●
39 NOZZLE; WINDSHIELD WASHER
3WAY 		1-86810-055-0 03 1 0512- ● ●
210 BRACKET KIT; HOSE 1-86810-046-0 03 1 0407-0511 ●
210 BRACKET KIT; HOSE 1-86810-046-0 03 1 0512- ● ●

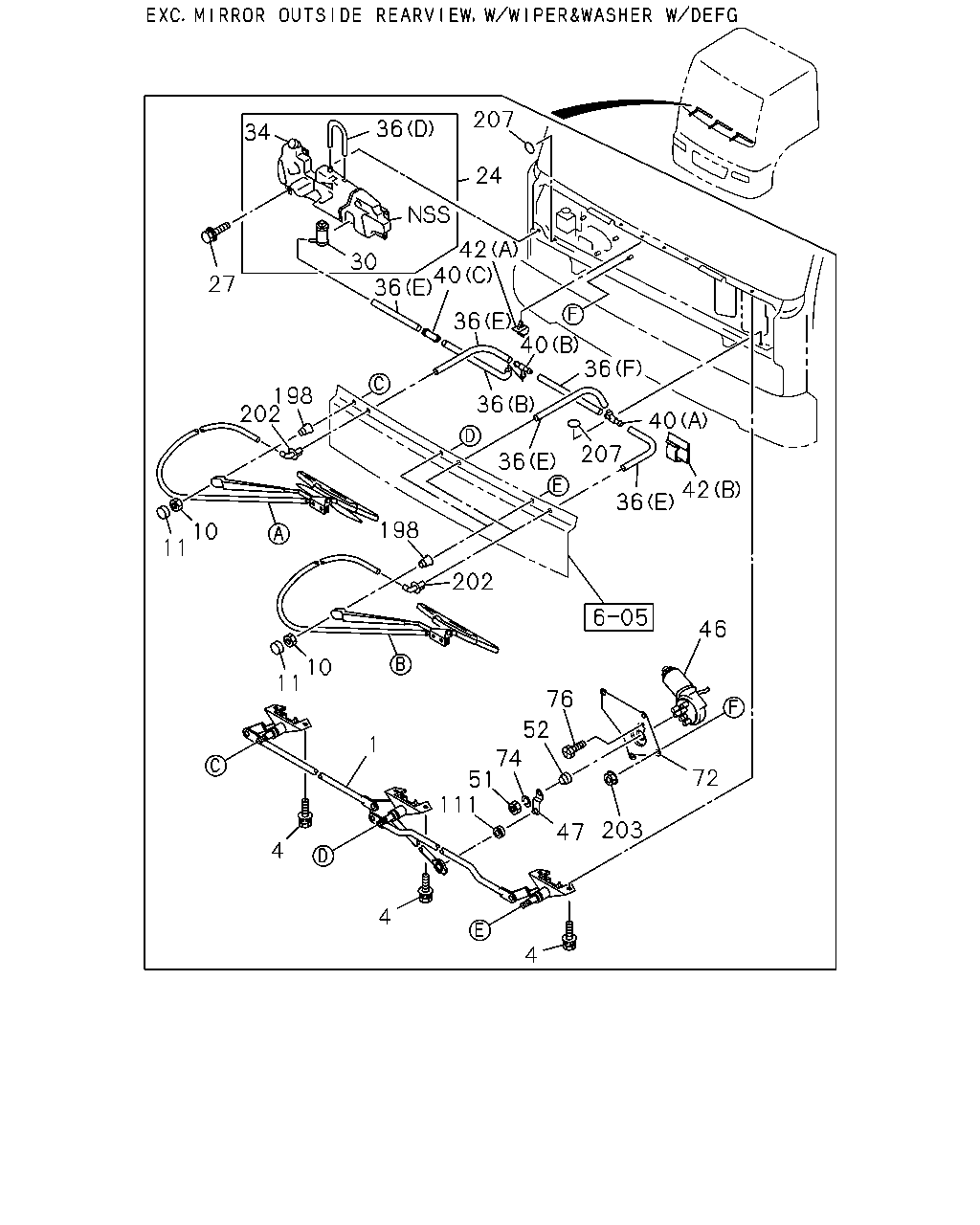

çizim 105030
207 36 34 24 42 30 40 36 27 36 40 36 198 202 36 40 207 36 42 36 198 10 11 202 46 10 11 76 52 1 74 51 111 72 203 47 4 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINK ASM; FRT WIPER 1-83312-112-1 01 1 0407-0511 ●
1 LINK ASM; FRT WIPER 1-83312-112-2 01 1 0512- ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0407-0511 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0512-0904 ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0407-0511 ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0512- ● ●
11 COVER; WIPER ARM 1-86810-028-0 03 1 0407-0511 ●
11 COVER; WIPER ARM 1-86810-028-0 03 1 0512- ● ●
24 TANK ASM; WASHER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-001-7 01 1 0407-0511 ●
24 TANK ASM; WASHER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-001-7 01 1 0512- ● ●
24 TANK ASM; WASHER
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-013-7 01 1 0407-0511 ●
24 TANK ASM; WASHER
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-013-7 01 1 0512- ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0407-0511 ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0512- ● ●
30 MOTOR ASM; FRT WASHER TANK
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-016-1 02 1 0407-0511 ●
30 MOTOR ASM; FRT WASHER TANK
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-016-1 02 1 0512- ● ●
30 MOTOR ASM; FRT WASHER TANK
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-016-1 01 1 0407-0511 ●
30 MOTOR ASM; FRT WASHER TANK
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-016-1 01 1 0512- ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 0407-0511 ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 0512- ● ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 0407-0511 ●
36 HOSE; WASHER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 0407-0511 ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 0512- ● ●
36 HOSE; WASHER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 0512- ● ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 0407-0511 ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 0512- ● ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 0407-0511 ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 0512- ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0407-0511 ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0512- ● ●
36 HOSE; WASHER
(F) SERVICED BY L=10000 		8-94153-780-0 01 1 0407-0511 ●
36 HOSE; WASHER
(F) SERVICED BY L=10000 		8-94153-780-0 01 1 0512- ● ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 0407-0511 ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 0512- ● ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 0407-0511 ●
40 JOINT; WASHER HOSE
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B) 3WAY 		1-83338-005-0 01 1 0407-0511 ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 0512- ● ●
40 JOINT; WASHER HOSE
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B) 3WAY 		1-83338-005-0 01 1 0512- ● ●
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 0407-0511 ●
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 0512- ● ●
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 0407-0511 ●
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 0512- ● ●
42 CLIP; WASHER HOSE
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B) 		8-94144-956-0 02 1 0407-0511 ●
42 CLIP; WASHER HOSE
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B) 		8-94144-956-0 02 1 0512- ● ●
42 CLIP; WASHER HOSE
(C) 1 SET=5 PIECE 		1-09987-214-0 01 1 0407-0511 ●
42 CLIP; WASHER HOSE
(C) 1 SET=5 PIECE 		1-09987-214-0 01 1 0512- ● ●
42 CLIP; WASHER HOSE
(A) 		1-09987-247-0 06 1 0407-0511 ●
42 CLIP; WASHER HOSE
(A) 		1-09987-247-0 06 1 0512- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-121-0 01 1 0407-0511 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-121-0 01 1 0512-1301 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98232-330-0 01 1 1302-1405 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98281-677-0 01 1 1406- ● ●
47 ARM; CRANK,WIPER MOTOR 1-86810-123-0 01 1 0407-0511 ●
47 ARM; CRANK,WIPER MOTOR 1-86810-123-0 01 1 0512- ● ●
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 0407-0511 ●
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 0512- ● ●
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 0407-0511 ●
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 0512- ● ●
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 0407-0511 ●
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 0512- ● ●
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 0407-0511 ●
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 0512- ● ●
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 0407-0511 ●
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 0512- ● ●
111 SEAL; FRT WIPER MOTOR TO BRKT 8-94167-624-0 01 1 0407-0511 ●
111 SEAL; FRT WIPER MOTOR TO BRKT 8-94167-624-0 01 1 0512- ● ●
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 0407-0511 ●
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 0512- ● ●
202 GROMMET; WIPER 1-86815-003-2 03 1 0407-0511 ●
202 GROMMET; WIPER 1-86815-003-2 03 1 0512- ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0407-0511 ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0512- ● ●
207 SEAL; HOLE
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> OD=25 BLACK 		1-76798-019-0 02 1 0512- ● ●

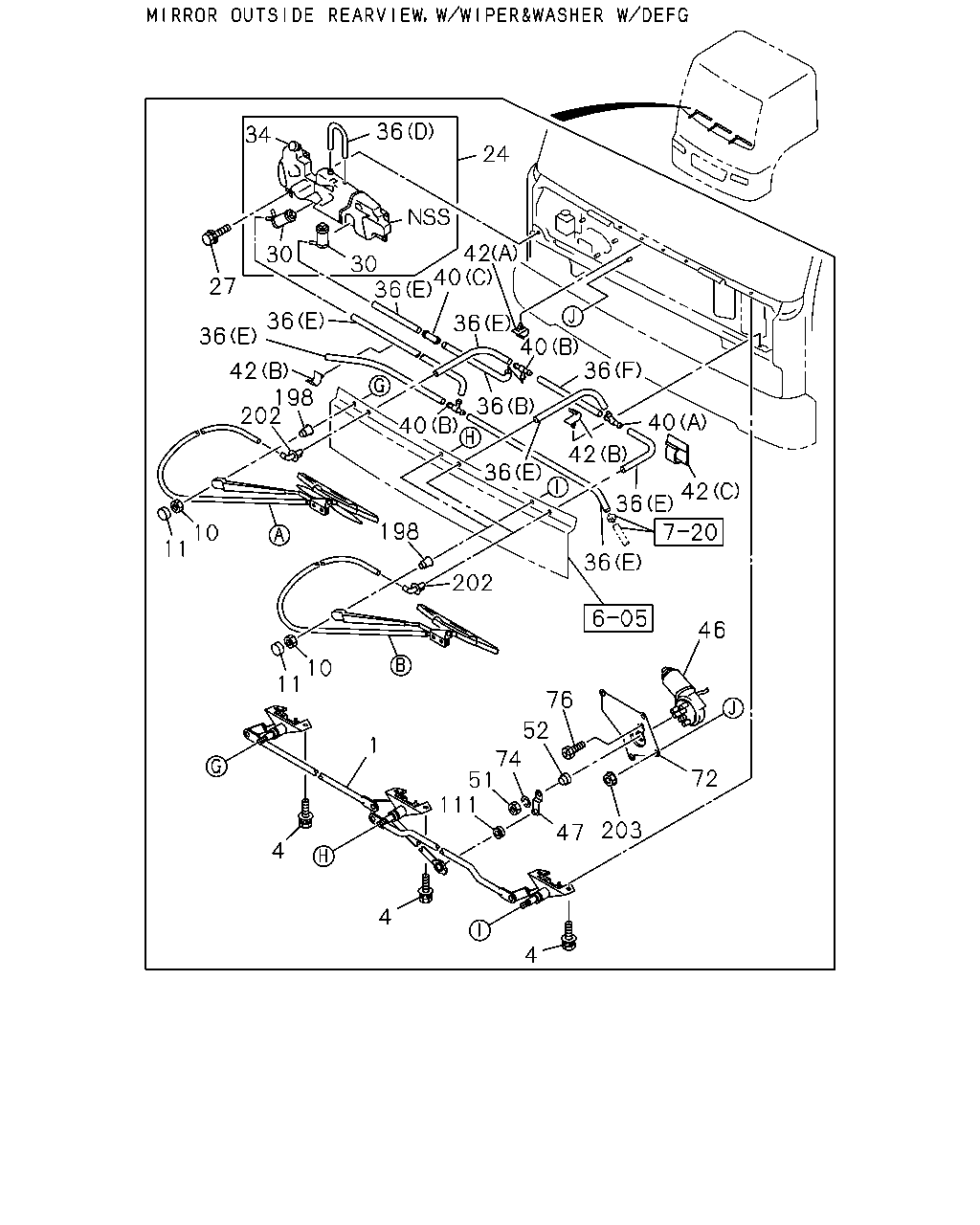

çizim 105159
36 34 24 42 30 40 36 30 27 36 36 36 40 36 2 42 198 202 36 40 40 42 36 42 36 198 10 11 36 202 46 10 11 76 52 1 74 51 111 72 203 47 4 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINK ASM; FRT WIPER 1-83312-112-1 01 1 0407-0511 ●
1 LINK ASM; FRT WIPER 1-83312-112-2 01 1 0512- ● ●
2 LINK; FRT WIPER
(A) 		1-83312-131-0 01 1 0407-0511 ●
2 LINK; FRT WIPER
(A) 		1-83312-131-0 01 1 0512- ● ●
2 LINK; FRT WIPER
(B) 		1-83312-132-0 01 1 0407-0511 ●
2 LINK; FRT WIPER
(B) 		1-83312-132-0 01 1 0512- ● ●
2 LINK; FRT WIPER
(C) 		1-83312-133-0 01 1 0407-0511 ●
2 LINK; FRT WIPER
(C) 		1-83312-133-0 01 1 0512- ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0407-0511 ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0512-0904 ● ●
4 BOLT; WIPER LINK TO BODY
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0905- ● ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0407-0511 ●
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		1-09984-120-0 03 1 0512- ● ●
11 COVER; WIPER ARM 1-86810-028-0 03 1 0407-0511 ●
11 COVER; WIPER ARM 1-86810-028-0 03 1 0512- ● ●
24 TANK ASM; WASHER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-001-7 01 1 0407-0511 ●
24 TANK ASM; WASHER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-001-7 01 1 0512- ● ●
24 TANK ASM; WASHER
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-013-7 01 1 0407-0511 ●
24 TANK ASM; WASHER
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-013-7 01 1 0512- ● ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0407-0511 ●
27 BOLT; WASHER TANK
M6X16 W/LK&PL WASHER 		1-09980-492-0 04 1 0512- ● ●
30 MOTOR ASM; FRT WASHER TANK
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-016-1 02 1 0407-0511 ●
30 MOTOR ASM; FRT WASHER TANK
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-016-1 02 1 0512- ● ●
30 MOTOR ASM; FRT WASHER TANK
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-016-1 01 1 0407-0511 ●
30 MOTOR ASM; FRT WASHER TANK
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 		1-86815-016-1 01 1 0512- ● ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 0407-0511 ●
34 CAP; WASHER TANK 1-86815-018-0 01 1 0512- ● ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 0407-0511 ●
36 HOSE; WASHER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 0407-0511 ●
36 HOSE; WASHER
(E) SERVICED BY L=10000 		8-94389-303-0 01 1 0512- ● ●
36 HOSE; WASHER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (E) SERVICED BY L=10000 		8-94389-303-0 01 1 0512- ● ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 0407-0511 ●
36 HOSE; WASHER
(C) 		1-86810-053-0 01 1 0512- ● ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 0407-0511 ●
36 HOSE; WASHER
(A) 		1-86810-054-0 02 1 0512- ● ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0407-0511 ●
36 HOSE; WASHER
(D) L=260 		1-86815-019-0 01 1 0512- ● ●
36 HOSE; WASHER
(F) SERVICED BY L=10000 		8-94153-780-0 01 1 0407-0511 ●
36 HOSE; WASHER
(F) SERVICED BY L=10000 		8-94153-780-0 01 1 0512- ● ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 0407-0511 ●
36 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 0512- ● ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 0407-0511 ●
40 JOINT; WASHER HOSE
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B) 3WAY 		1-83338-005-0 01 1 0407-0511 ●
40 JOINT; WASHER HOSE
(B) 3WAY 		1-83338-005-0 01 1 0512- ● ●
40 JOINT; WASHER HOSE
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B) 3WAY 		1-83338-005-0 01 1 0512- ● ●
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 0407-0511 ●
40 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-033-0 01 1 0512- ● ●
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 0407-0511 ●
40 JOINT; WASHER HOSE
(C) 2WAY 		8-94239-402-0 01 1 0512- ● ●
42 CLIP; WASHER HOSE
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B) 		8-94144-956-0 02 1 0407-0511 ●
42 CLIP; WASHER HOSE
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B) 		8-94144-956-0 02 1 0512- ● ●
42 CLIP; WASHER HOSE
(C) 1 SET=5 PIECE 		1-09987-214-0 01 1 0407-0511 ●
42 CLIP; WASHER HOSE
(C) 1 SET=5 PIECE 		1-09987-214-0 01 1 0512- ● ●
42 CLIP; WASHER HOSE
(A) 		1-09987-247-0 06 1 0407-0511 ●
42 CLIP; WASHER HOSE
(A) 		1-09987-247-0 06 1 0512- ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-121-0 01 1 0407-0511 ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-86810-121-0 01 1 0512-1301 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98232-330-0 01 1 1302-1405 ● ●
46 MOTOR ASM; FRT WINDSHIELD WIPER 8-98281-677-0 01 1 1406- ● ●
47 ARM; CRANK,WIPER MOTOR 1-86810-123-0 01 1 0407-0511 ●
47 ARM; CRANK,WIPER MOTOR 1-86810-123-0 01 1 0512- ● ●
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 0407-0511 ●
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 0512- ● ●
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 0407-0511 ●
52 BUSHING; BRKT,WIPER MOTOR 1-83318-020-0 01 1 0512- ● ●
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 0407-0511 ●
72 BRACKET; WIPER MOTOR 1-86810-122-0 01 1 0512- ● ●
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 0407-0511 ●
74 WASHER; ARM TO MOTOR
ID=8.2 		9-09150-508-0 01 1 0512- ● ●
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 0407-0511 ●
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 0512- ● ●
111 SEAL; FRT WIPER MOTOR TO BRKT 8-94167-624-0 01 1 0407-0511 ●
111 SEAL; FRT WIPER MOTOR TO BRKT 8-94167-624-0 01 1 0512- ● ●
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 0407-0511 ●
198 COVER; PIVOT,WIPER 1-86810-017-0 03 1 0512- ● ●
202 GROMMET; WIPER 1-86815-003-2 03 1 0407-0511 ●
202 GROMMET; WIPER 1-86815-003-2 03 1 0512- ● ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0407-0511 ●
203 NUT; WIPER MOTOR
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
