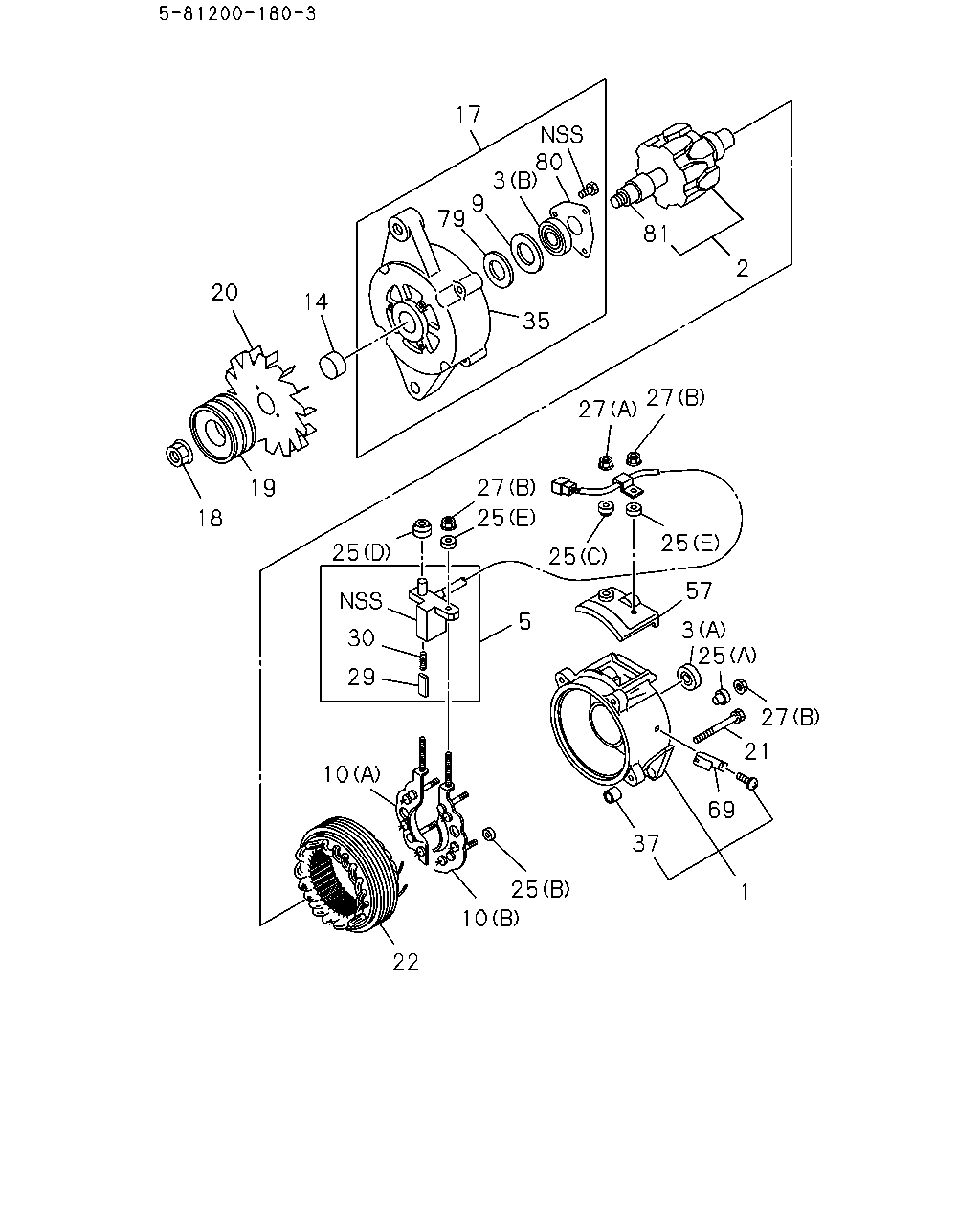

0-66 — GENERATOR (#3143) — 30 parça

17 80 3 9 79 81 2 20 14 35 27 27 27 19 25 18 25 25 25 57 5 3 25 30 29 27 21 10 69 37 25 1 10 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 5-81200-180-3	1-81214-312-0	01	1	-
2	ROTOR; GEN ASM PART: A = 5-81200-180-3	1-81221-084-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: A = 5-81200-180-3	1-81229-576-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: A = 5-81200-180-3	5-81229-104-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 5-81200-180-3	1-81217-070-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 5-81200-180-3	1-81214-102-0	01	1	-
10	RECTIFIER; GEN (A) ASM PART: A = 5-81200-180-3	1-81219-101-0	01	1	-
10	RECTIFIER; GEN (B) ASM PART: A = 5-81200-180-3	1-81219-102-0	01	1	-
15	RETAINER; ROTOR,GEN ASM PART: A = 5-81200-180-3	1-81229-405-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 5-81200-180-3	1-81213-055-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 5-81200-180-3	8-94167-948-0	01	1	-
19	PULLEY; GEN ASM PART: A = 5-81200-180-3	5-81222-043-0	01	1	-
20	FAN; GEN ASM PART: A = 5-81200-180-3	5-81223-007-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 5-81200-180-3	5-81229-106-0	04	1	-
22	STATOR; GEN ASM PART: A = 5-81200-180-3	1-81211-099-0	01	1	-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: A = 5-81200-180-3	1-81229-410-0	02	1	-
25	BUSHING; INSULATION TERMINAL (B) ASM PART: A = 5-81200-180-3	1-81229-411-0	02	1	-
25	BUSHING; INSULATION TERMINAL (C) ASM PART: A = 5-81200-180-3	1-81229-413-0	01	1	-
25	BUSHING; INSULATION TERMINAL (D) ASM PART: A = 5-81200-180-3	1-81229-590-0	01	1	-
25	BUSHING; INSULATION TERMINAL (E) ASM PART: A = 5-81200-180-3	5-81229-105-0	04	1	-
27	NUT; RECTIFIER,GEN (A), M6 ASM PART: A = 5-81200-180-3	8-94206-186-0	01	1	-
27	NUT; RECTIFIER,GEN (B) ASM PART: A = 5-81200-180-3	8-94206-188-0	06	1	-
29	BRUSH; GEN ASM PART: A = 5-81200-180-3	5-81215-018-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: A = 5-81200-180-3	5-81216-002-0	02	1	-
37	BUSHING; RR COVER,GEN ASM PART: A = 5-81200-180-3	9-82215-879-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 5-81200-180-3	1-81217-071-0	01	1	-
69	CLIP; WIRE,GEN ASM PART: A = 5-81200-180-3	1-81229-534-0	01	1	-
79	WASHER; FELT,ROTOR,GEN ASM PART: A = 5-81200-180-3	9-82215-707-0	01	1	-
81	SPACER; ROTOR,GEN ASM PART: A = 5-81200-180-3	1-81229-403-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 5-81200-180-3	1-81229-415-0	01	1	-
