8-75 — CONDENSER (#31429) — 122 parça

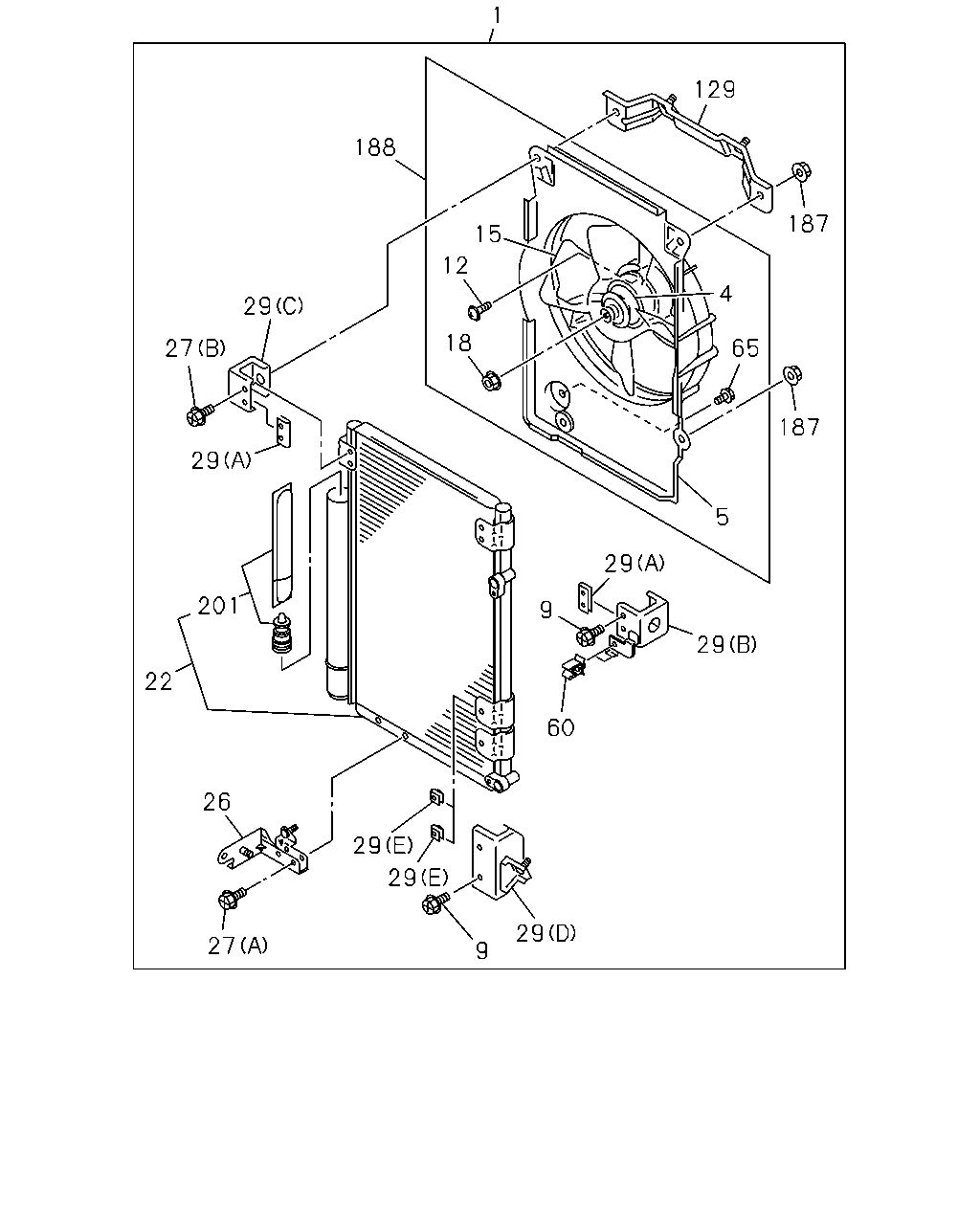

1 129 188 187 15 12 4 29 18 65 27 187 29 5 29 201 9 29 22 60 26 29 29 29 27 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83534-206-2	01	1	0407-0509	●
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98024-412-0	01	1	0510-0511	●
1	CONDENSER; A/C	8-97605-201-1	01	1	0512-0703		●	●
1	CONDENSER; A/C	8-98076-087-2	01	1	0704-		●	●
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-139-3	01	1	0407-0509	●
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98014-458-0	01	1	0510-0511	●
4	MOTOR ASM; FAN	1-83561-139-3	01	1	0512-0703		●	●
4	MOTOR ASM; FAN	8-98078-763-0	01	1	0704-		●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-362-1	01	1	0407-0511	●
5	SHROUD; FAN MOTOR	1-83539-362-1	01	1	0512-0703		●	●
5	SHROUD; FAN MOTOR	8-98076-093-0	01	1	0704-		●	●
9	BOLT; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X16	8-97096-525-0	04	1	0407-0511	●
9	BOLT; BRKT M6X14	1-83539-382-0	04	1	0512-		●	●
12	BOLT; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-314-0	03	1	0407-0511	●
12	BOLT; FAN MOTOR	1-83539-314-0	03	1	0512-0703		●	●
12	BOLT; FAN MOTOR	8-98290-384-0	03	1	0704-1201		●	●
12	BOLT; FAN MOTOR	8-98290-384-0	01	1	1202-1409		●	●
12	BOLT; FAN MOTOR	8-98290-384-0	03	1	1410-		●	●
15	FAN; MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-140-0	01	1	0407-0511	●
15	FAN; MOTOR	1-83561-140-0	01	1	0512-0703		●	●
15	FAN; MOTOR	8-98076-092-0	01	1	0704-		●	●
18	NUT; FAN,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-313-0	01	1	0407-0511	●
18	NUT; FAN,CENTER	1-83539-313-0	01	1	0512-		●	●
22	CONDENSER ASM; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83534-231-1	01	1	0407-0511	●
22	CONDENSER ASM; A/C	1-83534-261-0	01	1	0512-1409		●	●
22	CONDENSER ASM; A/C	8-98275-189-0	01	1	1410-		●	●
26	BRACKET; LOW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83573-128-1	01	1	0407-0511	●
26	BRACKET; LOW	1-83573-281-0	01	1	0512-		●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M6X16	8-97096-525-0	02	1	0407-0511	●
27	BOLT; BRKT,LOW SIDE (B) M6X14	1-83539-382-0	02	1	0512-		●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X25	8-97178-770-0	02	1	0407-0511	●
27	BOLT; BRKT,LOW SIDE (A) M5X25	8-97178-770-0	02	1	0512-		●	●
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83573-010-0	02	1	0407-0511	●
29	BRACKET; SIDE (F)	1-83573-278-0	01	1	0512-		●	●
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83573-125-0	01	1	0407-0511	●
29	BRACKET; SIDE (G)	1-83573-279-0	01	1	0512-		●	●
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83573-126-0	01	1	0407-0511	●
29	BRACKET; SIDE (H)	1-83573-280-0	01	1	0512-		●	●
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D)	1-83573-127-1	01	1	0407-0511	●
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (E)	8-97180-263-0	02	1	0407-0511	●
60	CLIP; PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-266-0	01	1	0407-0511	●
60	CLIP; PIPE	1-83574-266-0	01	1	0512-		●	●
65	BOLT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X16	8-97096-525-0	01	1	0407-0511	●
65	BOLT; SHROUD M6X16	8-97096-525-0	01	1	0512-		●	●
129	BRACKET; UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83573-129-1	01	1	0407-0511	●
129	BRACKET; UPR	1-83573-129-0	01	1	0512-		●	●
187	NUT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6	1-83539-354-0	04	1	0407-0511	●
187	NUT; SHROUD M6	1-83539-354-0	04	1	0512-		●	●
188	BLOWER ASM; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-162-2	01	1	0407-0511	●
188	BLOWER ASM; SHROUD	1-83561-162-1	01	1	0512-0703		●	●
188	BLOWER ASM; SHROUD	8-98078-760-1	01	1	0704-		●	●
201	DRYER ASM; CONDENSER	8-98282-482-0	01	1	1410-		●	●
201	DRYER ASM; CONDENSER	1-83535-097-0	01	1	0407-		●	●

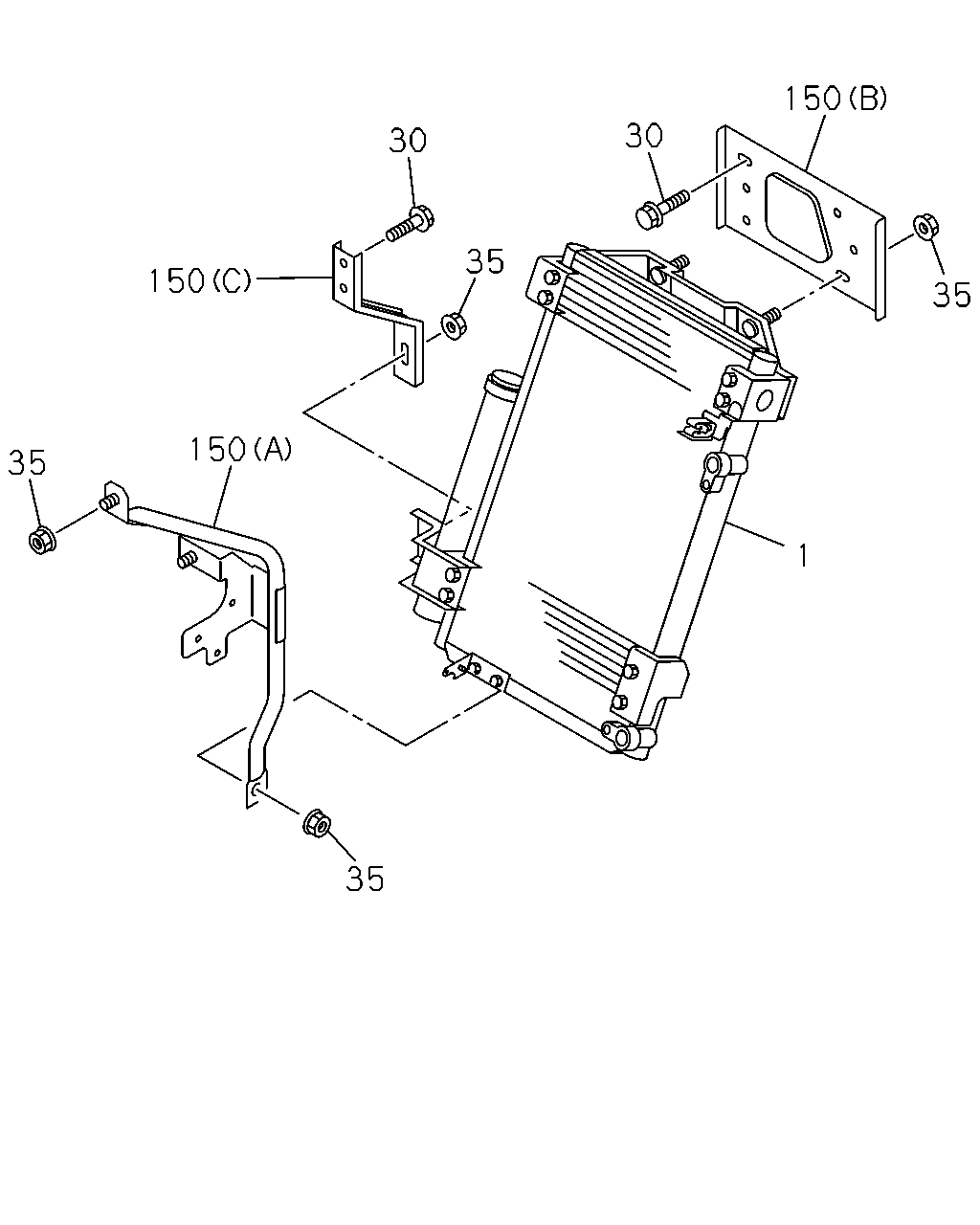

150 30 30 35 150 35 150 35 1 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83534-206-2	01	1	0407-0509	●
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98024-412-0	01	1	0510-0511	●
1	CONDENSER; A/C	8-97605-201-1	01	1	0512-0703		●	●
1	CONDENSER; A/C	8-98076-087-2	01	1	0704-		●	●
30	BOLT; CONDENSER,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0407-0511	●
30	BOLT; CONDENSER,A/C M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0512-0904		●	●
30	BOLT; CONDENSER,A/C M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0905-		●	●
35	NUT; CONDENSER,A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE	0-91150-108-0	05	1	0407-0511	●
35	NUT; CONDENSER,A/C M8 FLANGE	0-91150-108-0	05	1	0512-0602		●	●
35	NUT; CONDENSER,A/C M8 FLANGE	0-91180-108-0	05	1	0603-		●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83571-984-0	01	1	0407-0511	●
150	BRACKET; CONDENSER,MTG (B)	1-83571-984-0	01	1	0512-		●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83571-985-0	01	1	0407-0511	●
150	BRACKET; CONDENSER,MTG (C)	1-83571-985-0	01	1	0512-		●	●
150	BRACKET; CONDENSER,MTG AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83573-242-1	01	1	0407-0511	●
150	BRACKET; CONDENSER,MTG (A)	1-83573-242-1	01	1	0512-		●	●

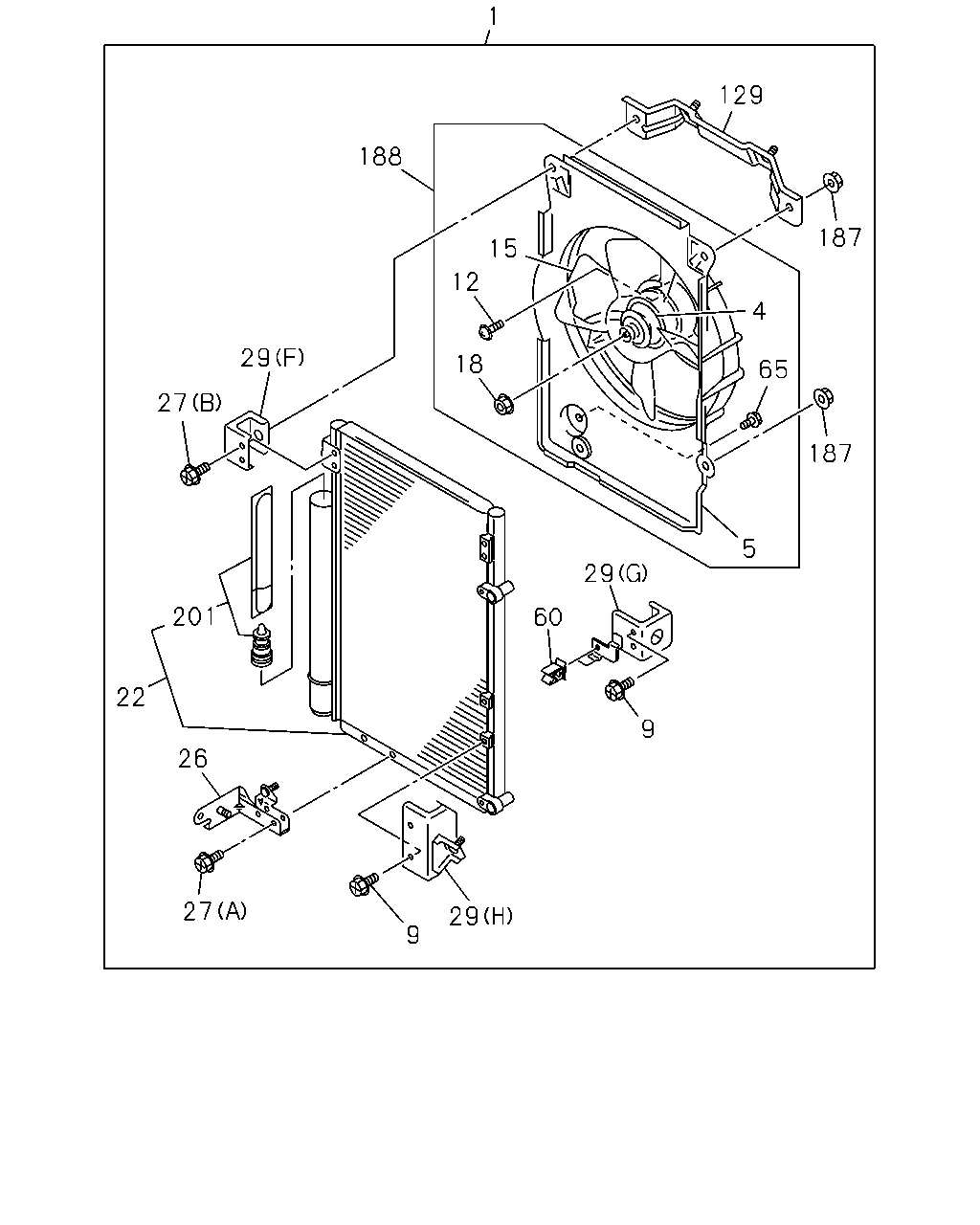

1 129 188 187 15 12 4 29 18 65 27 187 5 29 201 60 22 9 26 27 29 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83534-206-2	01	1	0407-0509	●
1	CONDENSER; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98024-412-0	01	1	0510-0511	●
1	CONDENSER; A/C	8-97605-201-1	01	1	0512-0703		●	●
1	CONDENSER; A/C	8-98076-087-2	01	1	0704-		●	●
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-139-3	01	1	0407-0509	●
4	MOTOR ASM; FAN AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-98014-458-0	01	1	0510-0511	●
4	MOTOR ASM; FAN	1-83561-139-3	01	1	0512-0703		●	●
4	MOTOR ASM; FAN	8-98078-763-0	01	1	0704-		●	●
5	SHROUD; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-362-1	01	1	0407-0511	●
5	SHROUD; FAN MOTOR	1-83539-362-1	01	1	0512-0703		●	●
5	SHROUD; FAN MOTOR	8-98076-093-0	01	1	0704-		●	●
9	BOLT; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X16	8-97096-525-0	04	1	0407-0511	●
9	BOLT; BRKT M6X14	1-83539-382-0	04	1	0512-		●	●
12	BOLT; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-314-0	03	1	0407-0511	●
12	BOLT; FAN MOTOR	1-83539-314-0	03	1	0512-0703		●	●
12	BOLT; FAN MOTOR	8-98290-384-0	03	1	0704-1201		●	●
12	BOLT; FAN MOTOR	8-98290-384-0	01	1	1202-1409		●	●
12	BOLT; FAN MOTOR	8-98290-384-0	03	1	1410-		●	●
15	FAN; MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-140-0	01	1	0407-0511	●
15	FAN; MOTOR	1-83561-140-0	01	1	0512-0703		●	●
15	FAN; MOTOR	8-98076-092-0	01	1	0704-		●	●
18	NUT; FAN,CENTER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-313-0	01	1	0407-0511	●
18	NUT; FAN,CENTER	1-83539-313-0	01	1	0512-		●	●
22	CONDENSER ASM; A/C AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83534-231-1	01	1	0407-0511	●
22	CONDENSER ASM; A/C	1-83534-261-0	01	1	0512-1409		●	●
22	CONDENSER ASM; A/C	8-98275-189-0	01	1	1410-		●	●
26	BRACKET; LOW AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83573-128-1	01	1	0407-0511	●
26	BRACKET; LOW	1-83573-281-0	01	1	0512-		●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M6X16	8-97096-525-0	02	1	0407-0511	●
27	BOLT; BRKT,LOW SIDE (B) M6X14	1-83539-382-0	02	1	0512-		●	●
27	BOLT; BRKT,LOW SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X25	8-97178-770-0	02	1	0407-0511	●
27	BOLT; BRKT,LOW SIDE (A) M5X25	8-97178-770-0	02	1	0512-		●	●
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83573-010-0	02	1	0407-0511	●
29	BRACKET; SIDE (F)	1-83573-278-0	01	1	0512-		●	●
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83573-125-0	01	1	0407-0511	●
29	BRACKET; SIDE (G)	1-83573-279-0	01	1	0512-		●	●
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83573-126-0	01	1	0407-0511	●
29	BRACKET; SIDE (H)	1-83573-280-0	01	1	0512-		●	●
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D)	1-83573-127-1	01	1	0407-0511	●
29	BRACKET; SIDE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (E)	8-97180-263-0	02	1	0407-0511	●
60	CLIP; PIPE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-266-0	01	1	0407-0511	●
60	CLIP; PIPE	1-83574-266-0	01	1	0512-		●	●
65	BOLT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X16	8-97096-525-0	01	1	0407-0511	●
65	BOLT; SHROUD M6X16	8-97096-525-0	01	1	0512-		●	●
129	BRACKET; UPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83573-129-1	01	1	0407-0511	●
129	BRACKET; UPR	1-83573-129-0	01	1	0512-		●	●
187	NUT; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6	1-83539-354-0	04	1	0407-0511	●
187	NUT; SHROUD M6	1-83539-354-0	04	1	0512-		●	●
188	BLOWER ASM; SHROUD AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-162-2	01	1	0407-0511	●
188	BLOWER ASM; SHROUD	1-83561-162-1	01	1	0512-0703		●	●
188	BLOWER ASM; SHROUD	8-98078-760-1	01	1	0704-		●	●
201	DRYER ASM; CONDENSER	8-98282-482-0	01	1	1410-		●	●
201	DRYER ASM; CONDENSER	1-83535-097-0	01	1	0407-		●	●
