8-74 — EVAPORATOR (#31428) — 28 parça

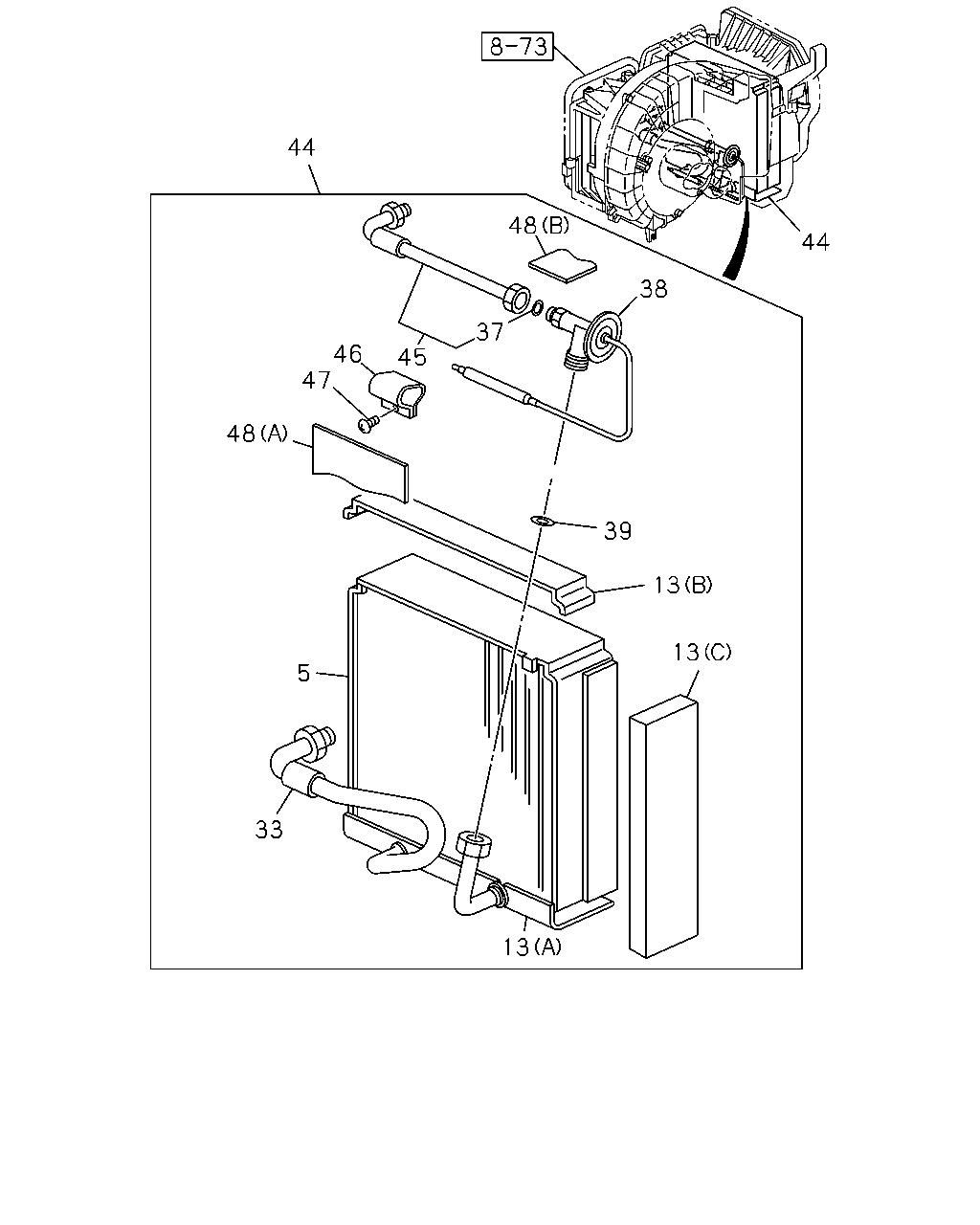

çizim 87201
44 48 44 38 37 46 47 45 48 39 13 13 5 33 13
BalonParca AdiParca NoAdetTipApplied Date A B C
5 EVAPORATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83562-097-0 01 1 0407-0511 ●
5 EVAPORATOR 1-83562-097-0 01 1 0512- ● ●
13 SEAL; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83579-938-0 01 1 0407-0511 ●
13 SEAL; EVAP
(C) 		1-83579-938-0 01 1 0512- ● ●
13 SEAL; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83579-959-0 01 1 0407-0511 ●
13 SEAL; EVAP
(A) 		1-83579-959-0 01 1 0512- ● ●
13 SEAL; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-960-0 01 1 0407-0511 ●
13 SEAL; EVAP
(B) 		1-83579-960-0 01 1 0512- ● ●
33 LINING; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-653-0 01 1 0407-0511 ●
33 LINING; EVAP 1-83579-653-0 01 1 0512- ● ●
37 GASKET; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=6.07 		8-94461-902-0 01 1 0407-0511 ●
37 GASKET; EVAP
ID=6.07 		8-94461-902-0 01 1 0512- ● ●
38 VALVE; EXPANSION
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83569-189-0 01 1 0407-0511 ●
38 VALVE; EXPANSION 1-83569-189-0 01 1 0512- ● ●
39 GASKET; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-94481-717-0 01 1 0407-0511 ●
39 GASKET; EVAP 8-94481-717-0 01 1 0512- ● ●
44 EVAPORATOR ASM; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83562-099-0 01 1 0407-0511 ●
44 EVAPORATOR ASM; A/C 1-83562-099-0 01 1 0512- ● ●
45 PIPE; EXPANSION VLV
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83567-682-0 01 1 0407-0511 ●
45 PIPE; EXPANSION VLV 1-83567-682-0 01 1 0512- ● ●
46 CLIP; EXPANSION VLV
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83574-214-0 01 1 0407-0511 ●
46 CLIP; EXPANSION VLV 1-83574-214-0 01 1 0512- ● ●
47 SCREW; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-97130-601-0 01 1 0407-0511 ●
47 SCREW; EVAP 8-97130-601-0 01 1 0512- ● ●
48 INSULATOR; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83579-784-0 01 1 0407-0511 ●
48 INSULATOR; EVAP
(A) 		1-83579-784-0 01 1 0512- ● ●
48 INSULATOR; EVAP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-969-0 01 1 0407-0511 ●
48 INSULATOR; EVAP
(B) 		1-83579-969-0 01 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
