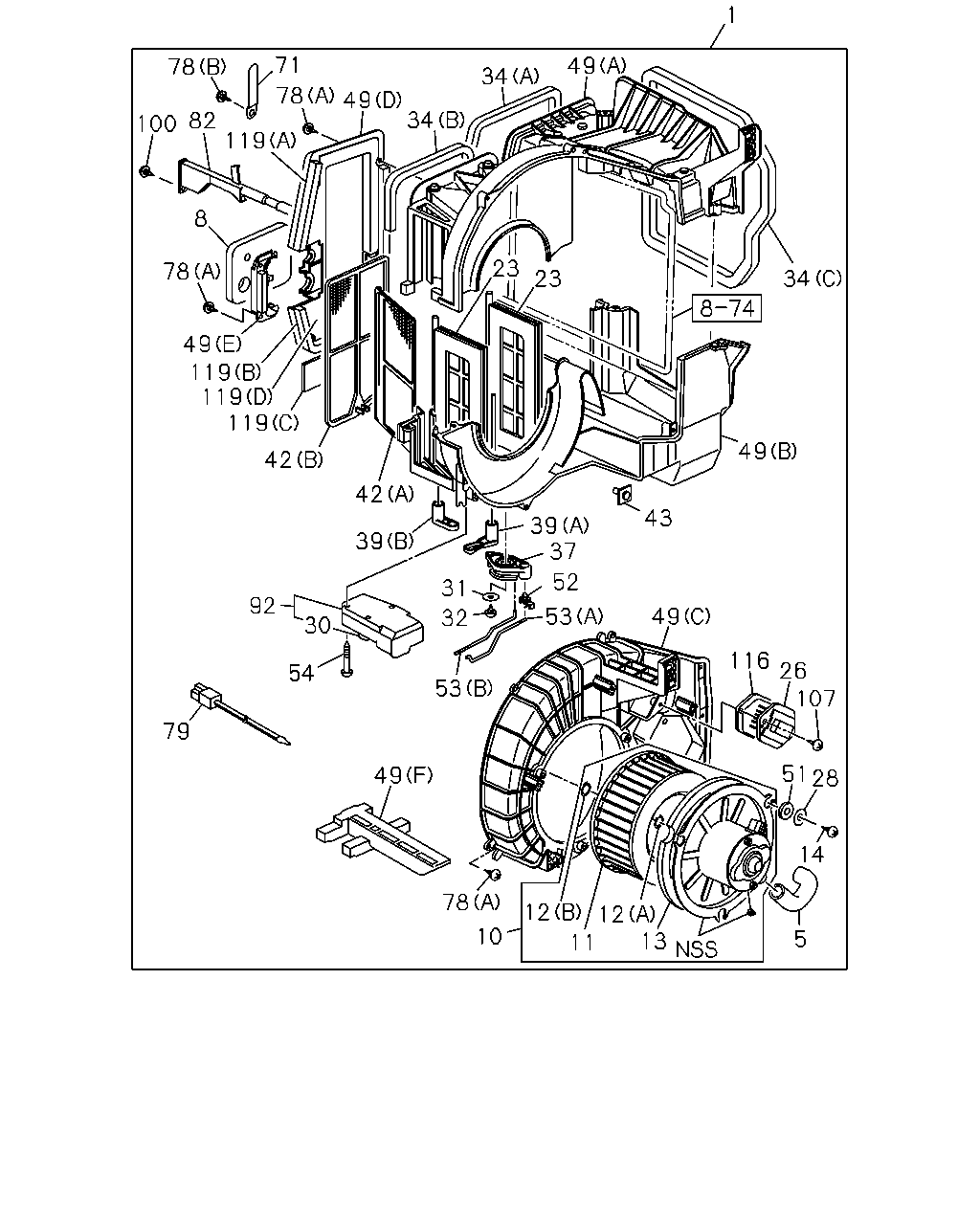

8-73 — BLOWER UNIT (#31427) — 96 parça

1 71 49 78 34 78 49 34 82 100 119 8 23 78 23 34 49 119 119 119 49 42 42 43 39 37 39 52 31 92 49 53 32 30 116 26 107 54 53 79 51 28 49 14 78 12 12 13 10 5 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BLOWER ASM AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-154-3	01	1	0407-0511	●
1	BLOWER ASM	1-83561-154-5	01	1	0512-		●	●
5	HOSE; AIR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83563-140-0	01	1	0407-0511	●
5	HOSE; AIR	1-83563-140-0	01	1	0512-		●	●
8	SEAL; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83539-261-1	01	1	0407-0511	●
8	SEAL; BLOWER UNIT	1-83539-261-1	01	1	0512-		●	●
10	MOTOR ASM; FAN,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83561-161-0	01	1	0407-0511	●
10	MOTOR ASM; FAN,BLOWER UNIT	1-83561-161-0	01	1	0512-		●	●
11	IMPELLER; FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-635-0	01	1	0407-0511	●
11	IMPELLER; FAN MOTOR	1-83579-635-0	01	1	0512-		●	●
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	5-83569-088-0	01	1	0407-0511	●
12	RING; SNAP,FAN MOTOR (A)	5-83569-088-0	01	1	0512-		●	●
12	RING; SNAP,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	8-94243-962-0	01	1	0407-0511	●
12	RING; SNAP,FAN MOTOR (B)	8-94243-962-0	01	1	0512-		●	●
13	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-636-0	01	1	0407-0511	●
13	LINING; BLOWER UNIT	1-83579-636-0	01	1	0512-		●	●
14	SCREW; COVER TO CASE M5X20	9-09829-324-1	03	1	0512-		●	●
14	SCREW; COVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-97130-601-0	03	1	0407-0511	●
23	SHUTTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-637-0	02	1	0407-0511	●
23	SHUTTER; BLOWER UNIT	1-83579-637-0	02	1	0512-		●	●
26	TRANSISTOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-654-0	01	1	0407-0511	●
26	TRANSISTOR; BLOWER UNIT	1-83579-654-0	01	1	0512-		●	●
28	WASHER; PL,FAN MOTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-170-0	03	1	0407-0511	●
28	WASHER; PL,FAN MOTOR	1-83579-170-0	03	1	0512-		●	●
30	LEVER; ACTUATOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83564-345-1	01	1	0407-0511	●
30	LEVER; ACTUATOR	1-83564-345-1	01	1	0512-		●	●
31	WASHER; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-095-0	01	1	0407-0511	●
31	WASHER; LEVER	1-83579-095-0	01	1	0512-		●	●
32	SCREW; LEVER M5X20	9-09829-324-1	01	1	0512-		●	●
32	SCREW; LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-97130-601-0	01	1	0407-0511	●
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-633-2	01	1	0407-0511	●
34	LINING; BLOWER UNIT (A)	1-83579-633-2	01	1	0512-		●	●
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-634-2	01	1	0407-0511	●
34	LINING; BLOWER UNIT (B)	1-83579-634-2	01	1	0512-		●	●
34	LINING; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83579-644-0	01	1	0407-0511	●
34	LINING; BLOWER UNIT (C)	1-83579-644-0	01	1	0512-		●	●
37	LEVER; MODE LEVER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83564-344-0	01	1	0407-0511	●
37	LEVER; MODE LEVER	1-83564-344-0	01	1	0512-		●	●
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-342-0	01	1	0407-0511	●
39	LEVER; SHUTTER,BLOWER UNIT (A)	1-83564-342-0	01	1	0512-		●	●
39	LEVER; SHUTTER,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-343-0	01	1	0407-0511	●
39	LEVER; SHUTTER,BLOWER UNIT (B)	1-83564-343-0	01	1	0512-		●	●
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-643-2	01	1	0407-0511	●
42	FILTER; BLOWER UNIT (B)	1-83579-643-3	01	1	0512-		●	●
42	FILTER; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-993-0	02	1	0407-0511	●
42	FILTER; BLOWER UNIT (A)	1-83579-993-0	02	1	0512-		●	●
43	BOLT; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-657-2	04	1	0407-0511	●
43	BOLT; CASE	1-83579-657-2	04	1	0512-		●	●
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83564-337-4	01	1	0407-0511	●
49	CASE; BLOWER UNIT (C)	1-83564-337-4	01	1	0512-		●	●
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (E)	1-83564-339-1	01	1	0407-0511	●
49	CASE; BLOWER UNIT (E)	1-83564-339-1	01	1	0512-		●	●
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (F)	1-83564-340-1	01	1	0407-0511	●
49	CASE; BLOWER UNIT (F)	1-83564-340-1	01	1	0512-		●	●
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83564-351-1	01	1	0407-0511	●
49	CASE; BLOWER UNIT (A)	1-83564-351-1	01	1	0512-		●	●
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D)	1-83564-353-1	01	1	0407-0511	●
49	CASE; BLOWER UNIT (D)	1-83564-353-1	01	1	0512-		●	●
49	CASE; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83564-406-1	01	1	0407-0511	●
49	CASE; BLOWER UNIT (B)	1-83564-406-1	01	1	0512-		●	●
51	ISOLATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-496-0	03	1	0407-0511	●
51	ISOLATOR; BLOWER UNIT	1-83579-496-0	03	1	0512-		●	●
52	CLIP; LEVER TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94248-794-0	02	1	0407-0511	●
52	CLIP; LEVER TO CASE	8-94248-794-0	02	1	0512-		●	●
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-638-0	01	1	0407-0511	●
53	ROD; ACTUATOR,BLOWER UNIT (A)	1-83579-638-0	01	1	0512-		●	●
53	ROD; ACTUATOR,BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-639-0	01	1	0407-0511	●
53	ROD; ACTUATOR,BLOWER UNIT (B)	1-83579-639-0	01	1	0512-		●	●
54	SCREW; ACTUATOR TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	8-94348-809-0	02	1	0407-0511	●
54	SCREW; ACTUATOR TO CASE	8-94348-809-0	02	1	0512-		●	●
71	CLIP; HARNESS AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83574-080-0	01	1	0407-0511	●
71	CLIP; HARNESS	1-83574-080-0	01	1	0512-		●	●
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	0407-0511	●
78	SCREW; CASE TO CASE (B) M5X10 TAPPING W/PL WASHER	0-74300-510-0	01	1	0512-		●	●
78	SCREW; CASE TO CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M4X16	8-94324-850-0	17	1	0407-0511	●
78	SCREW; CASE TO CASE (A) M4X16	8-94324-850-0	17	1	0512-		●	●
79	SENSOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83544-037-0	01	1	0407-0511	●
79	SENSOR; BLOWER UNIT	1-83544-037-0	01	1	0512-		●	●
82	BRACKET; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83571-871-1	01	1	0407-0511	●
82	BRACKET; BLOWER UNIT	1-83571-871-1	01	1	0512-		●	●
92	ACTUATOR; BLOWER UNIT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-640-1	01	1	0407-0511	●
92	ACTUATOR; BLOWER UNIT	1-83579-640-1	01	1	0512-		●	●
100	SCREW; BRKT AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M4X16	8-94324-850-0	01	1	0407-0511	●
100	SCREW; BRKT M4X16	8-94324-850-0	01	1	0512-		●	●
107	SCREW; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M4X16	8-94324-850-0	02	1	0407-0511	●
107	SCREW; TRANSISTOR M4X16	8-94324-850-0	02	1	0512-		●	●
116	SEAL; TRANSISTOR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ)	1-83579-656-0	01	1	0407-0511	●
116	SEAL; TRANSISTOR	1-83579-656-0	01	1	0512-		●	●
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (D)	1-83578-032-0	01	1	0407-0511	●
119	LINING; CASE (D)	1-83578-032-0	01	1	0512-		●	●
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A)	1-83579-670-1	01	1	0407-0511	●
119	LINING; CASE (A)	1-83579-670-1	01	1	0512-		●	●
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B)	1-83579-671-1	01	1	0407-0511	●
119	LINING; CASE (B)	1-83579-671-1	01	1	0512-		●	●
119	LINING; CASE AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C)	1-83579-961-0	01	1	0407-0511	●
119	LINING; CASE (C)	1-83579-961-0	01	1	0512-		●	●
