8-60 — HEATER UNIT; FRONT (#31425) — 105 parça

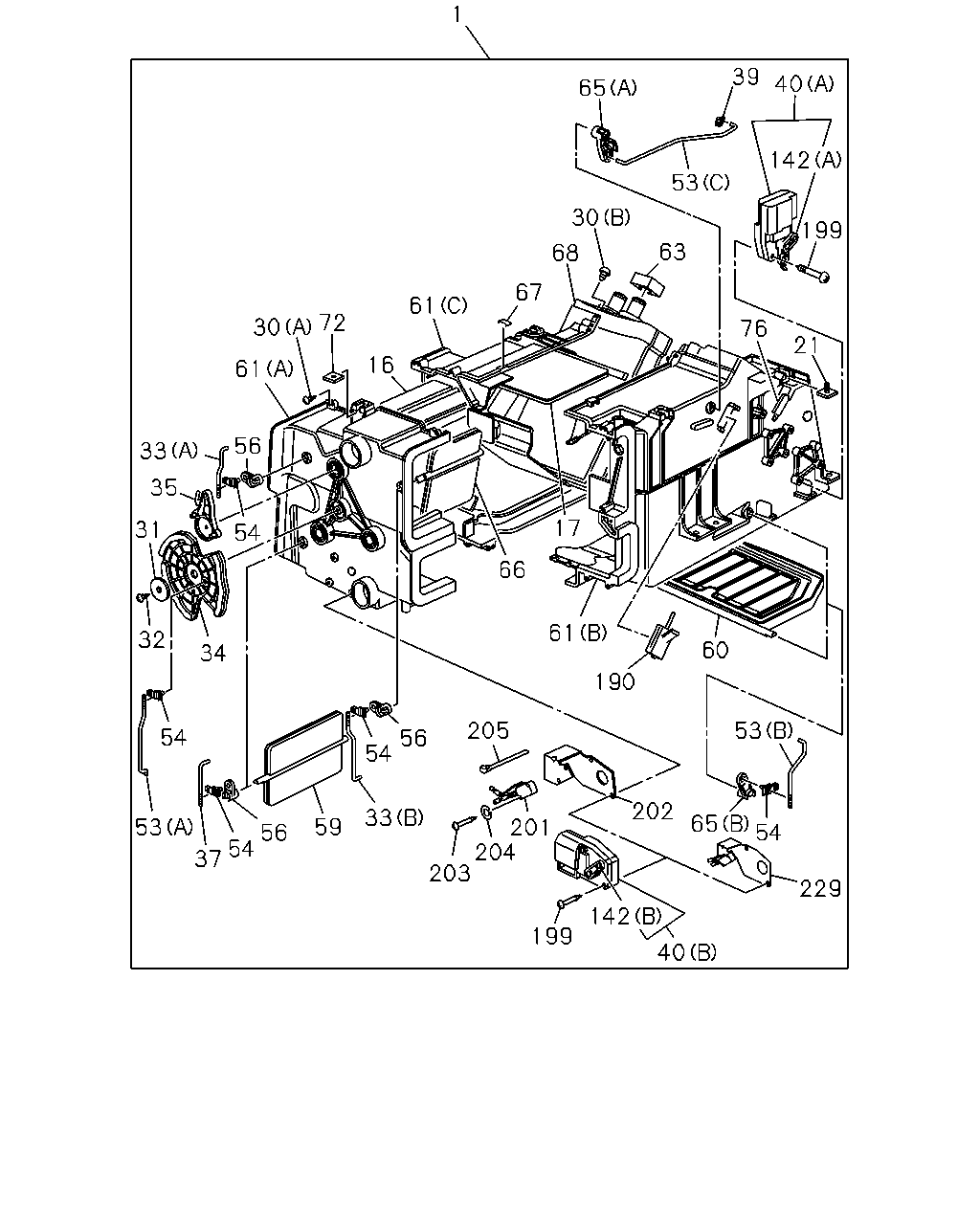

çizim 105149
33 35 31 32 34 54 53 37 54 56 59 33 203 204 201 199 40 142 229 54 65 53 202 190 60 61 66 17 54 56 61 30 72 61 16 54 56 205 67 68 30 63 76 21 199 53 142 40 39 65 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		1-83511-184-1 01 1 0512-1409 ●
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) 		8-98238-482-0 01 1 1410- ●
1 HEATER UNIT 1-83511-182-1 01 1 0407-0511 ●
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83511-182-1 01 1 0512-1409 ●
1 HEATER UNIT 1-83511-182-1 01 1 0512-1409 ●
1 HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-98238-480-0 01 1 1410- ●
1 HEATER UNIT 8-98238-480-0 01 1 1410- ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0407-0511 ●
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0512- ● ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0407-0511 ●
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0512- ● ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0407-0511 ●
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0512- ● ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0407-0511 ●
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0512- ● ●
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0407-0511 ●
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0512-1409 ● ●
30 SCREW; HTR UNIT
(B) M5X16 		8-94248-820-0 01 1 1410- ● ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0407-0511 ●
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0512- ● ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0407-0511 ●
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0512-1409 ● ●
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410- ● ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0407-0511 ●
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0512- ● ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0407-0511 ●
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0512- ● ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0407-0511 ●
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0512- ● ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0407-0511 ●
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0512- ● ●
37 ROD; LEVER 1-83579-620-1 01 1 0407-0511 ●
37 ROD; LEVER 1-83579-620-1 01 1 0512- ● ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0407-0511 ●
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0512- ● ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83579-649-2 01 1 0512- ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0407-0511 ●
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0512- ● ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-676-2 01 1 0407-0511 ●
40 ACTUATOR; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83579-676-2 01 1 0512- ●
40 ACTUATOR; HTR UNIT
(B) 		1-83579-676-2 01 1 0512- ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0407-0511 ●
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0512- ● ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0407-0511 ●
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0512- ● ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0407-0511 ●
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0512- ● ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0407-0511 ●
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0512- ● ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0407-0511 ●
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0512- ● ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0407-0511 ●
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0512- ● ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0407-0511 ●
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0512- ● ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-401-0 01 1 0512- ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (A) 		1-83564-402-0 01 1 0512- ●
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 0407-0511 ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-323-5 01 1 0512- ●
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 0512- ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0407-0511 ●
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0512- ● ●
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 0407-0511 ●
61 CASE; HTR UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83564-347-3 01 1 0512- ●
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 0512- ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 0407-0511 ●
63 LINING; HTR UNIT 1-83579-557-0 02 1 0512- ● ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0407-0511 ●
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0512- ● ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0407-0511 ●
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0512- ● ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0407-0511 ●
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0512- ● ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0407-0511 ●
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0512- ● ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 0407-0511 ●
68 CORE; HTR UNIT 1-83562-078-1 01 1 0512-1409 ● ●
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410- ● ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0407-0511 ●
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0512- ● ●
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0407-0511 ●
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0512- ● ●
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (B) 		1-83564-345-1 01 1 0512- ●
142 LEVER; ACTUATOR
(B) 		1-83564-409-0 01 1 0407-0511 ●
142 LEVER; ACTUATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83564-409-0 01 1 0512- ●
142 LEVER; ACTUATOR
(B) 		1-83564-409-0 01 1 0512- ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0407-0511 ●
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0512- ● ●
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0407-0511 ●
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0512- ● ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0407-0511 ●
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0512- ● ●
201 SWITCH; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-679-1 01 1 1410- ●
201 SWITCH; MICRO,HEATER UNIT 1-83579-679-1 01 1 1410- ●
202 BRACKET; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83571-907-1 01 1 1410- ●
202 BRACKET; MICRO SWITCH 1-83571-907-1 01 1 1410- ●
203 SCREW; MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		5-83569-141-0 02 1 1410- ●
203 SCREW; MICRO SWITCH 5-83569-141-0 02 1 1410- ●
204 WASHER; LK,MICRO SWITCH
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=3.1 		9-09150-503-0 02 1 1410- ●
204 WASHER; LK,MICRO SWITCH
ID=3.1 		9-09150-503-0 02 1 1410- ●
205 CLIP; HARNESS
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=92 		1-83574-159-0 01 1 1410- ●
205 CLIP; HARNESS
L=92 		1-83574-159-0 01 1 1410- ●
229 SWITCH ASM; MICRO,HEATER UNIT 1-83579-688-2 01 1 0407-0511 ●
229 SWITCH ASM; MICRO,HEATER UNIT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83579-688-2 01 1 0512-1409 ●
229 SWITCH ASM; MICRO,HEATER UNIT 1-83579-688-2 01 1 0512-1409 ●
