8-52 — PIPING; AIR CONDITIONING (#31424) — 246 parça

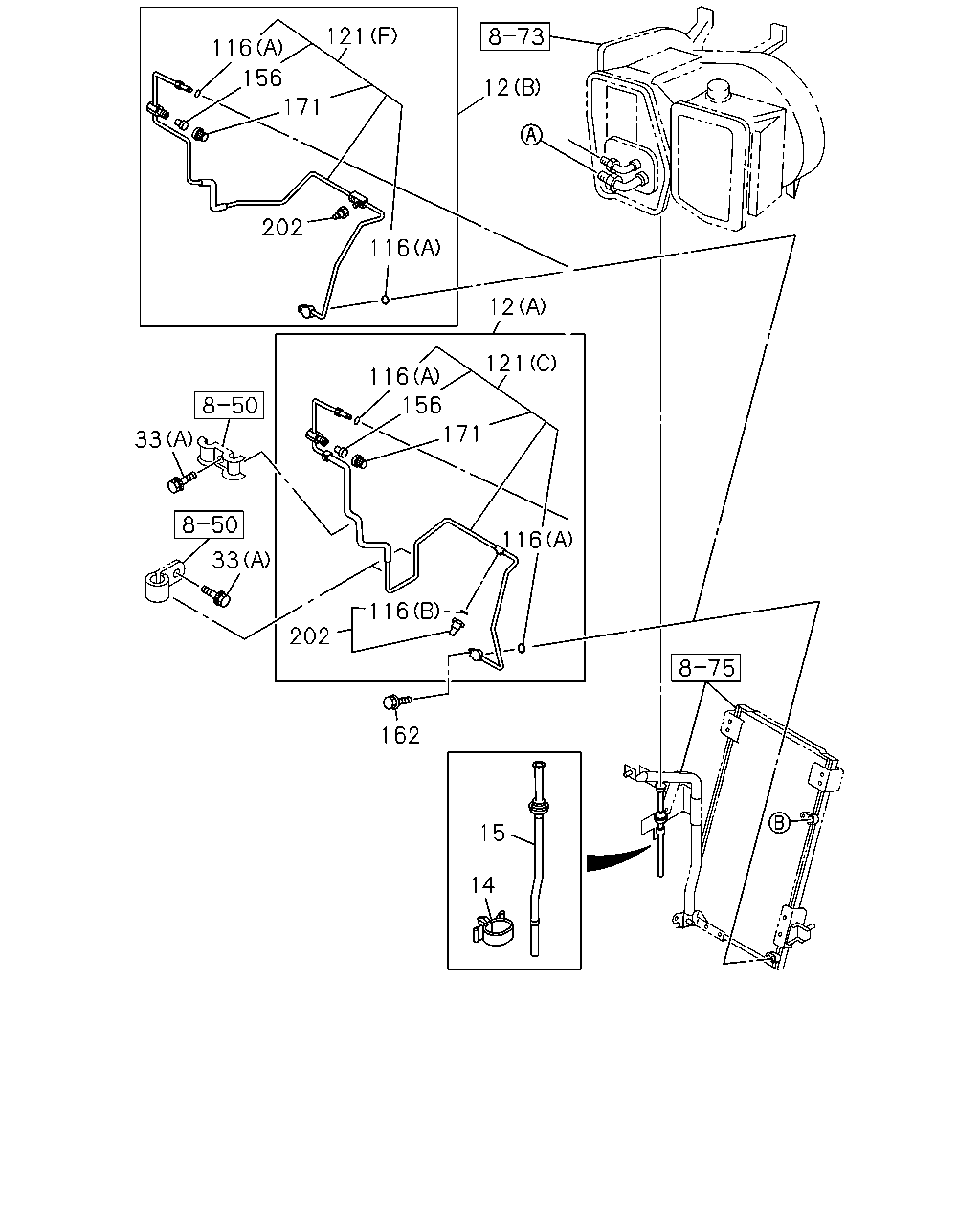

çizim 87020
121 116 156 12 171 202 116 12 121 116 156 171 33 116 33 116 202 162 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C
12 PIPE; COOLER,EVAP TO TANK
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83567-852-1 01 1 0407-0511 ●
12 PIPE; COOLER,EVAP TO TANK
(B) 		1-83567-877-1 01 1 0512- ● ●
14 CLIP; BAND,EVAP DRAIN HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=20 		8-94410-200-0 01 1 0407-0511 ●
14 CLIP; BAND,EVAP DRAIN HOSE
ID=20 		8-94410-200-0 01 1 0512- ● ●
15 HOSE; DRAIN
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83572-635-0 01 1 0407-0511 ●
15 HOSE; DRAIN 1-83572-635-0 01 1 0512- ● ●
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
33 BOLT; CLIP
6WG1 TC-C(72L) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
33 BOLT; CLIP
6WG1 TC-C(72L) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511 ●
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904 ● ●
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
116 GASKET; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=7.4 		8-97095-906-0 02 1 0407-0511 ●
116 GASKET; PIPE
(A) ID=7.4 		8-97095-906-0 02 1 0512- ● ●
116 GASKET; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		8-97178-772-0 01 1 0407-0511 ●
121 HOSE; COOLER
6WF1 TC-C(1B8) (A) 		1-83577-115-0 01 1 0602- ●
121 HOSE; COOLER
6WF1 TC-C(1B8) (B) 		1-83577-116-0 01 1 0602- ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83567-863-1 01 1 0407-0511 ●
121 HOSE; COOLER
(F) 		1-83577-054-0 01 1 0512- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83572-953-0 01 1 0407-0511 ●
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0512-0601 ● ●
121 HOSE; COOLER
6WG1 TC-C(72L) (A) 		1-83577-070-0 01 1 0602- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83572-954-0 01 1 0407-0511 ●
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0512-0601 ● ●
121 HOSE; COOLER
6WG1 TC-C(72L) (B) 		1-83577-071-0 01 1 0602- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (D) 		1-83572-942-1 01 1 0407-0511 ●
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0512- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (E) 		1-83572-943-0 01 1 0407-0511 ●
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0512- ● ●
156 VALVE; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		8-97095-909-0 01 1 0407-0511 ●
156 VALVE; PIPE 8-97095-909-0 01 1 0512- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28680-625-0 02 1 0407-0409 ●
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28080-625-0 02 1 0410-0511 ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28080-625-0 02 1 0512-0512 ● ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0601- ● ●
171 CAP; PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAP MARK H 		8-97095-911-0 01 1 0407-0511 ●
171 CAP; PIPE
CAP MARK H 		8-97095-911-0 01 1 0512- ● ●
202 SWITCH; PRESSURE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83564-392-0 01 1 0407-0511 ●
202 SWITCH; PRESSURE 1-83564-392-1 01 1 0512- ● ●

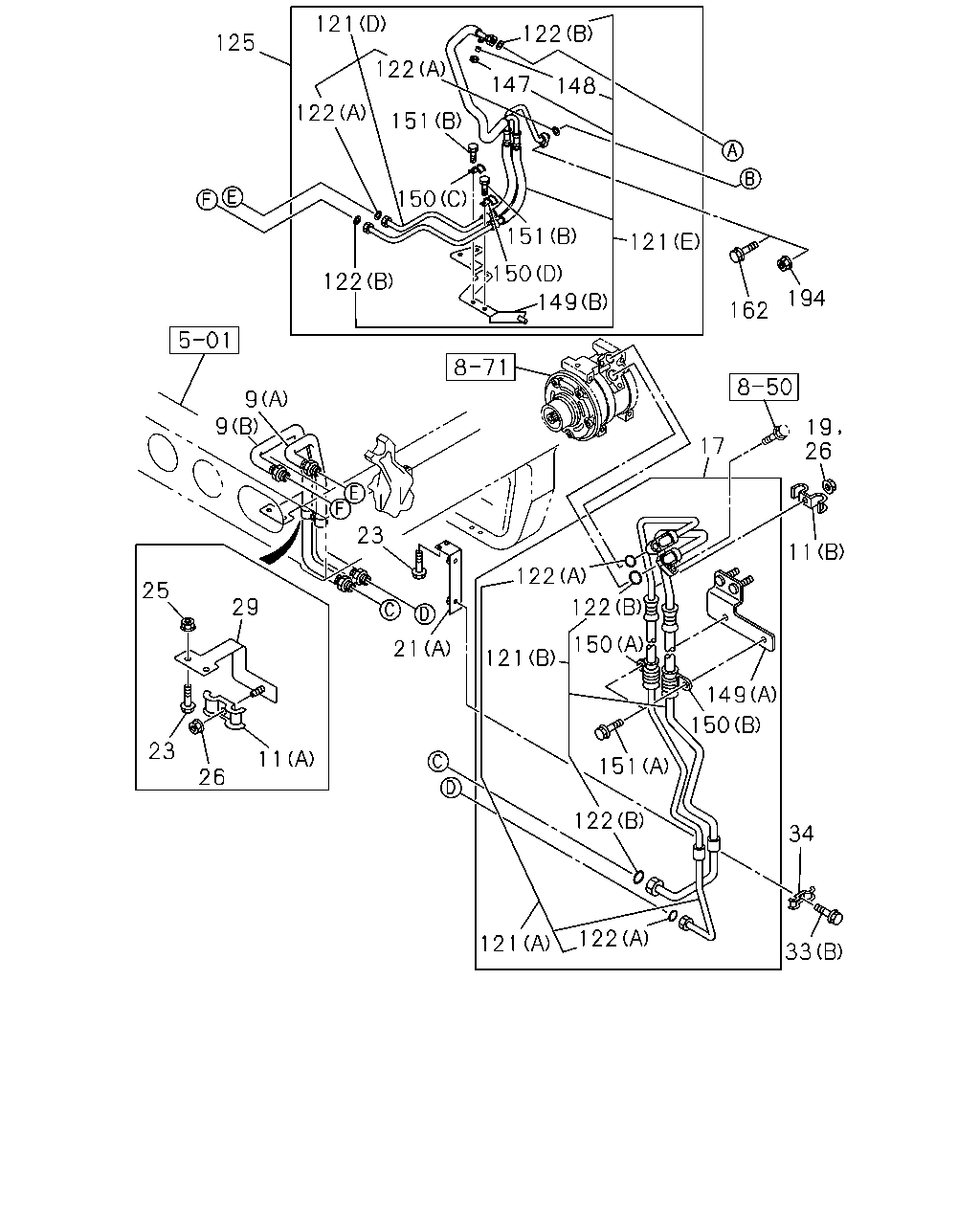

çizim 105147
121 122 125 122 147 148 122 151 150 151 121 150 122 194 149 162 9 19 26 17 23 11 122 25 29 122 150 21 121 149 150 23 11 151 26 122 34 122 121 33
BalonParca AdiParca NoAdetTipApplied Date A B C
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L) (C) 		1-83567-888-0 01 1 0512- ● ●
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L) (D) 		1-83567-889-1 01 1 0512- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83567-841-0 01 1 0407-0511 ●
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) (C) 		1-83567-892-0 01 1 0512- ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83567-842-0 01 1 0407-0511 ●
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) (D) 		1-83567-893-0 01 1 0512- ●
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=20 & 20 		1-83574-195-1 01 1 0407-0511 ●
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) (A) ID=20 & 20 		1-83574-195-1 02 1 0512- ●
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0407-0511 ●
11 CLIP; COOLER PIPE
(B) ID=12 & 14.5 		1-83574-257-0 01 1 0512- ● ●
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) 		1-83577-114-0 01 1 0602- ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83572-928-1 01 1 0407-0511 ●
17 HOSE; FLEX,CMPR TO PIPE 1-83577-062-1 01 1 0512-0601 ● ●
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-C(72L) 		1-83577-062-1 01 1 0602- ● ●
19 NUT; CLIP FIX
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
19 NUT; CLIP FIX
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
19 NUT; CLIP FIX
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
19 NUT; CLIP FIX
6WG1 TC-C(72L) M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ● ●
19 NUT; CLIP FIX
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83573-249-0 01 1 0407-0511 ●
21 BRACKET; COOLER HOSE
(B) 		1-83573-297-0 01 1 0512- ● ●
23 BOLT; BRKT
6WG1 TC-C(72L) M8X20 FLANGE 		0-28080-820-0 02 1 0512-0512 ● ●
23 BOLT; BRKT
6WG1 TC-C(72L) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ●
23 BOLT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8X20 FLANGE 		0-28080-820-0 04 1 0407-0511 ●
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512 ● ●
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512 ● ●
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28050-820-0 04 1 0601- ● ●
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28050-820-0 04 1 0601- ● ●
25 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
25 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
25 NUT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
25 NUT; BRKT
6WG1 TC-C(72L) M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ● ●
25 NUT; BRKT
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
26 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
29 BRACKET; COOLER PIPE
MJX16P M/T(Y3Z) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83573-282-1 01 1 0407-0511 ●
29 BRACKET; COOLER PIPE
6WF1 TC-C(1B8) 		1-83573-285-0 01 1 0512-0601 ●
29 BRACKET; COOLER PIPE
6WF1 TC-C(1B8) 		1-83573-282-1 01 1 0602- ●
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
33 BOLT; CLIP
6WG1 TC-C(72L) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
33 BOLT; CLIP
6WG1 TC-C(72L) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511 ●
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904 ● ●
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
34 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=20 & 20 		1-83574-195-1 01 1 0407-0511 ●
34 CLIP; COOLER PIPE
6WG1 TC-C(72L) ID=20 & 20 		1-83574-195-1 03 1 0512- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8) (A) 		1-83577-115-0 01 1 0602- ●
121 HOSE; COOLER
6WF1 TC-C(1B8) (B) 		1-83577-116-0 01 1 0602- ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83567-863-1 01 1 0407-0511 ●
121 HOSE; COOLER
(F) 		1-83577-054-0 01 1 0512- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83572-953-0 01 1 0407-0511 ●
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0512-0601 ● ●
121 HOSE; COOLER
6WG1 TC-C(72L) (A) 		1-83577-070-0 01 1 0602- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83572-954-0 01 1 0407-0511 ●
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0512-0601 ● ●
121 HOSE; COOLER
6WG1 TC-C(72L) (B) 		1-83577-071-0 01 1 0602- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (D) 		1-83572-942-1 01 1 0407-0511 ●
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0512- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (E) 		1-83572-943-0 01 1 0407-0511 ●
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0512- ● ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) ID=11.7 		8-97095-907-0 02 1 0407-0511 ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=11.7 		8-97095-907-0 02 1 0407-0511 ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) ID=11.7 		8-97095-907-0 02 1 0407-0511 ●
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0512- ● ●
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0512- ● ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) ID=14.5 		8-97095-908-0 02 1 0407-0511 ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) ID=14.5 		8-97095-908-0 02 1 0407-0511 ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) ID=14.5 		8-97095-908-0 02 1 0407-0511 ●
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0512- ● ●
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0512- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> 		1-83572-940-0 01 1 0407-0511 ●
125 HOSE; FLEX,UNIT TO CMPR 1-83577-026-1 01 1 0512- ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> CAP MARK L 		8-97095-910-0 01 1 0407-0511 ●
147 CAP; FLEX HOSE
CAP MARK L 		8-97095-910-0 01 1 0512- ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> 		8-97095-909-0 01 1 0407-0511 ●
148 VALVE; FLEX HOSE 8-97095-909-0 01 1 0512- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83573-255-0 01 1 0407-0511 ●
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0512- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83573-265-0 01 1 0407-0511 ●
149 BRACKET; COOLER HOSE
(B) 		1-83573-265-0 01 1 0512- ● ●
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83574-249-0 01 1 0407-0511 ●
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 0512- ● ●
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83574-264-0 01 1 0407-0511 ●
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 0512- ● ●
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (C) 		1-83574-262-0 01 1 0407-0511 ●
150 CLIP; HOSE
(C) 		1-83574-262-0 01 1 0512- ● ●
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (D) 		1-83574-263-0 01 1 0407-0511 ●
150 CLIP; HOSE
(D) 		1-83574-263-0 01 1 0512- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83578-098-0 02 1 0407-0511 ●
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0512- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83539-336-0 02 1 0407-0511 ●
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0512- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28680-625-0 02 1 0407-0409 ●
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28080-625-0 02 1 0410-0511 ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28080-625-0 02 1 0512-0512 ● ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0601- ● ●
194 NUT; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●

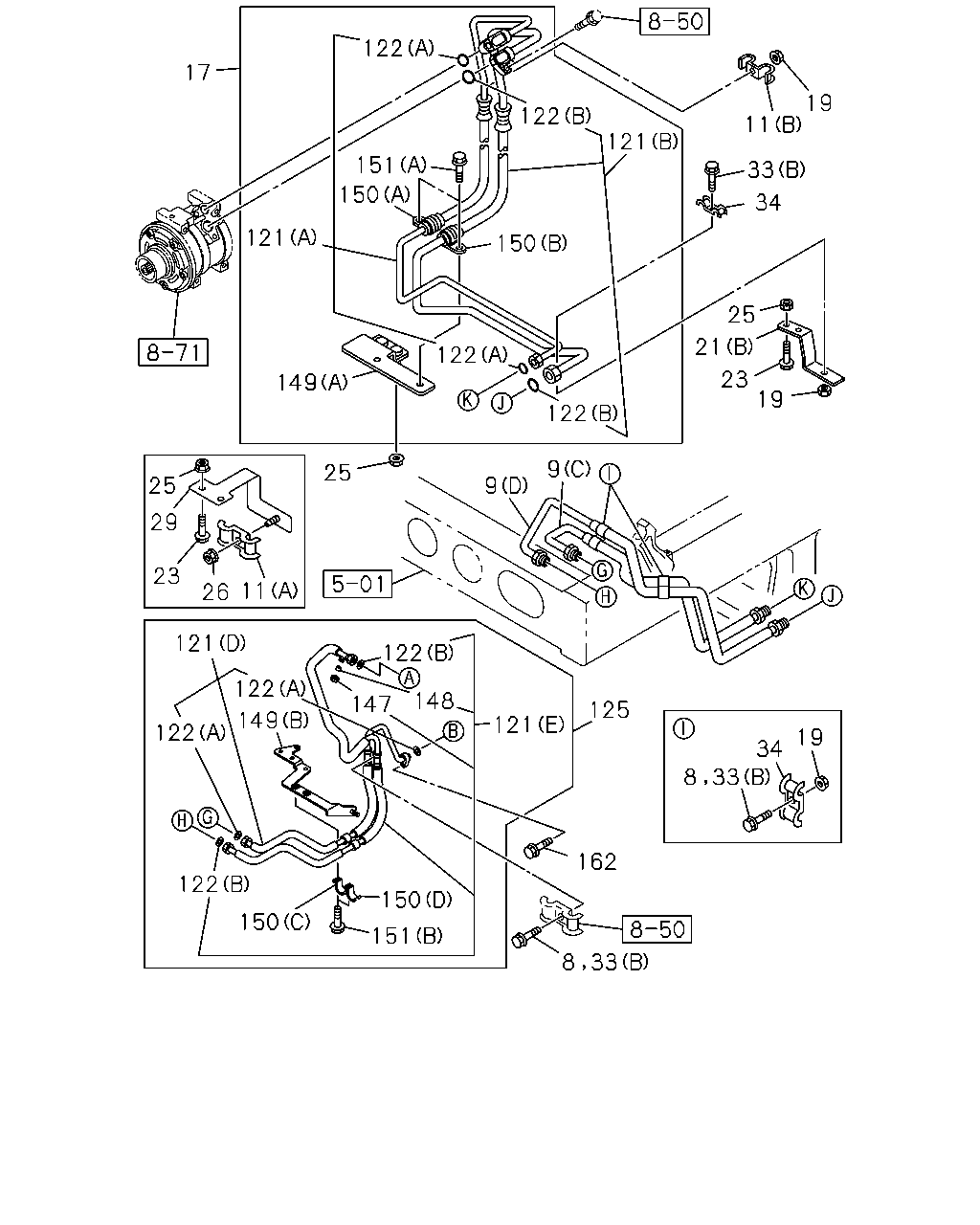

çizim 105156
122 17 19 11 122 121 151 33 150 34 121 150 25 21 122 23 149 19 122 9 25 25 9 29 23 11 26 121 122 148 122 147 125 149 121 122 19 34 162 122 150 150 151 8 33 8 33
BalonParca AdiParca NoAdetTipApplied Date A B C
8 BOLT; CLIP
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
8 BOLT; CLIP
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
8 BOLT; CLIP
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
8 BOLT; CLIP
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L) (C) 		1-83567-888-0 01 1 0512- ● ●
9 PIPE; COOLER,HOSE TO HOSE
6WG1 TC-C(72L) (D) 		1-83567-889-1 01 1 0512- ● ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) 		1-83567-841-0 01 1 0407-0511 ●
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) (C) 		1-83567-892-0 01 1 0512- ●
9 PIPE; COOLER,HOSE TO HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83567-842-0 01 1 0407-0511 ●
9 PIPE; COOLER,HOSE TO HOSE
6WF1 TC-C(1B8) (D) 		1-83567-893-0 01 1 0512- ●
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=20 & 20 		1-83574-195-1 01 1 0407-0511 ●
11 CLIP; COOLER PIPE
6WF1 TC-C(1B8) (A) ID=20 & 20 		1-83574-195-1 02 1 0512- ●
11 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) ID=12 & 14.5 		1-83574-257-0 01 1 0407-0511 ●
11 CLIP; COOLER PIPE
(B) ID=12 & 14.5 		1-83574-257-0 01 1 0512- ● ●
17 HOSE; FLEX,CMPR TO PIPE
6WF1 TC-C(1B8) 		1-83577-114-0 01 1 0602- ●
17 HOSE; FLEX,CMPR TO PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83572-928-1 01 1 0407-0511 ●
17 HOSE; FLEX,CMPR TO PIPE 1-83577-062-1 01 1 0512-0601 ● ●
17 HOSE; FLEX,CMPR TO PIPE
6WG1 TC-C(72L) 		1-83577-062-1 01 1 0602- ● ●
19 NUT; CLIP FIX
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
19 NUT; CLIP FIX
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
19 NUT; CLIP FIX
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
19 NUT; CLIP FIX
6WG1 TC-C(72L) M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ● ●
19 NUT; CLIP FIX
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
21 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83573-249-0 01 1 0407-0511 ●
21 BRACKET; COOLER HOSE
(B) 		1-83573-297-0 01 1 0512- ● ●
23 BOLT; BRKT
6WG1 TC-C(72L) M8X20 FLANGE 		0-28080-820-0 02 1 0512-0512 ● ●
23 BOLT; BRKT
6WG1 TC-C(72L) M8X20 FLANGE 		0-28050-820-0 02 1 0601- ● ●
23 BOLT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8X20 FLANGE 		0-28080-820-0 04 1 0407-0511 ●
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512 ● ●
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28080-820-0 04 1 0512-0512 ● ●
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28050-820-0 04 1 0601- ● ●
23 BOLT; BRKT
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28050-820-0 04 1 0601- ● ●
25 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
25 NUT; BRKT
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
25 NUT; BRKT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
25 NUT; BRKT
6WG1 TC-C(72L) M8 FLANGE 		0-91150-108-0 03 1 0512-0602 ● ●
25 NUT; BRKT
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
26 NUT; PIPE CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
26 NUT; PIPE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ●
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
26 NUT; PIPE CLIP
6WF1 TC-C(1B8) M8 FLANGE 		0-91180-108-0 01 1 0603- ●
29 BRACKET; COOLER PIPE
MJX16P M/T(Y3Z) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-83573-282-1 01 1 0407-0511 ●
29 BRACKET; COOLER PIPE
6WF1 TC-C(1B8) 		1-83573-285-0 01 1 0512-0601 ●
29 BRACKET; COOLER PIPE
6WF1 TC-C(1B8) 		1-83573-282-1 01 1 0602- ●
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
33 BOLT; CLIP
6WG1 TC-C(72L) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
33 BOLT; CLIP
6WG1 TC-C(72L) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
33 BOLT; CLIP
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511 ●
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904 ● ●
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
34 CLIP; COOLER PIPE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) ID=20 & 20 		1-83574-195-1 01 1 0407-0511 ●
34 CLIP; COOLER PIPE
6WG1 TC-C(72L) ID=20 & 20 		1-83574-195-1 03 1 0512- ● ●
121 HOSE; COOLER
6WF1 TC-C(1B8) (A) 		1-83577-115-0 01 1 0602- ●
121 HOSE; COOLER
6WF1 TC-C(1B8) (B) 		1-83577-116-0 01 1 0602- ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-83567-863-1 01 1 0407-0511 ●
121 HOSE; COOLER
(F) 		1-83577-054-0 01 1 0512- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83572-953-0 01 1 0407-0511 ●
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0512-0601 ● ●
121 HOSE; COOLER
6WG1 TC-C(72L) (A) 		1-83577-070-0 01 1 0602- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83572-954-0 01 1 0407-0511 ●
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0512-0601 ● ●
121 HOSE; COOLER
6WG1 TC-C(72L) (B) 		1-83577-071-0 01 1 0602- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (D) 		1-83572-942-1 01 1 0407-0511 ●
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0512- ● ●
121 HOSE; COOLER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (E) 		1-83572-943-0 01 1 0407-0511 ●
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0512- ● ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) ID=11.7 		8-97095-907-0 02 1 0407-0511 ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=11.7 		8-97095-907-0 02 1 0407-0511 ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (A) ID=11.7 		8-97095-907-0 02 1 0407-0511 ●
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0512- ● ●
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0512- ● ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) ID=14.5 		8-97095-908-0 02 1 0407-0511 ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) ID=14.5 		8-97095-908-0 02 1 0407-0511 ●
122 GASKET
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) ID=14.5 		8-97095-908-0 02 1 0407-0511 ●
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0512- ● ●
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0512- ● ●
125 HOSE; FLEX,UNIT TO CMPR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> 		1-83572-940-0 01 1 0407-0511 ●
125 HOSE; FLEX,UNIT TO CMPR 1-83577-026-1 01 1 0512- ● ●
147 CAP; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> CAP MARK L 		8-97095-910-0 01 1 0407-0511 ●
147 CAP; FLEX HOSE
CAP MARK L 		8-97095-910-0 01 1 0512- ● ●
148 VALVE; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> 		8-97095-909-0 01 1 0407-0511 ●
148 VALVE; FLEX HOSE 8-97095-909-0 01 1 0512- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83573-255-0 01 1 0407-0511 ●
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0512- ● ●
149 BRACKET; COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83573-265-0 01 1 0407-0511 ●
149 BRACKET; COOLER HOSE
(B) 		1-83573-265-0 01 1 0512- ● ●
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83574-249-0 01 1 0407-0511 ●
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 0512- ● ●
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83574-264-0 01 1 0407-0511 ●
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 0512- ● ●
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (C) 		1-83574-262-0 01 1 0407-0511 ●
150 CLIP; HOSE
(C) 		1-83574-262-0 01 1 0512- ● ●
150 CLIP; HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (D) 		1-83574-263-0 01 1 0407-0511 ●
150 CLIP; HOSE
(D) 		1-83574-263-0 01 1 0512- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-83578-098-0 02 1 0407-0511 ●
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0512- ● ●
151 BOLT; CLIP FIX,COOLER HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) CAB UP +110MM<TGG> (B) 		1-83539-336-0 02 1 0407-0511 ●
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0512- ● ●
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28680-625-0 02 1 0407-0409 ●
162 BOLT; FLEX HOSE
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M6X25 FLANGE 		0-28080-625-0 02 1 0410-0511 ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28080-625-0 02 1 0512-0512 ● ●
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
