◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-40 - HEATER SYSTEM ▶
8-40 — HEATER SYSTEM (#31421) — 189 parça

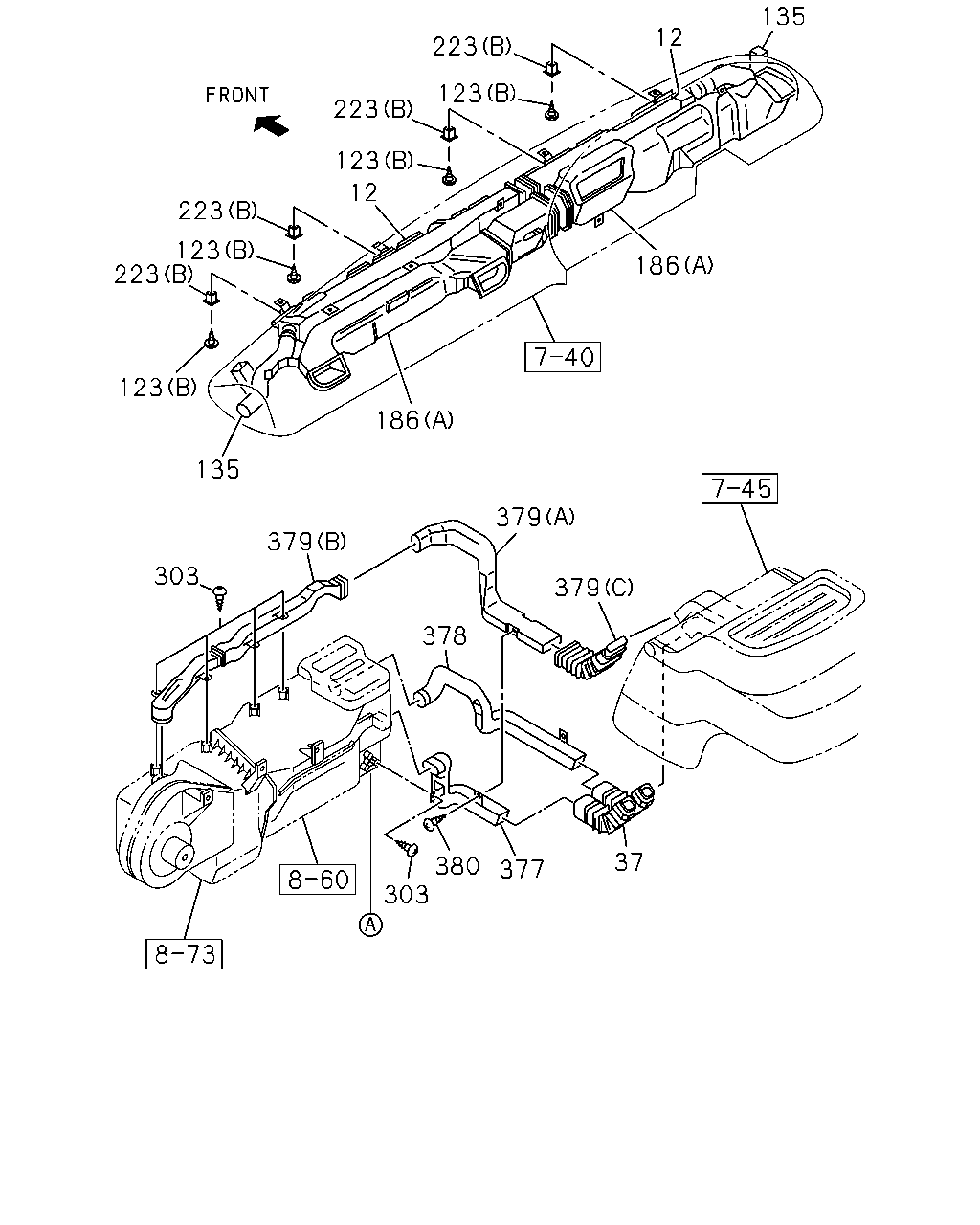

çizim 86542
135 12 223 123 223 123 12 223 123 223 186 123 186 135 379 379 303 379 378 37 380 303 377
BalonParca AdiParca NoAdetTipApplied Date A B C
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 0407-0511 ●
12 NOZZLE; DEFROSTER 1-76377-153-5 01 1 0512- ● ●
12 NOZZLE; DEFROSTER 1-76377-172-6 01 1 0407-0511 ●
12 NOZZLE; DEFROSTER 1-76377-172-7 01 1 0512- ● ●
37 HOSE; AIR,HTR
COOL & HOT BOX<TMU> 		1-76377-193-3 01 1 0407-0511 ●
37 HOSE; AIR,HTR
COOL & HOT BOX<TMU> 		1-76377-193-3 01 1 0512- ● ●
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0407-0511 ●
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0512-0604 ●
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0512-0604 ●
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0605- ●
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0605- ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0407-0511 ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0512- ● ●
135 HOSE; DEFROSTER 1-76378-252-7 01 1 0407-0511 ●
135 HOSE; DEFROSTER 1-76378-252-7 01 1 0512- ● ●
135 HOSE; DEFROSTER 1-76378-253-4 01 1 0407-0511 ●
135 HOSE; DEFROSTER 1-76378-253-4 01 1 0512- ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-155-9 01 1 0407-0511 ●
186 DUCT; VENTILATOR
(A) 		1-76377-155-9 01 1 0512-0610 ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0611- ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0407-0511 ●
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0512-0710 ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711- ● ●
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 0407-0511 ●
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0512- ●
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 0512- ●
223 GROMMET; SCREW
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0407-0511 ●
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0512- ● ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0407-0511 ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0512- ● ●
303 SCREW; HOSE
COOL & HOT BOX<TMU> M5X14 		8-94279-325-0 05 1 0407-0511 ●
303 SCREW; HOSE
COOL & HOT BOX<TMU> M5X14 		8-94279-325-0 05 1 0512- ● ●
377 HOSE; BOX,INLET,COOL
COOL & HOT BOX<TMU> 		1-76377-159-5 01 1 0407-0511 ●
377 HOSE; BOX,INLET,COOL
COOL & HOT BOX<TMU> 		1-76377-159-5 01 1 0512- ● ●
378 HOSE; BOX,INLET,HOT
COOL & HOT BOX<TMU> 		1-76377-161-6 01 1 0407-0511 ●
378 HOSE; BOX,INLET,HOT
COOL & HOT BOX<TMU> 		1-76377-161-6 01 1 0512- ● ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (A) 		1-76377-163-5 01 1 0407-0511 ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (A) 		1-76377-163-5 01 1 0512- ● ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (B) 		1-76377-164-3 01 1 0407-0511 ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (B) 		1-76377-164-3 01 1 0512- ● ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (C) 		1-76377-192-4 01 1 0407-0511 ●
379 HOSE; BOX,OUTLET
COOL & HOT BOX<TMU> (C) 		1-76377-192-4 01 1 0512- ● ●
380 FASTENER; HOSE
COOL & HOT BOX<TMU> D4.6X14.7 BLACK 		1-09983-104-0 03 1 0407-0511 ●
380 FASTENER; HOSE
COOL & HOT BOX<TMU> D4.6X14.7 BLACK 		1-09983-104-0 03 1 0512- ● ●

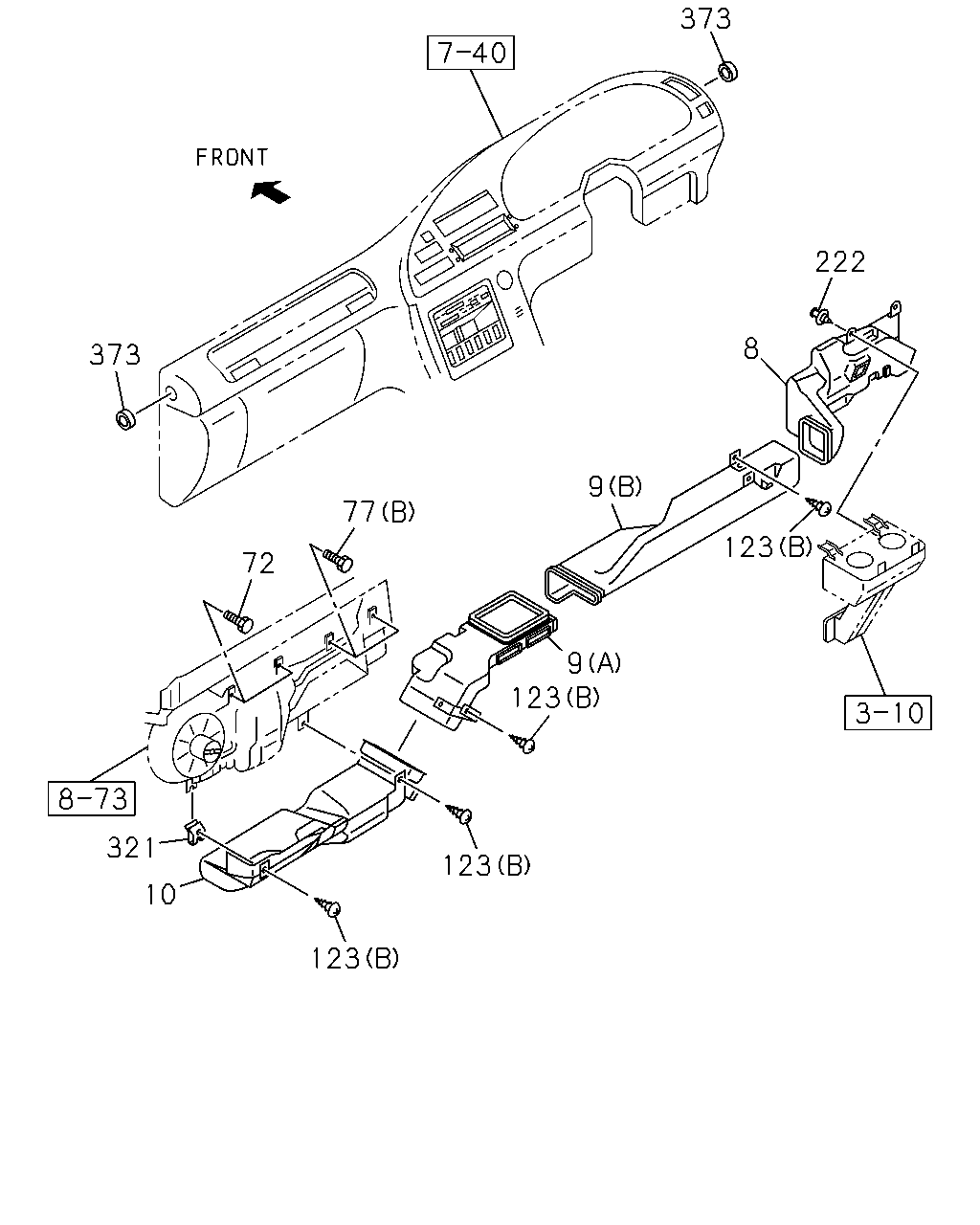

çizim 86589
373 222 8 373 9 77 123 72 9 123 321 123 10 123
BalonParca AdiParca NoAdetTipApplied Date A B C
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0407-0511 ●
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0512- ● ●
9 DUCT; HTR AIR,FOOT CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-227-2 01 1 0407-0511 ●
9 DUCT; HTR AIR,FOOT CENTER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-227-2 01 1 0512- ●
9 DUCT; HTR AIR,FOOT CENTER
(A) 		1-76377-227-2 01 1 0512- ●
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 0407-0511 ●
9 DUCT; HTR AIR,FOOT CENTER
(B) 		1-76377-210-1 01 1 0512- ● ●
9 DUCT; HTR AIR,FOOT CENTER
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-226-2 01 1 0407-0511 ●
9 DUCT; HTR AIR,FOOT CENTER
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-226-2 01 1 0512- ●
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 0407-0511 ●
10 DUCT; HTR AIR,ASSIST FOOT 1-76377-204-2 01 1 0512- ● ●
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511 ●
72 BOLT; BLOWER UNIT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0407-0511 ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0512- ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511 ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ● ●
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0407-0511 ●
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0512-0604 ●
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0512-0604 ●
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0605- ●
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0605- ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0407-0511 ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0512- ● ●
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 0407-0511 ●
222 FASTENER; DUCT
D6X12.5 		8-94146-425-0 02 1 0512- ● ●
321 NUT; DUCT FIX
M5 		1-09984-150-0 01 1 0407-0409 ●
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 0410-0511 ●
321 NUT; DUCT FIX
M5 		1-09984-196-0 01 1 0512- ● ●
373 RUBBER; JOINT 1-76378-291-0 02 1 0407-0511 ●
373 RUBBER; JOINT 1-76378-291-0 02 1 0512- ● ●

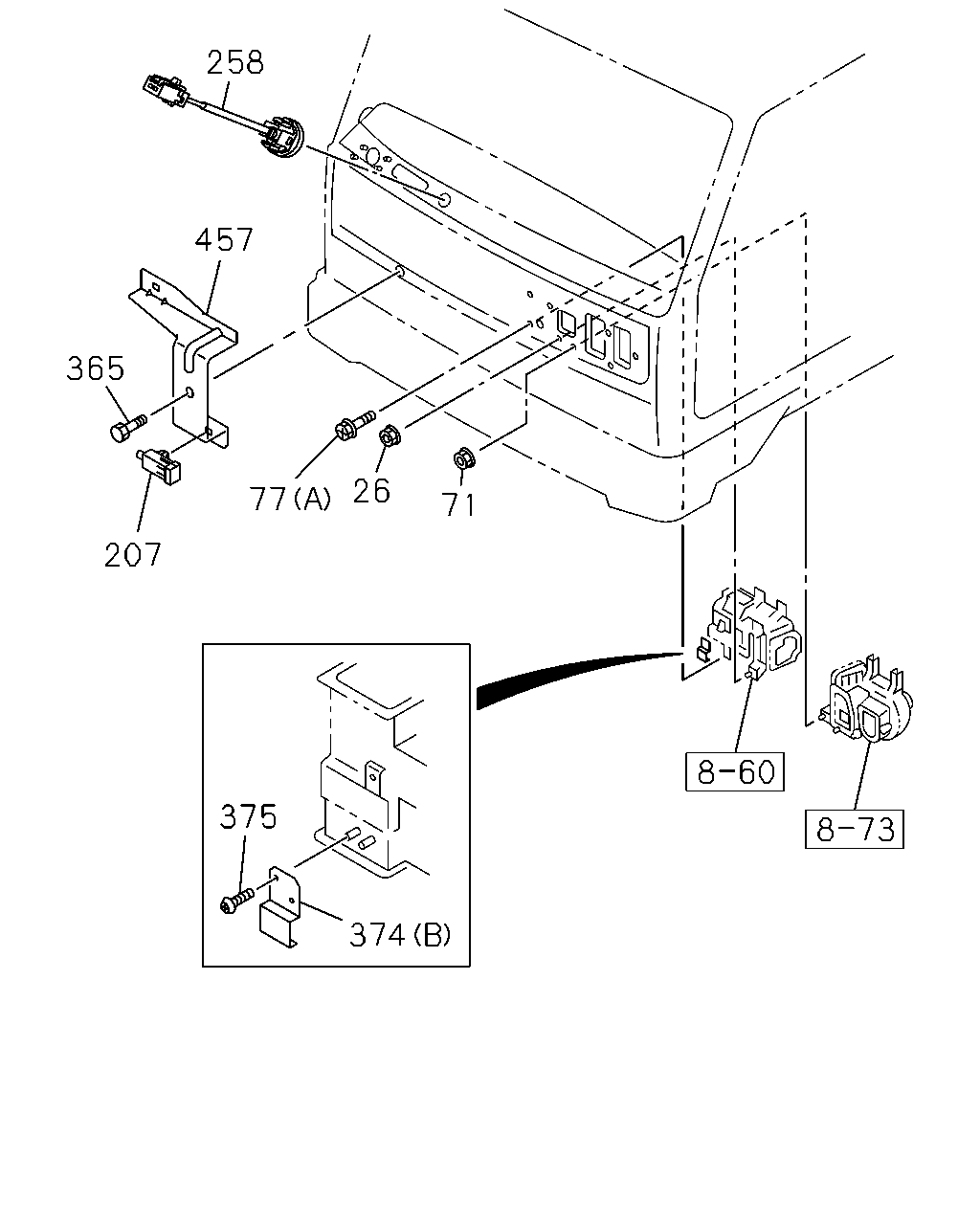

çizim 86762
258 457 365 26 77 71 207 375 374
BalonParca AdiParca NoAdetTipApplied Date A B C
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0407-0511 ●
26 NUT; HTR
M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 0512- ● ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0407-0511 ●
71 NUT; BLOWER UNIT TO DASH
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0512- ● ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0407-0511 ●
77 BOLT; HTR UNIT
(A) M6X16 		1-09980-598-1 02 1 0512- ● ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511 ●
77 BOLT; HTR UNIT
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ● ●
207 SENSOR; AMBIENT 8-97177-549-0 01 1 0407-0511 ●
207 SENSOR; AMBIENT 8-97177-549-0 01 1 0512-1204 ● ●
207 SENSOR; AMBIENT 8-98214-375-0 01 1 1205- ● ●
258 SENSOR; SUN 8-94472-043-2 01 1 0407-0511 ●
258 SENSOR; SUN 8-94472-043-2 01 1 0512- ● ●
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0407-0511 ●
365 BOLT; SENSOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0512- ● ●
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0407-0511 ●
374 HOLDER; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-189-3 01 1 0512- ●
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0512- ●
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0407-0511 ●
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0512- ● ●
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 0407-0511 ●
375 SCREW; HOLDER
M5X14 		8-94279-325-0 02 1 0512- ● ●
457 BRACKET; SENSOR 1-71907-603-1 01 1 0407-0511 ●
457 BRACKET; SENSOR 1-71907-603-1 01 1 0512- ● ●

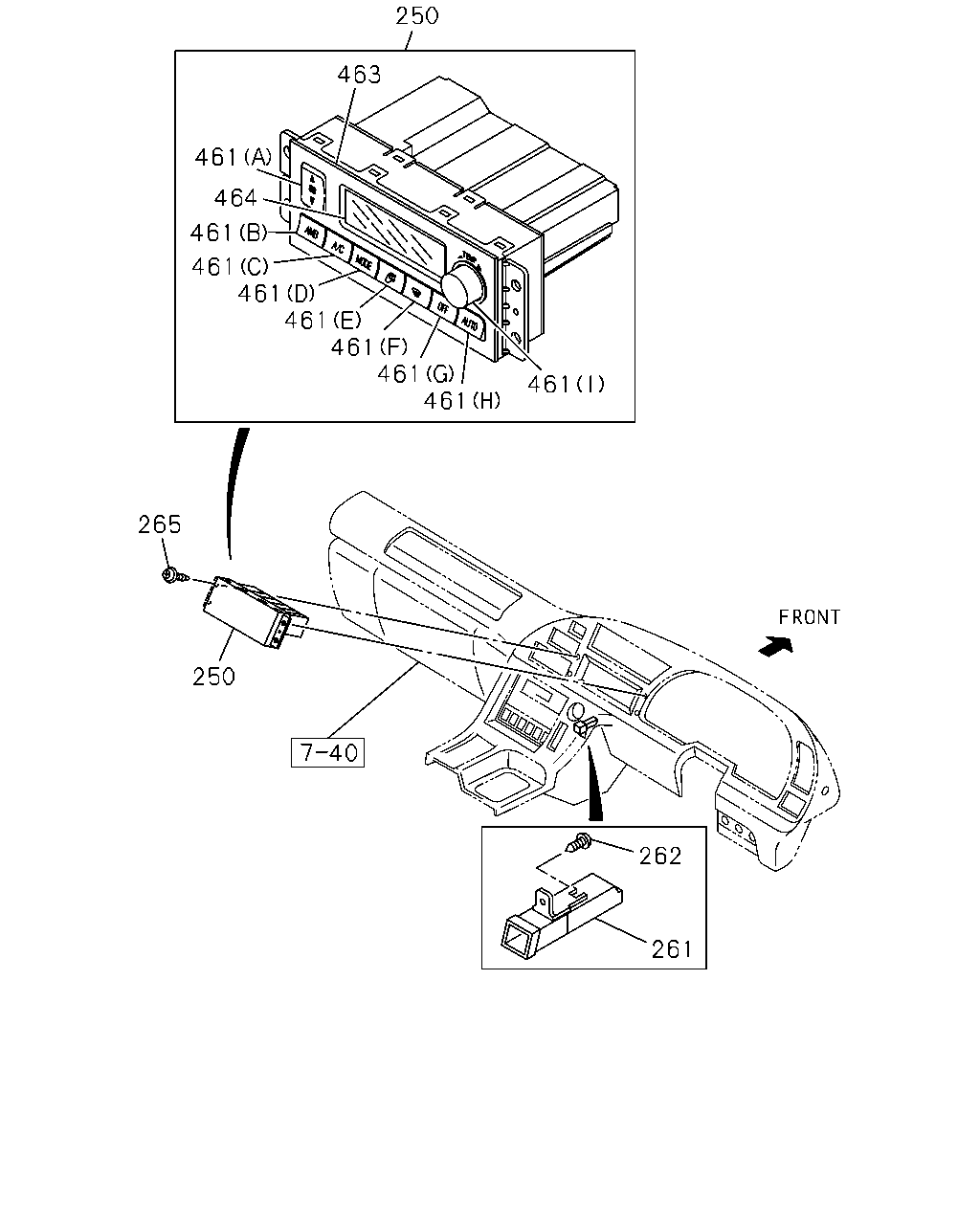

çizim 87197
250 463 461 464 461 461 461 461 461 461 461 461 265 250 262 261
BalonParca AdiParca NoAdetTipApplied Date A B C
250 CONTROL ASM; A/C 1-83543-038-0 01 1 0407-0511 ●
250 CONTROL ASM; A/C 1-83543-038-1 01 1 0512- ● ●
261 SENSOR; IN CAR 1-83544-023-1 01 1 0407-0511 ●
261 SENSOR; IN CAR 1-83544-023-1 01 1 0512- ● ●
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 0407-0511 ●
262 SCREW; IN CAR SENSOR
M5X14 		8-94279-325-0 01 1 0512- ● ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 01 1 0407-0511 ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 01 1 0512-0604 ● ●
265 SCREW; A/C CONT UNIT
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 01 1 0605- ● ●
461 KNOB; CONTROL ASM,A/C
(A) 		1-83549-018-0 01 1 0407-0511 ●
461 KNOB; CONTROL ASM,A/C
(A) 		1-83549-018-0 01 1 0512- ● ●
461 KNOB; CONTROL ASM,A/C
(B) 		1-83549-019-0 01 1 0407-0511 ●
461 KNOB; CONTROL ASM,A/C
(B) 		1-83549-019-0 01 1 0512- ● ●
461 KNOB; CONTROL ASM,A/C
(C) 		1-83549-020-0 01 1 0407-0511 ●
461 KNOB; CONTROL ASM,A/C
(C) 		1-83549-020-0 01 1 0512- ● ●
461 KNOB; CONTROL ASM,A/C
(D) 		1-83549-021-0 01 1 0407-0511 ●
461 KNOB; CONTROL ASM,A/C
(D) 		1-83549-021-0 01 1 0512- ● ●
461 KNOB; CONTROL ASM,A/C
(E) 		1-83549-022-0 01 1 0407-0511 ●
461 KNOB; CONTROL ASM,A/C
(E) 		1-83549-022-0 01 1 0512- ● ●
461 KNOB; CONTROL ASM,A/C
(F) 		1-83549-023-0 01 1 0407-0511 ●
461 KNOB; CONTROL ASM,A/C
(F) 		1-83549-023-0 01 1 0512- ● ●
461 KNOB; CONTROL ASM,A/C
(G) 		1-83549-024-0 01 1 0407-0511 ●
461 KNOB; CONTROL ASM,A/C
(G) 		1-83549-024-0 01 1 0512- ● ●
461 KNOB; CONTROL ASM,A/C
(H) 		1-83549-025-0 01 1 0407-0511 ●
461 KNOB; CONTROL ASM,A/C
(H) 		1-83549-025-0 01 1 0512- ● ●
461 KNOB; CONTROL ASM,A/C
(I) 		1-83549-026-0 01 1 0407-0511 ●
461 KNOB; CONTROL ASM,A/C
(I) 		1-83549-026-0 01 1 0512- ● ●
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 0407-0511 ●
463 BEZEL; CONTROL PANEL 1-83549-027-0 01 1 0512- ● ●
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 0407-0511 ●
464 PLATE; CONTROL PANEL 1-83549-028-0 01 1 0512- ● ●

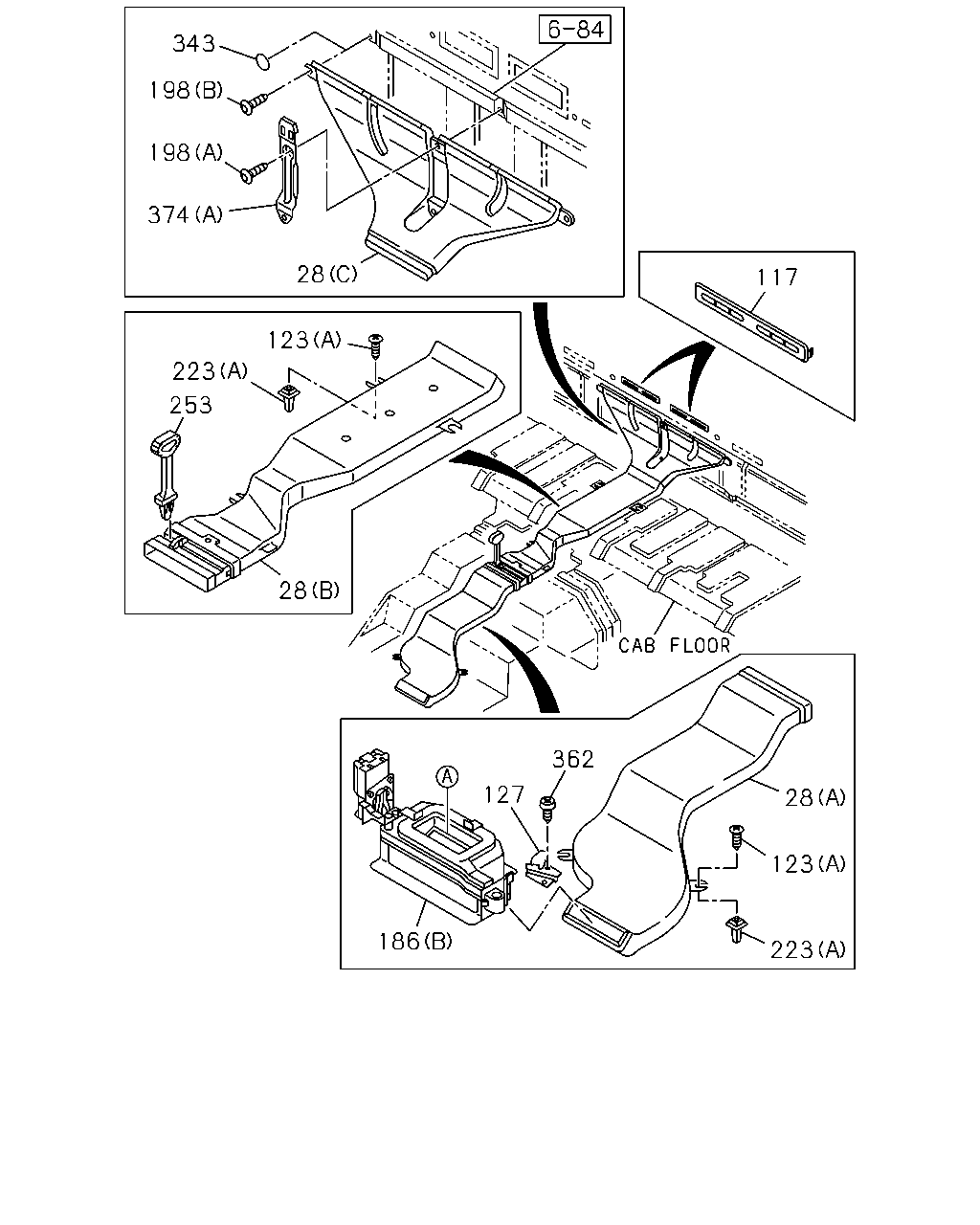

çizim 87200
343 198 198 374 8 117 123 223 253 28 362 127 28 123 186 223
BalonParca AdiParca NoAdetTipApplied Date A B C
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0407-0511 ●
8 DUCT; HTR AIR,DRIVER FOOT 1-76377-208-0 01 1 0512- ● ●
28 DUCT; AIR,VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-76377-180-2 01 1 0407-0511 ●
28 DUCT; AIR,VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-76377-180-2 01 1 0512- ●
28 DUCT; AIR,VENTILATOR
(B) 		1-76377-180-2 01 1 0512- ●
28 DUCT; AIR,VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-203-0 01 1 0407-0511 ●
28 DUCT; AIR,VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-203-0 01 1 0512- ●
28 DUCT; AIR,VENTILATOR
(A) 		1-76377-203-0 01 1 0512- ●
28 DUCT; AIR,VENTILATOR
(C) 		1-76377-186-1 01 1 0407-0511 ●
28 DUCT; AIR,VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (C) 		1-76377-186-1 01 1 0512- ●
28 DUCT; AIR,VENTILATOR
(C) 		1-76377-186-1 01 1 0512- ●
117 GRILLE; VENTILATOR 1-76377-187-5 01 1 0407-0511 ●
117 GRILLE; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76377-187-5 01 1 0512- ●
117 GRILLE; VENTILATOR 1-76377-187-5 01 1 0512- ●
117 GRILLE; VENTILATOR 1-76377-188-5 01 1 0407-0511 ●
117 GRILLE; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76377-188-5 01 1 0512- ●
117 GRILLE; VENTILATOR 1-76377-188-5 01 1 0512- ●
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0407-0511 ●
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0512-0604 ●
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 05 1 0512-0604 ●
123 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0605- ●
123 SCREW; DUCT
(A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 05 1 0605- ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0407-0511 ●
123 SCREW; DUCT
(B) M5X14 		8-94279-325-0 12 1 0512- ● ●
127 BRACKET; VENT DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76397-019-0 01 1 0407-0511 ●
127 BRACKET; VENT DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76397-019-0 01 1 0512- ●
127 BRACKET; VENT DUCT 1-76397-019-0 01 1 0512- ●
186 DUCT; VENTILATOR
(A) 		1-76377-155-9 01 1 0407-0511 ●
186 DUCT; VENTILATOR
(A) 		1-76377-155-9 01 1 0512-0610 ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-243-1 01 1 0611- ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0407-0511 ●
186 DUCT; VENTILATOR
(A) 		1-76377-173-6 01 1 0512-0710 ● ●
186 DUCT; VENTILATOR
(A) 		1-76377-246-0 01 1 0711- ● ●
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 0407-0511 ●
186 DUCT; VENTILATOR
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (B) 		1-83542-107-3 01 1 0512- ●
186 DUCT; VENTILATOR
(B) 		1-83542-107-3 01 1 0512- ●
198 CLIP; DUCT
(A) D6X23 BLACK 		1-09987-114-0 02 1 0407-0511 ●
198 CLIP; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D6X23 BLACK 		1-09987-114-0 02 1 0512-1204 ●
198 CLIP; DUCT
(A) D6X23 BLACK 		1-09987-114-0 02 1 0512-1204 ●
198 CLIP; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D6X23 LIGHT GRAY 		1-73318-629-0 02 1 1205- ●
198 CLIP; DUCT
(A) D6X23 LIGHT GRAY 		1-73318-629-0 02 1 1205- ●
198 CLIP; DUCT
(B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0407-0511 ●
198 CLIP; DUCT
(B) OD=6 L=17 DARK GRAY 		1-73996-364-0 02 1 0512- ● ●
223 GROMMET; SCREW
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0407-0511 ●
223 GROMMET; SCREW
(A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 05 1 0512- ● ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0407-0511 ●
223 GROMMET; SCREW
(B) D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0512- ● ●
253 KNOB; CONT LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76377-185-1 01 1 0407-0511 ●
253 KNOB; CONT LEVER
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) 		1-76377-185-1 01 1 0512- ●
253 KNOB; CONT LEVER 1-76377-185-1 01 1 0512- ●
343 SEAL; AIR DUCT
EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) OD=25 BLACK 		1-76798-019-0 05 1 0512-0709 ●
362 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X14 		8-94279-325-0 02 1 0407-0511 ●
362 SCREW; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) M5X14 		8-94279-325-0 02 1 0512- ●
362 SCREW; DUCT
M5X14 		8-94279-325-0 02 1 0512- ●
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0407-0511 ●
374 HOLDER; DUCT
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 		1-76377-189-3 01 1 0512- ●
374 HOLDER; DUCT
(A) 		1-76377-189-3 01 1 0512- ●
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0407-0511 ●
374 HOLDER; DUCT
(B) 		1-76398-012-1 01 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
