◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#31420) — 1250 parça

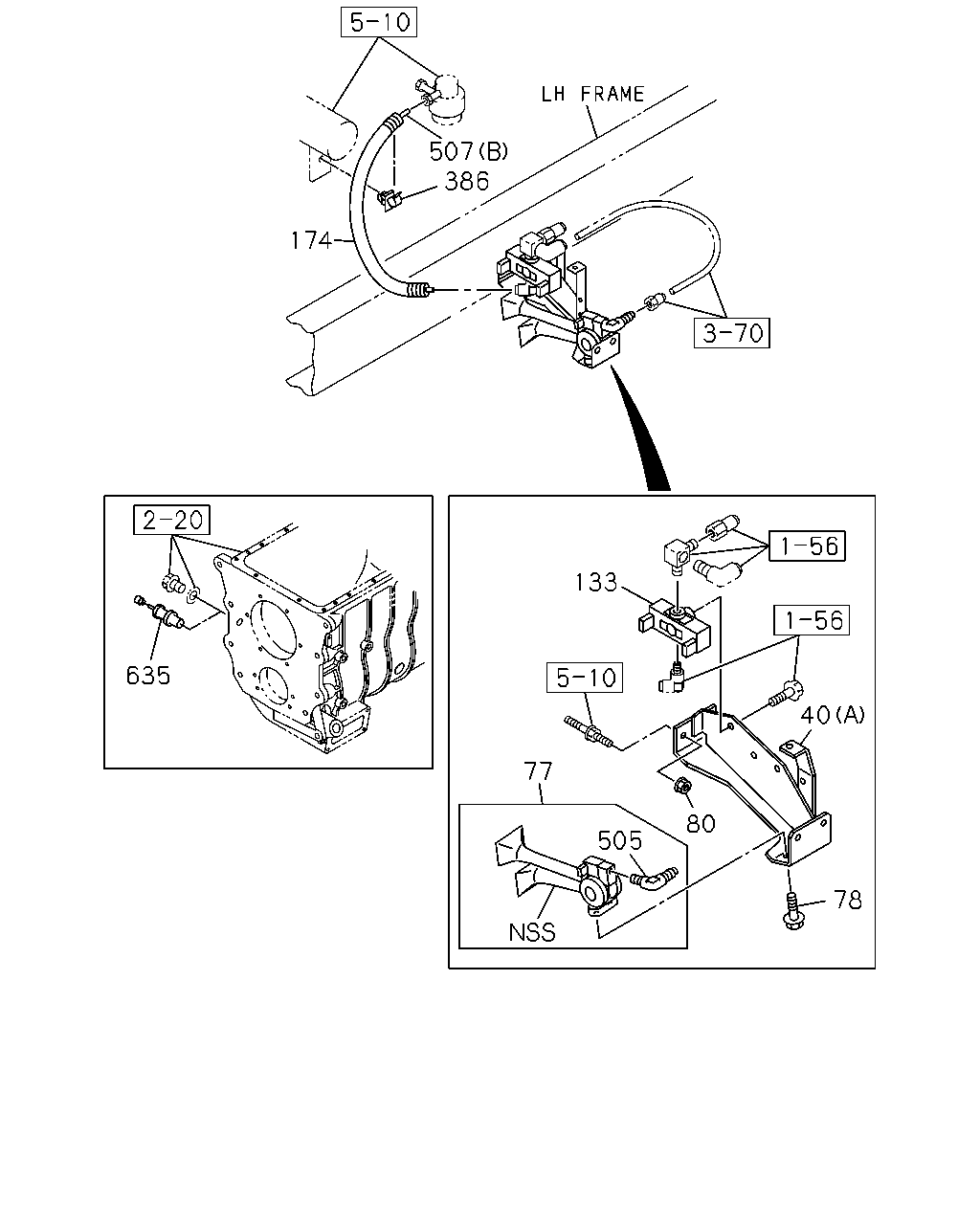

çizim 86763
507 386 174 133 635 40 77 80 505 78
BalonParca AdiParca NoAdetTipApplied Date A B C
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (E) 		8-97609-263-0 01 1 0512- ●
40 BRACKET; MAG VLV
(F) 		1-82569-423-0 01 1 0512- ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (C) 		1-82569-403-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (D) 		1-47471-170-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-117-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
CAB SUSPENSION-FULL FLOATING(SMK) (A) 		1-53457-117-0 01 1 0512- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (B) 		1-53458-380-0 01 1 0512- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0512- ●
77 HORN ASM 1-83430-041-1 01 1 0407-0511 ●
77 HORN ASM 1-83430-041-2 01 1 0512- ● ●
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
80 NUT; MAG VLV
M12 FLANGE 		0-91150-212-0 02 1 0407-0511 ●
80 NUT; MAG VLV
M12 FLANGE 		0-91150-212-0 02 1 0512-0602 ● ●
80 NUT; MAG VLV
M12 FLANGE 		0-91180-212-0 02 1 0603- ● ●
133 VALVE; MAG,AIR HORN 1-53458-378-2 01 1 0407-0511 ●
133 VALVE; MAG,AIR HORN
FULL FLOATING CAB(W16) 		1-53458-378-2 01 1 0512- ●
133 VALVE; MAG,AIR HORN 1-53458-378-2 01 1 0512- ●
174 COVER
CAB UP +110MM<TGG> L=700 SERVICED BY L=800 		1-83129-031-1 01 1 0407-0511 ●
174 COVER
FULL FLOATING CAB(W16) L=700 SERVICED BY L=800 		1-83129-031-1 01 1 0512- ●
174 COVER
L=700 SERVICED BY L=800 		1-83129-031-1 01 1 0512- ●
386 CLIP; HARNESS
ID=9.5 		5-09709-020-0 01 1 0407-0511 ●
386 CLIP; HARNESS
FULL FLOATING CAB(W16) ID=9.5 		5-09709-020-0 01 1 0512- ●
386 CLIP; HARNESS
ID=9.5 		5-09709-020-0 01 1 0512- ●
505 JOINT; AIR HORN 1-83439-006-0 01 1 0407-0511 ●
505 JOINT; AIR HORN 1-83439-006-0 01 1 0512- ● ●
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0512- ●
507 TUBE; NYLON
SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0407-0511 ●
507 TUBE; NYLON
SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0512- ●
507 TUBE; NYLON
CAB UP +110MM<TGG> (B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0407-0511 ●
507 TUBE; NYLON
FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0512- ●
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0512- ●
635 SENSOR; PICK UP,INPUT SHAFT
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-81510-736-1 01 1 0407-0511 ●
635 SENSOR; PICK UP,INPUT SHAFT
MJX16P M/T(Y3Z) 		1-81510-736-1 01 1 0512- ● ●

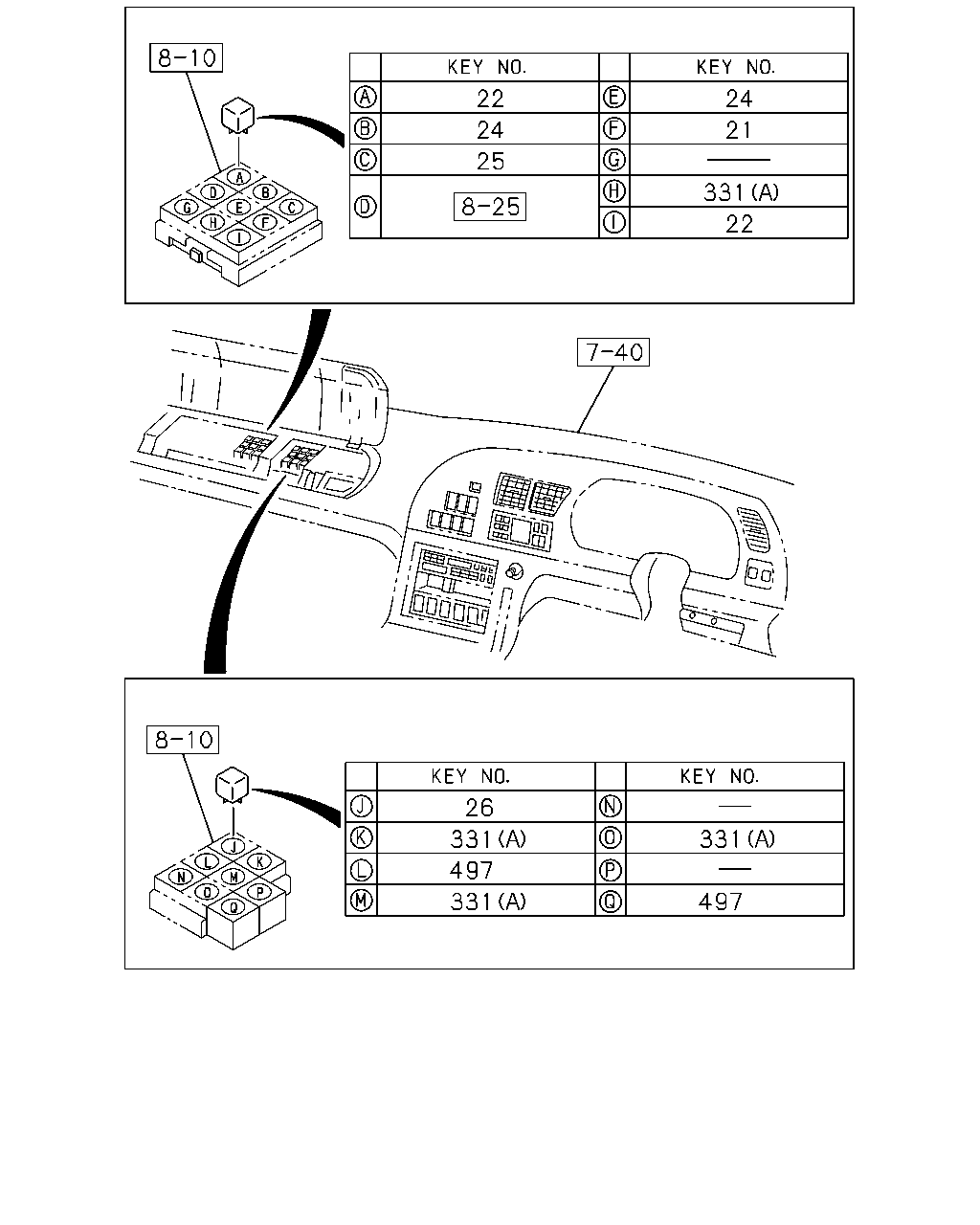

çizim 86764
22 24 24 21 25 331 22 26 331 331 497 331 497
BalonParca AdiParca NoAdetTipApplied Date A B C
21 RELAY; TRAILER TAIL
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ● ●
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ● ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ● ●
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ● ●
331 RELAY; A/C
(A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
331 RELAY; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
331 RELAY; A/C
(A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ● ●
331 RELAY; A/C
(A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ● ●
331 RELAY; A/C
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
331 RELAY; A/C
6WF1 TC-C(1B8) (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
497 RELAY; MIRROR WIPER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
497 RELAY; MIRROR WIPER
MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ● ●

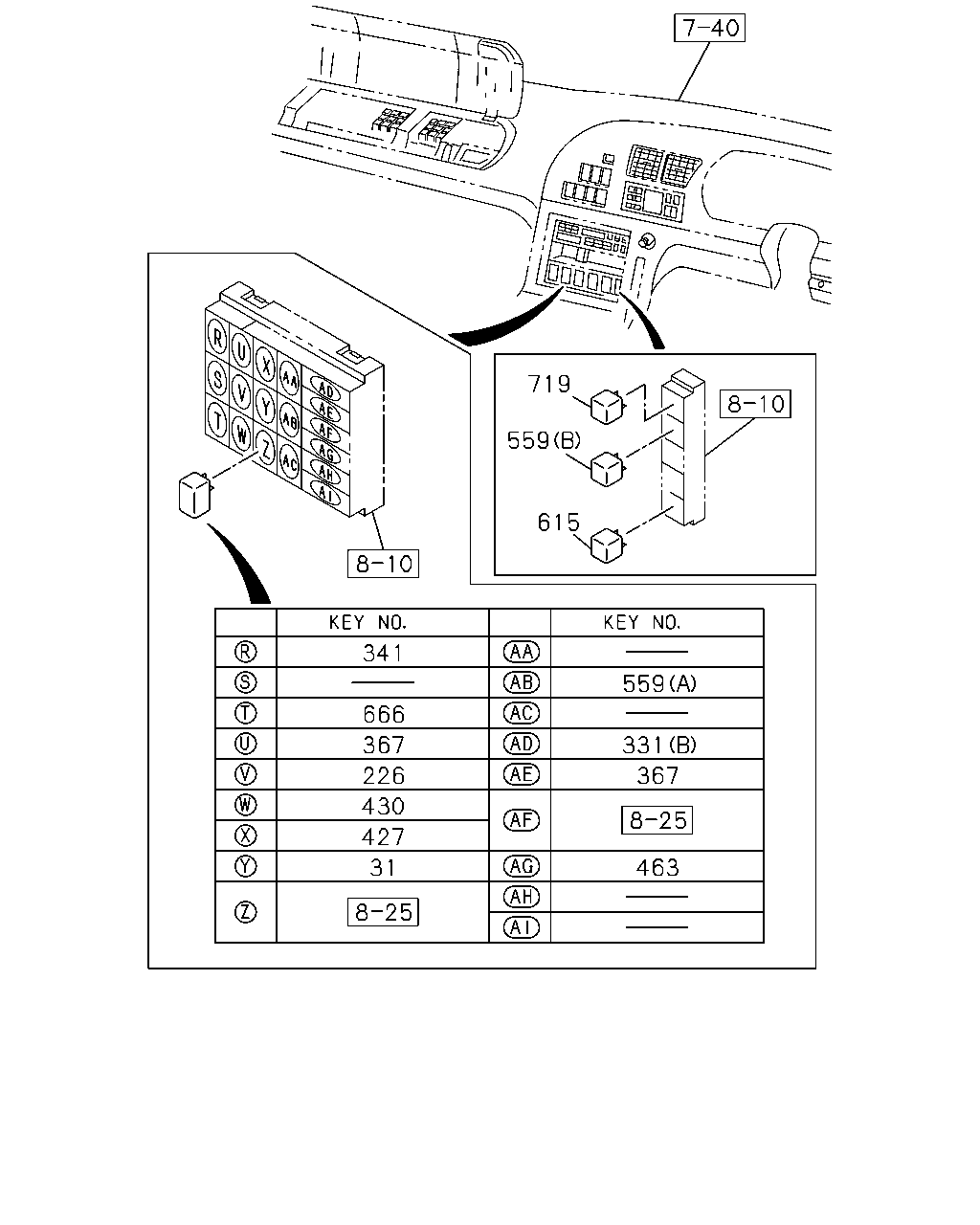

çizim 86996
719 559 615 341 559 666 367 331 226 367 430 427 31 463
BalonParca AdiParca NoAdetTipApplied Date A B C
31 RELAY; PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
31 RELAY; PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ● ●
226 RELAY; EXH BRK
6WF1 TC-C(1B8) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
331 RELAY; A/C
(A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
331 RELAY; A/C
AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0407-0511 ●
331 RELAY; A/C
(A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ● ●
331 RELAY; A/C
(A) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0512- ● ●
331 RELAY; A/C
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
331 RELAY; A/C
6WF1 TC-C(1B8) (B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
341 RELAY
24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
341 RELAY
FULL FLOATING CAB(W16) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
341 RELAY
24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
367 RELAY; NEUTRAL
SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ● ●
367 RELAY; NEUTRAL
MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
427 RELAY; RETARDER
6WF1 TC-C(1B8) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 24V 10A PANASONIC 		8-97173-035-1 02 1 0512- ●
430 RELAY; RANGE
EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
430 RELAY; RANGE
MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
463 RELAY; ABS SIGNAL
ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
463 RELAY; ABS SIGNAL
ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ● ●
559 RELAY; MAG VLV
SMOOTHER-G(C1W) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
559 RELAY; MAG VLV
MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
559 RELAY; MAG VLV
(A) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
559 RELAY; MAG VLV
SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
559 RELAY; MAG VLV
MJX M/T<Y9N> SMOOTHER-G(C1W) (B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●
559 RELAY; MAG VLV
(B) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●
615 RELAY; TRAILER
6WG1 TC-C(72L) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ● ●
615 RELAY; TRAILER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
615 RELAY; TRAILER
6WF1 TC-C(1B8) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●
666 RELAY; STARTER
SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0407-0511 ●
666 RELAY; STARTER
MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
666 RELAY; STARTER
24V 10A PANASONIC 		8-97173-035-1 01 1 0512- ●
719 RELAY; EMERGENCY,GEAR SHIFT UNIT
SMOOTHER-G(C1W) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
719 RELAY; EMERGENCY,GEAR SHIFT UNIT
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ●

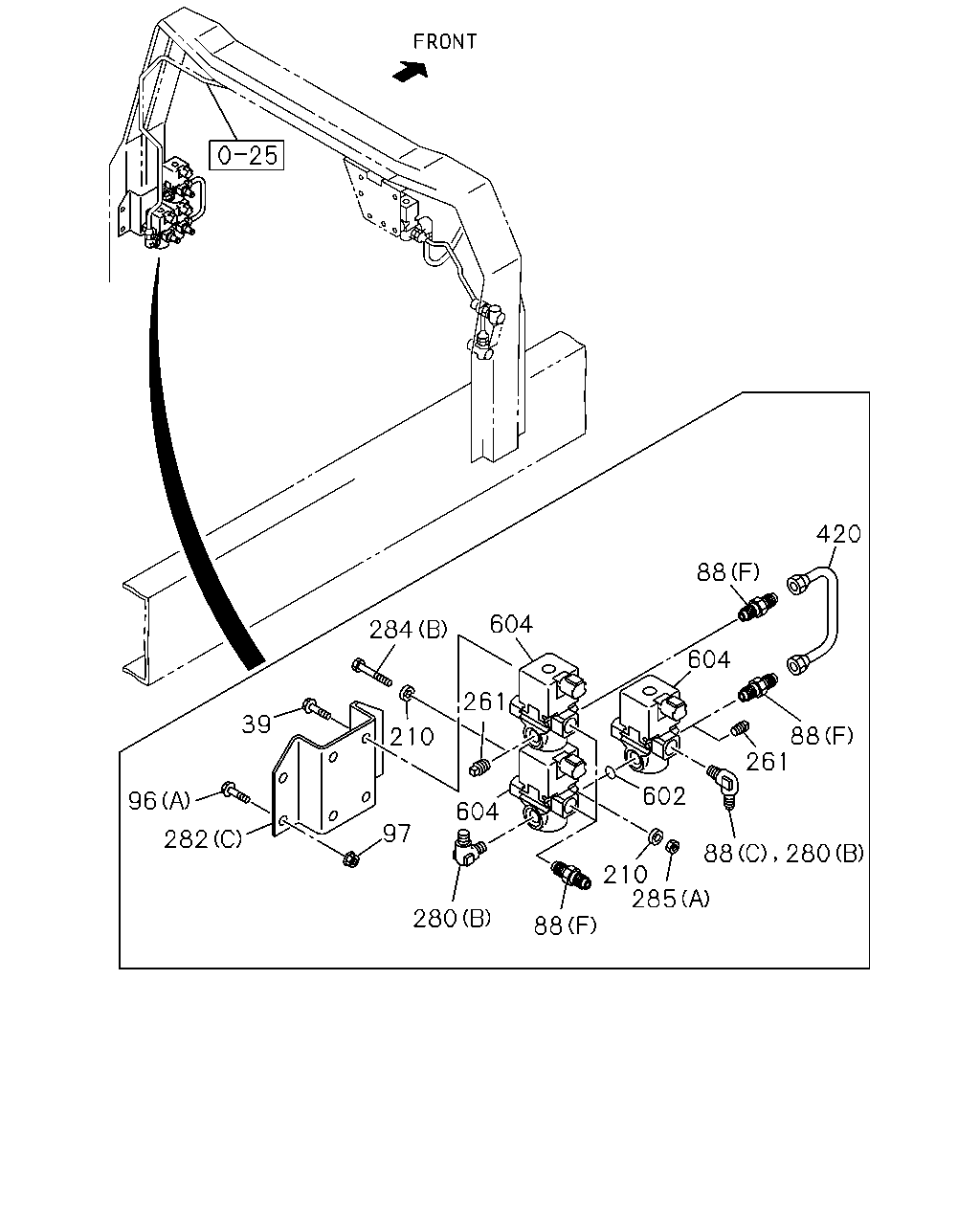

çizim 87185
420 88 604 284 604 261 39 88 261 210 602 96 604 97 282 210 285 280 88 88 280
BalonParca AdiParca NoAdetTipApplied Date A B C
39 BOLT; BRKT,MAG VLV
6WG1 TC-C(72L) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ● ●
39 BOLT; BRKT,MAG VLV
6WG1 TC-C(72L) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28680-820-0 06 1 0407-0511 ●
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L) (K) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0512- ● ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512- ●
88 CONNECTOR; MAG VLV
(J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (H) 		1-09661-065-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(H) 		1-09661-065-0 02 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (I) PT3/8 3WAY 		1-09661-300-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (I) PT3/8 3WAY 		1-09661-300-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(I) PT3/8 3WAY 		1-09661-300-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ● ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ● ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ● ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0407-0511 ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0512-0512 ● ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 05 1 0407-0511 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 05 1 0512-0602 ● ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L) 		1-82569-266-0 06 1 0512- ● ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0407-0511 ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0407-0511 ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0512- ● ●
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0512- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0407-0511 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0407-0511 ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 0407-0511 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0512- ● ●
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0512- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0512- ● ●
261 PLUG; MAG VLV
SMOOTHER-G(C1W) PT1/4 		9-99204-513-0 01 1 0512- ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 0512- ●
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0407-0511 ●
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ● ●
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ● ●
280 CONNECTOR; IN,MAG VLV
6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ● ●
282 BRACKET; MAG VLV
6WG1 TC-C(72L) (E) 		1-82569-298-0 01 1 0512- ● ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0407-0511 ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47471-175-0 01 1 0512- ●
282 BRACKET; MAG VLV
(D) 		1-82569-277-2 01 1 0407-0511 ●
282 BRACKET; MAG VLV
6WF1 TC-C(1B8) (D) 		1-82569-277-2 01 1 0512- ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0407-0511 ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0512- ● ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0407-0511 ●
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0512- ● ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0512- ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28080-650-0 03 1 0512-0512 ● ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0601- ● ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0407-0511 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
(B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
420 PIPE; AIR,MAG VLV 1-49118-626-0 01 1 0407-0511 ●
602 GASKET; MAG VLV
6WG1 TC-C(72L) ID=16.8 		9-09565-117-0 03 1 0512- ● ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0407-0511 ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0407-0511 ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0512- ● ●
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0512- ● ●
604 VALVE; MAG,ENG CONT
6WG1 TC-C(72L) 		1-82563-871-2 04 1 0512- ● ●
604 VALVE; MAG,ENG CONT 1-82563-871-2 02 1 0512- ● ●
604 VALVE; MAG,ENG CONT 1-82563-871-2 04 1 0407-0511 ●
604 VALVE; MAG,ENG CONT
6WF1 TC-C(1B8) 		1-82563-871-2 01 1 0512- ●

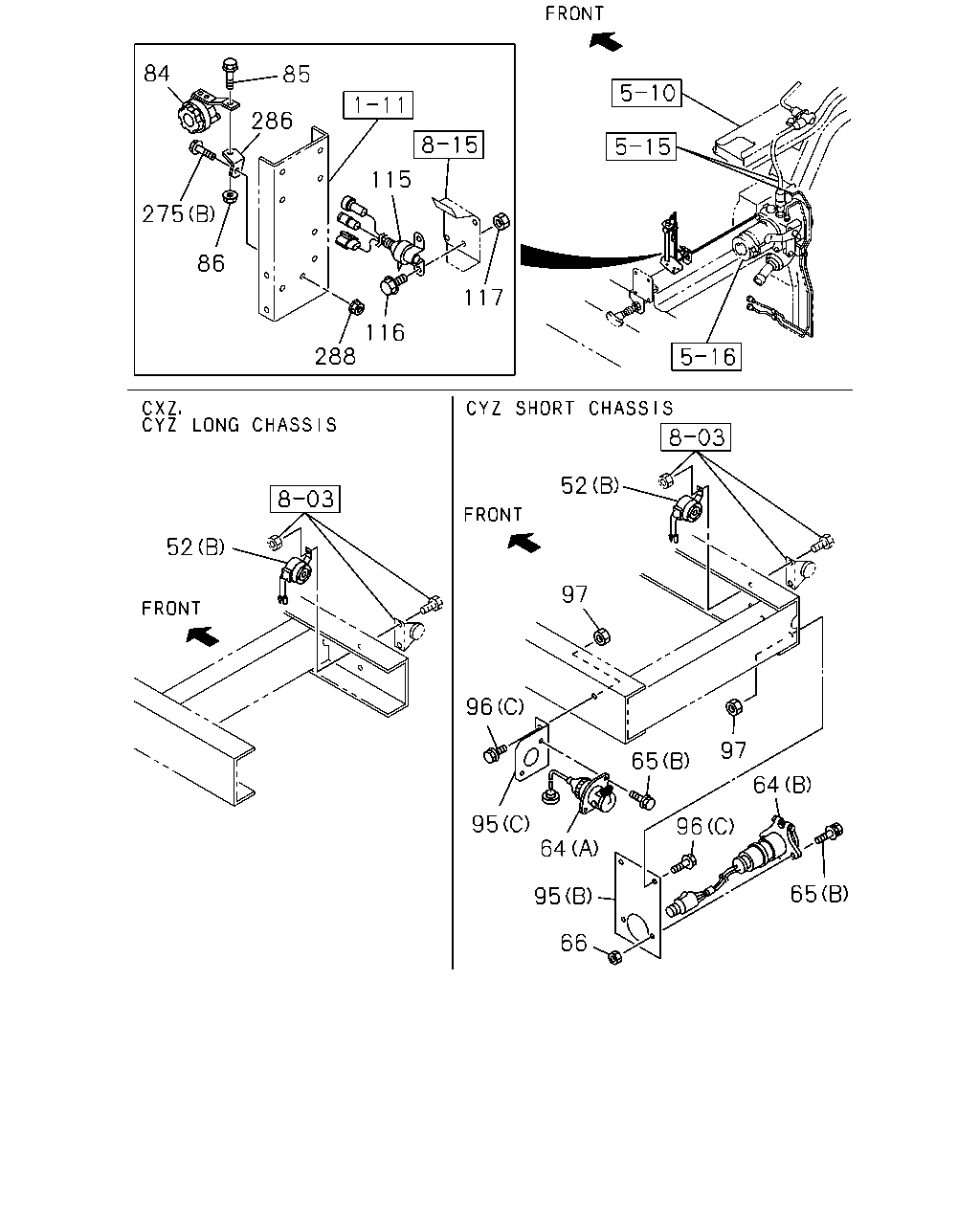

çizim 87198
84 85 286 115 275 86 117 116 288 52 52 97 96 97 65 64 95 96 64 65 95 66
BalonParca AdiParca NoAdetTipApplied Date A B C
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (B) METRO DENSO 		1-83460-083-0 01 1 0407-0511 ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (B) METRO DENSO 		1-83460-083-0 01 1 0512-0612 ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (B) METRO DENSO 		8-98069-861-0 01 1 0701- ● ●
52 BUZZER; BACK
EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-83460-040-0 01 1 0407-0511 ●
52 BUZZER; BACK
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 		1-83460-040-0 01 1 0512- ●
64 SOCKET; TRAILER
(B) 		1-82523-014-0 01 1 0407-0511 ●
64 SOCKET; TRAILER
(B) 7P 		1-82523-014-0 01 1 0512- ● ●
64 SOCKET; TRAILER
(A) 		1-82698-297-0 01 1 0407-0511 ●
64 SOCKET; TRAILER
(A) L=940 		1-82698-297-0 01 1 0512-1008 ● ●
64 SOCKET; TRAILER
(A) L=940 		8-98172-009-0 01 1 1009- ● ●
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0407-0511 ●
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0512-0512 ● ●
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0601- ● ●
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ● ●
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		1-83460-097-0 01 1 0407-0511 ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		1-83460-097-0 01 1 0512-0612 ● ●
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0701- ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28680-820-0 01 1 0407-0511 ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28680-820-0 01 1 0512-0512 ● ●
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
86 NUT; BUZZER
M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
86 NUT; BUZZER
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
86 NUT; BUZZER
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
95 BRACKET; SOCKET,TRAILER
(B) 		1-82699-387-0 01 1 0512- ●
95 BRACKET; SOCKET,TRAILER
(C) 		1-82699-979-0 01 1 0512-1008 ●
95 BRACKET; SOCKET,TRAILER
(C) 		8-97985-137-0 01 1 1009- ●
95 BRACKET; SOCKET,TRAILER
(A) 		1-82699-429-0 01 1 0407-0511 ●
95 BRACKET; SOCKET,TRAILER
(A) 		1-82699-429-0 01 1 0512-1008 ●
95 BRACKET; SOCKET,TRAILER
(A) 		8-98173-095-0 01 1 1009- ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ● ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0407-0511 ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0512-0512 ● ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 05 1 0407-0511 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 05 1 0512-0602 ● ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0407-0511 ●
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0512- ● ●
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28080-816-0 02 1 0407-0511 ●
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28080-816-0 02 1 0512-0512 ● ●
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0601- ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0407-0511 ●
275 BOLT; BRKT
FULL FLOATING CAB(W16) (A) M8X14 FLANGE 		0-28080-814-0 01 1 0512- ●
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0512- ●
275 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0511 ●
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
275 BOLT; BRKT
6WG1 TC-C(72L) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
275 BOLT; BRKT
6WG1 TC-C(72L) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
286 BRACKET
6WG1 TC-C(72L) 		1-82699-199-0 01 1 0512- ● ●
288 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
288 NUT; BRKT FIX
6WG1 TC-C(72L) M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
288 NUT; BRKT FIX
6WG1 TC-C(72L) M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●

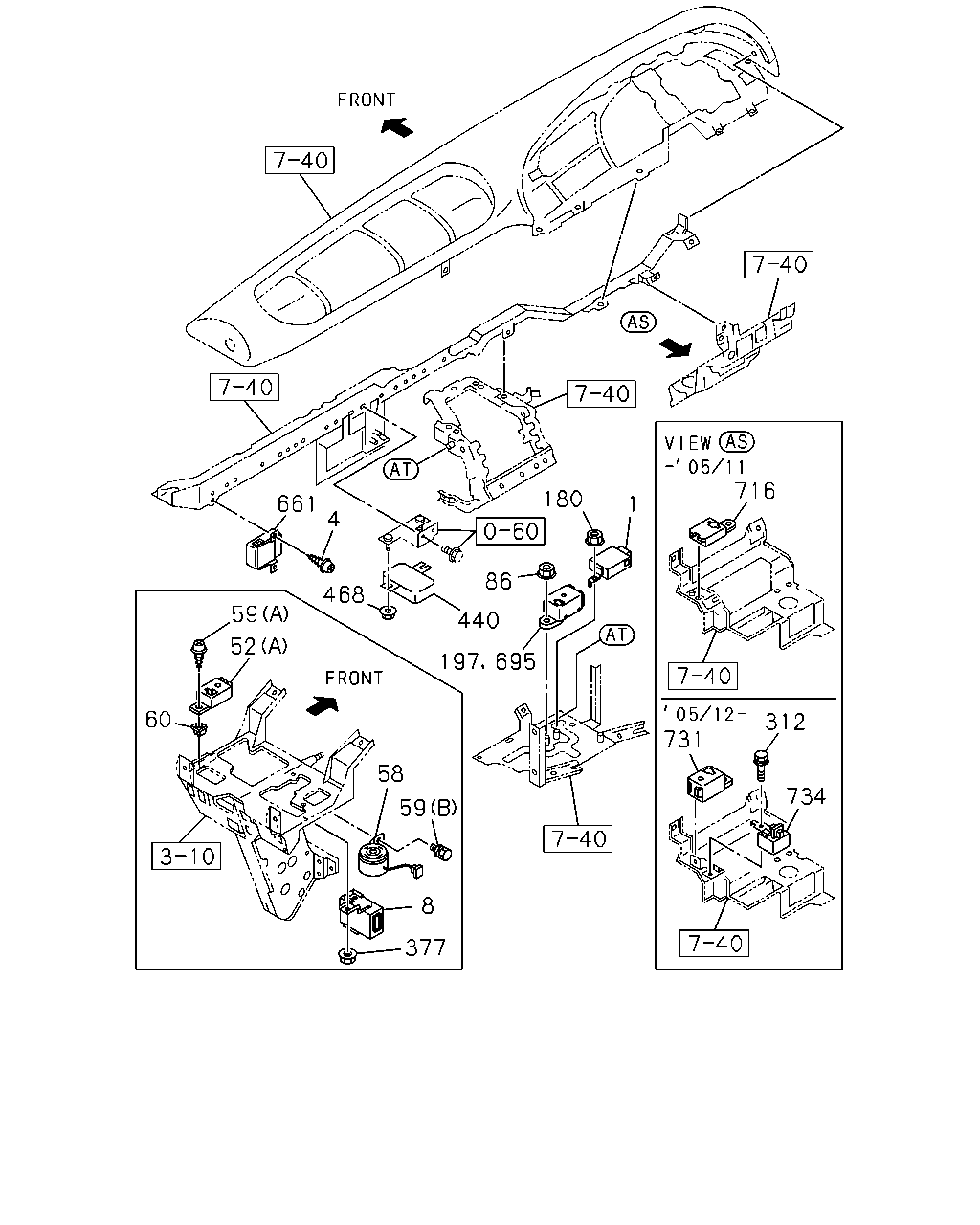

çizim 87199
716 180 661 1 4 86 468 59 440 52 197 695 731 60 312 58 734 59 8 77
BalonParca AdiParca NoAdetTipApplied Date A B C
1 UNIT; FLASHER 1-83470-062-0 01 1 0407-0511 ●
1 UNIT; FLASHER 1-83470-062-1 01 1 0512- ● ●
4 SCREW; FLASHER UNIT
M5X14 		8-94279-325-0 01 1 0407-0511 ●
4 SCREW; FLASHER UNIT
M5X14 		8-94279-325-0 01 1 0512- ● ●
8 RELAY; WIPER 1-83316-002-4 01 1 0407-0511 ●
8 RELAY; WIPER 1-83316-002-4 01 1 0512- ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (B) METRO DENSO 		1-83460-083-0 01 1 0407-0511 ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (B) METRO DENSO 		1-83460-083-0 01 1 0512-0612 ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> (B) METRO DENSO 		8-98069-861-0 01 1 0701- ● ●
52 BUZZER; BACK
EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-83460-040-0 01 1 0407-0511 ●
52 BUZZER; BACK
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) (A) 		1-83460-040-0 01 1 0512- ●
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-075-0 01 1 0407-0511 ●
58 BUZZER; AIR PRESSURE WARNING
6WF1 TC-C(1B8) METRO DENSO 		1-83460-075-0 01 1 0512-0612 ●
58 BUZZER; AIR PRESSURE WARNING
6WF1 TC-C(1B8) METRO DENSO 		8-98069-859-0 01 1 0701- ●
59 SCREW; BUZZER
(B) M5X14 		8-94279-325-0 01 1 0407-0511 ●
59 SCREW; BUZZER
6WF1 TC-C(1B8) (B) M5X14 		8-94279-325-0 01 1 0512- ●
59 SCREW; BUZZER
EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0407-0511 ●
59 SCREW; BUZZER
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) (A) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0512-0604 ●
59 SCREW; BUZZER
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) (A) M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605- ●
60 GROMMET; SCREW,BUZZER
EXC. TRANSMISSION CONTROL LINK TYPE(B2A) D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0407-0511 ●
60 GROMMET; SCREW,BUZZER
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) D=8.6X7.7 L=7.5 		8-94279-078-0 01 1 0512- ●
77 HORN ASM 1-83430-041-1 01 1 0407-0511 ●
77 HORN ASM 1-83430-041-2 01 1 0512- ● ●
86 NUT; BUZZER
M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
86 NUT; BUZZER
M8 FLANGE 		0-91150-108-0 01 1 0407-0511 ●
86 NUT; BUZZER
M8 FLANGE 		0-91150-108-0 01 1 0512-0602 ● ●
86 NUT; BUZZER
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
197 BUZZER; WARNING,AIR HEAT OIL BRK
6WF1 TC-C(1B8) 		1-83460-051-1 01 1 0512- ●
312 BOLT; BUZZER
6WG1 TC-C(72L) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0512- ● ●
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0407-0511 ●
440 MODULE; INFORMATION,ABS
6WF1 TC-C(1B8) 		1-81510-701-0 01 1 0512-0609 ●
440 MODULE; INFORMATION,ABS
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) 		1-81510-701-0 01 1 0512-0609 ●
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0610- ● ●
468 NUT; MODULE
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
468 NUT; MODULE
6WF1 TC-C(1B8) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
468 NUT; MODULE
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
468 NUT; MODULE
6WF1 TC-C(1B8) M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ●
468 NUT; MODULE
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 02 1 0603-0609 ●
468 NUT; MODULE
M6 FLANGE 		0-91180-106-0 02 1 0610- ● ●
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 0407-0511 ●
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 0512- ● ●
695 ALARM; OVER HEAT 1-83460-051-1 01 1 0407-0511 ●
716 ALARM; AIR SUS & EDS
SMOOTHER-G(C1W) 		1-83460-051-1 01 1 0407-0511 ●
731 ALARM; INFORMATION
6WG1 TC-C(72L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83460-051-1 01 1 0512- ●
731 ALARM; INFORMATION
6WG1 TC-C(72L) 		1-83460-051-1 01 1 0512- ●
734 ALARM; MULTI
6WG1 TC-C(72L) 		1-83460-106-0 01 1 0512- ● ●

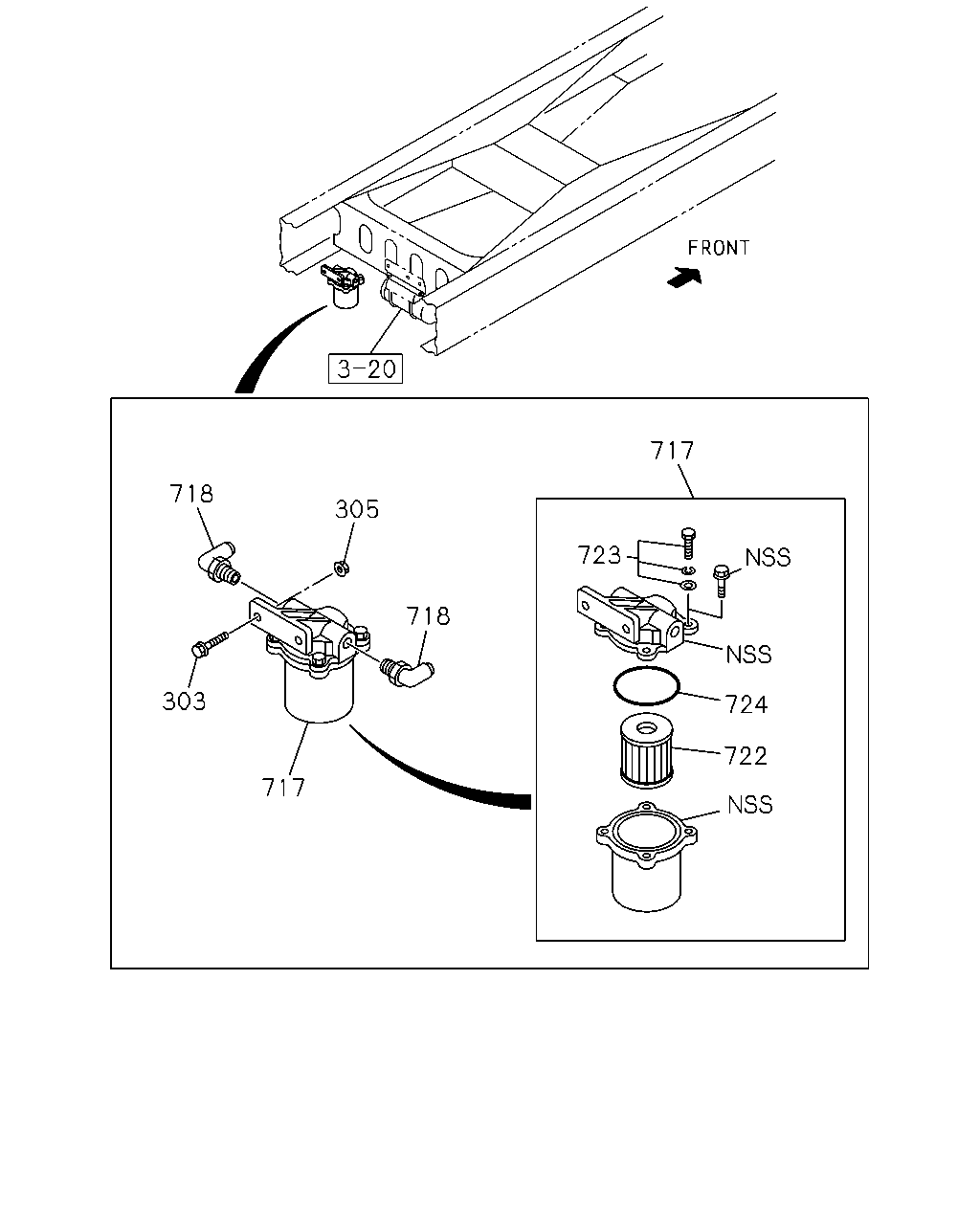

çizim 87883
717 723 724 722 717 718 305 303 718
BalonParca AdiParca NoAdetTipApplied Date A B C
303 BOLT; FILTER
SMOOTHER-G(C1W) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
303 BOLT; FILTER
SMOOTHER-G(C1W) M8X35 FLANGE 		0-28680-835-0 02 1 0512-0512 ●
303 BOLT; FILTER
M8X35 FLANGE 		0-28680-835-0 02 1 0512-0512 ●
303 BOLT; FILTER
SMOOTHER-G(C1W) M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
303 BOLT; FILTER
M8X35 FLANGE 		0-28650-835-0 02 1 0601- ●
305 NUT; FILTER
SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
305 NUT; FILTER
SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
305 NUT; FILTER
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
305 NUT; FILTER
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 02 1 0603- ●
305 NUT; FILTER
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
717 FILTER; MAG VLV
SMOOTHER-G(C1W) 		1-33779-032-0 01 1 0407-0511 ●
717 FILTER; MAG VLV
SMOOTHER-G(C1W) 		1-33779-032-0 01 1 0512-0708 ●
717 FILTER; MAG VLV 1-33779-032-0 01 1 0512-0708 ●
717 FILTER; MAG VLV
SMOOTHER-G(C1W) 		8-98092-703-0 01 1 0709- ●
717 FILTER; MAG VLV 8-98092-703-0 01 1 0709- ●
718 CONNECTOR; FILTER
SMOOTHER-G(C1W) DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0407-0511 ●
718 CONNECTOR; FILTER
SMOOTHER-G(C1W) DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0512- ●
718 CONNECTOR; FILTER
DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0512- ●
722 ELEMENT; AIR FILTER
SMOOTHER-G(C1W) 		1-33779-040-0 01 1 0407-0511 ●
722 ELEMENT; AIR FILTER
SMOOTHER-G(C1W) 		1-33779-040-0 01 1 0512- ●
722 ELEMENT; AIR FILTER 1-33779-040-0 01 1 0512- ●
723 BOLT; AIR FILTER
SMOOTHER-G(C1W) 		1-33779-025-0 04 1 0512-0708 ●
723 BOLT; AIR FILTER 1-33779-025-0 04 1 0512-0708 ●
723 BOLT; AIR FILTER
SMOOTHER-G(C1W) 		1-33779-025-0 01 1 0407-0511 ●
724 GASKET; AIR FILTER
SMOOTHER-G(C1W) 		5-09623-075-0 01 1 0407-0511 ●
724 GASKET; AIR FILTER
SMOOTHER-G(C1W) 		5-09623-075-0 01 1 0512- ●
724 GASKET; AIR FILTER 5-09623-075-0 01 1 0512- ●

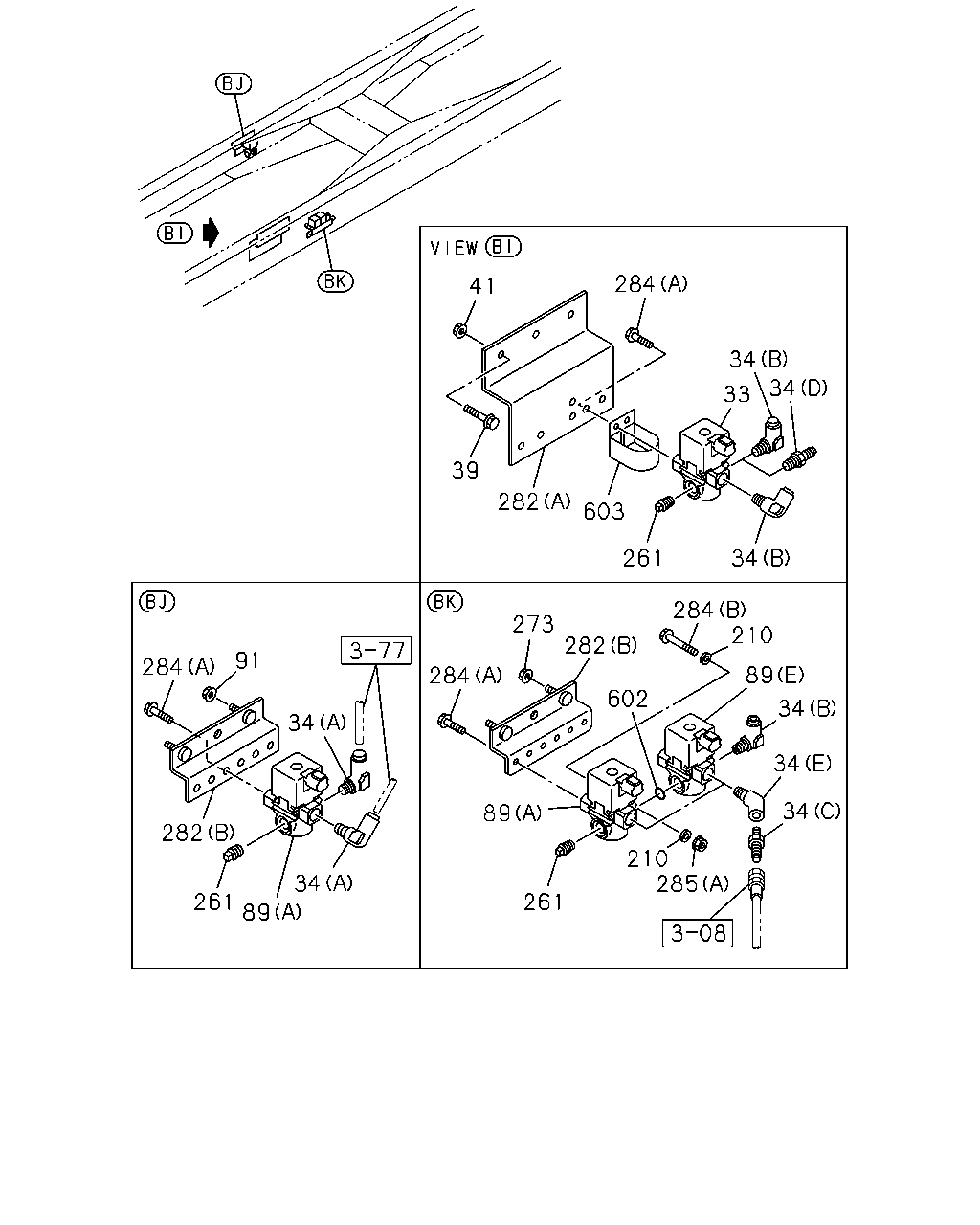

çizim 88213
284 41 34 34 33 39 282 603 34 261 284 210 273 282 91 284 89 284 602 34 34 34 34 89 282 210 285 34 261 261 8
BalonParca AdiParca NoAdetTipApplied Date A B C
8 RELAY; WIPER 1-83316-002-4 01 1 0407-0511 ●
8 RELAY; WIPER 1-83316-002-4 01 1 0512- ● ●
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82563-871-2 01 1 0407-0511 ●
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82563-871-2 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4 		1-09664-211-0 02 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0512- ● ●
39 BOLT; BRKT,MAG VLV
6WG1 TC-C(72L) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ● ●
39 BOLT; BRKT,MAG VLV
6WG1 TC-C(72L) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28680-820-0 06 1 0407-0511 ●
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-354-1 01 1 0607- ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) 		1-82563-872-1 01 1 0512- ● ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-094-1 01 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-094-1 01 1 0512-0606 ●
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-094-1 01 1 0512-0606 ●
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-094-2 01 1 0607- ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (C) 		1-82564-095-0 02 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (C) 		1-82564-095-1 02 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-095-1 02 1 0512- ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-279-0 01 1 0407-0504 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-407-0 01 1 0505-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-407-1 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-407-1 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0512- ● ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0512- ● ●
91 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
91 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L) 		1-82569-266-0 06 1 0512- ● ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0407-0511 ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0407-0511 ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0512- ● ●
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0512- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0407-0511 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0407-0511 ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 0407-0511 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0512- ● ●
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0512- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0512- ● ●
261 PLUG; MAG VLV
SMOOTHER-G(C1W) PT1/4 		9-99204-513-0 01 1 0512- ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 0512- ●
273 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
273 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
282 BRACKET; MAG VLV
6WG1 TC-C(72L) (E) 		1-82569-298-0 01 1 0512- ● ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0407-0511 ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47471-175-0 01 1 0512- ●
282 BRACKET; MAG VLV
(D) 		1-82569-277-2 01 1 0407-0511 ●
282 BRACKET; MAG VLV
6WF1 TC-C(1B8) (D) 		1-82569-277-2 01 1 0512- ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0407-0511 ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0512- ● ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0407-0511 ●
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0512- ● ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0512- ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28080-650-0 03 1 0512-0512 ● ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0601- ● ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0407-0511 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
(B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
602 GASKET; MAG VLV
6WG1 TC-C(72L) ID=16.8 		9-09565-117-0 03 1 0512- ● ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0407-0511 ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0407-0511 ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0512- ● ●
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0512- ● ●
603 PROTECTOR; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-47471-046-0 01 1 0512- ●

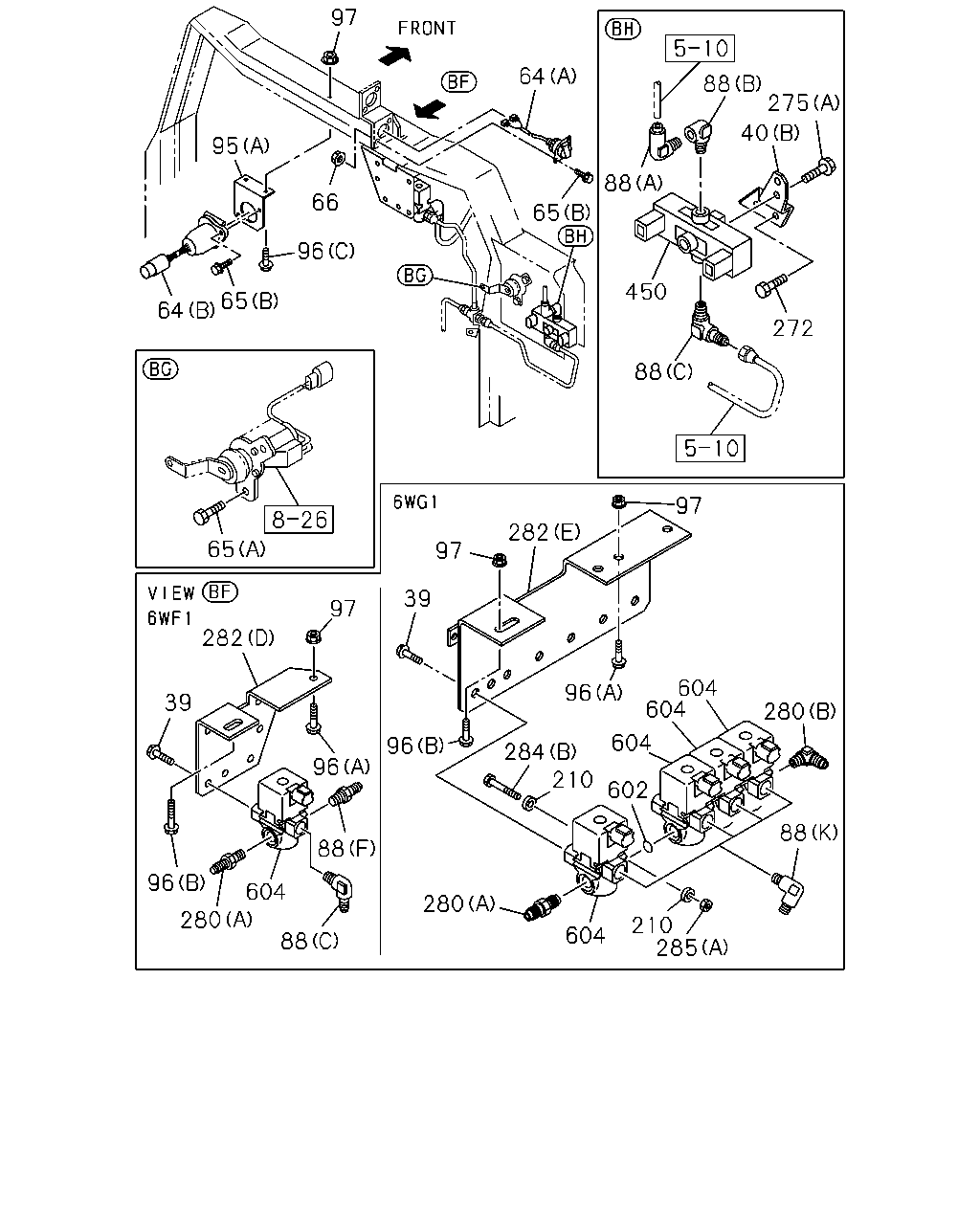

çizim 104804
97 64 88 275 40 95 88 66 65 96 450 65 64 272 88 97 282 65 97 39 97 282 604 604 96 39 280 604 96 284 210 96 602 88 88 96 604 280 280 210 285 604 88
BalonParca AdiParca NoAdetTipApplied Date A B C
39 BOLT; BRKT,MAG VLV
6WG1 TC-C(72L) M8X20 FLANGE 		0-28680-820-0 04 1 0512-0512 ● ●
39 BOLT; BRKT,MAG VLV
6WG1 TC-C(72L) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ●
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28680-820-0 06 1 0407-0511 ●
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
39 BOLT; BRKT,MAG VLV
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
39 BOLT; BRKT,MAG VLV
6WF1 TC-C(1B8) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (E) 		8-97609-263-0 01 1 0512- ●
40 BRACKET; MAG VLV
(F) 		1-82569-423-0 01 1 0512- ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (C) 		1-82569-403-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (D) 		1-47471-170-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-117-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
CAB SUSPENSION-FULL FLOATING(SMK) (A) 		1-53457-117-0 01 1 0512- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (B) 		1-53458-380-0 01 1 0512- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0512- ●
64 SOCKET; TRAILER
(B) 		1-82523-014-0 01 1 0407-0511 ●
64 SOCKET; TRAILER
(B) 7P 		1-82523-014-0 01 1 0512- ● ●
64 SOCKET; TRAILER
(A) 		1-82698-297-0 01 1 0407-0511 ●
64 SOCKET; TRAILER
(A) L=940 		1-82698-297-0 01 1 0512-1008 ● ●
64 SOCKET; TRAILER
(A) L=940 		8-98172-009-0 01 1 1009- ● ●
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0407-0511 ●
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0512-0512 ● ●
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0601- ● ●
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0407-0511 ●
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ● ●
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ● ●
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L) (K) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0512- ● ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512- ●
88 CONNECTOR; MAG VLV
(J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (H) 		1-09661-065-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(H) 		1-09661-065-0 02 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (I) PT3/8 3WAY 		1-09661-300-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (I) PT3/8 3WAY 		1-09661-300-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(I) PT3/8 3WAY 		1-09661-300-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ● ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ● ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
95 BRACKET; SOCKET,TRAILER
(B) 		1-82699-387-0 01 1 0512- ●
95 BRACKET; SOCKET,TRAILER
(C) 		1-82699-979-0 01 1 0512-1008 ●
95 BRACKET; SOCKET,TRAILER
(C) 		8-97985-137-0 01 1 1009- ●
95 BRACKET; SOCKET,TRAILER
(A) 		1-82699-429-0 01 1 0407-0511 ●
95 BRACKET; SOCKET,TRAILER
(A) 		1-82699-429-0 01 1 0512-1008 ●
95 BRACKET; SOCKET,TRAILER
(A) 		8-98173-095-0 01 1 1009- ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ● ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0407-0511 ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0512-0512 ● ●
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0601- ● ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28680-825-0 04 1 0512-0512 ●
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0407-0511 ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28681-025-0 01 1 0512-0512 ● ●
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0601- ● ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 04 1 0512-0602 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 04 1 0603- ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 05 1 0407-0511 ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 05 1 0512-0602 ● ●
97 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 05 1 0603- ● ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L) 		1-82569-266-0 06 1 0512- ● ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0407-0511 ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0407-0511 ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0512- ● ●
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0512- ● ●
272 BOLT; MAG VLV
M10X20 FLANGE 		0-28681-020-0 02 1 0407-0511 ●
272 BOLT; MAG VLV
FULL FLOATING CAB(W16) M10X20 FLANGE 		0-28681-020-0 02 1 0512-0512 ●
272 BOLT; MAG VLV
M10X20 FLANGE 		0-28681-020-0 02 1 0512-0512 ●
272 BOLT; MAG VLV
FULL FLOATING CAB(W16) M10X20 FLANGE 		0-28651-020-0 02 1 0601-1208 ●
272 BOLT; MAG VLV
M10X20 FLANGE 		0-28651-020-0 02 1 0601-1208 ●
272 BOLT; MAG VLV
FULL FLOATING CAB(W16) M10X25 FLANGE 		0-28651-025-0 02 1 1209- ●
272 BOLT; MAG VLV
M10X25 FLANGE 		0-28651-025-0 02 1 1209- ●
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0407-0511 ●
275 BOLT; BRKT
FULL FLOATING CAB(W16) (A) M8X14 FLANGE 		0-28080-814-0 01 1 0512- ●
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0512- ●
275 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0511 ●
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0407-0511 ●
275 BOLT; BRKT
6WG1 TC-C(72L) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0512-0512 ● ●
275 BOLT; BRKT
6WG1 TC-C(72L) (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0407-0511 ●
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ● ●
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ● ●
280 CONNECTOR; IN,MAG VLV
6WG1 TC-C(72L) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ● ●
282 BRACKET; MAG VLV
6WG1 TC-C(72L) (E) 		1-82569-298-0 01 1 0512- ● ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0407-0511 ●
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47471-175-0 01 1 0512- ●
282 BRACKET; MAG VLV
(D) 		1-82569-277-2 01 1 0407-0511 ●
282 BRACKET; MAG VLV
6WF1 TC-C(1B8) (D) 		1-82569-277-2 01 1 0512- ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0407-0511 ●
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0512- ● ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0407-0511 ●
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0512- ● ●
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0512- ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28080-650-0 03 1 0512-0512 ● ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0601- ● ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0407-0511 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
(B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
450 VALVE; MAG 1-53458-378-2 01 1 0407-0511 ●
450 VALVE; MAG
FULL FLOATING CAB(W16) 		1-53458-378-2 01 1 0512- ●
450 VALVE; MAG 1-53458-378-2 01 1 0512- ●
602 GASKET; MAG VLV
6WG1 TC-C(72L) ID=16.8 		9-09565-117-0 03 1 0512- ● ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0407-0511 ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0407-0511 ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0512- ● ●
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0512- ● ●
604 VALVE; MAG,ENG CONT
6WG1 TC-C(72L) 		1-82563-871-2 04 1 0512- ● ●
604 VALVE; MAG,ENG CONT 1-82563-871-2 02 1 0512- ● ●
604 VALVE; MAG,ENG CONT 1-82563-871-2 04 1 0407-0511 ●
604 VALVE; MAG,ENG CONT
6WF1 TC-C(1B8) 		1-82563-871-2 01 1 0512- ●
çizim 105026
667 721 88 88 88 88 507 89 88 88 424 510 88 284 88 88 88 298 88 40 88 90 285 528 284 285 284 89 210 89 387 602 132 210 285 89 507 602 132 284 507 132 507 34 507
BalonParca AdiParca NoAdetTipApplied Date A B C
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4 		1-09664-211-0 02 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0512- ● ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (E) 		8-97609-263-0 01 1 0512- ●
40 BRACKET; MAG VLV
(F) 		1-82569-423-0 01 1 0512- ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (C) 		1-82569-403-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (D) 		1-47471-170-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-117-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
CAB SUSPENSION-FULL FLOATING(SMK) (A) 		1-53457-117-0 01 1 0512- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (B) 		1-53458-380-0 01 1 0512- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L) (K) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0512- ● ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512- ●
88 CONNECTOR; MAG VLV
(J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (H) 		1-09661-065-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(H) 		1-09661-065-0 02 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (I) PT3/8 3WAY 		1-09661-300-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (I) PT3/8 3WAY 		1-09661-300-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(I) PT3/8 3WAY 		1-09661-300-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ● ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ● ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-354-1 01 1 0607- ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) 		1-82563-872-1 01 1 0512- ● ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-094-1 01 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-094-1 01 1 0512-0606 ●
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-094-1 01 1 0512-0606 ●
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-094-2 01 1 0607- ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (C) 		1-82564-095-0 02 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (C) 		1-82564-095-1 02 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-095-1 02 1 0512- ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-279-0 01 1 0407-0504 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-407-0 01 1 0505-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-407-1 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-407-1 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0512- ● ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0512- ● ●
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
90 BOLT; MAG VLV
M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
90 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
90 BOLT; MAG VLV
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
90 BOLT; MAG VLV
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28680-830-0 04 1 0512-0512 ●
90 BOLT; MAG VLV
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
132 CONNECTOR; OUTLET,MAG VLV
SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0407-0511 ●
132 CONNECTOR; OUTLET,MAG VLV
SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0512- ●
132 CONNECTOR; OUTLET,MAG VLV
DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0512- ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L) 		1-82569-266-0 06 1 0512- ● ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0407-0511 ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0407-0511 ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0512- ● ●
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0512- ● ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28080-650-0 03 1 0512-0512 ● ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0601- ● ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0407-0511 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
(B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
298 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
298 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
298 NUT; MAG VLV
SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
298 NUT; MAG VLV
SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 06 1 0512-0602 ●
298 NUT; MAG VLV
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 06 1 0603- ●
387 CLIP; BAND
SMOOTHER-G(C1W) L=350 		1-09707-183-0 01 1 0407-0511 ●
387 CLIP; BAND
L=350 		1-09707-183-0 01 1 0512- ●
424 ADAPTER
SMOOTHER-G(C1W) (A) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0512- ●
424 ADAPTER
SMOOTHER-G(C1W) (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0512- ●
424 ADAPTER
(C) PT3/8 		1-09664-210-0 01 1 0512- ●
424 ADAPTER
SMOOTHER-G(C1W) (C) PT3/8 		1-09664-210-0 01 1 0407-0511 ●
424 ADAPTER
SMOOTHER-G(C1W) (C) PT3/8 		1-09664-210-0 02 1 0512- ●
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0512- ●
507 TUBE; NYLON
SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0407-0511 ●
507 TUBE; NYLON
SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0512- ●
507 TUBE; NYLON
CAB UP +110MM<TGG> (B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0407-0511 ●
507 TUBE; NYLON
FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0512- ●
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0512- ●
510 VALVE; CHECK
SMOOTHER-G(C1W) 		1-48410-531-0 01 1 0407-0511 ●
510 VALVE; CHECK
SMOOTHER-G(C1W) 		1-48410-531-1 01 1 0512- ●
510 VALVE; CHECK 1-48410-531-1 01 1 0512- ●
528 VALVE; PRESSURE REDUCING
SMOOTHER-G(C1W) 		1-48410-302-0 01 1 0407-0504 ●
528 VALVE; PRESSURE REDUCING
SMOOTHER-G(C1W) 		1-48410-744-0 01 1 0505-0511 ●
528 VALVE; PRESSURE REDUCING
SMOOTHER-G(C1W) 		1-48410-744-0 01 1 0512- ●
528 VALVE; PRESSURE REDUCING 1-48410-744-0 01 1 0512- ●
602 GASKET; MAG VLV
6WG1 TC-C(72L) ID=16.8 		9-09565-117-0 03 1 0512- ● ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0407-0511 ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0407-0511 ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0512- ● ●
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0512- ● ●
667 LUBRICATION
SMOOTHER-G(C1W) 		1-33779-011-0 01 1 0407-0511 ●
667 LUBRICATION
SMOOTHER-G(C1W) 		1-33779-011-0 01 1 0512-0705 ●
667 LUBRICATION 1-33779-011-0 01 1 0512-0705 ●
667 LUBRICATION
SMOOTHER-G(C1W) 		8-98063-001-0 01 1 0706- ●
667 LUBRICATION 8-98063-001-0 01 1 0706- ●
721 ELEMENT; LUBRICATION
SMOOTHER-G(C1W) 		1-33779-028-0 01 1 0407-0511 ●
721 ELEMENT; LUBRICATION
SMOOTHER-G(C1W) 		1-33779-028-0 01 1 0512- ●
721 ELEMENT; LUBRICATION 1-33779-028-0 01 1 0512- ●
çizim 105027
88 88 721 88 424 507 89 667 88 88 88 510 88 88 40 285 298 89 210 284 132 284 88 88 88 602 89 284 90 285 88 132 34 284 132 507 285 528 387 507 507 507 210 89
BalonParca AdiParca NoAdetTipApplied Date A B C
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4 		1-09664-211-0 02 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0512- ● ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (E) 		8-97609-263-0 01 1 0512- ●
40 BRACKET; MAG VLV
(F) 		1-82569-423-0 01 1 0512- ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (C) 		1-82569-403-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (D) 		1-47471-170-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-117-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
CAB SUSPENSION-FULL FLOATING(SMK) (A) 		1-53457-117-0 01 1 0512- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (B) 		1-53458-380-0 01 1 0512- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L) (K) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0512- ● ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512- ●
88 CONNECTOR; MAG VLV
(J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (H) 		1-09661-065-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(H) 		1-09661-065-0 02 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (I) PT3/8 3WAY 		1-09661-300-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (I) PT3/8 3WAY 		1-09661-300-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(I) PT3/8 3WAY 		1-09661-300-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ● ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ● ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-354-1 01 1 0607- ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) 		1-82563-872-1 01 1 0512- ● ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-094-1 01 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-094-1 01 1 0512-0606 ●
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-094-1 01 1 0512-0606 ●
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-094-2 01 1 0607- ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (C) 		1-82564-095-0 02 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (C) 		1-82564-095-1 02 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-095-1 02 1 0512- ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-279-0 01 1 0407-0504 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-407-0 01 1 0505-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-407-1 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-407-1 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0512- ● ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0512- ● ●
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
90 BOLT; MAG VLV
M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
90 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
90 BOLT; MAG VLV
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
90 BOLT; MAG VLV
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28680-830-0 04 1 0512-0512 ●
90 BOLT; MAG VLV
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
132 CONNECTOR; OUTLET,MAG VLV
SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0407-0511 ●
132 CONNECTOR; OUTLET,MAG VLV
SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0512- ●
132 CONNECTOR; OUTLET,MAG VLV
DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0512- ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L) 		1-82569-266-0 06 1 0512- ● ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0407-0511 ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0407-0511 ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0512- ● ●
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0512- ● ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28080-650-0 03 1 0512-0512 ● ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0601- ● ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0407-0511 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
(B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
298 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
298 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
298 NUT; MAG VLV
SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
298 NUT; MAG VLV
SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 06 1 0512-0602 ●
298 NUT; MAG VLV
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 06 1 0603- ●
387 CLIP; BAND
SMOOTHER-G(C1W) L=350 		1-09707-183-0 01 1 0407-0511 ●
387 CLIP; BAND
L=350 		1-09707-183-0 01 1 0512- ●
424 ADAPTER
SMOOTHER-G(C1W) (A) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0512- ●
424 ADAPTER
SMOOTHER-G(C1W) (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0512- ●
424 ADAPTER
(C) PT3/8 		1-09664-210-0 01 1 0512- ●
424 ADAPTER
SMOOTHER-G(C1W) (C) PT3/8 		1-09664-210-0 01 1 0407-0511 ●
424 ADAPTER
SMOOTHER-G(C1W) (C) PT3/8 		1-09664-210-0 02 1 0512- ●
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0512- ●
507 TUBE; NYLON
SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0407-0511 ●
507 TUBE; NYLON
SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0512- ●
507 TUBE; NYLON
CAB UP +110MM<TGG> (B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0407-0511 ●
507 TUBE; NYLON
FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0512- ●
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0512- ●
510 VALVE; CHECK
SMOOTHER-G(C1W) 		1-48410-531-0 01 1 0407-0511 ●
510 VALVE; CHECK
SMOOTHER-G(C1W) 		1-48410-531-1 01 1 0512- ●
510 VALVE; CHECK 1-48410-531-1 01 1 0512- ●
528 VALVE; PRESSURE REDUCING
SMOOTHER-G(C1W) 		1-48410-302-0 01 1 0407-0504 ●
528 VALVE; PRESSURE REDUCING
SMOOTHER-G(C1W) 		1-48410-744-0 01 1 0505-0511 ●
528 VALVE; PRESSURE REDUCING
SMOOTHER-G(C1W) 		1-48410-744-0 01 1 0512- ●
528 VALVE; PRESSURE REDUCING 1-48410-744-0 01 1 0512- ●
602 GASKET; MAG VLV
6WG1 TC-C(72L) ID=16.8 		9-09565-117-0 03 1 0512- ● ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0407-0511 ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0407-0511 ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0512- ● ●
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0512- ● ●
667 LUBRICATION
SMOOTHER-G(C1W) 		1-33779-011-0 01 1 0407-0511 ●
667 LUBRICATION
SMOOTHER-G(C1W) 		1-33779-011-0 01 1 0512-0705 ●
667 LUBRICATION 1-33779-011-0 01 1 0512-0705 ●
667 LUBRICATION
SMOOTHER-G(C1W) 		8-98063-001-0 01 1 0706- ●
667 LUBRICATION 8-98063-001-0 01 1 0706- ●
721 ELEMENT; LUBRICATION
SMOOTHER-G(C1W) 		1-33779-028-0 01 1 0407-0511 ●
721 ELEMENT; LUBRICATION
SMOOTHER-G(C1W) 		1-33779-028-0 01 1 0512- ●
721 ELEMENT; LUBRICATION 1-33779-028-0 01 1 0512- ●
çizim 105028
377 732 121 94
BalonParca AdiParca NoAdetTipApplied Date A B C
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0407-0511 ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0512-0604 ● ●
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0605- ● ●
121 RELAY; PARKING BRK
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0407-0511 ●
121 RELAY; PARKING BRK
6WG1 TC-C(72L) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0512- ● ●
377 NUT; RELAY
M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
377 NUT; RELAY
M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
377 NUT; RELAY
6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
377 NUT; RELAY
6WG1 TC-C(72L) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
377 NUT; RELAY
6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
377 NUT; RELAY
6WG1 TC-C(72L) M6 FLANGE 		0-91180-106-0 02 1 0603- ●
732 RELAY; EDS
6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		1-82550-337-1 01 1 0512- ●
732 RELAY; EDS
6WG1 TC-C(72L) 		1-82550-337-1 01 1 0512- ●
çizim 105029
34 424 424 88 88 285 88 284 284 528 89 261 40 298 284 89 507 88 88 210 210 510 90 507 88 602 285 132 88 424 132 89 88 88 89 721 88 667 88 424 88 40 298 284 285
BalonParca AdiParca NoAdetTipApplied Date A B C
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (D) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4 		1-09664-211-0 02 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ● ●
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
SMOOTHER-G(C1W) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407-0511 ●
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0512- ● ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0512- ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (E) 		8-97609-263-0 01 1 0512- ●
40 BRACKET; MAG VLV
(F) 		1-82569-423-0 01 1 0512- ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (C) 		1-82569-403-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
SMOOTHER-G(C1W) (D) 		1-47471-170-0 01 1 0512- ●
40 BRACKET; MAG VLV
(A) 		1-53457-117-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
CAB SUSPENSION-FULL FLOATING(SMK) (A) 		1-53457-117-0 01 1 0512- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0407-0511 ●
40 BRACKET; MAG VLV
FULL FLOATING CAB(W16) (B) 		1-53458-380-0 01 1 0512- ●
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (L) DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(M) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WG1 TC-C(72L) (K) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0512- ● ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(D) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512- ●
88 CONNECTOR; MAG VLV
(J) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(G) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (H) 		1-09661-065-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(H) 		1-09661-065-0 02 1 0512- ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (I) PT3/8 3WAY 		1-09661-300-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
SMOOTHER-G(C1W) (I) PT3/8 3WAY 		1-09661-300-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(I) PT3/8 3WAY 		1-09661-300-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 05 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ● ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0407-0511 ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ● ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
6WF1 TC-C(1B8) (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0407-0511 ●
88 CONNECTOR; MAG VLV
FULL FLOATING CAB(W16) (B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-354-1 01 1 0607- ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) 		1-82563-872-1 01 1 0512- ● ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-094-1 01 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (B) 		1-82564-094-1 01 1 0512-0606 ●
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-094-1 01 1 0512-0606 ●
89 VALVE; MAG,DIFF LOCK
(B) 		1-82564-094-2 01 1 0607- ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (C) 		1-82564-095-0 02 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (C) 		1-82564-095-1 02 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-095-1 02 1 0512- ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-279-0 01 1 0407-0504 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-407-0 01 1 0505-0511 ●
89 VALVE; MAG,DIFF LOCK
SMOOTHER-G(C1W) (D) 		1-82564-407-1 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-407-1 01 1 0512- ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0407-0511 ●
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0512- ● ●
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0512- ● ●
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28680-825-0 02 1 0512-0512 ●
90 BOLT; MAG VLV
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
90 BOLT; MAG VLV
M8X30 FLANGE 		0-28680-830-0 02 1 0512-0512 ●
90 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ●
90 BOLT; MAG VLV
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28680-830-0 02 1 0407-0511 ●
90 BOLT; MAG VLV
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28680-830-0 04 1 0512-0512 ●
90 BOLT; MAG VLV
SMOOTHER-G(C1W) M8X30 FLANGE 		0-28650-830-0 04 1 0601- ●
132 CONNECTOR; OUTLET,MAG VLV
SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0407-0511 ●
132 CONNECTOR; OUTLET,MAG VLV
SMOOTHER-G(C1W) DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0512- ●
132 CONNECTOR; OUTLET,MAG VLV
DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0512- ●
210 WASHER; PL,BRKT
6WG1 TC-C(72L) 		1-82569-266-0 06 1 0512- ● ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0407-0511 ●
210 WASHER; PL,BRKT
SMOOTHER-G(C1W) 		1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0512- ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0407-0511 ●
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0512- ● ●
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0512- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0407-0511 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0407-0511 ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 0407-0511 ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0512- ● ●
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0512- ● ●
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0512- ● ●
261 PLUG; MAG VLV
SMOOTHER-G(C1W) PT1/4 		9-99204-513-0 01 1 0512- ●
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) PT1/4 		9-99204-513-0 01 1 0512- ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28080-650-0 03 1 0512-0512 ● ●
284 BOLT; MAG VLV
6WG1 TC-C(72L) (B) M6X50 FLANGE 		0-28050-650-0 03 1 0601- ● ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0512-0512 ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 04 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0601- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0512- ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0407-0511 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 03 1 0512-0512 ●
284 BOLT; MAG VLV
SMOOTHER-G(C1W) (A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0601- ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0407-0511 ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28080-650-0 01 1 0512-0512 ● ●
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0601- ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ● ●
285 NUT; MAG VLV
6WG1 TC-C(72L) (A) M6 FLANGE 		0-91180-106-0 03 1 0603- ● ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0407-0511 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
(B) M5 		9-99110-405-0 03 1 0512-0512 ●
285 NUT; MAG VLV
SMOOTHER-G(C1W) (B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0601- ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0407-0511 ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91150-106-0 01 1 0512-0602 ● ●
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
298 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0512-0602 ●
298 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
298 NUT; MAG VLV
SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 03 1 0407-0511 ●
298 NUT; MAG VLV
SMOOTHER-G(C1W) M8 FLANGE 		0-91150-108-0 06 1 0512-0602 ●
298 NUT; MAG VLV
SMOOTHER-G(C1W) M8 FLANGE 		0-91180-108-0 06 1 0603- ●
424 ADAPTER
SMOOTHER-G(C1W) (A) PT1/4 & M12 ELBOW 		1-09656-665-0 01 1 0512- ●
424 ADAPTER
SMOOTHER-G(C1W) (B) PT1/4 & M12 ELBOW 		1-09656-666-0 01 1 0512- ●
424 ADAPTER
(C) PT3/8 		1-09664-210-0 01 1 0512- ●
424 ADAPTER
SMOOTHER-G(C1W) (C) PT3/8 		1-09664-210-0 01 1 0407-0511 ●
424 ADAPTER
SMOOTHER-G(C1W) (C) PT3/8 		1-09664-210-0 02 1 0512- ●
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0512- ●
507 TUBE; NYLON
SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0407-0511 ●
507 TUBE; NYLON
SMOOTHER-G(C1W) (A) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 0512- ●
507 TUBE; NYLON
CAB UP +110MM<TGG> (B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0407-0511 ●
507 TUBE; NYLON
FULL FLOATING CAB(W16) (B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0512- ●
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0512- ●
510 VALVE; CHECK
SMOOTHER-G(C1W) 		1-48410-531-0 01 1 0407-0511 ●
510 VALVE; CHECK
SMOOTHER-G(C1W) 		1-48410-531-1 01 1 0512- ●
510 VALVE; CHECK 1-48410-531-1 01 1 0512- ●
528 VALVE; PRESSURE REDUCING
SMOOTHER-G(C1W) 		1-48410-302-0 01 1 0407-0504 ●
528 VALVE; PRESSURE REDUCING
SMOOTHER-G(C1W) 		1-48410-744-0 01 1 0505-0511 ●
528 VALVE; PRESSURE REDUCING
SMOOTHER-G(C1W) 		1-48410-744-0 01 1 0512- ●
528 VALVE; PRESSURE REDUCING 1-48410-744-0 01 1 0512- ●
602 GASKET; MAG VLV
6WG1 TC-C(72L) ID=16.8 		9-09565-117-0 03 1 0512- ● ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0407-0511 ●
602 GASKET; MAG VLV
SMOOTHER-G(C1W) ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0512- ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0407-0511 ●
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0512- ● ●
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0512- ● ●
667 LUBRICATION
SMOOTHER-G(C1W) 		1-33779-011-0 01 1 0407-0511 ●
667 LUBRICATION
SMOOTHER-G(C1W) 		1-33779-011-0 01 1 0512-0705 ●
667 LUBRICATION 1-33779-011-0 01 1 0512-0705 ●
667 LUBRICATION
SMOOTHER-G(C1W) 		8-98063-001-0 01 1 0706- ●
667 LUBRICATION 8-98063-001-0 01 1 0706- ●
721 ELEMENT; LUBRICATION
SMOOTHER-G(C1W) 		1-33779-028-0 01 1 0407-0511 ●
721 ELEMENT; LUBRICATION
SMOOTHER-G(C1W) 		1-33779-028-0 01 1 0512- ●
721 ELEMENT; LUBRICATION 1-33779-028-0 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
