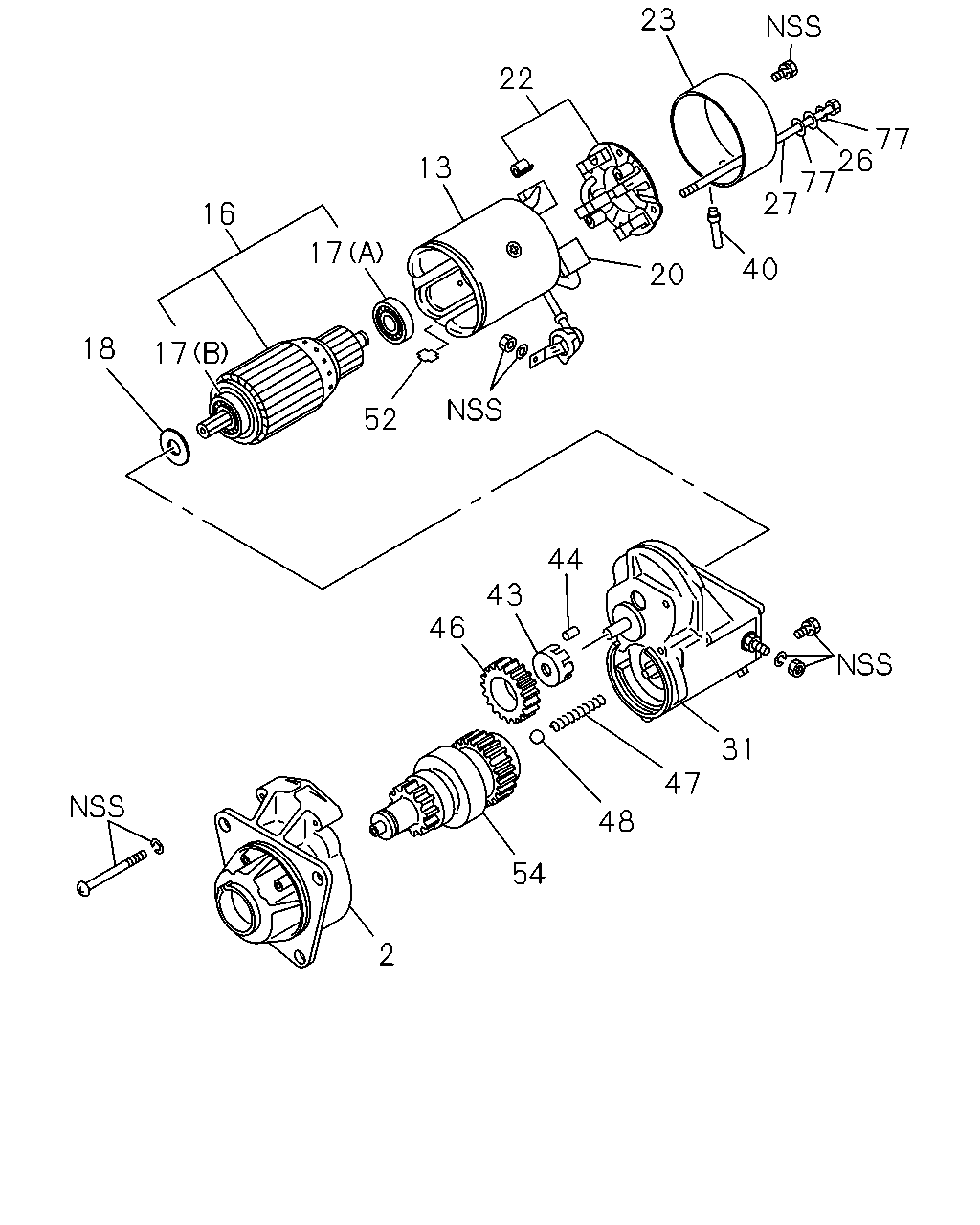

0-65 — STARTER (#3142) — 32 parça

23 22 77 26 77 27 13 16 17 40 20 18 17 52 44 43 46 31 47 48 54 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 1-81100-141-1	1-81114-018-0	01	1	9810-
2	CASE; PINION,STARTER DENSO ASM PART: A = 1-81100-141-1	5-81113-035-0	01	1	-9809
13	YOKE; STARTER ASM PART: A = 1-81100-141-1	1-81129-696-0	01	1	9810-
13	YOKE; STARTER DENSO ASM PART: A = 1-81100-141-1	5-81153-001-0	01	1	-9809
16	ARMATURE; STARTER DENSO ASM PART: A = 1-81100-141-1	1-81121-052-1	01	1	-
17	BEARING; ARMATURE,STARTER (A), DENSO ASM PART: A = 1-81100-141-1	5-09800-041-0	01	1	-
17	BEARING; ARMATURE,STARTER (B), DENSO ASM PART: A = 1-81100-141-1	5-09800-064-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER DENSO ASM PART: A = 1-81100-141-1	5-81129-128-0	01	1	-
20	BRUSH; (+),STARTER DENSO ASM PART: A = 1-81100-141-1	5-81126-002-0	02	1	-9809
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-141-1	8-94171-853-0	02	1	9810-
22	HOLDER; BRUSH STARTER DENSO ASM PART: A = 1-81100-141-1	5-81118-013-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-141-1	1-81115-236-0	01	1	9810-
23	COVER; RR COVER STARTER DENSO ASM PART: A = 1-81100-141-1	5-81156-002-0	01	1	-9809
26	SEAL; THROUGH BOLT STARTER DENSO ASM PART: A = 1-81100-141-1	5-81129-131-0	02	1	-9809
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-141-1	1-81129-698-0	02	1	9810-
27	BOLT; THROUGH,STARTER ASM PART: A = 1-81100-141-1	5-81129-123-0	02	1	-9809
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-141-1	1-81151-034-0	01	1	9810-
31	SWITCH; ENGAGE STARTER DENSO ASM PART: A = 1-81100-141-1	5-81151-039-0	01	1	-9809
40	COVER; DUST,RR COVER,STARTER ASM PART: A = 1-81100-141-1	1-81129-677-0	01	1	9810-
40	COVER; DUST,RR COVER,STARTER ASM PART: A = 1-81100-141-1	5-81129-122-0	01	1	-9809
41	SCREW; RR COVER,STARTER ASM PART: A = 1-81100-141-1	5-81129-130-0	02	1	9810-
43	RETAINER; PINION STARTER ASM PART: A = 1-81100-141-1	5-81129-121-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: A = 1-81100-141-1	5-81129-127-0	01	1	9810-
44	ROLLER; PINION STARTER ASM PART: A = 1-81100-141-1	5-81129-120-0	06	1	-
46	GEAR; CLU STARTER ASM PART: A = 1-81100-141-1	5-81123-018-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 1-81100-141-1	5-81129-119-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 1-81100-141-1	5-81129-092-0	01	1	-
52	PLATE; LK,STARTER ASM PART: A = 1-81100-141-1	5-81129-136-0	01	1	-
54	CLUTCH; PINION,STARTER DENSO ASM PART: A = 1-81100-141-1	5-81124-004-0	01	1	-
77	WASHER; THROUGH BOLT,STARTER DENSO ASM PART: A = 1-81100-141-1	5-81128-002-0	02	1	-9809
114	NUT; TERMINAL ASM PART: A = 1-81100-141-1	5-81129-126-0	01	1	9810-
115	WASHER; TERMINAL ASM PART: A = 1-81100-141-1	5-81129-134-0	01	1	9810-
