Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10954 - CXZ/CYZ NEW ZEALAND
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
▶

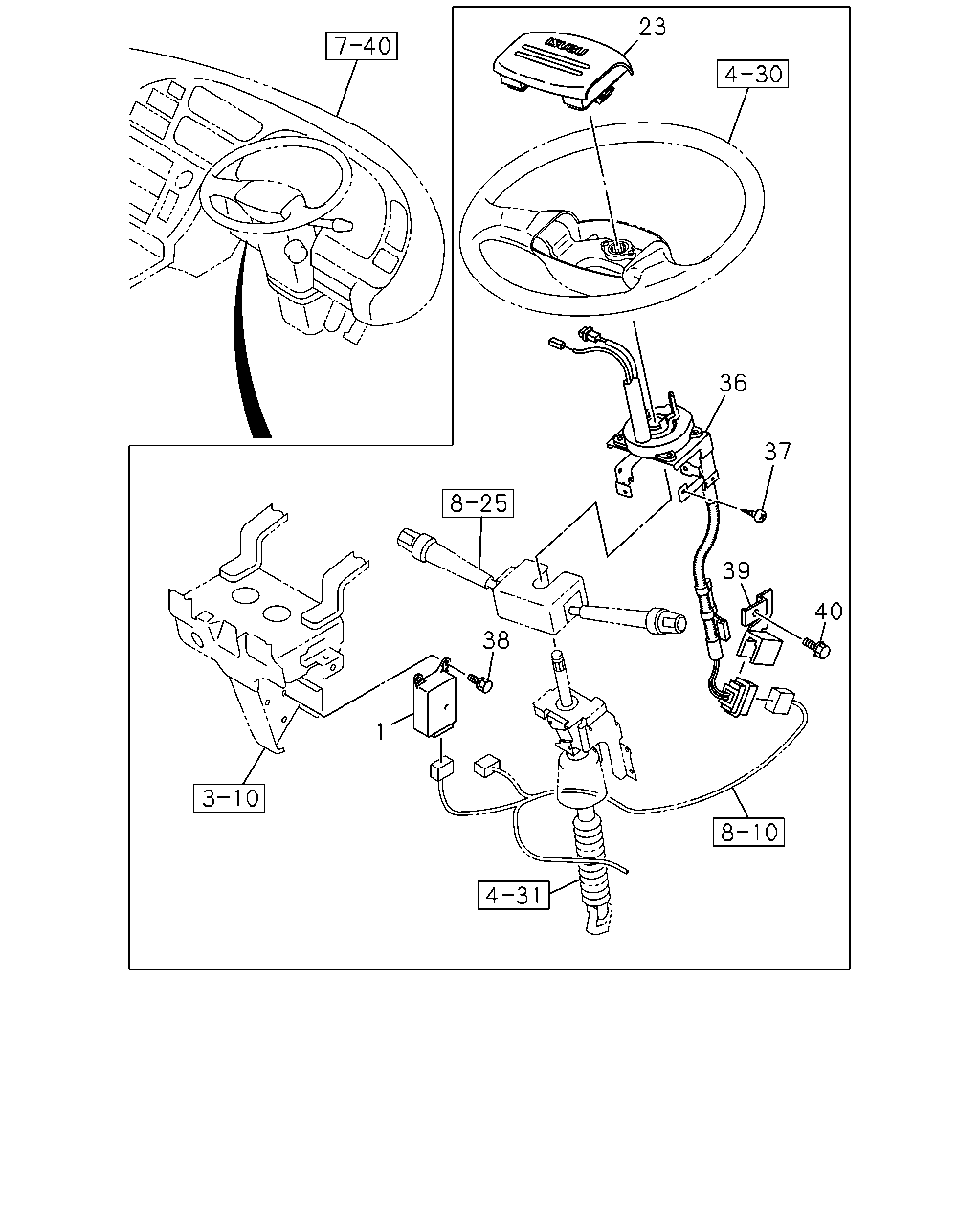

8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM
(#31419) — 18 parça
Tümü
A - CXZ5MF
B - CYZ5MC
C - CYZ5MF
23
36
37
39
40
38
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CONTROL UNIT; SIR
1-80190-131-0
01
1
0407-0511
●
1
CONTROL UNIT; SIR
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)
1-80190-131-1
01
1
0512-
●
1
CONTROL UNIT; SIR
1-80190-131-1
01
1
0512-
●
23
AIR BAG UNIT
1-75630-003-4
01
1
0407-0511
●
23
AIR BAG UNIT
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC)
1-75630-003-6
01
1
0512-
●
23
AIR BAG UNIT
1-75630-003-6
01
1
0512-
●
36
COIL; SRS
1-82699-951-5
01
1
0407-0511
●
36
COIL; SRS
1-82699-951-6
01
1
0512-
●
●
37
SCREW; BRKT
M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
0407-0511
●
37
SCREW; BRKT
M5X10 W/LK+PL WASHER
9-03920-510-0
04
1
0512-0604
●
●
37
SCREW; BRKT
M5X10 W/LK+PL WASHER
0-36230-510-0
04
1
0605-
●
●
38
BOLT; CONT UNIT
M6X18 W/PL WASHER
8-97105-796-0
03
1
0407-0511
●
38
BOLT; CONT UNIT
SEAT BELT PRE TENSIONER 3POINT W/AIR BAG(7MC) M6X18 W/PL WASHER
8-97105-796-1
03
1
0512-
●
38
BOLT; CONT UNIT
M6X18 W/PL WASHER
8-97105-796-1
03
1
0512-
●
39
HOLDER; CONNECTOR
1-82699-955-1
01
1
0407-0511
●
39
HOLDER; CONNECTOR
1-82699-955-1
01
1
0512-
●
●
40
BOLT; BRKT
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
0407-0511
●
40
BOLT; BRKT
M6X12 W/LK&PL WASHER
8-94279-200-0
01
1
0512-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
