◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#31418) — 195 parça
çizim 86796
554 466 273 264 452 263 452 554 453 452 264 273 263
BalonParca AdiParca NoAdetTipApplied Date A B C
263 BOLT; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M6X12 W/LK&PL WASHER 		8-94279-200-0 08 1 0407-0511 ●
264 BRACKET; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82547-034-3 01 1 0407-0511 ●
264 BRACKET; CONT UNIT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-82547-035-2 01 1 0407-0511 ●
273 CLIP; HARNESS
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> L=140 		5-09707-031-1 01 1 0407-0511 ●
452 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0407-0511 ●
452 BOLT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0407-0511 ●
453 NUT; BRKT
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M8 FLANGE 		0-91150-108-0 02 1 0407-0511 ●
466 NUT; CLIP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M6 FLANGE 		1-09984-141-0 01 1 0407-0511 ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-155-0 01 1 0407-0511 ●
554 CONTROL UNIT; HEAD LAMP
HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 		1-80150-156-0 01 1 0407-0511 ●

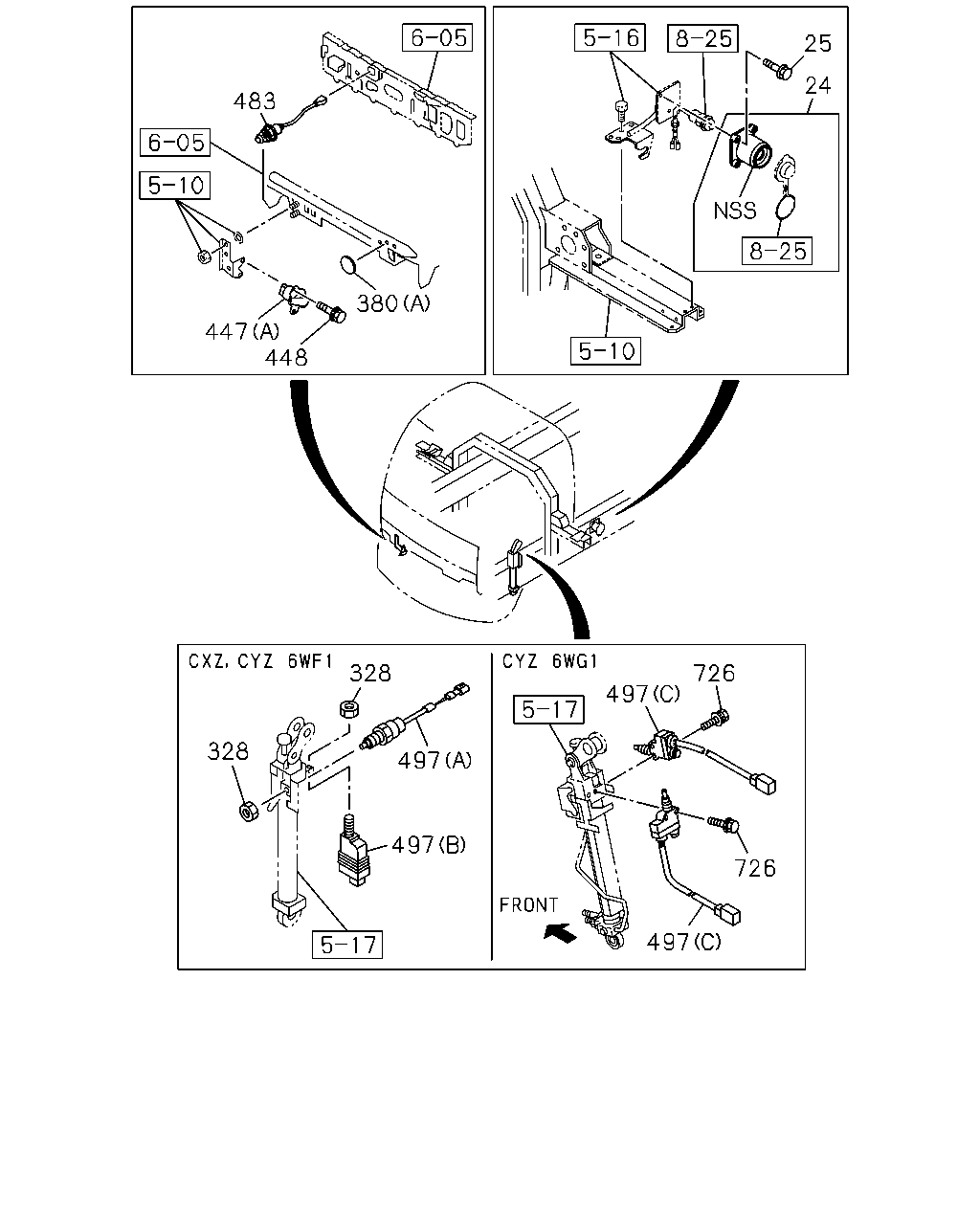

çizim 86798
25 24 483 380 447 448 328 726 497 328 497 497 726 497
BalonParca AdiParca NoAdetTipApplied Date A B C
24 BOX; SW,CAB TILT 1-82389-007-1 01 1 0407-0511 ●
24 BOX; SW,CAB TILT
6WF1 TC-C(1B8) 		1-82389-007-1 01 1 0512- ●
25 BOLT; SW BOX
M6X16 FLANGE 		0-28080-616-0 02 1 0407-0511 ●
25 BOLT; SW BOX
6WF1 TC-C(1B8) M6X16 FLANGE 		0-28080-616-0 02 1 0512-0512 ●
25 BOLT; SW BOX
6WF1 TC-C(1B8) M6X16 FLANGE 		0-28050-616-0 02 1 0601- ●
328 NUT
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
328 NUT
M16 		9-99111-416-0 02 1 0407-0511 ●
328 NUT
6WF1 TC-C(1B8) M16 		9-99111-416-0 02 1 0512-0512 ●
328 NUT
6WF1 TC-C(1B8) M16 		0-91111-516-0 02 1 0601- ●
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0407-0511 ●
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0512- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0407-0511 ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0512- ● ●
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0407-0511 ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0512- ●
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0512- ●
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0407-0511 ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0512- ●
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0512- ●
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0407-0511 ●
448 BOLT; SENSOR
FULL FLOATING CAB(W16) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ●
448 BOLT; SENSOR
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0512- ●
483 SWITCH 1-82440-118-0 01 1 0407-0511 ●
483 SWITCH 1-82440-118-0 01 1 0512- ● ●
497 SWITCH; CAB TILT
6WG1 TC-C(72L) (C) STAMP NO 		1-82380-172-1 02 1 0512- ● ●
497 SWITCH; CAB TILT
(A) STAMP NC 		1-82380-125-1 01 1 0407-0511 ●
497 SWITCH; CAB TILT
6WF1 TC-C(1B8) (A) STAMP NC 		1-82380-125-1 01 1 0512- ●
497 SWITCH; CAB TILT
(B) 		1-82380-128-1 01 1 0407-0511 ●
497 SWITCH; CAB TILT
6WF1 TC-C(1B8) (B) 		1-82380-128-1 01 1 0512- ●
726 BOLT; SW,CAB TILT
6WG1 TC-C(72L) M6X25 FLANGE 		0-28080-625-0 04 1 0512-0512 ● ●
726 BOLT; SW,CAB TILT
6WG1 TC-C(72L) M6X25 FLANGE 		0-28050-625-0 04 1 0601- ● ●

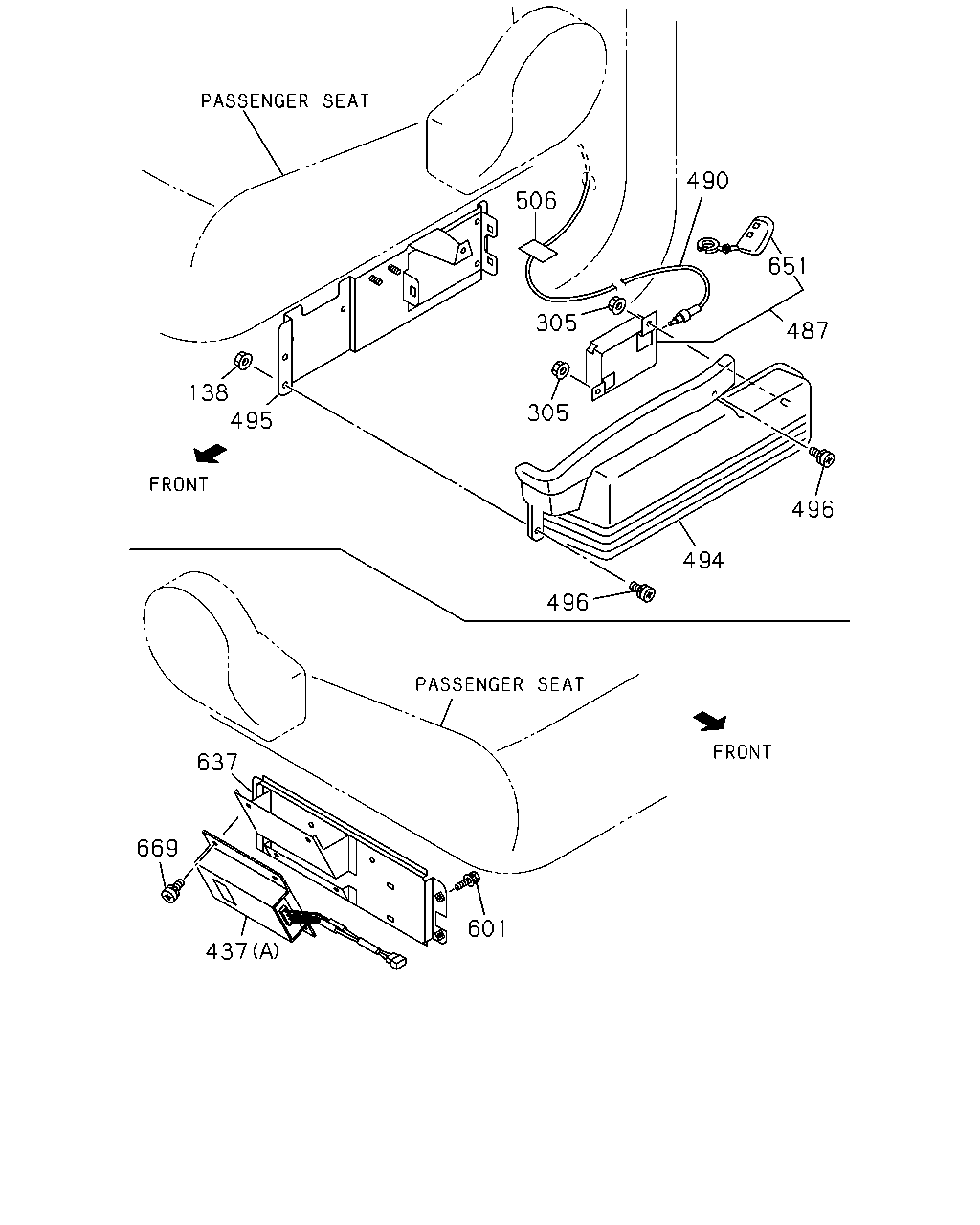

çizim 86963
490 506 651 305 487 138 495 305 496 494 496 637 669 601 437
BalonParca AdiParca NoAdetTipApplied Date A B C
138 NUT; BRKT
CUSTOM CAB(SR5) M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
138 NUT; BRKT
M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ● ●
138 NUT; BRKT
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ● ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0810- ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0810- ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810- ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) KOITO 		8-97359-129-0 01 1 0512- ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) MITSUBISHI 		1-84122-034-1 01 1 0407-0511 ●
437 CONVERTER; DC
(A) MITSUBISHI 		1-84122-034-1 01 1 0512-0604 ● ●
437 CONVERTER; DC
(A) METRO DENSO 		8-98046-423-0 01 1 0605- ● ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86855-033-1 01 1 0407-0511 ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86855-033-2 01 1 0512-0809 ●
487 CONTROL UNIT; DOOR LOCK,AUTO REMOTE 1-86855-033-2 01 1 0512-0809 ●
490 ANTENNA; AUTO REMOTE DOOR LOCK
REMOTE CONT DOOR LOCK<SLG> 		1-86855-023-1 01 1 0407-0511 ●
490 ANTENNA; AUTO REMOTE DOOR LOCK
REMOTE CONT DOOR LOCK<SLG> 		1-86855-023-1 01 1 0512-0809 ●
490 ANTENNA; AUTO REMOTE DOOR LOCK 1-86855-023-1 01 1 0512-0809 ●
494 COVER; ELEC BOX
CUSTOM CAB(SR5) 		1-72538-160-2 01 1 0407-0511 ●
494 COVER; ELEC BOX 1-72538-160-3 01 1 0512-0810 ● ●
494 COVER; ELEC BOX 8-97589-725-0 01 1 0811- ● ●
495 BRACKET; ELEC BOX
CUSTOM CAB(SR5) 		1-75558-488-5 01 1 0407-0511 ●
495 BRACKET; ELEC BOX 1-75558-488-5 01 1 0512- ● ●
496 SCREW; COVER
CUSTOM CAB(SR5) M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0407-0511 ●
496 SCREW; COVER
M6X16 W/LK&PL WASHER 		8-94279-402-0 03 1 0512-0703 ● ●
496 SCREW; COVER
M6X12 W/LK&PL WASHER 		0-36230-612-0 03 1 0704- ● ●
506 TAPE; ANTENNA
REMOTE CONT DOOR LOCK<SLG> 100X30 		1-74998-068-0 06 1 0407-0511 ●
506 TAPE; ANTENNA
REMOTE CONT DOOR LOCK<SLG> 100X30 		1-74998-068-0 06 1 0512-0809 ●
506 TAPE; ANTENNA
100X30 		1-74998-068-0 06 1 0512-0809 ●
601 BOLT; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0407-0511 ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0512-0703 ● ●
601 BOLT; DC-DC CONVERTER
M6X12 W/LK&PL WASHER 		0-36230-612-0 02 1 0704- ● ●
637 BRACKET; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> 		1-75557-483-1 01 1 0407-0511 ●
637 BRACKET; DC-DC CONVERTER 1-75557-483-1 01 1 0512- ● ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86860-008-0 01 1 0407-0511 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE
REMOTE CONT DOOR LOCK<SLG> 		1-86860-008-0 01 1 0512-0809 ●
651 TRANSMITTER; DOOR LOCK,AUTO REMOTE 1-86860-008-0 01 1 0512-0809 ●
669 SCREW; DC-DC CONVERTER
ELEC OUTLET 12V<TAW> M6X12 W/PL WASHER 		1-09981-380-0 04 1 0407-0511 ●
669 SCREW; DC-DC CONVERTER
M6X12 W/PL WASHER 		1-09981-380-0 04 1 0512- ● ●

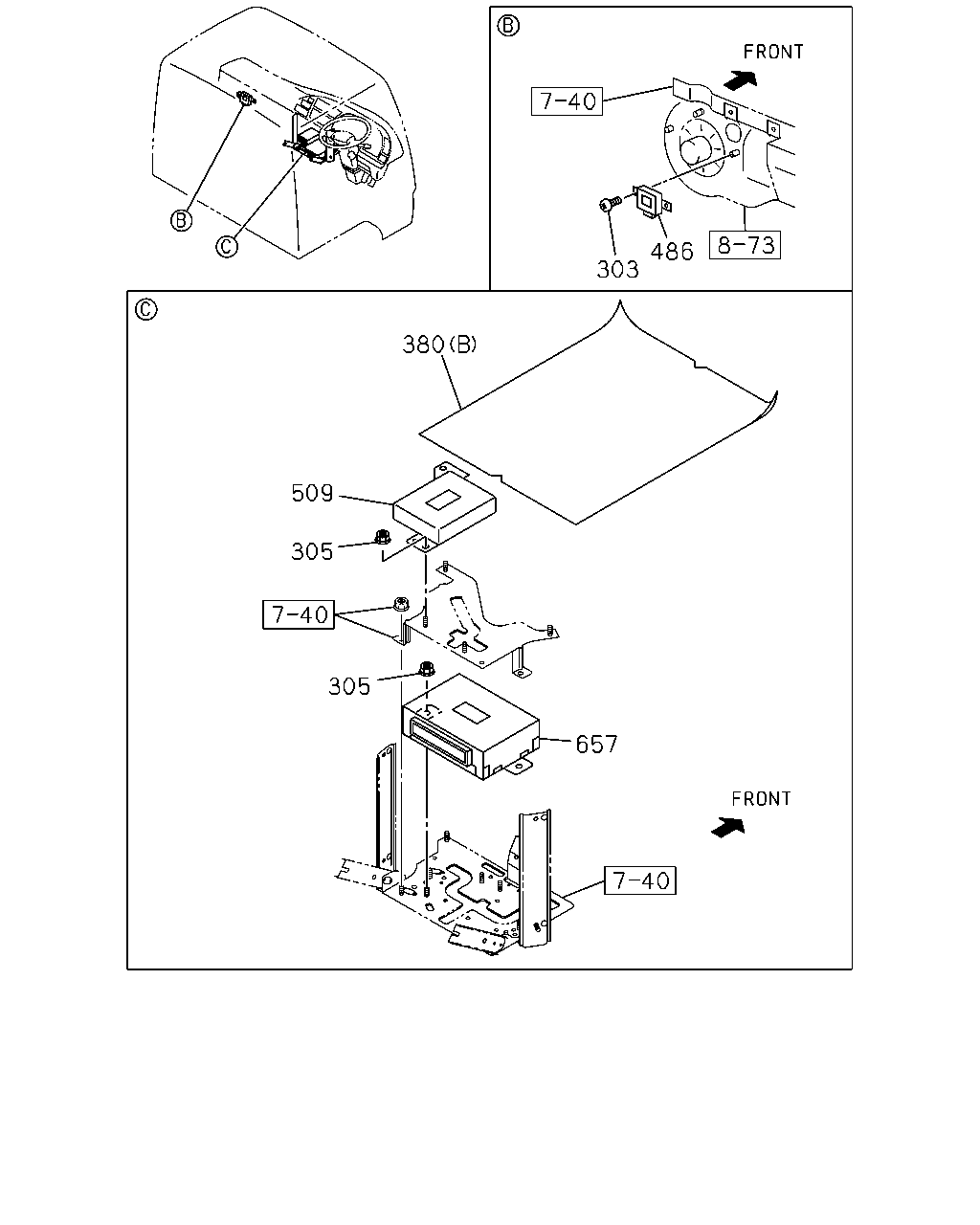

çizim 86992
486 303 380 509 305 305 657
BalonParca AdiParca NoAdetTipApplied Date A B C
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 0407-0511 ●
303 SCREW; CONT UNIT
MIR STAY O/S W/REMOTE<TBA> M5X14 		8-94279-325-0 01 1 0512- ● ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ● ●
305 NUT; CONT UNIT
6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE 		0-91180-106-0 04 1 0603- ● ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91150-106-0 02 1 0407-0511 ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91150-106-0 02 1 0512-0602 ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ●
305 NUT; CONT UNIT
REMOTE CONT DOOR LOCK<SLG> M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0603-0809 ●
305 NUT; CONT UNIT
MEMORY SYSTEM RUNNING CONDITION<NCR> M6 FLANGE 		0-91180-106-0 02 1 0810- ● ●
305 NUT; CONT UNIT
FULL FLOATING CAB(W16) M6 FLANGE 		0-91180-106-0 02 1 0810- ●
305 NUT; CONT UNIT
M6 FLANGE 		0-91180-106-0 02 1 0810- ●
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0407-0511 ●
380 SEAL
(B) 450X350 		1-76770-008-0 01 1 0512- ● ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0407-0511 ●
380 SEAL
(A) OD=25 BLACK 		1-76798-019-0 01 1 0512- ● ●
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 0407-0511 ●
486 CONTROL UNIT; MIRROR
MIR STAY O/S W/REMOTE<TBA> 		1-82540-046-0 01 1 0512- ● ●
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 0407-0511 ●
509 CONTROL UNIT; CAB SUS
FULL FLOATING CAB(W16) 		1-80150-042-1 01 1 0512- ●
509 CONTROL UNIT; CAB SUS 1-80150-042-1 01 1 0512- ●
657 CONTROL UNIT; MIMAMORI
6WG1 TC-C(72L) MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-179-0 01 1 0512- ● ●
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-150-0 01 1 0407-0411 ●
657 CONTROL UNIT; MIMAMORI
MEMORY SYSTEM RUNNING CONDITION<NCR> 		1-80190-156-0 01 1 0412-0511 ●
657 CONTROL UNIT; MIMAMORI
6WF1 TC-C(1B8) MEMORY SYSTEM RUNNING CONDITION<NCR> EXC. FULLER M/T<X9B> 		1-80190-175-0 01 1 0512- ●

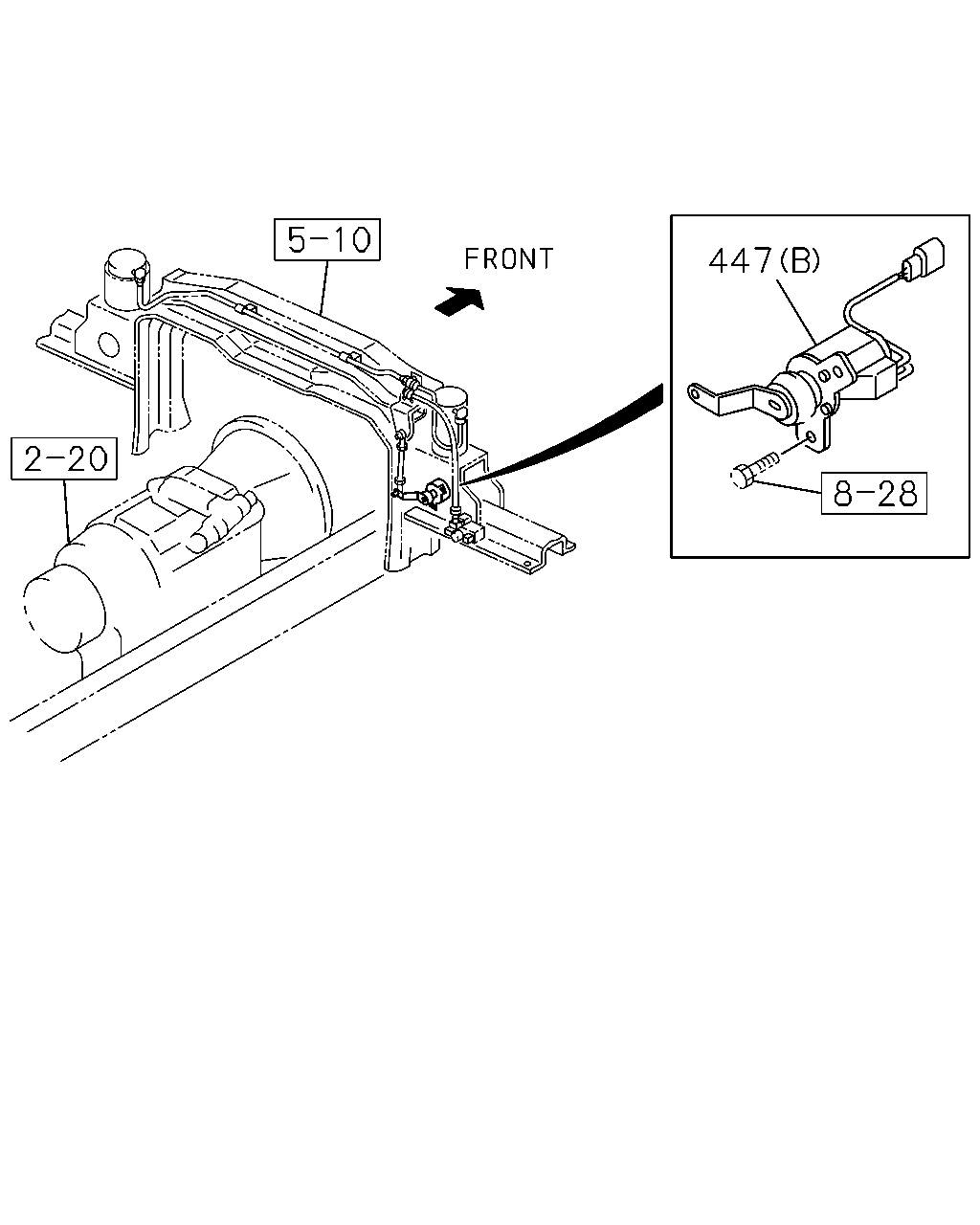

çizim 86994
447
BalonParca AdiParca NoAdetTipApplied Date A B C
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0407-0511 ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (A) 		1-80250-010-1 01 1 0512- ●
447 SENSOR; HEIGHT
(A) 		1-80250-010-1 01 1 0512- ●
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0407-0511 ●
447 SENSOR; HEIGHT
FULL FLOATING CAB(W16) (B) 		1-80250-011-1 01 1 0512- ●
447 SENSOR; HEIGHT
(B) 		1-80250-011-1 01 1 0512- ●

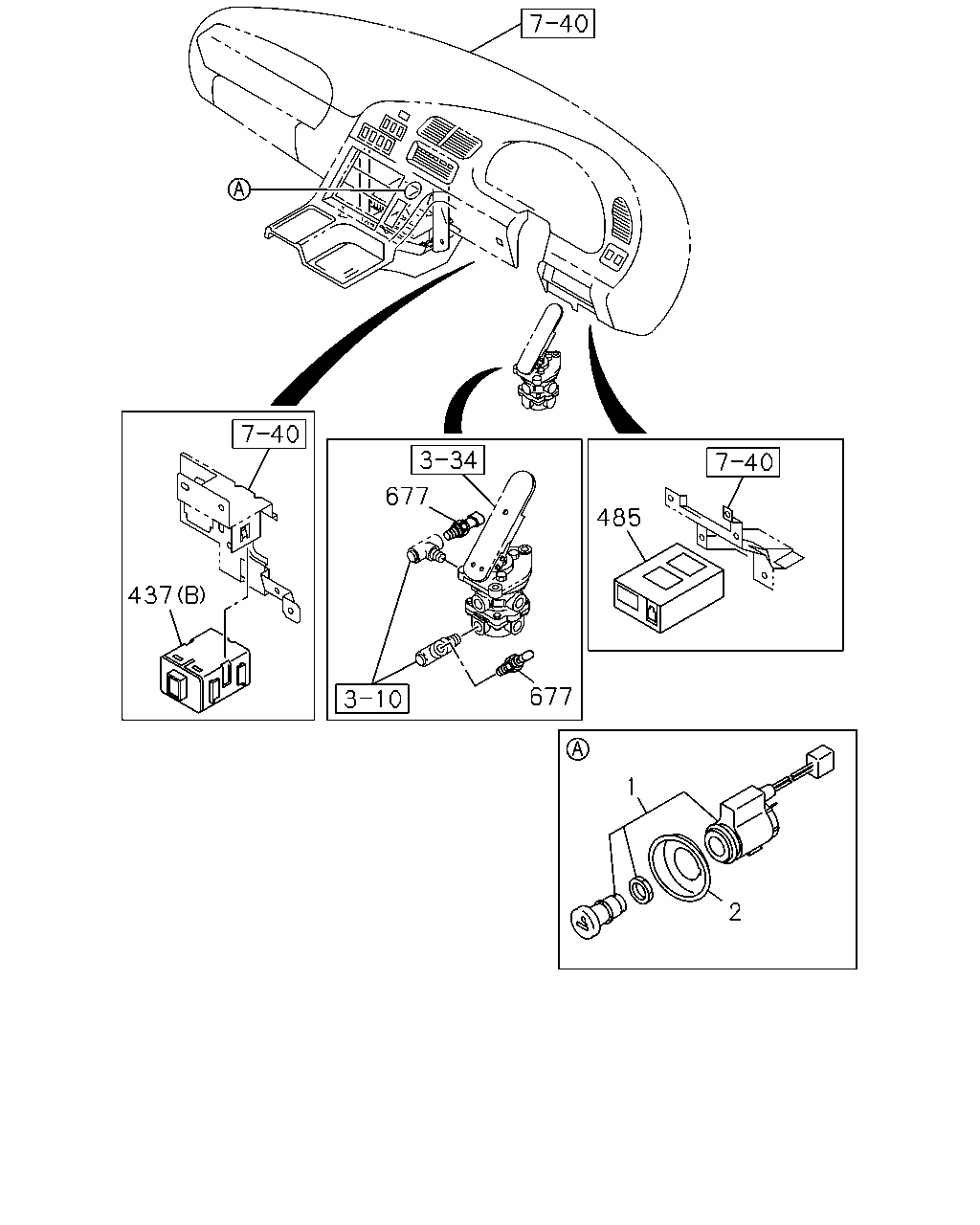

çizim 86995
677 485 437 677 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0407-0511 ●
1 LIGHTER; CIGAR 8-97320-325-0 01 1 0512- ● ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0407-0511 ●
2 BEZEL; CIGAR LIGHTER 1-73998-883-2 01 1 0512- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B) KOITO 		8-97359-129-0 01 1 0512- ● ●
437 CONVERTER; DC
ELEC OUTLET 12V<TAW> (A) MITSUBISHI 		1-84122-034-1 01 1 0407-0511 ●
437 CONVERTER; DC
(A) MITSUBISHI 		1-84122-034-1 01 1 0512-0604 ● ●
437 CONVERTER; DC
(A) METRO DENSO 		8-98046-423-0 01 1 0605- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-059-1 01 1 0407-0511 ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-158-0 01 1 0512- ● ●
677 SENSOR; AIR METER
6WG1 TC-C(72L) THREAD R1/4 		1-80220-023-1 02 1 0512- ● ●

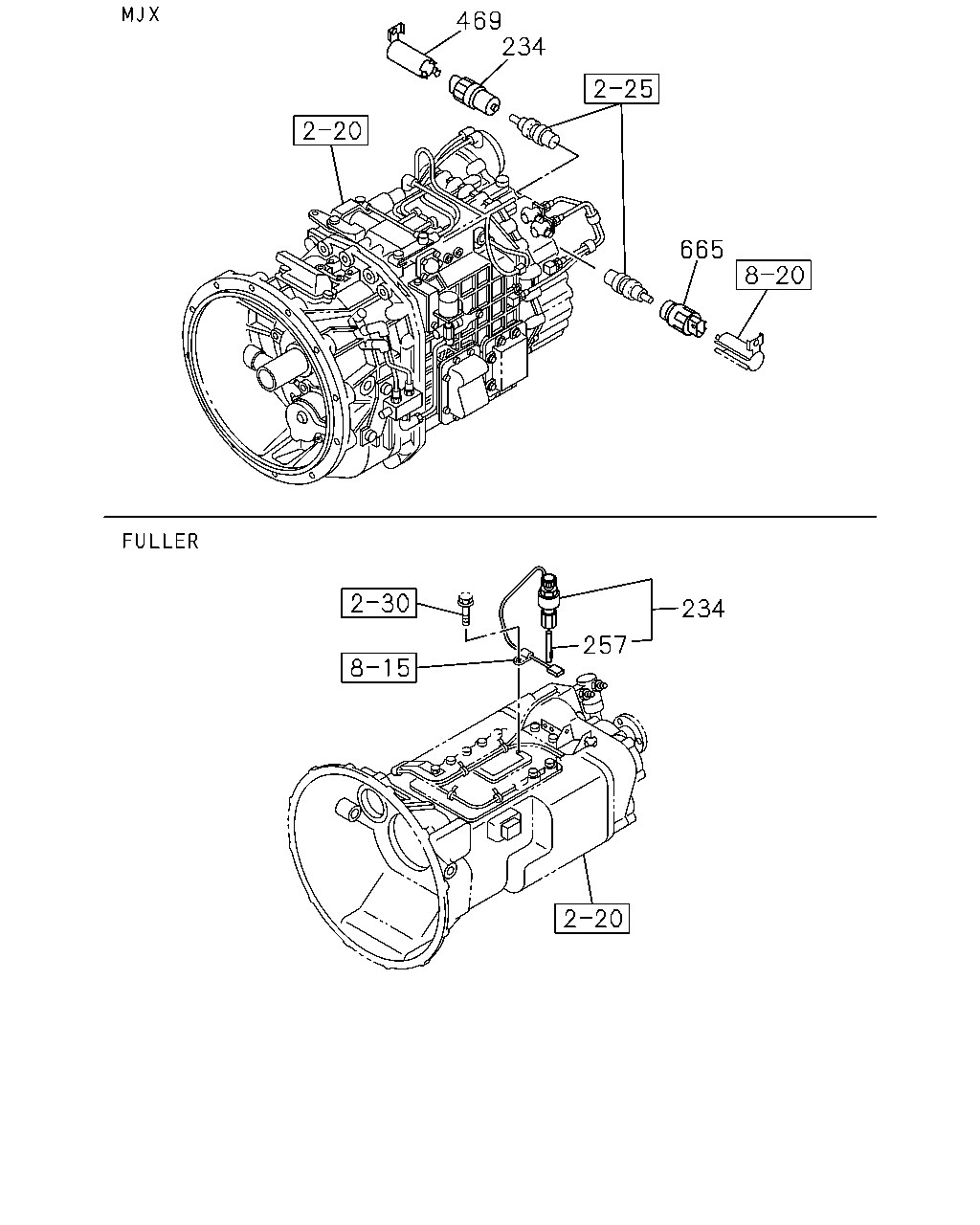

çizim 87093
469 234 665 234 257
BalonParca AdiParca NoAdetTipApplied Date A B C
234 SENSOR; VEHICLE SPD
FULLER M/T<X9B> 25 PULSE 		1-83127-414-1 01 1 0512- ●
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 0407-0511 ●
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B> 25 PULSE 		1-80240-029-0 01 1 0512-1301 ●
234 SENSOR; VEHICLE SPD
25 PULSE 		1-80240-029-0 01 1 0512-1301 ●
234 SENSOR; VEHICLE SPD
EXC. FULLER M/T<X9B> 25 PULSE 		8-98234-167-0 01 1 1302- ●
234 SENSOR; VEHICLE SPD
25 PULSE 		8-98234-167-0 01 1 1302- ●
257 KEY; SPEED SENSOR
FULLER M/T<X9B> 		1-83129-073-0 01 1 0512- ●
469 PROTECTOR; SPEED SENSOR
SMOOTHER-G(C1W) 		8-97168-308-0 01 1 0407-0511 ●
469 PROTECTOR; SPEED SENSOR
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-97168-308-0 01 1 0512-0808 ●
469 PROTECTOR; SPEED SENSOR
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-98119-901-0 01 1 0809- ●
665 SENSOR; SPEED
SMOOTHER-G(C1W) 25 PULSE ALUMINUM 		8-97328-058-0 01 1 0407-0511 ●
665 SENSOR; SPEED
6WF1 TC-C(1B8) MJX M/T<Y9N> SMOOTHER-G(C1W) 25 PULSE ALUMINUM 		8-97328-058-1 01 1 0512- ●

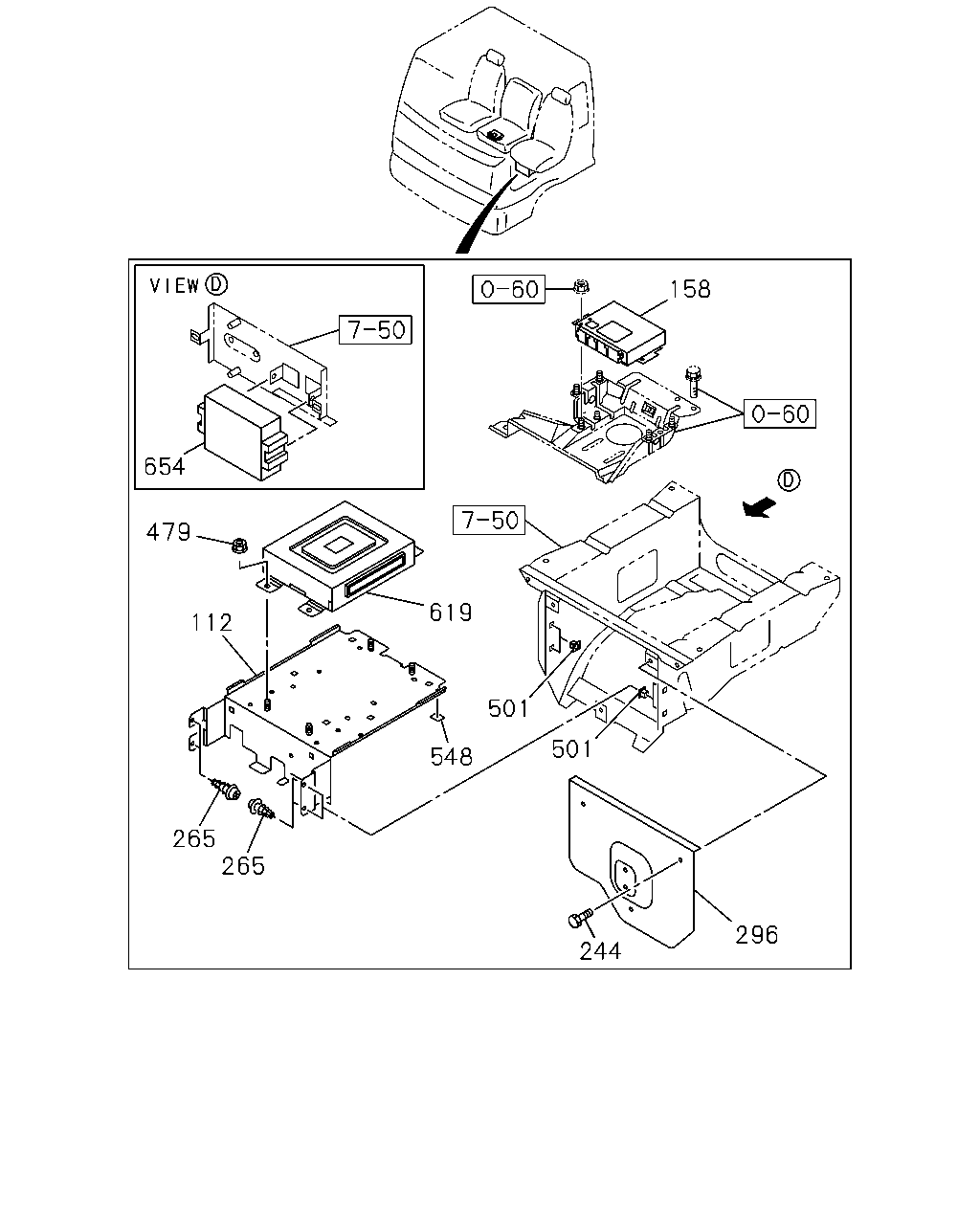

çizim 87335
158 654 479 619 112 501 501 548 265 265 296 244
BalonParca AdiParca NoAdetTipApplied Date A B C
112 BRACKET; CONT UNIT
SMOOTHER-G(C1W) 		1-75557-503-3 01 1 0407-0511 ●
112 BRACKET; CONT UNIT
SMOOTHER-G(C1W) 		1-75557-503-6 01 1 0512- ●
112 BRACKET; CONT UNIT 1-75557-503-6 01 1 0512- ●
158 CONTROLLER; ABS
6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-245-1 01 1 0512-1201 ● ●
158 CONTROLLER; ABS
6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) 		8-98196-721-0 01 1 1202- ● ●
158 CONTROLLER; ABS 1-80119-149-0 01 1 0407-0511 ●
158 CONTROLLER; ABS
6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) 		1-80119-149-0 01 1 0512- ●
244 BOLT; COVER
SMOOTHER-G(C1W) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0407-0511 ●
244 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0512-0703 ● ●
244 BOLT; COVER
M6X16 		0-52000-616-0 03 1 0704- ● ●
265 SCREW; BRKT,CONT UNIT
SMOOTHER-G(C1W) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0407-0511 ●
265 SCREW; BRKT,CONT UNIT
SMOOTHER-G(C1W) M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0512- ●
265 SCREW; BRKT,CONT UNIT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0512- ●
296 COVER; CONT UNIT
SMOOTHER-G(C1W) 		1-75558-556-1 01 1 0407-0511 ●
296 COVER; CONT UNIT 8-97388-687-0 01 1 0512- ● ●
479 NUT; CONTROLLER
M6 FLANGE 		0-91150-106-0 04 1 0407-0511 ●
479 NUT; CONTROLLER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
479 NUT; CONTROLLER
MJX16P M/T(Y3Z) M6 FLANGE 		0-91150-106-0 04 1 0512-0602 ●
479 NUT; CONTROLLER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
479 NUT; CONTROLLER
MJX16P M/T(Y3Z) M6 FLANGE 		0-91180-106-0 04 1 0603- ●
501 GROMMET; SCREW
SMOOTHER-G(C1W) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0407-0511 ●
501 GROMMET; SCREW
SMOOTHER-G(C1W) D=9.7X9.7 L=8 		8-94222-314-0 04 1 0512- ●
501 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0512- ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		1-74998-128-0 03 1 0407-0511 ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		1-74998-128-1 03 1 0512-0908 ●
548 SEAL; NOISE
30X30 		1-74998-128-1 03 1 0512-0908 ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 03 1 0909-1305 ●
548 SEAL; NOISE
30X30 		8-98142-344-0 03 1 0909-1305 ●
548 SEAL; NOISE
SMOOTHER-G(C1W) 30X30 		8-98142-344-0 01 1 1306- ●
548 SEAL; NOISE
30X30 		8-98142-344-0 01 1 1306- ●
619 CONTROL UNIT; T/M
SMOOTHER-G(C1W) 		1-80111-086-2 01 1 0407-0511 ●
619 CONTROL UNIT; T/M
SMOOTHER-G(C1W) 		1-80111-356-0 01 1 0512-0606 ● ●
619 CONTROL UNIT; T/M
SMOOTHER-G(C1W) 		1-80111-385-0 01 1 0607-0704 ● ●
619 CONTROL UNIT; T/M
SMOOTHER-G(C1W) 		8-98078-920-0 01 1 0705-1108 ● ●
619 CONTROL UNIT; T/M
SMOOTHER-G(C1W) 		8-98196-688-0 01 1 1109- ● ●
654 CONTROL UNIT; EXH & RETARDER
6WG1 TC-C(72L) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-117-0 01 1 0512- ● ●
654 CONTROL UNIT; EXH & RETARDER 1-80150-118-0 01 1 0407-0511 ●
654 CONTROL UNIT; EXH & RETARDER
6WG1 TC-C(72L) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-80150-118-0 01 1 0512- ● ●

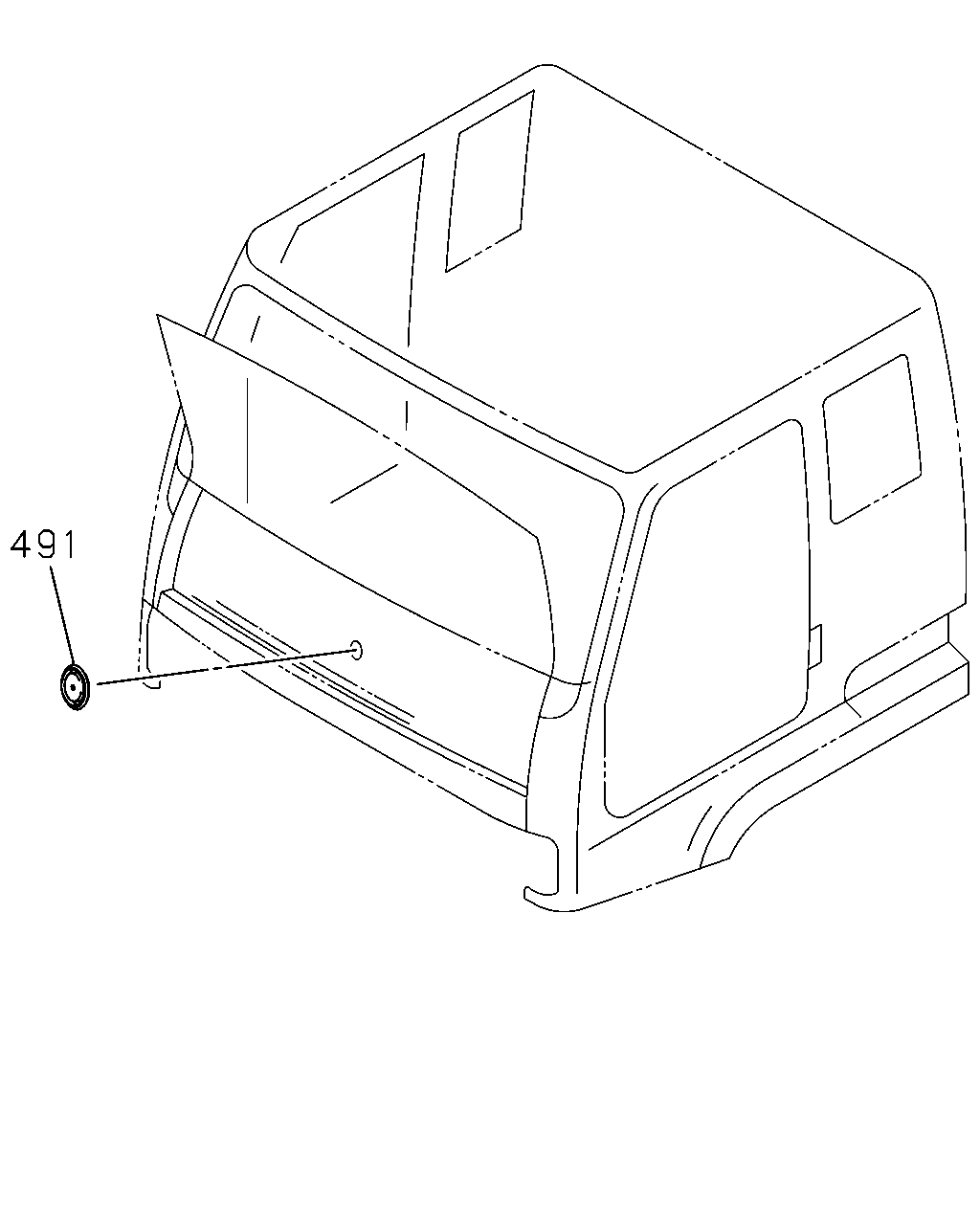

çizim 105153
491
BalonParca AdiParca NoAdetTipApplied Date A B C
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0407-0511 ●
491 PLUG; HOLE,CONT UNIT
OD=54.5 		1-73907-309-0 01 1 0512- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
