8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#31417) — 140 parça

107 77 507 639 517 639 518 515 384 384 643 307 515 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

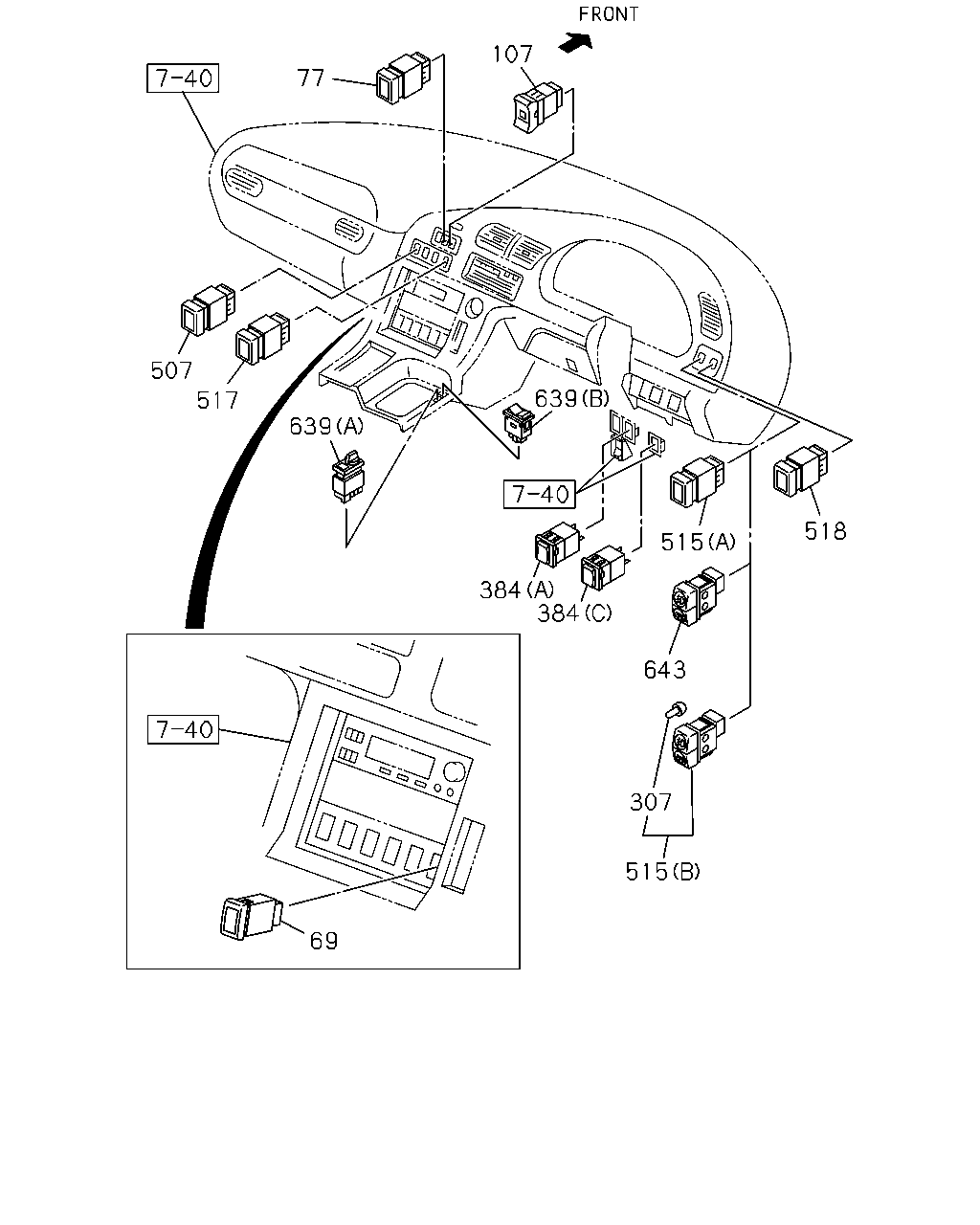

69	SWITCH; AUTO CRUISE	1-82340-682-0	01	1	0407-0511	●
69	SWITCH; AUTO CRUISE AUTO CRUISE W/RESUME<NKA>	1-82340-682-0	01	1	0512-		●	●
77	SWITCH; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82340-413-0	01	1	0407-0511	●
77	SWITCH; PTO TRANSMISSION SIDE PTO HIGH CAPACITY(BBC)	1-82340-413-0	01	1	0512-		●	●
107	SWITCH; REMOTE CONT,MIRROR MIR STAY O/S W/REMOTE<TBA>	1-82350-233-0	01	1	0407-0511	●
107	SWITCH; REMOTE CONT,MIRROR MIR STAY O/S W/REMOTE<TBA>	1-82350-233-0	01	1	0512-		●	●
307	BULB ASM; SW 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 28V 40MA	8-97116-331-0	01	1	0512-		●
384	SWITCH; IDLING CONT,ELEC 6WG1 TC-C(72L) (C)	1-82350-321-1	01	1	0512-		●	●
384	SWITCH; IDLING CONT,ELEC (A)	1-82350-213-1	01	1	0407-0511	●
384	SWITCH; IDLING CONT,ELEC (A)	1-82350-213-1	01	1	0512-		●	●
384	SWITCH; IDLING CONT,ELEC (B)	1-82350-342-0	01	1	0407-0511	●
384	SWITCH; IDLING CONT,ELEC 6WF1 TC-C(1B8) (B)	1-82350-342-0	01	1	0512-		●
507	SWITCH; MIRROR HEATER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82340-423-0	01	1	0407-0511	●
507	SWITCH; MIRROR HEATER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82340-423-0	01	1	0512-		●	●
515	SWITCH; FLUORESCENT LAMP 6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (B)	8-97363-946-1	01	1	0512-		●
515	SWITCH; FLUORESCENT LAMP (A)	1-82350-230-0	01	1	0407-0511	●
515	SWITCH; FLUORESCENT LAMP 6WF1 TC-C(1B8) (A)	1-82350-230-0	01	1	0512-		●
517	SWITCH; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82350-229-0	01	1	0407-0511	●
517	SWITCH; MIRROR WIPER MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82350-229-0	01	1	0512-		●	●
518	SWITCH; RADIO TUNE	1-82350-231-0	01	1	0512-		●	●
639	SWITCH; EMERGENCY EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-82330-068-0	01	1	0407-0511	●
639	SWITCH; EMERGENCY MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-82330-068-0	01	1	0512-		●
639	SWITCH; EMERGENCY (A)	1-82330-068-0	01	1	0512-			●
639	SWITCH; EMERGENCY EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-82350-363-0	01	1	0407-0511	●
639	SWITCH; EMERGENCY MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B)	1-82350-363-0	01	1	0512-		●
639	SWITCH; EMERGENCY (B)	1-82350-363-0	01	1	0512-			●
643	SWITCH; SKIP SHIFT 6WG1 TC-C(72L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	8-97381-249-0	01	1	0512-		●
643	SWITCH; SKIP SHIFT 6WG1 TC-C(72L)	8-97381-249-0	01	1	0512-			●
643	SWITCH; SKIP SHIFT EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82340-689-0	01	1	0407-0511	●
643	SWITCH; SKIP SHIFT 6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82340-689-0	01	1	0512-		●

1 3 10 10 698 263 263 641 9 384 8 360 99 21 322 528

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

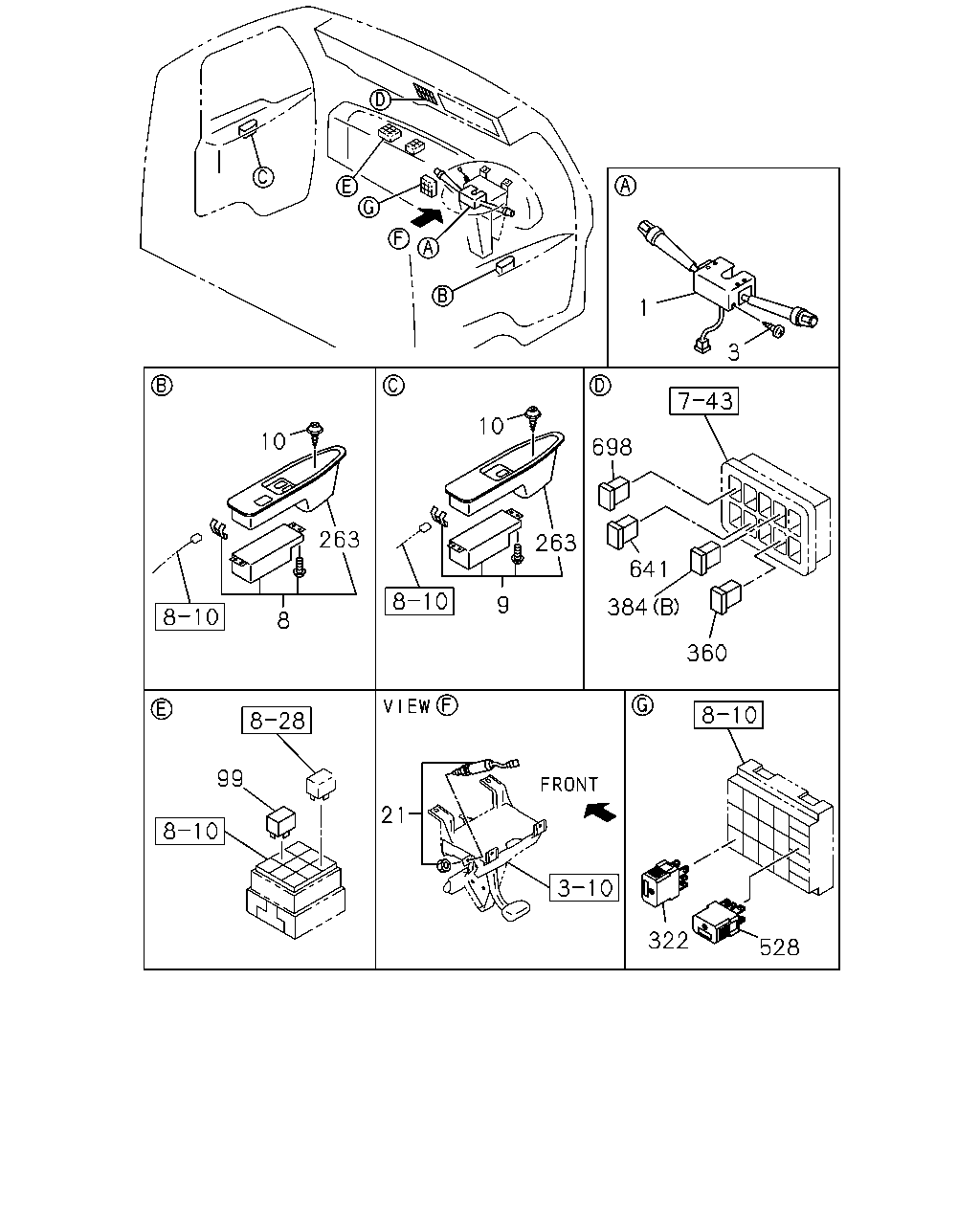

1	SWITCH; COMB TRANSMISSION CONTROL LINK TYPE(B2A) AUTO CRUISE W/RESUME<NKA> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-580-2	01	1	0512-		●
1	SWITCH; COMB MJX M/T<Y9N> AUTO CRUISE W/RESUME<NKA> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82360-694-2	01	1	0512-		●
1	SWITCH; COMB AUTO CRUISE W/RESUME<NKA> BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-694-2	01	1	0512-			●
1	SWITCH; COMB TRANSMISSION CONTROL LINK TYPE(B2A)	1-82360-579-1	01	1	0407-0511	●
1	SWITCH; COMB TRANSMISSION CONTROL LINK TYPE(B2A) AUTO CRUISE W/RESUME<NKA> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-579-2	01	1	0512-		●
1	SWITCH; COMB SMOOTHER-G(C1W)	1-82360-695-1	01	1	0407-0511	●
1	SWITCH; COMB MJX M/T<Y9N> AUTO CRUISE W/RESUME<NKA> EXC. TRANSMISSION CONTROL LINK TYPE(B2A),BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-695-2	01	1	0512-		●
1	SWITCH; COMB AUTO CRUISE W/RESUME<NKA> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82360-695-2	01	1	0512-			●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	0407-0511	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74105-512-0	04	1	0512-0604		●	●
3	SCREW; COMB SW M5X12 TAPPING W/PL WASHER	0-74165-512-0	04	1	0605-		●	●
8	SWITCH; POWER WINDOW DRIVER	1-82380-166-1	01	1	0407-0511	●
8	SWITCH; POWER WINDOW DRIVER	1-82380-166-2	01	1	0512-		●	●
9	SWITCH; POWER WINDOW PASSENGER	1-82380-167-1	01	1	0407-0511	●
9	SWITCH; POWER WINDOW PASSENGER	1-82380-167-1	01	1	0512-		●	●
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0407-0511	●
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0512-0604		●	●
10	SCREW; POWER WINDOW SW M5X16 TAPPING W/PL WASHER	0-74360-516-0	02	1	0605-		●	●
21	SWITCH; CLU TRANSMISSION CONTROL LINK TYPE(B2A)	1-82380-114-2	01	1	0407-0511	●
21	SWITCH; CLU EXC. SMOOTHER-G(C1W)	1-82380-114-3	01	1	0512-		●
99	RELAY; FOG LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0407-0511	●
99	RELAY; FOG LAMP 24V 12.5A PANASONIC	8-97262-933-0	01	1	0512-		●	●
263	COVER; SW	1-82385-005-2	01	1	0407-0511	●
263	COVER; SW	1-82385-005-2	01	1	0512-		●	●
263	COVER; SW	1-82385-006-3	01	1	0407-0511	●
263	COVER; SW	1-82385-006-3	01	1	0512-		●	●
322	RELAY; SPLITTER EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0407-0511	●
322	RELAY; SPLITTER MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 24V 10A PANASONIC	8-97173-035-1	01	1	0512-		●
360	SWITCH ASM; DIFF LK	1-82340-404-0	01	1	0407-0511	●
360	SWITCH ASM; DIFF LK	1-82340-404-0	01	1	0512-		●	●
384	SWITCH; IDLING CONT,ELEC 6WG1 TC-C(72L) (C)	1-82350-321-1	01	1	0512-		●	●
384	SWITCH; IDLING CONT,ELEC (A)	1-82350-213-1	01	1	0407-0511	●
384	SWITCH; IDLING CONT,ELEC (A)	1-82350-213-1	01	1	0512-		●	●
384	SWITCH; IDLING CONT,ELEC (B)	1-82350-342-0	01	1	0407-0511	●
384	SWITCH; IDLING CONT,ELEC 6WF1 TC-C(1B8) (B)	1-82350-342-0	01	1	0512-		●
528	RELAY; BUZZER 24V 10A PANASONIC	8-97173-035-1	01	1	0407-0511	●
528	RELAY; BUZZER 24V 10A PANASONIC	8-97173-035-1	01	1	0512-		●	●
641	SWITCH; MAP 6WG1 TC-C(72L) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82350-372-0	01	1	0512-		●
641	SWITCH; MAP 6WG1 TC-C(72L)	1-82350-372-0	01	1	0512-			●
641	SWITCH; MAP EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82350-362-1	01	1	0407-0511	●
641	SWITCH; MAP 6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A)	1-82350-362-1	01	1	0512-		●
698	SWITCH; EDS SMOOTHER-G(C1W) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82340-698-0	01	1	0512-		●	●

65 328 370 242 64 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

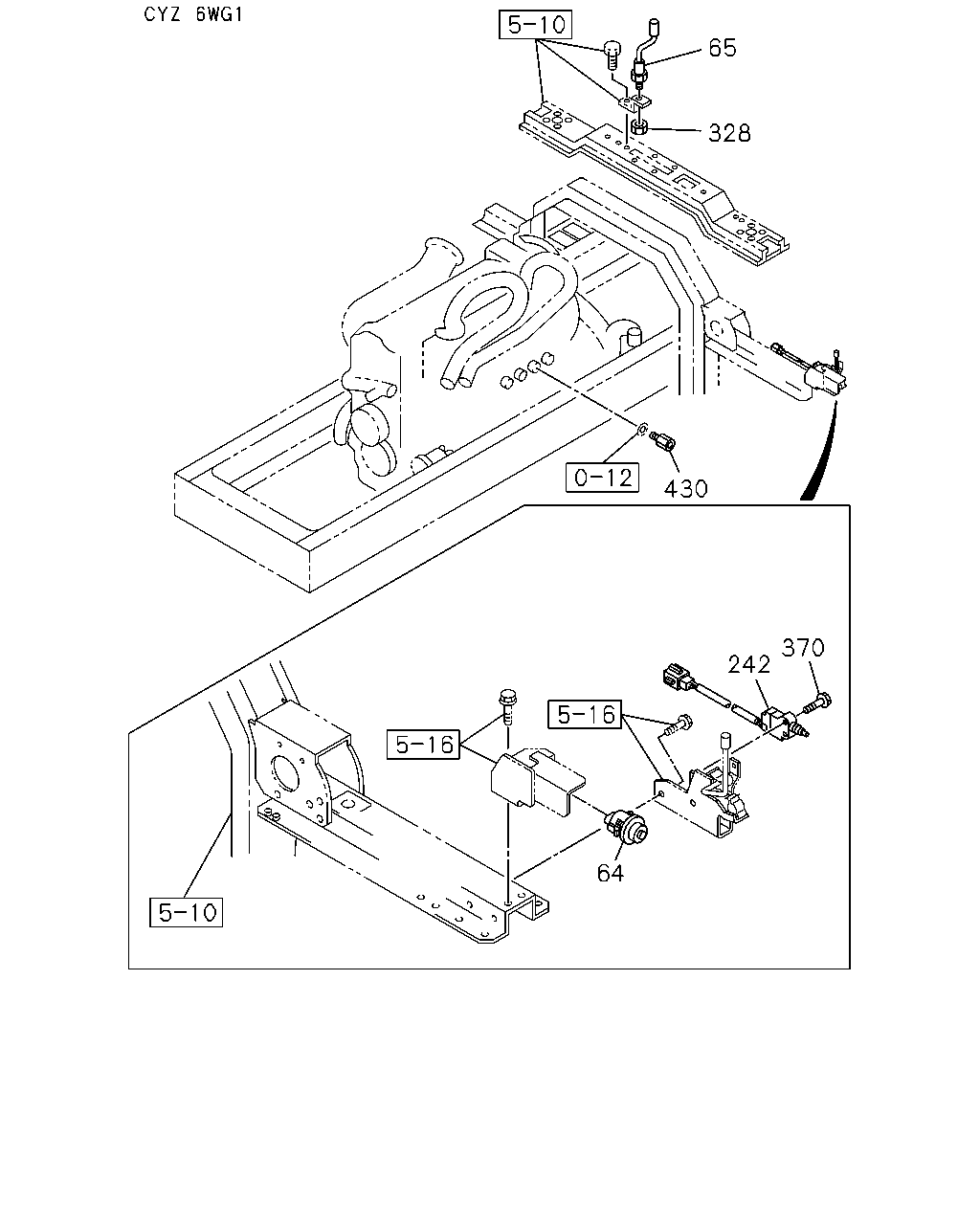

64	SWITCH; CAB TILT MAIN 6WG1 TC-C(72L)	1-82380-173-2	01	1	0512-		●	●
64	SWITCH; CAB TILT MAIN	1-82380-108-0	01	1	0407-0511	●
64	SWITCH; CAB TILT MAIN 6WF1 TC-C(1B8)	1-82380-108-0	01	1	0512-		●
65	SWITCH; CAB TILT LK STAMP NC	1-82380-125-1	01	1	0407-0511	●
65	SWITCH; CAB TILT LK STAMP NC	1-82380-125-1	01	1	0512-		●	●
242	SWITCH 6WG1 TC-C(72L) STAMP NO	1-82380-172-1	01	1	0512-		●	●
242	SWITCH STAMP NO	1-82380-126-0	01	1	0407-0511	●
242	SWITCH 6WF1 TC-C(1B8) STAMP NO	1-82380-126-0	01	1	0512-		●
328	NUT; SW M16	9-99110-416-0	01	1	0407-0511	●
328	NUT; SW M16	9-99110-416-0	01	1	0512-0512		●	●
328	NUT; SW M16	0-91110-516-0	01	1	0601-		●	●
370	BOLT; SW 6WG1 TC-C(72L) M6X30 FLANGE	0-28680-630-0	02	1	0512-0512		●	●
370	BOLT; SW 6WG1 TC-C(72L) M6X30 FLANGE	0-28650-630-0	02	1	0601-		●	●
430	ADAPTER; SW 6WG1 TC-C(72L) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	0512-		●	●

667 666 237 666 667 666 667 666 236 667 397 482 236 666 482 397

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

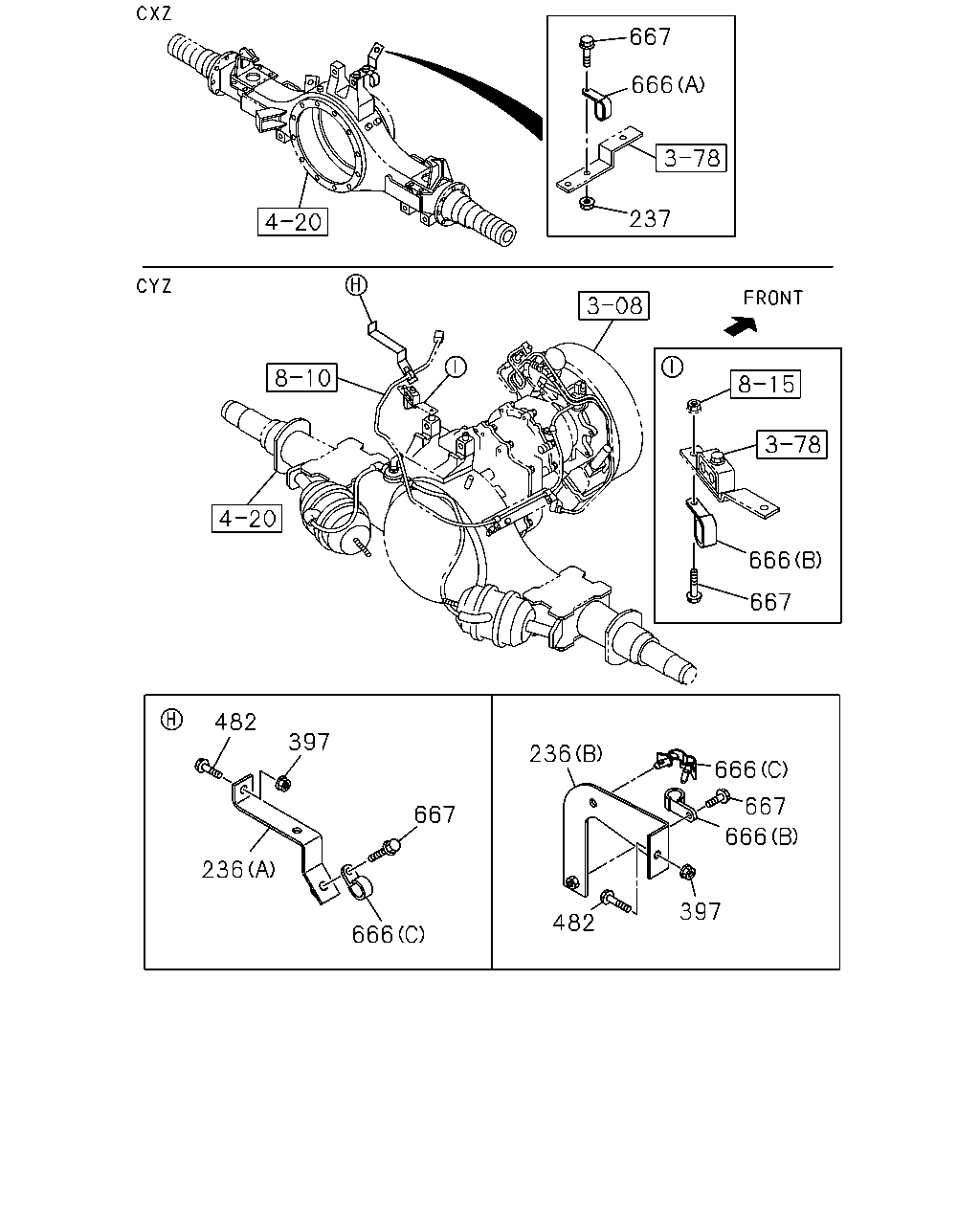

236	BRACKET; AXLE HARNESS,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B)	1-82698-595-0	01	1	0512-		●
236	BRACKET; AXLE HARNESS,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82699-996-1	01	1	0512-0705		●	●
236	BRACKET; AXLE HARNESS,RR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-82699-996-1	01	1	0706-			●
237	NUT M8 FLANGE	0-91150-108-0	01	1	0407-0511	●
397	NUT; BRKT FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	01	1	0512-0602		●	●
397	NUT; BRKT FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
397	NUT; BRKT FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	01	1	0603-0705		●	●
397	NUT; BRKT FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	01	1	0603-0705		●
397	NUT; BRKT FIX BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE	0-91180-108-0	01	1	0706-		●	●
482	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●	●
482	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●
482	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28650-830-0	01	1	0601-0705		●	●
482	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28650-830-0	01	1	0601-0705		●
482	BOLT; BRKT BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X30 FLANGE	0-28650-830-0	01	1	0706-		●	●
666	CLIP; AXLE HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=5-12 L=18	1-09709-287-0	01	1	0512-		●
666	CLIP; AXLE HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16	9-09525-025-0	01	1	0512-0606		●	●
666	CLIP; AXLE HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16	9-09525-025-0	01	1	0512-0606		●
666	CLIP; AXLE HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16	0-95235-025-0	01	1	0607-0705		●	●
666	CLIP; AXLE HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16	0-95235-025-0	01	1	0607-0705		●
666	CLIP; AXLE HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=11 L=16	0-95235-025-0	01	1	0706-		●	●
666	CLIP; AXLE HARNESS (A) ID=11X2 L=20	1-09700-871-0	04	1	0407-0511	●
666	CLIP; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11X2 L=20	1-09700-871-0	03	1	0512-		●	●
667	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●	●
667	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
667	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE	0-28650-820-0	01	1	0601-0705		●	●
667	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE	0-28650-820-0	01	1	0601-0705		●
667	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8X20 FLANGE	0-28650-820-0	01	1	0706-		●	●
667	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0407-0511	●
667	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512		●	●
667	BOLT; CLIP ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	03	1	0601-		●	●

359 520 29 436 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

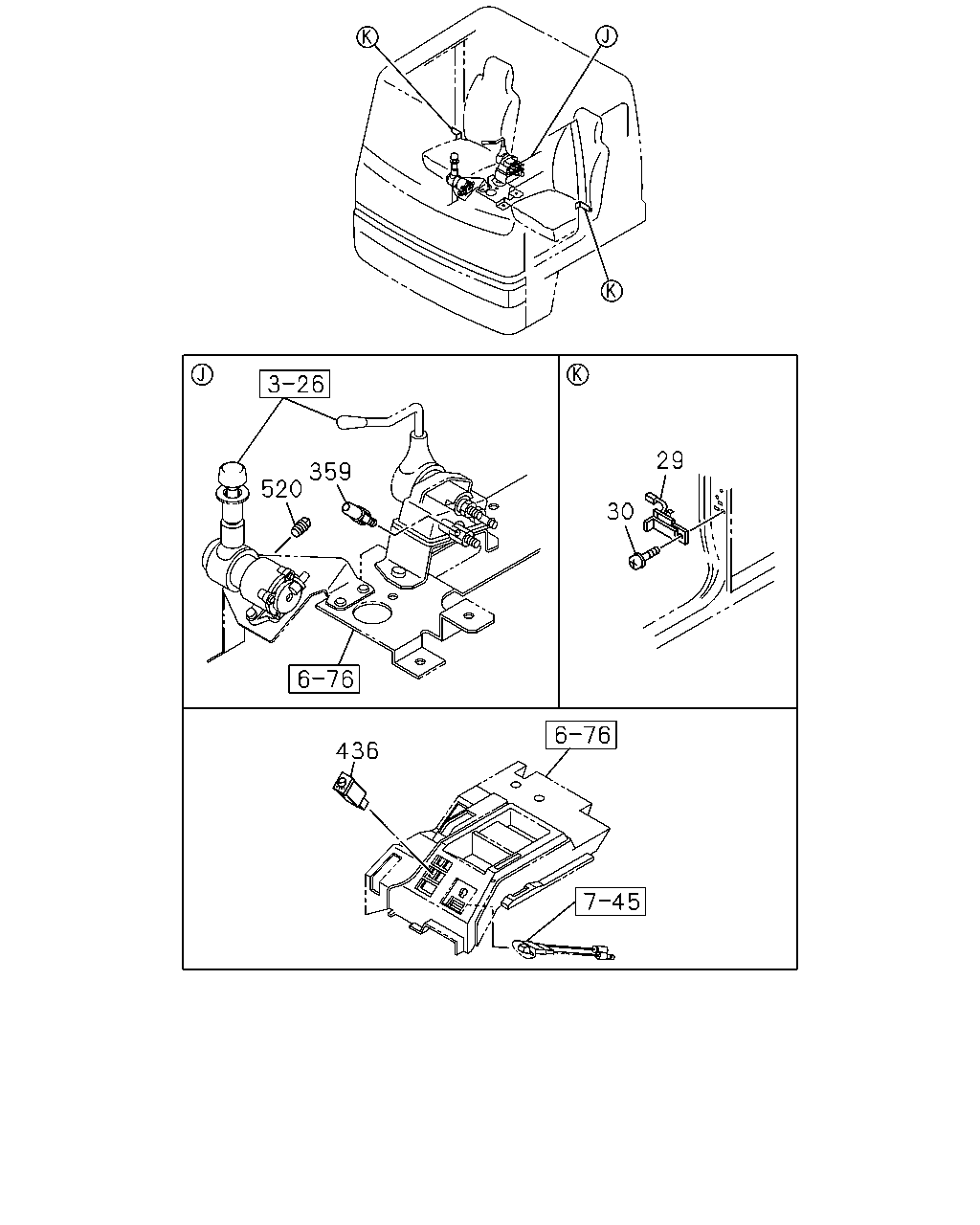

29	SWITCH; DOOR	8-97855-032-3	02	1	0407-0511	●
29	SWITCH; DOOR	8-97855-032-3	02	1	0512-		●	●
30	SCREW; DOOR SW M5X11	1-09981-536-1	02	1	0407-0511	●
30	SCREW; DOOR SW M5X11	1-09981-536-1	02	1	0512-		●	●
359	SWITCH; TRAILER BRAKE GREEN	1-82410-176-0	01	1	0407-0511	●
359	SWITCH; TRAILER BRAKE GREEN	1-82410-176-1	01	1	0512-		●	●
436	SWITCH; HEADLAMP LEVELING	1-82330-043-0	01	1	0407-0511	●
436	SWITCH; HEADLAMP LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82330-043-0	01	1	0512-		●	●
520	PLUG; CONNECTOR FULLER M/T<X9B> PT1/4	9-99204-513-0	01	1	0801-		●

65 328 242 67 64 257

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

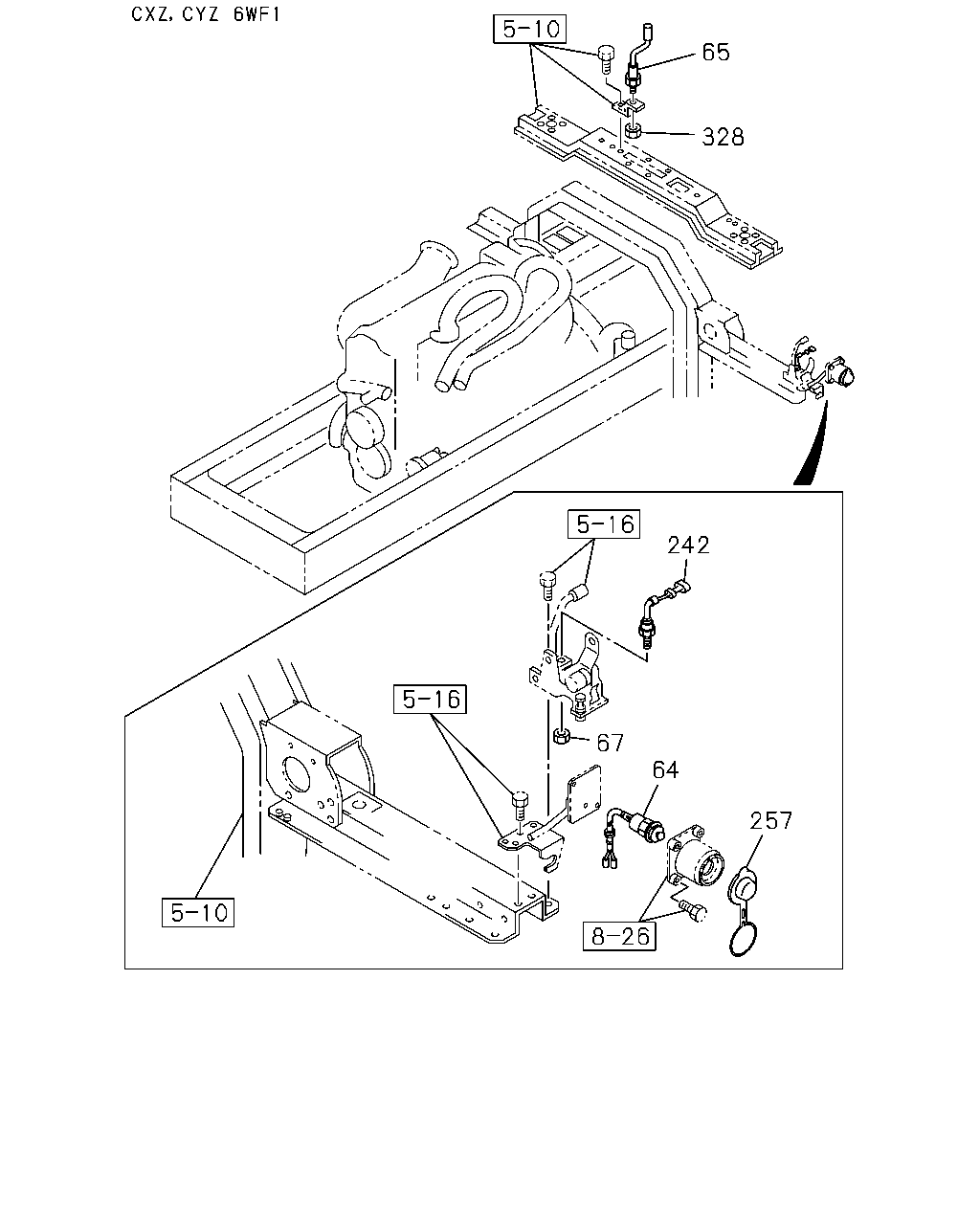

64	SWITCH; CAB TILT MAIN 6WG1 TC-C(72L)	1-82380-173-2	01	1	0512-		●	●
64	SWITCH; CAB TILT MAIN	1-82380-108-0	01	1	0407-0511	●
64	SWITCH; CAB TILT MAIN 6WF1 TC-C(1B8)	1-82380-108-0	01	1	0512-		●
65	SWITCH; CAB TILT LK STAMP NC	1-82380-125-1	01	1	0407-0511	●
65	SWITCH; CAB TILT LK STAMP NC	1-82380-125-1	01	1	0512-		●	●
67	NUT; SW,CAB TILT M16 H=18.5	1-09409-013-0	01	1	0407-0511	●
67	NUT; SW,CAB TILT 6WF1 TC-C(1B8) M16 H=18.5	1-09409-013-0	01	1	0512-		●
242	SWITCH 6WG1 TC-C(72L) STAMP NO	1-82380-172-1	01	1	0512-		●	●
242	SWITCH STAMP NO	1-82380-126-0	01	1	0407-0511	●
242	SWITCH 6WF1 TC-C(1B8) STAMP NO	1-82380-126-0	01	1	0512-		●
257	COVER; HOLE,SW	1-82389-008-0	01	1	0407-0511	●
257	COVER; HOLE,SW 6WF1 TC-C(1B8)	1-82389-008-0	01	1	0512-		●
328	NUT; SW M16	9-99110-416-0	01	1	0407-0511	●
328	NUT; SW M16	9-99110-416-0	01	1	0512-0512		●	●
328	NUT; SW M16	0-91110-516-0	01	1	0601-		●	●
