8-21 — METER ASM (#31416) — 260 parça

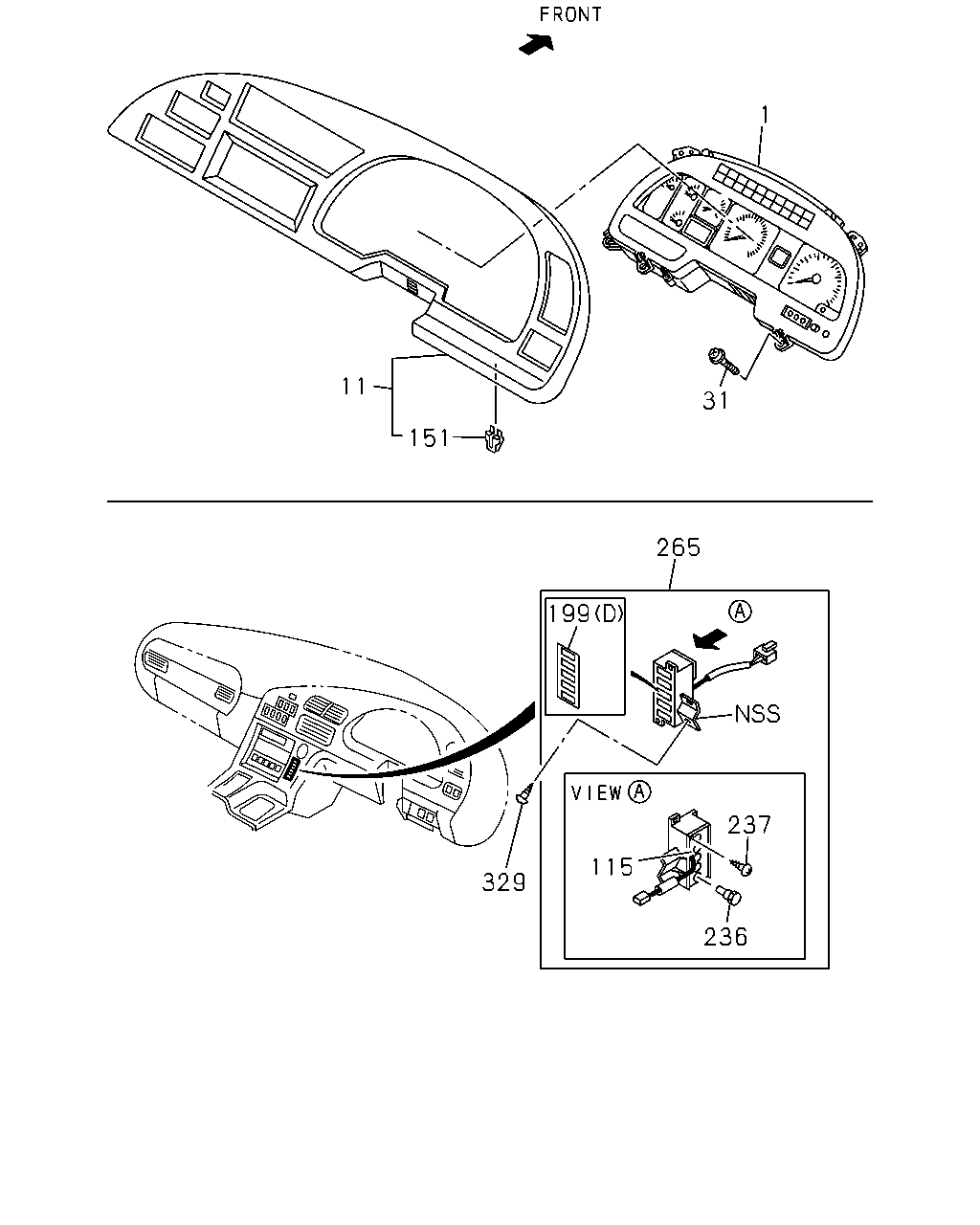

çizim 86586
1 11 31 151 265 199 237 115 329 236
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. FULL FLOATING CAB(W16),MJX M/T<Y9N> 		1-82116-022-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		1-83116-354-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-98194-299-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		8-98194-299-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		8-98194-300-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83116-353-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		8-98194-298-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83116-184-0 01 1 0407-0511 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) FULL FLOATING CAB(W16) 		1-82116-016-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83116-143-1 01 1 0407-0511 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0604- ●
11 CLUSTER ASM; METER
CUSTOM CAB(SR5) 		1-72418-014-9 01 1 0407-0511 ●
11 CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-014-9 01 1 0512- ●
11 CLUSTER ASM; METER 1-72418-014-9 01 1 0512- ●
11 CLUSTER ASM; METER
EXC. CUSTOM CAB(SR5) 		1-72418-012-9 01 1 0407-0511 ●
11 CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY> 		1-72418-012-9 01 1 0512- ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0407-0511 ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0512-0604 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-82259-006-0 01 1 0512- ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0407-0511 ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0512- ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (B) 		1-83119-890-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (C) 		1-83119-891-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-83119-848-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0512- ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (B) 		1-83119-853-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0512- ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-83119-722-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (A) 		1-83119-888-0 01 1 0512- ● ●
236 BULB ASM; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 05 1 0512- ● ●
237 SCREW; CIRCUIT PRINT FIX,WARNING LAMP
M3 TAPPING 		1-83119-052-0 03 1 0512- ● ●
265 LAMP ASM; WARNING 1-82250-358-1 01 1 0512- ● ●
329 SCREW; WARNING LAMP
M5X14 		8-94279-325-0 02 1 0512- ● ●

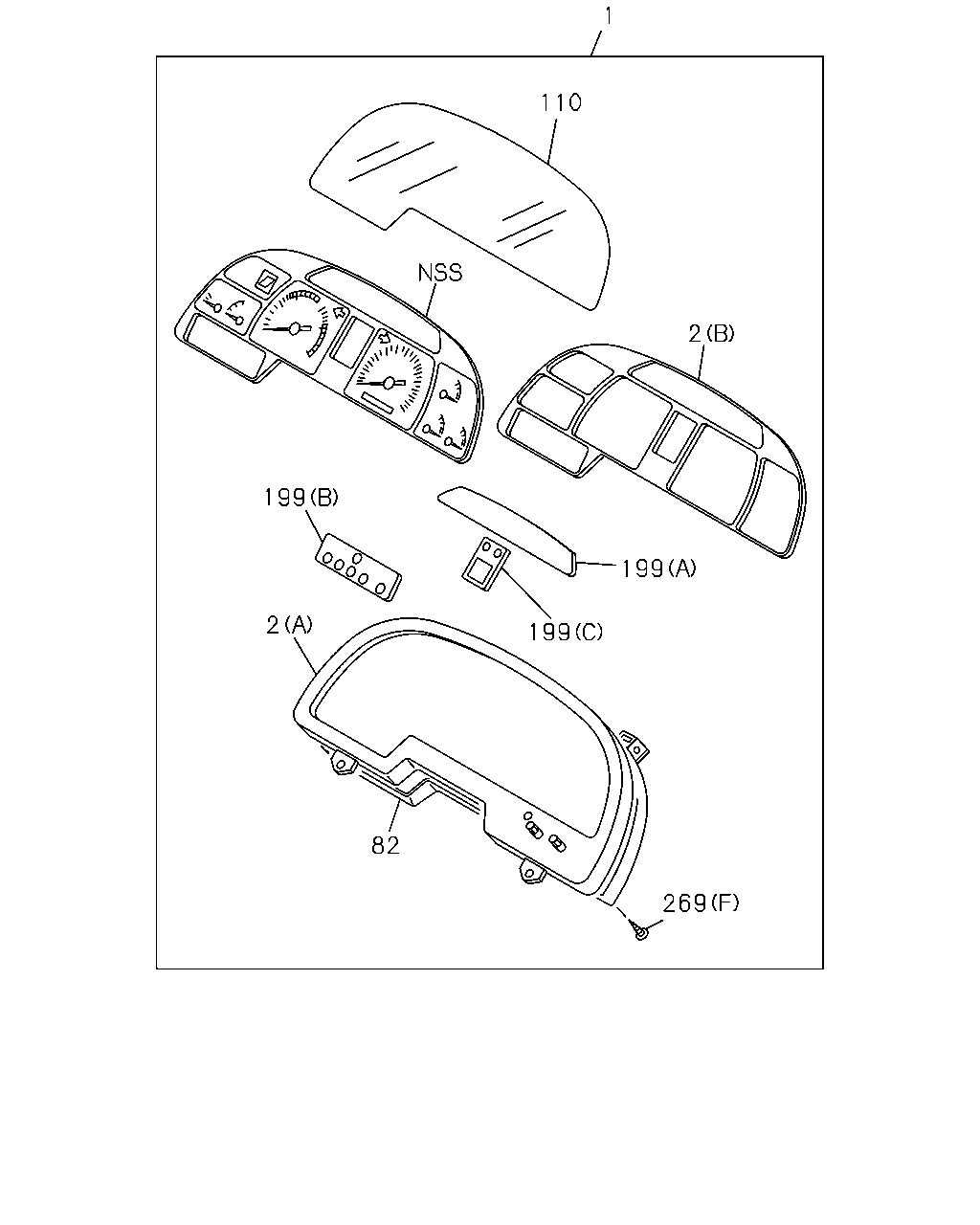

çizim 87032
1 110 2 199 199 2 199 82 269
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. FULL FLOATING CAB(W16),MJX M/T<Y9N> 		1-82116-022-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		1-83116-354-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-98194-299-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		8-98194-299-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		8-98194-300-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83116-353-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		8-98194-298-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83116-184-0 01 1 0407-0511 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) FULL FLOATING CAB(W16) 		1-82116-016-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83116-143-1 01 1 0407-0511 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0604- ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> (B) 		1-83119-710-0 01 1 0512- ●
2 PANEL; CLUSTER
6WG1 TC-C(72L) (B) 		1-83119-885-0 01 1 0512- ● ●
2 PANEL; CLUSTER
6WG1 TC-C(72L) (A) 		1-83119-887-0 01 1 0512- ● ●
2 PANEL; CLUSTER
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-844-0 01 1 0407-0511 ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-844-0 01 1 0512-0603 ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) FULL FLOATING CAB(W16) (B) 		1-83119-844-0 01 1 0604- ●
2 PANEL; CLUSTER
6WG1 TC-C(72L) (A) 		1-83119-854-0 01 1 0407-0511 ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) (A) 		1-83119-854-0 01 1 0512- ●
2 PANEL; CLUSTER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0407-0511 ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0512-0603 ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0604- ●
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-83119-859-0 01 1 0512- ●
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L) 		1-83119-892-0 01 1 0512- ● ●
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-846-0 01 1 0407-0511 ●
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-846-0 01 1 0512-0603 ●
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) FULL FLOATING CAB(W16) 		1-83119-846-0 01 1 0604- ●
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-847-0 01 1 0407-0511 ●
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0512-0512 ●
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0512-0603 ●
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0604- ●
110 GLASS; CLUSTER METER
6WG1 TC-C(72L) 		1-83119-886-0 01 1 0512- ● ●
110 GLASS; CLUSTER METER
6WG1 TC-C(72L) 		1-83119-707-0 01 1 0407-0511 ●
110 GLASS; CLUSTER METER
6WF1 TC-C(1B8) 		1-83119-707-0 01 1 0512- ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (B) 		1-83119-890-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (C) 		1-83119-891-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-83119-848-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0512- ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (B) 		1-83119-853-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0512- ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-83119-722-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (A) 		1-83119-888-0 01 1 0512- ● ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (E) M3 TAPPING 		1-83119-677-0 03 1 0512- ●
269 SCREW; METER CLUSTER
6WG1 TC-C(72L) (F) 		1-83119-893-0 09 1 0512- ● ●
269 SCREW; METER CLUSTER
6WG1 TC-C(72L) (C) M3 TAPPING 		1-83119-052-0 04 1 0407-0511 ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (C) M3 TAPPING 		1-83119-052-0 04 1 0512- ●
269 SCREW; METER CLUSTER
6WG1 TC-C(72L) (B) M3X8 		1-83119-058-0 03 1 0407-0511 ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> (B) M3X8 		1-83119-058-0 03 1 0512-0603 ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) (B) M3X8 		1-83119-058-0 03 1 0604- ●
269 SCREW; METER CLUSTER
6WG1 TC-C(72L) (D) M3 TAPPING 		1-83119-657-0 06 1 0407-0511 ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (D) M3 TAPPING 		1-83119-657-0 06 1 0512- ●
269 SCREW; METER CLUSTER
6WG1 TC-C(72L) (A) M3 TAPPING 		1-83119-675-0 05 1 0407-0511 ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (A) M3 TAPPING 		1-83119-675-0 05 1 0512- ●

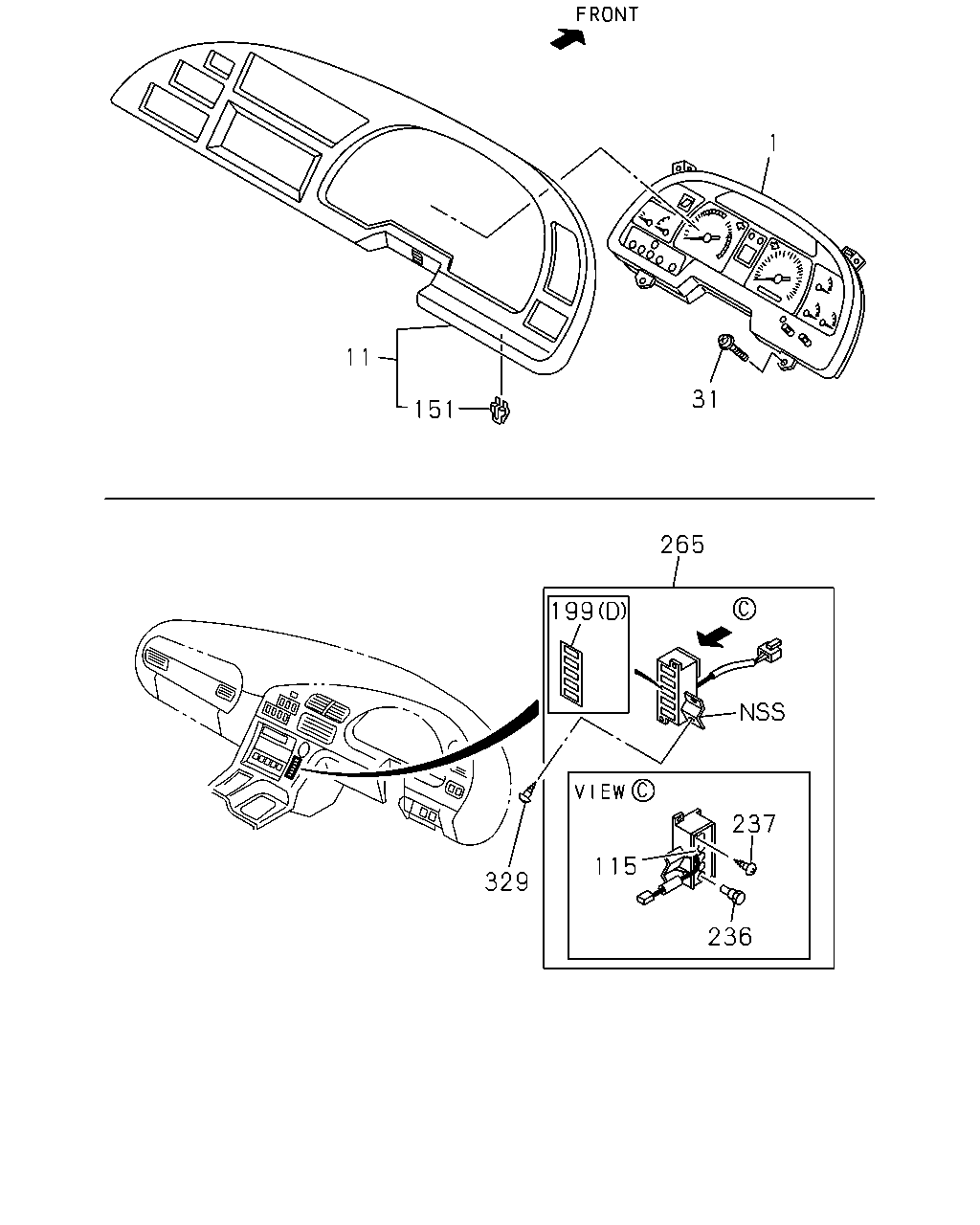

çizim 87339
1 11 31 151 265 199 237 115 329 236
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. FULL FLOATING CAB(W16),MJX M/T<Y9N> 		1-82116-022-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		1-83116-354-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-98194-299-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		8-98194-299-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		8-98194-300-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83116-353-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		8-98194-298-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83116-184-0 01 1 0407-0511 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) FULL FLOATING CAB(W16) 		1-82116-016-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83116-143-1 01 1 0407-0511 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0604- ●
11 CLUSTER ASM; METER
CUSTOM CAB(SR5) 		1-72418-014-9 01 1 0407-0511 ●
11 CLUSTER ASM; METER
METER PANEL GRAIN OF WOOD<NAY> 		1-72418-014-9 01 1 0512- ●
11 CLUSTER ASM; METER 1-72418-014-9 01 1 0512- ●
11 CLUSTER ASM; METER
EXC. CUSTOM CAB(SR5) 		1-72418-012-9 01 1 0407-0511 ●
11 CLUSTER ASM; METER
EXC. METER PANEL GRAIN OF WOOD<NAY> 		1-72418-012-9 01 1 0512- ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0407-0511 ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0512-0604 ● ●
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER 1-82259-006-0 01 1 0512- ● ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0407-0511 ●
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0512- ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (B) 		1-83119-890-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (C) 		1-83119-891-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-83119-848-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0512- ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (B) 		1-83119-853-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0512- ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-83119-722-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (A) 		1-83119-888-0 01 1 0512- ● ●
236 BULB ASM; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 05 1 0512- ● ●
237 SCREW; CIRCUIT PRINT FIX,WARNING LAMP
M3 TAPPING 		1-83119-052-0 03 1 0512- ● ●
265 LAMP ASM; WARNING 1-82250-358-1 01 1 0512- ● ●
329 SCREW; WARNING LAMP
M5X14 		8-94279-325-0 02 1 0512- ● ●

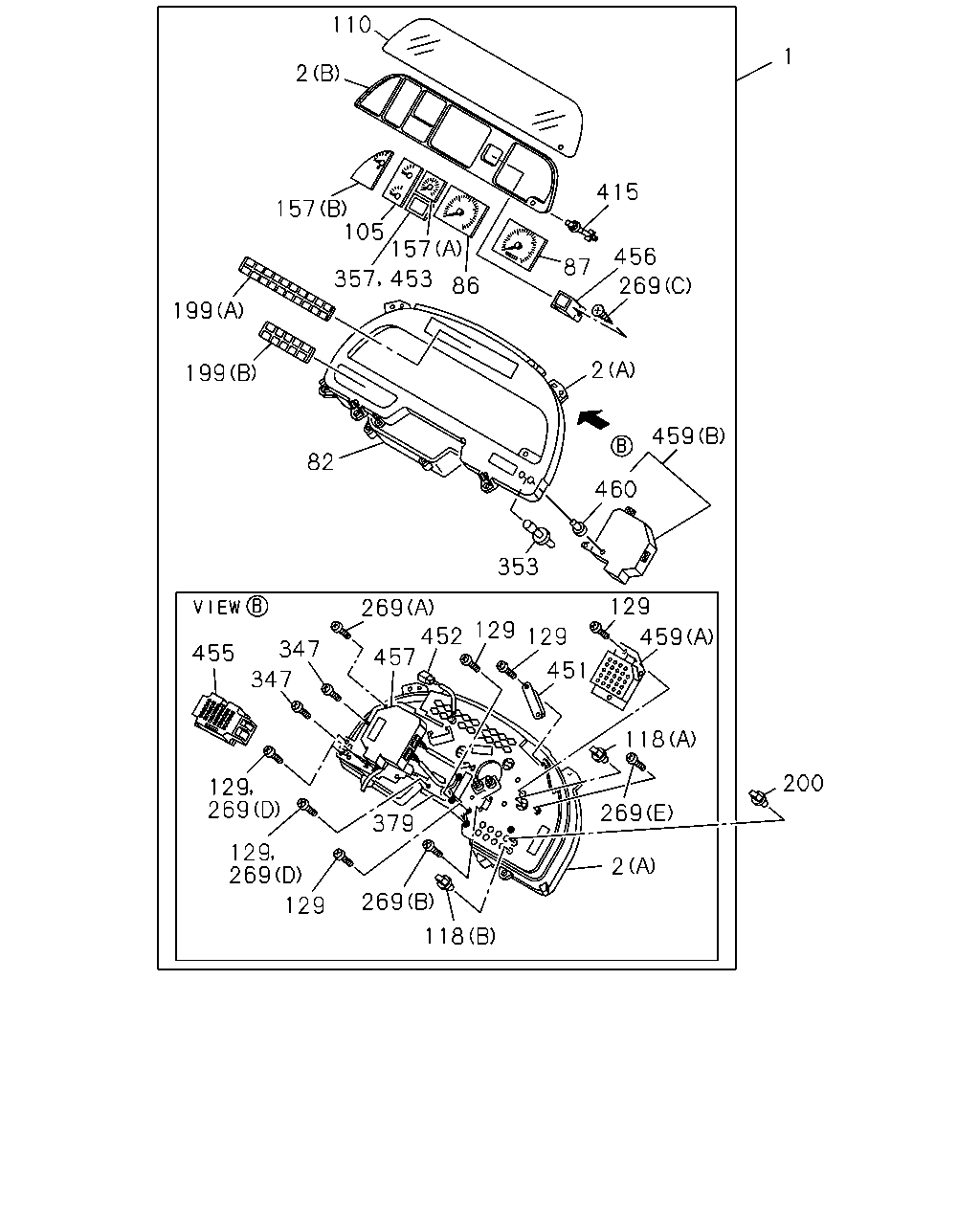

çizim 105022
110 1 2 415 157 105 157 456 87 357 86 269 199 2 199 459 82 460 353 129 269 129 452 457 129 459 347 455 451 347 118 200 129 269 269 379 129 269 2 269 129 118 453
BalonParca AdiParca NoAdetTipApplied Date A B C
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. FULL FLOATING CAB(W16),MJX M/T<Y9N> 		1-82116-022-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) EXC. MJX M/T<Y9N> 		1-82116-017-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		1-83116-354-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		1-83116-354-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> SMOOTHER-G(C1W) 		8-98194-299-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) 		8-98194-299-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		1-83116-355-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) 		8-98194-300-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		1-83116-353-2 01 1 0512-1107 ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W),MJX M/T<Y9N> 		8-98194-298-1 01 1 1108- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83116-184-0 01 1 0407-0511 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-016-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) FULL FLOATING CAB(W16) 		1-82116-016-0 01 1 0604- ●
1 METER COMPL; CLUSTER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83116-143-1 01 1 0407-0511 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0512-0603 ●
1 METER COMPL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-82116-015-0 01 1 0604- ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> (B) 		1-83119-710-0 01 1 0512- ●
2 PANEL; CLUSTER
6WG1 TC-C(72L) (B) 		1-83119-885-0 01 1 0512- ● ●
2 PANEL; CLUSTER
6WG1 TC-C(72L) (A) 		1-83119-887-0 01 1 0512- ● ●
2 PANEL; CLUSTER
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-844-0 01 1 0407-0511 ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-844-0 01 1 0512-0603 ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) FULL FLOATING CAB(W16) (B) 		1-83119-844-0 01 1 0604- ●
2 PANEL; CLUSTER
6WG1 TC-C(72L) (A) 		1-83119-854-0 01 1 0407-0511 ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) (A) 		1-83119-854-0 01 1 0512- ●
2 PANEL; CLUSTER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0407-0511 ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0512-0603 ●
2 PANEL; CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 		1-83119-843-0 01 1 0604- ●
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> 		1-83119-859-0 01 1 0512- ●
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L) 		1-83119-892-0 01 1 0512- ● ●
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-846-0 01 1 0407-0511 ●
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-846-0 01 1 0512-0603 ●
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) FULL FLOATING CAB(W16) 		1-83119-846-0 01 1 0604- ●
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-847-0 01 1 0407-0511 ●
82 CASE ASM; CLUSTER METER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0512-0512 ●
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0512-0603 ●
82 CASE ASM; CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-860-0 01 1 0604- ●
86 TACHOMETER; CLUSTER METER
6WG1 TC-C(72L) 		1-83120-908-0 01 1 0407-0511 ●
86 TACHOMETER; CLUSTER METER
6WF1 TC-C(1B8) 		1-83120-900-0 01 1 0512- ●
87 SPEEDOMETER
6WG1 TC-C(72L) 		1-83120-903-0 01 1 0407-0511 ●
87 SPEEDOMETER
6WF1 TC-C(1B8) 		1-83120-903-0 01 1 0512- ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
6WG1 TC-C(72L) 		1-83180-281-0 01 1 0407-0511 ●
105 GAUGE; THERMO & FUEL,CLUSTER METER
6WF1 TC-C(1B8) 		1-83180-281-0 01 1 0512- ●
110 GLASS; CLUSTER METER
6WG1 TC-C(72L) 		1-83119-886-0 01 1 0512- ● ●
110 GLASS; CLUSTER METER
6WG1 TC-C(72L) 		1-83119-707-0 01 1 0407-0511 ●
110 GLASS; CLUSTER METER
6WF1 TC-C(1B8) 		1-83119-707-0 01 1 0512- ●
118 BULB; CLUSTER METER
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 21 1 0407-0511 ●
118 BULB; CLUSTER METER
6WF1 TC-C(1B8) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 27 1 0512- ●
118 BULB; CLUSTER METER
6WG1 TC-C(72L) (A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0407-0511 ●
118 BULB; CLUSTER METER
6WF1 TC-C(1B8) (A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0512- ●
118 BULB; CLUSTER METER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 22 1 0407-0511 ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) M3 TAPPING 		1-83119-657-0 04 1 0407-0511 ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) M3 TAPPING 		1-83119-657-0 04 1 0512-0603 ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> M3 TAPPING 		1-83119-657-0 04 1 0512-0603 ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) FULL FLOATING CAB(W16) M3 TAPPING 		1-83119-657-0 04 1 0604- ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) EXC. MJX M/T<Y9N> M3 TAPPING 		1-83119-657-0 04 1 0604- ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) M3 TAPPING 		1-83119-657-0 06 1 0407-0511 ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) M3 TAPPING 		1-83119-657-0 06 1 0512-0603 ●
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) M3 TAPPING 		1-83119-657-0 06 1 0604- ●
157 METER; AIR PRESSURE,CLUSTER METER
6WG1 TC-C(72L) (A) 		1-83150-264-0 01 1 0407-0511 ●
157 METER; AIR PRESSURE,CLUSTER METER
6WF1 TC-C(1B8) (A) 		1-83150-270-0 01 1 0512- ●
157 METER; AIR PRESSURE,CLUSTER METER
6WG1 TC-C(72L) (B) 		1-83150-265-0 01 1 0407-0511 ●
157 METER; AIR PRESSURE,CLUSTER METER
6WF1 TC-C(1B8) (B) 		1-83150-273-0 01 1 0512- ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (B) 		1-83119-890-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (C) 		1-83119-891-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
(D) 		1-82255-312-0 01 1 0512- ● ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-83119-848-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (B) 		1-83119-911-0 01 1 0512- ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (B) 		1-83119-853-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WF1 TC-C(1B8) (A) 		1-83119-858-0 01 1 0512- ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) (A) 		1-83119-722-0 01 1 0407-0511 ●
199 LENS; WARNING LAMP
6WG1 TC-C(72L) (A) 		1-83119-888-0 01 1 0512- ● ●
200 BULB; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 02 1 0408-0511 ●
200 BULB; WARNING LAMP
6WF1 TC-C(1B8) AUTO CRUISE W/RESUME<NKA> 24V 1.8W BROWN SOCKET 		1-82194-062-0 02 1 0512- ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (E) M3 TAPPING 		1-83119-677-0 03 1 0512- ●
269 SCREW; METER CLUSTER
6WG1 TC-C(72L) (F) 		1-83119-893-0 09 1 0512- ● ●
269 SCREW; METER CLUSTER
6WG1 TC-C(72L) (C) M3 TAPPING 		1-83119-052-0 04 1 0407-0511 ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (C) M3 TAPPING 		1-83119-052-0 04 1 0512- ●
269 SCREW; METER CLUSTER
6WG1 TC-C(72L) (B) M3X8 		1-83119-058-0 03 1 0407-0511 ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> (B) M3X8 		1-83119-058-0 03 1 0512-0603 ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) (B) M3X8 		1-83119-058-0 03 1 0604- ●
269 SCREW; METER CLUSTER
6WG1 TC-C(72L) (D) M3 TAPPING 		1-83119-657-0 06 1 0407-0511 ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (D) M3 TAPPING 		1-83119-657-0 06 1 0512- ●
269 SCREW; METER CLUSTER
6WG1 TC-C(72L) (A) M3 TAPPING 		1-83119-675-0 05 1 0407-0511 ●
269 SCREW; METER CLUSTER
6WF1 TC-C(1B8) (A) M3 TAPPING 		1-83119-675-0 05 1 0512- ●
347 SCREW; CONTROL UNIT
6WG1 TC-C(72L) M3 TAPPING 		1-83119-052-0 03 1 0407-0511 ●
347 SCREW; CONTROL UNIT
6WF1 TC-C(1B8) M3 TAPPING 		1-83119-052-0 03 1 0512- ●
353 KNOB; RHEOSTAT
6WG1 TC-C(72L) 		1-83119-730-0 01 1 0407-0511 ●
353 KNOB; RHEOSTAT
6WF1 TC-C(1B8) 		1-83119-730-0 01 1 0512- ●
357 INDICATOR; ZF T/M
6WG1 TC-C(72L) TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-494-0 01 1 0407-0511 ●
357 INDICATOR; ZF T/M
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-494-0 01 1 0512-0603 ●
357 INDICATOR; ZF T/M
6WF1 TC-C(1B8) MJX M/T<Y9N> TRANSMISSION CONTROL LINK TYPE(B2A) FULL FLOATING CAB(W16) 		1-83119-494-0 01 1 0604- ●
379 CIRCUIT; DROP
6WG1 TC-C(72L) 		1-83189-391-0 01 1 0407-0511 ●
379 CIRCUIT; DROP
6WF1 TC-C(1B8) 		1-83189-391-0 01 1 0512- ●
415 KNOB; TRIP,METER
6WG1 TC-C(72L) 		1-83119-729-0 01 1 0407-0511 ●
415 KNOB; TRIP,METER
6WF1 TC-C(1B8) 		1-83119-729-0 01 1 0512- ●
451 DROPER; METER
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83189-393-0 01 1 0407-0511 ●
451 DROPER; METER
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83189-393-0 01 1 0512-0603 ●
451 DROPER; METER
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83189-393-0 01 1 0604- ●
452 LAMP ASM; CLUSTER METER
6WG1 TC-C(72L) 		1-82194-088-0 01 1 0407-0511 ●
452 LAMP ASM; CLUSTER METER
6WF1 TC-C(1B8) 		1-82194-088-0 01 1 0512- ●
453 INDICATOR; ECOGIT
6WG1 TC-C(72L) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-728-0 01 1 0407-0511 ●
453 INDICATOR; ECOGIT
6WF1 TC-C(1B8) MJX M/T<Y9N> EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-728-0 01 1 0512-0603 ●
453 INDICATOR; ECOGIT
6WF1 TC-C(1B8) MJX M/T<Y9N> FULL FLOATING CAB(W16) EXC. TRANSMISSION CONTROL LINK TYPE(B2A) 		1-83119-728-0 01 1 0604- ●
455 MODULE ASM; METER
6WG1 TC-C(72L) 		1-83189-418-0 01 1 0407-0511 ●
455 MODULE ASM; METER
6WF1 TC-C(1B8) 		1-83189-419-0 01 1 0512- ●
456 WARNING ASM; MULTI
6WG1 TC-C(72L) 		1-83119-734-0 01 1 0407-0511 ●
456 WARNING ASM; MULTI
6WF1 TC-C(1B8) 		1-83119-734-0 01 1 0512- ●
457 CONTROLLER ASM; MULTI WARNING
6WF1 TC-C(1B8) EXC. FULL FLOATING CAB(W16),MJX M/T<Y9N> 		1-83119-818-0 01 1 0604- ●
457 CONTROLLER ASM; MULTI WARNING
6WG1 TC-C(72L) 		1-83119-817-0 01 1 0407-0511 ●
457 CONTROLLER ASM; MULTI WARNING
6WF1 TC-C(1B8) 		1-83119-817-0 01 1 0512-0603 ●
457 CONTROLLER ASM; MULTI WARNING
6WF1 TC-C(1B8) FULL FLOATING CAB(W16) 		1-83119-817-0 01 1 0604- ●
459 POWER SUPPLY ASM
6WG1 TC-C(72L) (A) 		1-83119-783-0 01 1 0407-0511 ●
459 POWER SUPPLY ASM
6WF1 TC-C(1B8) (A) 		1-83119-925-0 01 1 0512- ●
459 POWER SUPPLY ASM
6WG1 TC-C(72L) (B) 		1-83119-820-1 01 1 0407-0511 ●
459 POWER SUPPLY ASM
6WF1 TC-C(1B8) (B) 		1-83119-820-1 01 1 0512- ●
460 SWITCH; MULTI WARNING
6WG1 TC-C(72L) 		1-83119-736-1 01 1 0407-0511 ●
460 SWITCH; MULTI WARNING
6WF1 TC-C(1B8) 		1-83119-736-1 01 1 0512- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
