Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#31414) — 1157 parça

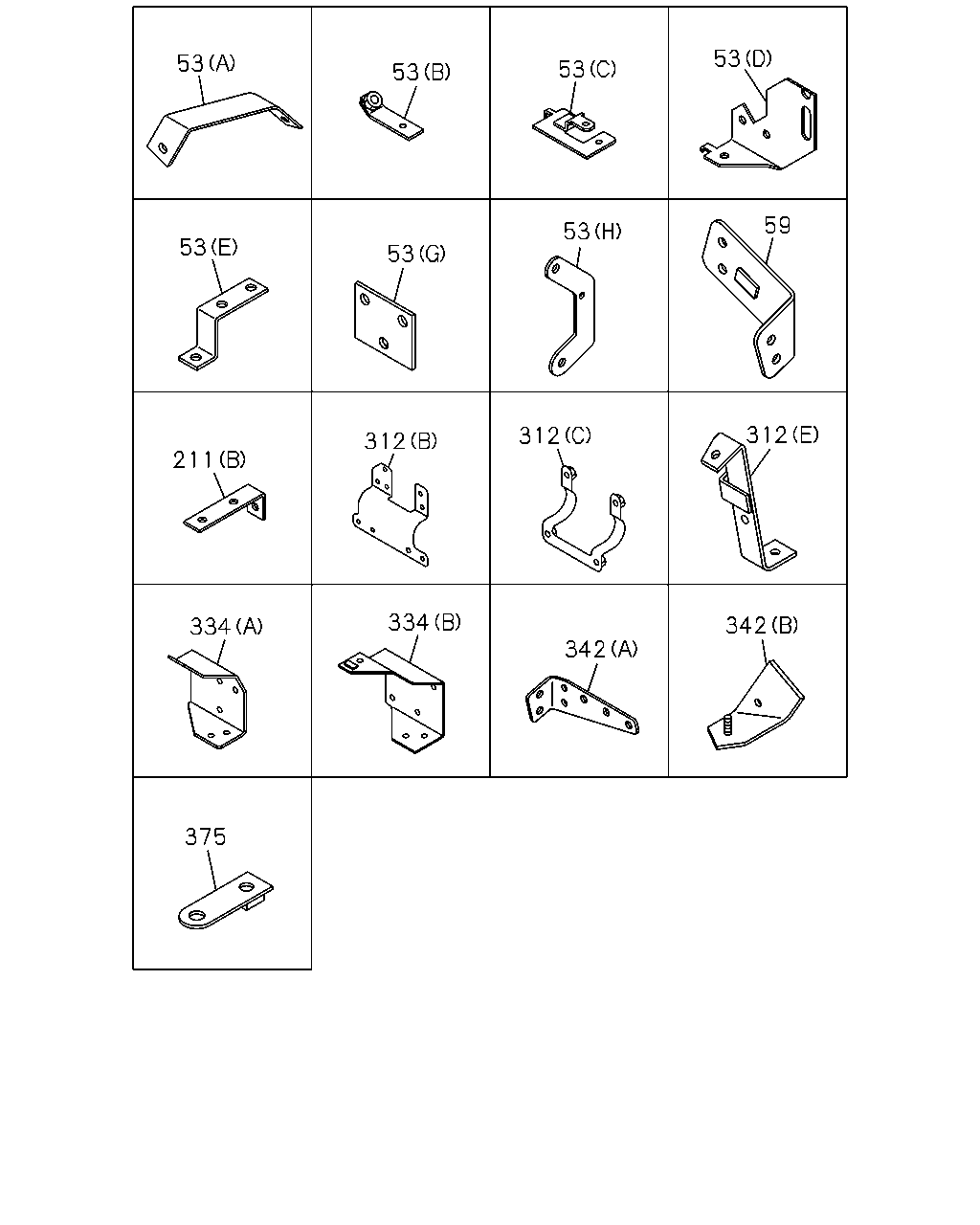

53 53 53 53 59 53 53 53 312 312 312 211 334 342 334 342 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	BRACKET; HARNESS 6WF1 TC-C(1B8) (F)	1-82698-440-0	01	1	0512-	●
53	BRACKET; HARNESS 6WF1 TC-C(1B8) (G)	1-82698-469-0	02	1	0512-	●
53	BRACKET; HARNESS 6WG1 TC-C(72L) (C)	1-82698-495-2	01	1	0512-	●	●
53	BRACKET; HARNESS 6WG1 TC-C(72L) (D)	8-97610-991-0	01	1	0512-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	0512-	●	●
53	BRACKET; HARNESS (E)	1-82698-382-0	01	1	0512-	●	●
53	BRACKET; HARNESS (B)	1-81582-005-1	01	1	0407-0511			●
53	BRACKET; HARNESS 6WG1 TC-C(72L) (H)	1-83129-472-1	01	1	0512-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	09	1	0407-0511			●
53	BRACKET; HARNESS (A)	1-47479-537-0	04	1	0512-	●	●
59	BRACKET; FRAME HARNESS	1-82698-531-0	01	1	0602-	●	●
59	BRACKET; FRAME HARNESS	1-82698-531-0	01	1	0407-0511			●
211	BRACKET; AXLE HARNESS 6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82698-588-0	01	1	0512-	●	●
211	BRACKET; AXLE HARNESS (C)	1-47479-430-0	02	1	0407-0511			●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47479-430-0	02	1	0512-	●	●
211	BRACKET; AXLE HARNESS (A) L=120 H=35	1-82699-970-0	02	1	0407-0511			●
211	BRACKET; AXLE HARNESS 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82698-588-0	02	1	0512-	●
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (L)	1-82698-570-0	01	1	0607-	●
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) (L)	1-82698-570-0	01	1	0607-		●
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (K)	1-82699-182-0	01	1	0512-0606	●
312	BRACKET; CLIP HARNESS (K)	1-82699-182-0	01	1	0512-0606		●
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) (K)	1-82699-182-0	01	1	0607-		●
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) (H)	1-82699-199-0	01	1	0512-	●	●
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I)	1-82698-443-0	01	1	0512-	●
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (F) L=120 H=35	1-82699-970-0	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) (G)	1-82698-556-0	01	1	0512-	●	●
312	BRACKET; CLIP HARNESS CAB UP +110MM<TGG> (E) L=195.5	1-82698-502-0	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS (E) L=195.5	1-82698-502-0	01	1	0512-	●	●
312	BRACKET; CLIP HARNESS (J) L=90 B=25	1-47476-630-0	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS FULLER M/T<X9B> (D) L=120 H=35	1-82698-088-0	01	1	0512-	●
312	BRACKET; CLIP HARNESS (A)	1-82698-440-0	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS 6WF1 TC-C(1B8) (A)	1-82698-440-0	01	1	0512-	●
312	BRACKET; CLIP HARNESS (B)	1-82698-474-1	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS (B)	1-82698-474-1	01	1	0512-	●	●
312	BRACKET; CLIP HARNESS (C)	1-82698-476-0	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS (C)	1-82698-476-0	01	1	0512-	●	●
334	BRACKET SMOOTHER-G(C1W) (D)	1-82698-650-0	01	1	0512-	●
334	BRACKET (D)	1-82698-650-0	01	1	0512-		●
334	BRACKET 6WG1 TC-C(72L) (C)	1-53457-153-2	01	1	0512-	●	●
334	BRACKET (A)	1-53457-106-0	01	1	0407-0511			●
334	BRACKET 6WF1 TC-C(1B8) (B)	1-53458-362-0	01	1	0512-	●
342	BRACKET; HARNESS CAB MTG EXC. FULLER M/T<X9B> (B)	1-47479-974-0	01	1	0611-	●
342	BRACKET; HARNESS CAB MTG (B)	1-47479-974-0	01	1	0611-		●
342	BRACKET; HARNESS CAB MTG (B)	1-47479-974-0	01	1	0407-0511			●
342	BRACKET; HARNESS CAB MTG (B)	1-47479-974-0	01	1	0512-0606	●	●
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	0407-0511			●
342	BRACKET; HARNESS CAB MTG (A)	1-82699-625-0	01	1	0512-	●	●
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0407-0511			●
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0512-	●	●

119 255 524 219 294 340 515 55 423

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
55	WASHER; PL,CLIP ID=8.4	1-09503-264-0	01	1	0607-	●
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0407-0511			●
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0512-	●	●
219	NUT M8 FLANGE	0-91150-108-0	11	1	0512-0602	●	●
219	NUT M8 FLANGE	0-91180-108-0	11	1	0603-	●	●
219	NUT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
219	NUT M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
219	NUT M8 FLANGE	0-91150-108-0	04	1	0512-0602	●	●
219	NUT 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	04	1	0512-0602	●
219	NUT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
219	NUT 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	04	1	0603-	●
219	NUT M8 FLANGE	0-91150-108-0	02	1	0407-0511			●
219	NUT 6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
219	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	02	1	0512-0602	●
219	NUT FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	02	1	0512-0602	●
219	NUT M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
219	NUT 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
219	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	0603-	●
219	NUT FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	02	1	0603-	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	0603-		●
219	NUT M8 FLANGE	0-91150-108-0	06	1	0407-0511			●
219	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	03	1	0512-0602	●	●
219	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
219	NUT M8 FLANGE	0-91150-108-0	14	1	0407-0511			●
219	NUT M8 FLANGE	0-91150-108-0	01	1	0512-0602	●	●
219	NUT M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	0603-0606		●
219	NUT 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0607-0610		●
219	NUT EXC. FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0611-	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	0611-		●
219	NUT M8 FLANGE	0-91180-108-0	01	1	0611-		●
255	SCREW; TAP CLIP M6X20 TAPPING W/PL WASHER	0-74305-620-0	02	1	0407-0511			●
294	NUT 6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	05	1	0607-	●	●
294	NUT M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
294	NUT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
294	NUT MJX16P M/T(Y3Z) M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
294	NUT M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
294	NUT CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	01	1	0407-0511			●
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	06	1	0512-0602	●	●
294	NUT M8 FLANGE	0-91180-108-0	06	1	0603-0606	●	●
294	NUT 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	06	1	0607-	●
294	NUT M8 FLANGE	0-91150-108-0	02	1	0407-0511			●
294	NUT M8 FLANGE	0-91150-108-0	01	1	0512-0602	●	●
294	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	01	1	0512-0602	●
294	NUT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE	0-91150-108-0	01	1	0512-0602	●
294	NUT FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	0512-0602	●
294	NUT M8 FLANGE	0-91150-108-0	01	1	0512-0602		●
294	NUT M8 FLANGE	0-91180-108-0	01	1	0603-0606	●	●
294	NUT SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0603-0606	●
294	NUT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0603-0606	●
294	NUT FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0603-0606	●
294	NUT M8 FLANGE	0-91180-108-0	01	1	0603-0606		●
294	NUT M8 FLANGE	0-91180-108-0	01	1	0607-	●	●
294	NUT 6WF1 TC-C(1B8) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	01	1	0607-	●
294	NUT FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0607-	●
294	NUT 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0607-		●
294	NUT M8 FLANGE	0-91150-108-0	06	1	0407-0511			●
294	NUT M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
294	NUT 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0512-0602	●
294	NUT M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●
294	NUT 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0603-0606	●
294	NUT M8 FLANGE	0-91180-108-0	02	1	0607-	●	●
294	NUT 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0607-	●
294	NUT 6WG1 TC-C(72L) SMOOTHER-G(C1W) M8 FLANGE	0-91180-108-0	02	1	0607-	●
294	NUT 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	02	1	0607-		●
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
340	NUT; HARNESS CAB TO FRAME CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	0407-0511			●
340	NUT; HARNESS CAB TO FRAME 6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	01	1	0512-0602	●	●
340	NUT; HARNESS CAB TO FRAME 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	0512-	●	●
423	WASHER; HARNESS,EARTH EXC. SMOOTHER-G(C1W) ID=8.4	1-09503-264-0	03	1	0512-	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	05	1	0407-0511			●
423	WASHER; HARNESS,EARTH SMOOTHER-G(C1W) ID=8.4	1-09503-264-0	04	1	0512-	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	0512-		●
515	NUT; BRKT 6WG1 TC-C(72L) M8 FLANGE	0-91150-108-0	03	1	0512-0602	●	●
515	NUT; BRKT 6WG1 TC-C(72L) M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
515	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0407-0511			●
515	NUT; BRKT 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	04	1	0512-0602	●
515	NUT; BRKT 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	04	1	0603-	●
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	01	1	0407-0511			●
524	NUT; HARNESS M6 FLANGE	0-91150-106-0	01	1	0512-0602	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0603-	●	●

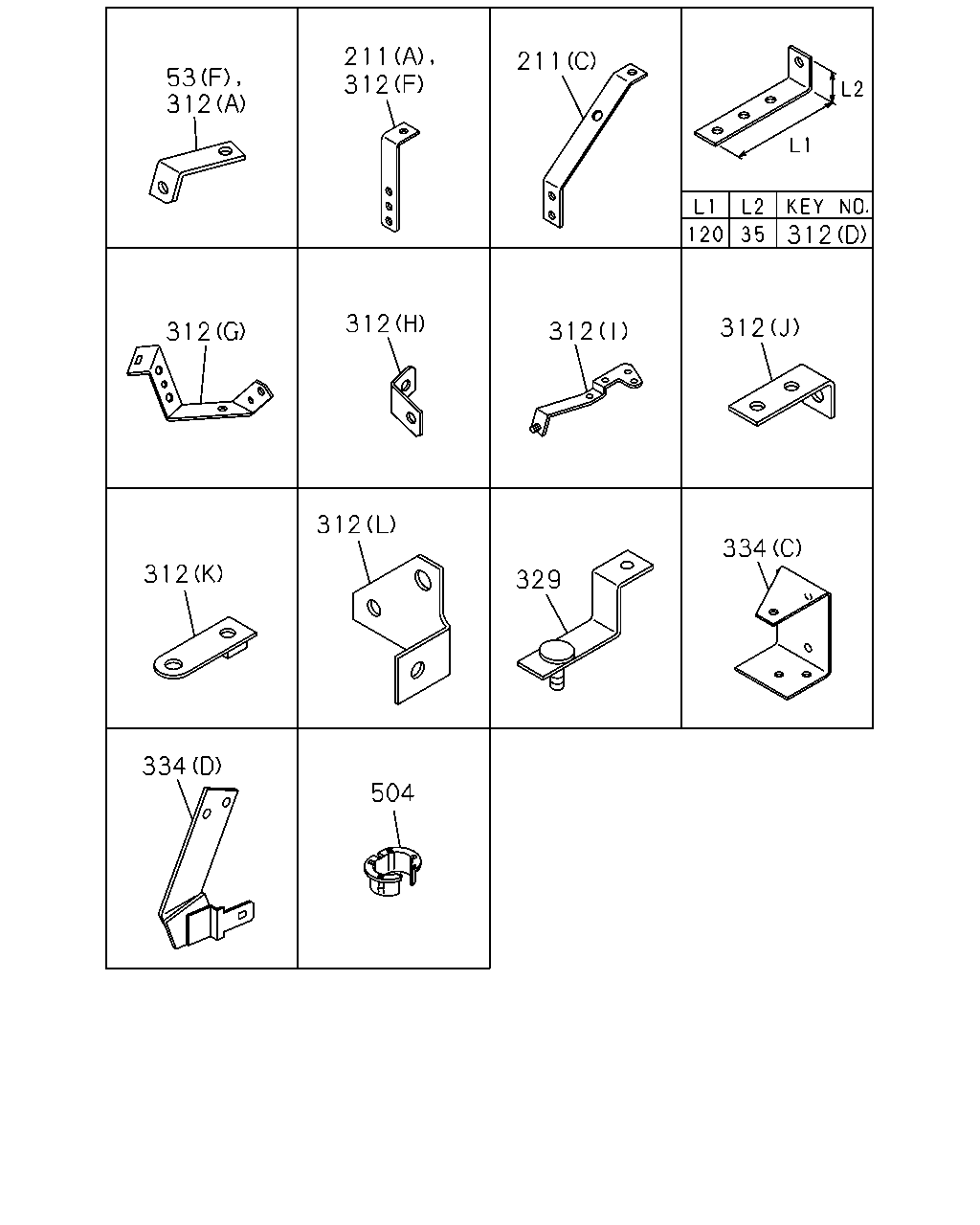

312 53 312 211 211 312 312 312 312 312 312 312 329 334 504 334

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
53	BRACKET; HARNESS 6WF1 TC-C(1B8) (F)	1-82698-440-0	01	1	0512-	●
53	BRACKET; HARNESS 6WF1 TC-C(1B8) (G)	1-82698-469-0	02	1	0512-	●
53	BRACKET; HARNESS 6WG1 TC-C(72L) (C)	1-82698-495-2	01	1	0512-	●	●
53	BRACKET; HARNESS 6WG1 TC-C(72L) (D)	8-97610-991-0	01	1	0512-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	05	1	0512-	●	●
53	BRACKET; HARNESS (E)	1-82698-382-0	01	1	0512-	●	●
53	BRACKET; HARNESS (B)	1-81582-005-1	01	1	0407-0511			●
53	BRACKET; HARNESS 6WG1 TC-C(72L) (H)	1-83129-472-1	01	1	0512-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	09	1	0407-0511			●
53	BRACKET; HARNESS (A)	1-47479-537-0	04	1	0512-	●	●
211	BRACKET; AXLE HARNESS 6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82698-588-0	01	1	0512-	●	●
211	BRACKET; AXLE HARNESS (C)	1-47479-430-0	02	1	0407-0511			●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C)	1-47479-430-0	02	1	0512-	●	●
211	BRACKET; AXLE HARNESS (A) L=120 H=35	1-82699-970-0	02	1	0407-0511			●
211	BRACKET; AXLE HARNESS 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82698-588-0	02	1	0512-	●
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (L)	1-82698-570-0	01	1	0607-	●
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) (L)	1-82698-570-0	01	1	0607-		●
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (K)	1-82699-182-0	01	1	0512-0606	●
312	BRACKET; CLIP HARNESS (K)	1-82699-182-0	01	1	0512-0606		●
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) (K)	1-82699-182-0	01	1	0607-		●
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) (H)	1-82699-199-0	01	1	0512-	●	●
312	BRACKET; CLIP HARNESS EXC. AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ), AIR CONDITIONER-AUTOMATIC CONTROL,WO/BED(NNB) (I)	1-82698-443-0	01	1	0512-	●
312	BRACKET; CLIP HARNESS SMOOTHER-G(C1W) (F) L=120 H=35	1-82699-970-0	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS 6WG1 TC-C(72L) (G)	1-82698-556-0	01	1	0512-	●	●
312	BRACKET; CLIP HARNESS CAB UP +110MM<TGG> (E) L=195.5	1-82698-502-0	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS (E) L=195.5	1-82698-502-0	01	1	0512-	●	●
312	BRACKET; CLIP HARNESS (J) L=90 B=25	1-47476-630-0	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS FULLER M/T<X9B> (D) L=120 H=35	1-82698-088-0	01	1	0512-	●
312	BRACKET; CLIP HARNESS (A)	1-82698-440-0	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS 6WF1 TC-C(1B8) (A)	1-82698-440-0	01	1	0512-	●
312	BRACKET; CLIP HARNESS (B)	1-82698-474-1	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS (B)	1-82698-474-1	01	1	0512-	●	●
312	BRACKET; CLIP HARNESS (C)	1-82698-476-0	01	1	0407-0511			●
312	BRACKET; CLIP HARNESS (C)	1-82698-476-0	01	1	0512-	●	●
329	BRACKET; CLIP,CABLE	1-47477-669-1	01	1	0407-0511			●
329	BRACKET; CLIP,CABLE	1-47477-669-1	01	1	0512-	●	●
334	BRACKET SMOOTHER-G(C1W) (D)	1-82698-650-0	01	1	0512-	●
334	BRACKET (D)	1-82698-650-0	01	1	0512-		●
334	BRACKET 6WG1 TC-C(72L) (C)	1-53457-153-2	01	1	0512-	●	●
334	BRACKET (A)	1-53457-106-0	01	1	0407-0511			●
334	BRACKET 6WF1 TC-C(1B8) (B)	1-53458-362-0	01	1	0512-	●
504	PROTECTOR; HARNESS MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82698-391-0	02	1	0407-0511			●
504	PROTECTOR; HARNESS MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82698-391-0	02	1	0512-	●	●

5 292 224 1 224 1 1 530 292 530 178 178 178 178 178 530 503 178

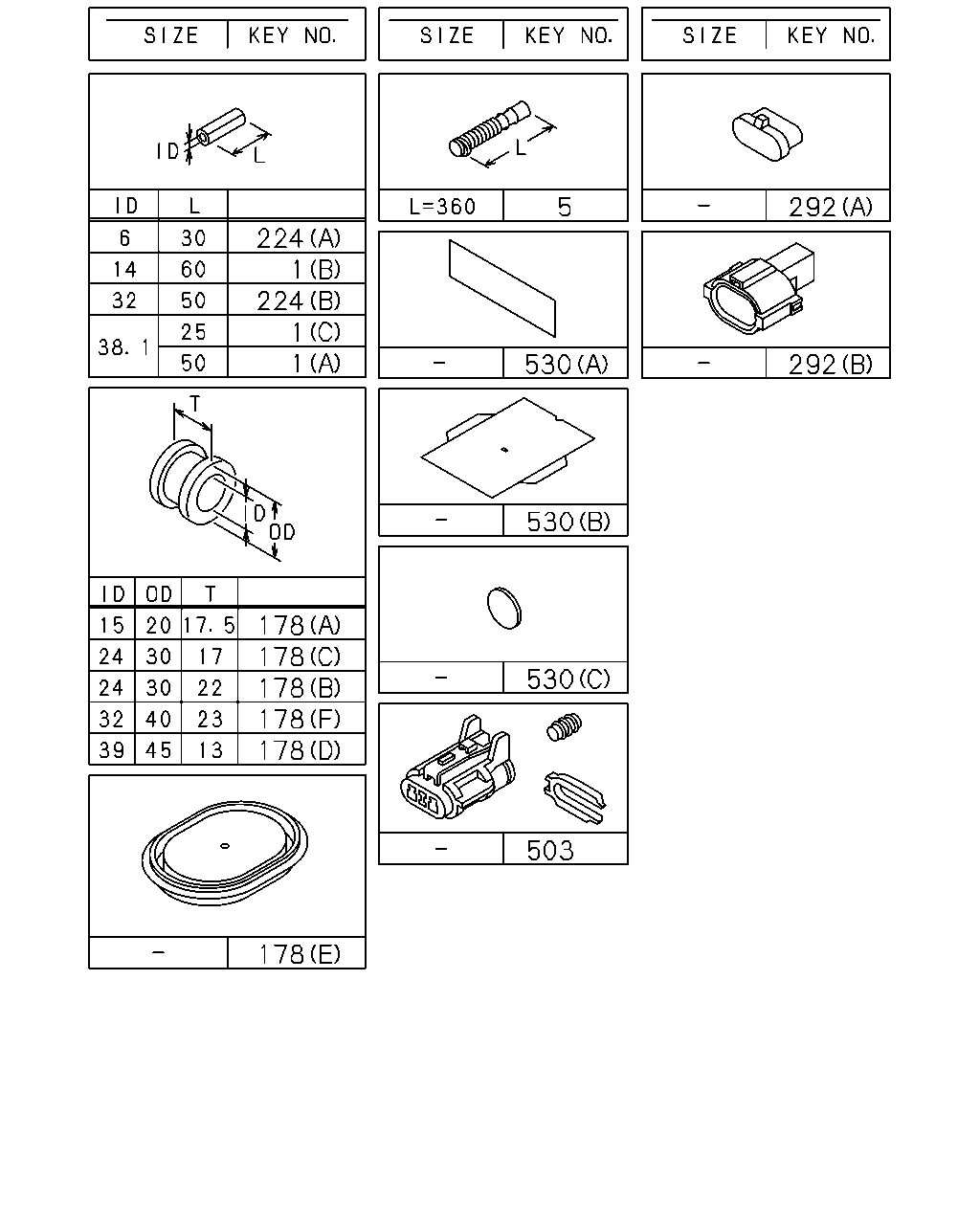

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SLEEVE; RUBBER AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) (A) ID=38.1 L=50	5-09360-835-0	01	1	0407-0511			●
1	SLEEVE; RUBBER (A) ID=38.1 L=50	5-09360-835-0	01	1	0512-0603	●	●
1	SLEEVE; RUBBER (C) ID=38.1 L=25	1-09337-052-0	01	1	0604-	●	●
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0407-0511			●
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	0512-	●	●
5	GUIDE; HARNESS L=360	1-82699-476-1	01	1	0407-0511			●
5	GUIDE; HARNESS 6WF1 TC-C(1B8) L=360	1-82699-476-1	01	1	0512-	●
178	GROMMET; HARNESS (F) ID=32 OD=40 T=23	1-09332-112-0	01	1	0512-	●	●
178	GROMMET; HARNESS (D) ID=39 OD=45 T=13	1-09332-076-0	02	1	0407-0511			●
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (D) ID=39 OD=45 T=13	1-09332-076-0	02	1	0512-	●	●
178	GROMMET; HARNESS (B) WO/SLIT ID=24 OD=30 T=22	1-09332-126-0	02	1	0407-0511			●
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) WO/SLIT ID=24 OD=30 T=22	1-09332-126-0	02	1	0512-	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0407-0511			●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0512-	●	●
178	GROMMET; HARNESS (C) ID=24 OD=30 T=17	9-09956-092-1	01	1	0407-0511			●
178	GROMMET; HARNESS 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (E)	1-82698-551-0	01	1	0512-	●
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	0407-0511			●
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	0407-0511			●
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	02	1	0512-0705	●	●
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	0706-	●	●
178	GROMMET; HARNESS (B) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	01	1	0706-	●	●
224	SLEEVE; RUBBER,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=32 OD=36 L=50	1-09337-023-0	01	1	0512-	●	●
224	SLEEVE; RUBBER,HARNESS (A) ID=6 L=30	5-09360-352-0	01	1	0407-0511			●
224	SLEEVE; RUBBER,HARNESS (A) ID=6 L=30	5-09360-352-0	01	1	0512-	●	●
292	CAP; RUBBER (A)	1-82690-667-0	01	1	0407-0511			●
292	CAP; RUBBER (A)	1-82690-667-0	01	1	0512-	●	●
292	CAP; RUBBER (B)	1-82699-796-0	02	1	0407-0407			●
503	CONNECTOR	1-82690-666-0	01	1	0407-0511			●
530	SEAL; HARNESS EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (C) OD=25 BLACK	1-76798-019-0	01	1	0512-	●	●
530	SEAL; HARNESS (A) 180X40	1-72498-019-0	16	1	0407-0511			●
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	16	1	0512-	●	●
530	SEAL; HARNESS (A) 100X40	1-72498-022-0	01	1	0407-0511			●
530	SEAL; HARNESS (A) 100X40	1-72498-022-1	01	1	0512-	●	●
530	SEAL; HARNESS (B)	1-76770-009-2	01	1	0407-0511			●
530	SEAL; HARNESS EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (A) 100X40	1-72498-022-1	02	1	0512-	●	●

16 48 104 16 16 104 212 16 48 205 104 16 218 16 16 16 162 470 205 148 168 16 16 16 104 116 421 421 81 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

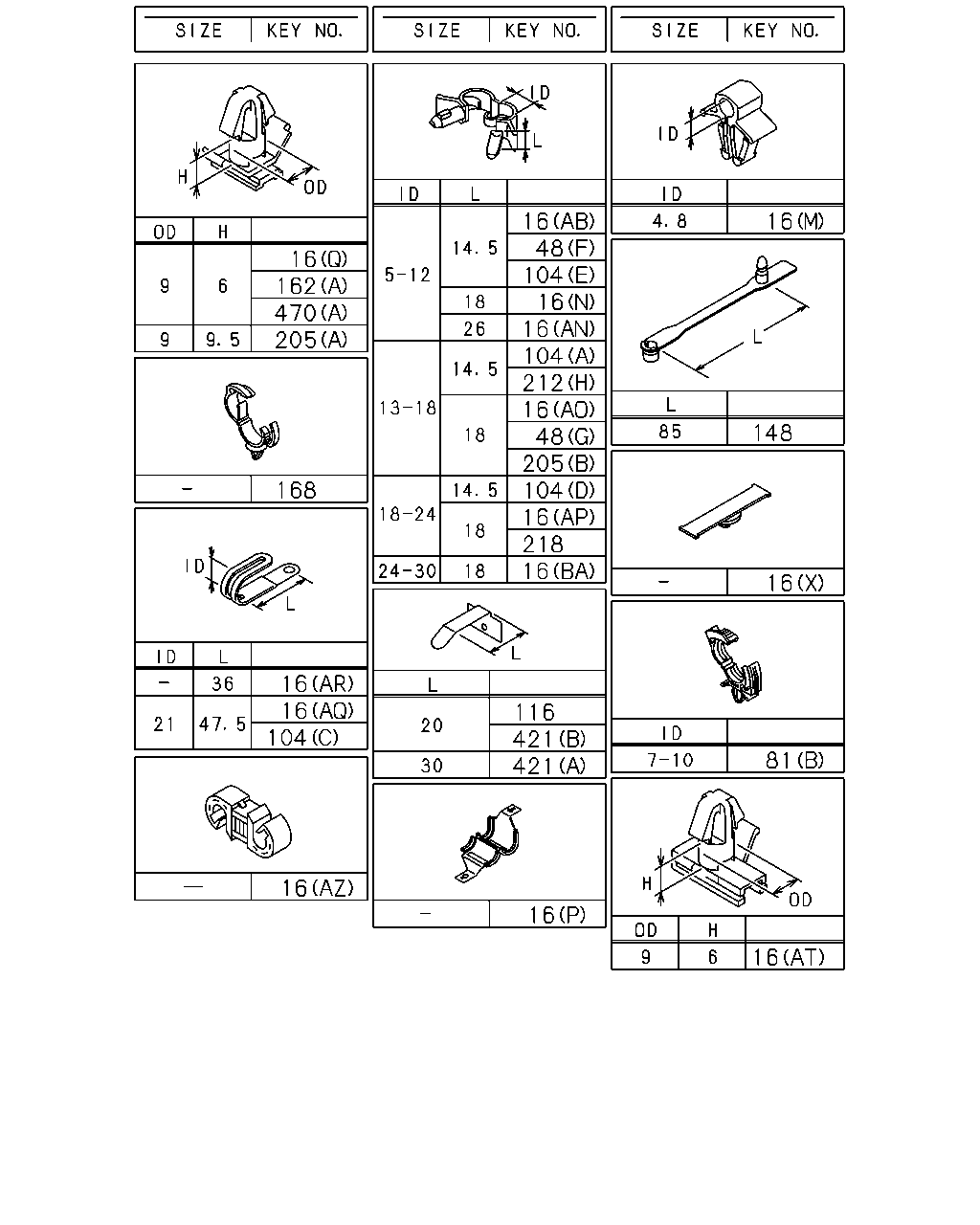

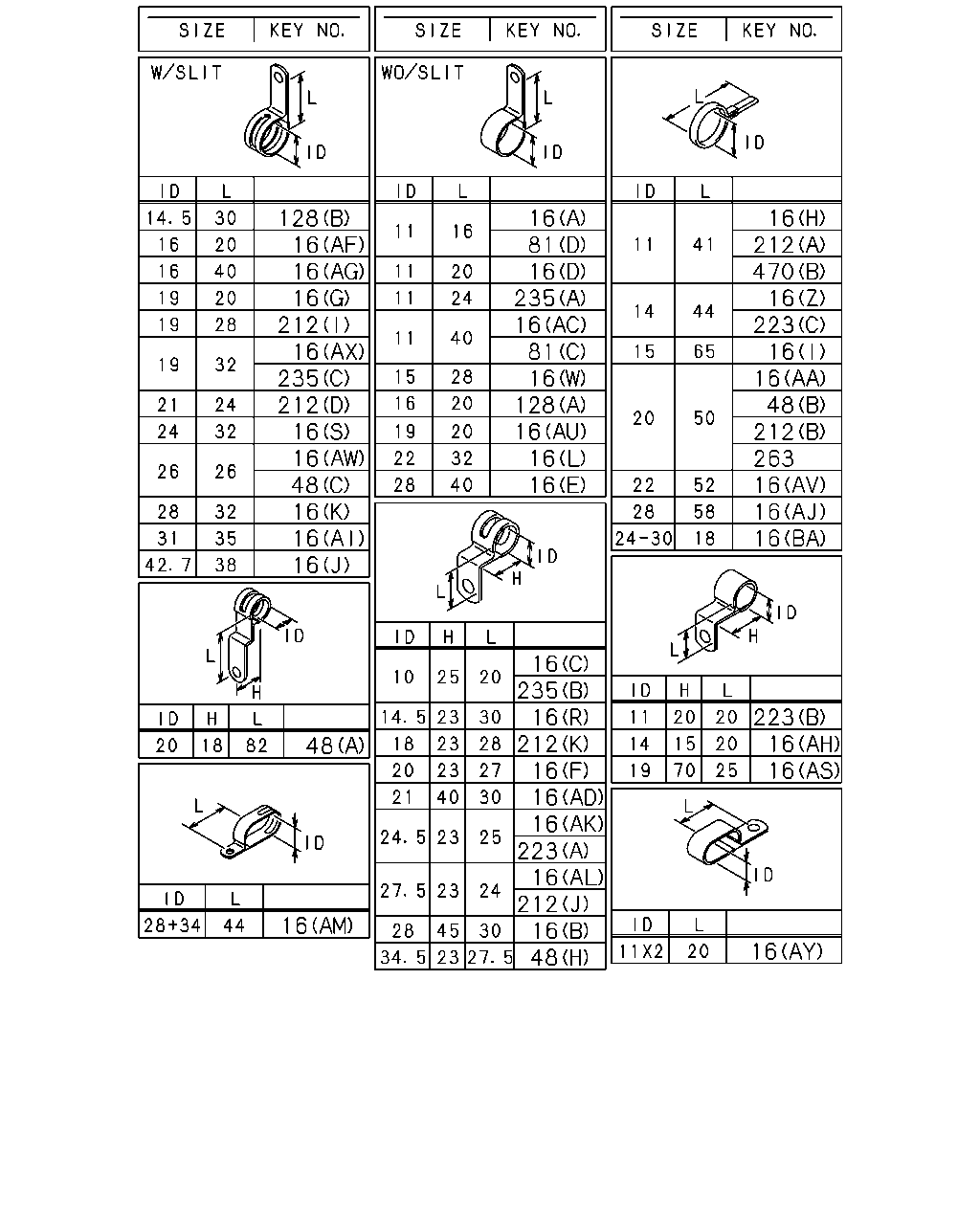

16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	02	1	1209-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (BA) ID=24-30 L=18	1-09709-297-0	01	1	0607-	●
16	CLIP; HARNESS (BA) ID=24-30 L=18	1-09709-297-0	01	1	0607-		●
16	CLIP; HARNESS 6WF1 TC-C(1B8) FULLER M/T<X9B> (AZ) ID=15 & 15	1-09709-282-1	01	1	0607-	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	02	1	0607-	●	●
16	CLIP; HARNESS (AU) ID=19 L=20	9-09525-832-0	01	1	0512-0606	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AU) ID=19 L=20	0-95235-832-0	01	1	0607-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AB) ID=5-12 L=14.5	1-09987-221-0	02	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AT) OD=9 H=6	8-97368-793-0	03	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44	1-09701-311-0	01	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AM) ID=28+34 L=44	1-09701-311-0	01	1	0512-		●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (O) L=180	1-09707-162-1	04	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (O) L=180	1-09707-162-1	04	1	0512-		●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AL) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-1105	●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AL) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-1105		●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=24.5 H=23 L=25	1-09700-862-0	03	1	1106-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AK) ID=24.5 H=23 L=25	1-09700-862-0	03	1	1106-		●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AQ) ID=21 L=47.5	8-94178-108-0	04	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AR) L=36	8-94224-891-1	01	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AT) OD=9 H=6	8-97368-793-0	02	1	0512-	●	●
16	CLIP; HARNESS (I) ID=15 L=65	1-09700-466-0	01	1	0512-	●	●
16	CLIP; HARNESS (K) ID=28 L=32	1-09701-107-1	02	1	0512-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	02	1	0512-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	05	1	0512-	●	●
16	CLIP; HARNESS (AN) ID=5-12 L=26	1-09709-289-0	01	1	0512-0610	●	●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	01	1	0611-	●	●
16	CLIP; HARNESS (AO) ID=13-18 L=18	1-09709-291-0	02	1	0512-	●	●
16	CLIP; HARNESS (AT) OD=9 H=6	8-97368-793-0	01	1	0512-	●	●
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20	1-09700-519-0	01	1	0512-	●
16	CLIP; HARNESS EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175	8-97110-167-0	04	1	0512-	●	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	03	1	0512-		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (U) L=250	5-09707-030-1	01	1	0407-0511			●
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (U) L=250	5-09707-030-1	01	1	0407-0511			●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	0512-	●	●
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (U) L=250	5-09707-030-1	01	1	0512-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (R) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0407-0511			●
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	9-09525-025-0	01	1	0512-0606	●	●
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	01	1	0607-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (Q) OD=9 H=6	1-09709-178-0	04	1	0407-0511			●
16	CLIP; HARNESS FULLER M/T<X9B> (Q) OD=9 H=6	1-09709-178-0	02	1	0512-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AC) ID=11 L=40	9-09525-075-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AJ) ID=28 L=58	1-09700-400-0	03	1	0512-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=16 L=40	9-09525-576-0	01	1	0407-0511			●
16	CLIP; HARNESS FULLER M/T<X9B> (AG) ID=16 L=40	9-09525-576-0	01	1	0512-0606	●
16	CLIP; HARNESS FULLER M/T<X9B> (AG) ID=16 L=40	0-95235-576-0	01	1	0607-	●
16	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (D) ID=11 L=20	9-09525-035-0	02	1	0407-0511			●
16	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (D) ID=11 L=20	9-09525-035-0	02	1	0407-0511			●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-035-0	02	1	0512-0606	●	●
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	02	1	0607-1208	●	●
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	1209-	●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0512-	●	●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0512-		●
16	CLIP; HARNESS (B) ID=28 H=45 L=30	1-09700-948-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AQ) ID=21 L=47.5	8-94178-108-0	02	1	0512-	●
16	CLIP; HARNESS (E) ID=28 L=40	1-09701-261-0	02	1	0407-0511			●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0512-	●	●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0407-0407			●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-035-0	01	1	0407-0511			●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0512-0606	●	●
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-032-0	01	1	0607-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	9-09525-836-0	02	1	0407-0511			●
16	CLIP; HARNESS (G) ID=19 L=20	9-09525-836-0	01	1	0512-0606	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (G) ID=19 L=20	0-95235-836-0	01	1	0607-	●	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (S) ID=24 L=32	1-09700-766-1	03	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (S) ID=24 L=32	1-09700-766-1	02	1	0512-	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AD) ID=21 L=30 H=40	1-09700-991-1	01	1	0407-0511			●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	0512-	●	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (Q) OD=9 H=6	1-09709-178-0	11	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (Q) OD=9 H=6	1-09709-178-0	01	1	0512-	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0407-0511			●
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-	●	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-	●
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-		●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AH) ID=14 H=15 L=20	8-94437-032-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AH) ID=14 H=15 L=20	8-94437-032-0	01	1	0512-	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AX) ID=19 L=32	9-09525-866-0	02	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AX) ID=19 L=32	9-09525-866-0	02	1	0512-0606	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AX) ID=19 L=32	0-95235-866-0	02	1	0607-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AY) ID=11X2 L=20	9-09535-035-0	02	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AS) ID=19 H=70 L=25	8-97360-209-0	01	1	0512-	●
16	CLIP; HARNESS (L) ID=22 L=32	1-09700-126-1	01	1	0407-0511			●
16	CLIP; HARNESS (L) ID=22 L=32	1-09700-126-1	01	1	0512-	●	●
16	CLIP; HARNESS (AA) ID=20 L=50	1-09700-679-1	01	1	0407-0511			●
16	CLIP; HARNESS (AA) ID=20 L=50	1-09700-679-1	01	1	0512-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0407-0511			●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0407-0511			●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-0606	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-0606	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0607-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	05	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) ID=11 L=41	1-09700-403-0	02	1	0512-	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (H) ID=11 L=41	1-09700-403-0	02	1	0512-		●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (H) ID=11 L=41	1-09700-403-0	04	1	0512-	●	●
16	CLIP; HARNESS (AK) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0512-	●
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	01	1	0407-0511			●
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	01	1	0512-	●	●
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	01	1	0512-	●	●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0407-0511			●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0512-	●	●
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (J) ID=42.7 L=38	1-09701-313-0	01	1	0512-	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	02	1	0407-0511			●
16	CLIP; HARNESS FULL FLOATING CAB(W16) (O) L=180	1-09707-162-1	01	1	0512-	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0512-		●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	07	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (O) L=180	1-09707-162-1	09	1	0512-	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	0407-0511			●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (T) L=350	1-09707-183-0	02	1	0512-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0407-0511			●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	0512-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	06	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AJ) ID=28 L=58	1-09700-400-0	04	1	0512-	●	●
16	CLIP; HARNESS (P) WO/SPONGE RUBBER	1-09709-103-1	02	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (O) L=180	1-09707-162-1	08	1	0512-	●	●
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0407-0511			●
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0512-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6	1-09709-178-0	11	1	0512-	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6	1-09709-178-0	07	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (Q) OD=9 H=6	1-09709-178-0	07	1	0512-		●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0407-0511			●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (N) ID=5-12 L=18	1-09709-287-0	02	1	0512-	●	●
16	CLIP; HARNESS (AE) L=155	1-82698-097-0	01	1	0407-0511			●
16	CLIP; HARNESS DOOR WITH UNDER VIEW WINDOW<YD8> (AE) L=155	1-82698-097-0	01	1	0512-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	04	1	0407-0407			●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0408-0511			●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	05	1	0512-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	05	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (U) L=250	5-09707-030-1	02	1	0512-	●
16	CLIP; HARNESS FULLER M/T<X9B> (U) L=250	5-09707-030-1	02	1	0512-	●
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0407-0511			●
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0512-	●	●
16	CLIP; HARNESS (Y) L=175	8-97110-167-0	02	1	0407-0511			●
16	CLIP; HARNESS DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175	8-97110-167-0	02	1	0512-	●	●
16	CLIP; HARNESS (A) ID=11 L=16	9-09525-025-0	02	1	0407-0511			●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16	9-09525-025-0	02	1	0512-0606	●	●
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0607-	●	●
16	CLIP; HARNESS (AF) ID=16 L=20	9-09525-535-0	01	1	0407-0511			●
16	CLIP; HARNESS FULLER M/T<X9B> (AF) ID=16 L=20	9-09525-535-0	02	1	0512-0606	●
16	CLIP; HARNESS FULLER M/T<X9B> (AF) ID=16 L=20	0-95235-535-0	02	1	0607-	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	0407-0511			●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (Z) ID=14 L=44	9-09917-427-0	03	1	0512-	●	●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (Z) ID=14 L=44	9-09917-427-0	03	1	0512-	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0407-0511			●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (AO) ID=13-18 L=18	1-09709-291-0	05	1	0512-	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AA) ID=20 L=50	9-09917-430-0	06	1	0512-	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	04	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AA) ID=20 L=50	9-09917-430-0	07	1	0512-	●	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	06	1	0407-0511			●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	01	1	0512-	●	●
16	CLIP; HARNESS (AV) ID=22 L=52	9-09917-431-0	03	1	0407-0511			●
16	CLIP; HARNESS (AV) ID=22 L=52	9-09917-431-0	01	1	0512-	●	●
16	CLIP; HARNESS (AW) ID=26 L=26	1-09701-236-0	01	1	0407-0511			●
16	CLIP; HARNESS (AW) ID=26 L=26	1-09701-236-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AI) ID=31 L=35	1-09700-329-1	01	1	0512-	●
16	CLIP; HARNESS (AP) ID=18-24 L=18	1-09709-294-0	04	1	0407-0511			●
16	CLIP; HARNESS (AP) ID=18-24 L=18	1-09709-294-0	04	1	0407-0511			●
16	CLIP; HARNESS (AP) ID=18-24 L=18	1-09709-294-0	04	1	0512-		●
16	CLIP; HARNESS WHEEL BASE 5800MM(58W) (AP) ID=18-24 L=18	1-09709-294-0	04	1	0512-		●
48	CLIP; FRAME HARNESS 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0512-	●
48	CLIP; FRAME HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (C) ID=39 H=28 L=32	1-09701-263-0	01	1	0512-	●
48	CLIP; FRAME HARNESS 6WG1 TC-C(72L) (C) ID=39 H=28 L=32	1-09701-263-0	01	1	0512-		●
48	CLIP; FRAME HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G) ID=13-18 L=18	1-09709-291-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS MJX16P M/T(Y3Z) (G) ID=13-18 L=18	1-09709-291-0	01	1	0512-		●
48	CLIP; FRAME HARNESS (C) ID=26 L=26	1-09701-236-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS EXC. SMOOTHER-G(C1W) (C) ID=26 L=26	1-09701-236-0	01	1	0512-	●
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0512-	●	●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	15	1	0407-0511			●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	15	1	0512-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM(58W) (F) ID=5-12 L=14.5	1-09987-221-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM(58W) (F) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-		●
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	06	1	0407-0511			●
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	06	1	0512-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	0407-0511			●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	0512-		●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40	9-09525-075-0	01	1	0512-0606	●	●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40	0-95235-075-0	01	1	0607-	●	●
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0407-0511			●
81	CLIP; HARNESS 6WF1 TC-C(1B8) (A) L=140	5-09707-031-1	02	1	0512-	●
81	CLIP; HARNESS (B) ID=7-10	8-94472-578-0	02	1	0407-0511			●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16	9-09525-025-0	01	1	0512-0606	●	●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16	0-95235-025-0	01	1	0607-	●	●
104	CLIP; HEADLAMP HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0407-0511			●
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0512-	●	●
104	CLIP; HEADLAMP HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=18-24 L=14.5	1-09709-298-0	02	1	0407-0511			●
104	CLIP; HEADLAMP HARNESS HALOGEN HEADLAMPS<TT5> (E) ID=5-12 L=14.5	1-09987-221-0	04	1	0512-	●	●
104	CLIP; HEADLAMP HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) L=140	5-09707-031-1	10	1	0407-0511			●
104	CLIP; HEADLAMP HARNESS HALOGEN HEADLAMPS<TT5> (B) L=140	5-09707-031-1	02	1	0512-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	02	1	0407-0511			●
104	CLIP; HEADLAMP HARNESS HALOGEN HEADLAMPS<TT5> (F) L=250	5-09707-030-1	02	1	0512-	●	●
104	CLIP; HEADLAMP HARNESS (C) ID=21 L=47.5	8-94178-108-0	02	1	0407-0511			●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0407-0511			●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0512-1409	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	07	1	1410-	●	●
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	04	1	0407-0511			●
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	04	1	0512-	●	●
162	CLIP; SW HARNESS 6WG1 TC-C(72L) (A) OD=9 H=6	1-09709-178-0	01	1	0512-	●	●
162	CLIP; SW HARNESS CAB UP +110MM<TGG> (B) L=180	1-09707-162-1	01	1	0407-0511			●
162	CLIP; SW HARNESS 6WF1 TC-C(1B8) (B) L=180	1-09707-162-1	01	1	0512-	●
168	CLIP; DASH HARNESS EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> ID=6 & 10-13	8-97069-515-0	05	1	0512-	●	●
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	06	1	0407-0511			●
168	CLIP; DASH HARNESS MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> ID=6 & 10-13	8-97069-515-0	06	1	0512-	●	●
205	CLIP; BACK LAMP HARNESS (A) OD=9 H=9.5	1-09709-179-0	02	1	0407-0511			●
205	CLIP; BACK LAMP HARNESS (B) ID=13-18 L=18	1-09709-291-0	01	1	0407-0511			●
205	CLIP; BACK LAMP HARNESS (B) ID=13-18 L=18	1-09709-291-0	01	1	0512-		●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (H) ID=13-18 L=14.5	1-09709-290-0	01	1	0512-	●	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (I) ID=19 L=28	9-09525-856-0	01	1	0512-0606	●	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (I) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (J) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-		●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28	1-09700-860-0	03	1	0512-	●
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0512-	●	●
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	02	1	0512-	●	●
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0407-0511			●
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0512-	●	●
212	CLIP; HORN HARNESS (K) ID=18 H=23 L=28	1-09700-860-0	01	1	0407-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (K) ID=18 H=23 L=28	1-09700-860-0	01	1	0512-	●
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0407-0504			●
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	01	1	0407-0504			●
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	02	1	0505-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (G) L=350	1-09707-183-0	01	1	0512-	●
212	CLIP; HORN HARNESS (E) L=250	5-09707-030-1	02	1	0407-0511			●
212	CLIP; HORN HARNESS (E) L=250	5-09707-030-1	02	1	0512-	●	●
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	02	1	0407-0511			●
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	01	1	0512-	●	●
212	CLIP; HORN HARNESS (D) ID=21 L=24	8-94176-807-1	01	1	0407-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (D) ID=21 L=24	8-94176-807-1	01	1	0512-	●
212	CLIP; HORN HARNESS (B) ID=20 L=50	9-09917-430-0	01	1	0407-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (B) ID=20 L=50	9-09917-430-0	02	1	0512-	●
218	CLIP; BAND,RR COMB ID=18-24 L=18	1-09709-294-0	04	1	0407-0511			●
218	CLIP; BAND,RR COMB ID=18-24 L=18	1-09709-294-0	04	1	0512-	●	●
421	CLIP; FLOOR HARNESS EXC. SMOOTHER-G(C1W) (B) L=20 SET=10 PIECE	1-09987-246-2	05	1	0512-	●
421	CLIP; FLOOR HARNESS SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE	1-09987-265-0	05	1	0407-0511			●
421	CLIP; FLOOR HARNESS SMOOTHER-G(C1W) (A) L=30 SET=10 PIECE	1-09987-265-0	05	1	0512-	●
421	CLIP; FLOOR HARNESS (A) L=30 SET=10 PIECE	1-09987-265-0	05	1	0512-		●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0407-0511			●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0512-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0407-0511			●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0512-	●	●

38 150 150 64 242 528 38 150 242 38 313 38 38 242 480 38 64 313 38 86 139 516 139 242 313 38 64 64 239 88 38 358 239 38 358 88 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	BOLT; CLIP,HARNESS 6WG1 TC-C(72L) (B) M8X20 FLANGE	0-28080-820-0	01	1	0512-0512	●	●
38	BOLT; CLIP,HARNESS 6WG1 TC-C(72L) (B) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●	●
38	BOLT; CLIP,HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512	●
38	BOLT; CLIP,HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (J) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512		●
38	BOLT; CLIP,HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (J) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
38	BOLT; CLIP,HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (J) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512	●	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28680-820-0	01	1	0512-0512		●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610	●	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	0601-0610		●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●	●
38	BOLT; CLIP,HARNESS FULLER M/T<X9B> (C) M8X20 FLANGE	0-28650-820-0	01	1	0611-	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	01	1	0611-		●
38	BOLT; CLIP,HARNESS EXC. SMOOTHER-G(C1W) (G) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0512-	●
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (C) M8X20 FLANGE	0-28680-820-0	04	1	0407-0511			●
38	BOLT; CLIP,HARNESS 6WG1 TC-C(72L) (C) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512	●	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512	●	●
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (C) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512	●	●
38	BOLT; CLIP,HARNESS 6WG1 TC-C(72L) (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (C) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (E) M10X20 FLANGE	0-28781-020-0	01	1	0407-0511			●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●	●
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (D) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●	●
38	BOLT; CLIP,HARNESS 6WF1 TC-C(1B8) (D) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
38	BOLT; CLIP,HARNESS 6WF1 TC-C(1B8) (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (A) M8X16 FLANGE	0-28080-816-0	01	1	0407-0511			●
38	BOLT; CLIP,HARNESS (A) M8X16 FLANGE	0-28080-816-0	01	1	0407-0511			●
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE	0-28080-816-0	02	1	0512-0512	●	●
38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28680-820-0	01	1	0407-0511			●
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X20 FLANGE	0-28680-820-0	01	1	0407-0511			●
38	BOLT; CLIP,HARNESS FULLER M/T<X9B> (C) M8X20 FLANGE	0-28680-820-0	03	1	0512-0512	●
38	BOLT; CLIP,HARNESS FULLER M/T<X9B> (C) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
38	BOLT; CLIP,HARNESS (H) M6X8	0-20800-608-0	01	1	0407-0511			●
38	BOLT; CLIP,HARNESS (I) M6X10 FLANGE	0-28080-610-0	01	1	0512-0512	●	●
38	BOLT; CLIP,HARNESS (I) M6X10 FLANGE	0-28050-610-0	01	1	0601-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28080-820-0	02	1	0407-0511			●
38	BOLT; CLIP,HARNESS 6WF1 TC-C(1B8) (B) M8X20 FLANGE	0-28080-820-0	03	1	0512-0512	●
38	BOLT; CLIP,HARNESS 6WF1 TC-C(1B8) (B) M8X20 FLANGE	0-28050-820-0	03	1	0601-	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28680-820-0	10	1	0407-0511			●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28680-820-0	05	1	0512-0512	●	●
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) M8X20 FLANGE	0-28680-820-0	05	1	0512-0512	●
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) EXC. SMOOTHER-G(C1W) (C) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	0407-0511			●
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	1-09044-079-0	01	1	0512-1105	●	●
38	BOLT; CLIP,HARNESS (F) M12X16 FLANGE	0-28051-216-0	01	1	1106-	●	●
38	BOLT; CLIP,HARNESS (G) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0407-0511			●
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (G) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0512-	●
38	BOLT; CLIP,HARNESS (G) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0512-		●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	02	1	0407-0511			●
38	BOLT; CLIP,HARNESS MJX16P M/T(Y3Z) (D) M8X25 FLANGE	0-28680-825-0	02	1	0407-0511			●
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (D) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512		●
38	BOLT; CLIP,HARNESS SMOOTHER-G(C1W) (D) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
38	BOLT; CLIP,HARNESS (D) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
64	SCREW; CLIP 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X20 FLANGE	0-28781-020-0	01	1	0512-0512	●
64	SCREW; CLIP 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (B) M10X20 FLANGE	0-28781-020-0	01	1	0512-0512		●
64	SCREW; CLIP 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (B) M10X20 FLANGE	0-28751-020-0	01	1	0601-	●
64	SCREW; CLIP 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (B) M10X20 FLANGE	0-28751-020-0	01	1	0601-		●
64	SCREW; CLIP SMOOTHER-G(C1W) (C) M8X12 FLANGE	0-28080-812-0	05	1	0407-0511			●
64	SCREW; CLIP 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X12 FLANGE	0-28080-812-0	05	1	0512-0512	●
64	SCREW; CLIP 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X12 FLANGE	0-28050-812-0	05	1	0601-	●
64	SCREW; CLIP SMOOTHER-G(C1W) (A) M8X25 FLANGE	0-28680-825-0	01	1	0407-0511			●
64	SCREW; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512	●
64	SCREW; CLIP MJX16P M/T(Y3Z) (A) M8X25 FLANGE	0-28680-825-0	01	1	0512-0512		●
64	SCREW; CLIP MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-0711	●
64	SCREW; CLIP MJX16P M/T(Y3Z) (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-0711		●
64	SCREW; CLIP 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) M8X25 FLANGE	0-28650-825-0	01	1	0712-	●
64	SCREW; CLIP SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28781-025-0	02	1	0407-0511			●
64	SCREW; CLIP 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28781-025-0	02	1	0512-0512	●
64	SCREW; CLIP 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) M10X25 FLANGE	0-28751-025-0	02	1	0601-	●
86	BOLT; CLIP BRKT 6WG1 TC-C(72L) SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	02	1	0607-	●
86	BOLT; CLIP BRKT 6WG1 TC-C(72L) M8X30 FLANGE	0-28650-830-0	02	1	0607-		●
86	BOLT; CLIP BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511			●
86	BOLT; CLIP BRKT MJX16P M/T(Y3Z) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511			●
86	BOLT; CLIP BRKT SMOOTHER-G(C1W) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512	●
86	BOLT; CLIP BRKT FULLER M/T<X9B> M8X30 FLANGE	0-28680-830-0	01	1	0512-0512	●
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	01	1	0512-0512		●
86	BOLT; CLIP BRKT SMOOTHER-G(C1W) M8X30 FLANGE	0-28650-830-0	01	1	0601-0606	●
86	BOLT; CLIP BRKT FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	01	1	0601-0606	●
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-0606		●
86	BOLT; CLIP BRKT FULLER M/T<X9B> M8X30 FLANGE	0-28650-830-0	01	1	0607-	●
86	BOLT; CLIP BRKT 6WG1 TC-C(72L) M8X30 FLANGE	0-28650-830-0	01	1	0607-		●
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0407-0511			●
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0512-1007	●	●
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-	●	●
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0407-0511			●
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0512-	●	●
139	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0602-0904	●	●
139	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	02	1	0407-0511			●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28680-830-0	06	1	0512-0512	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	06	1	0601-0606	●	●
139	BOLT; BRKT 6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	05	1	0607-	●	●
139	BOLT; BRKT 6WF1 TC-C(1B8) (A) M8X30 FLANGE	0-28650-830-0	05	1	0607-	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	04	1	0407-0511			●
139	BOLT; BRKT 6WF1 TC-C(1B8) (A) M8X30 FLANGE	0-28680-830-0	05	1	0512-0512	●
139	BOLT; BRKT 6WF1 TC-C(1B8) (A) M8X30 FLANGE	0-28650-830-0	05	1	0601-0606	●
139	BOLT; BRKT 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	06	1	0607-	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28680-830-0	06	1	0407-0511			●
139	BOLT; BRKT 6WG1 TC-C(72L) (A) M8X30 FLANGE	0-28680-830-0	04	1	0512-0512	●	●
139	BOLT; BRKT 6WG1 TC-C(72L) (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
139	BOLT; BRKT (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0407-0511			●
150	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	1209-	●	●
150	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE	0-28080-810-0	01	1	0512-0512	●	●
150	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE	0-28050-810-0	01	1	0601-	●	●
150	BOLT; CLIP (A) M6X12 FLANGE	0-28080-612-0	02	1	0407-0407			●
150	BOLT; CLIP (A) M6X12 FLANGE	0-28080-612-0	01	1	0408-0511			●
150	BOLT; CLIP (A) M6X12 FLANGE	0-28080-612-0	02	1	0512-0512	●	●
150	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	02	1	0601-	●	●
150	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	09	1	0407-0511			●
150	BOLT; CLIP (C) M8X16 FLANGE	0-28080-816-0	03	1	0512-0512	●	●
150	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0601-1208	●	●
150	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	02	1	1209-	●
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0407-0511			●
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0512-1007	●	●
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-	●	●
242	BOLT; BRKT,HARNESS 6WG1 TC-C(72L) (D) M8X18 FLANGE	0-28080-818-0	01	1	0512-	●	●
242	BOLT; BRKT,HARNESS (C) M8X30 FLANGE	0-28680-830-0	02	1	0512-0512	●	●
242	BOLT; BRKT,HARNESS (C) M8X30 FLANGE	0-28650-830-0	02	1	0601-0606	●	●
242	BOLT; BRKT,HARNESS (C) M8X30 FLANGE	0-28650-830-0	01	1	0607-0610	●	●
242	BOLT; BRKT,HARNESS EXC. FULLER M/T<X9B> (C) M8X30 FLANGE	0-28650-830-0	01	1	0611-	●
242	BOLT; BRKT,HARNESS (C) M8X30 FLANGE	0-28650-830-0	01	1	0611-		●
242	BOLT; BRKT,HARNESS CAB UP +110MM<TGG> (B) M8X20 FLANGE	0-28680-820-0	01	1	0407-0511			●
242	BOLT; BRKT,HARNESS 6WF1 TC-C(1B8) (B) M8X20 FLANGE	0-28680-820-0	02	1	0512-0512	●
242	BOLT; BRKT,HARNESS 6WF1 TC-C(1B8) (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28080-812-0	01	1	0407-0511			●
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28080-812-0	01	1	0512-0512	●	●
242	BOLT; BRKT,HARNESS (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●	●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28680-820-0	04	1	0407-0511			●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28680-820-0	04	1	0512-0512	●	●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
242	BOLT; BRKT,HARNESS (C) M8X30 FLANGE	0-28680-830-0	02	1	0407-0511			●
313	BOLT; BRKT 6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28080-820-0	02	1	0512-0512	●	●
313	BOLT; BRKT 6WG1 TC-C(72L) (A) M8X20 FLANGE	0-28050-820-0	02	1	0601-	●	●
313	BOLT; BRKT MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511			●
313	BOLT; BRKT MJX16P M/T(Y3Z) (C) M8X30 FLANGE	0-28680-830-0	01	1	0407-0511			●
313	BOLT; BRKT (C) M8X30 FLANGE	0-28680-830-0	01	1	0512-0512	●	●
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
313	BOLT; BRKT (A) M8X20 FLANGE	0-28080-820-0	01	1	0407-0511			●
313	BOLT; BRKT 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28080-820-0	01	1	0512-0512	●
313	BOLT; BRKT 6WF1 TC-C(1B8) (A) M8X20 FLANGE	0-28050-820-0	01	1	0601-	●
313	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0407-0511			●
313	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	05	1	0512-0512	●	●
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●
313	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	05	1	0407-0511			●
313	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	11	1	0512-0512	●	●
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	11	1	0601-	●	●
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0407-0511			●
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0512-	●	●
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0407-0511			●
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0512-	●	●
480	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0407-0511			●
480	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	04	1	0512-0512	●	●
480	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0601-	●	●
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0407-0511			●
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0512-	●	●
528	BOLT; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE	0-28080-812-0	01	1	0512-0512	●
528	BOLT; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) M8X12 FLANGE	0-28080-812-0	01	1	0512-0512		●
528	BOLT; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) M8X12 FLANGE	0-28050-812-0	01	1	0601-	●
528	BOLT; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) M8X12 FLANGE	0-28050-812-0	01	1	0601-		●

128 16 16 16 212 16 235 212 16 16 48 16 16 16 16 81 16 235 16 81 16 128 16 16 16 16 212 470 16 223 16 16 48 212 263 16 16 16 16 235 16 212 16 16 16 223 16 212 16 48 223 16 16 48 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	02	1	1209-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (BA) ID=24-30 L=18	1-09709-297-0	01	1	0607-	●
16	CLIP; HARNESS (BA) ID=24-30 L=18	1-09709-297-0	01	1	0607-		●
16	CLIP; HARNESS 6WF1 TC-C(1B8) FULLER M/T<X9B> (AZ) ID=15 & 15	1-09709-282-1	01	1	0607-	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	02	1	0607-	●	●
16	CLIP; HARNESS (AU) ID=19 L=20	9-09525-832-0	01	1	0512-0606	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AU) ID=19 L=20	0-95235-832-0	01	1	0607-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AB) ID=5-12 L=14.5	1-09987-221-0	02	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AT) OD=9 H=6	8-97368-793-0	03	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44	1-09701-311-0	01	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AM) ID=28+34 L=44	1-09701-311-0	01	1	0512-		●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (O) L=180	1-09707-162-1	04	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (O) L=180	1-09707-162-1	04	1	0512-		●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AL) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-1105	●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AL) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-1105		●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=24.5 H=23 L=25	1-09700-862-0	03	1	1106-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AK) ID=24.5 H=23 L=25	1-09700-862-0	03	1	1106-		●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AQ) ID=21 L=47.5	8-94178-108-0	04	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AR) L=36	8-94224-891-1	01	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AT) OD=9 H=6	8-97368-793-0	02	1	0512-	●	●
16	CLIP; HARNESS (I) ID=15 L=65	1-09700-466-0	01	1	0512-	●	●
16	CLIP; HARNESS (K) ID=28 L=32	1-09701-107-1	02	1	0512-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	02	1	0512-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	05	1	0512-	●	●
16	CLIP; HARNESS (AN) ID=5-12 L=26	1-09709-289-0	01	1	0512-0610	●	●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	01	1	0611-	●	●
16	CLIP; HARNESS (AO) ID=13-18 L=18	1-09709-291-0	02	1	0512-	●	●
16	CLIP; HARNESS (AT) OD=9 H=6	8-97368-793-0	01	1	0512-	●	●
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20	1-09700-519-0	01	1	0512-	●
16	CLIP; HARNESS EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175	8-97110-167-0	04	1	0512-	●	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	03	1	0512-		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (U) L=250	5-09707-030-1	01	1	0407-0511			●
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (U) L=250	5-09707-030-1	01	1	0407-0511			●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	0512-	●	●
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (U) L=250	5-09707-030-1	01	1	0512-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (R) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0407-0511			●
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	9-09525-025-0	01	1	0512-0606	●	●
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	01	1	0607-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (Q) OD=9 H=6	1-09709-178-0	04	1	0407-0511			●
16	CLIP; HARNESS FULLER M/T<X9B> (Q) OD=9 H=6	1-09709-178-0	02	1	0512-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AC) ID=11 L=40	9-09525-075-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AJ) ID=28 L=58	1-09700-400-0	03	1	0512-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=16 L=40	9-09525-576-0	01	1	0407-0511			●
16	CLIP; HARNESS FULLER M/T<X9B> (AG) ID=16 L=40	9-09525-576-0	01	1	0512-0606	●
16	CLIP; HARNESS FULLER M/T<X9B> (AG) ID=16 L=40	0-95235-576-0	01	1	0607-	●
16	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (D) ID=11 L=20	9-09525-035-0	02	1	0407-0511			●
16	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (D) ID=11 L=20	9-09525-035-0	02	1	0407-0511			●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-035-0	02	1	0512-0606	●	●
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	02	1	0607-1208	●	●
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	1209-	●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0512-	●	●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0512-		●
16	CLIP; HARNESS (B) ID=28 H=45 L=30	1-09700-948-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AQ) ID=21 L=47.5	8-94178-108-0	02	1	0512-	●
16	CLIP; HARNESS (E) ID=28 L=40	1-09701-261-0	02	1	0407-0511			●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0512-	●	●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0407-0407			●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-035-0	01	1	0407-0511			●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0512-0606	●	●
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-032-0	01	1	0607-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	9-09525-836-0	02	1	0407-0511			●
16	CLIP; HARNESS (G) ID=19 L=20	9-09525-836-0	01	1	0512-0606	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (G) ID=19 L=20	0-95235-836-0	01	1	0607-	●	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (S) ID=24 L=32	1-09700-766-1	03	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (S) ID=24 L=32	1-09700-766-1	02	1	0512-	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AD) ID=21 L=30 H=40	1-09700-991-1	01	1	0407-0511			●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	0512-	●	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (Q) OD=9 H=6	1-09709-178-0	11	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (Q) OD=9 H=6	1-09709-178-0	01	1	0512-	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0407-0511			●
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-	●	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-	●
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-		●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AH) ID=14 H=15 L=20	8-94437-032-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AH) ID=14 H=15 L=20	8-94437-032-0	01	1	0512-	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AX) ID=19 L=32	9-09525-866-0	02	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AX) ID=19 L=32	9-09525-866-0	02	1	0512-0606	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AX) ID=19 L=32	0-95235-866-0	02	1	0607-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AY) ID=11X2 L=20	9-09535-035-0	02	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AS) ID=19 H=70 L=25	8-97360-209-0	01	1	0512-	●
16	CLIP; HARNESS (L) ID=22 L=32	1-09700-126-1	01	1	0407-0511			●
16	CLIP; HARNESS (L) ID=22 L=32	1-09700-126-1	01	1	0512-	●	●
16	CLIP; HARNESS (AA) ID=20 L=50	1-09700-679-1	01	1	0407-0511			●
16	CLIP; HARNESS (AA) ID=20 L=50	1-09700-679-1	01	1	0512-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0407-0511			●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0407-0511			●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-0606	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-0606	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0607-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	05	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) ID=11 L=41	1-09700-403-0	02	1	0512-	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (H) ID=11 L=41	1-09700-403-0	02	1	0512-		●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (H) ID=11 L=41	1-09700-403-0	04	1	0512-	●	●
16	CLIP; HARNESS (AK) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0512-	●
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	01	1	0407-0511			●
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	01	1	0512-	●	●
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	01	1	0512-	●	●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0407-0511			●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0512-	●	●
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (J) ID=42.7 L=38	1-09701-313-0	01	1	0512-	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	02	1	0407-0511			●
16	CLIP; HARNESS FULL FLOATING CAB(W16) (O) L=180	1-09707-162-1	01	1	0512-	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0512-		●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	07	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (O) L=180	1-09707-162-1	09	1	0512-	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	0407-0511			●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (T) L=350	1-09707-183-0	02	1	0512-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0407-0511			●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	0512-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	06	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AJ) ID=28 L=58	1-09700-400-0	04	1	0512-	●	●
16	CLIP; HARNESS (P) WO/SPONGE RUBBER	1-09709-103-1	02	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (O) L=180	1-09707-162-1	08	1	0512-	●	●
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0407-0511			●
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0512-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6	1-09709-178-0	11	1	0512-	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6	1-09709-178-0	07	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (Q) OD=9 H=6	1-09709-178-0	07	1	0512-		●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0407-0511			●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (N) ID=5-12 L=18	1-09709-287-0	02	1	0512-	●	●
16	CLIP; HARNESS (AE) L=155	1-82698-097-0	01	1	0407-0511			●
16	CLIP; HARNESS DOOR WITH UNDER VIEW WINDOW<YD8> (AE) L=155	1-82698-097-0	01	1	0512-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	04	1	0407-0407			●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0408-0511			●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	05	1	0512-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	05	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (U) L=250	5-09707-030-1	02	1	0512-	●
16	CLIP; HARNESS FULLER M/T<X9B> (U) L=250	5-09707-030-1	02	1	0512-	●
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0407-0511			●
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0512-	●	●
16	CLIP; HARNESS (Y) L=175	8-97110-167-0	02	1	0407-0511			●
16	CLIP; HARNESS DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175	8-97110-167-0	02	1	0512-	●	●
16	CLIP; HARNESS (A) ID=11 L=16	9-09525-025-0	02	1	0407-0511			●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16	9-09525-025-0	02	1	0512-0606	●	●
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0607-	●	●
16	CLIP; HARNESS (AF) ID=16 L=20	9-09525-535-0	01	1	0407-0511			●
16	CLIP; HARNESS FULLER M/T<X9B> (AF) ID=16 L=20	9-09525-535-0	02	1	0512-0606	●
16	CLIP; HARNESS FULLER M/T<X9B> (AF) ID=16 L=20	0-95235-535-0	02	1	0607-	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	0407-0511			●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (Z) ID=14 L=44	9-09917-427-0	03	1	0512-	●	●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (Z) ID=14 L=44	9-09917-427-0	03	1	0512-	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0407-0511			●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (AO) ID=13-18 L=18	1-09709-291-0	05	1	0512-	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AA) ID=20 L=50	9-09917-430-0	06	1	0512-	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	04	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AA) ID=20 L=50	9-09917-430-0	07	1	0512-	●	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	06	1	0407-0511			●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	01	1	0512-	●	●
16	CLIP; HARNESS (AV) ID=22 L=52	9-09917-431-0	03	1	0407-0511			●
16	CLIP; HARNESS (AV) ID=22 L=52	9-09917-431-0	01	1	0512-	●	●
16	CLIP; HARNESS (AW) ID=26 L=26	1-09701-236-0	01	1	0407-0511			●
16	CLIP; HARNESS (AW) ID=26 L=26	1-09701-236-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AI) ID=31 L=35	1-09700-329-1	01	1	0512-	●
16	CLIP; HARNESS (AP) ID=18-24 L=18	1-09709-294-0	04	1	0407-0511			●
16	CLIP; HARNESS (AP) ID=18-24 L=18	1-09709-294-0	04	1	0407-0511			●
16	CLIP; HARNESS (AP) ID=18-24 L=18	1-09709-294-0	04	1	0512-		●
16	CLIP; HARNESS WHEEL BASE 5800MM(58W) (AP) ID=18-24 L=18	1-09709-294-0	04	1	0512-		●
48	CLIP; FRAME HARNESS 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0512-	●
48	CLIP; FRAME HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (C) ID=39 H=28 L=32	1-09701-263-0	01	1	0512-	●
48	CLIP; FRAME HARNESS 6WG1 TC-C(72L) (C) ID=39 H=28 L=32	1-09701-263-0	01	1	0512-		●
48	CLIP; FRAME HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G) ID=13-18 L=18	1-09709-291-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS MJX16P M/T(Y3Z) (G) ID=13-18 L=18	1-09709-291-0	01	1	0512-		●
48	CLIP; FRAME HARNESS (C) ID=26 L=26	1-09701-236-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS EXC. SMOOTHER-G(C1W) (C) ID=26 L=26	1-09701-236-0	01	1	0512-	●
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0512-	●	●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	15	1	0407-0511			●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	15	1	0512-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM(58W) (F) ID=5-12 L=14.5	1-09987-221-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM(58W) (F) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-		●
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	06	1	0407-0511			●
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	06	1	0512-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	0407-0511			●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	0512-		●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40	9-09525-075-0	01	1	0512-0606	●	●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40	0-95235-075-0	01	1	0607-	●	●
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0407-0511			●
81	CLIP; HARNESS 6WF1 TC-C(1B8) (A) L=140	5-09707-031-1	02	1	0512-	●
81	CLIP; HARNESS (B) ID=7-10	8-94472-578-0	02	1	0407-0511			●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16	9-09525-025-0	01	1	0512-0606	●	●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16	0-95235-025-0	01	1	0607-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	0407-0511			●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	9-09525-535-0	01	1	0512-0606	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0607-	●	●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0407-0511			●
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0512-	●	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (H) ID=13-18 L=14.5	1-09709-290-0	01	1	0512-	●	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (I) ID=19 L=28	9-09525-856-0	01	1	0512-0606	●	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (I) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (J) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-		●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28	1-09700-860-0	03	1	0512-	●
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0512-	●	●
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	02	1	0512-	●	●
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0407-0511			●
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0512-	●	●
212	CLIP; HORN HARNESS (K) ID=18 H=23 L=28	1-09700-860-0	01	1	0407-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (K) ID=18 H=23 L=28	1-09700-860-0	01	1	0512-	●
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0407-0504			●
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	01	1	0407-0504			●
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	02	1	0505-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (G) L=350	1-09707-183-0	01	1	0512-	●
212	CLIP; HORN HARNESS (E) L=250	5-09707-030-1	02	1	0407-0511			●
212	CLIP; HORN HARNESS (E) L=250	5-09707-030-1	02	1	0512-	●	●
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	02	1	0407-0511			●
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	01	1	0512-	●	●
212	CLIP; HORN HARNESS (D) ID=21 L=24	8-94176-807-1	01	1	0407-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (D) ID=21 L=24	8-94176-807-1	01	1	0512-	●
212	CLIP; HORN HARNESS (B) ID=20 L=50	9-09917-430-0	01	1	0407-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (B) ID=20 L=50	9-09917-430-0	02	1	0512-	●
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0407-0511			●
223	CLIP; AIR TANK HARNESS 6WF1 TC-C(1B8) (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0512-	●
223	CLIP; AIR TANK HARNESS (B) ID=11 H=20 L=20	5-09700-351-0	03	1	0407-0511			●
223	CLIP; AIR TANK HARNESS (B) ID=11 H=20 L=20	5-09700-351-0	03	1	0512-0707	●	●
223	CLIP; AIR TANK HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	03	1	0708-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	0407-0511			●
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	0512-	●	●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=11 L=24	9-09525-045-0	01	1	0512-0606	●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (A) ID=11 L=24	9-09525-045-0	01	1	0512-0606		●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A) ID=11 L=24	0-95235-045-0	01	1	0607-0711	●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (A) ID=11 L=24	0-95235-045-0	01	1	0607-0711		●
235	CLIP; HARNESS,SPD SENSOR,SSPS SMOOTHER-G(C1W) (C) ID=19 L=32	9-09525-866-0	01	1	0407-0511			●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=19 L=32	9-09525-866-0	01	1	0512-0606	●
235	CLIP; HARNESS,SPD SENSOR,SSPS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C) ID=19 L=32	0-95235-866-0	01	1	0607-	●
235	CLIP; HARNESS,SPD SENSOR,SSPS (B) ID=10 H=25 L=20	1-09700-519-0	01	1	0407-0511			●
235	CLIP; HARNESS,SPD SENSOR,SSPS MJX16P M/T(Y3Z) (B) ID=10 H=25 L=20	1-09700-519-0	01	1	0512-	●	●
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0407-0511			●
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0512-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0407-0511			●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0512-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0407-0511			●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0512-	●	●

14 16 67 81 104 111 142 171 194 206 212 305 369 14 16 48 102 104 142 171 194 212 369 380 16 14 194 212 14 16 48 194 212 16 16 33 51 142 162 194

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	CLIP; BAND,HARNESS SMOOTHER-G(C1W) (D) L=350	1-09707-183-0	01	1	0512-	●
14	CLIP; BAND,HARNESS (D) L=350	1-09707-183-0	01	1	0512-		●
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250	5-09707-030-1	02	1	0512-	●	●
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) L=140	5-09707-031-1	01	1	0512-	●	●
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0407-0511			●
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	0512-	●	●
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	02	1	1209-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (BA) ID=24-30 L=18	1-09709-297-0	01	1	0607-	●
16	CLIP; HARNESS (BA) ID=24-30 L=18	1-09709-297-0	01	1	0607-		●
16	CLIP; HARNESS 6WF1 TC-C(1B8) FULLER M/T<X9B> (AZ) ID=15 & 15	1-09709-282-1	01	1	0607-	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	02	1	0607-	●	●
16	CLIP; HARNESS (AU) ID=19 L=20	9-09525-832-0	01	1	0512-0606	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AU) ID=19 L=20	0-95235-832-0	01	1	0607-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AL) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AB) ID=5-12 L=14.5	1-09987-221-0	02	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AT) OD=9 H=6	8-97368-793-0	03	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (AM) ID=28+34 L=44	1-09701-311-0	01	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AM) ID=28+34 L=44	1-09701-311-0	01	1	0512-		●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (O) L=180	1-09707-162-1	04	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (O) L=180	1-09707-162-1	04	1	0512-		●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AL) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-1105	●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AL) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-1105		●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AK) ID=24.5 H=23 L=25	1-09700-862-0	03	1	1106-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (AK) ID=24.5 H=23 L=25	1-09700-862-0	03	1	1106-		●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AQ) ID=21 L=47.5	8-94178-108-0	04	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AR) L=36	8-94224-891-1	01	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AT) OD=9 H=6	8-97368-793-0	02	1	0512-	●	●
16	CLIP; HARNESS (I) ID=15 L=65	1-09700-466-0	01	1	0512-	●	●
16	CLIP; HARNESS (K) ID=28 L=32	1-09701-107-1	02	1	0512-	●	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	02	1	0512-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	05	1	0512-	●	●
16	CLIP; HARNESS (AN) ID=5-12 L=26	1-09709-289-0	01	1	0512-0610	●	●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	01	1	0611-	●	●
16	CLIP; HARNESS (AO) ID=13-18 L=18	1-09709-291-0	02	1	0512-	●	●
16	CLIP; HARNESS (AT) OD=9 H=6	8-97368-793-0	01	1	0512-	●	●
16	CLIP; HARNESS EXC. SMOOTHER-G(C1W) (C) ID=10 H=25 L=20	1-09700-519-0	01	1	0512-	●
16	CLIP; HARNESS EXC. DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175	8-97110-167-0	04	1	0512-	●	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	03	1	0512-		●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (U) L=250	5-09707-030-1	01	1	0407-0511			●
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (U) L=250	5-09707-030-1	01	1	0407-0511			●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	01	1	0512-	●	●
16	CLIP; HARNESS TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (U) L=250	5-09707-030-1	01	1	0512-	●	●
16	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (R) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0407-0511			●
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	9-09525-025-0	01	1	0512-0606	●	●
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	01	1	0607-	●	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (Q) OD=9 H=6	1-09709-178-0	04	1	0407-0511			●
16	CLIP; HARNESS FULLER M/T<X9B> (Q) OD=9 H=6	1-09709-178-0	02	1	0512-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AC) ID=11 L=40	9-09525-075-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AJ) ID=28 L=58	1-09700-400-0	03	1	0512-	●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (AG) ID=16 L=40	9-09525-576-0	01	1	0407-0511			●
16	CLIP; HARNESS FULLER M/T<X9B> (AG) ID=16 L=40	9-09525-576-0	01	1	0512-0606	●
16	CLIP; HARNESS FULLER M/T<X9B> (AG) ID=16 L=40	0-95235-576-0	01	1	0607-	●
16	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (D) ID=11 L=20	9-09525-035-0	02	1	0407-0511			●
16	CLIP; HARNESS TRANSMISSION CONTROL LINK TYPE(B2A) (D) ID=11 L=20	9-09525-035-0	02	1	0407-0511			●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-035-0	02	1	0512-0606	●	●
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	02	1	0607-1208	●	●
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-035-0	01	1	1209-	●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS MJX16P M/T(Y3Z) TRANSMISSION CONTROL LINK TYPE(B2A) (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0407-0511			●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0512-	●	●
16	CLIP; HARNESS (V) L=140	5-09707-031-1	01	1	0512-		●
16	CLIP; HARNESS (B) ID=28 H=45 L=30	1-09700-948-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AQ) ID=21 L=47.5	8-94178-108-0	02	1	0512-	●
16	CLIP; HARNESS (E) ID=28 L=40	1-09701-261-0	02	1	0407-0511			●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0512-	●	●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0407-0407			●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-035-0	01	1	0407-0511			●
16	CLIP; HARNESS (D) ID=11 L=20	9-09525-032-0	01	1	0512-0606	●	●
16	CLIP; HARNESS (D) ID=11 L=20	0-95235-032-0	01	1	0607-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	9-09525-836-0	02	1	0407-0511			●
16	CLIP; HARNESS (G) ID=19 L=20	9-09525-836-0	01	1	0512-0606	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (G) ID=19 L=20	0-95235-836-0	01	1	0607-	●	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (S) ID=24 L=32	1-09700-766-1	03	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (S) ID=24 L=32	1-09700-766-1	02	1	0512-	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AD) ID=21 L=30 H=40	1-09700-991-1	01	1	0407-0511			●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	03	1	0512-	●	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (Q) OD=9 H=6	1-09709-178-0	11	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (Q) OD=9 H=6	1-09709-178-0	01	1	0512-	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0407-0511			●
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-	●	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-	●
16	CLIP; HARNESS (AB) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-		●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AH) ID=14 H=15 L=20	8-94437-032-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AH) ID=14 H=15 L=20	8-94437-032-0	01	1	0512-	●
16	CLIP; HARNESS SMOOTHER-G(C1W) (AX) ID=19 L=32	9-09525-866-0	02	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AX) ID=19 L=32	9-09525-866-0	02	1	0512-0606	●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (AX) ID=19 L=32	0-95235-866-0	02	1	0607-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) AIR COMPRESSOR HEAVY DUTY VAR2(E6A) AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) GENERATOR NIKKO 24V-60A 1.5KW(SC8),GENERATOR NIKKO 24V-50A 1.2KW(SLX) (AY) ID=11X2 L=20	9-09535-035-0	02	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AS) ID=19 H=70 L=25	8-97360-209-0	01	1	0512-	●
16	CLIP; HARNESS (L) ID=22 L=32	1-09700-126-1	01	1	0407-0511			●
16	CLIP; HARNESS (L) ID=22 L=32	1-09700-126-1	01	1	0512-	●	●
16	CLIP; HARNESS (AA) ID=20 L=50	1-09700-679-1	01	1	0407-0511			●
16	CLIP; HARNESS (AA) ID=20 L=50	1-09700-679-1	01	1	0512-	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0407-0511			●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0407-0511			●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-0606	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0512-0606	●	●
16	CLIP; HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0607-	●	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	05	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (H) ID=11 L=41	1-09700-403-0	02	1	0512-	●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	02	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (H) ID=11 L=41	1-09700-403-0	02	1	0512-		●
16	CLIP; HARNESS (H) ID=11 L=41	1-09700-403-0	07	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (H) ID=11 L=41	1-09700-403-0	04	1	0512-	●	●
16	CLIP; HARNESS (AK) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AK) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0512-	●
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	01	1	0407-0511			●
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	01	1	0512-	●	●
16	CLIP; HARNESS (W) ID=15 L=28	1-09701-216-0	01	1	0512-	●	●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0407-0511			●
16	CLIP; HARNESS (M) ID=4.8	1-09701-218-0	01	1	0512-	●	●
16	CLIP; HARNESS (J) ID=42.7 L=38	1-09701-313-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (J) ID=42.7 L=38	1-09701-313-0	01	1	0512-	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	02	1	0407-0511			●
16	CLIP; HARNESS FULL FLOATING CAB(W16) (O) L=180	1-09707-162-1	01	1	0512-	●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	01	1	0512-		●
16	CLIP; HARNESS (O) L=180	1-09707-162-1	07	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (O) L=180	1-09707-162-1	09	1	0512-	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	02	1	0407-0511			●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (T) L=350	1-09707-183-0	02	1	0512-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	04	1	0407-0511			●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	03	1	0512-	●	●
16	CLIP; HARNESS (T) L=350	1-09707-183-0	06	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AJ) ID=28 L=58	1-09700-400-0	04	1	0512-	●	●
16	CLIP; HARNESS (P) WO/SPONGE RUBBER	1-09709-103-1	02	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (O) L=180	1-09707-162-1	08	1	0512-	●	●
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0407-0511			●
16	CLIP; HARNESS (P) W/SPONGE RUBBER	1-09709-150-0	01	1	0512-	●	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	02	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6	1-09709-178-0	11	1	0512-	●
16	CLIP; HARNESS (Q) OD=9 H=6	1-09709-178-0	06	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (Q) OD=9 H=6	1-09709-178-0	07	1	0512-	●
16	CLIP; HARNESS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (Q) OD=9 H=6	1-09709-178-0	07	1	0512-		●
16	CLIP; HARNESS (N) ID=5-12 L=18	1-09709-287-0	02	1	0407-0511			●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (N) ID=5-12 L=18	1-09709-287-0	02	1	0512-	●	●
16	CLIP; HARNESS (AE) L=155	1-82698-097-0	01	1	0407-0511			●
16	CLIP; HARNESS DOOR WITH UNDER VIEW WINDOW<YD8> (AE) L=155	1-82698-097-0	01	1	0512-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	04	1	0407-0407			●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	02	1	0408-0511			●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	05	1	0512-	●	●
16	CLIP; HARNESS (U) L=250	5-09707-030-1	05	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (U) L=250	5-09707-030-1	02	1	0512-	●
16	CLIP; HARNESS FULLER M/T<X9B> (U) L=250	5-09707-030-1	02	1	0512-	●
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0407-0511			●
16	CLIP; HARNESS (X) L=55	8-94432-655-0	03	1	0512-	●	●
16	CLIP; HARNESS (Y) L=175	8-97110-167-0	02	1	0407-0511			●
16	CLIP; HARNESS DOOR WITH UNDER VIEW WINDOW<YD8> (Y) L=175	8-97110-167-0	02	1	0512-	●	●
16	CLIP; HARNESS (A) ID=11 L=16	9-09525-025-0	02	1	0407-0511			●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16	9-09525-025-0	02	1	0512-0606	●	●
16	CLIP; HARNESS (A) ID=11 L=16	0-95235-025-0	02	1	0607-	●	●
16	CLIP; HARNESS (AF) ID=16 L=20	9-09525-535-0	01	1	0407-0511			●
16	CLIP; HARNESS FULLER M/T<X9B> (AF) ID=16 L=20	9-09525-535-0	02	1	0512-0606	●
16	CLIP; HARNESS FULLER M/T<X9B> (AF) ID=16 L=20	0-95235-535-0	02	1	0607-	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	02	1	0407-0511			●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0512-	●	●
16	CLIP; HARNESS 6WG1 TC-C(72L) (Z) ID=14 L=44	9-09917-427-0	03	1	0512-	●	●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (Z) ID=14 L=44	9-09917-427-0	03	1	0512-	●
16	CLIP; HARNESS (Z) ID=14 L=44	9-09917-427-0	03	1	0407-0511			●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (AO) ID=13-18 L=18	1-09709-291-0	05	1	0512-	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AA) ID=20 L=50	9-09917-430-0	06	1	0512-	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	04	1	0407-0511			●
16	CLIP; HARNESS 6WG1 TC-C(72L) (AA) ID=20 L=50	9-09917-430-0	07	1	0512-	●	●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	06	1	0407-0511			●
16	CLIP; HARNESS (AA) ID=20 L=50	9-09917-430-0	01	1	0512-	●	●
16	CLIP; HARNESS (AV) ID=22 L=52	9-09917-431-0	03	1	0407-0511			●
16	CLIP; HARNESS (AV) ID=22 L=52	9-09917-431-0	01	1	0512-	●	●
16	CLIP; HARNESS (AW) ID=26 L=26	1-09701-236-0	01	1	0407-0511			●
16	CLIP; HARNESS (AW) ID=26 L=26	1-09701-236-0	01	1	0407-0511			●
16	CLIP; HARNESS 6WF1 TC-C(1B8) (AI) ID=31 L=35	1-09700-329-1	01	1	0512-	●
16	CLIP; HARNESS (AP) ID=18-24 L=18	1-09709-294-0	04	1	0407-0511			●
16	CLIP; HARNESS (AP) ID=18-24 L=18	1-09709-294-0	04	1	0407-0511			●
16	CLIP; HARNESS (AP) ID=18-24 L=18	1-09709-294-0	04	1	0512-		●
16	CLIP; HARNESS WHEEL BASE 5800MM(58W) (AP) ID=18-24 L=18	1-09709-294-0	04	1	0512-		●
33	CLIP; HARNESS,VLV SMOOTHER-G(C1W) L=180	1-09707-162-1	01	1	0407-0511			●
33	CLIP; HARNESS,VLV MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=180	1-09707-162-1	01	1	0512-	●
33	CLIP; HARNESS,VLV MJX16P M/T(Y3Z) L=180	1-09707-162-1	01	1	0512-		●
48	CLIP; FRAME HARNESS 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (H) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	0512-	●
48	CLIP; FRAME HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (C) ID=39 H=28 L=32	1-09701-263-0	01	1	0512-	●
48	CLIP; FRAME HARNESS 6WG1 TC-C(72L) (C) ID=39 H=28 L=32	1-09701-263-0	01	1	0512-		●
48	CLIP; FRAME HARNESS MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (G) ID=13-18 L=18	1-09709-291-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS MJX16P M/T(Y3Z) (G) ID=13-18 L=18	1-09709-291-0	01	1	0512-		●
48	CLIP; FRAME HARNESS (C) ID=26 L=26	1-09701-236-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS EXC. SMOOTHER-G(C1W) (C) ID=26 L=26	1-09701-236-0	01	1	0512-	●
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS (A) ID=20 H=18 L=82	1-09701-288-0	01	1	0512-	●	●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	15	1	0407-0511			●
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	15	1	0512-	●	●
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM(58W) (F) ID=5-12 L=14.5	1-09987-221-0	01	1	0407-0511			●
48	CLIP; FRAME HARNESS WHEEL BASE 5800MM(58W) (F) ID=5-12 L=14.5	1-09987-221-0	01	1	0512-		●
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	06	1	0407-0511			●
48	CLIP; FRAME HARNESS (E) L=250	5-09707-030-1	06	1	0512-	●	●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	0407-0511			●
48	CLIP; FRAME HARNESS (B) ID=20 L=50	9-09917-430-0	02	1	0512-		●
51	CLIP; COOLER CMPR AIR CONDITIONER-AUTOMATIC CONTROL VAR2(NCJ) L=180	1-09707-162-1	01	1	0407-0511			●
51	CLIP; COOLER CMPR L=180	1-09707-162-1	01	1	0512-	●	●
67	CLIP; BAND,HARNESS,CLU SW EXC. SMOOTHER-G(C1W) L=140	5-09707-031-1	01	1	0407-0511			●
67	CLIP; BAND,HARNESS,CLU SW MJX M/T<Y9N> EXC. SMOOTHER-G(C1W) L=140	5-09707-031-1	01	1	0512-	●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40	9-09525-075-0	01	1	0512-0606	●	●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) ID=11 L=40	0-95235-075-0	01	1	0607-	●	●
81	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0407-0511			●
81	CLIP; HARNESS 6WF1 TC-C(1B8) (A) L=140	5-09707-031-1	02	1	0512-	●
81	CLIP; HARNESS (B) ID=7-10	8-94472-578-0	02	1	0407-0511			●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16	9-09525-025-0	01	1	0512-0606	●	●
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) ID=11 L=16	0-95235-025-0	01	1	0607-	●	●
102	CLIP; BAND 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) L=250	5-09707-030-1	01	1	0512-	●
102	CLIP; BAND 6WG1 TC-C(72L) MJX16P M/T(Y3Z) L=250	5-09707-030-1	01	1	0512-		●
104	CLIP; HEADLAMP HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0407-0511			●
104	CLIP; HEADLAMP HARNESS (A) ID=13-18 L=14.5	1-09709-290-0	06	1	0512-	●	●
104	CLIP; HEADLAMP HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (D) ID=18-24 L=14.5	1-09709-298-0	02	1	0407-0511			●
104	CLIP; HEADLAMP HARNESS HALOGEN HEADLAMPS<TT5> (E) ID=5-12 L=14.5	1-09987-221-0	04	1	0512-	●	●
104	CLIP; HEADLAMP HARNESS HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) L=140	5-09707-031-1	10	1	0407-0511			●
104	CLIP; HEADLAMP HARNESS HALOGEN HEADLAMPS<TT5> (B) L=140	5-09707-031-1	02	1	0512-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	02	1	0407-0511			●
104	CLIP; HEADLAMP HARNESS HALOGEN HEADLAMPS<TT5> (F) L=250	5-09707-030-1	02	1	0512-	●	●
104	CLIP; HEADLAMP HARNESS (C) ID=21 L=47.5	8-94178-108-0	02	1	0407-0511			●
111	CLIP; STOP LAMP SW HARNESS L=140	5-09707-031-1	01	1	0407-0511			●
111	CLIP; STOP LAMP SW HARNESS L=140	5-09707-031-1	01	1	0512-	●	●
142	CLIP; HARNESS,ENG (B) L=180	1-09707-162-1	02	1	0407-0407			●
142	CLIP; HARNESS,ENG (B) L=180	1-09707-162-1	01	1	0408-0511			●
142	CLIP; HARNESS,ENG (B) L=180	1-09707-162-1	01	1	0512-1207	●	●
142	CLIP; HARNESS,ENG (B) L=180	8-98216-427-0	01	1	1208-	●	●
142	CLIP; HARNESS,ENG (C) L=250	5-09707-030-1	01	1	0407-0511			●
142	CLIP; HARNESS,ENG (A) L=140	5-09707-031-1	03	1	0407-0511			●
162	CLIP; SW HARNESS 6WG1 TC-C(72L) (A) OD=9 H=6	1-09709-178-0	01	1	0512-	●	●
162	CLIP; SW HARNESS CAB UP +110MM<TGG> (B) L=180	1-09707-162-1	01	1	0407-0511			●
162	CLIP; SW HARNESS 6WF1 TC-C(1B8) (B) L=180	1-09707-162-1	01	1	0512-	●
171	CLIP; STARTER HARNESS 6WG1 TC-C(72L) (A) L=250	5-09707-030-1	03	1	0512-	●	●
171	CLIP; STARTER HARNESS (A) L=250	5-09707-030-1	03	1	0407-0511			●
171	CLIP; STARTER HARNESS 6WF1 TC-C(1B8) (A) L=250	5-09707-030-1	02	1	0512-	●
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-1	06	1	0407-0511			●
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-1	06	1	0512-		●
194	CLIP; BAND 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) L=250	5-09707-030-1	05	1	0512-	●
194	CLIP; BAND 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (D) L=250	5-09707-030-1	05	1	0512-		●
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	0512-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	03	1	0512-	●	●
194	CLIP; BAND (E) L=140	5-09707-031-1	01	1	0512-	●	●
194	CLIP; BAND SMOOTHER-G(C1W) (D) L=250	5-09707-030-1	04	1	0407-0511			●
194	CLIP; BAND 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (D) L=250	5-09707-030-1	04	1	0512-	●
194	CLIP; BAND (A) L=300	1-09707-001-1	01	1	0407-0504			●
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0407-0511			●
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0512-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	03	1	0407-0504			●
194	CLIP; BAND (B) L=350	1-09707-183-0	04	1	0505-0511			●
194	CLIP; BAND 6WF1 TC-C(1B8) (B) L=350	1-09707-183-0	01	1	0512-	●
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0407-0511			●
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0512-	●	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (H) ID=13-18 L=14.5	1-09709-290-0	01	1	0512-	●	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (I) ID=19 L=28	9-09525-856-0	01	1	0512-0606	●	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (I) ID=19 L=28	0-95235-856-0	01	1	0607-	●	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) SMOOTHER-G(C1W) (J) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-	●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) (J) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0512-		●
212	CLIP; HORN HARNESS 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) (K) ID=18 H=23 L=28	1-09700-860-0	03	1	0512-	●
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0512-	●	●
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	02	1	0512-	●	●
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0407-0511			●
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0512-	●	●
212	CLIP; HORN HARNESS (K) ID=18 H=23 L=28	1-09700-860-0	01	1	0407-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (K) ID=18 H=23 L=28	1-09700-860-0	01	1	0512-	●
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0407-0504			●
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	01	1	0407-0504			●
212	CLIP; HORN HARNESS (G) L=350	1-09707-183-0	02	1	0505-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (G) L=350	1-09707-183-0	01	1	0512-	●
212	CLIP; HORN HARNESS (E) L=250	5-09707-030-1	02	1	0407-0511			●
212	CLIP; HORN HARNESS (E) L=250	5-09707-030-1	02	1	0512-	●	●
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	02	1	0407-0511			●
212	CLIP; HORN HARNESS (F) L=140	5-09707-031-1	01	1	0512-	●	●
212	CLIP; HORN HARNESS (D) ID=21 L=24	8-94176-807-1	01	1	0407-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (D) ID=21 L=24	8-94176-807-1	01	1	0512-	●
212	CLIP; HORN HARNESS (B) ID=20 L=50	9-09917-430-0	01	1	0407-0511			●
212	CLIP; HORN HARNESS 6WF1 TC-C(1B8) (B) ID=20 L=50	9-09917-430-0	02	1	0512-	●
305	CLIP; ENG HARNESS 6WG1 TC-C(72L) L=140	5-09707-031-1	03	1	0512-	●	●
305	CLIP; ENG HARNESS L=140	5-09707-031-1	01	1	0407-0511			●
305	CLIP; ENG HARNESS 6WF1 TC-C(1B8) L=140	5-09707-031-1	01	1	0512-	●
369	CLIP; BAND EDS HARNESS 6WF1 TC-C(1B8) (A) L=250	5-09707-030-1	02	1	0512-	●
369	CLIP; BAND EDS HARNESS (B) L=140	5-09707-031-1	01	1	0408-0511			●
369	CLIP; BAND EDS HARNESS 6WG1 TC-C(72L) (B) L=140	5-09707-031-1	02	1	0512-	●	●
380	CLIP; EARTH HARNESS L=250	5-09707-030-1	01	1	0512-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
