Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#31413) — 333 parça

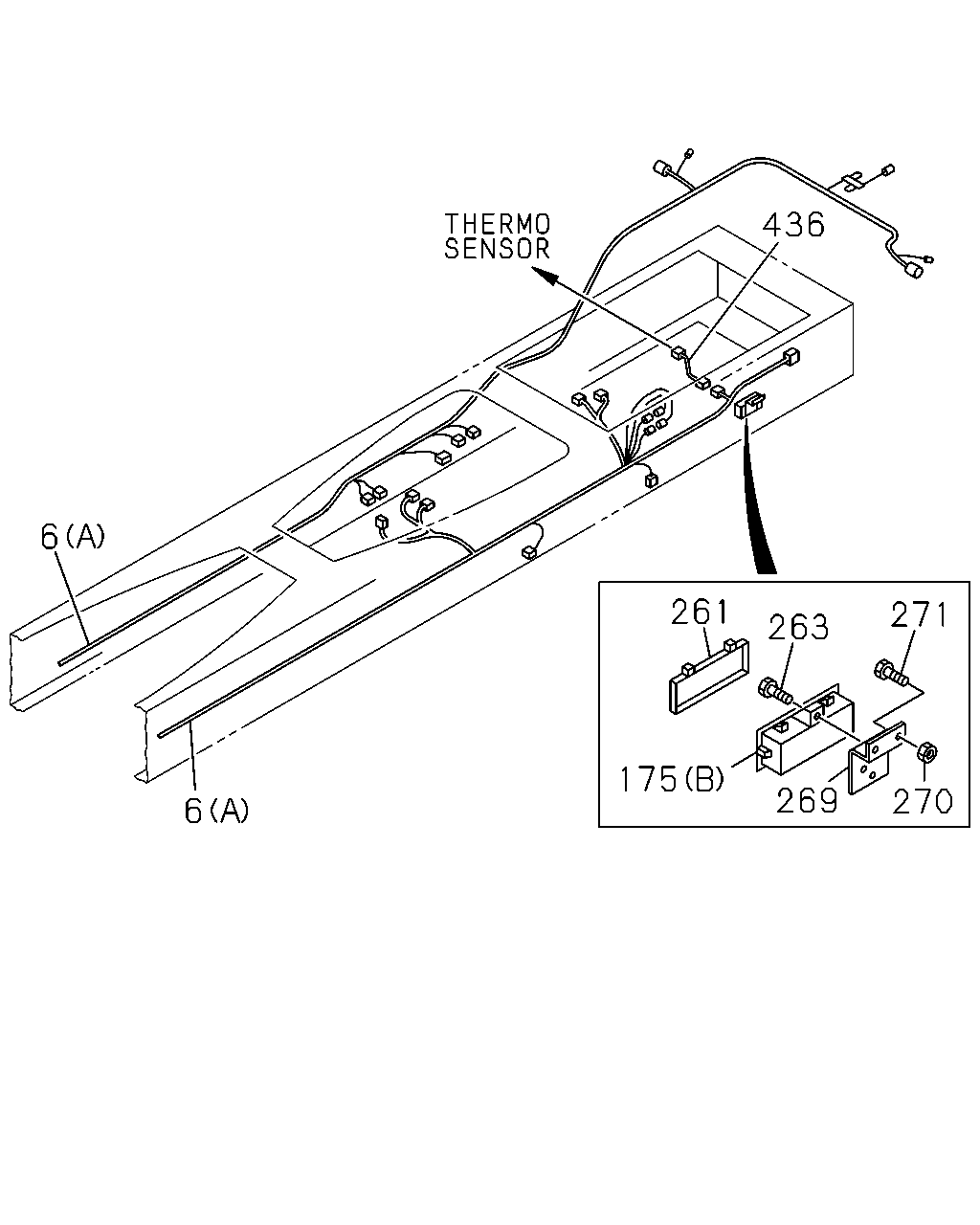

436 6 261 271 263 270 175 269 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	HARNESS; FRAME 6WG1 TC-C(72L) MJX16P M/T(Y3Z) WHEEL BASE 4900MM(49W) SMOOTHER-G(C1W) (A)	8-97610-483-3	01	1	0512-	●
6	HARNESS; FRAME 6WG1 TC-C(72L) MJX16P M/T(Y3Z) WHEEL BASE 5800MM(58W) (A)	8-97610-482-2	01	1	0512-		●
6	HARNESS; FRAME WHEEL BASE 5800MM(58W) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-82677-915-1	01	1	0407-0511			●
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) FULLER M/T<X9B> (A)	1-82678-188-2	01	1	0512-	●
6	HARNESS; FRAME MJX16P M/T(Y3Z) WHEEL BASE 5800MM(58W) SMOOTHER-G(C1W) (A)	1-82677-914-1	01	1	0407-0511			●
6	HARNESS; FRAME 6WF1 TC-C(1B8) EXC. FULL FLOATING CAB(W16) (B)	1-82678-193-0	01	1	0512-	●
6	HARNESS; FRAME (B)	1-82676-870-4	01	1	0407-0511			●
6	HARNESS; FRAME 6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B)	8-97607-307-1	01	1	0512-	●
6	HARNESS; FRAME 6WG1 TC-C(72L) (B)	8-97607-307-1	01	1	0512-		●

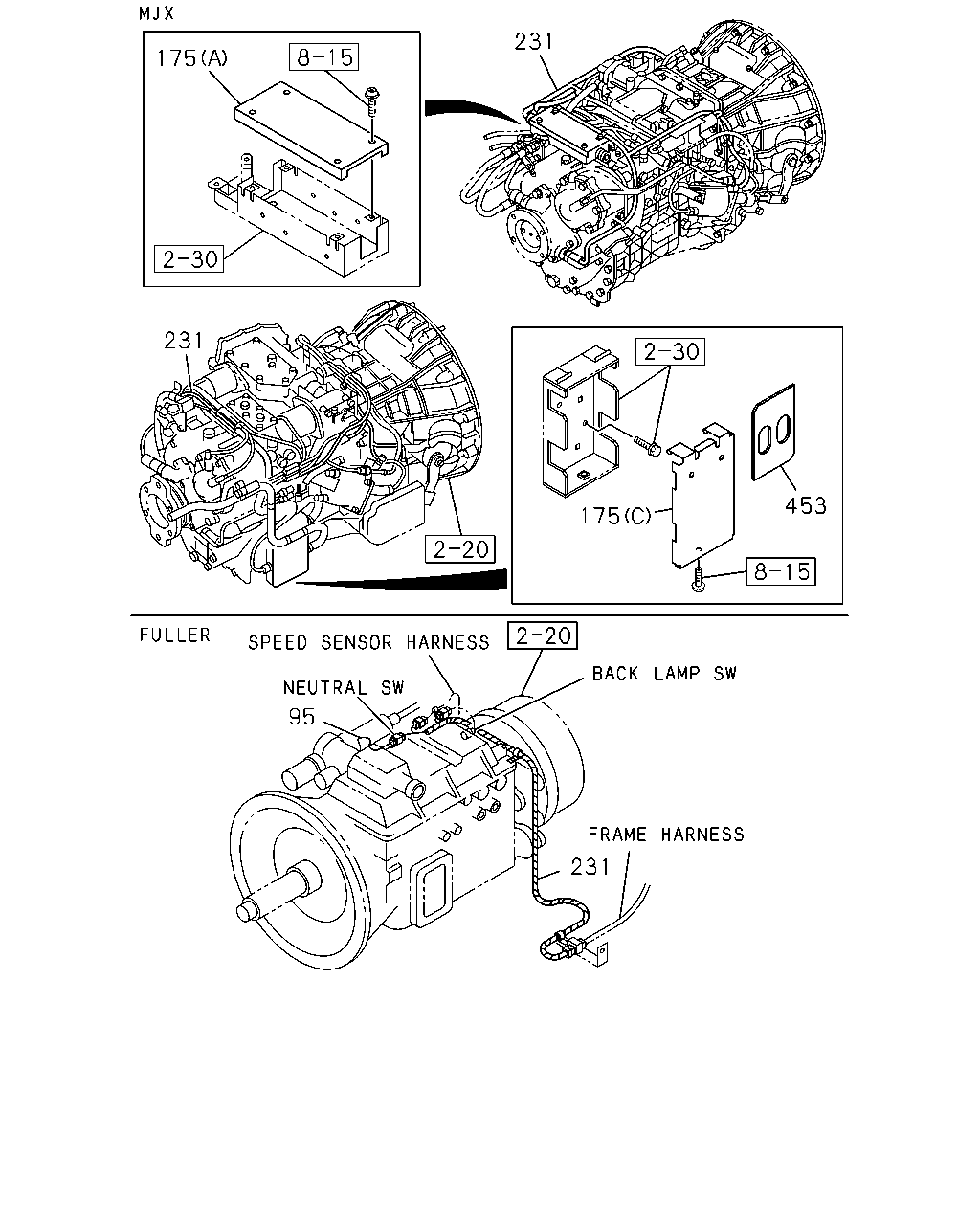

175	BOX; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-82569-389-1	01	1	0512-0606	●
175	BOX; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (C)	1-82569-389-1	01	1	0512-0606		●
175	BOX; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-82569-435-1	01	1	0607-	●
175	BOX; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (C)	1-82569-435-1	01	1	0607-		●
175	BOX; CONNECTOR SMOOTHER-G(C1W) (A)	1-82569-342-0	01	1	0407-0511			●
175	BOX; CONNECTOR 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-82569-342-0	01	1	0512-	●
175	BOX; CONNECTOR (B)	1-82699-467-0	01	1	0407-0511			●
175	BOX; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82699-467-0	01	1	0512-	●	●
261	COVER; CONNECTOR BOX	1-82699-320-0	01	1	0407-0511			●
261	COVER; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA)	1-82699-320-0	01	1	0512-	●	●
263	BOLT; CONNECTOR BOX M8X30 W/LK&PL WASHER	8-94279-144-0	01	1	0407-0511			●
263	BOLT; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8X30 W/LK&PL WASHER	8-94279-144-0	01	1	0512-	●	●
269	BRACKET; CONNECTOR BOX	1-82698-424-0	01	1	0407-0511			●
269	BRACKET; CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA)	1-82698-424-0	01	1	0512-	●	●
270	NUT; BRKT,CONNECTOR BOX M8 FLANGE	0-91150-108-0	02	1	0407-0511			●
270	NUT; BRKT,CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91150-108-0	02	1	0512-0602	●	●
270	NUT; BRKT,CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
271	BOLT; BRKT CONNECTOR BOX M8X25 FLANGE	0-28680-825-0	02	1	0407-0511			●
271	BOLT; BRKT CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512	●	●
271	BOLT; BRKT CONNECTOR BOX ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
436	HARNESS; RETARDER BRAKE SYSTEM RETARDER HEAVY DUTY<TCC>	1-82677-629-0	01	1	0512-	●	●

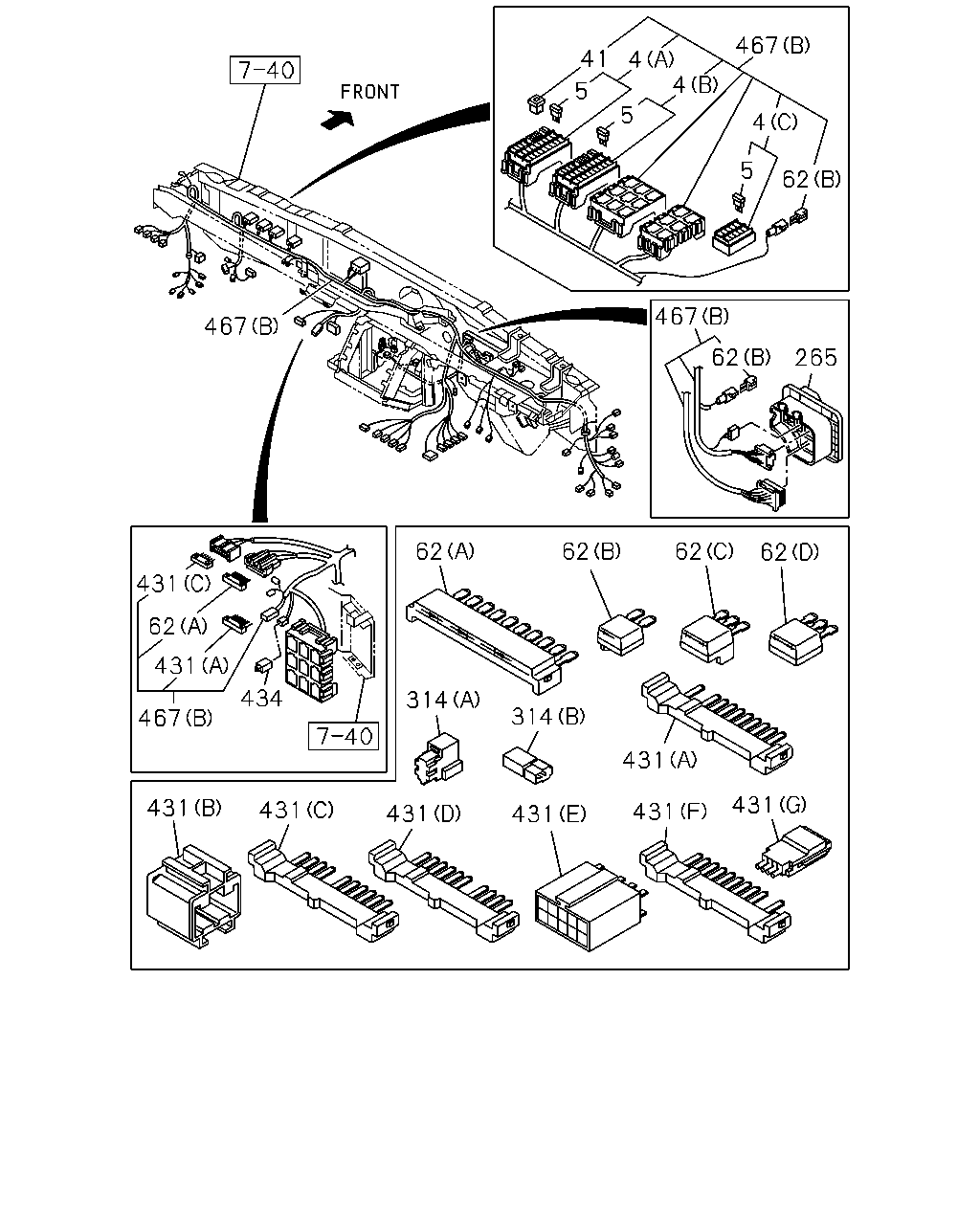

467 41 4 4 5 5 4 5 62 467 467 62 265 62 62 62 62 431 62 431 434 314 314 467 431 431 431 431 431 431 431

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	BOX ASM; FUSE,HARNESS (A) 7.5AX23 10AX4	1-82510-479-0	01	1	0407-0511			●
4	BOX ASM; FUSE,HARNESS (A) 7.5AX23 10AX4	1-82510-479-0	01	1	0512-	●	●
4	BOX ASM; FUSE,HARNESS (B) 15AX25 25AX2	1-82510-602-0	01	1	0407-0511			●
4	BOX ASM; FUSE,HARNESS (B) 15AX25 25AX2	1-82510-602-0	01	1	0512-	●	●
4	BOX ASM; FUSE,HARNESS (C) 15AX3	1-82510-638-0	01	1	0407-0511			●
4	BOX ASM; FUSE,HARNESS (C) 15AX3	1-82510-638-0	01	1	0512-	●	●
5	FUSE; FACIA HARNESS 10A RED	5-82516-002-0	04	1	0407-0511			●
5	FUSE; FACIA HARNESS 10A RED	5-82516-002-0	04	1	0512-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	28	1	0407-0511			●
5	FUSE; FACIA HARNESS 15A BLUE	5-82516-003-0	28	1	0512-	●	●
5	FUSE; FACIA HARNESS 25A CLEAR	5-82516-005-0	02	1	0407-0511			●
5	FUSE; FACIA HARNESS 25A CLEAR	5-82516-005-0	02	1	0512-	●	●
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	23	1	0407-0511			●
5	FUSE; FACIA HARNESS 7.5A BROWN	8-94159-007-0	23	1	0512-	●	●
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	0407-0511			●
41	PULLER; FUSE L=25.3 B=11.5	8-94121-482-0	01	1	0512-	●	●
62	DIODE; HARNESS (D) BLACK 3P-1.5A	8-94422-640-1	01	1	0512-	●	●
62	DIODE; HARNESS 6WG1 TC-C(72L) (C) BLACK 3P-1.5A	8-94416-438-1	02	1	0512-	●	●
62	DIODE; HARNESS 6WG1 TC-C(72L) (B) BLACK 2P-1.5A	8-94422-639-1	08	1	0512-0609	●	●
62	DIODE; HARNESS 6WG1 TC-C(72L) (B) BLACK 2P-1.5A	8-94422-639-1	09	1	0610-	●	●
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	0407-0511			●
62	DIODE; HARNESS (A) BLACK 10P	1-82699-703-0	02	1	0512-	●	●
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0407-0511			●
62	DIODE; HARNESS 6WF1 TC-C(1B8) (C) BLACK 3P-1.5A	8-94416-438-1	01	1	0512-	●
62	DIODE; HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	07	1	0407-0511			●
62	DIODE; HARNESS 6WF1 TC-C(1B8) (B) BLACK 2P-1.5A	8-94422-639-1	05	1	0512-	●
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0407-0511			●
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0512-	●	●
314	RESISTOR; HARNESS 6WG1 TC-C(72L) (B) RESISTANCE NO.5 2K OHM	1-81515-025-0	01	1	0512-	●	●
314	RESISTOR; HARNESS 6WG1 TC-C(72L) (A) BLUE	1-82691-204-0	01	1	0512-	●	●
314	RESISTOR; HARNESS (A) BLUE	1-82691-204-0	02	1	0407-0511			●
314	RESISTOR; HARNESS 6WF1 TC-C(1B8) (A) BLUE	1-82691-204-0	02	1	0512-	●
431	CONNECTOR; JOINT 6WG1 TC-C(72L) (B) 6P	1-82691-206-0	01	1	0512-	●	●
431	CONNECTOR; JOINT 6WG1 TC-C(72L) (F) 10P GREEN	1-82698-579-0	03	1	0512-	●	●
431	CONNECTOR; JOINT 6WG1 TC-C(72L) (C) 10P BLUE	1-82699-598-0	13	1	0512-	●	●
431	CONNECTOR; JOINT 6WG1 TC-C(72L) (D) 10P GREEN	1-82699-599-0	02	1	0512-	●	●
431	CONNECTOR; JOINT 6WG1 TC-C(72L) (A) 10P BROWN	1-82699-601-0	10	1	0512-	●	●
431	CONNECTOR; JOINT 6WG1 TC-C(72L) (G) 4P	8-97376-776-0	10	1	0512-	●	●
431	CONNECTOR; JOINT (B) 3P & 3P	1-82698-170-0	05	1	0407-0511			●
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) (B) 3P & 3P	1-82698-170-0	04	1	0512-	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	09	1	0407-0511			●
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) (C) 10P BLUE	1-82699-598-0	09	1	0512-	●
431	CONNECTOR; JOINT (D) 10P GREEN	1-82699-599-0	02	1	0407-0511			●
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) (D) 10P GREEN	1-82699-599-0	04	1	0512-	●
431	CONNECTOR; JOINT (A) 10P BROWN	1-82699-601-0	12	1	0407-0511			●
431	CONNECTOR; JOINT 6WF1 TC-C(1B8) (A) 10P BROWN	1-82699-601-0	13	1	0512-	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	01	1	0407-0511			●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	01	1	0512-	●	●
434	CONNECTOR; SHORT CIRCUIT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82691-051-0	01	1	0407-0511			●

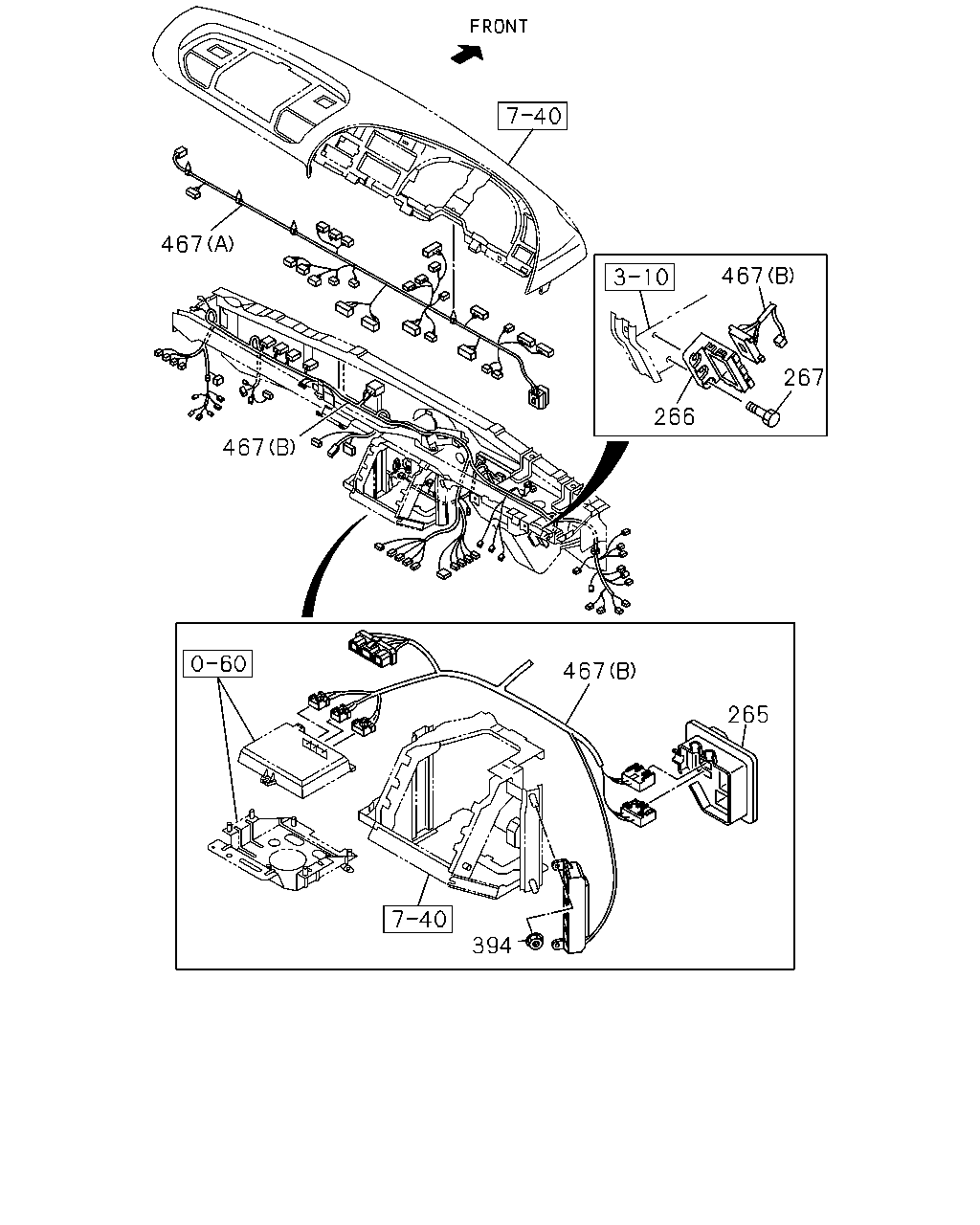

467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	1-82662-775-1	01	1	0512-0609	●	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	1-82662-930-0	01	1	0610-	●	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (A)	1-82662-255-0	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) (B)	1-82662-770-1	01	1	0512-	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	1-82662-257-1	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-82662-793-0	01	1	0512-	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (A)	1-82662-254-0	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A)	1-82662-768-0	01	1	0512-	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	1-82662-256-1	01	1	0407-0511			●
467	HARNESS; FACIA 6WG1 TC-C(72L) (A)	1-82662-769-0	01	1	0512-	●	●

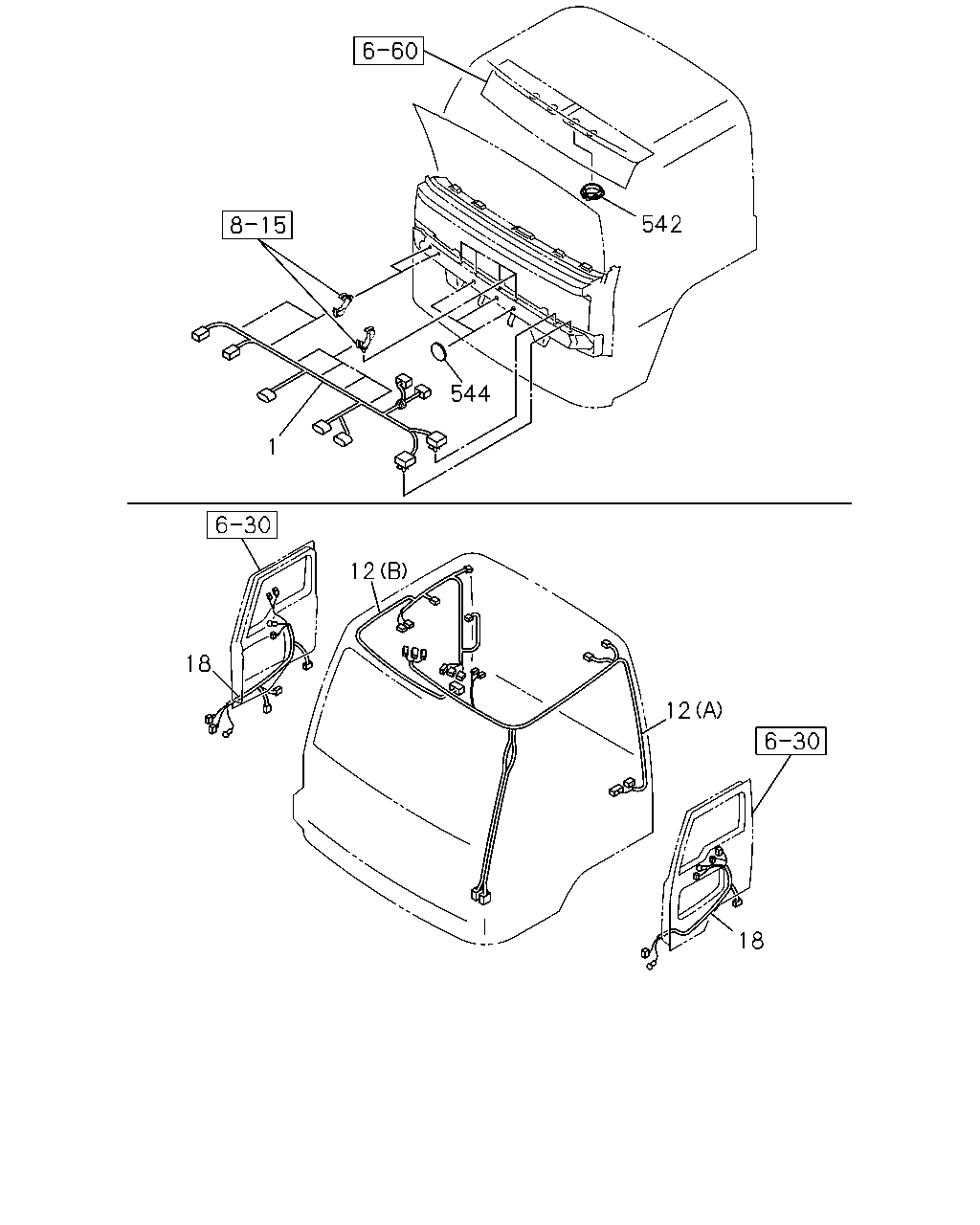

542 544 1 12 18 12 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HARNESS; CAB MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82629-232-1	01	1	0407-0511			●
1	HARNESS; CAB MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82629-232-1	01	1	0512-	●	●
1	HARNESS; CAB EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82629-234-1	01	1	0407-0511			●
1	HARNESS; CAB EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82629-234-1	01	1	0512-	●	●
12	HARNESS; ROOF 6WG1 TC-C(72L) (A)	1-82662-764-1	01	1	0512-	●	●
12	HARNESS; ROOF 6WG1 TC-C(72L) (B)	1-82662-766-0	01	1	0512-	●	●
12	HARNESS; ROOF (B)	1-82661-460-0	01	1	0407-0407			●
12	HARNESS; ROOF (B)	1-82662-588-0	01	1	0408-0511			●
12	HARNESS; ROOF 6WF1 TC-C(1B8) (B)	1-82662-588-0	01	1	0512-	●
12	HARNESS; ROOF (A)	1-82662-252-2	01	1	0407-0511			●
12	HARNESS; ROOF 6WF1 TC-C(1B8) (A)	1-82662-252-2	01	1	0512-	●
18	HARNESS; DOOR MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> EXC. DOOR WITH UNDER VIEW WINDOW<YD8>	1-82628-582-0	01	1	0512-	●	●
18	HARNESS; DOOR 6WF1 TC-C(1B8) MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> EXC. REMOTE CONT DOOR LOCK<SLG>	1-82628-588-0	01	1	0512-	●
18	HARNESS; DOOR 6WF1 TC-C(1B8) EXC. REMOTE CONT DOOR LOCK<SLG>,MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>	1-82628-670-1	01	1	0512-	●
18	HARNESS; DOOR 6WG1 TC-C(72L) EXC. REMOTE CONT DOOR LOCK<SLG>	1-82628-574-1	01	1	0512-	●
18	HARNESS; DOOR EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP>,DOOR WITH UNDER VIEW WINDOW<YD8>	1-82628-669-0	01	1	0512-	●	●
18	HARNESS; DOOR REMOTE CONT DOOR LOCK<SLG>	1-82628-575-1	01	1	0407-0511			●
18	HARNESS; DOOR REMOTE CONT DOOR LOCK<SLG>	1-82628-575-1	01	1	0512-	●
18	HARNESS; DOOR	1-82628-575-1	01	1	0512-		●
18	HARNESS; DOOR	1-82629-901-1	01	1	0407-0511			●
18	HARNESS; DOOR DOOR WITH UNDER VIEW WINDOW<YD8>	1-82629-901-1	01	1	0512-	●	●
542	GROMMET; HARNESS GRIP OUT SIDE<W52> ID=36	8-94178-685-0	01	1	0512-0712	●	●
544	SEAL; FRT MTG RAIL OD=25 BLACK	1-76798-019-0	03	1	0407-0511			●
544	SEAL; FRT MTG RAIL OD=25 BLACK	1-76798-019-0	03	1	0512-	●	●

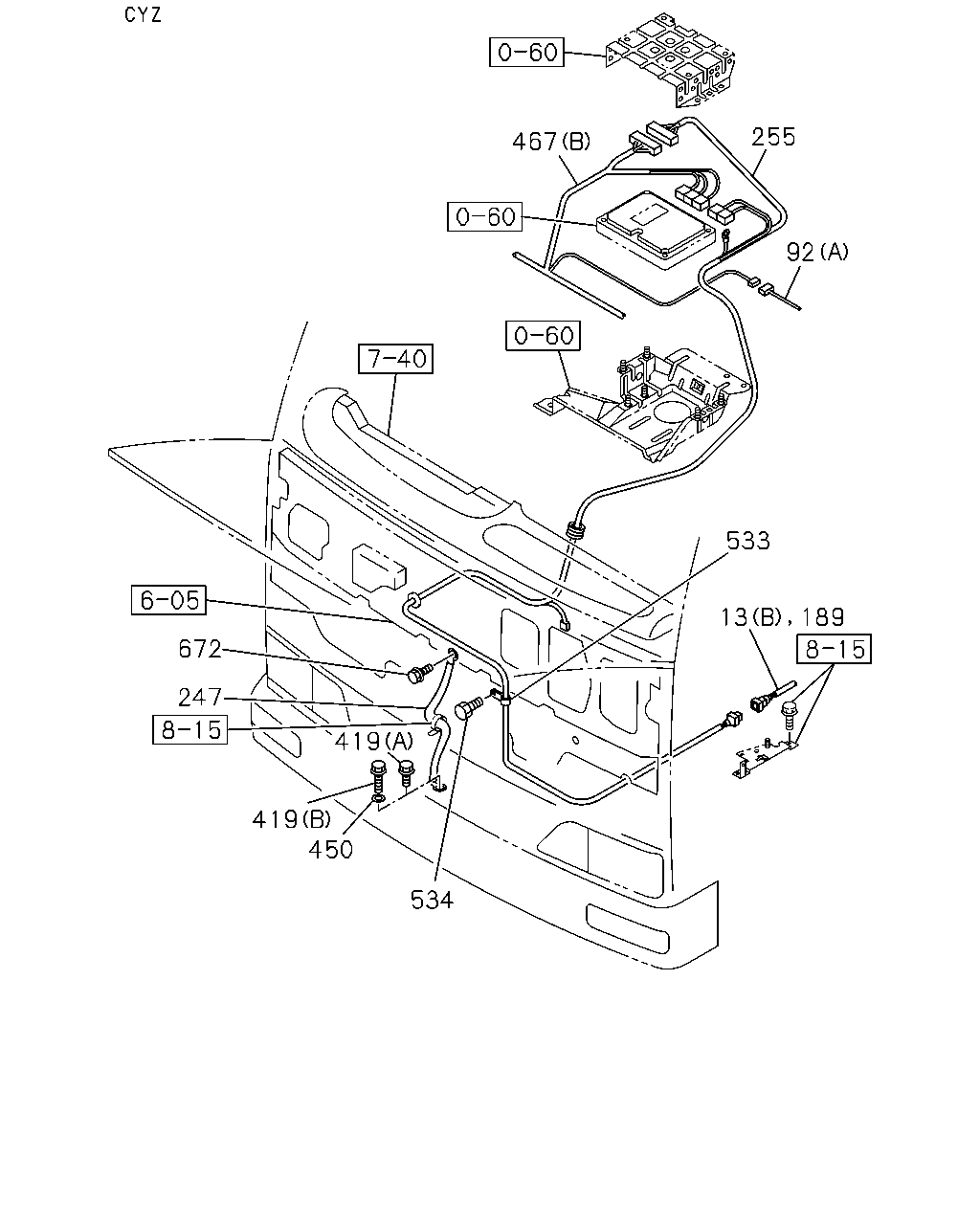

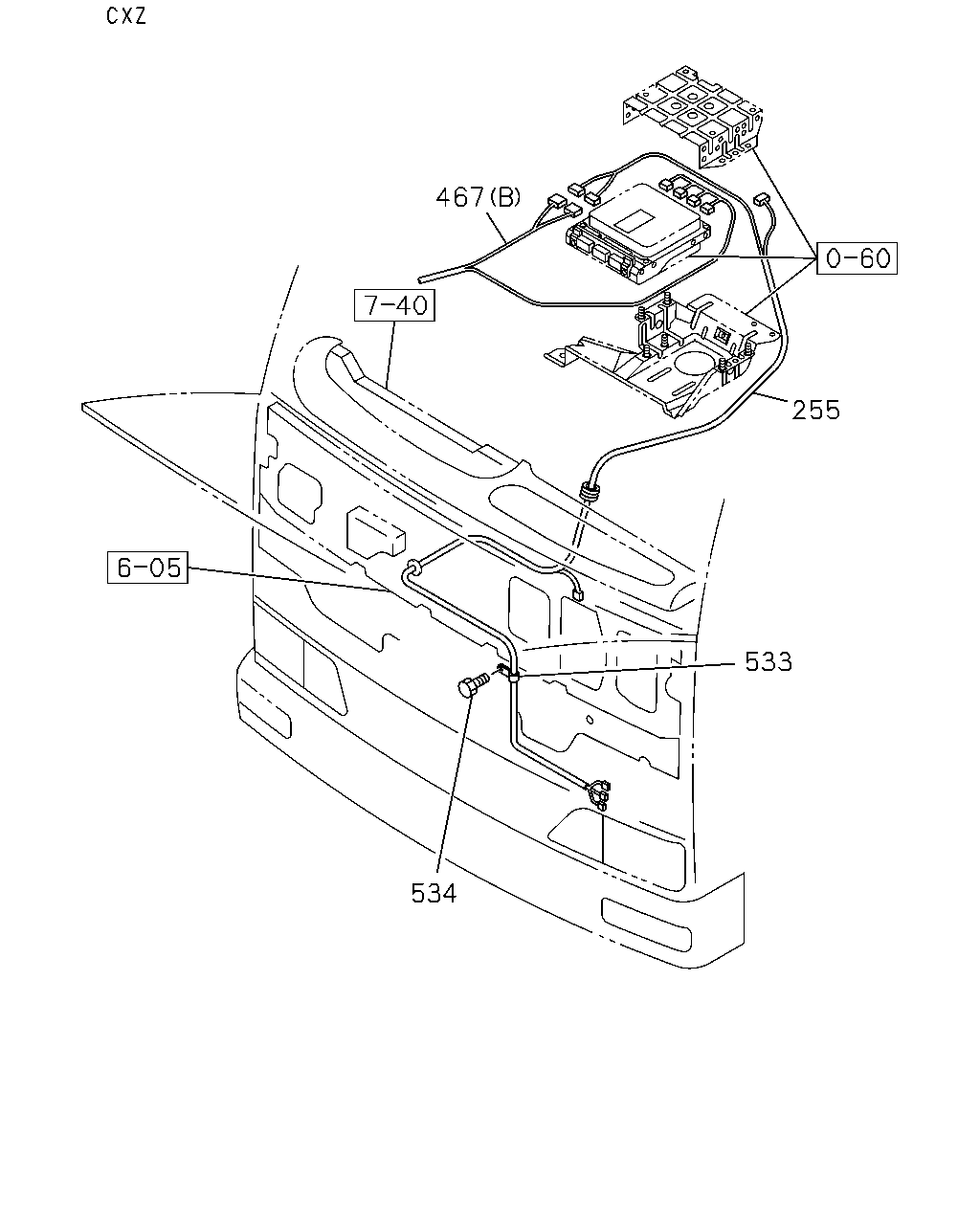

467 255 92 533 13 189 534 450 419 419 672 247

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

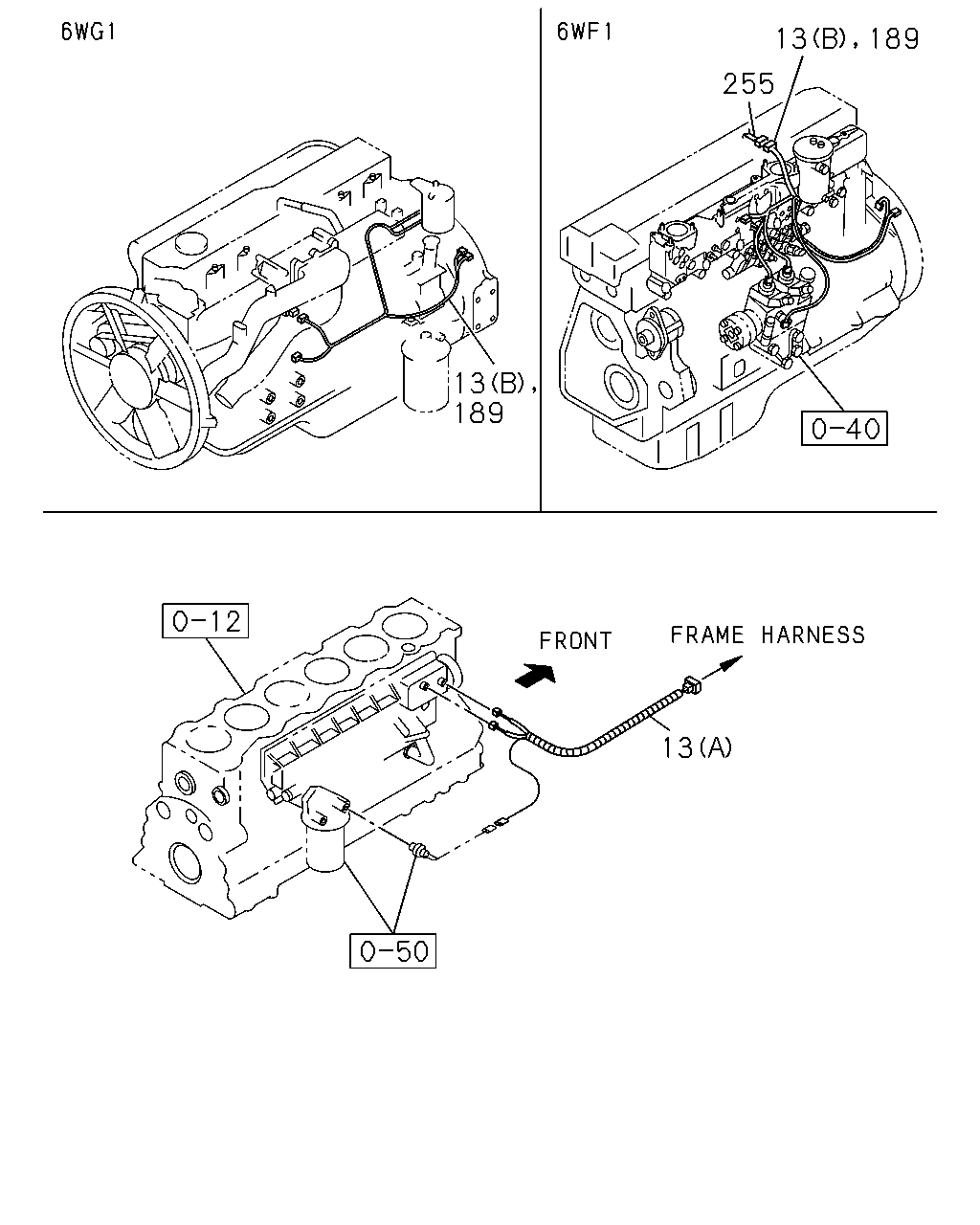

13	HARNESS; ENG (B)	1-82641-345-0	01	1	0512-0612	●
13	HARNESS; ENG (B)	8-97617-395-0	01	1	0701-1004	●
13	HARNESS; ENG (B)	8-98169-641-0	01	1	1005-	●
13	HARNESS; ENG (B)	8-97604-105-2	01	1	0512-0612	●	●
13	HARNESS; ENG (B)	8-97617-391-0	01	1	0701-	●	●
13	HARNESS; ENG (A)	1-82640-553-4	01	1	0407-0511			●
13	HARNESS; ENG (A)	1-82640-553-4	01	1	0512-	●	●

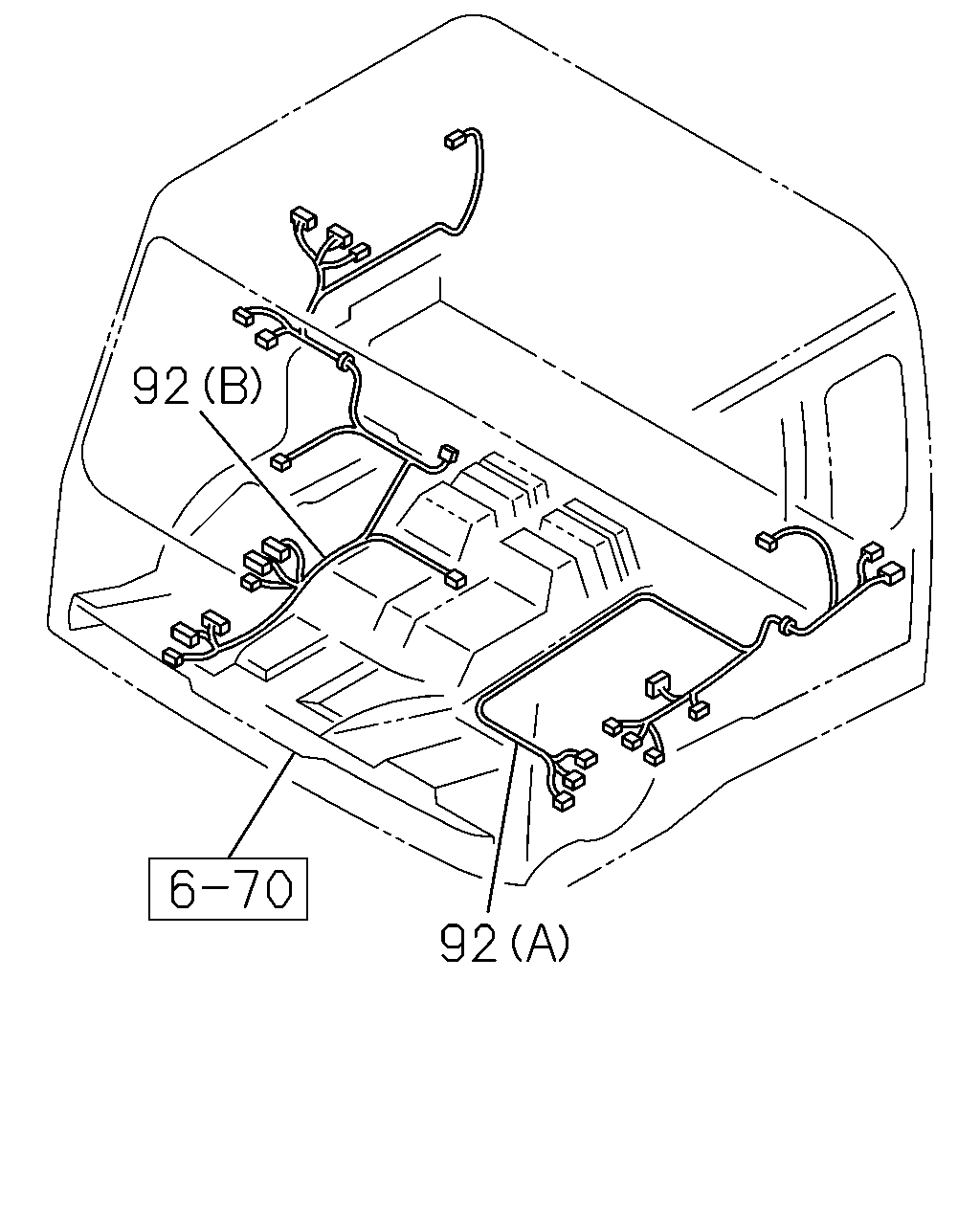

92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A)	1-82662-782-0	01	1	0512-0604	●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A)	1-82662-901-0	01	1	0605-	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) (A)	1-82662-802-0	01	1	0512-0604	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82662-802-0	01	1	0512-0604		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) (A)	1-82662-896-0	01	1	0605-1212	●	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) (A)	8-98229-591-0	01	1	1301-	●	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-340-4	01	1	0512-	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-340-4	01	1	0512-		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-349-5	01	1	0512-	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-349-5	01	1	0512-		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B)	1-82662-338-4	01	1	0512-	●
92	HARNESS; FLOOR SMOOTHER-G(C1W) CUSTOM CAB(SR5) (B)	1-82661-450-5	01	1	0407-0503			●
92	HARNESS; FLOOR SMOOTHER-G(C1W) CUSTOM CAB(SR5) (B)	1-82662-734-0	01	1	0504-0511			●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-734-0	01	1	0512-	●
92	HARNESS; FLOOR SMOOTHER-G(C1W) CUSTOM CAB(SR5) (A)	1-82661-475-4	01	1	0407-0511			●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-779-0	01	1	0512-	●
92	HARNESS; FLOOR CUSTOM CAB(SR5) EXC. SMOOTHER-G(C1W) (B)	1-82661-448-5	01	1	0407-0503			●
92	HARNESS; FLOOR CUSTOM CAB(SR5) EXC. SMOOTHER-G(C1W) (B)	1-82662-733-0	01	1	0504-0511			●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B)	1-82662-780-0	01	1	0512-	●
92	HARNESS; FLOOR CUSTOM CAB(SR5) EXC. SMOOTHER-G(C1W) (A)	1-82661-467-3	01	1	0407-0511			●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	1-82662-722-1	01	1	0512-0604	●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	1-82662-899-0	01	1	0605-1212	●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	8-98229-547-0	01	1	1301-	●
189	HARNESS; EXT	1-82641-217-1	01	1	0407-0511			●
247	CABLE; BONDING,CAB L=570	1-82662-390-1	01	1	0512-	●	●
255	HARNESS; ELEC GOV SMOOTHER-G(C1W) CAB UP +110MM<TGG>	1-82661-495-8	01	1	0407-0511			●
255	HARNESS; ELEC GOV 6WF1 TC-C(1B8)	1-82662-719-0	01	1	0512-	●
255	HARNESS; ELEC GOV CAB UP +110MM<TGG> EXC. SMOOTHER-G(C1W)	1-82661-494-8	01	1	0407-0511			●
255	HARNESS; ELEC GOV 6WG1 TC-C(72L)	1-82662-307-3	01	1	0512-1210	●	●
255	HARNESS; ELEC GOV 6WG1 TC-C(72L)	8-98229-084-0	01	1	1211-	●	●
419	BOLT; CAB EARTH 6WG1 TC-C(72L) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0512-	●	●
419	BOLT; CAB EARTH 6WG1 TC-C(72L) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0512-	●	●
419	BOLT; CAB EARTH (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0512-	●	●
419	BOLT; CAB EARTH (A) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0407-0511			●
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	05	1	0512-	●
450	WASHER; PL,CAB EARTH 6WG1 TC-C(72L) ID=8.4	1-09503-264-0	04	1	0512-	●	●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	02	1	0407-0511			●
450	WASHER; PL,CAB EARTH 6WF1 TC-C(1B8) ID=8.4	1-09503-264-0	03	1	0512-	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	1-82662-775-1	01	1	0512-0609	●	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	1-82662-930-0	01	1	0610-	●	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (A)	1-82662-255-0	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) (B)	1-82662-770-1	01	1	0512-	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	1-82662-257-1	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-82662-793-0	01	1	0512-	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (A)	1-82662-254-0	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A)	1-82662-768-0	01	1	0512-	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	1-82662-256-1	01	1	0407-0511			●
467	HARNESS; FACIA 6WG1 TC-C(72L) (A)	1-82662-769-0	01	1	0512-	●	●
533	CLIP 6WG1 TC-C(72L) SMOOTHER-G(C1W) ID=28 & 34 L=63	1-09701-310-0	01	1	0512-	●
533	CLIP 6WG1 TC-C(72L) ID=28 & 34 L=63	1-09701-310-0	01	1	0512-		●
533	CLIP ID=26 L=26	1-09701-236-0	01	1	0407-0511			●
533	CLIP 6WF1 TC-C(1B8) ID=31 L=35	1-09700-329-1	01	1	0512-	●
533	CLIP 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) ID=31 L=35	1-09700-329-1	01	1	0512-	●
534	BOLT M8X16 FLANGE	0-28080-816-0	01	1	0407-0511			●
534	BOLT M8X16 FLANGE	0-28080-816-0	01	1	0512-0512	●	●
534	BOLT M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●
672	BOLT; BONDING M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0512-1309	●	●
672	BOLT; BONDING M8X14 W/PL WASHER	8-98164-837-0	01	1	1310-	●	●

467 467 267 266 467 467 265 394

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0407-0511			●
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0512-	●	●
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0407-0511			●
266	BRACKET; CONN BOX	1-82699-580-0	01	1	0512-	●	●
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0407-0511			●
267	BOLT; BRKT M6X16 W/PL WASHER	1-09981-438-0	02	1	0512-	●	●
394	NUT; RELAY BOX TO BODY ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91150-106-0	01	1	0407-0511			●
394	NUT; RELAY BOX TO BODY 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91150-106-0	01	1	0512-0602	●
394	NUT; RELAY BOX TO BODY 6WF1 TC-C(1B8) ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE	0-91180-106-0	01	1	0603-	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	1-82662-775-1	01	1	0512-0609	●	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	1-82662-930-0	01	1	0610-	●	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (A)	1-82662-255-0	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) (B)	1-82662-770-1	01	1	0512-	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	1-82662-257-1	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-82662-793-0	01	1	0512-	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (A)	1-82662-254-0	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A)	1-82662-768-0	01	1	0512-	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	1-82662-256-1	01	1	0407-0511			●
467	HARNESS; FACIA 6WG1 TC-C(72L) (A)	1-82662-769-0	01	1	0512-	●	●

262 265 6 276 6 264 419 450 450 419 466 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	DIODE; CABLE HARNESS GRAY 2P-1.3A	1-81514-015-0	01	1	0407-0511			●
2	DIODE; CABLE HARNESS GRAY 2P-1.3A	1-81514-015-0	01	1	0512-	●	●
6	HARNESS; FRAME 6WG1 TC-C(72L) MJX16P M/T(Y3Z) WHEEL BASE 4900MM(49W) SMOOTHER-G(C1W) (A)	8-97610-483-3	01	1	0512-	●
6	HARNESS; FRAME 6WG1 TC-C(72L) MJX16P M/T(Y3Z) WHEEL BASE 5800MM(58W) (A)	8-97610-482-2	01	1	0512-		●
6	HARNESS; FRAME WHEEL BASE 5800MM(58W) TRANSMISSION CONTROL LINK TYPE(B2A) (A)	1-82677-915-1	01	1	0407-0511			●
6	HARNESS; FRAME 6WF1 TC-C(1B8) WHEEL BASE 4900MM(49W) FULLER M/T<X9B> (A)	1-82678-188-2	01	1	0512-	●
6	HARNESS; FRAME MJX16P M/T(Y3Z) WHEEL BASE 5800MM(58W) SMOOTHER-G(C1W) (A)	1-82677-914-1	01	1	0407-0511			●
6	HARNESS; FRAME 6WF1 TC-C(1B8) EXC. FULL FLOATING CAB(W16) (B)	1-82678-193-0	01	1	0512-	●
6	HARNESS; FRAME (B)	1-82676-870-4	01	1	0407-0511			●
6	HARNESS; FRAME 6WG1 TC-C(72L) FULL FLOATING CAB(W16) (B)	8-97607-307-1	01	1	0512-	●
6	HARNESS; FRAME 6WG1 TC-C(72L) (B)	8-97607-307-1	01	1	0512-		●
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-582-1	01	1	0407-0511			●
262	COVER; CONNECTOR BOX,FRT PNL	1-82699-582-1	01	1	0512-	●	●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0407-0511			●
264	NUT; CONNECTOR BOX M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0512-	●	●
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0407-0511			●
265	BOX; CONN,FRT PNL	1-82699-581-3	01	1	0512-	●	●
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0407-0511			●
276	COVER; BOX,FRAME HARNESS 6WF1 TC-C(1B8) (B)	1-82699-475-2	01	1	0512-	●
276	COVER; BOX,FRAME HARNESS (A)	1-82699-585-2	01	1	0407-0511			●
276	COVER; BOX,FRAME HARNESS (A)	1-82699-585-2	01	1	0512-	●	●
419	BOLT; CAB EARTH 6WG1 TC-C(72L) (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0512-	●	●
419	BOLT; CAB EARTH 6WG1 TC-C(72L) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0512-	●	●
419	BOLT; CAB EARTH (B) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0512-	●	●
419	BOLT; CAB EARTH (A) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0407-0511			●
419	BOLT; CAB EARTH 6WF1 TC-C(1B8) (A) M8X16 W/LK&PL WASHER	8-97087-055-0	05	1	0512-	●
450	WASHER; PL,CAB EARTH 6WG1 TC-C(72L) ID=8.4	1-09503-264-0	04	1	0512-	●	●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	02	1	0407-0511			●
450	WASHER; PL,CAB EARTH 6WF1 TC-C(1B8) ID=8.4	1-09503-264-0	03	1	0512-	●
466	HARNESS; BUMPER	1-82638-452-4	01	1	0407-0511			●

467 224 467 14 467 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	HARNESS; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82671-382-1	02	1	0407-0511			●
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5>	1-82677-628-3	02	1	0512-	●	●
224	HARNESS; EXT,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82628-261-2	02	1	0407-0511			●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	1-82662-775-1	01	1	0512-0609	●	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	1-82662-930-0	01	1	0610-	●	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (A)	1-82662-255-0	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) (B)	1-82662-770-1	01	1	0512-	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	1-82662-257-1	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-82662-793-0	01	1	0512-	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (A)	1-82662-254-0	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A)	1-82662-768-0	01	1	0512-	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	1-82662-256-1	01	1	0407-0511			●
467	HARNESS; FACIA 6WG1 TC-C(72L) (A)	1-82662-769-0	01	1	0512-	●	●

231 175 231 453 175 95 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
95	HARNESS; NEUTRAL SW TRANSMISSION-FULLER RTLO149 18(Y4C)	1-82639-626-0	01	1	0512-	●
175	BOX; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-82569-389-1	01	1	0512-0606	●
175	BOX; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (C)	1-82569-389-1	01	1	0512-0606		●
175	BOX; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (C)	1-82569-435-1	01	1	0607-	●
175	BOX; CONNECTOR 6WG1 TC-C(72L) MJX16P M/T(Y3Z) (C)	1-82569-435-1	01	1	0607-		●
175	BOX; CONNECTOR SMOOTHER-G(C1W) (A)	1-82569-342-0	01	1	0407-0511			●
175	BOX; CONNECTOR 6WF1 TC-C(1B8) MJX16P M/T(Y3Z) SMOOTHER-G(C1W) (A)	1-82569-342-0	01	1	0512-	●
175	BOX; CONNECTOR (B)	1-82699-467-0	01	1	0407-0511			●
175	BOX; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (B)	1-82699-467-0	01	1	0512-	●	●
231	HARNESS; TRANS 6WG1 TC-C(72L) FULLER M/T<X9B>	8-97620-988-0	01	1	0704-	●
231	HARNESS; TRANS TRANSMISSION CONTROL LINK TYPE(B2A)	1-82677-407-0	01	1	0407-0511			●
231	HARNESS; TRANS FULLER M/T<X9B>	1-82677-185-0	01	1	0512-0703	●
231	HARNESS; TRANS 6WF1 TC-C(1B8) FULLER M/T<X9B>	1-82677-185-0	01	1	0704-	●
231	HARNESS; TRANS SMOOTHER-G(C1W)	1-82674-212-3	01	1	0407-0511			●
231	HARNESS; TRANS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	8-97610-487-0	01	1	0512-1105	●
231	HARNESS; TRANS 6WG1 TC-C(72L) MJX16P M/T(Y3Z)	8-97610-487-0	01	1	0512-1105		●
231	HARNESS; TRANS 6WG1 TC-C(72L) MJX16P M/T(Y3Z) SMOOTHER-G(C1W)	8-97627-039-1	01	1	1106-	●
231	HARNESS; TRANS 6WG1 TC-C(72L) MJX16P M/T(Y3Z)	8-97627-039-1	01	1	1106-		●
453	PROTECTOR; HARNESS 6WG1 TC-C(72L)	8-98213-847-1	01	1	1207-	●	●

467 255 533 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
255	HARNESS; ELEC GOV SMOOTHER-G(C1W) CAB UP +110MM<TGG>	1-82661-495-8	01	1	0407-0511			●
255	HARNESS; ELEC GOV 6WF1 TC-C(1B8)	1-82662-719-0	01	1	0512-	●
255	HARNESS; ELEC GOV CAB UP +110MM<TGG> EXC. SMOOTHER-G(C1W)	1-82661-494-8	01	1	0407-0511			●
255	HARNESS; ELEC GOV 6WG1 TC-C(72L)	1-82662-307-3	01	1	0512-1210	●	●
255	HARNESS; ELEC GOV 6WG1 TC-C(72L)	8-98229-084-0	01	1	1211-	●	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	1-82662-775-1	01	1	0512-0609	●	●
467	HARNESS; FACIA 6WG1 TC-C(72L) (B)	1-82662-930-0	01	1	0610-	●	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (A)	1-82662-255-0	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) (B)	1-82662-770-1	01	1	0512-	●
467	HARNESS; FACIA SMOOTHER-G(C1W) (B)	1-82662-257-1	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) SMOOTHER-G(C1W) (A)	1-82662-793-0	01	1	0512-	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (A)	1-82662-254-0	01	1	0407-0511			●
467	HARNESS; FACIA 6WF1 TC-C(1B8) EXC. SMOOTHER-G(C1W) (A)	1-82662-768-0	01	1	0512-	●
467	HARNESS; FACIA EXC. SMOOTHER-G(C1W) (B)	1-82662-256-1	01	1	0407-0511			●
467	HARNESS; FACIA 6WG1 TC-C(72L) (A)	1-82662-769-0	01	1	0512-	●	●
533	CLIP 6WG1 TC-C(72L) SMOOTHER-G(C1W) ID=28 & 34 L=63	1-09701-310-0	01	1	0512-	●
533	CLIP 6WG1 TC-C(72L) ID=28 & 34 L=63	1-09701-310-0	01	1	0512-		●
533	CLIP ID=26 L=26	1-09701-236-0	01	1	0407-0511			●
533	CLIP 6WF1 TC-C(1B8) ID=31 L=35	1-09700-329-1	01	1	0512-	●
533	CLIP 6WG1 TC-C(72L) EXC. SMOOTHER-G(C1W) ID=31 L=35	1-09700-329-1	01	1	0512-	●
534	BOLT M8X16 FLANGE	0-28080-816-0	01	1	0407-0511			●
534	BOLT M8X16 FLANGE	0-28080-816-0	01	1	0512-0512	●	●
534	BOLT M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●

92 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A)	1-82662-782-0	01	1	0512-0604	●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (A)	1-82662-901-0	01	1	0605-	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) SMOOTHER-G(C1W) (A)	1-82662-802-0	01	1	0512-0604	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82662-802-0	01	1	0512-0604		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) (A)	1-82662-896-0	01	1	0605-1212	●	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) (A)	8-98229-591-0	01	1	1301-	●	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-340-4	01	1	0512-	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-340-4	01	1	0512-		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-349-5	01	1	0512-	●
92	HARNESS; FLOOR 6WG1 TC-C(72L) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-349-5	01	1	0512-		●
92	HARNESS; FLOOR 6WG1 TC-C(72L) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B)	1-82662-338-4	01	1	0512-	●
92	HARNESS; FLOOR SMOOTHER-G(C1W) CUSTOM CAB(SR5) (B)	1-82661-450-5	01	1	0407-0503			●
92	HARNESS; FLOOR SMOOTHER-G(C1W) CUSTOM CAB(SR5) (B)	1-82662-734-0	01	1	0504-0511			●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-734-0	01	1	0512-	●
92	HARNESS; FLOOR SMOOTHER-G(C1W) CUSTOM CAB(SR5) (A)	1-82661-475-4	01	1	0407-0511			●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) SMOOTHER-G(C1W) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (B)	1-82662-779-0	01	1	0512-	●
92	HARNESS; FLOOR CUSTOM CAB(SR5) EXC. SMOOTHER-G(C1W) (B)	1-82661-448-5	01	1	0407-0503			●
92	HARNESS; FLOOR CUSTOM CAB(SR5) EXC. SMOOTHER-G(C1W) (B)	1-82662-733-0	01	1	0504-0511			●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> EXC. SMOOTHER-G(C1W) (B)	1-82662-780-0	01	1	0512-	●
92	HARNESS; FLOOR CUSTOM CAB(SR5) EXC. SMOOTHER-G(C1W) (A)	1-82661-467-3	01	1	0407-0511			●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	1-82662-722-1	01	1	0512-0604	●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	1-82662-899-0	01	1	0605-1212	●
92	HARNESS; FLOOR 6WF1 TC-C(1B8) SMOOTHER-G(C1W) EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	8-98229-547-0	01	1	1301-	●

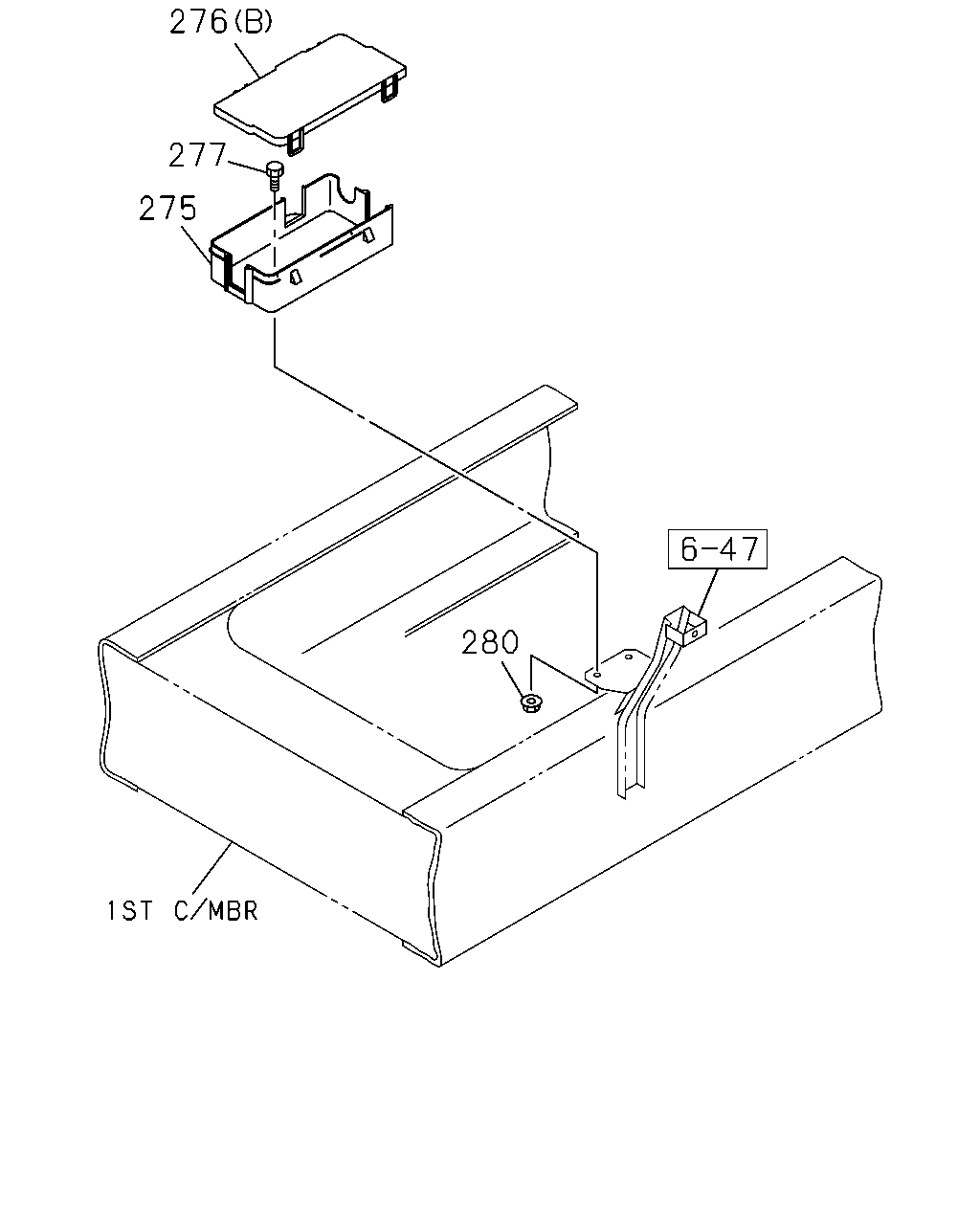

276 277 275 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
275	BOX ASM; FRAME HARNESS	1-82699-474-1	01	1	0407-0511			●
275	BOX ASM; FRAME HARNESS 6WF1 TC-C(1B8)	1-82699-474-2	01	1	0512-	●
276	COVER; BOX,FRAME HARNESS (B)	1-82699-475-2	01	1	0407-0511			●
276	COVER; BOX,FRAME HARNESS 6WF1 TC-C(1B8) (B)	1-82699-475-2	01	1	0512-	●
276	COVER; BOX,FRAME HARNESS (A)	1-82699-585-2	01	1	0407-0511			●
276	COVER; BOX,FRAME HARNESS (A)	1-82699-585-2	01	1	0512-	●	●
277	BOLT; BOX ASM FIX M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0407-0511			●
277	BOLT; BOX ASM FIX 6WF1 TC-C(1B8) M8X25 W/LK&PL WASHER	1-09030-027-0	02	1	0512-	●
280	NUT; BOX ASM FIX M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0407-0511			●
280	NUT; BOX ASM FIX 6WF1 TC-C(1B8) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0512-	●

199 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
199	HARNESS; STARTER 6WG1 TC-C(72L)	1-82641-368-2	01	1	0512-	●	●
199	HARNESS; STARTER	1-82641-329-3	01	1	0407-0511			●
199	HARNESS; STARTER 6WF1 TC-C(1B8)	1-82641-329-3	01	1	0512-	●
201	HARNESS; AIR TANK	1-82676-866-4	01	1	0407-0511			●
201	HARNESS; AIR TANK	1-82678-176-1	01	1	0512-	●	●

13 189 13 255 13 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	HARNESS; ENG (B)	1-82641-345-0	01	1	0512-0612	●
13	HARNESS; ENG (B)	8-97617-395-0	01	1	0701-1004	●
13	HARNESS; ENG (B)	8-98169-641-0	01	1	1005-	●
13	HARNESS; ENG (B)	8-97604-105-2	01	1	0512-0612	●	●
13	HARNESS; ENG (B)	8-97617-391-0	01	1	0701-	●	●
13	HARNESS; ENG (A)	1-82640-553-4	01	1	0407-0511			●
13	HARNESS; ENG (A)	1-82640-553-4	01	1	0512-	●	●
189	HARNESS; EXT	1-82641-217-1	01	1	0407-0511			●
255	HARNESS; ELEC GOV SMOOTHER-G(C1W) CAB UP +110MM<TGG>	1-82661-495-8	01	1	0407-0511			●
255	HARNESS; ELEC GOV 6WF1 TC-C(1B8)	1-82662-719-0	01	1	0512-	●
255	HARNESS; ELEC GOV CAB UP +110MM<TGG> EXC. SMOOTHER-G(C1W)	1-82661-494-8	01	1	0407-0511			●
255	HARNESS; ELEC GOV 6WG1 TC-C(72L)	1-82662-307-3	01	1	0512-1210	●	●
255	HARNESS; ELEC GOV 6WG1 TC-C(72L)	8-98229-084-0	01	1	1211-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
