◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-05 - INTERIOR LAMP ▶
8-05 — INTERIOR LAMP (#31412) — 77 parça

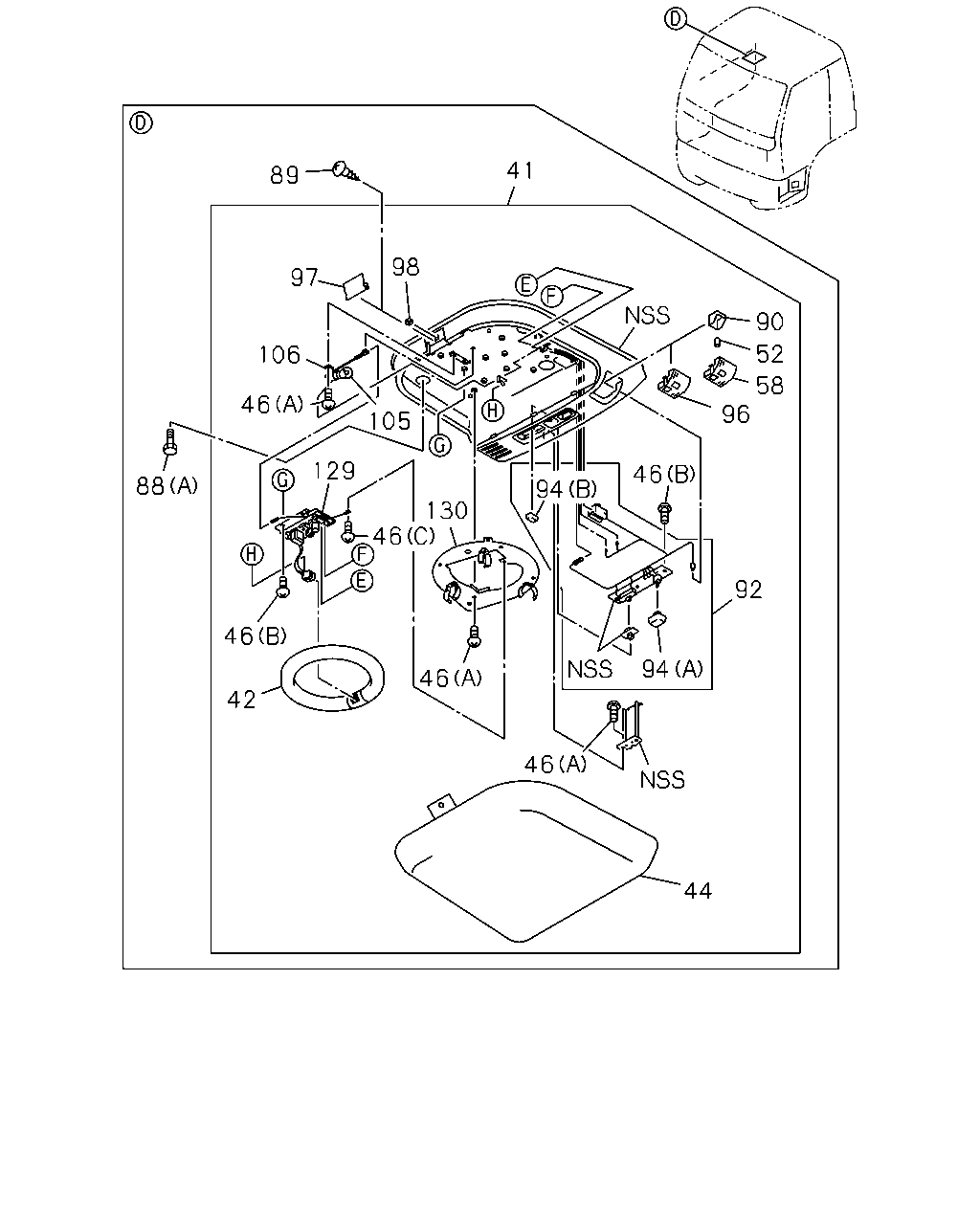

çizim 87109
41 89 98 97 90 52 106 58 96 46 105 129 46 88 94 130 46 92 46 94 46 42 46 44
BalonParca AdiParca NoAdetTipApplied Date A B C
41 LAMP ASM; FLUORESCENT
6WG1 TC-C(72L) 		1-86830-323-1 01 1 0512- ● ●
41 LAMP ASM; FLUORESCENT 1-86830-309-2 01 1 0407-0511 ●
41 LAMP ASM; FLUORESCENT
6WF1 TC-C(1B8) 		1-86830-309-2 01 1 0512- ●
42 LAMP; FLUORESCENT 1-86830-094-1 01 1 0407-0511 ●
42 LAMP; FLUORESCENT 1-86830-094-1 01 1 0512- ● ●
44 LENS; FLUORESCENT LAMP 1-86830-092-0 01 1 0407-0511 ●
44 LENS; FLUORESCENT LAMP 1-86830-092-0 01 1 0512- ● ●
46 SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING 		1-86830-095-0 08 1 0407-0511 ●
46 SCREW; FLUORESCENT LAMP
(A) M5X10 TAPPING 		1-86830-095-0 08 1 0512- ● ●
46 SCREW; FLUORESCENT LAMP
(B) M4X12 		1-86830-202-0 07 1 0407-0511 ●
46 SCREW; FLUORESCENT LAMP
(B) M4X12 		1-86830-202-0 07 1 0512- ● ●
46 SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING 		1-86830-336-0 01 1 0407-0511 ●
46 SCREW; FLUORESCENT LAMP
(C) M3X6 TAPPING 		1-86830-336-0 01 1 0512- ● ●
52 BULB; SPOT LAMP
28V 6W 		1-86830-090-0 01 1 0407-0511 ●
52 BULB; SPOT LAMP
6WF1 TC-C(1B8) 28V 6W 		1-86830-090-0 01 1 0512- ●
58 LENS; SPOT LAMP 1-86830-089-0 01 1 0407-0511 ●
58 LENS; SPOT LAMP
6WF1 TC-C(1B8) 		1-86830-089-0 01 1 0512- ●
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0407-0511 ●
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0512- ● ●
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0407-0511 ●
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0512- ● ●
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		9-07076-510-0 01 1 0407-0511 ●
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		9-07076-510-0 01 1 0512-0603 ● ●
89 SCREW; LENS,FLUORESCENT LAMP
M5X10 TAPPING 		0-71240-510-0 01 1 0604- ● ●
90 BASE; LAMP 1-86830-091-0 01 1 0407-0511 ●
90 BASE; LAMP
6WF1 TC-C(1B8) 		1-86830-091-0 01 1 0512- ●
92 SWITCH ASM; FLUORESCENT
6WF1 TC-C(1B8) 		1-86830-204-0 01 1 0512- ●
92 SWITCH ASM; FLUORESCENT 1-86830-341-0 01 1 0407-0511 ●
92 SWITCH ASM; FLUORESCENT
6WG1 TC-C(72L) 		1-86830-341-0 01 1 0512- ● ●
94 KNOB; ROOM LAMP SW
(A) 		1-86830-312-0 01 1 0407-0511 ●
94 KNOB; ROOM LAMP SW
(A) 		1-86830-312-0 01 1 0512- ● ●
94 KNOB; ROOM LAMP SW
(B) 		1-86830-313-0 01 1 0407-0511 ●
94 KNOB; ROOM LAMP SW
(B) 		1-86830-313-0 01 1 0512- ● ●
96 CAP; SPOT LAMP
6WG1 TC-C(72L) 		1-86830-385-0 01 1 0512- ● ●
97 CAP; LENS FIX 1-86830-311-0 01 1 0407-0511 ●
97 CAP; LENS FIX 1-86830-311-0 01 1 0512- ● ●
98 GROMMET; SCREW,LENS FIX 1-86830-102-0 01 1 0407-0511 ●
98 GROMMET; SCREW,LENS FIX 1-86830-102-0 01 1 0512- ● ●
105 BULB; FLUORESCENT LAMP
28V 20W 		1-86830-200-0 01 1 0407-0511 ●
105 BULB; FLUORESCENT LAMP
28V 20W 		1-86830-200-0 01 1 0512- ● ●
106 SOCKET; BULB 1-86830-201-0 01 1 0407-0511 ●
106 SOCKET; BULB 1-86830-201-0 01 1 0512- ● ●
129 INVERTER ASM; FLUORESCENT LAMP 1-86830-338-0 01 1 0407-0511 ●
129 INVERTER ASM; FLUORESCENT LAMP 1-86830-338-0 01 1 0512- ● ●
130 PLATE ASM; FLUORESCENT LAMP 1-86830-339-0 01 1 0407-0511 ●
130 PLATE ASM; FLUORESCENT LAMP 1-86830-339-0 01 1 0512- ● ●

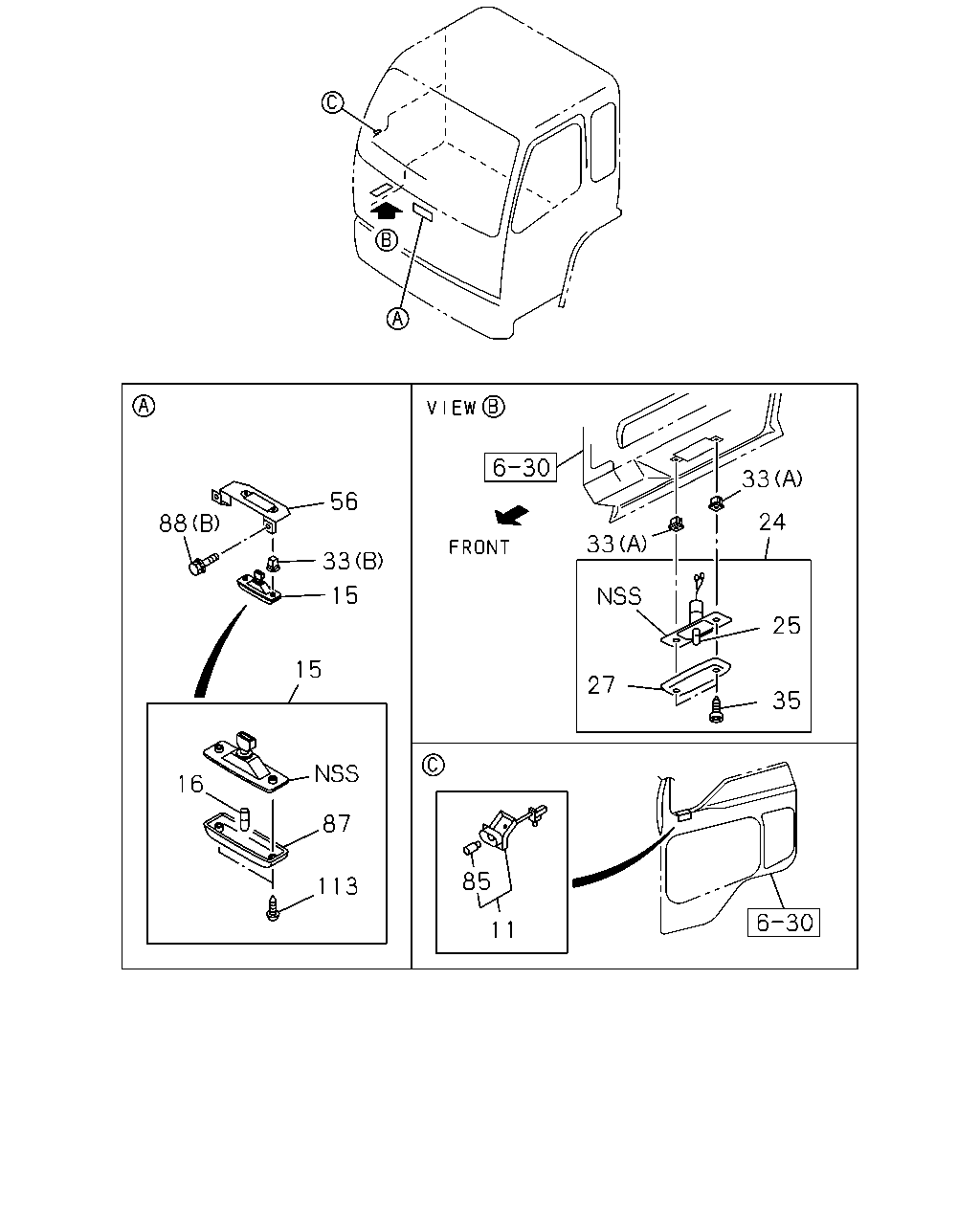

çizim 87333
33 56 24 88 33 33 15 25 15 27 35 16 87 85 113 11
BalonParca AdiParca NoAdetTipApplied Date A B C
11 LAMP ASM; ASH TRAY 1-76458-076-1 01 1 0407-0511 ●
11 LAMP ASM; ASH TRAY
6WG1 TC-C(72L) 		1-76458-076-1 01 1 0512- ● ●
15 LAMP; INSPECTION 1-82140-052-1 01 1 0407-0511 ●
15 LAMP; INSPECTION 1-82140-052-1 01 1 0512- ● ●
16 BULB; INSPECTION LAMP
24V 5W 		1-82194-042-0 01 1 0512- ● ●
16 BULB; INSPECTION LAMP
24V 5W 		1-82194-042-0 01 1 0407-0511 ●
24 LAMP; STEP 1-82140-052-1 01 1 0407-0511 ●
24 LAMP; STEP 1-82140-052-1 01 1 0512- ● ●
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 0407-0511 ●
25 BULB; STEP LAMP
24V 5W 		1-82194-042-0 01 1 0512- ● ●
27 LENS; STEP LAMP 1-82145-019-0 01 1 0407-0511 ●
27 LENS; STEP LAMP 1-82145-019-0 01 1 0512- ● ●
33 GROMMET; SCREW,LAMP
(B) 		1-09983-182-0 02 1 0407-0511 ●
33 GROMMET; SCREW,LAMP
(B) 		1-09983-182-0 02 1 0512- ● ●
33 GROMMET; SCREW,LAMP
(A) M4 		5-09470-002-0 02 1 0407-0511 ●
33 GROMMET; SCREW,LAMP
(A) M4 		5-09470-002-0 02 1 0512- ● ●
35 SCREW; STEP LAMP
M4X20 		1-82149-006-0 02 1 0407-0511 ●
35 SCREW; STEP LAMP
M4X20 		1-82149-006-0 02 1 0512- ● ●
56 BRACKET; LAMP 1-86830-302-1 01 1 0407-0511 ●
56 BRACKET; LAMP 1-86830-302-1 01 1 0512-1103 ● ●
56 BRACKET; LAMP 8-98121-191-0 01 1 1104- ● ●
85 BULB; ASH TRAY
24V 1.4W 		1-76457-041-0 01 1 0407-0511 ●
85 BULB; ASH TRAY
6WG1 TC-C(72L) 24V 1.4W 		1-76457-041-0 01 1 0512- ● ●
87 LENS; INSPECTION LAMP 1-82145-019-0 01 1 0407-0511 ●
87 LENS; INSPECTION LAMP 1-82145-019-0 01 1 0512- ● ●
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0407-0511 ●
88 BOLT; LAMP
(A) M6X16 W/LK&PL WASHER 		1-09980-574-0 04 1 0512- ● ●
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0407-0511 ●
88 BOLT; LAMP
(B) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0512- ● ●
113 SCREW; LAMP
M4X20 		1-82149-006-0 02 1 0512- ● ●
113 SCREW; LAMP
M4X20 		1-82149-006-0 02 1 0407-0511 ●
