8-03 — LAMP; REAR AND REAR SIDE (#31411) — 107 parça

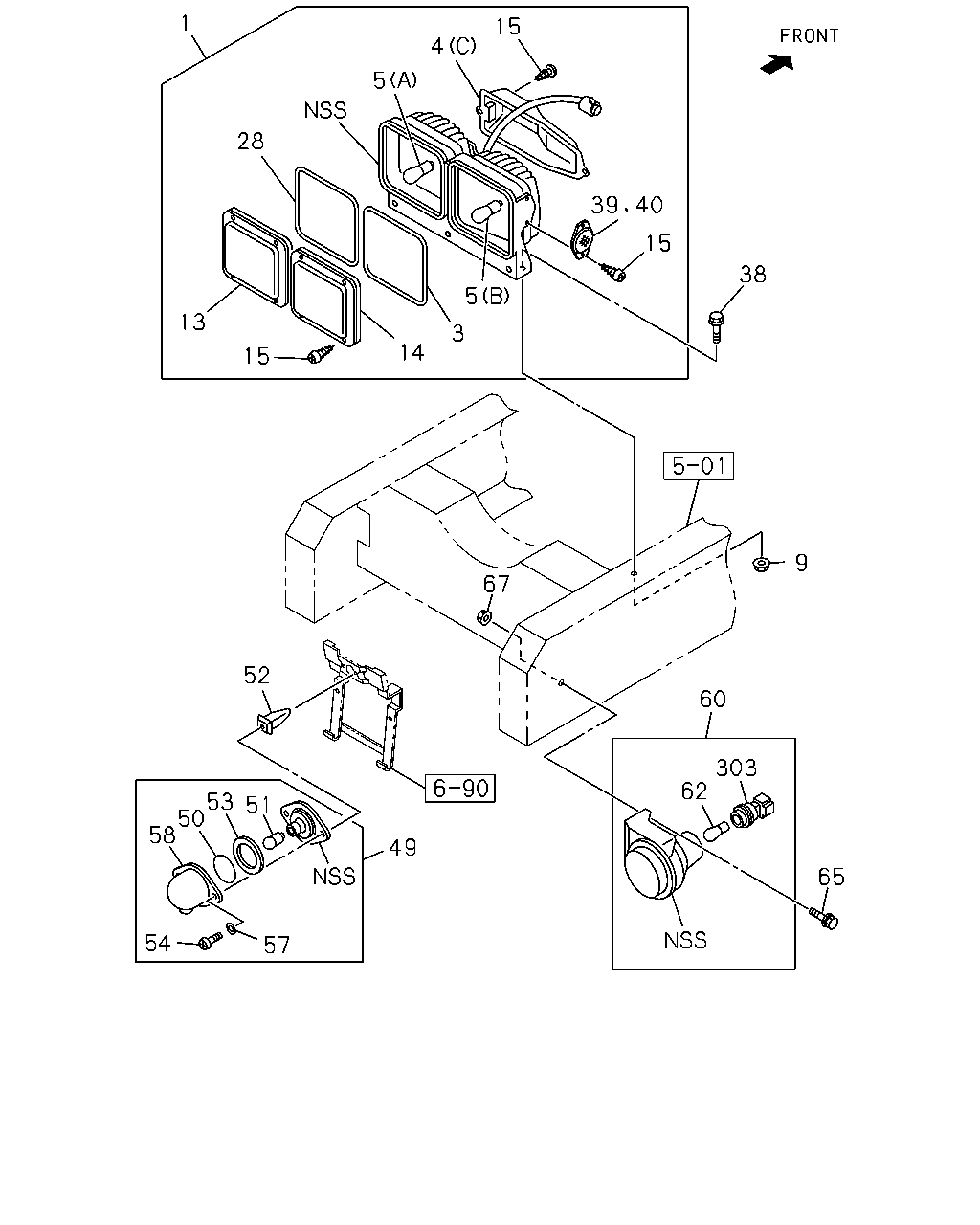

1 15 4 5 28 15 38 5 13 3 14 15 9 67 52 60 303 62 53 50 58 51 49 65 54 57 39 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; RR COMB	1-82230-159-2	01	1	0407-0511	●
1	LAMP ASM; RR COMB	1-82230-203-6	01	1	0512-		●	●
1	LAMP ASM; RR COMB	1-82230-160-2	01	1	0407-0511	●
1	LAMP ASM; RR COMB	1-82230-204-5	01	1	0512-		●	●
3	GASKET; RR COMB LAMP	1-82236-003-0	04	1	0407-0511	●
3	GASKET; RR COMB LAMP	1-82236-008-0	02	1	0512-		●	●
4	COVER; RR,RR COMB LAMP (A)	1-82239-033-0	02	1	0407-0511	●
4	COVER; RR,RR COMB LAMP (C)	1-82239-011-0	02	1	0512-		●	●
4	COVER; RR,RR COMB LAMP (B)	1-82239-034-0	02	1	0407-0511	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	02	1	0407-0511	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	0512-		●	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	0407-0511	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	02	1	0512-		●	●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
13	LENS; TURN SIGNAL	1-82235-016-0	02	1	0407-0511	●
13	LENS; TURN SIGNAL	1-82235-036-0	02	1	0512-		●	●
14	LENS; TAIL & STOP,RR COMB LAMP	1-82235-035-0	02	1	0512-		●	●
15	SCREW; RR COMB LAMP	1-82239-019-0	16	1	0407-0511	●
15	SCREW; RR COMB LAMP	1-82239-012-0	26	1	0512-		●	●
28	GASKET; TURN,LAMP	1-82236-008-0	02	1	0512-		●	●
38	BOLT; LAMP,RR COMB M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0407-0511	●
38	BOLT; LAMP,RR COMB M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	0512-		●	●
39	REFLECTOR; REFLEX RH	8-97608-772-0	01	1	0512-0609		●	●
39	REFLECTOR; REFLEX RH	8-97608-772-0	02	1	0610-		●	●
40	REFLECTOR; REFLEX	8-97608-772-0	01	1	0512-0609		●	●
49	LAMP; LICENSE PLATE 24V 10W	1-82120-024-0	01	1	0407-0511	●
49	LAMP; LICENSE PLATE	1-82120-020-1	01	1	0512-		●	●
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	0407-0511	●
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	0512-		●	●
51	BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	0407-0511	●
51	BULB; LICENSE PLATE LAMP 24V 12W	1-82194-030-0	01	1	0512-		●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0407-0511	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0512-		●	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0407-0511	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0512-		●	●
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	0407-0511	●
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	0512-		●	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0407-0511	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0512-		●	●
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	0407-0511	●
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	0512-		●	●
60	LAMP; BACKUP	1-82130-016-1	01	1	0407-0511	●
60	LAMP; BACKUP	1-82130-025-0	01	1	0512-		●	●
62	BULB; BACKUP LAMP 24V 25W	9-82691-347-0	01	1	0407-0511	●
62	BULB; BACKUP LAMP 24V 21W	1-82194-104-0	01	1	0512-		●	●
65	BOLT; LAMP,BACKUP M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0407-0511	●
65	BOLT; LAMP,BACKUP M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0512-0512		●	●
65	BOLT; LAMP,BACKUP M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-		●	●
67	NUT; FLANGE M10 FLANGE	0-91150-210-0	02	1	0407-0511	●
67	NUT; FLANGE M10 FLANGE	0-91150-210-0	02	1	0512-0602		●	●
67	NUT; FLANGE M10 FLANGE	0-91180-210-0	02	1	0603-		●	●
303	SOCKET ASM; BACKUP LAMP	1-82135-006-0	01	1	0512-		●	●

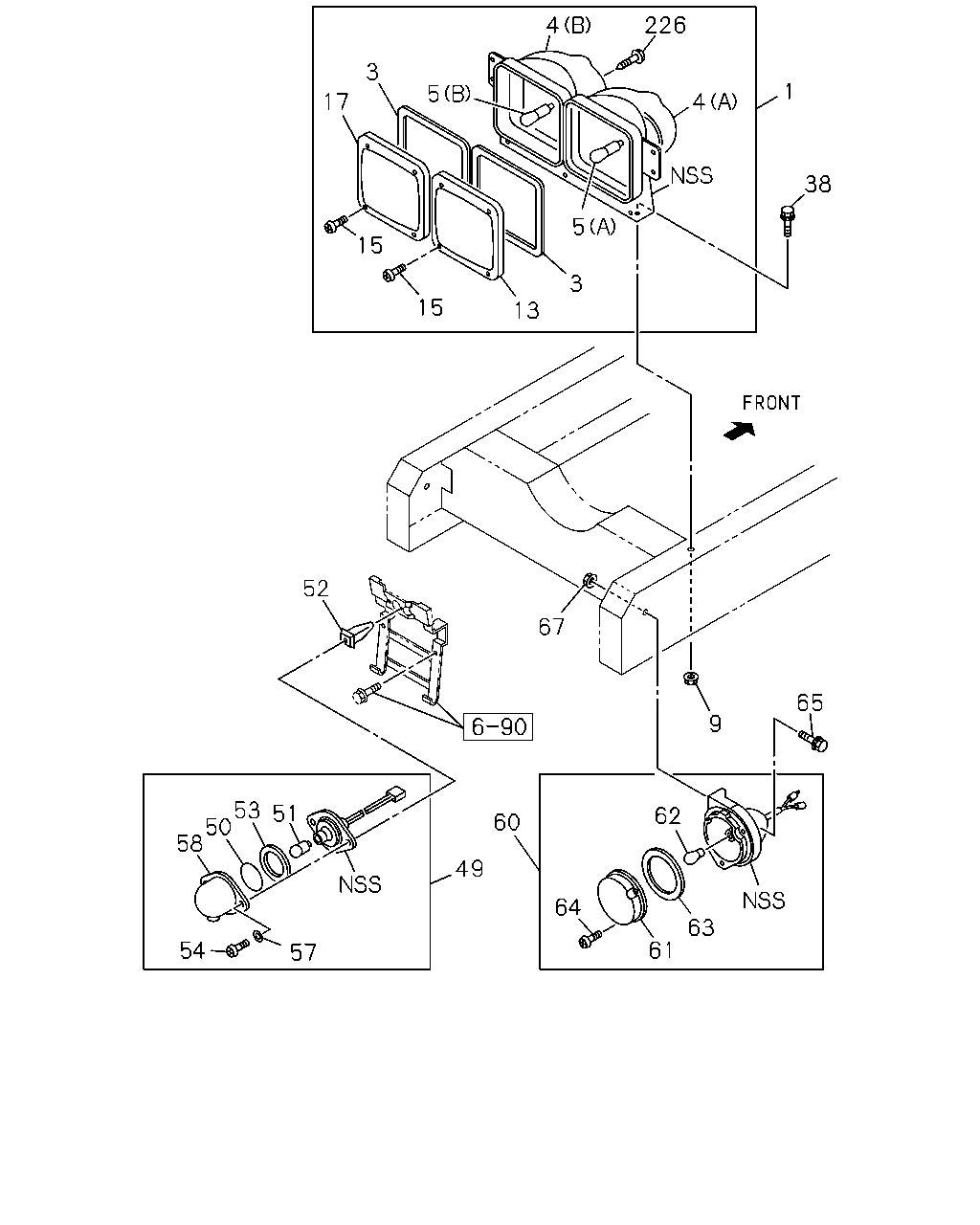

226 4 3 1 5 17 4 38 5 15 3 15 13 52 67 65 9 53 50 58 51 62 60 49 64 63 61 54 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; RR COMB	1-82230-159-2	01	1	0407-0511	●
1	LAMP ASM; RR COMB	1-82230-203-6	01	1	0512-		●	●
1	LAMP ASM; RR COMB	1-82230-160-2	01	1	0407-0511	●
1	LAMP ASM; RR COMB	1-82230-204-5	01	1	0512-		●	●
3	GASKET; RR COMB LAMP	1-82236-003-0	04	1	0407-0511	●
3	GASKET; RR COMB LAMP	1-82236-008-0	02	1	0512-		●	●
4	COVER; RR,RR COMB LAMP (A)	1-82239-033-0	02	1	0407-0511	●
4	COVER; RR,RR COMB LAMP (C)	1-82239-011-0	02	1	0512-		●	●
4	COVER; RR,RR COMB LAMP (B)	1-82239-034-0	02	1	0407-0511	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-036-0	02	1	0407-0511	●
5	BULB; RR COMB LAMP (A) 24V 21W	1-82194-108-0	02	1	0512-		●	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-038-0	02	1	0407-0511	●
5	BULB; RR COMB LAMP (B) 24V 21/5W	1-82194-109-0	02	1	0512-		●	●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91150-108-0	02	1	0407-0511	●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91150-108-0	02	1	0512-0602		●	●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91180-108-0	02	1	0603-		●	●
13	LENS; TURN SIGNAL	1-82235-016-0	02	1	0407-0511	●
13	LENS; TURN SIGNAL	1-82235-036-0	02	1	0512-		●	●
15	SCREW; RR COMB LAMP	1-82239-019-0	16	1	0407-0511	●
15	SCREW; RR COMB LAMP	1-82239-012-0	26	1	0512-		●	●
17	LENS; STOP,RR COMB LAMP	1-82235-002-0	02	1	0407-0511	●
38	BOLT; LAMP,RR COMB M8X40 W/LK&PL WASHER	0-50140-840-0	02	1	0407-0511	●
38	BOLT; LAMP,RR COMB M8X35 W/LK&PL WASHER	1-09030-073-0	02	1	0512-		●	●
49	LAMP; LICENSE PLATE 24V 10W	1-82120-024-0	01	1	0407-0511	●
49	LAMP; LICENSE PLATE	1-82120-020-1	01	1	0512-		●	●
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	0407-0511	●
50	LENS; LICENSE PLATE LAMP	1-82235-006-0	01	1	0512-		●	●
51	BULB; LICENSE PLATE LAMP 24V 10W	1-82194-037-0	01	1	0407-0511	●
51	BULB; LICENSE PLATE LAMP 24V 12W	1-82194-030-0	01	1	0512-		●	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0407-0511	●
52	GROMMET; SCREW,LICENSE PLATE LAMP D=7.8X7.8 L=18 M5 BLACK	8-94275-946-0	02	1	0512-		●	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0407-0511	●
53	GASKET; LICENSE LAMP	1-82126-005-0	01	1	0512-		●	●
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	0407-0511	●
54	SCREW; LICENSE PLATE LAMP M5X20	1-82129-007-0	02	1	0512-		●	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0407-0511	●
57	WASHER; PL,LICENSE PLATE LAMP	1-82129-008-0	02	1	0512-		●	●
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	0407-0511	●
58	COVER; LICENSE PLATE LAMP	1-82129-005-0	01	1	0512-		●	●
60	LAMP; BACKUP	1-82130-016-1	01	1	0407-0511	●
60	LAMP; BACKUP	1-82130-025-0	01	1	0512-		●	●
61	LENS; BACKUP LAMP	1-82135-003-0	01	1	0407-0511	●
62	BULB; BACKUP LAMP 24V 25W	9-82691-347-0	01	1	0407-0511	●
62	BULB; BACKUP LAMP 24V 21W	1-82194-104-0	01	1	0512-		●	●
63	GASKET; BACKUP LAMP	1-82136-002-0	01	1	0407-0511	●
64	SCREW; BACKUP LAMP	1-82139-002-0	03	1	0407-0511	●
65	BOLT; LAMP,BACKUP M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0407-0511	●
65	BOLT; LAMP,BACKUP M10X35 W/LK&PL WASHER	0-50141-035-0	02	1	0512-0512		●	●
65	BOLT; LAMP,BACKUP M10X35 W/LK&PL WASHER	0-50641-035-0	02	1	0601-		●	●
67	NUT; FLANGE M10 FLANGE	0-91150-210-0	02	1	0407-0511	●
67	NUT; FLANGE M10 FLANGE	0-91150-210-0	02	1	0512-0602		●	●
67	NUT; FLANGE M10 FLANGE	0-91180-210-0	02	1	0603-		●	●
226	SCREW; PROTECTOR	1-82239-032-0	08	1	0407-0511	●
