Sayfa 8-01 - Isuzu EPC

8-01 — LAMP; FRONT AND FRONT SIDE (#31410) — 357 parça

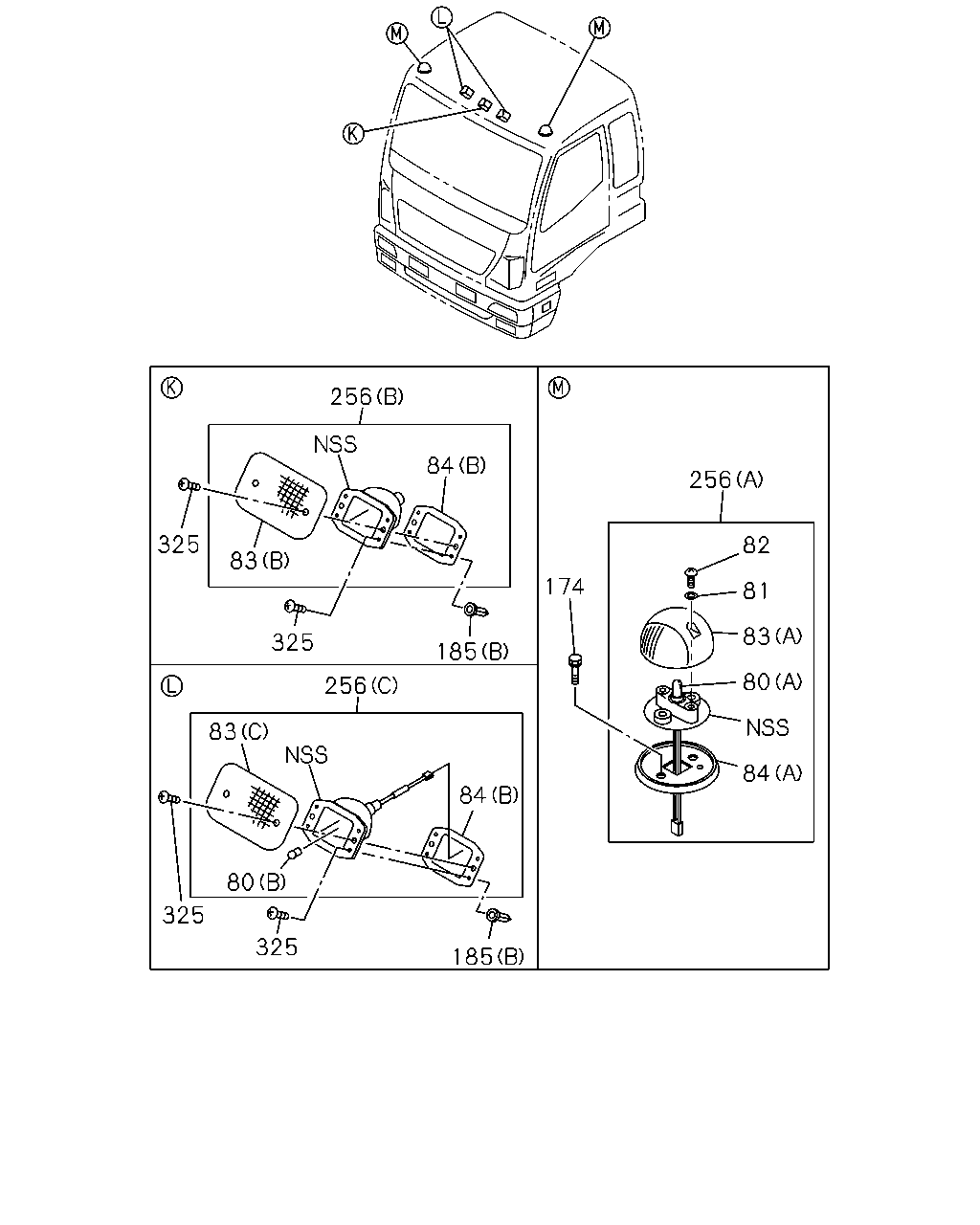

256 84 256 325 82 83 174 81 83 325 185 80 256 83 84 84 80 325 325 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
80	BULB; MARKER LAMP (A) 24V 5W	8-94135-397-0	02	1	0407-0511	●
80	BULB; MARKER LAMP (A) 24V 5W	8-94135-397-0	02	1	0512-		●	●
80	BULB; MARKER LAMP (B) 24V 12W	9-82691-302-0	02	1	0407-0511	●
80	BULB; MARKER LAMP (B) 24V 12W	9-82691-302-0	02	1	0512-		●	●
81	SEAT; SCREW	1-82219-012-0	04	1	0407-0511	●
81	SEAT; SCREW	1-82219-012-0	04	1	0512-		●	●
82	SCREW; MARKER LAMP	1-82219-011-0	04	1	0407-0511	●
82	SCREW; MARKER LAMP	1-82219-011-0	04	1	0512-		●	●
83	LENS; MARKER LAMP (A)	1-82215-048-0	02	1	0407-0511	●
83	LENS; MARKER LAMP (A)	1-82215-048-0	02	1	0512-		●	●
83	LENS; MARKER LAMP (C)	1-82215-068-0	02	1	0407-0511	●
83	LENS; MARKER LAMP (C)	1-82215-068-0	02	1	0512-		●	●
83	LENS; MARKER LAMP (B)	1-82215-069-0	01	1	0407-0511	●
83	LENS; MARKER LAMP (B)	1-82215-069-0	01	1	0512-		●	●
84	GASKET; MARKER LAMP (B)	1-86830-153-0	03	1	0407-0511	●
84	GASKET; MARKER LAMP (B)	1-86830-153-0	03	1	0512-		●	●
84	GASKET; MARKER LAMP (A)	1-86830-288-0	02	1	0407-0511	●
84	GASKET; MARKER LAMP (A)	1-86830-288-0	02	1	0512-		●	●
174	BOLT M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	0512-0512		●	●
174	BOLT M6X20 W/LK&PL WASHER	0-50640-620-0	04	1	0601-0601		●	●
174	BOLT M6X20 FLANGE	0-28650-620-0	04	1	0602-		●	●
174	BOLT M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0407-0511	●
174	BOLT M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0512-		●	●
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0407-0511	●
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0512-		●	●
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0407-0511	●
256	LAMP; MARKER (A)	1-86830-129-0	02	1	0407-0511	●
256	LAMP; MARKER (A)	1-86830-129-1	02	1	0512-		●	●
256	LAMP; MARKER (B)	1-86830-131-0	01	1	0407-0511	●
256	LAMP; MARKER (B)	1-86830-131-0	01	1	0512-		●	●
256	LAMP; MARKER (C)	1-86830-170-0	02	1	0407-0511	●
256	LAMP; MARKER (C)	1-86830-170-0	02	1	0512-		●	●
325	SCREW; SPD INDICATOR LAMP M5X14 TAPPING	9-07066-514-0	12	1	0512-0603		●	●
325	SCREW; SPD INDICATOR LAMP M5X14 TAPPING	0-71040-514-0	12	1	0604-		●	●
325	SCREW; SPD INDICATOR LAMP M5X20 TAPPING	0-71090-520-0	18	1	0407-0511	●
325	SCREW; SPD INDICATOR LAMP M5X20 TAPPING	0-71090-520-0	18	1	0512-		●	●

327 61 91 321 242 62 66 344 104 185 324 127 129 399 124 125 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
61	LAMP ASM; CORNERING 24V 30W	1-86830-187-2	01	1	0407-0511	●
61	LAMP ASM; CORNERING 24V 30W	1-86830-388-1	01	1	0512-		●	●
61	LAMP ASM; CORNERING 24V 30W	1-86830-188-2	01	1	0407-0511	●
61	LAMP ASM; CORNERING 24V 30W	1-86830-389-1	01	1	0512-		●	●
62	BULB; CORNERING LAMP 24V 30W	8-97010-179-0	02	1	0407-0511	●
62	BULB; CORNERING LAMP 24V 30W	8-97010-179-0	02	1	0512-		●	●
66	HARNESS; CORNERING LAMP	1-86830-146-0	02	1	0407-0511	●
66	HARNESS; CORNERING LAMP	1-86830-146-0	02	1	0512-		●	●
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0407-0511	●
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	0512-		●	●
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0407-0511	●
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0512-		●	●
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0407-0511	●
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-105-0	02	1	0512-		●	●
125	GASKET; FRT TURN SIGNAL	1-82216-033-0	02	1	0407-0511	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	0407-0511	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-074-0	01	1	0512-		●	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	0407-0511	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-073-0	01	1	0512-		●	●
129	SCREW; FRT TURN SIGNAL	1-82219-026-0	04	1	0407-0511	●
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0407-0511	●
185	GROMMET; SCREW (B) M5 SCREW GROMMET	1-09983-131-0	12	1	0512-		●	●
185	GROMMET; SCREW (A) D=9.7X9.7 L=8	8-94222-314-0	04	1	0407-0511	●
242	SCREW; CORNERING LAMP M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0407-0511	●
242	SCREW; CORNERING LAMP M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0512-		●	●
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0407-0511	●
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0512-		●	●
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	0407-0511	●
324	LAMP; FRT FLASHER	1-82210-259-1	01	1	0512-		●	●
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	0407-0511	●
324	LAMP; FRT FLASHER	1-82210-260-1	01	1	0512-		●	●
326	WASHER; PL,FRT TURN SIGNAL	1-82216-032-0	04	1	0407-0511	●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0407-0511	●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-264-2	01	1	0512-		●	●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0407-0511	●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-265-2	01	1	0512-		●	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0407-0511	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-266-2	01	1	0512-		●	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0407-0511	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-267-1	01	1	0512-		●	●
399	SOCKET; TURN SIGNAL	1-82219-034-0	02	1	0407-0511	●
399	SOCKET; TURN SIGNAL	1-82219-038-0	02	1	0512-		●	●

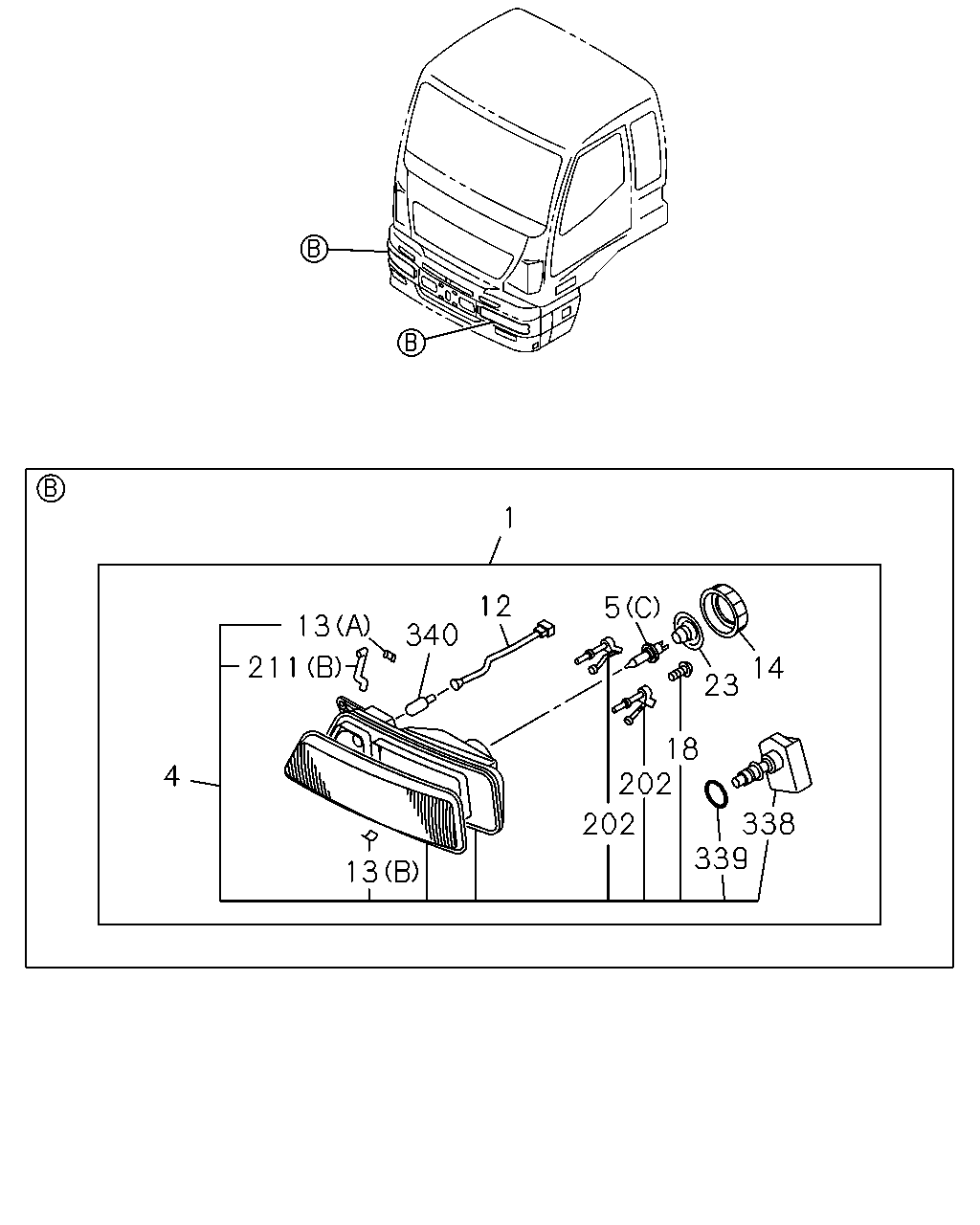

1 12 5 13 340 211 14 23 18 202 4 338 339 202 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82110-403-2	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98097-198-0	01	1	0712-		●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82110-404-2	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98097-199-0	01	1	0712-		●	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82110-435-0	01	1	0407-0509	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	8-98028-862-0	01	1	0510-0511	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-82110-461-1	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98097-188-0	01	1	0712-		●	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82110-436-0	01	1	0407-0509	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	8-98028-863-0	01	1	0510-0511	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-82110-462-1	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98097-189-0	01	1	0712-		●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82119-173-0	01	1	0512-		●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82119-174-0	01	1	0512-		●	●
4	HEADLAMP UNIT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-208-0	01	1	0407-0511	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-82119-214-0	01	1	0512-		●	●
4	HEADLAMP UNIT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-209-0	01	1	0407-0511	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-82119-215-0	01	1	0512-		●	●
5	BULB; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 85V 35W	1-82194-092-0	02	1	0407-0511	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (C) 24V 75/70W	1-82194-063-0	02	1	0512-		●	●
5	BULB; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 70W	8-94405-658-0	02	1	0407-0511	●
12	HARNESS; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82118-013-0	02	1	0407-0511	●
12	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5>	1-82118-014-0	02	1	0512-		●	●
13	CLIP; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	1-82119-084-0	04	1	0512-0711		●	●
13	CLIP; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A)	1-82119-084-0	02	1	0407-0509	●
13	CLIP; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A)	1-82119-084-0	04	1	0510-0511	●
13	CLIP; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> (A)	1-82119-084-0	02	1	0512-0711		●	●
13	CLIP; HEADLAMP HALOGEN HEADLAMPS<TT5> (A)	1-82119-084-0	02	1	0712-		●	●
13	CLIP; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	8-94381-588-0	14	1	0407-0511	●
13	CLIP; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-94381-588-0	14	1	0512-		●	●
14	CAP; BULB,LAMP HALOGEN HEADLAMPS<TT5>	1-86830-148-0	02	1	0512-		●	●
18	SCREW; GEAR CASE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M4X16 TAPPING	1-82119-067-0	08	1	0407-0511	●
18	SCREW; GEAR CASE HALOGEN HEADLAMPS<TT5> M4X16 TAPPING	1-82119-067-0	08	1	0512-		●	●
23	COVER; BULB,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-150-0	02	1	0407-0511	●
23	COVER; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	1-86830-147-0	02	1	0512-		●	●
202	GEAR UNIT; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-86830-139-0	04	1	0407-0511	●
202	GEAR UNIT; HEADLAMP HALOGEN HEADLAMPS<TT5>	1-86830-139-0	04	1	0512-		●	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	1-86830-414-0	01	1	0510-0511	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	1-86830-413-0	01	1	0510-0511	●
211	TUBE; HEADLAMP (A)	8-97025-128-0	02	1	0512-0906		●	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-86830-328-0	01	1	0407-0511	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	1-86830-330-0	01	1	0512-0711		●	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-98101-137-0	01	1	0712-		●	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-86830-329-0	01	1	0407-0511	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	1-86830-331-0	01	1	0512-0711		●	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-98101-138-0	01	1	0712-		●	●
338	LEVELING; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-86830-138-0	02	1	0407-0511	●
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98010-256-0	02	1	0512-		●	●
339	GASKET; LEVELING HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-86830-158-0	02	1	0407-0511	●
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-86830-158-0	02	1	0512-		●	●
340	BULB; POSITION HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 24V 5W	1-82194-042-0	02	1	0407-0511	●
340	BULB; POSITION HALOGEN HEADLAMPS<TT5> 24V 5W	1-82194-042-0	02	1	0512-		●	●

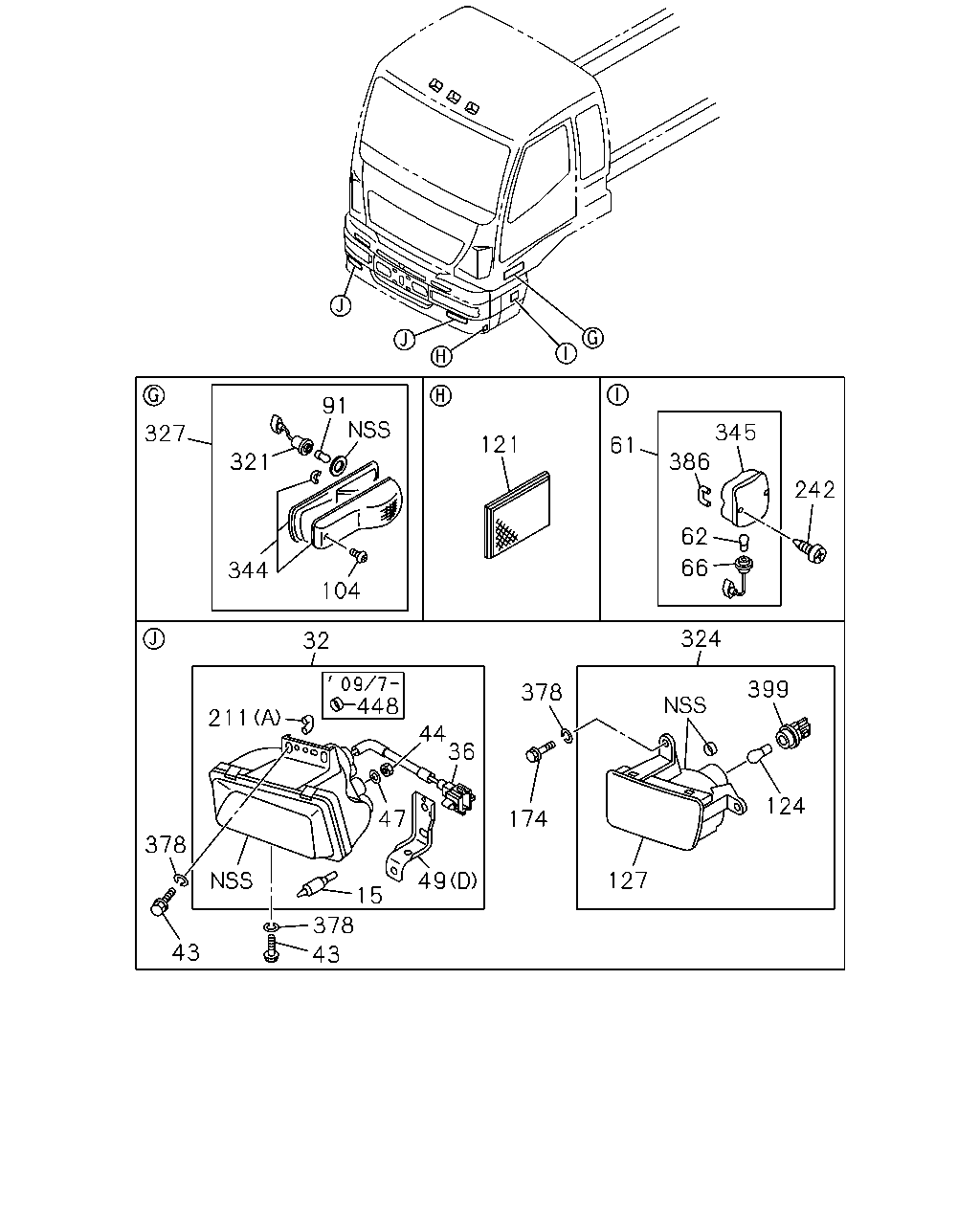

91 345 327 121 61 386 321 242 62 66 344 104 324 32 448 399 378 211 44 36 124 174 47 378 15 127 49 378 43 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	BULB; FOG LAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 24V 55W	1-82194-079-0	02	1	0407-0511	●
15	BULB; FOG LAMP 24V 55W	1-82194-110-0	02	1	0512-		●	●
32	LAMP ASM; FOG	1-82110-451-0	01	1	0512-0906		●	●
32	LAMP ASM; FOG	8-98149-141-1	01	1	0907-1301		●	●
32	LAMP ASM; FOG	8-98232-112-1	01	1	1302-		●	●
32	LAMP ASM; FOG	1-82110-452-0	01	1	0512-0906		●	●
32	LAMP ASM; FOG	8-98149-142-1	01	1	0907-1301		●	●
32	LAMP ASM; FOG	8-98232-057-1	01	1	1302-		●	●
36	CORD; FOG LAMP	1-82118-015-0	01	1	0512-		●	●
36	CORD; FOG LAMP	1-82118-016-0	01	1	0512-		●	●
43	BOLT; FOG LAMP M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	0512-0512		●
43	BOLT; FOG LAMP M6X20 W/LK&PL WASHER	0-50640-620-0	02	1	0601-0601		●
43	BOLT; FOG LAMP M6X20 FLANGE	0-28650-620-0	02	1	0602-		●
43	BOLT; FOG LAMP M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	0512-0512		●	●
43	BOLT; FOG LAMP M6X20 W/LK&PL WASHER	0-50640-620-0	04	1	0601-0601		●	●
43	BOLT; FOG LAMP M6X20 FLANGE	0-28650-620-0	04	1	0602-		●	●
43	BOLT; FOG LAMP M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	0512-0512			●
43	BOLT; FOG LAMP M8X20 W/LK&PL WASHER	0-50640-820-0	02	1	0601-0601			●
43	BOLT; FOG LAMP M8X20 FLANGE	0-28650-820-0	02	1	0602-			●
44	NUT; FOG LAMP M6	8-98217-430-0	02	1	1205-		●	●
47	WASHER; PL,FOG LAMP	8-98217-429-0	02	1	1205-		●	●
49	BRACKET; LAMP (D)	8-98051-437-0	01	1	0512-		●	●
49	BRACKET; LAMP (D)	8-98051-438-0	01	1	0512-		●	●
49	BRACKET; LAMP (C)	1-82117-176-0	01	1	0512-		●	●
49	BRACKET; LAMP (C)	1-82117-177-0	01	1	0512-		●	●
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0407-0511	●
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0512-		●	●
49	BRACKET; LAMP (B)	1-82117-101-0	01	1	0407-0511	●
49	BRACKET; LAMP (B)	1-82117-101-1	01	1	0512-		●	●
49	BRACKET; LAMP (B)	1-82117-102-0	01	1	0407-0511	●
49	BRACKET; LAMP (B)	1-82117-102-1	01	1	0512-		●	●
61	LAMP ASM; CORNERING 24V 30W	1-86830-187-2	01	1	0407-0511	●
61	LAMP ASM; CORNERING 24V 30W	1-86830-388-1	01	1	0512-		●	●
61	LAMP ASM; CORNERING 24V 30W	1-86830-188-2	01	1	0407-0511	●
61	LAMP ASM; CORNERING 24V 30W	1-86830-389-1	01	1	0512-		●	●
62	BULB; CORNERING LAMP 24V 30W	8-97010-179-0	02	1	0407-0511	●
62	BULB; CORNERING LAMP 24V 30W	8-97010-179-0	02	1	0512-		●	●
66	HARNESS; CORNERING LAMP	1-86830-146-0	02	1	0407-0511	●
66	HARNESS; CORNERING LAMP	1-86830-146-0	02	1	0512-		●	●
91	BULB; SIDE TURN SIGNAL 24V 12W	1-82194-030-0	02	1	0407-0511	●
91	BULB; SIDE TURN SIGNAL 24V 10W	1-82194-037-0	02	1	0512-		●	●
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0407-0511	●
104	SCREW; SIDE TURN SIGNAL	1-86830-149-0	02	1	0512-		●	●
121	REFLECTOR; REFLEX	8-98013-990-1	02	1	0512-		●	●
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-036-0	02	1	0407-0511	●
124	BULB; FRT TURN SIGNAL 24V 21W	1-82194-105-0	02	1	0512-		●	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-064-0	01	1	0407-0511	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-074-0	01	1	0512-		●	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-065-0	01	1	0407-0511	●
127	LENS; FRT TURN SIGNAL ORANGE	1-82215-073-0	01	1	0512-		●	●
174	BOLT M6X20 W/LK&PL WASHER	0-50140-620-0	04	1	0512-0512		●	●
174	BOLT M6X20 W/LK&PL WASHER	0-50640-620-0	04	1	0601-0601		●	●
174	BOLT M6X20 FLANGE	0-28650-620-0	04	1	0602-		●	●
174	BOLT M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0407-0511	●
174	BOLT M6X28 W/LK&PL WASHER	1-09980-543-0	04	1	0512-		●	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	1-86830-414-0	01	1	0510-0511	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	1-86830-413-0	01	1	0510-0511	●
211	TUBE; HEADLAMP (A)	8-97025-128-0	02	1	0512-0906		●	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-86830-328-0	01	1	0407-0511	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	1-86830-330-0	01	1	0512-0711		●	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-98101-137-0	01	1	0712-		●	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-86830-329-0	01	1	0407-0511	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	1-86830-331-0	01	1	0512-0711		●	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-98101-138-0	01	1	0712-		●	●
242	SCREW; CORNERING LAMP M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0407-0511	●
242	SCREW; CORNERING LAMP M4X20 TAPPING STAINLESS	0-71090-420-0	04	1	0512-		●	●
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0407-0511	●
321	HARNESS; SIDE FLASHER LAMP	1-86830-253-0	02	1	0512-		●	●
324	LAMP; FRT FLASHER	1-82210-202-1	01	1	0407-0511	●
324	LAMP; FRT FLASHER	1-82210-259-1	01	1	0512-		●	●
324	LAMP; FRT FLASHER	1-82210-203-1	01	1	0407-0511	●
324	LAMP; FRT FLASHER	1-82210-260-1	01	1	0512-		●	●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-007-6	01	1	0407-0511	●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-264-2	01	1	0512-		●	●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-011-6	01	1	0407-0511	●
327	LAMP ASM; SIDE TURN SIGNAL	1-86830-265-2	01	1	0512-		●	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-240-1	01	1	0407-0511	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-266-2	01	1	0512-		●	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-241-1	01	1	0407-0511	●
344	LAMP UNIT; SIDE TURN SIGNAL	1-86830-267-1	01	1	0512-		●	●
345	LAMP UNIT; CORNERING	8-98004-041-0	01	1	0512-		●	●
345	LAMP UNIT; CORNERING	8-98004-042-0	01	1	0512-		●	●
378	WASHER; PL ID=6.4 OD=14	9-09160-606-0	02	1	0602-0605		●
378	WASHER; PL ID=6.4	0-91610-606-0	02	1	0606-		●
378	WASHER; PL ID=6.4 OD=14	9-09160-606-0	08	1	0602-0605		●	●
378	WASHER; PL ID=6.4	0-91610-606-0	08	1	0606-		●	●
386	TUBE; CORNERING LAMP	8-94451-175-0	02	1	0512-		●	●
399	SOCKET; TURN SIGNAL	1-82219-034-0	02	1	0407-0511	●
399	SOCKET; TURN SIGNAL	1-82219-038-0	02	1	0512-		●	●
448	CAP ASM; LAMP	8-97378-874-0	02	1	0907-		●	●

1 13 211 15 12 385 383 384 135 23 13 211 5 5 338 339 18 13 307 202 340 382 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82110-403-2	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98097-198-0	01	1	0712-		●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82110-404-2	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98097-199-0	01	1	0712-		●	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82110-435-0	01	1	0407-0509	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	8-98028-862-0	01	1	0510-0511	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-82110-461-1	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98097-188-0	01	1	0712-		●	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82110-436-0	01	1	0407-0509	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	8-98028-863-0	01	1	0510-0511	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-82110-462-1	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98097-189-0	01	1	0712-		●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82119-173-0	01	1	0512-		●	●
4	HEADLAMP UNIT HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82119-174-0	01	1	0512-		●	●
4	HEADLAMP UNIT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-208-0	01	1	0407-0511	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-82119-214-0	01	1	0512-		●	●
4	HEADLAMP UNIT HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-209-0	01	1	0407-0511	●
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-82119-215-0	01	1	0512-		●	●
5	BULB; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B) 85V 35W	1-82194-092-0	02	1	0407-0511	●
5	BULB; HEADLAMP HALOGEN HEADLAMPS<TT5> (C) 24V 75/70W	1-82194-063-0	02	1	0512-		●	●
5	BULB; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A) 24V 70W	8-94405-658-0	02	1	0407-0511	●
12	HARNESS; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82118-013-0	02	1	0407-0511	●
12	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5>	1-82118-014-0	02	1	0512-		●	●
13	CLIP; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A)	1-82119-084-0	04	1	0512-0711		●	●
13	CLIP; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A)	1-82119-084-0	02	1	0407-0509	●
13	CLIP; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (A)	1-82119-084-0	04	1	0510-0511	●
13	CLIP; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5> (A)	1-82119-084-0	02	1	0512-0711		●	●
13	CLIP; HEADLAMP HALOGEN HEADLAMPS<TT5> (A)	1-82119-084-0	02	1	0712-		●	●
13	CLIP; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	8-94381-588-0	14	1	0407-0511	●
13	CLIP; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-94381-588-0	14	1	0512-		●	●
15	BULB; FOG LAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 24V 55W	1-82194-079-0	02	1	0407-0511	●
15	BULB; FOG LAMP 24V 55W	1-82194-110-0	02	1	0512-		●	●
18	SCREW; GEAR CASE HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M4X16 TAPPING	1-82119-067-0	08	1	0407-0511	●
18	SCREW; GEAR CASE HALOGEN HEADLAMPS<TT5> M4X16 TAPPING	1-82119-067-0	08	1	0512-		●	●
23	COVER; BULB,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-150-0	02	1	0407-0511	●
23	COVER; BULB,HEADLAMP HALOGEN HEADLAMPS<TT5>	1-86830-147-0	02	1	0512-		●	●
135	ADAPTER; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-149-0	02	1	0407-0511	●
202	GEAR UNIT; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-86830-139-0	04	1	0407-0511	●
202	GEAR UNIT; HEADLAMP HALOGEN HEADLAMPS<TT5>	1-86830-139-0	04	1	0512-		●	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	1-86830-414-0	01	1	0510-0511	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (C)	1-86830-413-0	01	1	0510-0511	●
211	TUBE; HEADLAMP (A)	8-97025-128-0	02	1	0512-0906		●	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-86830-328-0	01	1	0407-0511	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	1-86830-330-0	01	1	0512-0711		●	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-98101-137-0	01	1	0712-		●	●
211	TUBE; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> (B)	1-86830-329-0	01	1	0407-0511	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	1-86830-331-0	01	1	0512-0711		●	●
211	TUBE; HEADLAMP HALOGEN HEADLAMPS<TT5> (B)	8-98101-138-0	01	1	0712-		●	●
307	SCREW; TAPPING,HEAD LAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> M4X16 TAPPING	1-82119-067-0	02	1	0407-0511	●
338	LEVELING; HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-86830-138-0	02	1	0407-0511	●
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98010-256-0	02	1	0512-		●	●
339	GASKET; LEVELING HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-86830-158-0	02	1	0407-0511	●
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-86830-158-0	02	1	0512-		●	●
340	BULB; POSITION HEADLAMPS HIGH INTENSITY DISCHARGE<TGR> 24V 5W	1-82194-042-0	02	1	0407-0511	●
340	BULB; POSITION HALOGEN HEADLAMPS<TT5> 24V 5W	1-82194-042-0	02	1	0512-		●	●
382	PLUG; SOCKET,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-193-0	02	1	0407-0511	●
383	STARTER ASM; DISCHARGE,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-183-1	01	1	0407-0511	●
383	STARTER ASM; DISCHARGE,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-184-1	01	1	0407-0511	●
384	GASKET; DISCHARGE,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-152-0	02	1	0407-0511	●
385	SCREW; DISCHARGE,HEADLAMP HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82119-203-0	06	1	0407-0511	●

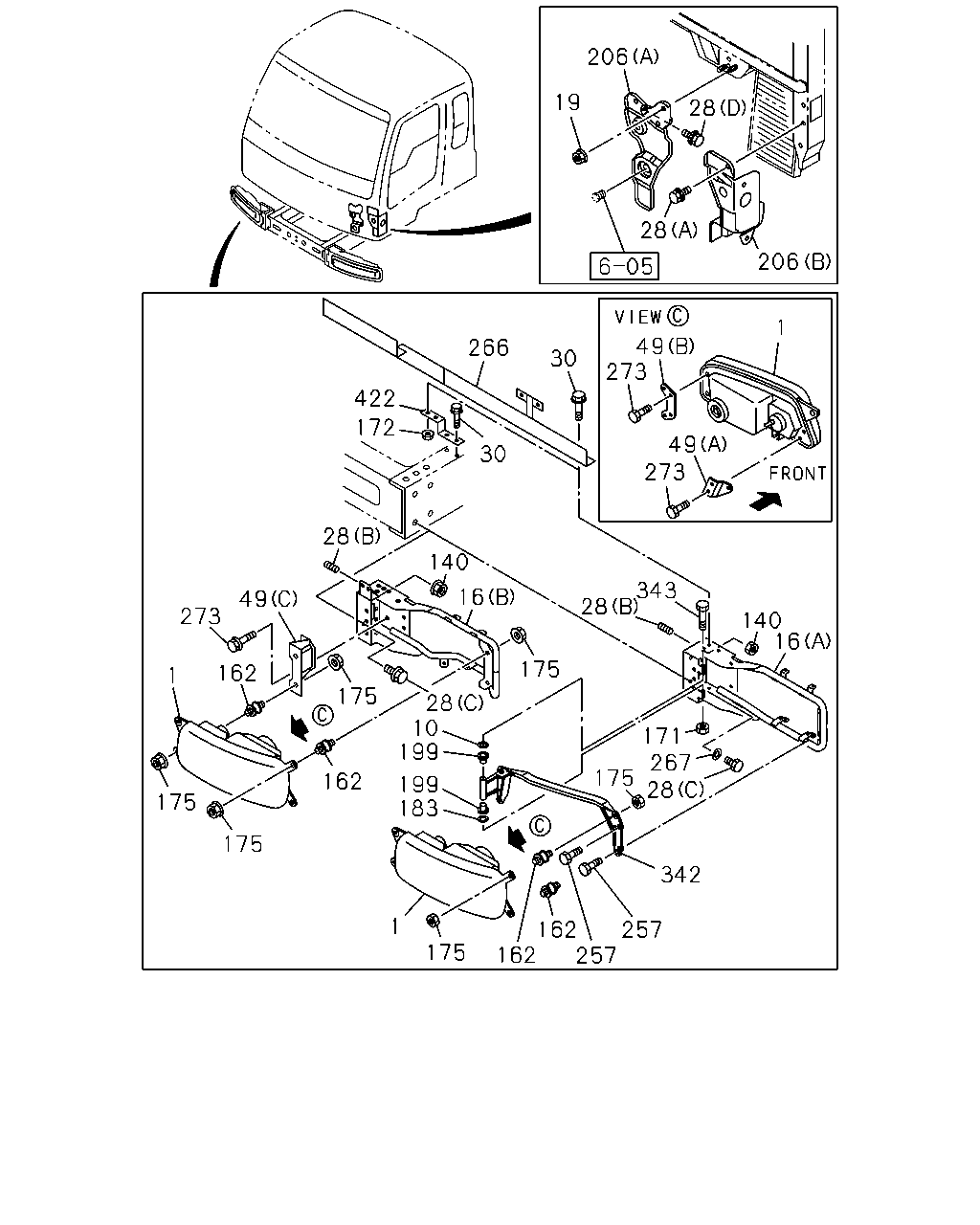

206 19 28 28 206 1 49 273 266 30 422 172 49 273 30 28 140 343 28 16 49 273 140 16 175 162 1 28 10 199 175 171 267 28 175 162 199 183 175 175 342 1 162 257 162 257 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82110-403-2	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98097-198-0	01	1	0712-		●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-82110-404-2	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98097-199-0	01	1	0712-		●	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82110-435-0	01	1	0407-0509	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	8-98028-862-0	01	1	0510-0511	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-82110-461-1	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98097-188-0	01	1	0712-		●	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	1-82110-436-0	01	1	0407-0509	●
1	LAMP ASM; HEAD HEADLAMPS HIGH INTENSITY DISCHARGE<TGR>	8-98028-863-0	01	1	0510-0511	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	1-82110-462-1	01	1	0512-0711		●	●
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98097-189-0	01	1	0712-		●	●
10	WASHER; PL,HEADLAMP RIM ID=8.4	9-09160-508-0	02	1	0407-0511	●
16	BRACKET; HEADLAMP (B)	8-97608-506-2	01	1	0512-		●	●
16	BRACKET; HEADLAMP (A)	1-82117-155-2	02	1	0407-0511	●
16	BRACKET; HEADLAMP (B)	8-97608-505-1	01	1	0512-		●	●
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0407-0511	●
19	NUT; HEADLAMP M8 CUTTING NUT W/FLANGE	1-09985-340-0	04	1	0512-		●	●
28	BOLT; HEADLAMP (C) M10X30 FLANGE	0-28681-030-0	06	1	0407-0511	●
28	BOLT; HEADLAMP (C) M10X30 FLANGE	0-28681-030-0	06	1	0512-0512		●	●
28	BOLT; HEADLAMP (C) M10X30 FLANGE	0-28651-030-0	06	1	0601-		●	●
28	BOLT; HEADLAMP (B) M10X28,M10X15 L=50	5-09300-050-0	02	1	0407-0511	●
28	BOLT; HEADLAMP (B) M10X28,M10X15 L=50	5-09300-050-0	02	1	0512-		●	●
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0407-0511	●
28	BOLT; HEADLAMP (A) M6X19.5 W/LK&PL WASHER	8-94279-201-0	06	1	0512-		●	●
28	BOLT; HEADLAMP (D) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0407-0511	●
28	BOLT; HEADLAMP (D) M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0512-		●	●
30	BOLT; STAY 6WF1 TC-C(1B8) M8X25 FLANGE	0-28680-825-0	02	1	0512-0512		●
30	BOLT; STAY 6WF1 TC-C(1B8) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
30	BOLT; STAY CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	04	1	0407-0511	●
30	BOLT; STAY 6WF1 TC-C(1B8) M10X25 FLANGE	0-28681-025-0	04	1	0512-0512		●
30	BOLT; STAY 6WF1 TC-C(1B8) M10X25 FLANGE	0-28651-025-0	04	1	0601-		●
49	BRACKET; LAMP (D)	8-98051-437-0	01	1	0512-		●	●
49	BRACKET; LAMP (D)	8-98051-438-0	01	1	0512-		●	●
49	BRACKET; LAMP (C)	1-82117-176-0	01	1	0512-		●	●
49	BRACKET; LAMP (C)	1-82117-177-0	01	1	0512-		●	●
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0407-0511	●
49	BRACKET; LAMP (A)	1-82117-100-0	02	1	0512-		●	●
49	BRACKET; LAMP (B)	1-82117-101-0	01	1	0407-0511	●
49	BRACKET; LAMP (B)	1-82117-101-1	01	1	0512-		●	●
49	BRACKET; LAMP (B)	1-82117-102-0	01	1	0407-0511	●
49	BRACKET; LAMP (B)	1-82117-102-1	01	1	0512-		●	●
140	NUT M10 FLANGE	0-91150-210-0	02	1	0407-0511	●
140	NUT M10 FLANGE	0-91150-210-0	02	1	0512-0602		●	●
140	NUT M10 FLANGE	0-91180-210-0	02	1	0603-		●	●
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	0407-0511	●
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	0512-		●	●
171	NUT M6 FLANGE	0-91150-106-0	02	1	0407-0511	●
172	NUT; STAY 6WF1 TC-C(1B8) M8 FLANGE	0-91150-108-0	02	1	0512-0602		●
172	NUT; STAY 6WF1 TC-C(1B8) M8 FLANGE	0-91180-108-0	02	1	0603-		●
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91150-108-0	16	1	0407-0511	●
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91150-108-0	16	1	0512-0602		●	●
175	NUT; BRKT CUSHION RUBBER M8 FLANGE	0-91180-108-0	16	1	0603-		●	●
183	WASHER; HEADLAMP ID=8.5	9-09855-333-0	02	1	0407-0511	●
199	BUSHING	5-15549-001-1	04	1	0407-0511	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0407-0511	●
206	HOLDER; HEADLAMP (A)	1-65671-569-5	01	1	0512-		●	●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0407-0511	●
206	HOLDER; HEADLAMP (A)	1-65671-570-6	01	1	0512-		●	●
206	HOLDER; HEADLAMP (B)	1-65671-761-3	01	1	0407-0511	●
206	HOLDER; HEADLAMP (B)	1-65671-761-3	01	1	0512-		●	●
206	HOLDER; HEADLAMP (B)	1-65671-762-3	01	1	0407-0511	●
206	HOLDER; HEADLAMP (B)	1-65671-762-3	01	1	0512-		●	●
257	BOLT; BRKT HD LAMP M8X20 FLANGE	0-28080-820-0	04	1	0407-0511	●
266	STAY; BRKT,HEADLAMP CAB UP +110MM<TGG>	1-82117-154-2	01	1	0407-0510	●
266	STAY; BRKT,HEADLAMP CAB UP +110MM<TGG>	1-82117-182-0	01	1	0511-0511	●
266	STAY; BRKT,HEADLAMP 6WF1 TC-C(1B8)	1-82117-182-0	01	1	0512-		●
267	WASHER; PL,STAY CAB UP +110MM<TGG> ID=10.5 OD=22	9-09164-610-0	04	1	0407-0511	●
273	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	04	1	0512-0512		●	●
273	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	04	1	0601-		●	●
273	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	08	1	0407-0511	●
273	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	08	1	0512-0512		●	●
273	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	08	1	0601-		●	●
342	HINGE; LAMP	1-82117-087-2	01	1	0407-0511	●
342	HINGE; LAMP	1-82117-088-2	01	1	0407-0511	●
343	SHAFT; HINGE	1-82119-096-1	02	1	0407-0511	●
422	BRACKET; HEADLAMP STAY 6WF1 TC-C(1B8)	1-82698-605-0	02	1	0512-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
