Isuzu WW
▶
BUSES
▶
MT
▶
10662 - MT(THAI)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND BATTERY CABLE
▶

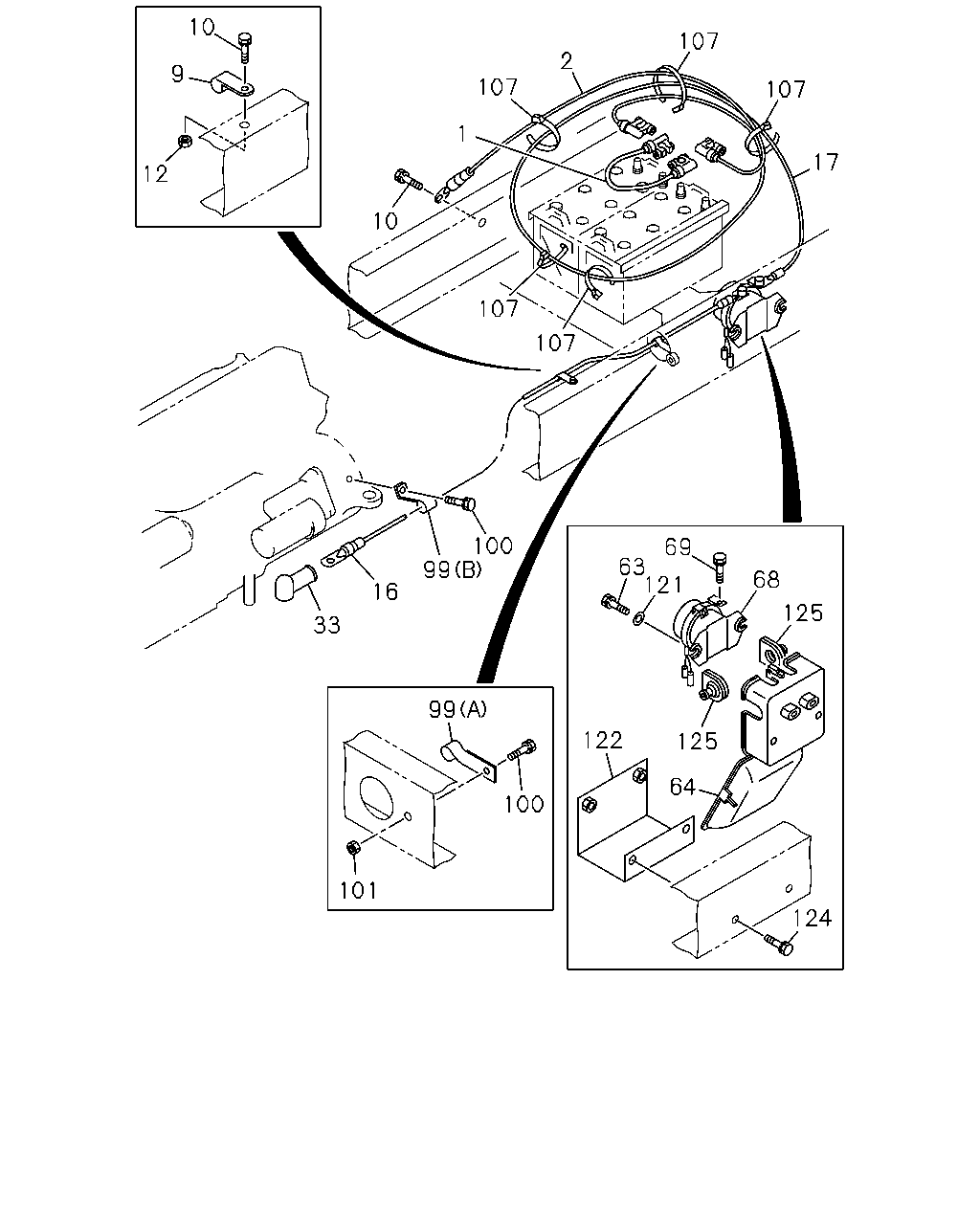

0-61 — BATTERY AND BATTERY CABLE
(#3141) — 33 parça
10
107
2
9
107
107
1
17
12
10
107
107
100
99
69
63
121
68
16
125
33
99
122
125
64
100
101
124
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=700
1-82652-199-0
01
1
9104-
2
CABLE; BATTERY
L=1400
1-82652-198-0
01
1
9104-
9
CLIP; BATTERY CABLE
ID=19 L=60
9-09525-896-0
14
1
9104-
10
BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER
9-01900-820-0
01
1
9104-9204
10
BOLT; BATTERY CABLE CLIP
M8X20 W/LK WASHER
0-50040-820-0
01
1
9205-9212
10
BOLT; BATTERY CABLE CLIP
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
9301-
10
BOLT; BATTERY CABLE CLIP
M8X25 W/LK WASHER
9-01900-825-0
14
1
9104-9204
10
BOLT; BATTERY CABLE CLIP
M8X25 W/LK WASHER
0-50040-825-0
14
1
9205-
12
NUT; BATTERY CABLE CLIP
M8
9-09110-408-0
14
1
9104-
16
CABLE; STARTER TO RELAY
L=6440
1-82652-558-0
01
1
9104-
17
CABLE; BATTERY (+) TO RELAY
L=2600
1-82652-167-0
01
1
9104-
33
CAP; INSULATOR
1-82699-205-0
01
1
9104-
63
BOLT; RELAY BATTERY
M8X40 W/LK WASHER
9-01900-840-0
02
1
9104-9204
63
BOLT; RELAY BATTERY
M8X40 W/LK WASHER
0-50040-840-0
02
1
9205-
64
BOX; BATTERY RELAY
1-81809-012-2
01
1
9104-
68
RELAY; BATTERY
1-82550-248-0
01
1
9104-9108
68
RELAY; BATTERY
1-82550-226-0
01
1
9109-
69
BOLT; CABLE BATTERY
M8X18 W/LK WASHER
9-01900-818-0
02
1
9104-9204
69
BOLT; CABLE BATTERY
M8X18 W/LK WASHER
0-50040-818-0
02
1
9205-9404
69
BOLT; CABLE BATTERY
M8X20 W/LK&PL WASHER
0-50140-820-0
02
1
9405-
99
CLIP; BATTERY CABLE
(B) ID=17 H=50
1-09700-083-0
01
1
9104-
99
CLIP; BATTERY CABLE
(A) ID=19 L=58
1-09700-733-1
05
1
9104-
100
BOLT; BATTERY CABLE CLIP
M8X25 W/LK WASHER
9-01900-825-0
01
1
9104-9204
100
BOLT; BATTERY CABLE CLIP
M8X25 W/LK WASHER
0-50040-825-0
01
1
9205-
100
BOLT; BATTERY CABLE CLIP
M8X25 W/LK WASHER
9-01900-825-0
05
1
9104-9204
100
BOLT; BATTERY CABLE CLIP
M8X25 W/LK WASHER
0-50040-825-0
05
1
9205-
101
NUT; BATTERY CABLE CLIP
M8
9-09110-408-0
05
1
9104-
107
CLIP; BAND
L=250
5-09707-030-1
05
1
9104-
121
WASHER; PL,RELAY,BATTERY
ID=8.4 OD=22
9-09160-708-0
04
1
9104-
122
BRACKET; BATTERY RELAY
1-53618-038-0
01
1
9104-
124
BOLT; RELAY,BATTERY
M10X30 W/LK WASHER
0-50041-030-0
02
1
9104-
125
GROMMET; CABLE BATTERY
ID=28 H=45 L=30
1-09333-061-0
02
1
9104-
162
WASHER; PL,CABLE,BATTERY
ID=8.4 OD=18
9-09164-608-0
02
1
9405-
