7-70 — SEPARATER AND BED (#31409) — 90 parça

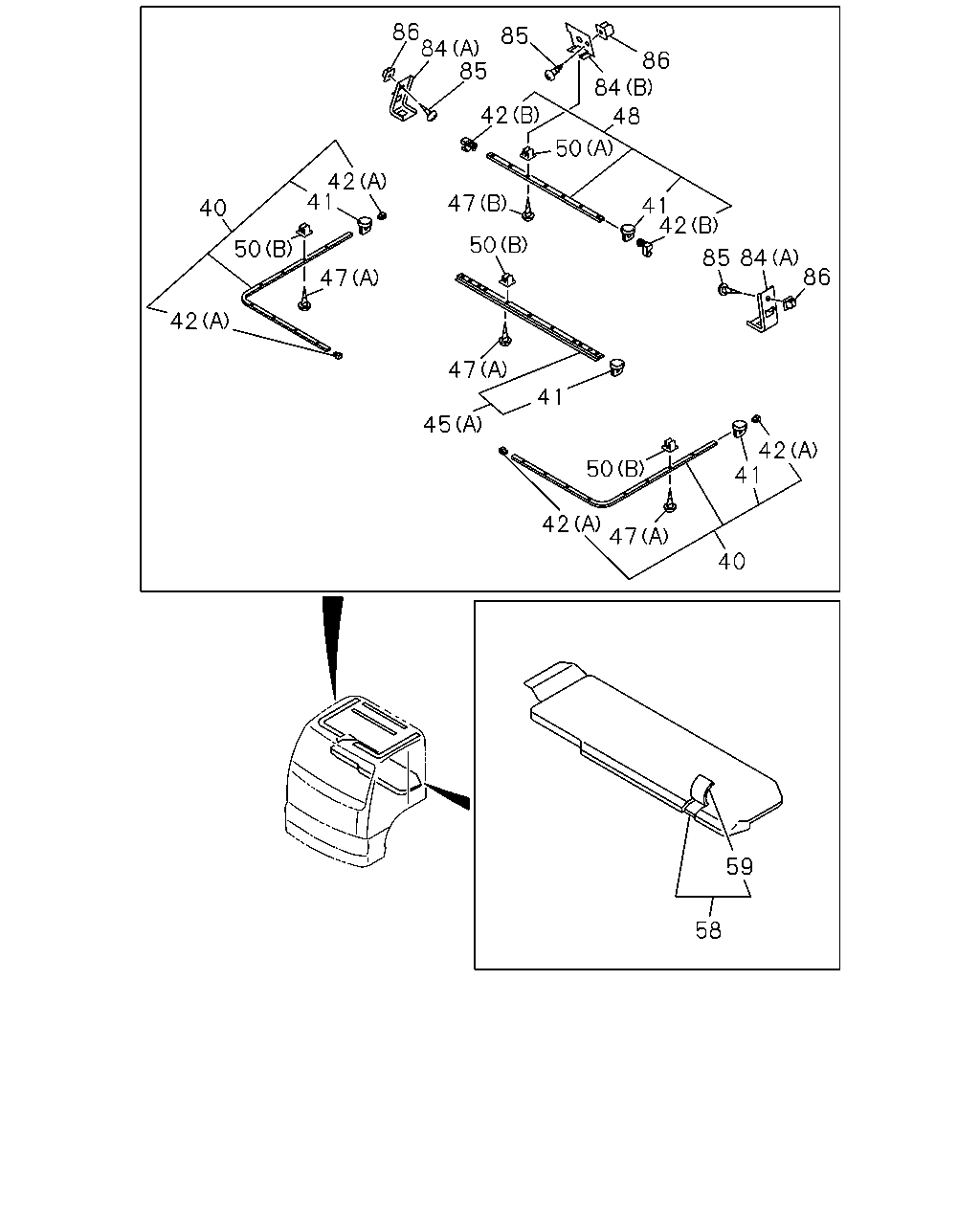

86 84 85 85 86 84 48 42 50 50 47 50 85 84 86 47 45 42 47 40 41 50 45 42 47 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0512-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0512-	●	●
40	RAIL; CURTAIN,SIDE	1-73907-537-0	01	1	0407-0511			●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0512-	●	●
40	RAIL; CURTAIN,SIDE	1-73907-538-0	01	1	0407-0511			●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0512-	●	●
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	56	1	0407-0511			●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	17	1	0512-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	17	1	0512-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0512-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0512-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0512-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	0407-0511			●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0512-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0512-	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	0407-0511			●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0512-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73907-545-2	01	1	0512-	●	●
45	RAIL; CURTAIN,FRT (A)	1-73907-546-2	01	1	0407-0511			●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73907-546-3	01	1	0512-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0407-0511			●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0512-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0407-0511			●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0512-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0512-	●	●
48	RAIL; CURTAIN,BACK	1-73996-386-0	01	1	0407-0511			●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0512-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0407-0511			●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0512-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0407-0511			●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0512-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-181-0	01	1	0407-0511			●
58	BED; MAT	1-75127-181-1	01	1	0512-1011	●	●
58	BED; MAT	8-98168-337-1	01	1	1012-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-182-0	01	1	0407-0511			●
59	COVER ASM; TRIM,BED MAT	1-75127-182-0	01	1	0512-1011	●	●
59	COVER ASM; TRIM,BED MAT	8-98168-341-1	01	1	1012-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0407-0511			●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0512-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0407-0511			●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0512-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0407-0511			●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0512-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0407-0511			●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0512-	●	●

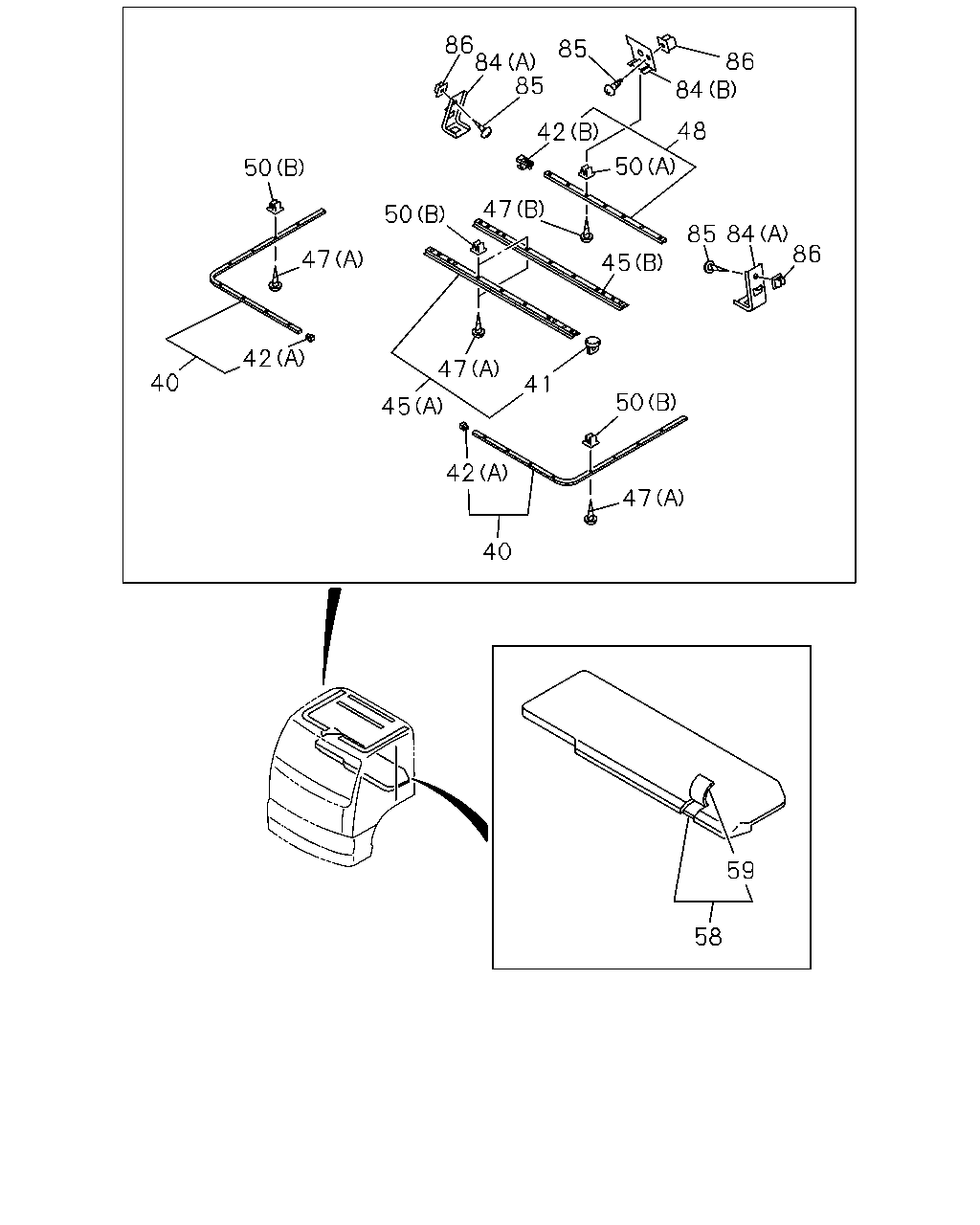

86 84 85 85 86 84 42 48 50 42 41 47 41 42 40 50 50 47 85 84 86 42 47 41 45 42 41 50 42 47 40 59 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-535-1	01	1	0512-	●	●
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4>	1-73907-536-1	01	1	0512-	●	●
40	RAIL; CURTAIN,SIDE	1-73907-537-0	01	1	0407-0511			●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-537-1	01	1	0512-	●	●
40	RAIL; CURTAIN,SIDE	1-73907-538-0	01	1	0407-0511			●
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4>	1-73907-538-1	01	1	0512-	●	●
41	HOOK; CURTAIN RAIL H=14.5 WHITE	1-73996-398-0	56	1	0407-0511			●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	17	1	0512-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	17	1	0512-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 WHITE	1-73996-398-0	08	1	0512-	●	●
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 WHITE	1-73996-398-0	14	1	0512-	●	●
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	01	1	0512-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	04	1	0407-0511			●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73996-393-0	02	1	0512-	●	●
42	STOPPER; CURTAIN RAIL (A)	1-73996-393-0	02	1	0512-	●	●
42	STOPPER; CURTAIN RAIL (B)	1-73996-399-0	02	1	0407-0511			●
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-399-0	02	1	0512-	●	●
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73907-545-2	01	1	0512-	●	●
45	RAIL; CURTAIN,FRT (A)	1-73907-546-2	01	1	0407-0511			●
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73907-546-3	01	1	0512-	●	●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0407-0511			●
47	SCREW; CURTAIN RAIL (A) M5X20	5-09981-059-0	27	1	0512-	●	●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0407-0511			●
47	SCREW; CURTAIN RAIL (B) M5X25	5-09981-093-0	07	1	0512-	●	●
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4>	1-73996-385-1	01	1	0512-	●	●
48	RAIL; CURTAIN,BACK	1-73996-386-0	01	1	0407-0511			●
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4>	1-73996-386-1	01	1	0512-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0407-0511			●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8X8 L=13 M5	1-09983-159-0	07	1	0512-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0407-0511			●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	27	1	0512-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40>	1-75127-181-0	01	1	0407-0511			●
58	BED; MAT	1-75127-181-1	01	1	0512-1011	●	●
58	BED; MAT	8-98168-337-1	01	1	1012-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40>	1-75127-182-0	01	1	0407-0511			●
59	COVER ASM; TRIM,BED MAT	1-75127-182-0	01	1	0512-1011	●	●
59	COVER ASM; TRIM,BED MAT	8-98168-341-1	01	1	1012-	●	●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0407-0511			●
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0512-	●	●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0407-0511			●
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	07	1	0512-	●	●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0407-0511			●
85	SCREW; BRKT M5X20	5-09981-059-0	09	1	0512-	●	●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0407-0511			●
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5	8-94279-078-0	09	1	0512-	●	●
