Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#31407) — 370 parça

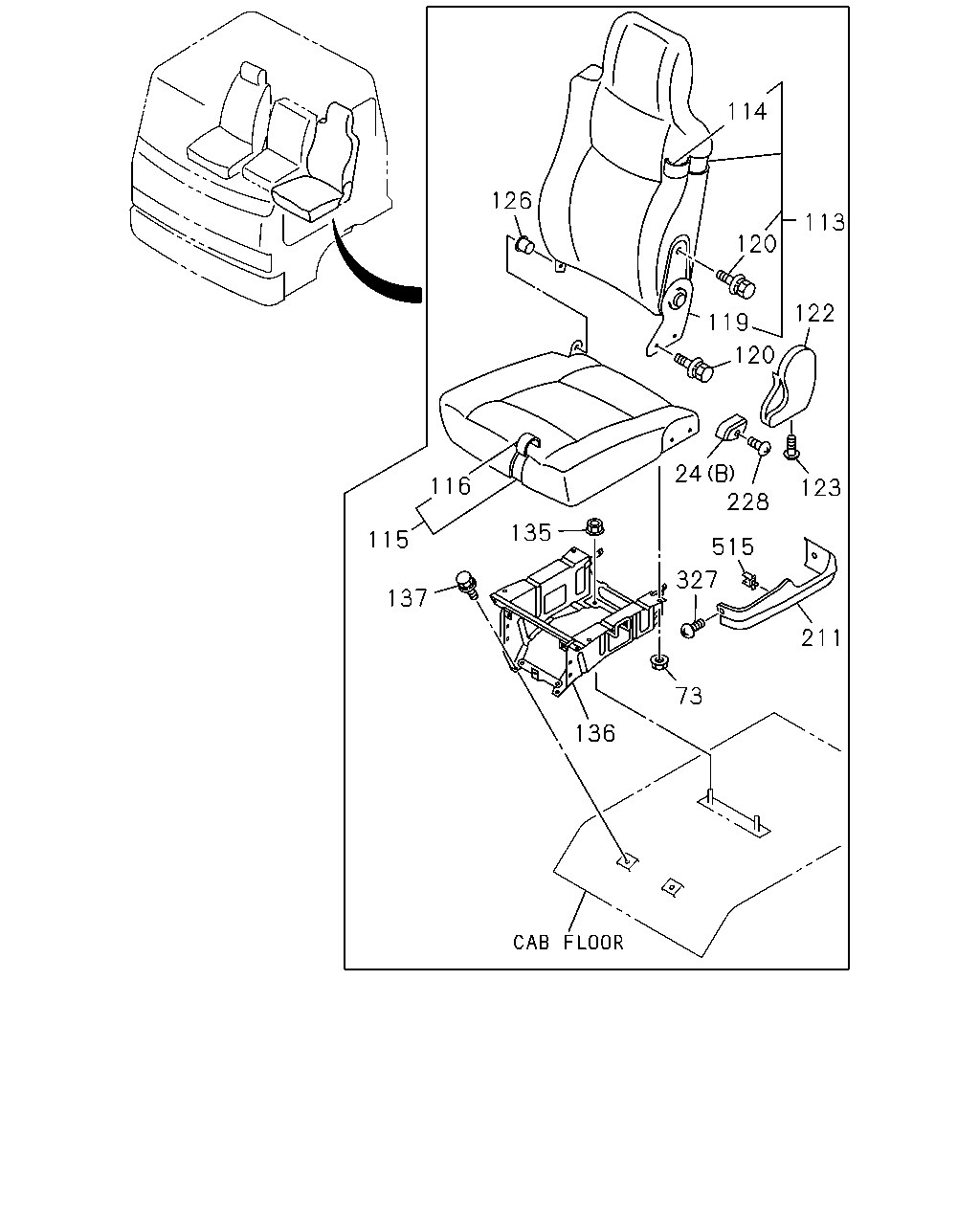

114 126 113 120 122 119 120 24 228 116 123 135 115 515 327 137 211 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	KNOB; RECLINING,FRT,SEAT EXC. CUSTOM CAB(SR5) (B) DARK GRAY	8-97859-019-0	01	1	0512-1011	●
24	KNOB; RECLINING,FRT,SEAT EXC. CUSTOM CAB(SR5) (B)	1-75418-067-0	01	1	1012-	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0407-0511		●
24	KNOB; RECLINING,FRT,SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY	8-97867-021-0	01	1	0512-0710	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0512-0710			●
24	KNOB; RECLINING,FRT,SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75418-066-0	01	1	0711-	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	0711-			●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0407-0511		●
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0512-	●		●
113	BACK ASM; SEAT EXC. CUSTOM CAB(SR5)	1-75207-651-3	01	1	0512-1011	●
113	BACK ASM; SEAT EXC. CUSTOM CAB(SR5)	8-98168-274-0	01	1	1012-	●
113	BACK ASM; SEAT	1-75207-597-1	01	1	0407-0511		●
113	BACK ASM; SEAT CUSTOM CAB(SR5)	1-75207-597-2	01	1	0512-1011	●
113	BACK ASM; SEAT	1-75207-597-2	01	1	0512-1011			●
113	BACK ASM; SEAT CUSTOM CAB(SR5)	8-98168-273-0	01	1	1012-	●
113	BACK ASM; SEAT	8-98168-273-0	01	1	1012-			●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. CUSTOM CAB(SR5)	1-75127-170-2	01	1	0512-1011	●
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. CUSTOM CAB(SR5)	8-98168-290-0	01	1	1012-	●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75127-152-1	01	1	0407-0511		●
114	COVER; TRIM,PASSENGER SEAT,BACK CUSTOM CAB(SR5)	1-75127-152-2	01	1	0512-1011	●
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75127-152-2	01	1	0512-1011			●
114	COVER; TRIM,PASSENGER SEAT,BACK CUSTOM CAB(SR5)	8-98168-286-0	01	1	1012-	●
114	COVER; TRIM,PASSENGER SEAT,BACK	8-98168-286-0	01	1	1012-			●
115	CUSHION ASM; PASSENGER SEAT CUSTOM CAB(SR5)	1-75207-594-1	01	1	0407-0511		●
115	CUSHION ASM; PASSENGER SEAT CUSTOM CAB(SR5)	1-75207-594-2	01	1	0512-1011	●
115	CUSHION ASM; PASSENGER SEAT	1-75207-594-2	01	1	0512-1011			●
115	CUSHION ASM; PASSENGER SEAT CUSTOM CAB(SR5)	8-98168-125-0	01	1	1012-	●
115	CUSHION ASM; PASSENGER SEAT	8-98168-125-0	01	1	1012-			●
115	CUSHION ASM; PASSENGER SEAT EXC. CUSTOM CAB(SR5)	1-75207-596-1	01	1	0407-0511		●
115	CUSHION ASM; PASSENGER SEAT EXC. CUSTOM CAB(SR5)	1-75207-737-1	01	1	0512-1011	●
115	CUSHION ASM; PASSENGER SEAT EXC. CUSTOM CAB(SR5)	8-98168-128-0	01	1	1012-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION CUSTOM CAB(SR5)	1-75127-149-1	01	1	0407-0511		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION CUSTOM CAB(SR5)	1-75127-149-2	01	1	0512-1011	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75127-149-2	01	1	0512-1011			●
116	COVER; TRIM,PASSENGER SEAT,CUSHION CUSTOM CAB(SR5)	8-98168-135-0	01	1	1012-	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION	8-98168-135-0	01	1	1012-			●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. CUSTOM CAB(SR5)	1-75127-151-1	01	1	0407-0511		●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. CUSTOM CAB(SR5)	1-75127-184-1	01	1	0512-1011	●
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. CUSTOM CAB(SR5)	8-98168-141-0	01	1	1012-	●
119	ADJ; SEAT RECLINING,ASSIST SIDE	1-75417-597-0	01	1	0407-0511		●
119	ADJ; SEAT RECLINING,ASSIST SIDE CUSTOM CAB(SR5)	1-75417-597-0	01	1	0512-	●
119	ADJ; SEAT RECLINING,ASSIST SIDE	1-75417-597-0	01	1	0512-			●
120	BOLT; RECLINING ADJ EXC. CUSTOM CAB(SR5) M8X20	8-97255-906-0	02	1	0512-	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	04	1	0407-0511		●
120	BOLT; RECLINING ADJ CUSTOM CAB(SR5) M8X20	8-97255-906-0	04	1	0512-	●
120	BOLT; RECLINING ADJ M8X20	8-97255-906-0	04	1	0512-			●
122	COVER; ADJ,RECLINING EXC. CUSTOM CAB(SR5) DARK GRAY	8-97859-018-0	01	1	0512-	●
122	COVER; ADJ,RECLINING	1-75417-598-0	01	1	0407-0511		●
122	COVER; ADJ,RECLINING CUSTOM CAB(SR5)	1-75417-598-0	01	1	0512-	●
122	COVER; ADJ,RECLINING	1-75417-598-0	01	1	0512-			●
123	SCREW; COVER,RECLINING EXC. CUSTOM CAB(SR5) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0512-	●
123	SCREW; COVER,RECLINING M6X12	9-03490-612-0	01	1	0407-0511		●
123	SCREW; COVER,RECLINING CUSTOM CAB(SR5) M6X12	9-03490-612-0	01	1	0512-	●
123	SCREW; COVER,RECLINING M6X12	9-03490-612-0	01	1	0512-			●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0407-0511		●
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0512-	●		●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0407-0511		●
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0512-0703	●		●
135	NUT; SEAT STAND M10 FLANGE	0-91180-110-0	02	1	0704-	●		●
136	STAND; PASSENGER SEAT TRANSMISSION CONTROL LINK TYPE(B2A) CUSTOM CAB(SR5)	1-75558-631-0	01	1	0407-0511		●
136	STAND; PASSENGER SEAT EXC. CUSTOM CAB(SR5)	1-75558-601-3	01	1	0512-1305	●
136	STAND; PASSENGER SEAT EXC. CUSTOM CAB(SR5)	8-98242-298-0	01	1	1306-	●
136	STAND; PASSENGER SEAT TRANSMISSION CONTROL LINK TYPE(B2A) EXC. CUSTOM CAB(SR5)	1-75557-479-2	01	1	0407-0511		●
136	STAND; PASSENGER SEAT SMOOTHER-G(C1W) CUSTOM CAB(SR5)	1-75558-522-8	01	1	0407-0511		●
136	STAND; PASSENGER SEAT CUSTOM CAB(SR5)	1-75558-522-8	01	1	0512-1305	●
136	STAND; PASSENGER SEAT	1-75558-522-8	01	1	0512-1305			●
136	STAND; PASSENGER SEAT CUSTOM CAB(SR5)	8-98242-290-0	01	1	1306-	●
136	STAND; PASSENGER SEAT	8-98242-290-0	01	1	1306-			●
136	STAND; PASSENGER SEAT SMOOTHER-G(C1W) EXC. CUSTOM CAB(SR5)	1-75557-502-2	01	1	0407-0511		●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0407-0511		●
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0512-0703	●		●
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-	●		●
211	COVER; FRT SEAT EXC. CUSTOM CAB(SR5)	1-72538-274-0	01	1	0407-0511		●
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4	8-98062-662-0	01	1	0711-1011	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-1011			●
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4	8-98062-662-0	01	1	1012-	●
228	SCREW; KNOB EXC. CUSTOM CAB(SR5) M4	8-98062-662-0	01	1	1012-	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1012-			●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0407-0511		●
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0512-0710	●
228	SCREW; KNOB EXC. CUSTOM CAB(SR5) M4X6	8-97042-273-0	01	1	0512-0710	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0512-0710			●
228	SCREW; KNOB EXC. CUSTOM CAB(SR5) PASSENGER M4X6	8-97042-273-0	01	1	0711-1011	●
327	CLIP; COVER EXC. CUSTOM CAB(SR5)	1-09987-273-0	02	1	0407-0511		●
327	CLIP; COVER	1-09987-273-0	02	1	0407-0511		●
327	CLIP; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0512-	●
327	CLIP; COVER	1-09987-273-0	02	1	0512-			●
515	CLIP; PIPE EXC. CUSTOM CAB(SR5) BLACK	8-94227-248-1	01	1	0407-0511		●

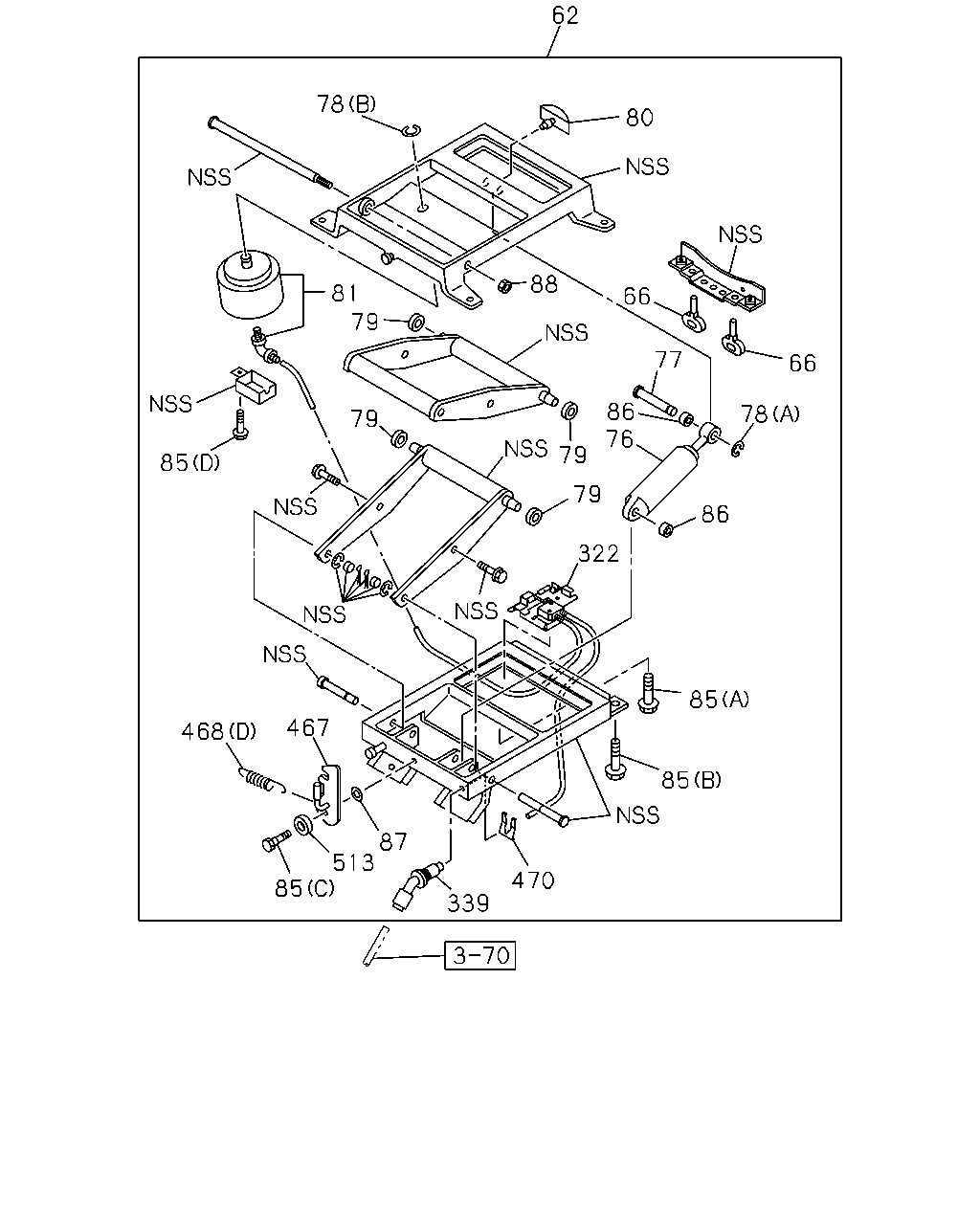

62 78 80 66 66 88 81 85 79 79 79 76 86 77 78 86 79 322 467 85 85 470 339 87 513 85 468

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
62	DAMPER ASM; SEAT SUSP	1-75537-262-6	01	1	0407-0511		●
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-8	01	1	0512-1403	●
62	DAMPER ASM; SEAT SUSP	1-75537-262-8	01	1	0512-1403			●
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-449-0	01	1	1404-	●
62	DAMPER ASM; SEAT SUSP	8-98261-449-0	01	1	1404-			●
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	0407-0511		●
66	RUBBER; LWR STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0512-	●
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	0512-			●
76	DAMPER; AIR SUSP	1-75537-230-2	01	1	0407-0511		●
76	DAMPER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	0512-	●
76	DAMPER; AIR SUSP	1-75537-230-2	01	1	0512-			●
77	PIN; DAMPER	1-75538-138-2	01	1	0407-0511		●
77	PIN; DAMPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0512-	●
77	PIN; DAMPER	1-75538-138-2	01	1	0512-			●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	0407-0511		●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0512-	●
78	RING; SNAP (A) ID=8	9-09185-408-0	01	1	0512-			●
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	0407-0511		●
78	RING; SNAP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=15	9-09185-415-0	01	1	0512-	●
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	0512-			●
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	0407-0511		●
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0512-1403	●
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	0512-1403			●
79	ROLLER ASM; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-489-0	04	1	1404-	●
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1404-			●
80	RUBBER; STOPPER	1-09987-123-0	01	1	0407-0511		●
80	RUBBER; STOPPER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	0512-	●
80	RUBBER; STOPPER	1-09987-123-0	01	1	0512-			●
81	SPRING; AIR	1-75538-151-2	01	1	0407-0511		●
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-2	01	1	0512-1312	●
81	SPRING; AIR	1-75538-151-2	01	1	0512-1312			●
81	SPRING; AIR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98242-816-0	01	1	1401-	●
81	SPRING; AIR	8-98242-816-0	01	1	1401-			●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-	●
85	BOLT; AIR SUSP (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-			●
85	BOLT; AIR SUSP (C)	1-09980-577-0	01	1	0407-0511		●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-1	01	1	0512-	●
85	BOLT; AIR SUSP (C)	1-09980-577-1	01	1	0512-			●
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-0	02	1	0407-0511		●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-1	02	1	0512-	●
85	BOLT; AIR SUSP (A) M6X12	1-75538-208-1	02	1	0512-			●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0407-0511		●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0512-1312	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0512-1312			●
85	BOLT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-	●
85	BOLT; AIR SUSP (B) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1401-			●
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0407-0511		●
86	BUSHING; GUIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0512-	●
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0512-			●
87	WASHER; AIR SUSP ID=8.2	9-09150-508-0	01	1	0407-0511		●
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0512-0710	●
87	WASHER; AIR SUSP ID=8.2	9-09150-508-0	01	1	0512-0710			●
87	WASHER; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	0-91510-508-0	01	1	0711-	●
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	0711-			●
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	0407-0511		●
88	NUT; AIR SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	0512-	●
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	0512-			●
322	VALVE; AIR SPRING	1-75538-186-2	01	1	0407-0511		●
322	VALVE; AIR SPRING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-186-3	01	1	0512-	●
322	VALVE; AIR SPRING	1-75538-186-3	01	1	0512-			●
339	UNION; DRIVER SEAT	1-75538-131-2	01	1	0407-0511		●
339	UNION; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-3	01	1	0512-	●
339	UNION; DRIVER SEAT	1-75538-131-3	01	1	0512-			●
467	LEVER; LOCK	1-75538-134-0	01	1	0407-0511		●
467	LEVER; LOCK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0512-	●
467	LEVER; LOCK	1-75538-134-0	01	1	0512-			●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0407-0511		●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0512-	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0512-			●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0407-0511		●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0512-	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0512-			●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0407-0511		●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0512-	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0512-			●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	0407-0511		●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0512-	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	0512-			●
470	CLIP; HOSE	1-75538-137-0	01	1	0407-0511		●
470	CLIP; HOSE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0512-	●
470	CLIP; HOSE	1-75538-137-0	01	1	0512-			●
513	SPACER; LEVER	1-75538-133-0	01	1	0407-0511		●
513	SPACER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0512-	●
513	SPACER; LEVER	1-75538-133-0	01	1	0512-			●

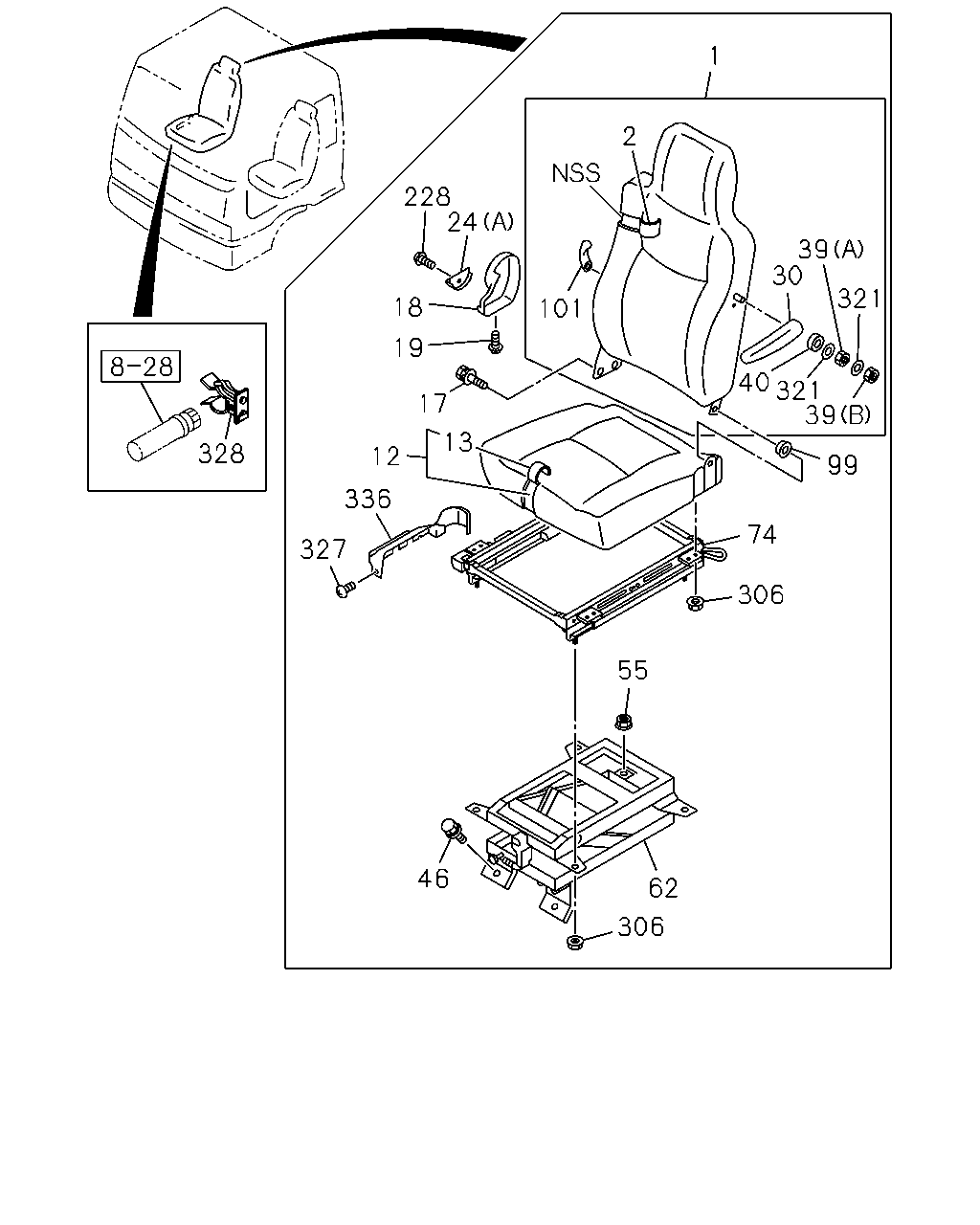

1 2 228 24 39 30 321 18 101 19 40 321 39 17 13 328 12 99 336 74 327 306 55 46 62 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BACK ASM; SEAT	1-75207-586-2	01	1	0407-0511		●
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-586-3	01	1	0512-0901	●
1	BACK ASM; SEAT	1-75207-586-3	01	1	0512-0901			●
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98135-629-0	01	1	0902-1011	●
1	BACK ASM; SEAT	8-98135-629-0	01	1	0902-1011			●
1	BACK ASM; SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-067-0	01	1	1012-	●
1	BACK ASM; SEAT	8-98168-067-0	01	1	1012-			●
2	COVER; TRIM,FRT SEAT,BACK	1-75127-145-1	01	1	0407-0511		●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-145-2	01	1	0512-1011	●
2	COVER; TRIM,FRT SEAT,BACK	1-75127-145-2	01	1	0512-1011			●
2	COVER; TRIM,FRT SEAT,BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-082-0	01	1	1012-	●
2	COVER; TRIM,FRT SEAT,BACK	8-98168-082-0	01	1	1012-			●
12	CUSHION; SEAT,FRT	1-75207-584-3	01	1	0407-0511		●
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-584-4	01	1	0512-1011	●
12	CUSHION; SEAT,FRT	1-75207-584-4	01	1	0512-1011			●
12	CUSHION; SEAT,FRT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-042-0	01	1	1012-	●
12	CUSHION; SEAT,FRT	8-98168-042-0	01	1	1012-			●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75127-143-2	01	1	0407-0511		●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-143-3	01	1	0512-1011	●
13	COVER; TRIM,FRT SEAT,CUSHION	1-75127-143-3	01	1	0512-1011			●
13	COVER; TRIM,FRT SEAT,CUSHION SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98168-074-0	01	1	1012-	●
13	COVER; TRIM,FRT SEAT,CUSHION	8-98168-074-0	01	1	1012-			●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0407-0511		●
17	BOLT; RECLINING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8X20	8-97255-906-0	02	1	0512-	●
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0512-			●
18	COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	0407-0511		●
18	COVER; RECLINING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DARK GRAY	8-97867-020-0	01	1	0512-	●
18	COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	0512-			●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0407-0511		●
19	SCREW; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0512-	●
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0512-			●
24	KNOB; RECLINING,FRT,SEAT EXC. CUSTOM CAB(SR5) (B) DARK GRAY	8-97859-019-0	01	1	0512-1011	●
24	KNOB; RECLINING,FRT,SEAT EXC. CUSTOM CAB(SR5) (B)	1-75418-067-0	01	1	1012-	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0407-0511		●
24	KNOB; RECLINING,FRT,SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DARK GRAY	8-97867-021-0	01	1	0512-0710	●
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0512-0710			●
24	KNOB; RECLINING,FRT,SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75418-066-0	01	1	0711-	●
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-066-0	01	1	0711-			●
30	REST ASM; ARM,FRT SEAT	1-75127-148-0	01	1	0407-0511		●
30	REST ASM; ARM,FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-148-1	01	1	0512-	●
30	REST ASM; ARM,FRT SEAT	1-75127-148-1	01	1	0512-			●
39	NUT; ARM REST (B) M8	1-75147-657-0	01	1	0407-0511		●
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0512-	●
39	NUT; ARM REST (B) M8	1-75147-657-0	01	1	0512-			●
39	NUT; ARM REST (A) M10	9-09110-410-0	01	1	0407-0511		●
39	NUT; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0512-	●
39	NUT; ARM REST (A) M10	9-09110-410-0	01	1	0512-			●
40	SPACER; ARM REST	8-94285-921-0	02	1	0407-0511		●
40	SPACER; ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0512-	●
40	SPACER; ARM REST	8-94285-921-0	02	1	0512-			●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0407-0511		●
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0512-0703	●		●
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-	●		●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0407-0511		●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0512-0703	●		●
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	0-91180-110-0	02	1	0704-	●		●
62	DAMPER ASM; SEAT SUSP	1-75537-262-6	01	1	0407-0511		●
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-8	01	1	0512-1403	●
62	DAMPER ASM; SEAT SUSP	1-75537-262-8	01	1	0512-1403			●
62	DAMPER ASM; SEAT SUSP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98261-449-0	01	1	1404-	●
62	DAMPER ASM; SEAT SUSP	8-98261-449-0	01	1	1404-			●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-1	01	1	0407-0511		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-330-3	01	1	0512-1502	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	0512-1502			●
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-644-0	01	1	1503-	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-644-0	01	1	1503-			●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0407-0511		●
99	BUSHING; SEAT BACK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-97854-087-0	01	1	0512-	●
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0512-			●
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	0407-0511		●
101	LEVER ASM; LUMBAR SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	5-75190-138-0	01	1	0512-	●
101	LEVER ASM; LUMBAR	5-75190-138-0	01	1	0512-			●
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DRIVER M4	8-98062-662-0	01	1	0711-1011	●
228	SCREW; KNOB DRIVER M4	8-98062-662-0	01	1	0711-1011			●
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4	8-98062-662-0	01	1	1012-	●
228	SCREW; KNOB EXC. CUSTOM CAB(SR5) M4	8-98062-662-0	01	1	1012-	●
228	SCREW; KNOB M4	8-98062-662-0	01	1	1012-			●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0407-0511		●
228	SCREW; KNOB SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M4X6	8-97042-273-0	01	1	0512-0710	●
228	SCREW; KNOB EXC. CUSTOM CAB(SR5) M4X6	8-97042-273-0	01	1	0512-0710	●
228	SCREW; KNOB M4X6	8-97042-273-0	01	1	0512-0710			●
228	SCREW; KNOB EXC. CUSTOM CAB(SR5) PASSENGER M4X6	8-97042-273-0	01	1	0711-1011	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	0407-0511		●
306	NUT; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	14	1	0512-	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	0512-			●
321	WASHER; PL,ARM REST ID=10.5 OD=22	9-09160-610-0	01	1	0407-0511		●
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0512-	●
321	WASHER; PL,ARM REST ID=10.5 OD=22	9-09160-610-0	01	1	0512-			●
321	WASHER; PL,ARM REST ID=8.4 OD=22	9-09164-708-0	01	1	0407-0511		●
321	WASHER; PL,ARM REST SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0512-	●
321	WASHER; PL,ARM REST ID=8.4 OD=22	9-09164-708-0	01	1	0512-			●
327	CLIP; COVER EXC. CUSTOM CAB(SR5)	1-09987-273-0	02	1	0407-0511		●
327	CLIP; COVER	1-09987-273-0	02	1	0407-0511		●
327	CLIP; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-273-0	02	1	0512-	●
327	CLIP; COVER	1-09987-273-0	02	1	0512-			●
328	CLIP; HANDY WARNING	1-72537-239-0	01	1	0407-0511		●
328	CLIP; HANDY WARNING SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-72537-239-0	01	1	0512-	●
328	CLIP; HANDY WARNING	1-72537-239-0	01	1	0512-			●
336	COVER; DRIVER SEAT	1-75518-303-0	01	1	0407-0511		●
336	COVER; DRIVER SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-303-0	01	1	0512-	●
336	COVER; DRIVER SEAT	1-75518-303-0	01	1	0512-			●

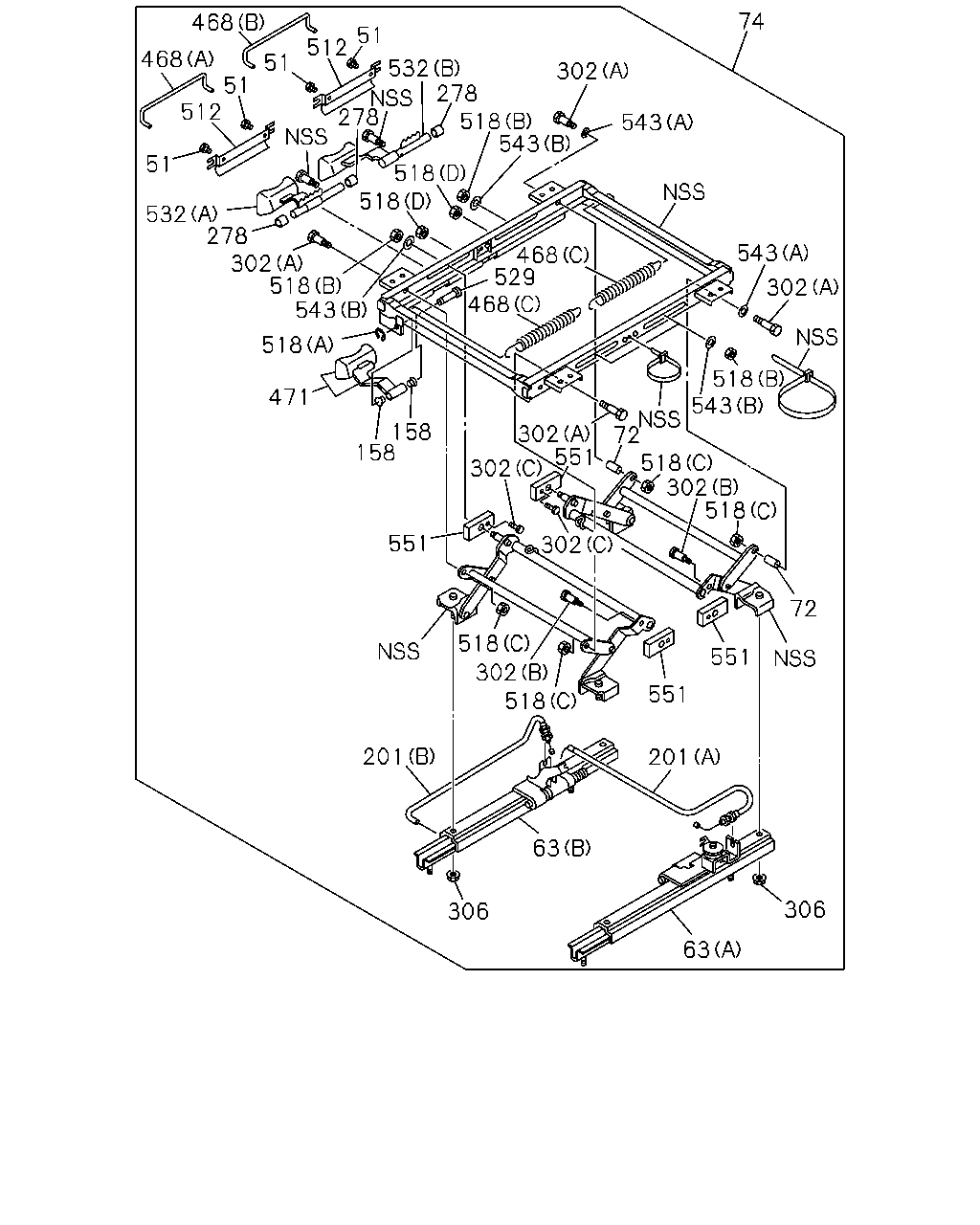

74 468 51 512 468 51 532 278 518 543 302 51 512 278 543 51 518 518 532 278 302 518 543 543 468 529 468 302 518 518 543 471 551 518 302 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 302 518 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	SCREW; COVER	1-75518-325-1	04	1	0407-0511		●
51	SCREW; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-325-1	04	1	0512-	●
51	SCREW; COVER	1-75518-325-1	04	1	0512-			●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	0407-0511		●
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-199-1	01	1	0512-	●
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	0512-			●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	0407-0511		●
63	ADJUSTER; SEAT SLIDE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-323-0	01	1	0512-	●
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	0512-			●
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	0407-0511		●
72	SPACER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-334-1	02	1	0512-1502	●
72	SPACER; SEAT ADJ	1-75518-334-1	02	1	0512-1502			●
72	SPACER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-668-0	02	1	1503-	●
72	SPACER; SEAT ADJ	8-98291-668-0	02	1	1503-			●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-1	01	1	0407-0511		●
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-330-3	01	1	0512-1502	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	1-75518-330-3	01	1	0512-1502			●
74	ADJUSTER; FRT SEAT,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98291-644-0	01	1	1503-	●
74	ADJUSTER; FRT SEAT,HEIGHT CONT	8-98291-644-0	01	1	1503-			●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0407-0511		●
158	BUSHING; LINK ARM SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-209-0	02	1	0512-	●
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0512-			●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0407-0511		●
201	CABLE; ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) L=667	1-75518-288-0	01	1	0512-	●
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0512-			●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0407-0511		●
201	CABLE; ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=605	1-75518-289-1	01	1	0512-	●
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0512-			●
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	0407-0511		●
278	COLLAR; FRT SEAT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-244-0	03	1	0512-	●
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	0512-			●
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	0407-0511		●
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-266-2	02	1	0512-	●
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	0512-			●
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	0407-0511		●
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-270-1	04	1	0512-1502	●
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	0512-1502			●
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	8-98291-667-0	04	1	1503-	●
302	BOLT; ADJ,HEIGHT CONT (A)	8-98291-667-0	04	1	1503-			●
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	0407-0511		●
302	BOLT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-336-1	02	1	0512-	●
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	0512-			●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	0407-0511		●
306	NUT; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	14	1	0512-	●
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	14	1	0512-			●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0407-0511		●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-206-0	01	1	0512-	●
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0512-			●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0407-0511		●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-207-0	01	1	0512-	●
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0512-			●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0407-0511		●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-75518-208-0	02	1	0512-	●
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0512-			●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	0407-0511		●
468	SPRING; RETURN SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0512-	●
468	SPRING; RETURN (D)	1-75538-132-0	01	1	0512-			●
471	LEVER; SEAT ADJ	1-75518-291-0	01	1	0407-0511		●
471	LEVER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-291-0	01	1	0512-0710	●
471	LEVER; SEAT ADJ	1-75518-291-0	01	1	0512-0710			●
471	LEVER; SEAT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-98107-869-0	01	1	0711-	●
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	0711-			●
512	COVER; LEVER	1-75518-243-1	02	1	0407-0511		●
512	COVER; LEVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-243-1	02	1	0512-	●
512	COVER; LEVER	1-75518-243-1	02	1	0512-			●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0407-0511		●
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-263-0	01	1	0512-	●
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0512-			●
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	0407-0511		●
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) M8	1-75518-264-0	04	1	0512-	●
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	0512-			●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	0407-0511		●
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D) M6 LOCK NUT	5-09984-020-0	02	1	0512-	●
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	0512-			●
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	0407-0511		●
518	NUT; TILT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8 FLANGE	8-94152-886-0	04	1	0512-	●
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	0512-			●
529	PIN; LINK	1-75518-262-0	01	1	0407-0511		●
529	PIN; LINK SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-262-0	01	1	0512-	●
529	PIN; LINK	1-75518-262-0	01	1	0512-			●
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	0407-0511		●
532	LEVER ASM; TILT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-203-0	01	1	0512-	●
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	0512-			●
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	0407-0511		●
532	LEVER ASM; TILT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B)	1-75518-204-1	01	1	0512-	●
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	0512-			●
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=8.4	9-09160-508-0	04	1	0512-	●
543	WASHER; HEIGHT ADJUSTER (B) ID=8.4	9-09160-508-0	04	1	0512-			●
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	0407-0511		●
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A)	1-75518-335-0	02	1	0512-1502	●
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-335-0	02	1	0512-1502			●
543	WASHER; HEIGHT ADJUSTER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=13 OD=19	8-98291-669-0	02	1	1503-	●
543	WASHER; HEIGHT ADJUSTER (A) ID=13 OD=19	8-98291-669-0	02	1	1503-			●
543	WASHER; HEIGHT ADJUSTER (B) ID=6.4	9-09160-506-0	04	1	0407-0511		●
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	0407-0511		●
551	SLIDER; HEIGHT ADJ SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75518-265-0	04	1	0512-	●
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	0512-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
