◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10954 - CXZ/CYZ NEW ZEALAND ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#31406) — 123 parça

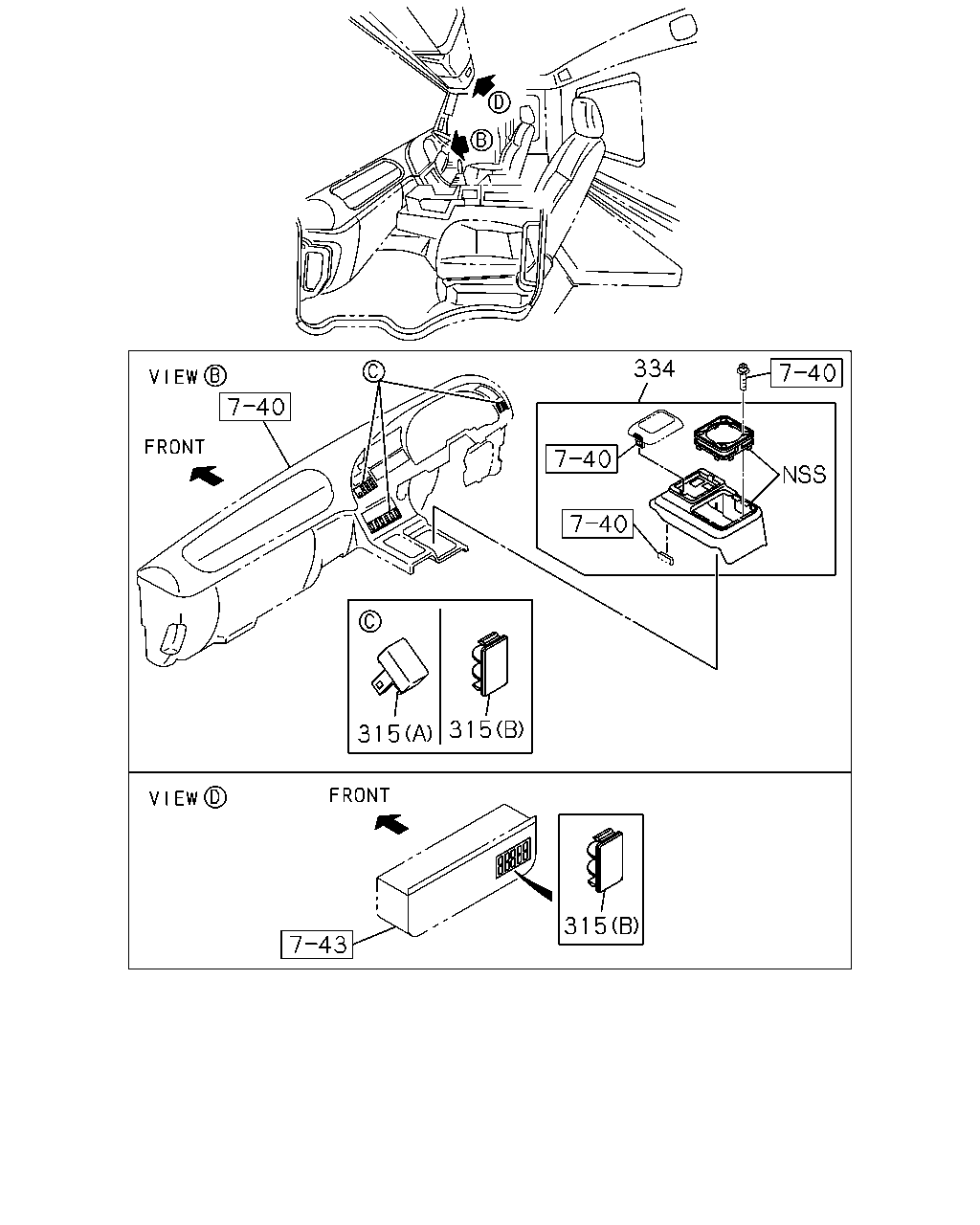

çizim 104689
334 315 315 315
BalonParca AdiParca NoAdetTipApplied Date A B C
315 COVER; HOLE,SW
EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) 		1-82359-069-2 01 1 0705- ● ●
315 COVER; HOLE,SW
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B) 		1-82359-069-2 01 1 0705- ● ●
315 COVER; HOLE,SW
EXC. MIR STAY O/S W/REMOTE<TBA> (B) 		1-82359-069-2 01 1 0705- ● ●
315 COVER; HOLE,SW
EXC. AUTO CRUISE W/RESUME<NKA> (B) 		1-82359-069-2 01 1 0705- ● ●
315 COVER; HOLE,SW
(B) 		1-82359-069-2 01 1 0705- ● ●
315 COVER; HOLE,SW
(B) 		1-82359-069-2 01 1 0705- ● ●
315 COVER; HOLE,SW
EXC. MIRROR OUTSIDE REARVIEW,W/WIPER&WASHER W/DEFG<TBP> (B) 		1-82359-069-2 01 1 0705- ● ●
315 COVER; HOLE,SW
(B) 		1-82359-069-2 13 1 0705- ● ●
315 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (A) 		8-97043-732-1 01 1 0705- ● ●
315 COVER; HOLE,SW
EXC. SMOOTHER-G(C1W) (B) 		1-82359-069-2 02 1 0705- ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0407-0511 ●
315 COVER; HOLE,SW
(A) 		1-82359-069-2 AR 1 0512- ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0407-0511 ●
315 COVER; HOLE,SW
(B) 		8-97043-732-1 AR 1 0512- ●
334 COVER; CHANGE LEVER
SMOOTHER-G(C1W) 		1-72447-969-1 01 1 0407-0511 ●
334 COVER; CHANGE LEVER
MJX16P M/T(Y3Z) SMOOTHER-G(C1W) 		1-72447-969-1 01 1 0512- ●
334 COVER; CHANGE LEVER
MJX16P M/T(Y3Z) 		1-72447-969-1 01 1 0512- ●

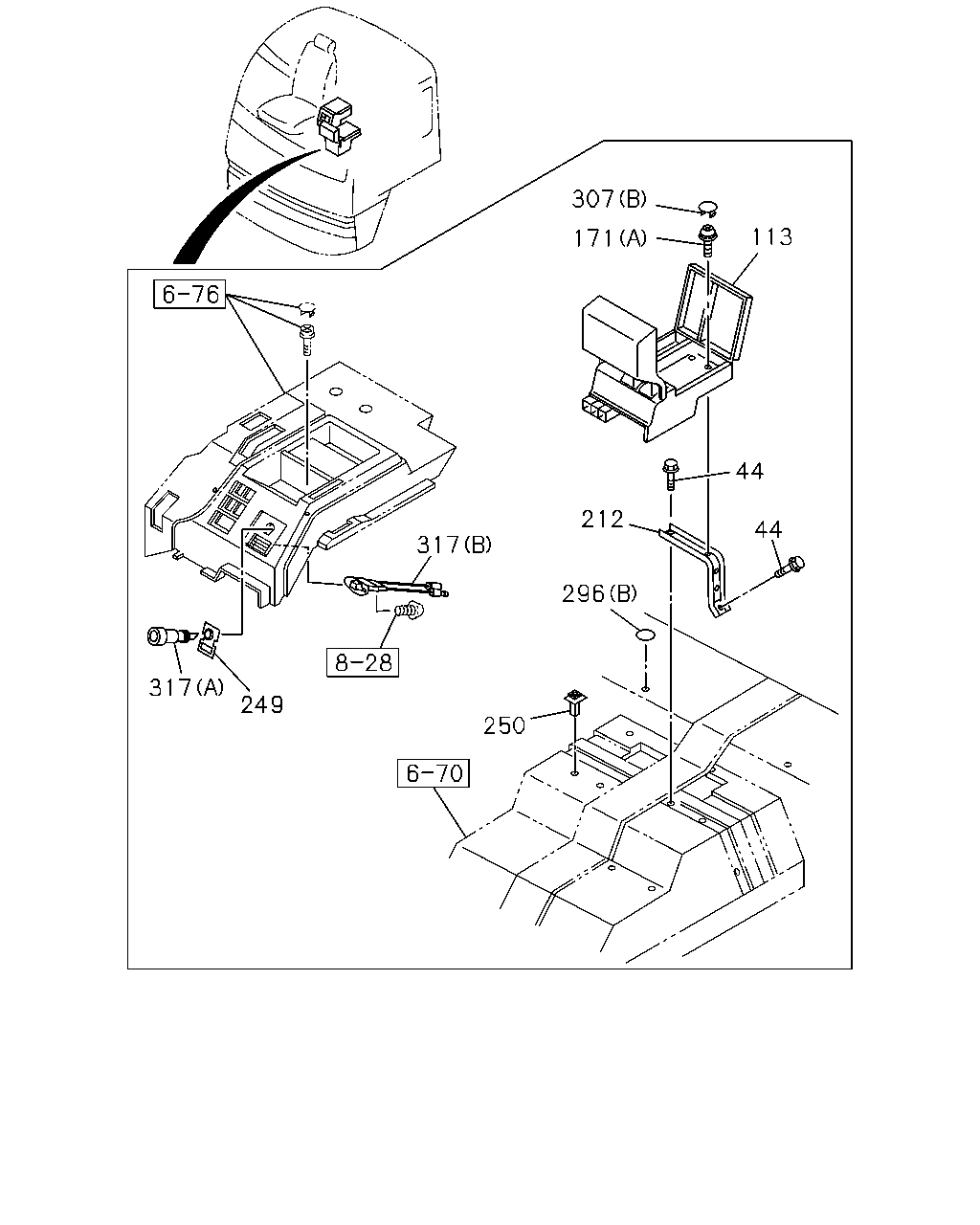

çizim 104690
307 113 171 44 212 44 317 296 317 249 250
BalonParca AdiParca NoAdetTipApplied Date A B C
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0407-0511 ●
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0512-0904 ● ●
44 BOLT; SUPPORT,CTR CONSOLE
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905- ● ●
113 BOX; CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> 		1-72537-284-3 01 1 0512-0609 ● ●
113 BOX; CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> 		1-72537-324-1 01 1 0610- ● ●
113 BOX; CONSOLE 1-72537-240-3 01 1 0407-0507 ●
113 BOX; CONSOLE 1-72537-285-3 01 1 0508-0511 ●
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-278-5 01 1 0512-0609 ● ●
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0610- ● ●
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0407-0511 ●
171 SCREW; CONSOLE BOX
COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0512- ● ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0407-0511 ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0512- ● ●
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0407-0511 ●
212 SUPPORT; CONSOLE TO COMPT 1-72537-095-1 01 1 0512- ● ●
249 COVER
ELEC OUTLET 12V<TAW> 		1-82529-001-0 01 1 0407-0511 ●
249 COVER 1-82529-001-0 01 1 0512- ● ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0407-0511 ●
250 GROMMET; CONSOLE BOX
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 0512- ● ●
296 SEAL
(A) 		1-72537-094-1 01 1 0407-0511 ●
296 SEAL
COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0512- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0407-0511 ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0512- ● ●
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> (C) 		1-72537-270-1 02 1 0512- ● ●
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0407-0511 ●
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0512- ● ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0407-0511 ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0512- ● ●
317 CONSENT
ELEC OUTLET 12V<TAW> (A) 		8-94382-451-1 01 1 0407-0511 ●
317 CONSENT
(A) 		8-94382-451-1 01 1 0512- ● ●
317 CONSENT
(B) 		1-82523-020-2 01 1 0407-0511 ●
317 CONSENT
(B) 		1-82523-020-2 01 1 0512- ● ●

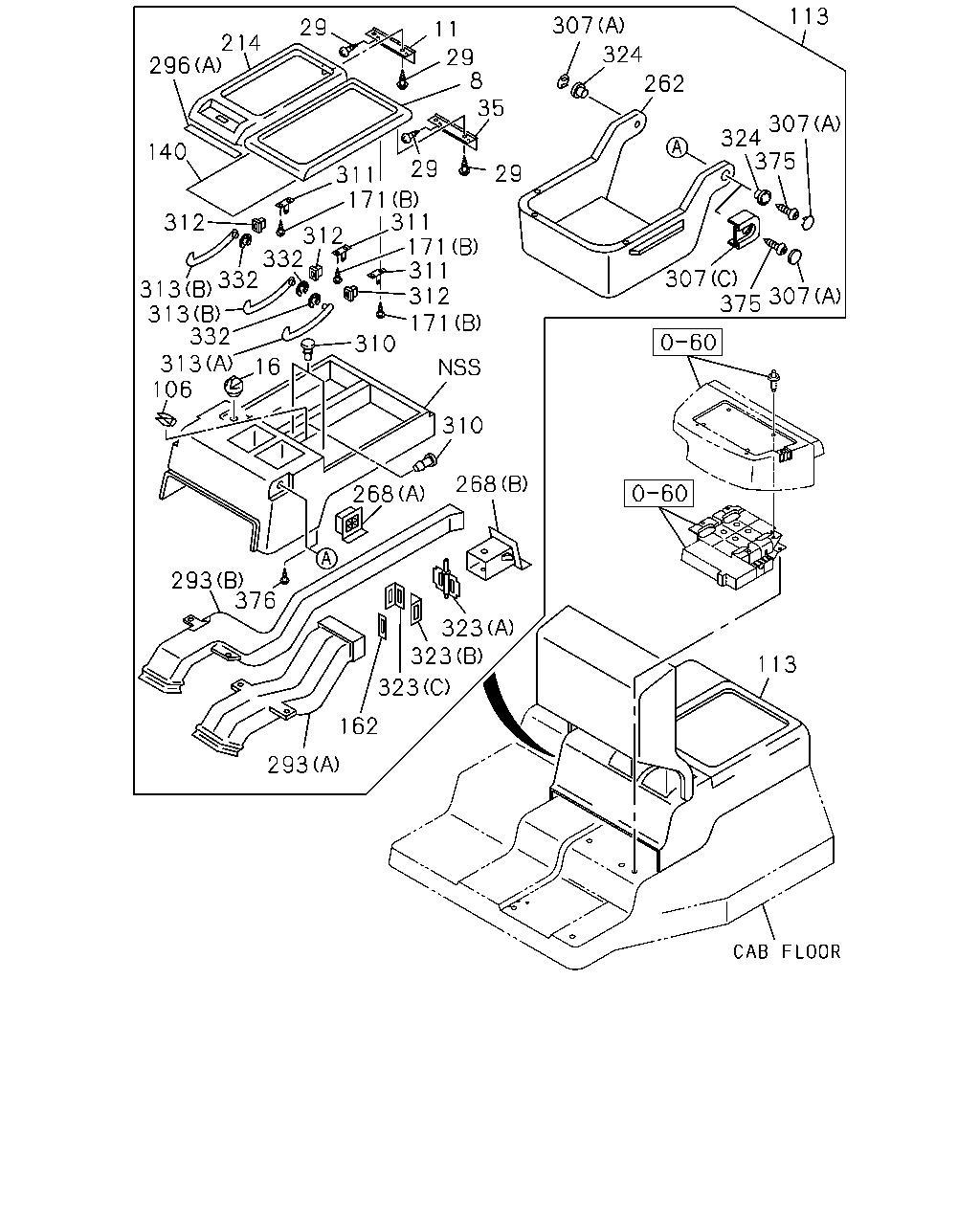

çizim 104908
113 307 29 11 214 324 29 8 35 296 262 307 324 375 140 29 29 311 171 311 171 311 312 171 312 312 332 332 313 313 332 313 106 307 307 375 310 16 310 268 268 293 376 323 323 113 323 162 293
BalonParca AdiParca NoAdetTipApplied Date A B C
8 LID; CENTER CONSOLE 1-72537-185-0 01 1 0407-0511 ●
8 LID; CENTER CONSOLE
COOL & HOT BOX<TMU> 		1-72537-185-0 01 1 0512-0705 ● ●
8 LID; CENTER CONSOLE
COOL & HOT BOX<TMU> 		1-72537-332-0 01 1 0706- ● ●
11 HINGE; CONSOLE LID 1-72537-070-2 01 1 0407-0511 ●
11 HINGE; CONSOLE LID
COOL & HOT BOX<TMU> 		1-72537-070-2 01 1 0512- ● ●
16 KNOB ASM 1-72537-189-0 01 1 0407-0511 ●
16 KNOB ASM
COOL & HOT BOX<TMU> 		1-72537-189-0 01 1 0512- ● ●
29 SCREW; HINGE
M5X14 BINDING HEAD 		1-72537-168-0 08 1 0407-0511 ●
29 SCREW; HINGE
COOL & HOT BOX<TMU> M5X14 BINDING HEAD 		1-72537-168-0 08 1 0512- ● ●
35 HINGE; CENTER CONSOLE 1-72538-182-1 01 1 0407-0511 ●
35 HINGE; CENTER CONSOLE
COOL & HOT BOX<TMU> 		1-72538-182-1 01 1 0512- ● ●
106 LOCK; CONSOLE LID 1-72537-079-0 02 1 0407-0511 ●
106 LOCK; CONSOLE LID
COOL & HOT BOX<TMU> 		1-72537-079-0 02 1 0512- ● ●
113 BOX; CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> 		1-72537-284-3 01 1 0512-0609 ● ●
113 BOX; CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> 		1-72537-324-1 01 1 0610- ● ●
113 BOX; CONSOLE 1-72537-240-3 01 1 0407-0507 ●
113 BOX; CONSOLE 1-72537-285-3 01 1 0508-0511 ●
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-278-5 01 1 0512-0609 ● ●
113 BOX; CONSOLE
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-326-1 01 1 0610- ● ●
140 SHEET 1-72537-093-1 01 1 0407-0511 ●
162 CUSHION; PARCEL BOX 1-72537-128-0 03 1 0407-0511 ●
162 CUSHION; PARCEL BOX
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0512-0601 ● ●
162 CUSHION; PARCEL BOX
COOL & HOT BOX<TMU> 		1-72537-128-0 03 1 0602- ● ●
171 SCREW; CONSOLE BOX
(B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0407-0511 ●
171 SCREW; CONSOLE BOX
COOL & HOT BOX<TMU> (B) M5X14 FLAT HEAD 		1-72537-169-0 06 1 0512- ● ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0407-0511 ●
171 SCREW; CONSOLE BOX
(A) M6X24 W/LK&PL WASHER 		8-94279-404-0 04 1 0512- ● ●
214 LID; CONSOLE 1-72537-186-0 01 1 0407-0511 ●
214 LID; CONSOLE
COOL & HOT BOX<TMU> 		1-72537-186-0 01 1 0512-0705 ● ●
214 LID; CONSOLE
COOL & HOT BOX<TMU> 		1-72537-339-0 01 1 0706- ● ●
262 TABLE ASM 1-72537-187-1 01 1 0407-0511 ●
262 TABLE ASM
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-187-1 01 1 0512- ● ●
268 COVER; DUCT
(B) 		1-72537-183-0 01 1 0407-0511 ●
268 COVER; DUCT
COOL & HOT BOX<TMU> (B) 		1-72537-183-0 01 1 0512- ● ●
268 COVER; DUCT
(A) 		1-72537-184-0 01 1 0407-0511 ●
268 COVER; DUCT
COOL & HOT BOX<TMU> (A) 		1-72537-184-0 01 1 0512- ● ●
293 DUCT
(A) 		1-72537-081-3 01 1 0407-0511 ●
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-081-3 01 1 0512- ● ●
293 DUCT
(B) 		1-72537-083-2 01 1 0407-0511 ●
293 DUCT
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-083-2 01 1 0512- ● ●
296 SEAL
(A) 		1-72537-094-1 01 1 0407-0511 ●
296 SEAL
COOL & HOT BOX<TMU> (A) 		1-72537-094-1 01 1 0512- ● ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0407-0511 ●
296 SEAL
(B) OD=25 BLACK 		1-76798-019-0 01 1 0512- ● ●
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> EXC. TABLE CONSOLE BOX<TDL> (C) 		1-72537-270-1 02 1 0512- ● ●
307 COVER; HOLE,CTR CONSOLE
(A) 		1-72537-188-0 02 1 0407-0511 ●
307 COVER; HOLE,CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72537-188-0 02 1 0512- ● ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0407-0511 ●
307 COVER; HOLE,CTR CONSOLE
(B) 		1-76337-461-0 04 1 0512- ● ●
310 CUSHION; CTR CONSOLE 1-72538-187-0 02 1 0407-0511 ●
310 CUSHION; CTR CONSOLE
COOL & HOT BOX<TMU> 		1-72538-187-0 02 1 0512- ● ●
311 HOLDER; CONSOLE 1-72538-188-2 03 1 0407-0511 ●
311 HOLDER; CONSOLE
COOL & HOT BOX<TMU> 		1-72538-188-2 03 1 0512- ● ●
312 STOPPER; CONSOLE 1-72538-186-1 03 1 0407-0511 ●
312 STOPPER; CONSOLE
COOL & HOT BOX<TMU> 		1-72538-186-1 03 1 0512- ● ●
313 ARM; CTR CONSOLE
(A) 		1-72538-184-3 01 1 0407-0511 ●
313 ARM; CTR CONSOLE
COOL & HOT BOX<TMU> (A) 		1-72538-184-3 01 1 0512- ● ●
313 ARM; CTR CONSOLE
(B) 		1-72538-185-3 02 1 0407-0511 ●
313 ARM; CTR CONSOLE
COOL & HOT BOX<TMU> (B) 		1-72538-185-3 02 1 0512- ● ●
323 SHUTTER
(A) 		1-72537-084-1 01 1 0407-0511 ●
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0512-0601 ● ●
323 SHUTTER
COOL & HOT BOX<TMU> (A) 		1-72537-084-1 01 1 0602- ● ●
323 SHUTTER
(B) 		1-72537-126-0 01 1 0407-0511 ●
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 0512-0601 ● ●
323 SHUTTER
COOL & HOT BOX<TMU> (B) 		1-72537-126-0 01 1 0602- ● ●
323 SHUTTER
(C) 		1-72537-127-0 01 1 0407-0511 ●
323 SHUTTER
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0512-0601 ● ●
323 SHUTTER
COOL & HOT BOX<TMU> (C) 		1-72537-127-0 01 1 0602- ● ●
324 BUSHING 1-72537-116-0 02 1 0407-0511 ●
324 BUSHING
TABLE CONSOLE BOX<TDL> COOL & HOT BOX<TMU> 		1-72537-116-0 02 1 0512- ● ●
332 RING; SNAP,CONSOLE BOX 1-72537-170-0 03 1 0407-0511 ●
332 RING; SNAP,CONSOLE BOX
COOL & HOT BOX<TMU> 		1-72537-170-0 03 1 0512- ● ●
375 SCREW; TAP BUSHING
COOL & HOT BOX<TMU> M6X20 		1-72537-319-0 02 1 0610- ● ●
376 SCREW; TAP DUCT
COOL & HOT BOX<TMU> M4X14 		1-72537-320-0 03 1 0610- ● ●
